The strategy of nanomaterials in polymeric membranes for water treatment: Nanocomposite membranes

La estrategia de los nanomateriales en membranas poliméricas para el tratamiento de agua: membranas nanocompuestas

Roberto Castro-Muñoz1  2

1 University of Chemistry and Technology Prague, Prague, Czech Republic

2 Tecnologico de Monterrey, Campus Toluca, Toluca de Lerdo, Mexico,,


Membrane-based technologies, such as micro (MF), ultra (UF) and nanofiltration (NF), have been widely applied for water treatment applications; however, the limitations of pure polymeric membranes have encouraged the incorporation of inorganic nanomaterials to enhance their performance. Today, nanocomposite membranes have greatly increased the attention of researchers for different water treatment applications, e.g., water purification, wastewater treatment, removal of microorganisms, chemical compounds and heavy metals. To date, different types of nanomaterials have been incorporated into polymeric membranes, such as carbon nanotubes (CNT), zinc oxide (ZnO), graphene oxide (GO), titanium dioxide (TiO2), Ag and Cu-based nanoparticles, to mention just a few. Thereby, the aim of this paper is to show a brief overview about the effect on embedding these materials into polymeric membranes according to the recent literature inputs in the field of water treatment.

Keywords Water treatment; nanocomposite; microfiltration; ultrafiltration; nanofiltration; anti-fouling; nanomaterials


Las tecnologías basadas en membranas, tales como micro (MF), ultra (UF) y nanofiltración (NF), se han usado ampliamente para aplicaciones de tratamiento de agua; sin embargo, las limitaciones de las membranas poliméricas puras han fomentado la incorporación de nanomateriales inorgánicos para mejorar su rendimiento. Hoy en día, las membranas de nanocompuestas han llamado enormemente la atención de los investigadores para diferentes aplicaciones de tratamiento de agua, por ejemplo, purificación de agua, tratamiento de aguas residuales, eliminación de microorganismos, compuestos químicos y metales pesados. Hasta ahora, se han incorporado diferentes tipos de nanomateriales en membranas poliméricas, como nanotubos de carbono (CNT), óxido de zinc (ZnO), óxido de grafeno (GO), dióxido de titanio (TiO2), nanopartículas basadas en Ag y Cu. Así, el objetivo de este trabajo es mostrar un breve panorama sobre el efecto de incorporar tales materiales en las membranas poliméricas de acuerdo con las aportaciones recientes de la literatura en el área del tratamiento del agua.

Palabras clave tratamiento de agua; nanocompuesto; microfiltración; ultrafiltración; nanofiltración; antiensuciamiento; nanomateriales


It is well known that polymeric membranes are typically used for several water treatment applications, including wastewater streams from agro-food (Castro-Muñoz, Yáñez-Fernández, & Fíla, 2016), textile (Van Der Bruggen, Lejon, & Vandecasteele, 2003), petroleum industry (Alzahrani & Wahab, 2014), and removal of pollutants from drinking water (Kim & Van Der Bruggen, 2010). These membranes generally are aimed to decrease the pollutants in the wastewater (Castro-Muñoz, Barragán-Huerta, Fíla, Denis, & Ruby-Figueroa, 2018; Castro-Muñoz et al., 2016; Van Der Bruggen et al., 2003). At this point, pressure-driven membrane processes, such as microfiltration (MF), ultrafiltration (UF), are considered as alternatives for the removal of large amounts of organic macropollutants; while nanofiltration (NF) and reverse osmosis (RO) have proven their efficacy in withdrawing micropollutants (Castro-Muñoz, Rodríguez-Romero, Yáñez-Fernández, & Fíla, 2017a; Rajesha, Vishaka, Balakrishna, Padaki, & Nazri, 2017).

Over the last decade, numerous studies have been devoted to the manufacture of synthetic membranes for specific applications; displaying acceptable features, such as permeability, selectivity, chemical and physical properties. To date, many organic and inorganic materials have been used in the preparation of membrane; inorganic membranes are generally prepared using materials such as ceramics, metals and glass; while organic membranes are based on polymers or composite materials (Ulbricht, 2006). Particularly, ceramic membranes display higher thermal, chemical and mechanical stability than the polymeric membranes. In addition, the hydrophilicity and surface charge of ceramic membranes are higher than the polymeric ones. Thereby, ceramic membranes can be used under extreme conditions of pH, temperature and high oxidizing environment (Yong, Wahab, Peng, & Hilal, 2013). On the other hand, polymers offer great design flexibility being generally cheaper, e.g., MF and UF membranes based on polysulfone (PSF), polyethersulfone (PES), polyacrylonitrile (PAN), polypropylene (PP), polytetrafluoroethylene (PTFE), and polyvinylidine fluoride (PVDF). Nevertheless, there is a need for enhancing the separation performance of these polymeric membranes, as well as improve some other physic-chemical properties such as stability, hydrophilicity profile and fouling resistance, being the latest the main limiting factor in large-scale applications. Fouling phenomenon generally involves the accumulation of organic-inorganic matter on membrane surface and inside the pores. In this case, the biofouling is the most intrinsically complex form of fouling. Biofouling is a consequence of irreversible microbial cell adhesion (one or several types of microorganisms), followed by colonization on membrane surface forming a microbial biofilm (Flemming, 1997). Once the biofilm is formed at membrane surface, it makes extremely difficult its removal using external agents (Subramani & Hoek, 2008). Moreover, biofilm restricts the solvent permeation across the membrane that leads to increase the transmembrane pressure and thus influencing the separation performance. Therefore, the incorporation of nanomaterials into polymeric membranes can help to mitigate the fouling phenomenon; at the same time, it contributes to enhance other key properties. The following section provides an overview about the improvements of incorporating different nanomaterials into polymeric membranes in the preparation of nanocomposite membranes for water treatment.

The strategy of nanocomposite membranes for water treatment

Typically, nanocomposite membranes are prepared by incorporating nanomaterials into a macroscopic polymeric material. The nanomaterials may be either coated onto membrane surface or dispersed in the polymer solution before membrane casting (Castro-Muñoz, Fíla, & Dung, 2017b). In this sense, the dispersed materials, commonly known as fillers, are embedded into the polymeric matrix to generate polymer-nanocomposite membranes which are also referred as mixed matrix membranes (Castro-Muñoz, Martin-Gil, Ahmad, & Fíla, 2017c) or nano-enhanced membranes (Mueller et al., 2012). The nanocomposite membranes are a potential alternative to face several challenges, such as i) improve the performance in terms of permeability and selectivity, ii) enhance the hydrophilicity, which may suppress the accumulation of pollutants and foulants, iii) enhance rejection efficiencies, and iv) improve thermal and mechanical properties. Such enhancements can be reached due to the fact that fillers tend to change the surface properties of the membranes influencing their separation performance. Today, the fabrication of these membranes is one of the current applications of the nanotechnology in membranes for water treatment (Ursino et al., 2018). Figure 1 shows an overview about the progress and advances in the field. For instance, nanomaterials-based membranes have demonstrated low-fouling through adding the inorganic particles (Kim & Van Der Bruggen, 2010). When dealing with the development of nanocomposite membranes, different types of nanomaterials have been proposed such as silver (Ag) (Prince, Bhuvana, Boodhoo, Anbharasi, & Singh, 2014); titanium (TiO2) (Zhang, Shi, & Liu, 2013); zinc (ZnO) (Balta et al., 2012); copper oxide (CuO) (García et al., 2018); carbon nanotubes (CNTs) (Celik, Park, Choi, & Choi, 2011); graphene oxide (GO) (Xia & Ni, 2015); aluminum (Al2O3) (Arsuaga et al., 2013); silicon (SiO2) (Yu et al., 2009); iron (Fe3O4) (Alam et al., 2016); cobalt (Co) (Gzara et al., 2016); zirconium (ZrO2) (Maximous, Nakhla, Wan, & Wong, 2010); clay nanoparticles (Mierzwa, Arieta, Verlage, Carvalho, & Vecitis, 2013), and zeolites (e.g., NaX) (Fathizadeh, Aroujalian, & Raisi, 2011).

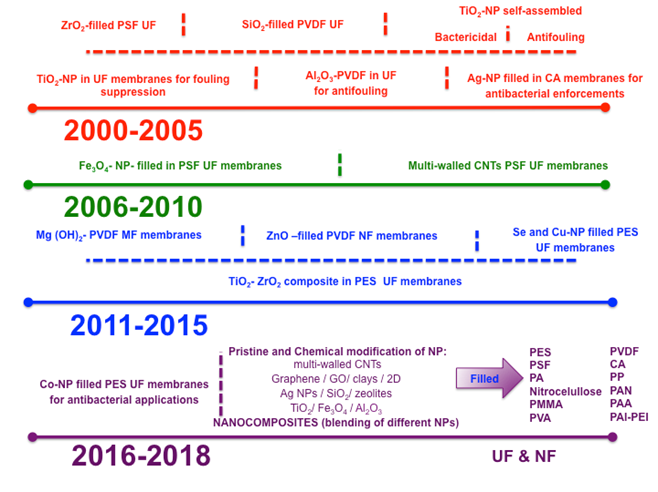

Figure 1 Overview about the progress of nanocomposite membranes for water treatment.

Carbon nanotubes (CNTs) have recently attracted the attention of researchers due to their extraordinary electrical, mechanical, thermal properties and partial antibacterial activity (e.g., Pseudomonas aeruginosa), being important the latest property for water purification applications. For instance, CNTs composite membranes have shown significant antimicrobial activity (80-90%) toward Gram-positive and Gram-negative bacteria as well as virus removal (Ahmed, Santos, Mangadlao, Advincula, & Rodrigues, 2013). Thereby, such membranes could be used as membrane filters for drinking water treatment. Furthermore, CNTs can modify the physico-chemical properties of the membranes, which encourage their potentiality for several applications. Typically, the inner pores of CNTs tend to act as selective nanopores, and thus CNT-filled membranes tend to display an enhanced permeability without a decrease in their selectivity, while enhancements in mechanical and thermal properties can be obtained as well.

Carbon nanotubes (CNTs) have recently attracted the attention of researchers due to their extraordinary electrical, mechanical, thermal properties and partial antibacterial activity (e.g., Pseudomonas aeruginosa), being important the latest property for water purification applications. For instance, CNTs composite membranes have shown significant antimicrobial activity (80-90%) toward Gram-positive and Gram-negative bacteria as well as virus removal (Ahmed et al., 2013). Thereby, such membranes could be used as membrane filters for drinking water treatment. Furthermore, CNTs can modify the physico-chemical properties of the membranes, which encourage their potentiality for several applications. Typically, the inner pores of CNTs tend to act as selective nanopores, and thus CNT-filled membranes tend to display an enhanced permeability without a decrease in their selectivity, while enhancements in mechanical and thermal properties can be obtained as well.

Another material, which has been applied as filler in nanocomposite membranes, is titanium dioxide (TiO2). This nanomaterial has good thermal and chemical stability, low human toxicity and photocatalytic properties. In addition, it generally remains unchanged during degradation process of micro-organisms and organic compounds. The material becomes excited under UV irradiation, this energy promotes the electron to the conduction band of TiO2, creating a pair of a negatively charged free electron and a positively charged electron hole. The electrons and holes give strong reducing and oxidizing activities, and subsequently, they can react with atmospheric water and oxygen to yield reactive oxygen species, such as hydroxyl radicals (-OH), superoxide anions (O2 ), and hydrogen peroxide (H2O2) (Liou & Chang, 2012). During irradiation of TiO2 nanomaterials, the hydroxyl radicals and superoxide ions are able to react with most biomolecules, exhibiting bactericidal and virucidal activity.

Silver (Ag)-based materials, such as Ag nanoparticles, Ag salts, metal oxide composites and Ag-impregnated zeolite, tend to offer antimicrobial properties as well. Their activity generally depends on the physicochemical properties of the particles (e.g., size, shape, and chemistry). In particular, Ag nanoparticles reduce the activity of bacteria due to a synergistic effect between direct particle-specific biological effects and the release of Ag+ ions. Furthermore, Ag nanoparticles can stick to the bacterial cells that influence negatively the permeability and respiration of the bacteria, together with a possible cell lysis. Regarding the preparation of nanocomposite membranes using Ag, cellulose acetate (CA), chitosan, polyacrylonitrile (PAN) and polysulfone (PSF) are some of the polymeric materials used as matrix (López-Heras, Theodorou, Leo, Ryan, & Porter, 2015; Sile-Yuksel, Tas, Koseoglu-Imer, & Koyuncu, 2014). Sile-Yuksel et al. (2014) indeed studied the effect Ag nanoparticles filled in different types of polymers (e.g., PES, PSF and CA). The authors reported that Ag nanoparticles were homogeneously located along the membrane matrix in both skin layer and sub-layer but they protruded from the top surfaces of PSF and PES membranes. In a different study, the anti-bacterial properties of these nanoparticles incorporated in chitosan were evaluated using E. coli and Pseudomonas, which generally promote the biofouling by secreting extracellular polysaccharides (Zhu, Bai, Wee, Liu, & Tang, 2010). The authors reported a significantly anti-bacterial performance of these composite membranes. Moreover, the anti-biofouling properties were studied for 10 days, being stable in such period.

Copper (Cu)-based nanomaterials have also demonstrated bactericidal and fungicides activities against viruses and algae (Ren et al., 2009; Varkey & Dlamini, 2012). It is quite possible that Cu materials can interact with the bacteria by producing reactive oxygen species, lipid peroxidation, protein oxidation and DNA decomposition, leading to generate superoxide anions (Tamayo, Azócar, Kogan, Riveros, & Páez, 2016). In addition, Cu2+ ions may react with phosphorus or -SH groups presented in biomolecules (e.g., DNA and proteins); they can act by disturbing biochemical processes, leading the protein denaturation (Ruparelia, Chatterjee, Duttagupta, & Mukherji, 2008). Xu, Feng, Chen and Gao (2012), and Xu et al. (2015) confirmed the antibacterial properties (against E. coli, efficiency 71.5%) of Cu nanoparticles filled in PAN membranes; while the permeability of the composite membranes was enhanced in comparison with the pristine PAN membranes. Particularly, Xu et al. (2015) reported that using cross-linked PAN-filled Cu(II) membranes were able to modulate the release of Cu2+, which can provide antibacterial efficiency up to 95%. It is important to mention that the biofilms formation was suppressed during 6-months testing.

Zinc oxide (ZnO) is multifunctional inorganic nanomaterial which is also interesting due to its physical and chemical properties, e.g., catalytic, antibacterial and bactericide activities. This nanomaterial is able to absorb hydrophilic hydroxyl groups (-OH), its surface area is relatively higher than other inorganic materials (Shen et al., 2012). Regarding its incorporation for producing nanocomposite membranes, ZnO tends to improve specific properties in polymers, including the hydrophilicity, mechanical and chemical properties (Lin et al., 2009). The incorporation of ZnO also generates improvement on hydrophilicity of PES NF membranes; this results in higher permeabilities in ZnO-filled nanocomposite membranes. Also, fouling resistance during the filtration of solutions containing humic acid has been reported (Balta et al., 2012). On the other hand, different nanomaterial, like graphene oxide (GO), is a carbon-based material produced by oxidizing of the graphene. GO exhibits a hydrophilic nature. This nanomaterial is also able to improve mechanical and thermal properties of polymeric membranes (Ionita, Pandele, Crica, & Pilan, 2014). In principle, GO possesses functional groups which provide the possibility of carrying out several surface-modification reactions, e.g., carrying various hydrophilic functional groups (-NH2, -OH, -SO3H) (Enotiadis, Angjeli, Baldino, & Nicotera, 2012; Liu et al., 2017). The GO has recently considered in the preparation of nanocomposite membranes for water treatment, such as water desalination, removal of toxic ions and organic molecules in polluted water ( An,Yang, Wang, & Liu, 2016). In fact, GO is potentially considered as one of the promising nanomaterials applied for the removal of pharmaceutical traces from water and wastewater (Sophia, Lima, Allaudeen, & Rajan, 2016). Chang et al. (2014) analysed the synergistic effect of GO and polyvinylpyrrolidone (PVP) on the performance of PVDF membrane. Certainly, it has demonstrated that the membrane hydrophilicity and the anti-fouling properties were enhanced by incorporating GO into PVP. The authors reported that the improvement is attributed to the formation of hydrogen bonds between PVP and GO.

Nowadays, the use of nanomaterials in composite membranes is a current approach in the field, making to researchers to propose new inorganic nano-sized materials, for example, MCM-41 silica, SiO2 (Yin, Kim, Yang, & Deng, 2012), zeolite MCM-22 (Wang, Li, & Xu, 2006), clays (Mierzwa et al., 2013), alumina (Al2O3) and Fe3O4. All these nanomaterials have started to be implemented in membranes pursuing the water purification and desalination, or wastewater treatment. This is due to specific properties based on their structures. For example, zeolites are crystalline alumina-silicate materials, having three-dimensional framework structures. Similarly, they tend to enhance hydrophilicity in the nanocomposite membranes, this also leads enhancements in permeability and better anti-fouling properties; however, zeolites also possess a molecular-sieving separation mechanism, which can contribute to better separation efficiencies.

General remarks

To date, the incorporation of different classes of nanomaterials (e.g., ZnO, Ag or Cu-based materials, GO, TiO2, Al2O3, Fe3O4, zeolite, clay, SiO2, graphene oxide) into polymeric membranes tends to enhance the hydrophilicity depending on the type of polymer, contributing to suppress the fouling phenomenon in water treatment. Additionally, the filler materials can also provide the possibility to improve some other properties (e.g., mechanical, thermal, and chemical) as well.

These current findings provide valid inputs concerning the potentialities of these smart membranes in water purification, according to the antibacterial properties of the fillers. Particularly, the exploitation of composite membranes can be synergistic towards efficient water treatment (e.g., wastewater processing), if there is a coupling to other technologies, e.g., photocatalytic process (Zhao, Chen, Quan, Yu, & Zhao, 2016), electrocoagulation, electrofiltration (Yang, Chen, Yang, & Yen, 2016), or membrane bioreactor (Khalid, Abdel-Karim, Ali-Atieh, Javed, & McKay, 2018). Finally, it is important to take into account that the compatibility between the nanomaterial and polymer is crucial in order to synthetize highly efficient nanocomposite membranes.


R. Castro-Muñoz acknowledges the European Commission-Education, Audiovisual and Culture Executive Agency (EACEA) for his PhD scholarship under the program Erasmus Mundus Doctorate in Membrane Engineering-EUDIME (FPA No. 2011-0014, Edition V, http:/


Ahmed, F., Santos, C. M., Mangadlao, J., Advincula, R., & Rodrigues, D. F. (2013). Antimicrobial PVK: SWNT nanocomposite coated membrane for water purification: Performance and toxicity testing. Water Research, 47(12), 3966-3975. Recovered from ]

Alam, J., Alhoshan, M., Dass, L. A., Shukla, A. K., Muthumareeswaran, M. R., Hussain, M., & Aldwayyan, A. S. (2016). Atomic layer deposition of TiO2 film on a polyethersulfone membrane: Separation applications. Journal of Polymer Research, 23(9), 1-9. Recovered from ]

Alzahrani, S., & Wahab, A. (2014). Challenges and trends in membrane technology implementation for produced water treatment : A review. Journal of Water Process Engineering, 4, 107-133. Recovered from ]

An, D., Yang, L., Wang, T., & Liu, B. (2016). Separation performance of graphene oxide membrane in aqueous solution. Industrial & Engineering Chemistry Research, 55(17), 4803-4810. Recovered from ]

Arsuaga, J., Sotto, A., Del Rosario, G., Martínez, A., Molina, S., Teli, S. B., & De Abajo, J. (2013). Influence of the type, size, and distribution of metal oxide particles on the properties of nanocomposite ultrafiltration membranes. Journal of Membrane Science, 428, 131-141. Recovered from ]

Balta, S., Sotto, A., Luis, P., Benea, L., Bruggen, B., Van Der, B., & Kim, J. (2012). A new outlook on membrane enhancement with nanoparticles : The alternative of ZnO. Journal of Membrane Science , 389, 155-161. Recovered from ]

Castro-Muñoz, R., Rodríguez-Romero, V., Yáñez-Fernández, J., & Fíla, V. (2017a). Water production from food processing wastewaters by integrated membrane systems: Sustainable approach. Water Technology and Sciences, 8(6), 129-136. Recovered from ]

Castro-Muñoz, R., Barragán-Huerta, B. E., Fíla, V., Denis, P. C., & Ruby-Figueroa, R. (2018). Current role of membrane technology: from the treatment of agro-industrial by-products up to the valorization of valuable compounds. Waste and Biomass Valorization, 9(4), 513-529. Recovered from ]

Castro-Muñoz, R., Fíla, V., & Dung, C. T. (2017b). Mixed matrix membranes based on pims for gas permeation: Principles, synthesis, and current status. Chemical Engineering Communications, 204(3), 295-309. Recovered from ]

Castro-Muñoz, R., Martin-Gil, V., Ahmad, M. Z., & Fíla, V. (2017c). Matrimid® 5218 in preparation of membranes for gas separation: Current state-of-the-art. Chemical Engineering Communications, 205(2), 161-196 Recovered from ]

Castro-Muñoz, R., Yáñez-Fernández, J., & Fíla, V. (2016). Phenolic compounds recovered from agro-food by-products using membrane technologies: An overview. Food Chemistry, 213, 753-762. Recovered from ]

Celik, E., Park, H., Choi, H., & Choi, H. (2011). Carbon nanotube blended polyethersulfone membranes for fouling control in water treatment. Water Research, 45(1), 274-282. Recovered from ]

Chang, X., Wang, Z., Quan, S., Xu, Y., Jiang, Z., & Shao, L. (2014). Exploring the synergetic effects of graphene oxide (GO) and polyvinylpyrrodione (PVP) on poly (vinylylidenefluoride) (PVDF) ultrafiltration membrane performance. Applied Surface Science, 316, 537-548. Recovered from ]

Enotiadis, A., Angjeli, K., Baldino, N., & Nicotera, I. (2012). Graphene-based nafi on nanocomposite membranes : Enhanced proton transport and water retention by novel organo-functionalized graphene oxide nanosheets. Small, 8(21), 3338-3349. Recovered from ]

Fathizadeh, M., Aroujalian, A., & Raisi, A. (2011). Effect of added NaX nano-zeolite into polyamide as a top thin layer of membrane on water flux and salt rejection in a reverse osmosis process. Journal of Membrane Science , 375(1-2), 88-95. Recovered from ]

Flemming, H. C. (1997). Reverse osmosis membrane biofouling. Experimental Thermal and Fluid Science, 14(4), 382-391. Recovered from ]

García, A., Rodríguez, B., Oztürk, D., Rosales, M., Diaz, D. I., & Mautner, A. (2018). Incorporation of CuO nanoparticles into thin-film composite reverse osmosis membranes (TFC-RO) for antibiofouling properties. Polymer Bulletin, 75(5), 2053-2069. Recovered from ]

Gzara, L., Ahmad-Rehan, Z., Khan, S. B., Alamry, K. A., Albeirutty, M. H., El-Shahawi, M. S., Rashid, M., Figoli, A., Drioli, E., & Asiri, A. M. (2016). Preparation and characterization of PES-cobalt nanocomposite membranes with enhanced anti-fouling properties and performances. Journal of the Taiwan Institute of Chemical Engineers, 65, 405-419. Recovered from ]

Ionita, M., Pandele, A. M., Crica, L., & Pilan, L. (2014). Improving the thermal and mechanical properties of polysulfone by incorporation of graphene oxide. Composites Part B: Engineering, 59, 133-139. Recovered from ]

Khalid, A., Abdel-Karim, A., Ali-Atieh, M., Javed, S., & McKay, G. (2018). PEG-CNTs nanocomposite PSU membranes for wastewater treatment by membrane bioreactor. Separation and Purification Technology, 190, 165-176. Recovered from ]

Kim, J., & Van Der Bruggen, B. (2010). The use of nanoparticles in polymeric and ceramic membrane structures : Review of manufacturing procedures and performance improvement for water treatment. Environmental Pollution, 158(7), 2335-2349. Recovered from ]

Lin, W., Xu, Y., Huang, C., Ma, Y., & Shannon, K., Chen, D., Huang, Y. (2009). Toxicity of nano- and micro-sized ZnO particles in human lung epithelial cells. Journal of Nanoparticle Research, 11(1), 25-39. Recovered from ]

Liou, J. W., & Chang, H. H. (2012). Bactericidal effects and mechanisms of visible light-responsive titanium dioxide photocatalysts on pathogenic bacteria. Archivum Immunologiae et Therapiae Experimentalis, 60(4), 267-275. Recovered from ]

Liu, G., Han, K., Ye, H., Zhu, C., Gao, Y., Liu, Y., & Zhou, Y. (2017). Graphene oxide/triethanolamine modified titanate nanowires as photocatalytic membrane for water treatment. Chemical Engineering Journal, 320, 74-80. Recovered from ]

López-Heras, M., Theodorou, I. G., Leo, B. F., Ryan, M. P., & Porter, A. E. (2015). Towards understanding the antibacterial activity of Ag nanoparticles: Electron microscopy in the analysis of the materials-biology interface in the lung. Environmental Science: Nano, 2(4), 312-326. Recovered from!divAbstractLinks ]

Maximous, N., Nakhla, G., Wan, W., & Wong, K. (2010). Performance of a novel ZrO2/PES membrane for wastewater filtration. Journal of Membrane Science , 352(1-2), 222-230. Recovered from ]

Mierzwa, C., Arieta, V., Verlage, M., Carvalho, J., & Vecitis, C. D. (2013). Effect of clay nanoparticles on the structure and performance of polyethersulfone ultra fi ltration membranes. Desalination, 314, 147-158. Recovered from ]

Mueller, N. C., Van Der Bruggen, B., Keuter, V., Luis, P., Melin, T., Pronk, W., Reisewitz, R., Rickerby, D., Rios, G., Wennekes, W., & Nowack, B. (2012). Nanofiltration and nanostructured membranes-Should they be considered nanotechnology or not? Journal of Hazardous Materials, 211-212, 275-280. Recovered from ]

Prince, J. A., Bhuvana, S., Boodhoo, K. V. K., Anbharasi, V., & Singh, G. (2014). Synthesis and characterization of PEG-Ag immobilized PES hollow fiber ultrafiltration membranes with long lasting antifouling properties. Journal of Membrane Science , 454, 538-548. Recovered from ]

Rajesha, B. J., Vishaka, V. H., Balakrishna, G. R., Padaki, M., & Nazri, N. A. M. (2017). Effective composite membranes of cellulose acetate for removal of. Journal of Water Process Engineering, (June). Recovered from ]

Ren, G., Hu, D., Cheng, E. W. C., Vargas-Reus, M. A., Reip, P., & Allaker, R. P. (2009). Characterisation of copper oxide nanoparticles for antimicrobial applications. International Journal of Antimicrobial Agents, 33(6), 587-590. Recovered from ]

Ruparelia, J. P., Chatterjee, A. K., Duttagupta, S. P., & Mukherji, S. (2008). Strain specificity in antimicrobial activity of silver and copper nanoparticles. Acta Biomaterialia, 4(3), 707-716. Recovered from ]

Shen, L., Bian, X., Lu, X., Shi, L., Liu, Z., Chen, L., Hou, Z., & Fan, K. (2012). Preparation and characterization of ZnO/polyethersulfone (PES) hybrid membranes. Desalination, 293, 21-29. Recovered from ]

Sile-Yuksel, M., Tas, B., Koseoglu-Imer, D. Y., & Koyuncu, I. (2014). Effect of silver nanoparticle (AgNP) location in nanocomposite membrane matrix fabricated with different polymer type on antibacterial mechanism. Desalination, 347, 120-130. Recovered from ]

Sophia, A. C., Lima, E. C., Allaudeen, N., & Rajan, S. (2016). Application of graphene based materials for adsorption of pharmaceutical traces from water and wastewater- A review. Desalination and Water Treatment, 57, 27573-27586. Recovered from ]

Subramani, A., & Hoek, E. M. V. (2008). Direct observation of initial microbial deposition onto reverse osmosis and nanofiltration membranes. Journal of Membrane Science , 319(1-2), 111-125. Recovered from ]

Tamayo, L., Azócar, M., Kogan, M., Riveros, A., & Páez, M. (2016). Copper-polymer nanocomposites: An excellent and cost-effective biocide for use on antibacterial surfaces. Materials Science and Engineering C, 69, 1391-1409. Recovered from ]

Ulbricht, M. (2006). Advanced functional polymer membranes. Polymer, 47(7), 2217-2262. Recovered from ]

Ursino, C., Castro-Muñoz, R., Drioli, E., Gzara, L., Albeirutty, M., & Figoli, A. (2018). Progress of nanocomposite membranes for water treatment. Membranes, 8(2), 18-38. Recovered from ]

Van Der Bruggen, B., Lejon, L., & Vandecasteele, C. (2003). Reuse, treatment, and discharge of the concentrate of pressure-driven membrane processes. Environmental Science and Technology, 37(17), 3733-3738. Recovered from ]

Varkey, A. J., & Dlamini, D. (2012). Point-of-use water purifcation using clay pot water flters and copper mesh. Water SA, 38(5), 721-726. Recovered from ]

Wang, S., Li, H., & Xu, L. (2006). Application of zeolite MCM-22 for basic dye removal from wastewater. Journal of Colloid and Interface Science, 295, 71-78. Recovered from ]

Xia, S., & Ni, M. (2015). Preparation of poly (vinylidene fl uoride) membranes with graphene oxide addition for natural organic matter removal. Journal of Membrane Science , 473, 54-62. Recovered from ]

Xu, J., Feng, X., Chen, P., & Gao, C. (2012). Development of an antibacterial copper (II)-chelated polyacrylonitrile ultrafiltration membrane. Journal of Membrane Science , 413-414, 62-69. Recovered from ]

Xu, J., Zhang, L., Gao, X., Bie, H., Fu, Y., & Gao, C. (2015). Constructing antimicrobial membrane surfaces with polycation-copper(II) complex assembly for efficient seawater softening treatment. Journal of Membrane Science , 491, 28-36. Recovered from ]

Yang, G. C. C., Chen, Y., Yang, H., & Yen, C. (2016). Performance and mechanisms for the removal of phthalates and pharmaceuticals from aqueous solution by graphene-containing ceramic composite tubular membrane coupled with the simultaneous electrocoagulation and electro filtration process. Chemosphere, 155, 274-282. Recovered from ]

Yin, J., Kim, E., Yang, J., & Deng, B. (2012). Fabrication of a novel thin-film nanocomposite (TFN) membrane containing MCM-41 silica nanoparticles (NPs) for water purification. Journal of Membrane Science , 423-424, 238-246. Recovered from ]

Yong, L., Wahab, A., Peng, C., & Hilal, N. (2013). Polymeric membranes incorporated with metal/metal oxide nanoparticles : A comprehensive review. Desalination , 308, 15-33. Recovered from ]

Yu, S., Zuo, X., Bao, R., Xu, X., Wang, J., & Xu, J. (2009). Effect of SiO2 nanoparticle addition on the characteristics of a new organic-inorganic hybrid membrane. Polymer, 50(2), 553-559. Recovered from ]

Zhang, X., Shi, B., & Liu, X. (2013). Preparation of polysulfone ultrafiltration membranes modified by silver particles. Desalinationand Water Treatment, 51(19-21), 3762-3767. Recovered from ]

Zhao, H., Chen, S., Quan, X., Yu, H., & Zhao, H. (2016). Applied catalysis B : Environmental integration of microfiltration and visible-light-driven photocatalysis on g-C3N4 nanosheet / reduced graphene oxide membrane for enhanced water treatment. Scientific Reports, 7, 134-140. Recovered from ]

Zhu, X., Bai, R., Wee, K. H., Liu, C., & Tang, S. L. (2010). Membrane surfaces immobilized with ionic or reduced silver and their anti-biofouling performances. Journal of Membrane Science, 363(1-2), 278-286. Recovered from ]

Received: April 26, 2018; Accepted: April 26, 2019
