Revista latinoamericana de química

Print version ISSN 0370-5943

Rev. latinoam. quím vol.38 n.1 Naucalpan de Juárez Apr. 2010


Isolation of kaempferol–3–rutinoside from the leaf extract of Sideroxylon foetidissimum subsp. Gaumeri


Gilda Erosa Rejóna,b, Luis M. Peña Rodríguezb and Olov Sternera,*


a Division of Organic Chemistry, Lund University, PO Box 124, SE–22100, Lund, Sweden.

b Laboratorio de Química Orgánica, Unidad de Biotecnología, Centro de Investigación Científica de Yucatán. Calle 43 #130 Col. Chuburná de Hidalgo, Mérida, Yucatán, México 97200.


*To whom correspondence should be addressed:
Prof. Olov Sterner. Tel.: +46 46 2228210;
Fax: +46 46 2228209; e–mail:


Received August 2009.
Accepted February 2010.



Kaempferol–3–rutinoside (1), together with α–amyrin, β–amyrin, acetato de taraxasterilo and stigmastenol, were isolated from the organic crude extract of the leaves of Sideroxylon foetidissimum subsp. gaumeri. Identification of the various metabolites was carried out by analyzing their spectroscopic data and/or by comparing it with those reported in the literature.

Key words: Sideroxylon foetidissimum subsp. gaumeri, Sapotaceae, kaempferol–3–rutinoside, amyrinas, taraxasteryl acetate.



Kaempferol–3–rutinósido (1), además de α–amirina, β–amirina, acetato de taraxas–terol y estigmastenol, fueron aislados del extracto orgánico crudo de las hojas de Sideroxylon foetidissimum. La identificación de los diferentes metabolitos se llevó a cabo mediante el análisis de sus datos espectroscópicos y/o por comparación de los mismos con los reportados en la literatura.

Palabras clave: Sideroxylon foetidissimum subsp. gaumeri, Sapotaceae, kaempferol–3–rutinósido, amyrinas, acetato de taraxasterilo.



Sideroxylon foetidissimum Jacq. subsp. gaumeri Pittier (T.D.Penn) is a tree of the Sapotaceae family that grows in the southeastern areas of Mexico, particularly in Yucatan, where is known as "subul" or "caracolillo" (Argueta, 1994). This ornamental tree is commonly used for construction because its wood is hard, heavy, strong and durable (Argueta, 1994). Chemical studies of the leaves and roots of S. foetidissimum and other Sideroxylon species have revealed them to be a rich source of flavonoids and triterpenoid saponins (Narod, 2003; Jiang et al., 1994; Nicola et al., 1995; Sánchez– Medina et al., 2009). Recently, as part of an ongoing investigation on biologically active secondary metabolites from the native flora of the Yucatan peninsula, the leaf extract of S. foetidissimum subsp. gaumeri showed DNA–interacting activity when tested using the DNA–methyl green assay (Fuentes–García, 2003). We wish to report herein on the isolation of secondary metabolites from the bioactive leaf extract of S. foetidissimum subsp. gaumeri.



General experimental procedures

Flash and open–column chromatography separations were run using silica gel 60 (230–400 mesh, Merck). Sephadex LH–20 (GE Healthcare) was used for gel permeation column chromatography. TLC analyses were carried out using aluminium–backed silica gel 60 F254 (0.20 mm thickness) plates (Merck); chromatograms were first visualized by observing under a UV lamp (254 nm) and then spraying with 10% sulfuric acid, followed by heating at 100°C. 1H NMR (400 MHz) and 13C NMR (100 MHz) were recorded at room temperature with a Bruker DRX 400 spectrometer; the spectra were determined in a mixture of CDCl3 and CD3OD and the solvent residual signals (δH7.26 and δC77.0, δH3.30 and δC49.0, respectively) were used as reference. The chemicals shifts (δ) are given in ppm and the coupling constants (J) in Hz. ESI–HRMS spectra were recorded in a Waters Q–TOF Micro system spectrometer, using H3PO4 for calibration and as internal standard.

Plant material

Leaves of S. foetidissimum Jacq. subsp. gaumeri were collected in July 2003 in Cenote Xtojil (Libre Unión), Yucatán, Mexico. A voucher specimen (PSimá 2661A) was deposited at the herbarium of the Unidad de Recursos Naturales of the Centro de Investigación Científica de Yucatán.

Extraction and isolation

Dried–ground leaves (2.5 kg) were extracted with ethanol, three times at room temperature for one week. After filtration, the extracts were combined and the solvent was evaporated under reduced pressure to give 199.8 g of organic extract. The organic extract (75 g) was suspended in a mixture of water:methanol (9:1, v/v, 500 mL) and the resulting aqueous suspension was successively partitioned between petroleum ether (three times, 2:1, v/v), chloroform (three times, 2:1, v/v) and butanol (three times, 1:1, v/v), to yield the corresponding low (17.16 g), medium (7.04 g) and high polarity (28.01 g) fractions, respectively.

The low polarity fraction was purified by flash column chromatography using a gradient elution with mixtures of petroleum ether and ethyl acetate, to produce seven major fractions (A–G). Purification of fraction A (12.09 g) using Sephadex LH–20, eluting with chloroform/methanol (1:1, v/v), produced five new fractions (A1–E1). The metabolites in fractions E1 ( 11 mg) were identified as a mixture of α–amyrin and β–amyrin. Further purification of fraction C1 (70 mg), using flash column chromatography eluted with petroleum ether/ethyl acetate (95:5, v/v), produced 4 mg of taraxasteryl acetate. Successive purifications of fraction B (477 mg), using Sephadex LH–20 (chloroform/methanol 1:1, v/v) and crystallization (methanol), yielded 33.6 mg of stigmastenol in pure form.

Purification of the high polarity fraction (2.12 g) by Sephadex LH–20 (methanol) produced six major fractions (A2–F2). Fraction E2 (246 mg) was purified using silica gel open–column chromatography, eluting with chloroform/methanol (7:3, v/v), to produce nine fractions (A3–I3). Purification of fraction G3 (45 mg) by Sephadex LH–20 using methanol as elu–ant furnished 1.7 mg of kaempferol–3–rutinoside (1).



The ethanolic leaf extract of S. foetidissimum subsp. gaumeri was partitioned between petroleum ether, chloroform and butanol. Purification of the low polarity fraction yielded four components in a pure form, which were identified as α–amyrin, β–amyrin, taraxasteryl acetate and stigmastenol, by comparing their spectroscopic data with those previously reported in the literature (Lima et al., 2004; Khalilov et al., 2003; Rubinstein et al., 1976; Forgo, 2004). It is interesting to point out that the triterpenes α–amyrin, β–amyrin, and taraxasteryl acetate are reported to have anti–inflammatory activity (Akihisa et al., 1996; Sing et al., 1991), while phytosterols such as stigmastenol have been suggested to reduce both serum cholesterol and low–density lipid cholesterol levels in normal and mildly hypercholesteraemic subjects (Honda et al., 2000; Beveridge, 2002; Ma–llavadhani et al. , 2003). However, none of these metabolites showed DNA–interacting activity when tested in the DNA–methyl green assay.

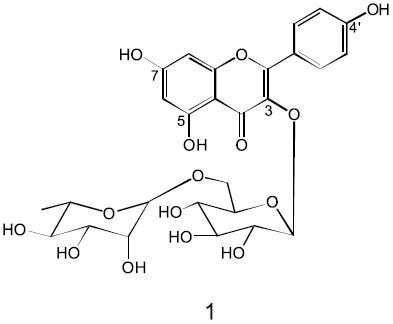

Successive purification of the high–polarity fraction by silica gel and gel permeation (Sephadex LH–20) chromatography yielded a pure metabolite whose spectroscopic data coincided with those reported for kaempferol–3–rutinoside (1), a metabolite previously isolated from Ficus pumila (Moraceae) (Ning et al., 2008; Jin et al., 2007). The ESI–HRMS of the purified metabolite 1 showed a protonated molecular ion peak at m/z 595.1650, corresponding to a molecular formula of C27H30O15, and the proton signals at δ8.05 (d, J=8.8 Hz) and δ6.88 (d, J=8.8 Hz), together with those at δ6.39 (d, J=1.8 Hz) and δ6.20 (d, J=1.8 Hz) confirmed the 1,4–disubstituted and 1,2,3,5–tetrasubstituted aromatic rings, respectively. Finally, the two anomeric protons at δ5.11 (d, J=7.2 Hz) and δ4.50 (d, J=1.6 Hz), together with a three–proton doublet at δ1.11 (d, J=6.4 Hz), confirmed a glycosilated flavonoid structure having a glucose and rhamnose units in the structure. Although kaempferol–3–rutinoside (1) has been reported to exhibit good antioxidant activity and a remarkable decrease in blood pressure (Ning et al., 2008; Ahmad et al. , 1993), it proved inactive when tested in the DNA–methyl green assay.



The structural diversity of the five isolated secondary metabolites represents an important contribution to the chemotaxonomy of the Sideroxylon genus.



The authors wish to thank Paulino Simá–Polanco and Francisco Cen–Pacheco for collecting, identifying and preparing the plant material, as well as Fabiola Escalante–Erosa and Karlina García–Sosa, for technical assistance. G. E.–R. wishes to thank the EULADIV Alfa Project for supporting her research stays at CICY. TThe authors also gratefully acknowledge financial support from the Swedish Natural Science Research Council, the KAW foundation, the Swedish Foundation for International Cooperation in Research and Higher Education, and FOMIX–Yucatán Project No. 66262.



Ahmad M., Anwar–Ul–Hassan G., Khalid A., Viqar Uddin A. (1993) Effects of kaempferol–3–O–rutinoside on rat blood pressure Phytotherapy Research 7: 314–316.         [ Links ]

Akihisa T., Yasukawa K., Oinuma H., Kasahara Y., Yamanouchi S., Takido M., Kumaki K., Tamura T. (1996) Triterpene alcohols from the flowers of compositae and their anti–inflammatory effects. Phytochemistry 43: 1255–1260.         [ Links ]

Argueta V.A., Cano L.M., Rodarte M.E. (1994) Atlas de las plantas de la Medicina Tradicional Mexicana, Vol. 1. Instituto Nacional Indigenista; Mexico pp 483–485.         [ Links ]

Beveridge T.H.J., Li T.S.C., Drover J.C.G. (2002) Phytosterol content in American ginseng seed oil. Journal of Agricultural and Food Chemistry 50: 744–750.         [ Links ]

Forgo P., Kövér K.E. (2004) Gradient enhanced selective experiments in the 1H NMR chemical shift assignment of the skeleton and side–chain resonances of stigmasterol, a phytosterol derivative. Steroids 69: 43–50.         [ Links ]

Fuentes–García A. (2003) Evaluación de la actividad biológica en extractos de plantas nativas de la Península de Yucatán. Tesis de Licenciatura en Química Industrial. Universidad Autónoma de Yucatán, Mérida, Yucatán, México.         [ Links ]

Honda T., Gribble G.W., Suh N., Finlay H.J., Rounds B.A.V., Bore L., Favaloro F.G., Wang Y., Sporn M.B. (2000) Novel synthetic oleanane and ursane triterpenoids with various enone functionalities in ring A as inhibitors of nitric oxide production in mouse macrophages. Journal of Medicinal Chemistry 43: 1866–1877.         [ Links ]

Jiang Y., Oulad–Ali A., Guillaume D., Bernard W., Anton R. (1994) Triterpenoid saponins from the root of Sideroxylon cubense. Phytochemistry 35: 1013–1015.         [ Links ]

Jin H., Tanaka T., Kouno I., Ishimaru K. (2007) A new kaempferol trioside from Solidago altissima L. Journal of Natural Medicines 61: 351–354.         [ Links ]

Khalilov L.M., Khalilova A.Z., Shakurova E.R., Nuriev I.F., Kachala V.V., Shashkov A.S., Dzhemilev U.M. (2003) PMR and 13C NMR Spectra of biologically active compounds. XII. Taraxasterol and its acetate from the aerial part of Onopordum acanthium. Chemistry of Natural Compounds 39: 285–288.         [ Links ]

Lima M.P., Campos–Braga P.A., Lopes–Macedo M., Da Silva M.F., Ferreira A.G., Fernandes J.B., Vieira P.C. (2004) Phytochemistry of Trattinnickia burserifolia, T. rhoifolia, and Dacryodes hopkinsii: Chemosystematic Implications. Journal of the Brazilian Chemical Society 15: 385–394.         [ Links ]

Mallavadhani U.V., Mahapatra A., Raja S.S., Manjula C. (2003) Antifeedant activity of some pentacyclic triterpene acids and their fatty acid ester analogues. Journal of Agricultural and Food Chemistry 51: 1952–1955.         [ Links ]

Narod F.B., Gurib–Fakim A., Subratty A.H. (2003) Flavonoids from endemic Sideroxylon species (Sapotaceae) of Mauritius. Research Journal of Chemistry and Environment 7: 53–59.         [ Links ]

Nicola G., Oulad–Ali A., Guillaume D., Lobstein A., Bernard W., Anton R. (1995) Triterpenoid saponins from the root of Sideroxylon foetidissimum. Phytochemistry 38: 225–228.         [ Links ]

Ning L.C.A., Masakuni T., Isao H., Hajime T. (2008) Antioxidant flavonoid glycosides from the leaves of Ficus pumila L. Food Chemistry 109: 415–420.         [ Links ]

Rubinstein I., Goad L.J., Clague A.D.H., Mulheirn L.J. (1976) The 220 MHz NMR spectra of phytosterols. Phytochemistry 15: 195–200.         [ Links ]

Sánchez–Medina A., Stevenson P. C., Habtemariam S., Peña–Rodríguez L.M., Corcoran O., Mallet A.I., Veitch N.C. (2009) Triterpenoid saponins from a cytotoxic root extract of Sideroxylon foetidissimum subsp. gaumeri. Phytochemistry 70: 765–772.         [ Links ]

Sing B., Ram S.N., Pandey V.B., Joshi V.K., Gambhir S.S. (1991) Studies on antiinflammatory activity of taraxasterol acetate from Echinops echinatus in rats and mice. Phytotherapy Research 5: 103–106.         [ Links ]
