Geofís. Intl vol.54 no.3 Ciudad de México jul./sep. 2015


Short Baseline Calibration using GPS and EDM Observations

Guadalupe Esteban Vazquez Becerra1  *

Rick A. Bennett2

Mijaíl Cordero Chávez1

Manuel E. Trejo Soto1

José Ramón Gaxiola-Camacho3

1Faculty of the Earth and Space Sciences Autonomous University of Sinaloa Culiacan, Mexico

2Department of Geosciences, University of Arizona, Tucson, AZ.

3Department of Civil Engineering and Engineering, Mechanics, University of Arizona, Tucson, AZ.


We conducted a baseline comparison for instrument calibration using GPS (Global Positioning System) and EDM (Electronic Distance Measurement) observations. The experiment was carried out at campus of the Autonomous University of Sinaloa (UAS) in Culiacan, Mexico. The main objective of this research was to establish a short (∼125 m) baseline for calibration of geodetic-grade GPS and EDM instruments of different commercial brands to validate the precision specifications offered by the manufacturers of such instruments. We compared three types of geodetic-grade GPS receivers: Topcon Hiper Lite +, Ashtech Z-Xtreme and Leica SR500 and three types of EDM: Topcon GTS-236W, Pentax R-326EX and Leica TC-407. For the experiment, the baseline components were computed by using ionosphere-free double-difference (DD) GPS carrier phase observations processed using the PAGES software (Program for the Adjustment of GPS EphemerideS). The GPS data were processed with a 1-second sampling rate, 10-degree cutoff angle, and precise GPS orbits disseminated by IGS (International GNSS Service). The length of the calibration baseline was also obtained by averaging 20 measurements of line length directly recorded by the three different EDM instruments. GPS results agree among different brands with differences of ±2 mm in contrast with the resulting EDM values that differ within ±3 mm.

Keywords Calibration; baseline; GPS; EDM.


Una investigación fue conducida para establecer y comparar una línea base de calibración a partir de mediciones realizadas a los GPS (Sistemas de Posicionamiento Global) y de taquímetro electrónico o EDM (Medición Electrónica de Distancia). El experimento se realizó en el campus de la Universidad Autónoma de Sinaloa (UAS) en Culiacán, México. El objetivo principal recae en la necesidad de establecer una línea base de calibración (∼125 m), que permita la realización continua y permanente de mediciones con receptores geodésicos GPS y con EDM para garantizar y validar las precisiones especificadas por los fabricantes de tales instrumentos. Dentro de los instrumentos de medición de diferente tipo y marca comercial utilizados y comparados se encuentran tres tipos de receptores geodésicos GPS: Topcon Hiper Lite +, Ashtech Z-Xtreme y Leica SR500 y tres tipos de EDM: Topcon GTS-236W, Pentax R-326EX y Leica TC-407. Para el experimento, los componentes de la línea base de calibración fueron calculados usando las observaciones GPS de fase de diferencias dobles libres de ionosfera y procesadas utilizando el software científico PAGES (Program for the Adjustment of GPS EphemerideS). Las mediciones GPS fueron procesadas considerando intervalos de medición de 1 segundo, un ángulo de elevación de 10 grados, y órbitas precisas GPS diseminadas por el IGS (International GNSS Service). Por otra parte, la longitud de la línea base de calibración también fue directamente determinada con base en el promedio de 20 mediciones realizadas con cada EDM sobre los monumentos BASE1 y BASE2. Resultados obtenidos con GPS concuerdan entre las diferentes marcas de equipos con diferencias de ±2 mm, en contraste con los resultados obtenidos con EDM, los cuales difieren entre ±3 mm.

Palabras clave Línea base; calibración; GPS; EDM.


The calibration of geodetic instruments such as geodetic-grade GPS receivers and EDM is of importance for applications requiring the highest precision. The accuracy specifications of the instruments provided by the manufacturers may be unachievable due to errors arising from environmental conditions (e.g., atmospheric water vapor and multipath characteristics) and experience of the instrument operator. Therefore, it is useful to understand the differences between the inherent instrument precision and the actual precision according to the type of instrument used in the presence of local environmental error sources. In order to quantify environmental error sources and verify manufacturer reported precision of such geodetic instruments, it is useful to cross validate measurements by means of a well-defined calibration baseline. A calibration-baseline is composed of two or more stable geodetic monuments at which measurements with multiple instruments of high precision are made in order to infer the absolute value of the resulting measurement. With a precisely calibrated baseline, the precisions performance of diverse types of geodetic instruments can be inter-compared. For the present study, we established a calibration-baseline at campus of the Autonomous University of Sinaloa (UAS); based on measurements with three different types of geodetic-grade GPS receivers, using a differential GPS technique, as well as series of EDM observations to cross validate the baseline length.

Previous investigators sought to validate calibration baselines using high-precision tape measuring techniques (Poling, 1965). When EDM became available in the United States of America in 1952, many errors with these geodetic electronic instruments were detected, because the technique is affected by variable atmospheric moisture and other uncertainties requiring detailed evaluation of baseline length repeatability. In 1963, the Coast and Geodetic Survey (C&GS) measured a linear array of monuments, which is registered as the first work of calibration to the EDM. This calibration baseline was originally available for use by federal agencies (Dracup et al., 1994). By the year of 1970, many calibration baselines became available for public use, because several of them satisfied the calibration standards of electronic instruments for short distances required for topographic and geodetic works (Dracup et al., 1994). Nowadays, the National Geodetic Survey (NGS) is responsible for the calibration of the electronic instruments of measurement for the public (Leick, 2004). According to Fronczek (1977), the standard configuration of an NGS calibration baseline consists of one to four established monuments that form a total baseline length of 1,400 m, with intermediate distances of ∼0 m, 150 m, and 430 m. Comparison analysis on short calibration baselines for less than 100 m and 200 m can be found at Psimoulis et al . (2004) and Grejner-Brzezisnka et al. (2006), respectively. Comparisons on longer baselines (10 to 50 km) or (26 to 300 km) are also discussed through Savage et al . (1996) and Eckl et al . (2001).

Calibration baseline experiment

The short calibration baseline presented in this study was conducted during three consecutive days: October 8, 9 and 10, 2010. Since the access to some of the equipment and components was limited, our baseline study focused on performing all test under similar atmospheric conditions; therefore, we tested GPS receivers and EDM at the same time periods over three consecutive days. The selected test area for the GPS and EDM measurements is located at UAS campus on top of the Faculty of Earth and Space Sciences (FACITE) and a facility building next to the Dentistry building (see Figure 1), where the surrounding environment represents rather optimal observability conditions with open sky and no obstructions. The monumentation for the short baseline experiment, located at UAS campus, consists of two concrete structural columns denoted as BASE1 and BASE2 (see Figure 2 and Figure 3), that were designed to be part of the structural elements of the main frame of each building. BASE1 pillar is located on top of an educational building erected in a very rigid and reinforced foundation; as well as the BASE2 pillar, which is also part of a main educational facility building. In both cases, the main structure and the foundation of those buildings were designed and constructed following the current construction code in Mexico (RCDF-04, 2004); thus, such structural system provides the stability required to develop the analysis here described. In addition, each pillar also consist of very stable geodetic steel pins (stainless steel, 5/8-inch diameter) sunk directly into concrete pillars, with metal force-centered level mounts to guarantee accurate re-centering of the GPS antenna at each site each session (Zhang et al ., 1997). The divot on top of the base pillar is then considered as the reference point for the measurement results, where a tribrach at each pillar was used to maintain the GPS antenna leveled and to keep the same antenna height (0.150 m) for each survey session. First, the coordinates of BASE1 and BASE2 monuments were previously determined with a 2-hour GPS survey session with respect to the fixed base station (ECT2) and subsequently used as known and fixed for computing the calibration baseline length. In other words, we collected GPS data at 1-sec interval for 2-hours data span for 3-consecutive days, resulting in approximately 21,600 measurements for each GPS observable (e.g. L1, L2, C/A, P1 and P2) that were used to precisely define the coordinates of BASE1 and BASE2 pillars. The GPS survey tests performed to determine the coordinates of BASE1 and BASE2, which define the calibration baseline, are illustrated in Table 1. Here, the antenna type, NGS antenna designator and time duration (local time) of each measurement session are also presented including the percentage of GPS observables completed for the entire experiment. The last two columns of Table 1 show the values for the pseudorange multipath (MP1-RMS and MP2-RMS) that can be considered as a potential contributor that might have an impact on GPS positioning results (Vazquez and Grejner-Brzezinska, 2012). The multipath effects presented in Table 1 at BASE1 and BASE2 range up to ∼30 cm for the first day of the survey, when Hiper Lite antenna was used, compared to the second and third days that show roughly ∼10 cm, when the Ashtech (ASH701975.01A) and Leica (LEIAT502) antennas were respectively used. In general, the experienced amount of pseudorange multipath seems to be reasonable and no reason to think in any negative influence in the positioning results.

Figure 1 Calibration baseline experiment, image courtesy of Google Earth.

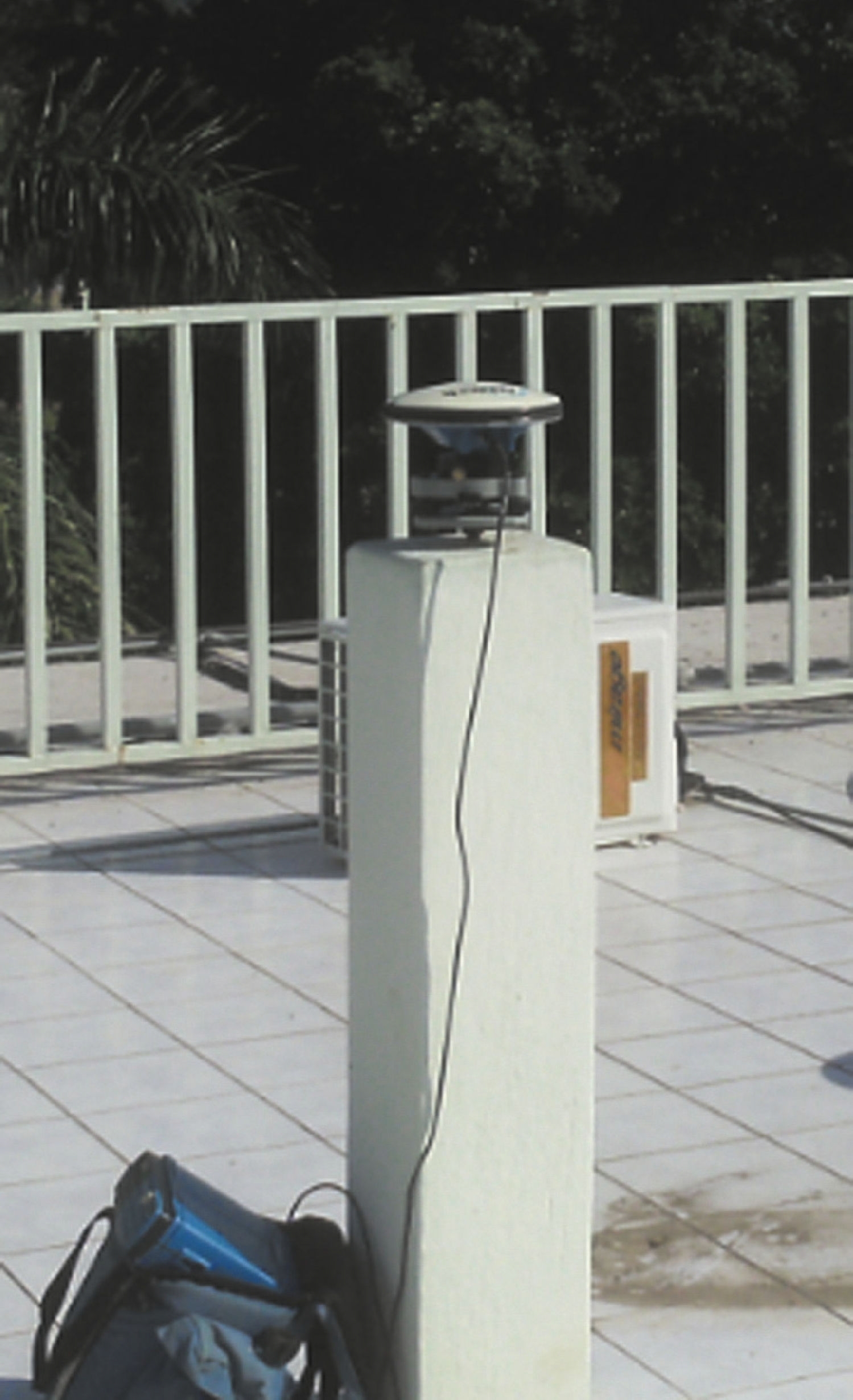

Figure 2 Monumentation of BASE 1 site, located on top of the FACITE building; UAS campus. GPS Receiver Ashtech Z-Xtreme with Ashtech (ASH701975.01A) antenna, collecting data on October 9, 2010.

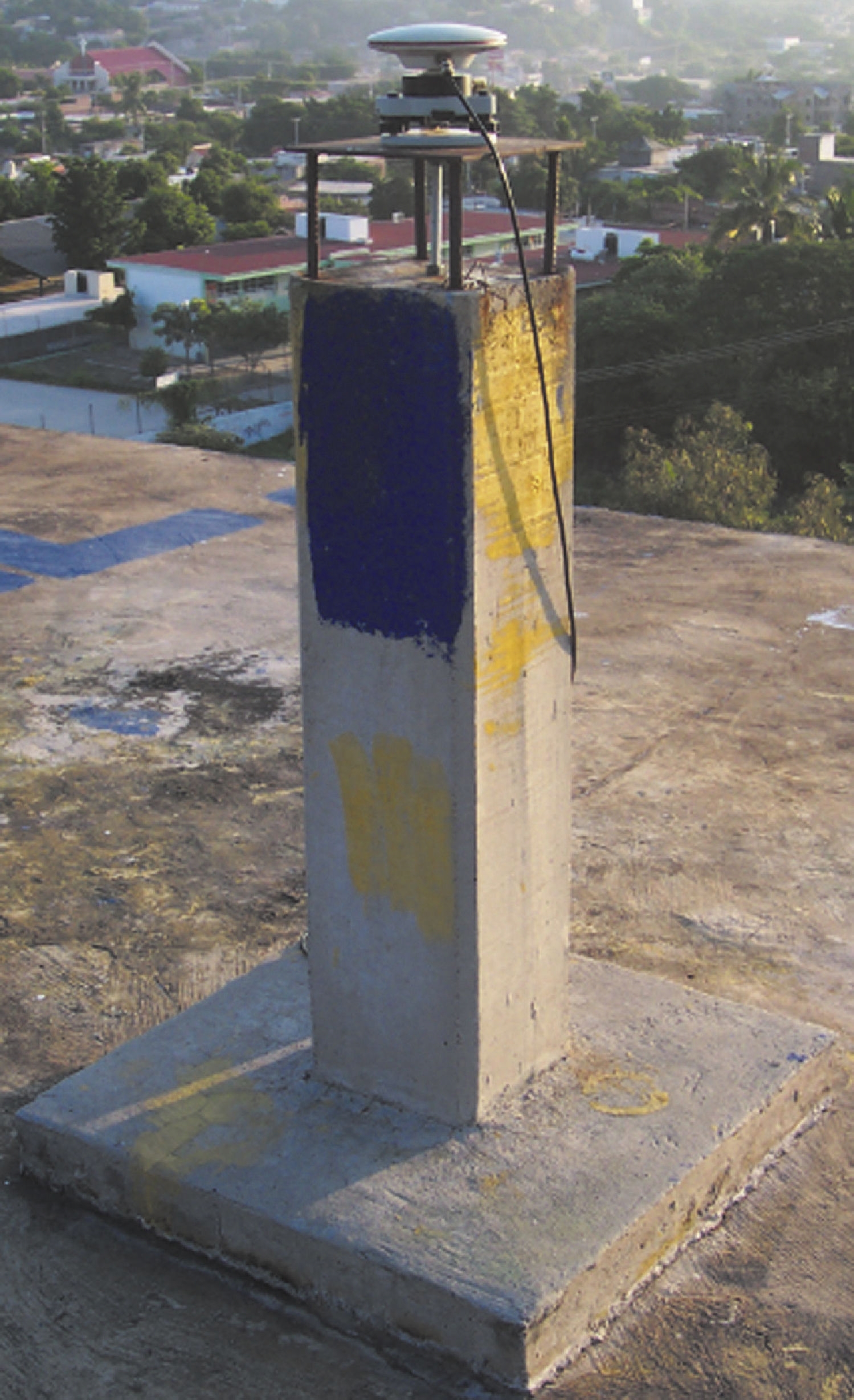

Figure 3 Monumentation of BASE 2 site, located on top of a facility building; UAS campus. GPS Receiver Leica SR500 with Leica (LEIAT502) antenna, collecting data on October 10, 2010.

Table 1 GPS survey tests.

GPS Station Antenna Type NGS Antenna Designator Start Local Time End Local Time Expected # of GPS Observables Completed # of GPS Observables % MPI-RMS (cm) MP-RMS (cm)
October 8, 2010
ECT2 Ashtech ASH701975.01A 7:15:01 9:15:00 70,492 68,653 97 11.26 8.26
BASE1 Hiper Lite TPSHIPER_LITE 7:15:01 9:15:00 70,293 70,281 100 29.56 26.60
BASE2 Hiper Lite TPSHIPER_LITE 7:15:42 9:15:41 70,366 70,366 100 25.64 24.92
October 9, 2010
ECT2 Hiper Lite TPSHIPER_LITE 7:15:01 9:15:00 70,350 70,348 100 30.20 27.66
BASE1 Ashtech ASH701975.01A. 7:15:01 9:15:00 70,349 68,582 97 9.53 7.82
BASE2 Ashtech ASH701975.01A 7:15:01 9:15:00 70,048 68,419 98 4.22 4.51
October 10, 2010
ECT2 Hiper Lite TPSHIPER_LITE 7:15:47 9:15:46 70,062 70,042 100 31.54 29.67
BASE1 Leica LEIAT502 7:15:24 9:15:23 70,597 69,593 98 2.95 4.98
BASE2 Leica LEIAT502 7:30:01 9:30:00 70,107 70,101 100 1.01 1.40

GPS data processing technique

The GPS data were converted to the RINEX (Receiver INdependent EXchange) format (Gurtner, 1994). The TEQC software (Test of Quality Check), provided by UNAVCO (University NAVstar Consortium), was used to verify the quality and integrity of the RINEX files (i.e., expected number of GPS observables and percentage completed, receiver multipath, and receiver clock drift). After the verification, the GPS data were processed with the PAGES software, (Mader et al ., 1995; Eckl et al ., 2001; Schenewerk et al ., 2001). This GPS processing package was developed at the NGS and it has been shown by Grejner-Brzezisnka et al. (2006) to be suitable when comparing antenna calibration for baselines under 200 m. In order to provide an optimal solution, the PAGES software was configured to use the iono-free DD carrier phase combination given by Hofmann-Wellenhof et al . (2001):


where: i and j are subscripts that denote receivers, k and l are superscripts that denote satellites, ρklij is the DD-geometric distance between the respective satellites and receivers, indicate that the carriers L 1 and L 2 are involved in the combination, Tklij is the DD tropospheric refraction term, λ1≈19 cm and λ 2≈24 cm are the wavelengths of the signals on the L 1 and L 2 carriers, respectively, N 1 and N 2 are the integer ambiguities associated with the phase measurements (in cycles) on L 1 and L 2 , respectively, εklij,1 and εklij,2 are the random DD measurement noise terms (in meters) for the observed phases on L 1 and L 2 , respectively. The main specifications for the GPS data processing included the use of a 1-sec sampling rate, 10° cut-off angle and use of precise final orbits disseminated by IGS. Also, the carrier phase ambiguity parameters were fixed at the rate of 99-100% in the three consecutive day processing and antenna calibration parameters provided by NGS were used following Mader (1999).

In our case, the DD configuration can be established between the well-known base station (ECT2) with fixed coordinates and the unknown stations (BASE1 and BASE2) as shown in Figure 4 and Figure 5.

Figure 4 Double difference configuration between fixed (ECT2) station and unknown (BASE1) station.

Figure 5 Double difference configuration between fixed (ECT2) station and unknown (BASE2) station.

Based on Equation (1), we can rewrite this equation according to the DD configurations (ECT2-BASE1) and (ECT2-BASE2) resulting:




From Equations (4) and (5) we have:

where X ETC2, y ETC2, Z ETC2 are the coordinates of the fixed base station (ECT2); X BASE1, Y BASE1, Z BASE1 are the coordinates for the first unknown station (BASE1); X BASE2, Y BASE2, Z BASE2 are the coordinates of the second unknown station (BASE2); XK, YK, ZK and Xl, Yl, Zl are the coordinates of satellites k and l , respectively.

Once we solved for the coordinates of the unknown stations (BASE1 and BASE2), the ellipsoidal distance for the calibration baseline was computed, using the following equation:

Then, we compute the distance in the Universal Transversal Mercator (UTM) projection given by:

where D Elip. is the ellipsoidal distance computed from GPS and k 0 is the deformation scale factor in the UTM projection.

Equation (13) represents the distance for the calibration baseline in the UTM projection; which is assumed to be represented in a plane to a local scale, because the EDM mea-surements were directly made on the ground. The deformation on D UTM caused by the projection is taking into account by the scale factor k 0 that will correct for the GPS ellipsoidal distance when getting away from the central meridian (105˚ W) of the UTM projection. Once achieved this, a comparison between GPS and EDM was stated under such assumption.

EDM measurements

The calibration-baseline derived from EDM was estimated from the average of the set of 20 length measurements performed with three different types of EDM (Topcon GTS-236W, Pentax R-326EX and Leica TC-407) between the BASE1 and BASE2 monuments. These measurements were conducted over the course of three consecutive days in order to help mitigating atmospheric errors. The PENTAX R-326EX is presented in Figure 6 as an example of how the EDM measurements were carried out with this instrument. Figure 7 illustrates the type of prism used; here a Topcon prism with 0/-30 mm offset is presented as an example. In order to avoid errors from centering the instruments and prisms, we used force-centered level mounts to guarantee accurate re-centering. The prisms on the two pillars were mounted on tribrachs to guarantee the same line (horizontally). We also used prisms that are compatible with each type of EDM, because this allows for accurate determination of the constant error bias associated with each reflector, which represents a common error presented in this type of measurements. In addition, it is assumed in the present experiment that manufacturers were responsible and they properly applied the necessary corrections and reductions for atmospheric conditions (usually performed internally), as well as Earth's curvature and slope were taken into account.

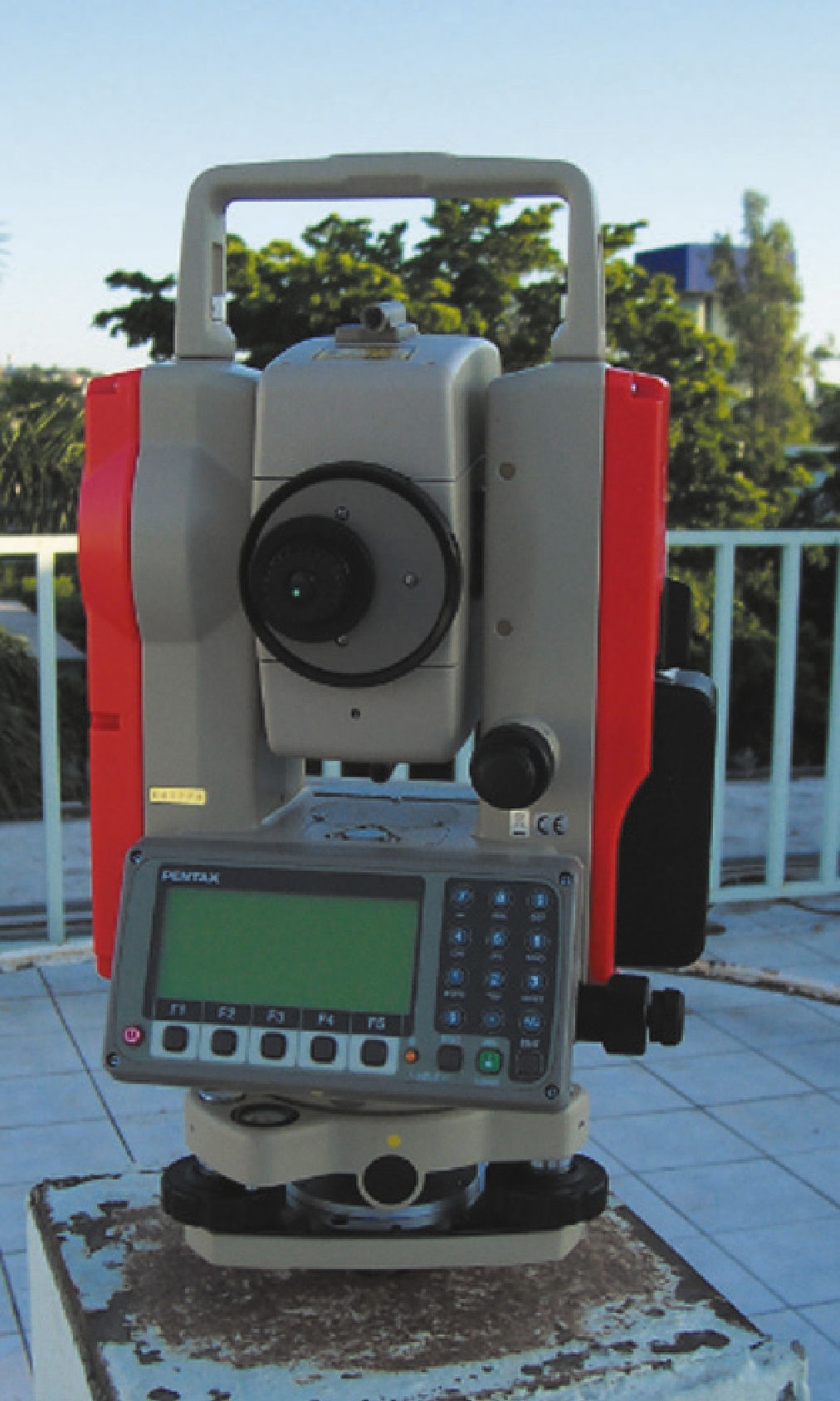

Figure 6 EDM measurements with PENTAX R-326EX at BASE1 site (see BASE2 in the background), performed on October 8, 9 and 10, 2010.

Figure 7 Prism location at BASE2 site, Topcon prism as an example.

Results and analysis

It is well-known that the accuracy of GPS positioning mostly relies on the geometric configuration of the observed satellites for a specific location where the GPS measurements are performed. DOP (dilution of precision) arises from this fact, since it is considered as geometric factor that amplifies the single range observation error that shows the positioning accuracy obtained from multiple GPS observations. DOP is very important for differential GPS, as both stations must use the same satellites. With the current full GPS constellation, the common observability should not be a problematic issue; due to the existing satellite availability. Based on these considerations, we decided to account for the DOP values: position (PDOP), horizontal (HDOP), vertical (VDOP), geometrical (GDOP) and time (TDOP), for the time-window of the three day GPS measurements of the experiment (October 8, 9 and 10, 2010). As a result of accounting for this accuracy factor, Figure 8, Figure 9 and Figure 10 show the computed DOP values, which were found to be less than 2 for the time when the GPS measurements were performed (7:15 a.m. to 9:15 a.m.). However, it was found that the PDOP, which contributes more to determine the coordinates of BASE1 and BASE2, is less than 1.6, for the three days of the experiment. Therefore, with the obtained small PDOP values, it is feasible to expect millimeter accuracy on the positioning results, as it was obtained in all presented solutions.

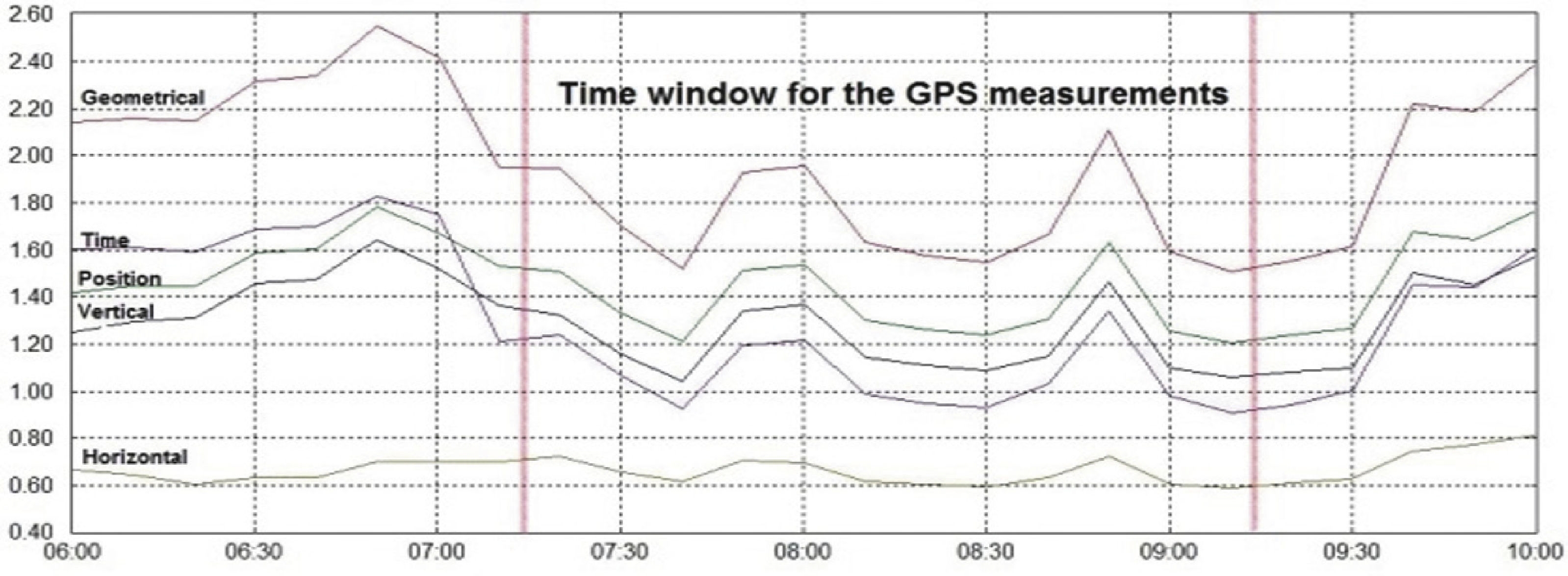

Figure 8 Dilution of precision (DOP): geometrical (GDOP), Position (PDOP), Vertical (VDOP), Horizontal (HDOP) and Time (TDOP) for GPS measurements; October 8, 2010.

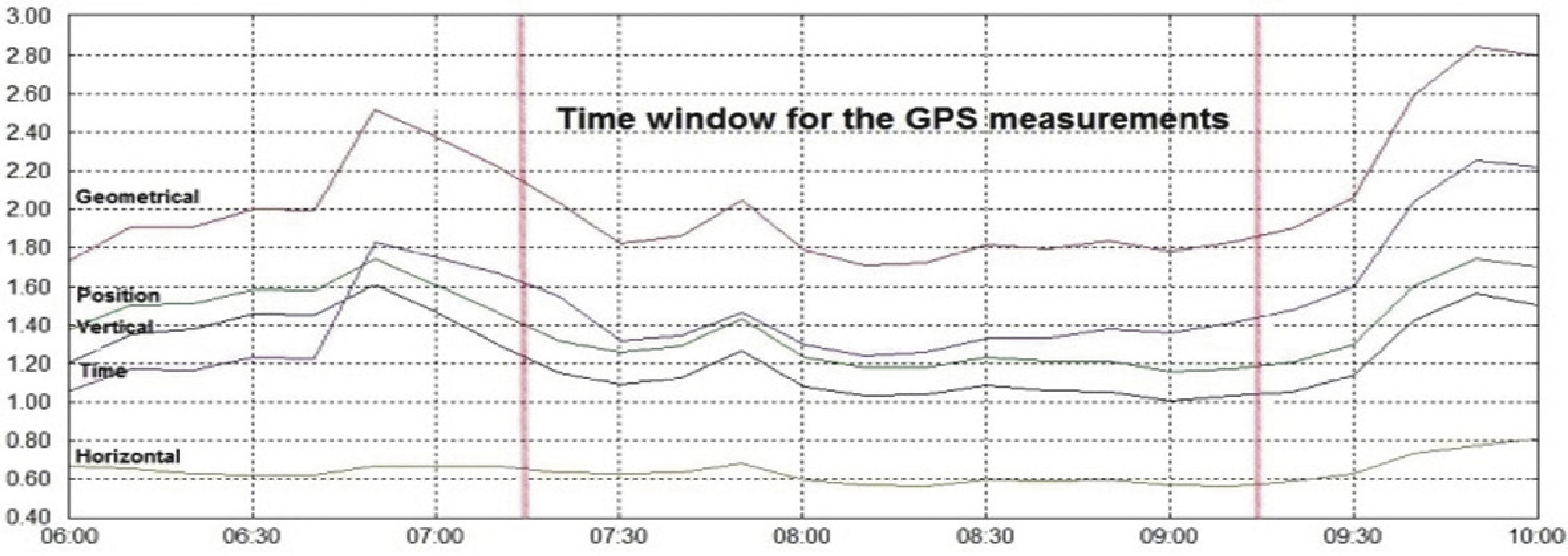

Figure 9 Dilution of precision (DOP): geometrical (GDOP), Position (PDOP), Vertical (VDOP), Horizontal (HDOP) and Time (TDOP) for GPS measurements; October 9, 2010.

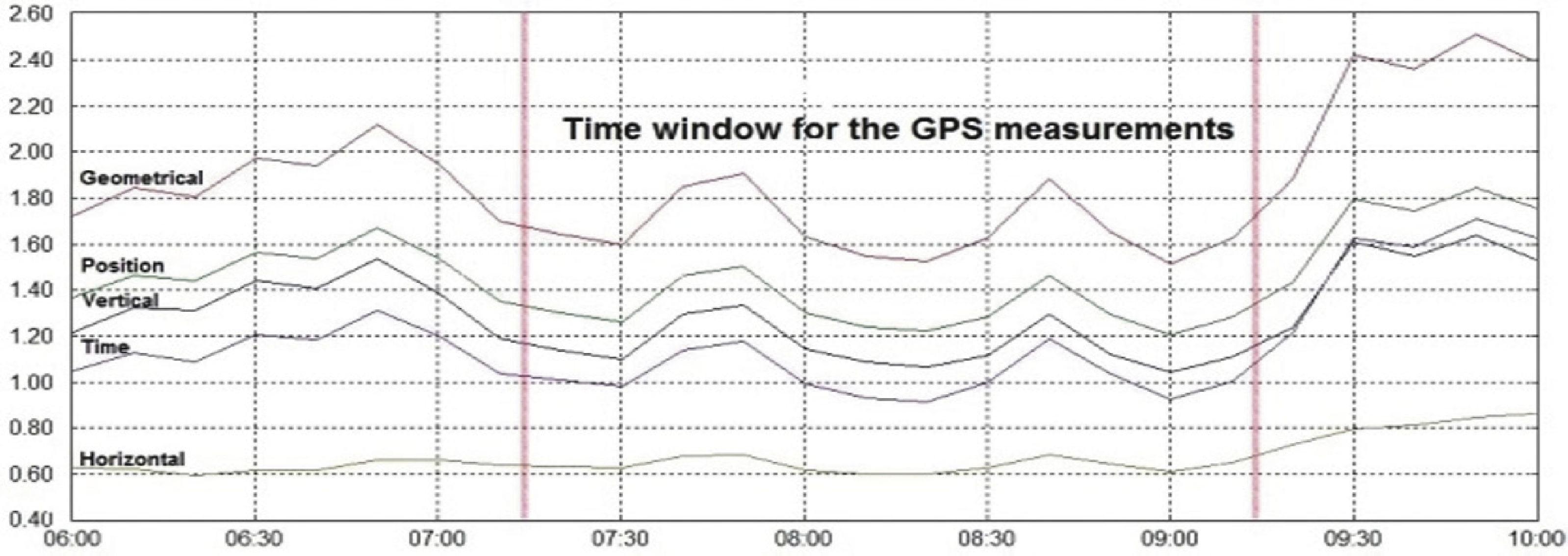

Figure 10 Dilution of precision (DOP): geometrical (GDOP), Position (PDOP), Vertical (VDOP), Horizontal (HDOP) and Time (TDOP) for GPS measurements; October 10, 2010.

For comparison, the performance or ac-curacy specifications of the different type and commercial brand of geodetic-grade GPS receivers and EDM provided by the manufacturer are shown in Table 2, given in units of millimeters plus parts per million (mm + ppm). These specifications for GPS receivers show that based on the obtained coordinates from two GPS stations (i.e. BASE and BASE2), one can compute the length of the calibration baseline; while specifications for EDM refer to the direct measurement of the baseline between the two stations. The last column of Table 2 shows what we called the permissible accuracy (σ) for a ∼125 m calibration baseline. In other words, σ represents the reference value in terms of accuracy that can be permitted when using a GPS receiver or EDM to determine the magnitude of such calibration baseline. The resulting calibration baseline values from GPS were computed by means of Equation (12), whereas the length of the calibration baseline derived from EDM was directly obtained based on the average of a set of 20 measurements with each type of EDM, between BASE1 and BASE2. Making the corresponding assumptions regarding that the EDM worked properly and it was correctly centered and leveled as well as the prisms located at the two monuments; then the error propagation is presented in Table 3.

Table 2 GPS and EDM accuracy specifications provided by the manufacturer and computed permissible accuracy (σ) for the ∼125 m calibration baseline.

GPS Receiver with (Antenna Type) Accuracy Specifications (static) Computed Permissible Accuracy (σ)
Topcon Hiper Lite + (Hiper Lite) 3 mm +0.5 ppm - 3.06 mm
Ashtech Z-Xtreme (Ashtech) 5 mm + 1.0 ppm 5.12 mm
Leica SR530 (Leica) 3 mm + 0.5 ppm 3.06 mm
EDM Type
Topcon GTS-236W ±2 mm + 2 ppm ±2.25 mm
Pentax R-326EX ±3 mm + 2 ppm ±3.25 mm
Leica TC-407 ±5 mm + 2 ppm ±5.25 mm

Table 3 Resulting calibration baseline values from GPS and EDM.

GPS Receiver with (Antenna Type) Resulting Baseline (m) sEDM (mm) sE (mm)
Topcon Hiper Lite + (Hiper Lite) 124.249 1.04 1.13
Ashtech Z-Xtreme (Ashtech) 124.251 1.72 1.85
Leica SR530 (Leica) 124.250 1.27 1.39
Weighted Mean: 124.2497
EDM Type Resulting Baseline (m) σ EDM (mm)
Topcon GTS-236W 124.248 ±2.01
Pentax R-326EX 124.247 ±3.09
Leica TC-407 124.245 ±5.05
Weighted Mean: 124.2472

In Table 3, σN and σE represent the standard deviations values obtained when computing the coordinates of BASE1 and BAS2 stations, by using different types of GPS receivers. In contrast, σEDM corresponds to the standard deviation value computed from the set of 20 measurements with each brand of EDM considered in the experiment. Also, it can clearly be observed in Table 3 that all standard deviation values, for both GPS and EDM, are within the computed permissible accuracy (σ) presented in Table 2. Once we obtained the calibration baseline results from both GPS receivers and EDM, we made a comparison between them. In this assessment, the resulting baseline values from GPS are assumed to be the "true or reference" for the comparison. The reported weighted mean value from GPS is 124.2497 m., whereas the mean from EDM is 124.2472 m, which shows a 2.5 mm difference (Figure 11). It should be point it out that the weighted mean values were computed assigning more weight to the GPS receivers and EDM's that reported more stable results according to the obtained standard deviations values.

Figure 11 Calibration baseline results from GPS and EDM.

In addition, the standard deviation values from both GPS and EDM results lie within the computed permissible accuracy. When comparing GPS receivers vs. EDM of the same commercial brand, it was found that Topcon Hiper Lite + and the Topcon GTS-236W experienced a 1 mm difference for the resulting baseline. If we consider that the computed permissible accuracy when performing measurements with the Topcon GTS-236W is ±2.25 mm, then 1 mm difference can be interpreted as 44% of such permissible accuracy. Next, a 4 mm difference was obtained when comparing the Ashtech Z-Xtreme and the Pentax R-326EX. This 4 mm difference represents a little bit more than the defined "tolerable accuracy of 1 σ.", which is the assumed expected precision value when performing a measurement with the proposed EDM. It should be point out that both instruments are not exactly of the same commercial kind; however, an assumption of treating them as the same brand was made here in the comparison, since the Pentax R-326EX EDM could properly be used to compare to the Ashtech Z-Xtreme receiver. Leica SR530 and Leica TC-407 comparison shows the largest difference (5 mm). Even thought, this 5 mm difference is slightly large with respect to the 4 mm from the previous comparison, it represents less than (1 σ) because Leica TC-407 has larger range in the permissible accuracy than the Pentax R-326EX.

Finally, when comparing GPS receivers vs. EDM of different commercial brand, Topcon Hiper Lite + vs. Pentax R-326EX gives a 2 mm difference, which represents 0.62 σ. On the other hand, there is a difference of 4 mm on the comparison between Topcon Hiper Lite + and Leica TC-407. In this case the 4 mm difference can be translated to 0.76 σ. The Ashtech Z-Xtreme and Topcon GTS-236W comparison reveals just a 3 mm difference. Larger differences (6 mm) occurred when comparing Ashtech Z-Xtreme and Leica TC-407. However, this 6 mm value is just 14% above the 1 σ; given the permissible accuracy for the Leica TC-407 is ±5.25 mm. When comparing Leica SR500 and Topcon GTS-236W, differences of 2 mm can be found (or 0.89 σ) and the comparison between Leica SR500 and Pentax R-326EX gives a difference of 3 mm, which represents 0.92 σ. Table 4 shows the summary of the resulting calibration baseline values obtained from GPS vs. EDM, and their comparison, including the permissible accuracy (σ) and the accuracy factor (τ). The accuracy factor (τ) means "times the tolerable accuracy of 1 σ.", which is the assumed expected deviation value when performing a measurement with EDM. According to the comparison presented in Table 4, there is not a logical correspondence between permissible accuracy (σ) and accuracy factor (τ), based on the deviation with respect to the true value. This issue can be directly attributed to the fact that permissible accuracy (provided by the manufacturer) is not consistently based on the brand of EDM considered in the experiment. A clear example can be observed when comparing deviations with respect to true value for Pentax R-326EX and Leica TC-407. That is, an increment on the deviation values is reflected in a decrement in the accuracy factor (τ), which is the opposite than one may expect.

Table 4 Summary of the resulting calibration baseline values obtained from GPS vs. EDM.

GPS Receiver with (Antenna Type) Resulting Baseline From GPS (m) EDM Type Resulting Baseline From EDM (m) Deviation w.r.t. true value (mm) Permissible Accuracy (σ) (mm) Accuracy Factor (τ)
Topcon Hiper 124.249 Topcon GTS-236W 124.248 1 ±2.25 0.44
Lite + (Hiper Lite) Pentax R-326EX 124.247 2 ±3.25 0.62
Leica TC-407 124.245 4 ±5.25 0.76
Ashtech 124.251 Topcon GTS-236W 124.248 3 ±2.25 1.33
Z-Xtreme Pentax R-326EX 124.247 4 ±3.25 1.23
(Ashtech) Leica TC-407 124.245 6 ±5.25 1.14
Leica 124.250 Topcon GTS-236W 124.248 2 ±2.25 0.89
SR350 Pentax R-326EX 124.247 3 ±3.25 0.92
(Leica) Leica TC-407 124.245 5 ±5.25 0.95

Based on the above analysis where proper measurements and computational procedures were followed, we now performed a hypothesis testing by using a two-tailed test in order to address the concern about if the three types of EDM are working within their accuracy specifications. In other words, we need to determine more rigorously if EDM are providing correct results when comparing to the GPS mean value, which is assumed as the true value for the calibration baseline. It is expected that the EDM observed distances will be rejected if they are statistically either to short or too long as compared to the mean of the resulting calibration baseline from GPS. From the proposed test we need to verify that: H 0: μ =ỹ vs. H a: μ≠ỹ , where H 0 is the null hypothesis, H a is the alternative hypothesis, m is mean value from GPS and is the mean value from EDM. After applying the well-known t distribution in the computations and taking into account different levels of significances (5%, 2% and 0.2%), the final decisions for accepting are presenting in Table 5.

Table 5 Hypothesis testing for the calibration baseline from GPS and EDM.

EDM Type Level of Significance (a/2)
5% 2% 0.2%
(0.025) (0.010) (0.001)
Topcon GTS-236W Fail Fail Pass
Pentax R-326EX Fail Fail Fail
Leica TC-407 Fail Fail Fail

According to the results presented in Table 5, only Topcon GTS-236W at 99.8% lies within the indicated confidence interval and it passed the test. Pentax R-326EX was too closed to fulfill the condition of passing the test at 0.2% significance level, but it fail for the three levels of significance (5%, 2% and 0.2%). Additionally, with Leica TC-407 was rejected; thus, it also fails the test. This issue can be attributed to the fact that this EDM was the least accurate when performing the baseline measurements and also provides larger range of computed permissible accuracy derived from accuracy specifications of the manufacturer. However, for those EDM that fails to contain the calibration baseline value (at any specific significance level), there is no a strong reason to be concerned about the calibration status of these instruments, since they diverge within 1 to 5 mm with respect to the true value from GPS.


The establishment of calibration-baseline (BASE1-BASE2) by means of GPS measurements was performed very precisely, and fulfilled the accuracy standards according its dimensions (∼125 m) for the proposed experiment. Resulting calibration baseline values from GPS compared very-well among different brands with differences of ±2 mm in contrast with the resulting EDM values that differ within ±3 mm. EDM measurements also show a slightly greater discrepancy in comparison with the permissible accuracy. It was also found a difference of 2.5 mm in the mean values from GPS vs. EDM. Of the EDM brands tested, the Topcon GTS-236W preformed the best (±1 mm up to ±3mm), followed by the Pentax R-326EX (±2 mm up to ±4mm) and finally the Leica TC-407 (±4 mm up to ±6mm). In the case of the established tolerable accuracy of 1σ, all EDM fulfill this condition when comparing results with true values from Topcon Hiper Lite + and Leica SR350 GPS receivers. The 1σ condition fails for the three EDM when comparing results with respect to mean value from Ashtech Z-Xtreme GPS receiver. From the hypothesis testing, only two EDM: Topcon GTS-236W and Pentax R-326EX contain the calibration baseline value at 2% and 0.2% level of significance, respectively; however, this is not a powerful reason to be concerned about the calibration status of the EDM Leica TC-407 which entirely failed the tests, because of its large accuracy specifications provided by its manufacturer. The methodology, measurements and computations used in this research for the baseline calibration (BASE1 and BASE2) followed the strict requirements according to the accuracies of the employed geodetic-grade GPS receivers and EDM. Therefore, it is recommended that this calibration baseline serves as reference for further calibration of geodetic equipment at the FACITE-UAS.


The authors are indebted to Kat Compton for carefully reviewing the manuscript and for her valuable comments to improve its content.


F. Dracup Joseph, J. Fronczek Charles, W. Tomlinson Raymond. Establishment of calibration base lines. NOAA technical memorandum NOS NGS 8. February 1994; 1p [ Links ]

M.C. Eckl, R.A. Snay, T.A. Soler, M.W. Cline, G.L. Mader. Accuracy of GPS-derived relative positions as a function of interstation distance and observation-session duration. Journal of Geodesy. 2001; 75:633p [ Links ]

C.J. Fronczek. Use of calibration baselines. NOAA Technical Memorandum NOS NGS-10, 38 pp. National Geodetic Information Center, Rockville, MD. 1977; 20852p [ Links ]

Grejner-Brzezinska D.A., Vázquez G.E., Hothem L., 2006, Geodetic Antenna Calibration Test in the Antarctic Environment. ION GNSS 19th International Technical Meeting of the Satellite Division, 26-29 September 2006, Fort Worth, TX, pp. 2798-2806. [ Links ]

W. Gurtner. RINEX: The Receiver Independent Exchange Format. GPS World 5. 1994; 7:48p [ Links ]

B. Hofmann-Wellenhof, H. Lichtengegger, J. Collins. GPS Theory and Practice. 5th edition. Springer-Verlag Wien New York; 2001. [ Links ]

A. Leick. GPS Satellite Surveying. 3rd Edition. New Jersey: Wiley; 2004. 435p [ Links ]

G. Mader. GPS antenna calibration at the National Geodetic Survey. GPS Solutions, 3. 1999; 1:50p [ Links ]

Mader G.L., Schenewerk M.S., Ray J.R., Kass W.G., Spofford P.R., Dulaney R.L., Pursell D.G., 1995, GPS orbit and earth orientation parameter production at NOAA for the International GPS Service for Geodynamics for 1994 in Zumberge, J.F. et al., (eds) International GPS Service for Geodynamics, 1994 Annual Report, 197-212, Jet Propulsion Lab., California Institute of Technology, Pasadena, CA. [ Links ]

A.C. Poling. A taped base line and auto-matic meteorological recording instruments for the calibration of electronic distance measuring instruments. International Hy-drographic Review, XLII. 1965; 2:173p [ Links ]

Psimoulis P.A., Kontogianni V.A., Nickitopoulou A., Pytharouli S.I., Triantafyllidis P., Stiros S.C., 2004, Estimating the Optimum Duration of GPS Static Observations for Short Baseline Length Determination in Greece. Proceedings of the FIG Working Week, Athens, Greece, 22-27 May. [ Links ]

RCDF-04, 2004, “Reglamento de Construcciones para el Distrito Federal (RCDF)”, Gaceta Oficial del Distrito Federal, décima cuarta época, Enero, 2004. [ Links ]

J.C. Savage, M. Lisowski, H. Prescott. Observed discrepancy between Geodolite and GPS distance measurements. J. Geophys. Res., 101, 25,547-25. 1996; 552p [ Links ]

M.S. Schenewerk, J. Marshall, W. Dillinger. Vertical Ocean Loading Deformations Derived from a Global GPS Network. Journal of the Geodetic Society of Japan. 47. 2001; 1:237p [ Links ]

G.E. Vazquez, D.A. Grejner-Brzeziska. A Case Study for Pseudorange Multipath Estimation and Analysis: TAMDEF GPS Network. Geofísica Internacional. 2012; 51:63p [ Links ]

J. Zhang, Y. Bock, H. Johnson, P. Fang, S. Williams, J. Genrich, S. Wdowinski, J. Behr. Southern California Permanent GPS Geodetic Array: Error analysis on daily position estimates and site velocities. Journal of Geophysical Research. 1997; 102:035p [ Links ]
