Revista Chapingo serie ciencias forestales y del ambiente

On-line version ISSN 2007-4018Print version ISSN 2007-3828

Rev. Chapingo ser. cienc. for. ambient vol.24 n.2 Chapingo May./Aug. 2018

http://dx.doi.org/10.5154/r.rchscfa.2017.07.047

Technical note

Vegetative propagation in the field of Jatropha curcas L. for human consumption

Silvia Evangelista-Lozano1

Juan Guillermo Cruz-Castillo2  *

Verónica Claudia-Serrano3

Antonio Jiménez-Aparicio1

1Instituto Politécnico Nacional, Centro de Desarrollo de Productos Bióticos. km 6 carretera Yautepec-Jojutla. Calle CEPROBI núm. 8, col. San Isidro. C. P. 62731. Yautepec, Morelos, México.

2Universidad Autónoma Chapingo, Centro Regional Universitario Oriente. km 6.5 carretera Huatusco-Xalapa. C. P. 94100. Huatusco, Veracruz, México.

3Universidad Autónoma del Estado de Morelos, Facultad de Ciencias Agropecuarias. Av. Universidad núm. 1001, col. Chamilpa. C. P. 66209. Cuernavaca, Morelos, México.

Abstract

Introduction:

The seeds of Jatropha curcas L. are used for the elaboration of regional dishes. An easy method of propagation would be useful for producers who market or consume seeds of this species.

Objective:

Test a method of vegetative propagation of J. curcas, planted in the field, for human consumption.

Materials and methods:

The vegetative propagation was carried out in the spring with 55 cm-stakes, obtained from secondary and tertiary branches from 28 years old trees. The cuttings were planted 3 m away in a loamy clay loam soil with pH of 7.21, and 1.11 % organic matter. The growth was evaluated at 120 days. Total carbohydrates were determined by a colorimetric method, two months before and eight months after field establishment.

Results and discussion:

Cuttings of J. curcas secondary branches with exfoliating bark and diameter of 3.6 to 4.0 cm at the base, at the beginning of propagation, achieved greater height, number of branches and greater concentration of total carbohydrates before and after establishment. This vegetative material is recommended for the propagation of J. curcas in the field. The cuttings of tertiary branches with diameters of 1.6 to 1.9 cm had mortality of 17 %, reduced capacity to generate branches and lower concentration of carbohydrates.

Conclusions:

The propagation of J. curcas, by cuttings, was successful in the open field; it was not necessary to use a greenhouse, auxins for rooting or polyethylene bags, prior to establishment.

Keywords: open field propagation; cuttings; carbohydrates; cloning; new crops

Introduction

Jatropha curcas L., native to Mexico and Central America, belongs to the family Euforbiaceae and has wide adaptation to different edaphic and environmental conditions (Kumar & Sharma, 2008). The species is known in Mexico as piñón or piñoncillo and its fruit is an oval drupe. The seeds are used for the preparation of Mexican foods such as tamales, atole (traditional hot beverage) and mole (Martínez, Siddhuraju, Francis, Dávila, & Becker, 2006).

In Mexico, edible plants of this species are found mainly in the states of Puebla and Veracruz (Martínez, Martínez, Makkar, Francis, & Becker, 2010); they are distinguished by lack of esters of phorbol, which is an alkaloid present in the seeds of J. curcas not suitable for human consumption (Pabón & Hernández-Rodríguez, 2012).

The plant material of J. curcas for cultivation is demanded. The species is used as live fence and its leaves as cattle feed (Toral et al., 2008), while seeds (54 %), due to their high oil content, are used to generate biodiesel (Shah, Sharma, & Gupta, 2004).

Jatropha curcas, not suitable for human consumption, has been propagated in vitro (Jha, Mukherjee, & Datta, 2007), by cuttings (Noor-Camellia, Thohirah, Abdullah, & Mohd-Khidir, 2009) and seeds (Díaz-Chuquizuta, Valdés-Rodríguez, & Tello-Salas, 2017); however, there is little information on the vegetative propagation of the species for human consumption. In this regard, Enciso and Castillo (2010) recommend using cuttings of young material. Kochhar, Singh, and Kochhar (2008) indicate that the age of the tissue, time of collection, biochemical composition, position of the cutting in the mother plant and presence of leaves and buds influence the response to rooting. Previous studies have shown the capacity of rooting of cuttings obtained in different positions of the same branch, and the importance of carbohydrates (Swamy, Puri, & Singh, 2002) and plant hormones (Kochhar et al., 2008), for dedifferentiation of cells in the formation of roots.

The vegetative propagation of J. curcas suitable for human consumption produces uniform individuals, which would facilitate their agronomic management. An easy method of propagating for producers would be advantageous in regions where J. curcas seeds are commercialized or consumed in regional dishes.

The objective of this study was to test a method of vegetative propagation of J. curcas, planted in the field, whose seeds are consumed by humans.

Materials and methods

Experimental conditions

The study was carried out at the Experimental Field Emiliano Zapata (18° 49´ 44.27'' N, 99° 05´ 34.29'' W; 1 059 m) of the Centro de Desarrollo de Productos Bióticos (CEPROBI) del Instituto Politécnico Nacional in Yautepec, Morelos, Mexico. The experiment was installed outdoors in a sandy loam soil with pH 7.21 and 1.11 % organic matter. The average environmental temperature was 27 °C (maximum 38 °C and minimum 7 °C). The vegetative material was collected when the plant was completely defoliated in March (spring) of 2010. The month was chosen based on the study of Evangelista, Serrano, Martínez, Martínez, and Quintero (2010), who evaluated the time of collection of J. curcas cuttings and concluded that the material obtained in March had a better response of rooting and sprouting of buds.

Plant material

A total of ten J. curcas plants (2 m height), for human consumption, were selected at random from an orchard of 900 plants, which was established with seed for 28 years in the CEPROBI. The seeds came from Tionoxtla, Guerrero, Mexico.

The branches of the trees selected were classified as primary (basal), secondary (from the primary branches) and tertiary (branches from the secondary branches) (Figure 1). The cuttings were obtained from secondary and tertiary branches, at a height between 130 and 160 cm from the ground, being the most abundant in the field. Both groups of cuttings had smooth or exfoliating bark that naturally occurs in J. curcas plants (Tavecchio, Reinoso, Ruffini-Castiglione, Spanò, & Pedranzani, 2016). After cutting, a basal portion of the cuttings (10 cm) was immersed in water for 5 min and placed horizontally on a blanket under shade for 24 h. Subsequently, the cuttings were tied and placed vertically on the blanket, where they remained for 15 days while preparing the ground for the establishment.

The size of the cuttings propagated was 55 ± 5 cm in length and they were divided according to the diameter of their base, frequencies, into five groups; the least thick (1.6 to 2.0 cm) came from tertiary branches, and the thickest (3.6 to 4.0 cm), from secondary branches.

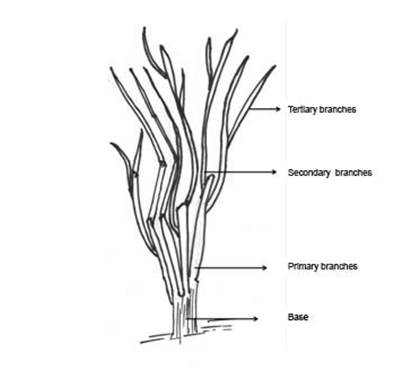

Figure 1. Secondary and tertiary branches of Jatropha curcas used for propagation in the field.

Establishment of total carbohydrates

Total carbohydrates were determided by a colorimetric method (Ting, 1956) two months before the establishment of J. curcas in the field and at the end of the experiment, eight months later. At each date of establishment (January, March, May, July, September, and November) five secondary cuttings with exfoliating bark were used, which at the time of propagation, had proximal and distal diameters of 3.6 ± 0.5 cm and 2.9 ± 0.3 cm (high rooting capacity), respectively. These were contrasted with five other tertiary cuttings with smooth bark with proximal and distal diameters of 1.9 ± 0.1 cm and 0.8 ± 0.0 cm (low rooting capacity), respectively. The distal and basal parts were ground and analyzed. Means and the standard error (Di Rienzo et al., 2016) of the total carbohydrates in the basal and distal parts of the cuttings were obtained during the six months of measurement (January, March, May, July, September and November 2010)

Establishment of cuttings in the field

A total of 120 cuttings arranged in a completely random design were planted; 24 for each of the five diameter groups. Previously holes (30 cm deep and 20 cm wide) were drilled, at a distance of 3 m, which were open for five days. After establishment, the plants were irrigated with 2 L of water, using a watering can; each week, 1 L of water was applied per cutting until the end of the experiment and weeded in the drip zone every two weeks.

Variables evaluated and statistical analysis

The variables evaluated in the rooted cuttings were: total height of the plant, number of developed branches, branches with flowering or fruiting, branches with or without leaves and branches with smooth stem or exfoliating bark. The plants were evaluated with a qualitative scale, based on general phenology (Rawson & Gómez, 2001); 1 for individuals without fruit, without leaves or smooth stem, and 2 for individuals with flower or fruit, leaves and exfoliating bark. These evaluations were made 120 days after the experiment was established (Evangelista et al., 2010).

The data of the five groups with different basal diameter and the five variables studied were evaluated by canonical discriminant analysis (CDA) with InfoStat through the discriminant analysis procedure (Di Rienzo et al., 2016). The data of the standardized values ​​in the two canonical functions were subjected to an analysis of variance; subsequently, significant differences between groups were determined by the Tukey test (P ≤ 0.05) (Cruz-Castillo, Ganeshanandam, Mackay, Lawes, & Woolley, 1994).

Results and Discussion

The CDA was used in order to differentiate the five groups of cuttings, generated according to their basal diameters, with respect to the linear relationships of the five variables studied (Cruz-Castillo et al., 1994). Four canonical discriminant functions (CDFs) were obtained from the data of the five study variables in the five groups of cuttings. The first function, shown in Table 1, was used to interpret the results, due to its statistical significance (P ≤ 0.05) and because it explained 89 % of the variation among the five groups of cuttings.

In the standardized canonical coefficients of CDF1 (Table 1), the presence of exfoliating bark, number of branches and height reached the highest absolute values. The values of these coefficients indicated that the discrimination between the five groups of cuttings was influenced, mainly, by these three variables. Likewise, individually, the correlation coefficients of these variables showed greater association with the CDF1 compared to the rest of these (Table 1).

Table 1 Standardized canonical coefficients (SCC) and correlation coefficients (CC) between the first canonical discriminant function (CDF) and the variables measured in Jatropha curcas cuttings.

Variables CDF 1
SCC CC
Height (cm) 0.72 0.61
Number of branches 0.90 0.69
Branches with fruits -0.25 -0.12
Branches with leaves 0.51 0.24
Branches with exfoliating bark 1.44 0.54

According to Table 2, the group of cuttings with the largest diameter (3.6 to 4.0 cm) had the highest vegetative growth in the field and differed significantly (P ≤ 0.05) from the other groups. The cuttings had height of 104.2 cm, on average, and three branches per plant with presence of exfoliating bark.

Table 2 Standardized canonical mean values of the first canonical discriminant function (CDF) in five groups of Jatropha curcas cuttings.

Basal diameter of the cutting (cm) CDF 1
1.6-2.0 -1.64 e
2.1-2.5 -0.72 d
2.6-3.0 -0.07 c
3.1-3.5 0.79 b
3.6-4.0 1.57 a

Separation of means according to the Tukey test (P ≤ 0.05)

On the other hand, Table 3 shows that, in general, the secondary branches had a higher carbohydrate concentration than the tertiary ones. The content was higher in the secondary growth cuttings collected in March.

Table 3 Total carbohydrates in Jatropha curcas cuttings, propagated in March, with different diameter and position in the tree. The secondary stems were exfoliating and the tertiary were smooth.

Cuttings Diameter (cm) Total carbohydrates (g·100 mL-1)
January March Mei July Septiember Noviember
Base secundaria 3.6 ± 0.5 13.2 ± 0.1 17.1 ± 0.6 14.3 ± 0.3 9.7 ± 0.4 8.8 ± 0.1 9.2 ± 0.1
Distal secundaria 2.9 ± 0.3 10.1 ± 0.4 15.3 ± 0.6 11.8 ± 0.2 6.8 ± 0.1 7.5 ± 0.2 8.9 ± 0.1
Base terciaria 1.9 ± 0.1 8.2 ± 0.1 14.2 ± 0.2 12.5 ± 0.2 6.6 ± 0.0 6.9 ± 0.0 6.5 ± 0.03
Distal terciaria 0.8 ± 0.0 5.4 ± 0.2 10.5 ± 0.4 9.2 ± 0.1 5.8 ± 0.2 5.7 ± 0.2 6.3 ± 0.1

The determinations were made in the year 2010. ± standard error of the mean.

Higher initial growth is associated with a high concentration of carbohydrates in other species (Swamy et al., 2002). The effects of the exfoliating bark on the initial growth rate of J. curcas plants have not been studied. According to Tavecchio et al. (2016), the exfoliation of the J. curcas bark is related to its ability to grow in environments with low humidity; in this way, individuals of J. curcas exfoliated and vegetatively propagated would have less dehydration. In future studies, individuals with similar diameters with or without exfoliating bark should be compared to assess their rooting capacity.

Cuttings with basal diameters between 1.6 and 3.0 cm showed less vigorous initial growth in the field. These only reached 59.9 cm in height, developed two branches and had no exfoliating bark. The cuttings with 1.6 to 1.9 cm had a mortality of 17 %, reduced capacity to emit branches and lower concentration of carbohydrates. The rest of the cuttings did not die and did not reach the growth of the individuals with diameters of 3.6 to 4.0 cm.

The vegetative development of J. curcas is essential for rooting, since the stems are formed first and then the roots (Kochhar, Kochhar, Singh, Katiyar, & Pushpangadan, 2005). Therefore, an early and adequate vegetative growth will improve initial root production (Jimu, Nyakudya, & Katsvanga, 2009). The basal lateral buds of the group of cuttings with a diameter of 3.6 to 4.0 cm showed tissue thickening in April (20 days after being established in the field), later differentiating into branches with leaves. In that month, the leaves turned up green, with slow growth unlike the buds that developed from the middle part upwards. Individuals with diameters of 3.6 to 4.0 cm showed rapid growth; the leaf primordia showed a reddish coloration and developed long branches and abundant foliage. The propagation of J. curcas per cutting could be related to the time of collection and, due to the differences recorded in the concentrations of carbohydrates (Table 3), by the position of these in the mother plant. The application of auxins in cuttings with smaller diameters could help to improve the growth of the roots as has happened with individuals of J. curcas to produce biodiesel (Kochhar et al., 2005, 2008).

The J. curcas vegetative propagation for human consumption has been carried out in vitro (Sujatha, Makkar, & Becker, 2005), in the greenhouse (Enciso & Castillo, 2010) and in plastic bags prior to establishment in the field (Teniente et al., 2011). In the present study, J. curcas cuttings, vegetatively propageted, were established directly in the field, which is advantageous for the producer who does not have acces to in vitro propagation or use of a greenhouse for cloning. Additionally, plastic bags were not needed for their propagation, which, in some agricultural production systems, contaminate the environment, neither an application of bioregulators was used.

Conclusions

In the selection of cuttings to propagate J. curcas for human consumption, the secondary cuttings with diameters between 3 and 4 cm, with exfoliating bark, coming from trees in full production and with a higher concentration of total carbohydrates will have higher vegetative growth rate, which will ensure the initial establishment in the field. With this method of propagation it is not necessary to apply auxins to promote rooting or use greenhouse; neither is it necessary to plant in polyethylene bags, before establishment.

Acknowledgments

The authors thank the Secretaría de Investigación y Posgrado of the Instituto Politécnico Nacional, and CONACYT project number 294968 for funding this study.

References

Cruz-Castillo, J. G., Ganeshanandam, S., Mackay, B., Lawes, G. S., & Woolley, D. J. (1994). Applications of canonical discriminant analysis in horticultural research. HortScience, 29(10), 1115-1119. Retrieved from http://hortsci.ashspublications.org/content/29/10/1115.full.pdfLinks ]

Díaz-Chuquizuta, P., Valdés-Rodríguez, O. A., & Tello-Salas, C. (2017). Germination responses in physic nut (Jatropha curcas L.) seeds to pregerminative treatments. Revista Chapingo Serie Horticultura, 23(2), 89-96. doi: 10.5154/r.rchsh.2016.10.027 [ Links ]

Di Rienzo, J. A., Casanoves, F., Balzarini, M. G., González, L., Tablada, M., & Robledo, C. W. (2016). InfoStat software estadístico versión 2016. Argentina: Universidad Nacional de Córdoba (FCA-UNC). [ Links ]

Enciso, G. C. P., & Castillo, E. F. M. (2010). Propagación vegetativa de Jatropha curcas L. por estacas. Investigación Agraria, 12(2), 69-73. Retrieved from http://www.agr.una.py/revista/index.php/ria/article/view/150Links ]

Evangelista, L. S., Serrano, E. V. C., Martínez, A. A., Martínez, H. J., & Quintero, G. A. (2010). Propagación vegetativa de Jatropha curcas L. In M. Estrada-Botello, R. Osorio-Osorio, N. Brito-Manzano, & R. Sánchez-Hernández (Eds.), Tópicos selectos en agronomía tropical (vol. 1, pp. 133-136). Tabasco, México: Universidad Juárez Autónoma de Tabasco. [ Links ]

Jha, T. B., Mukherjee, P., & Datta, M. M. (2007). Somatic embryogenesis in Jatropha curcas Linn., an important biofuel plant. Plant Biotechnology Reports, 1, 135-140. doi: 10.1007/s11816-007-0027-2 [ Links ]

Jimu, L., Nyakudya, I. W., & Katsvanga, C. A. T. (2009). Establishment and early field performance of Jatropha curcas L. at Bindura University Farm, Zimbabwe. Journal of Sustainable Development in Africa, 10(4), 445-469. Retrieved from https://www.researchgate.net/publication/237559614_Establishment_and_Early_Field_Performance_of_Jatropha_Curcas_L_at_Bindura_University_Farm_Zimbabwe Links ]

Kochhar, S., Kochhar, V. K., Singh, S. P., Katiyar, R. S., & Pushpangadan, P. (2005). Differential rooting and sprouting behavior of two Jatropha species and associated physiological and biochemical changes. Current Science, 89(6), 936-939. Retrieved from http://www.currentscience.ac.in/cs/Downloads/article_id_089_06_0936_0939_0.pdfLinks ]

Kochhar, S., Singh, S. P., & Kochhar, V. K. (2008). Effect of auxins and associated biochemical changes during clonal propagation of the biofuel plant Jatropha curcas. Biomass and Bioenergy, 32(12), 1136-1143. doi: 10.1016/j.biombioe.2008.02.014 [ Links ]

Kumar, A., & Sharma, S. (2008). An evaluation of multipurpose oil seed crop for industrial uses (Jatropha curcas L.): A review. Industrial Crops and Products, 28(1), 1-10. doi: 10.1016/j.indcrop.2008.01.001 [ Links ]

Martínez, H. J., Siddhuraju, P., Francis, G., Dávila, O. G., & Becker, K. (2006). Chemical composition, toxic/antimetabolic constituents, and effects of different treatments on their levels in four provenances of Jatropha curcas L. from Mexico. Food Chemistry, 96(1), 80-89. doi: 10.1016/j.foodchem.2005.01.059 [ Links ]

Martínez, H. J., Martínez, A. A. L., Makkar, H., Francis, G., & Becker, K. (2010). Agroclimatic conditions, chemical and nutritional characterization of different provenances of Jatropha curcas L. from Mexico. European Journal of Scientific Research, 39(3), 396-407. Retrieved from https://www.researchgate.net/publication/242574839_Agroclimatic_Conditions_Chemical_and_Nutritional_Characterization_of_Different_Provenances_of_Jatropha_Curcas_L_from_MexicoLinks ]

Noor-Camellia, N. N., Thohirah, L. A., Abdullah, N. A. P., & Mohd-Khidir, O. (2009). Improvement on rooting quality of Jatropha curcas using indole butyric acid (IBA). Research Journal of Agriculture and Biological Sciences, 5(4), 338-343. Retrieved from http://psasir.upm.edu.my/17712/1/Improvement_on_Rooting_Quality_of_Jatropha_curcas_Using_Indole_Butyric_Acid_(IBA).pdfLinks ]

Rawson, M. H., & Gómez, M. H. (2001). Trigo regado. Evaluación y medición del cultivo. Roma, Italy: FAO. Retrieved from http://www.fao.org/DOCREP/006/X8234S/x8234s06.htmLinks ]

Pabón, L. C., & Hernández-Rodríguez, P. (2012). Importancia química de Jatropha curcas y sus aplicaciones biológicas, farmacológicas e industriales. Revista Cubana de Plantas Medicinales, 17(2), 194-209. Retrieved from http://scielo.sld.cu/pdf/pla/v17n2/pla08212.pdfLinks ]

Shah, S., Sharma, S., & Gupta, M. N. (2004). Biodiesel preparation by lipase-catalyzed transesterification of Jatropha oil. Energy and Fuels, 18(1), 154-159. doi: 10.1021/ef030075z [ Links ]

Sujatha, M., Makkar, H. P. S., & Becker, K. (2005). Shoot bud proliferation from axillary nodes and leaf sections of non-toxic Jatropha curcas L. Plant Growth Regulation, 47(1), 83-90. doi: 10.1007/s10725-005-0859-0 [ Links ]

Swamy, S. L., Puri, S., & Singh, A. K. (2002). Effect of auxins (IBA and NAA) and season on rooting of juvenile and mature hardwood cuttings of Robinia pseudoacacia and Grewia optiva. New Forests, 23(2), 143-157. doi: 10.1023/A:1015653131706 [ Links ]

Teniente, O. R., Tapia, V. L. M., Zamarripa, C. A., González, Á. A., Solis, B. J. L., Martínez, V. B., & Hernández, M. M. (2011). Guía técnica para la producción de piñón mexicano (Jatropha curcas L.) en Michoacán. México: SAGARPA-INIFAP. Retrieved from http://biblioteca.inifap.gob.mx:8080/jspui/handle/123456789/3052Links ]

Tavecchio, N., Reinoso, H., Ruffini-Castiglione, M., Spanò, C., & Pedranzani, H. E. (2016). Anatomical studies of two Jatropha species with importance for biodiesel production. Journal of Agricultural Science, 8(9), 85-94. doi: 10.5539/jas.v8n9p84 [ Links ]

Ting, S. V. (1956). Rapid colorimetric methods for simultaneous determination of total reducing sugars and fructose in citrus juices. Journal of Agriculture and Food Chemistry, 4(3), 263-266. doi: 10.1021/jf60061a009 [ Links ]

Toral, O. C., Iglesias, J. M., Montes de Oca, S., Sotolongo, J. A., García, S., & Torsti, M. (2008). Jatropha curcas L., una especie arbórea con potencial energético en Cuba. Pastos y Forrajes, 31(3), 191-207. Retrieved from http://scielo.sld.cu/pdf/pyf/v31n3/pyf01308.pdfLinks ]

Received: July 19, 2017; Accepted: January 30, 2018

*Corresponding author: jcruzcastillo@yahoo.com, tel.: +52 (273) 734 0764
