Total Recovery of Gold Contained in Computer Printed Circuit Boards. Leaching Kinetics of Cu, Zn and Ni


María Isabel Reyes,1 Isauro Rivera,1* Francisco Patiño,1 Mizraim U. Flores,1 and Martín Reyes1


1 Área Académica de Ciencias de la Tierra y Materiales, UAEH, Ciudad Universitaria Carretera Pachuca–Tulancingo Km. 4.5, C.P. 42184, Pachuca, Hidalgo.


Received October 13, 2011.
Accepted March 6, 2012.



In this study a thorough characterization of certain printed circuit boards has been carried out; it was found that they are made up of a polymer layer, a metal layer of Cu, Zn and Ni, and a gold substrate. A kinetic study of the acid dynamic leaching of copper, zinc and nickel has been carried out, finding out that these elements' dissolution allows the gold substrate to be physically separated; then, the gold particles are separated from the polymer by filtration. The reaction orders were calculated vs. H2SO4 concentration, and the activation energy was calculated as well; reaction orders of n = 0.265, n = 0.247 and n = 0.245 were found for Cu, Zn and Ni respectively, while Ea = 86.3, Ea = 95.3 and Ea = 11.2 kJ/mol were found for Cu, Zn and Ni respectively. When the attack time is over, a shiny, solid product has been obtained; it was characterized by SEM–EDS and AAS, confirming that it is metallic gold, with a purity of 100 and 99.9% according to the respective technique.

Key words: Gold, printed circuit boards, kinetics, leaching, recovery.



En el presente estudio se ha desarrollado una exhaustiva caracterización de ciertos circuitos impresos de computadoras, encontrando que están constituidos por una capa polimérica, una capa metálica de Cu, Zn, Ni y un sustrato de oro. Se ha realizado un estudio cinético de la lixiviación dinámica ácida de cobre, zinc y níquel, cuya disolución permite la separación física del sustrato de oro, respecto a la capa polimérica; posteriormente y por filtración las partículas de oro son separadas del polímero. Se calcularon los órdenes de reacción frente a la concentración de H2SO4, así como la energía de activación del sistema; encontrando que n = 0.265, n = 0.247 y n = 0.245 para el Cu, Zn y Ni respectivamente. Por otra parte, la Ea = 86.3, Ea = 95.3 y Ea = 11.2 kJ/mol para el Cu, Zn y Ni respectivamente. Al finalizar el tiempo de ataque se ha obtenido un producto sólido brillante, que fue caracterizado por SEM–EDS y AAS confirmando que el mismo se trata de oro metálico con una pureza del 100 y 99.9% según la técnica respectiva.

Palabras clave: Oro, circuitos impresos, cinética, lixiviación, recuperación.



At a fast rate, recycling is increasingly being considered by the developed countries. During a period of time they mainly focused on the recycling of post–consumed products. The recycling of industrial waste is also tending to increase. With some materials, an effective recycling system cannot be spontaneously installed, and therefore it has become a subject concerning technology, planning, economy and environmental regulation [1]. Gold and silver are examples of industrial materials that can be recycled [2, 3, 4]. The gold is used in aqueous and metallic form; its solid wastes consist of used chips, gold pieces and filings [5]. Electronic waste consists basically of computer components, electronic boards, electrical appliances, cellphones, audio equipment, etc. Specifically, the gold–containing electronic wastes are constituted by printed circuit boards. In wide zones, usually a gold layer is placed on a substrate of a less noble metal, like copper, zinc or nickel, which is inserted on a polymer base. The gold contained in these printed circuit boards is of high commercial interest; it is present in amounts ranging from 0.1 to 0.5 grams of gold per board. In Mexico around 5 million computers are disposed of every year [6]. This enormous potential source is evident, but it is disposed of or partially recovered by very rare, imported and expensive processes. Such processes include mechanical and metallurgical operations, which usually generate considerable amounts of polluting gases.

The need for approaching research on precious metals recovery from electronic wastes is evident, specifically on the recovery of gold contained in the printed circuit boards; the amount of gold contained in the electronic wastes can be even higher than the amount present in an ore. Therefore, the secondary sources of metals are increasingly becoming attractive. The research works carried out in order to recover precious metals contained in electronic waste are frankly scarce [5, 7, 8–12]. On the subject, E. Morera [9] has studied the leaching of metals with ozone, finding that, in Cl–O3 media, it is possible to dissolve the contained copper, nickel, tin, gold and silver; however, its use at an industrial level is not very clear, because the investment costs for ozone generation are a limiting factor, without mentioning the necessity of leaching the metals by stages. J. Viñals, [13] have studied the leaching of gold and palladium with aqueous ozone in chloride media dissolution, where the gold and palladium recycling from metallic wastes can be carried out by ozone–leaching at room temperature and at low concentrations (~0.1 M H+ y Cl). Rh and Pt remain unreactive, while metals, such as Cu, Ni, Ag can be previously eliminated through a O2/H+ medium and O2/O3/H+ leaching pretreatments. Gold and palladium are dissolved in O3/Cl/H+, with formation of AuCl and PdCl. On the other hand, the leaching studies showed a passive region, located basically at >0.01 and <0.05 M Clfor Au and Pd respectively. In the non–passive region, rates slightly depend on H+ and Cl. The secondary formation of chlorine and hypochlorites was irrelevant (≤0.1 M Cl). Kinetics were controlled by mass transfer of O3(aq) to the solid–liquid interface, obtaining a first order dependence with respect to [O3]aq. The leaching rate of gold gradually decreased to pH > 2 as a consequence of the influence of the transfer control of [H+].

In this work, we propose to recover the gold contained in the printed circuit boards by means of acid dynamic leaching using oxygen and sulfuric acid to dissolve the copper, zinc and nickel substrate. This will allow the physical separation of the gold and of the polymer component; then, by filtration, the gold particles will be separated by sieving the polymer, the proposed process is innovative and original. Finally, the particles are washed and ready to be cast into gold ingots. We studied the effect of the sulfuric acid concentration on the leaching rate of the base metals, and we calculated the order of the reaction of the sulfuric acid on each base metal.


Results and discussion

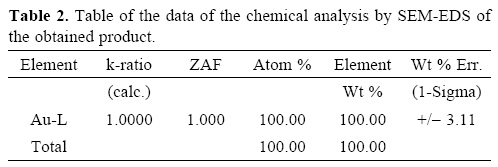

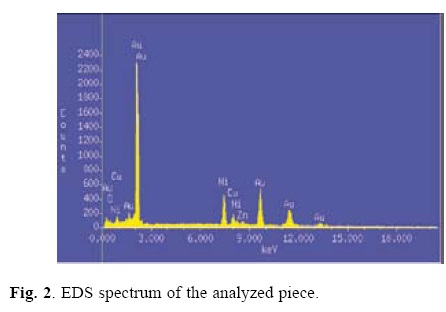

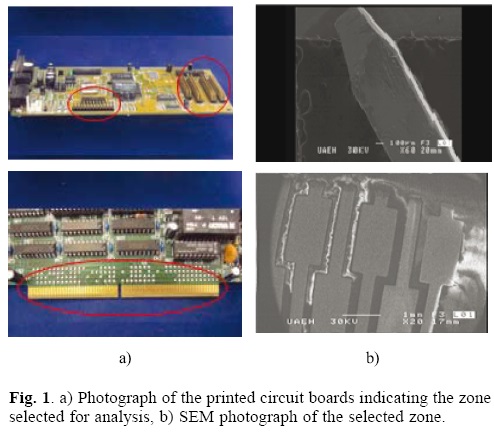

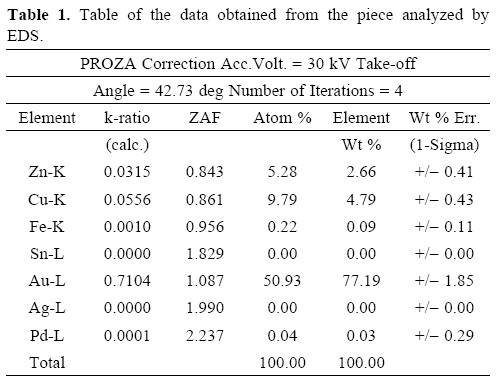

The computer printed circuit boards were characterized by SEM–EDS. Figure 1a shows images of the printed circuitboards, indicating the zone selected for analysis. Figure 1b shows a micrograph of the selected zone; it can be observed that the pieces present a bar–like morphology; these pieces were analyzed by SEM–EDS. The results of the analysis are shown in table 1 and in figure 2, where it can be observed that the gold content is 77.19%; other elements, such as Cu, Zn and Ni are present as well. The pieces were used for carrying out the kinetic study, where we evaluated the concentration of sulfuric acid; this parameter was varied, while the other parameters were kept constant. The experimental conditions of the study are the following: [H2SO4][M] = 0.013, 0.025, 0.050, 0.076, 0.102 and 0.204. Constant parameters: Solution volume: 500 mL; Temperature: 25 °C; Stirring rate: 750 min–1; Oxygen partial pressure: 1 atm; Sample mass: 10 g. The acid concentrations, at the different studied molarities, were kept constant by monitoring and measuring the pH value of the leaching solution, and by adding the necessary amount of acid in order to keep the initial H2SO4 concentration.

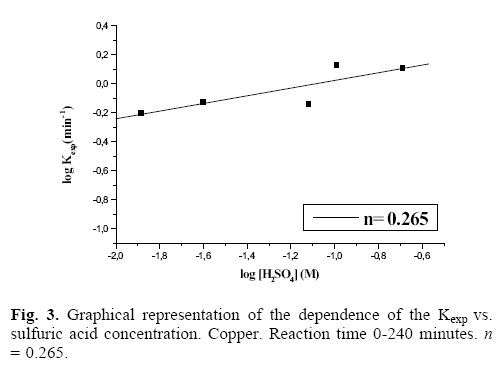

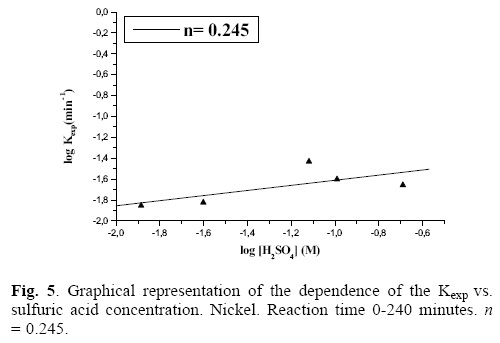

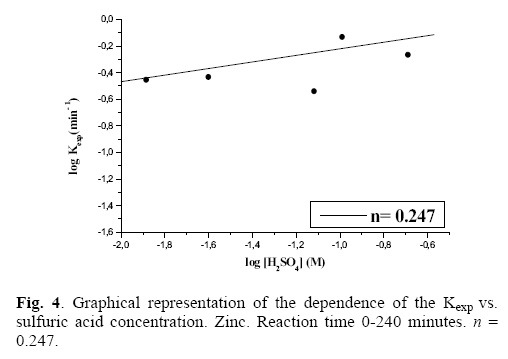

When graphically representing the leached ppm of the dissolved metal in function of time, we obtain a slope whose value is the rate experimental constant (Kexp) for each studied concentration of sulfuric acid. Figure 3 graphically represents the logarithm of Kexp vs. The logarithm of the several analyzed [H2SO4]; we have calculated the reaction order (n) of such vales, obtaining a value of n = 0.265 for copper. Figure 4 shows the logarithm of Kexp vs. the logarithm of the different [H2SO4]; the value of the reaction order is calculated and n = 0.247 is obtained for zinc. In a similar fashion, figure 5 presents the logarithm of Kexp vs. the logarithm of the several analyzed [H2SO4]; a value of n = 0.245 is obtained for nickel. These results show that, under the studied conditions, the [H2SO4] has a considerable influence on the leaching rate of copper, zinc and nickel. Once the base metals were leached, that is, after 240 minutes of the reaction, time, we could obtain, by filtration, gold particles that were subsequently characterized. Once the reaction orders were calculated, the activation energy of the system was also calculated; for this purpose, a series of experiments was carried out, with temperature as the variable parameter: 15, 20, 25, 35, 40 and 50 (°C). The other parameters were kept constant. In this case, the experimental conditions are the following: Solution volume: 500 mL; Sulfuric acid concentration: 0.076 M; Stirring rate: 750 min–1; Oxygen partial pressure: 1 atm; Sample mass: 10 g. To control the temperature we used a thermocouple connected to a heating plaque and magnetic stirring. The thermocouple allows to control and to keep the bath temperature constant, with tolerances of ± 0.2 °C. When graphically representing the leached ppm of each metal dissolved in function of time, we obtain a slope whose value is the Kexp of rate for each studied temperature. The activation energy of the system was calculated according to the Arrhenius equation. Figure 6 presents the ln vs. 1/T for copper, resulting in a straight line with negative slope, whose value is equal to –Ea/R; this allows to calculate the Ea for copper: Ea = 86.3 kJ/mol. Figure 7 presents the ln vs. 1/T for zinc, resulting in a straight line with negative slope, which allows, like in the previous case, to calculate the activation energy of the system for zinc: Ea = 95.3 kJ/mol. Figure 8 presents the ln vs. 1/T for nickel, calculating the activation energy of the system for this metal: Ea = 11.2 kJ/mol. It is very clear [14] that, in the case of the leaching of Cu and Zn, there is a chemical control (observed in the values higher than 40 kJ/mol); in the case of Ni, there is a control by diffusion or transport.

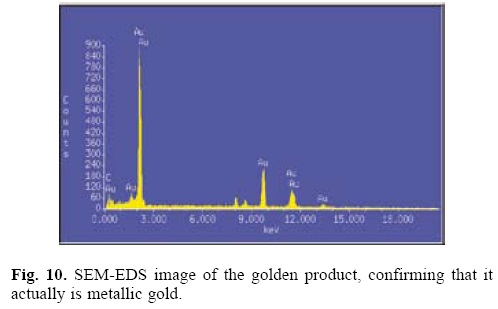

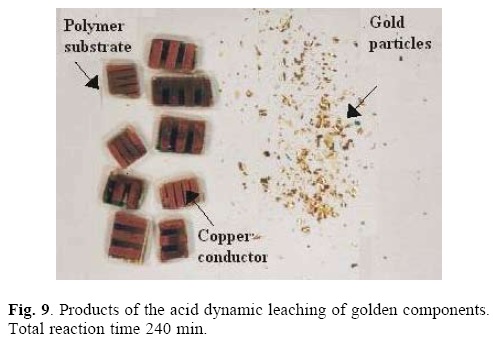

In most of the cases, upon finishing the experiment, we obtained a gold solid product that is completely separated from the samples. The amount of recovered gold depend on the experimental conditions, obtaining in some cases of recoveries 99.5% (7.68 g of Au/10 g sample mass) and under next conditions: Solution volume: 500 mL; Temperature: 50 °C; Sulfuric acid concentration: 0.076 M; Stirring rate: 750 min–1; Oxygen partial pressure: 1 atm; Attack time: 240 minutes; Sample mass: 10 g. Figure 9 shows the products of the leaching of the printed circuit boards' samples; it can be seen how the golden coating is separated from the metal layer that has passed to the solution and from the polymer layer. Figure 10 is an SEM–EDS image of the obtained solid product, confirming that it is metallic gold. Table 2 shows the data of the chemical analysis by SEM–EDS of the obtained product; with this technique, the purity of 100% gold clearly stands out. The obtained solid product was also characterized by AAS, and a purity of 99.9% was obtained. It is worth noting that the Cu, Zn and Ni present in the leaching solution can be recovered by any of the conventional procedures used for obtaining these metals.

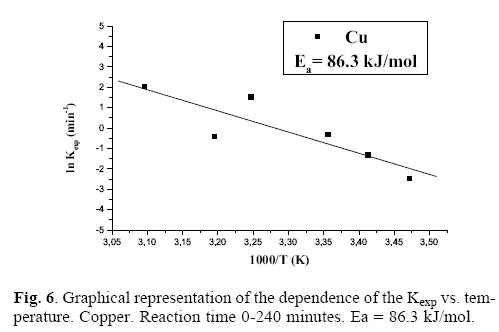

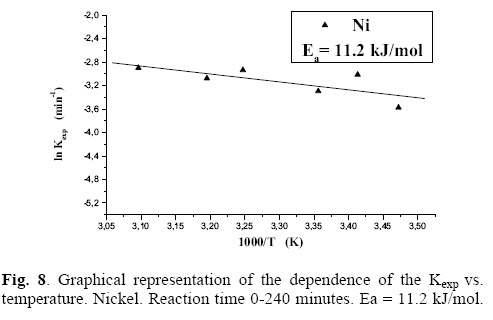

The gold was characterized by SEM–EDS and AAS, obtaining purities of 100% and 99.9% with the respective techniques. At attack times of 240 minutes, the total of Cu, Zn and Ni passes to the leaching solution, and a total physical separation of the gold substrate and the polymer layer is achieved. A kinetic study of the leaching of Cu, Zn and Ni was carried out, and it was found that the reaction orders are of n = 0.265, 0.247 and 0.245 respectively. The activation energies are of Ea = 86.3, Ea = 95.3 and Ea = 11.2 kJ/mol respectively.


Experimental procedure

The methodology of this research work comprised a series of experiments performed in the following sequence: A) Collection of computer printed circuit boards. B) Meticulous characterization by SEM–EDS of all the parts that form the printed circuit boards. C) Selection of the parts containing gold. D) Cutting of the selected pieces containing gold. E) Determination of the leaching conditions with the object of studying the nature of the leaching reaction of the base metals (copper, zinc and nickel) that form the contained gold's metal substrate. All the leaching experiments were carried out at atmospheric pressure in a conventional 500 mL glass kettle. It was mounted on a heating plaque equipped with magnetic stirring, temperature control and stirring rate meter. The 3 cm–long stirrer is made of steel covered with Teflon. A continuous pH measuring system was established, using a pH–meter equipped with a pH electrode capable of operating under extreme conditions of acidity and alkalinity. The temperature of the system was controlled by a thermometer submerged in the solution (for the tests carried out at room temperature). For the tests performed at high temperatures, the control was carried out by means of a thermoregulator that controlled and kept the bath's temperature constant, with tolerances of ± 0.2 °C. The medium of attack was oxygen–sulfuric acid. F) Development of the leaching kinetics of the base metals. This means determining the factors that affect the leaching rate of such metals. The evaluated effects are sulfuric acid concentration (0.013, 0.025, 0.050, 0.076, 0.102 and 0.204 M) and temperature (15, 20, 25, 35, 40, y 50 °C).

Finally, the reaction orders and activation energies were calculated; they are kinetic parameters of great importance forthe industrial application of the gold recovery process. The samples taken at different reaction times were analyzed by Atomic Absorption Spectrophotometry (AAS). The obtained solid product was characterized by Scanning Electron Microscopy–Energy Dispersive Spectroscopy (SEM–EDS) and AAS.
