1. Introduction

Ceramic foams are considered as low density and porous materials with high thermal and acoustic insulating properties. These characteristics make them very interesting for use in the construction industry (^{Liu et al., 2016}; ^{Presas, 2008}) since thermal insulating is economically highly appreciated (^{Bai, Yang, Xu, Jing, & Yang, 2014}). Today, there are high costs implicated to keep homes and workplaces climatized (^{Ji, Zhang, He, Liu, & Wang, 2015}), especially in geographical areas where extreme weather predominates (^{Kato, Ohashi, Fuji, & Takahashi, 2008}). In the north part of Mexico, construction is based on bricks made of baked clay and concrete blocks. These materials are poorly insulating. Thus, the application of polymeric coatings to compensate for this lack is frequent (^{Meir & Roaf, 2006}). The most used polymeric insulators are expanded polyurethane or polyethylene sheets; these are typically placed outdoors because of their excellent insulating properties (their thermal conductivity coefficients; k are below 0.05 W/m K) (^{Ozel, 2011}). However, they have the disadvantage of being highly flammable and can release toxic gases when they are in contact with heat sources; thus, these are not considered for indoor installation (^{Vancea & Lazău 2014}). Another issue is that polymeric coatings are damaged by ultraviolet light, so a layer of protective paint must be applied to prevent its exposure, its application being recurrent at least every 5 to 8 years, increasing its maintenance costs (^{Sousa, Amorim, Medeiros, Mélo, & Rabello, 2006}).

On the other hand, ceramic coatings such as vitroceramic foams have the advantage of being able to apply both indoors and outdoors, since they are not flammable and do not release any gas. They have a higher hardness and mechanical resistance compared to polymeric counterparts (^{Bernardo, Cedro, Florean, & Hreglich, 2007}; ^{Ding, Ning, Wang, Shi, & Luo, 2015}). The present work deals with the preparation of a low-cost ceramic glass foam, taking advantage of the high availability of local residual materials such as pumice waste (which did not meet industry requirements), being a cheap alternative with an appropriate density of 1.3 g/cm³ and natural limestone, both components have exploitation sites located only a few kilometers from Chihuahua City, Mexico. Another component is glass; it was obtained as local waste in the form of used bottles and glass containers. Limestone was used as a foaming agent, varying the content of pumice and glass waste. The samples were sintered at four temperatures 700,750, 800 and 850°C. The raw materials were characterized by XRD; meanwhile, the synthesized samples were measured for thermal conductivity, density, porosity and compressive strength in order to determine the formulation with increased insulating properties and better mechanical performance.

2. Experimental

Each of the raw materials was grounded in a Bico pulverizer model UA until the powders reached a particle size lower than 80 mesh (177 μm). Some mixtures were weighed, and homogeneously mixed following the proportions showed in Table 1.

Each formulation was compressed at 140 psi, generating cold-compacted samples in the form of wafers (2 x 0.5 cm). The green samples were pre-heated at 450°C for 5 minutes (using a heating ramp of 15 °C/min) in a Thermolyne 21100 tubular oven to remove residual water and prevent ruptures generated during sintering at 700, 750, 800 and 850°C. Heating was performed in an air atmosphere using a flow of 200 cm³/min. Three repetitions were made for each sintering temperature. To evaluate the effect of sintering time on the material characteristics, the 800°C sample was kept in the furnace during different times (10, 20, 30 and 40 minutes). The used methodology was in accordance with the studies of ^{Guo et al. (2014)}, their study also used CaCO₃ as a foaming agent.

3. Results

Raw materials were characterized through XRD to identify the present phases. Fig. 1 shows that limestone mainly contains calcium carbonate in the form of a calcite phase. The diffraction pattern confirmed its presence when it was compared with an ICDD reference PDF 00-005-0586, presenting the principal peak (104) at 29.44°. The sample also contains calcium carbonate in the form of aragonite and quartz (SiO₂) as an impurity. The pumice sample presented an amorphous diffraction pattern because this mineral is a volcanic glass (^{Correcher, Gomez-Ros, Dogan, García-Guinea, & Topaksu, 2017}). The source of the used glass was obtained from a waste of amber glass bottles.

Figure 1 XRD patters of a) Limestone and b) Pumice.

By itself, an amorphous material was not analyzed by XRD. Its chemical composition was determined, shown in Table 2.

XRD and TGA studies (Fig. 2) confirmed that limestone mostly contains CaCO₃ being a pore-forming compound, which during its decomposition, releases significant quantities of carbon dioxide gas. The amount of this mineral in the present formulations will remain fixed at 5% based on previous experiences and studies conducted by ^{Wu, Boccaccini, Lee, Kershaw, and Rawlings (2006)} and other authors. These studies demonstrated that this concentration reached the optimal expansion for glass-based ceramic foams (^{Guo et al., 2014}). Pumice waste was chosen as aggregate because of its low density (1.3 g/cm³), low cost and high availability in the region. The primary pumice purpose is to serve as structural support during the synthesis of ceramic foam since when the glass reaches its softening temperature; it begins to flow. Thus, pumice contributes to preserving the shape of the piece (^{Bento et al., 2013}). On the other hand, when the decomposition of CaCO₃ begins, it must allow the formation of pores. Pumice has a double role: keeping a balance between the expansion and structural integrity of the sample. The expansion values in Table 3 indicated that the formulation with 5% pumice waste had a better performance reaching the highest numerical value.

Figure 2 TGA-DSC thermal curves of 90-5-5 samples.

To verify the formulation behavior and sintering performance, some TGA-DSC analyses were performed to the 90-5-5 sample (Fig. 2). The thermogram showed a loss of weight in the temperature range of 580-700°C. In this region, CO₂ is produced because of the thermal decomposition of calcium carbonate as is showed in the chemical reaction:

The obtained weight for this decomposition reaction was 2.1% (expressed as released CO₂). Based on this amount, the stoichiometric ratio of calcium carbonate was calculated; this value is equivalent to a 4.8% content shown as pure CaCO₃ in the sample. The complement (0.2%) regarding the initial formulation as limestone (5%) was identified as quartz by XRD. Based on DSC analyses, an endothermic type signal was observed, corroborating the sample decarbonation. Even though the graph shows that the foaming action of CaCO₃ starts at 580°C, it must be considered that the released CO₂ has crossed through the compacted sample; thus, sintering temperature was markedly increased.

Once the optimal formulation was obtained, some sintered samples were prepared using sintering temperatures of 700, 750, 800 and 850°C with a furnace and a holding time of 20 minutes. The SEM micrographs of Fig. 3 showed an increased porous generation as a temperature rise in the 5-5-90 sample. It is noticeable that at 700°C, no pores are formed yet, the 750°C sample showed an incipient porosity generation in the form of small pores. At 800 and 850°C, pores increased their sizes because small pores communicate with each other forming larger pores. In the graphs of Fig. 4b the measurements of bulk density are displayed, it is observed that the 700°C sample had a value of 1.7 g/cm³, this indicates that carbonate decomposition does not happen yet and is corroborated in Fig. 4a where it is noticed that the sample had no apparent expansion. The minimum reached density values were 0.42 and 0.44 g/cm³ for temperatures of 850 and 800°C, respectively. The nominal difference between these two samples was minimal, so it was decided to use the lower sintering temperature (800°C) to evaluate the effect of holding time in the furnace to sintered samples. A critical disadvantage of sintering at a higher temperature (850°C) is the economic aspect translated as energy and investment-related costs. Besides, at a higher temperature, the glass component flows quickly, causing the sample to lose symmetry when it expands, as can be seen in the image of Fig. 4a, where the specimen looked heavily deformed. The graph of Fig. 4c shows the porosity level of sintered samples expressed as a percentage. The highest porosity was 83%, reached at 800 and 850°C.

Figure 3 SEM micrographs of samples obtained at different sintering temperatures.

Figure 4 a) general images, b) bulk density and c) porosity of sintered 5-5-90 samples obtained as a function of temperature.

As was mentioned above, the 5-5-90 sample sintered to 800°C was subjected to different holding times in the furnace. In Fig. 5a, it can be observed that a minimum value of bulk density was reached after 20 minutes of heating, obtaining the highest porosity percentage (81%). In the graphs, there is no significant difference in bulk density and porosity under different sintering times. It was observed that after 20 min, the samples begin to densify; this is probably due to glass creep that clogged the pores and deformed the sample simultaneously. The thermal conductivity is shown in Fig. 5b, as can be seen, these results have a direct relation to density, obtaining the lowest values 0.090 and 0.091 W/m K in samples heated at 850 and 800°C, respectively. These values are acceptable when they are compared with commercial polymer-based insulators such as expanded polystyrene and polyurethane, whose approximate values are 0.040 W/m K. As was mentioned earlier, these insulators have the critical disadvantages of not being able to use them in interior spaces because they are highly flammable and present higher involved costs.

Figure 5 a) Bulk density and porosity of 5-5-90 the sample at 800°C under different sintering times, b) thermal conductivity and compressive strength as a function of sintering temperature.

Some compressive resistant tests were performed on sintered samples and their results are shown in Fig. 5b. Similarly, this property had a direct relationship with thermal conductivity. Both properties have great importance for the use of this material as an insulating barrier since this material usually goes as an outer layer and it must resist accidental impacts. Sintered samples at 800 and 850°C have a resistance of approximately 1 MPa; this value is similar to the results reported by ^{Attila, Güden, and Taşdemirci (2013)} and ^{Baino and Ferraris (2019)}, which synthesized similar foams from vitreous materials. The pore size distribution of the 5-5-90 sample was determined and showed in Fig..6, 300 measurements were made and the results were classified into 17 pore size intervals. The range of 0.55 to 0.63 mm was the most frequent, with a value of 59%. The total pore size range was 0.14 to 1.53 mm. A summary of the most important parameters for applications, such as an insulating coating of the 5-5-90 sample sintered at 800°C is presented in Table 4.

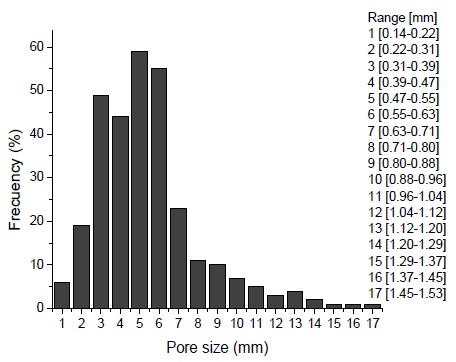

Figure 6 Histogram of the pore size distribution of 5-5-90 samples.

4. Conclusions

In this work, it was possible to synthesize ceramic foams prepared from a vitroceramic mixture, using low-cost and a straightforward process. As precursors, some local industrial residues were used; this has a distinct advantage as low transport and inherent costs related to the acquisition of raw materials. The optimum sintering time was determined to be 20 minutes in comparison to longer residence times. The sintered ceramic foam with a 5-5-90 formulation at 800°C presented the best properties with 0.44 g/cm³ (bulk density) and a thermal conductivity coefficient of 0.096 W/m K; these values indicated that it is feasible to synthesize these foams for applications in the construction industry as available thermal insulators.
