(±)-Bocconarborines A and B, Novel 1,3-Bis-Benzo[c]phenanthridinyl Acetone Alkaloids from Bocconia arborea


Aníbal Julián and Guillermo Delgado*


Instituto de Química de la Universidad Nacional Autónoma de México. Circuito Exterior, Ciudad Universitaria. Coyoacán. México 04510, D. F. Tel: +(52)-(55)-5622-4446. E-mail:


Recibido el 15 de octubre del 2001.
Aceptado el 18 de diciembre del 2001.


Dedicated to Professor Fernando Walls.



Chemical examination of the aerial parts of Bocconia arborea (Papaveraceae), a plant used in traditional medicine, led to the characterization of (±)-6-acetonyldihydrosanguinarine (1), (±)-6-acetonyldihydrochelerythrine (2), (±)-6-methoxydihydrochelerythrine (3), (±)-sanguidimerine (4), chelidimerine (5), and the novel constituents (±)-bocconarborine A ((6R,6'S + 6S,6'R)-13-(6-hydrosanguinarinyl)-15-(6'-hydrochelerythrinyl)-acetone, 6) and (±)-bocconarborine B ((6R,6'R + 6S,6'S)-13-(6-hydrosanguinarinyl)-15-(6'-hydrochelerythrinyl)-acetone, 7). The structure and stereochemistry of the novel structures were determined by analyzing the preferred conformations and the spectroscopic data. Antimicrobial evaluations revealed that 3 exhibited activity against S. aureus, S. faecalis and C. albicans.

Keywords: Bocconia arborea, medicinal plant, Papaveraceae, alkaloids, benzophenanthridine, bocconarborines A and B, antimicrobial activity.



El análisis químico de las partes aéreas de Bocconia arborea (Papaveraceae), una planta usada en la medicina tradicional, condujo a la caracterización de (±)-6-acetonildihidrosanguinarina (1), (±)-6-acetonildihidroqueleritrina (2), (±)-6-metoxidihidroqueleritrina (3), (±)-sanguidimerina (4), quelidimerina (5), y los compuestos novedosos (±)-bocconarborina A ((6R,6'S + 6S,6'R)-13-(6-hidrosanguinarinil)-15-(6'-hidroqueleritrinyl)-acetona, 6) y (±)-bocconarborina B ((6R,6'R + 6S,6'S)-13-(6-hidrosanguinarinil)-15-(6'-hydroqueleritrinil)-acetona, 7). La estructura y la estereoquímica de las estructuras nuevas fueron determinadas mediante el análisis de las conformaciones preferidas deducidas y los datos espectroscópicos. La evaluación antimicrobiana reveló que 3 tiene actividad contra S. aureus, S. faecalis y C. albicans.

Palabras clave: Bocconia arborea, planta medicinal, Papaveraceae, alcaloides, benzofenantridina, bocconarborinas A y B, actividad antimicrobiana.


The genus Bocconia (Papaveraceae), which includes ca. nine species, occurs in tropical areas of Mexico, Central and South America [1,2]. Taxonomic considerations indicate a close relationship with the Asiatic genus Macleaya and with the North American species Sanguinaria canadensis [3]. Bocconia species biosynthesize protopine, protoberberine and benzophenanthridine alkaloids [1], which display anti-microbial [4-6], cytotoxic [7], anti-tumor [8-11], anti-viral [12] and anti-inflammatory activities [13], among others. Bocconia arborea is a shrub widespread in Mexico that is known as llora sangre (weeping blood), cocoxíhuitl, ahuacachilli, mano de león (lion's hand), palo del diablo (devil's stick), palo amarillo (yellow stick), among many other common names [14,15]. This plant has many different uses in traditional medicine in several regions: as purgative, vermifuge, antitumor and anti-inflammatory agent [14], to heal wounds and dissolve warts [15,16], as a carminative agent, catartic, and analgesic [17].

Previously, the methanolic extract of B. arborea showed anti-microbial activity against S. aureus, E. coli, P. aeruginosa and C. albicans [18], and the alkaloids dihydrochelerythrine and dihydrosanguinarine were identified as some of the active substances [19]. Now we report the isolation and identification of (±)-6-acetonyldihydrosanguinarine (1), (±)-6-acetonyldihydrochelerythrine (2), (±)-6-methoxydihydrochelerythrine (3), (±)-sanguidimerine (4), chelidimerine (5), and the new compounds (±)-6 and (±)-7, named trivially bocconarborines A and B, respectively, from the aerial parts of this plant. In addition, the antimicrobial evaluation revealed that 3 displayed activity.


Results and discussion

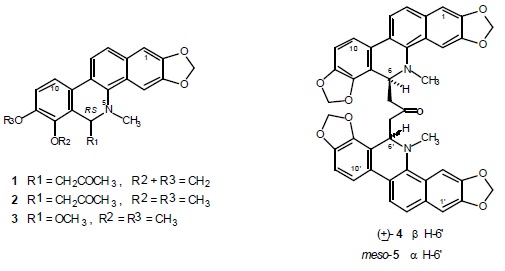

Repeated column chromatography of the ethanol extract over silica yielded compounds 1-3. Compound 1 was a solid which showed physical and spectroscopic characteristics identical to that of (±)-6-acetonyldihydrosanguinarine [20], and COSY, DEPT, HMQC and HMBC experiments allowed the complete assignments of the NMR data which confirmed the structure (Table 1). The major constituent from this extract was identified as (±)-6-acetonyldihydrochelerythrine (2) [21], and (±)-6-methoxydihydrochelerythrine (3) [21, 22] was isolated as the most polar and minor secondary metabolite from this residue. These structures were identified by comparison with the data published in the literature.

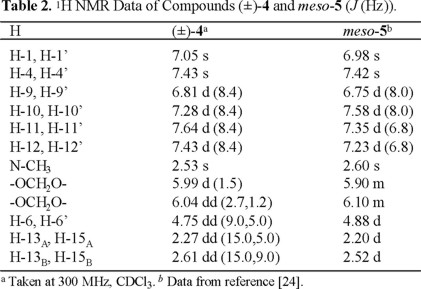

Compound 4, isolated from the dichloromethane extract as an optically inactive substance, showed well resolved resonances for sixteen hydrogens in the 1H NMR spectrum (Table 2), with similar chemical shifts and the same coupling patterns to those observed for (±)-6-acetonyldihydrosanguinarine (1); the only difference was the absence of the hydrogens for the methyl ketone. This compound gave a molecular ion at m/z 720 by EIMS analysis, consistent with a molecular formula C43H32N2O9, which suggested the presence of a substance of dimeric composition with an additional carbonyl group [(C21 H16NO4)2CO], in agreement with the number of hydrogens found by 1H NMR (sixteen) and the absorption at 1712 cm−1 (for the ketone) in the IR spectrum. These observations allowed to deduce the structure of 1,3-di(6-hydrosanguinarinyl)-acetone for this compound. The two diastereomers for this structure are reported in the literature: (+)-sanguidimerine (4) [23] (no spectroscopic data for 4 were published), and chelidimerine (5), which is proposed as the meso- isomer by preliminary X-ray data [24]. Table 2 shows the 1H NMR data for 4 and 5, and comparison of the chemical shifts indicated clear differences, confirming the diastereomeric relationship for these compounds. Therefore, (±)-4 was a natural constituent from B. arborea. 1H NMR analysis of some fractions containing (±)-4 as the major compound, allowed to identify minor signals (ca. 3 %) which corresponded to compound meso-5, which was also a constituent from this species.

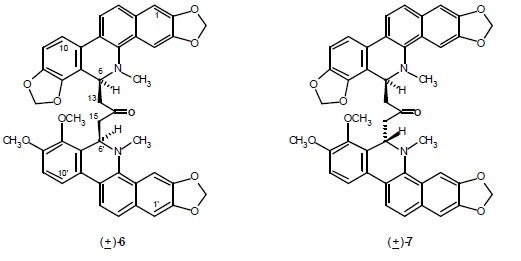

Bocconarborines A and B were also isolated as optically inactive substances with the same molecular weight ([M+] at m/z 736, by EIMS). 1H NMR data for both compounds (Table 3) showed the same number of hydrogens (eighteen), the same coupling systems, and similar chemical shifts. In addition, COSY and NOESY experiments showed the same interactions and crosspeaks, establishing identical chemical connectivity and substitution pattern for both compounds. Bocconarborines A and B showed 1H NMR signals for two methyls linked to nitrogen, for two methoxyl groups, for three dioxymethylenes, for four AB systems of benzenoid hydrogens in ortho-relationship, and for two ABX systems belonging to two methylenes which are linked to methines and to the same carbonyl group. These fragments established the presence of a 1,3-disubstituted acetone; one substituent was a 6-hydrosanguinarinyl fragment, and the other substituent corresponded to a 6-hydrochelerythrinyl residue [25], in agreement with the 13C NMR data (see Experimental). Therefore, these substances are diastereomers of molecular formula C44H36N2O9 which exist as racemic compounds, due to the lack of optical activity.

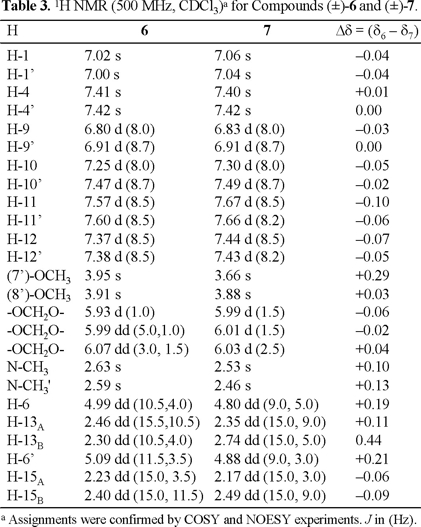

From the 1H NMR data showed in Table 3, it was clear the different chemical shifts for bocconarborines A and B (assigned provisionally as 6 (for the less polar compound) and 7 (for the more polar compound), respectively, devoid of stereochemistry), and the differences (Δδ = δ6 − δ7) are included in the last column. The difference in the chemical shifts of the C(7')-OCH3 methoxyl group for 6 (less polar) and 7 (more polar), shows a remarkable variation (Δδ = 0.29), due presumably to its location in the shielding space of the benzophenanthridine system in (±)-bocconarborine A (6), and this observation could be used as diagnostic for establishing the relative stereochemistry of the diastereomers. In order to determine the relative configurations at the two chiral centers (C-6 and C-6') of 6 and 7, it was necessary to deduce the preferred conformations for the different fragments of the dimers, and correlate the difference of the chemical shift for the C(7')-O-CH3 group with its relative location.

Three fragments of bocconarborines A and B can be considered for their conformational analysis: (a) the 1,3-disubstituted acetone, (b) The orientation of the acetonyl residue in the dihydropyridine ring, and (c) the topological arrangement of the benzophenanthridines.

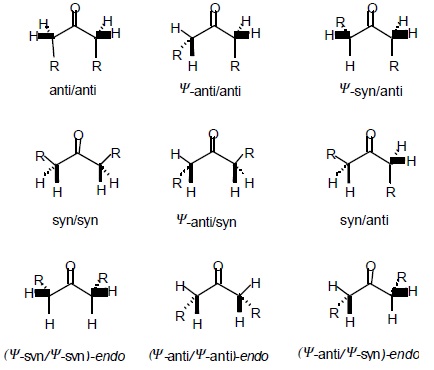

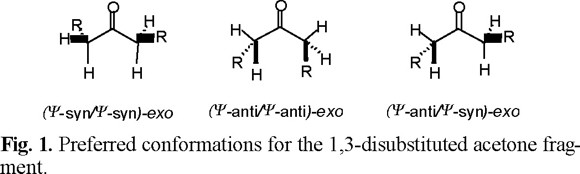

Twelve main conformations can be considered for a 1,3-disubstituted acetone, which could be described as anti-,Ψ-anti-, syn-, and Ψ-syn-, according to the orientation of the carbonyl oxygen with the substituent R, and exo-and endo-, according to the orientation of the substituents with respect to the plane defined by the carbonyl [26]. The three preferred conformations could be considered as the (Ψ-anti /Ψ-syn)-exo, (Ψ-anti /Ψ-anti)-exo and (Ψ-syn /Ψ-syn)-exo arrangements (Fig. 1), where the substituents are located opposite to the plane of the carbonyl group.

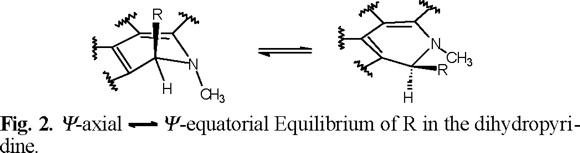

The acetonyl group linked at C(6) and C(6') of the benzophenanthridine can exist in Ψ-axial or Ψ-equatorial orientations, which may be interconverted via a topomerization process [27]. Considering the planarity of the alkaloid fragment and the steric interactions for the Ψ-equatorial orientation of the acetonyl residue, the Ψ-axial orientation could be preferred, as depicted in figure 2.

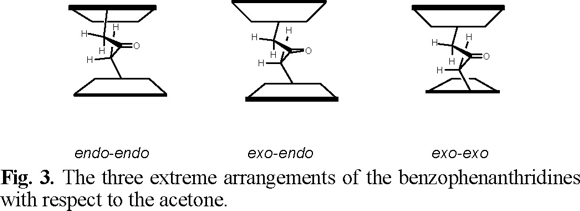

Finally, the relative topology of the planes defined by the two benzophenanthridinyl substituents may be described as endo-endo, exo-endo, and exo-exo, according to their orientation with respect to the carbonyl group [28], and these three extreme possible arrangements are depicted in figure 3.

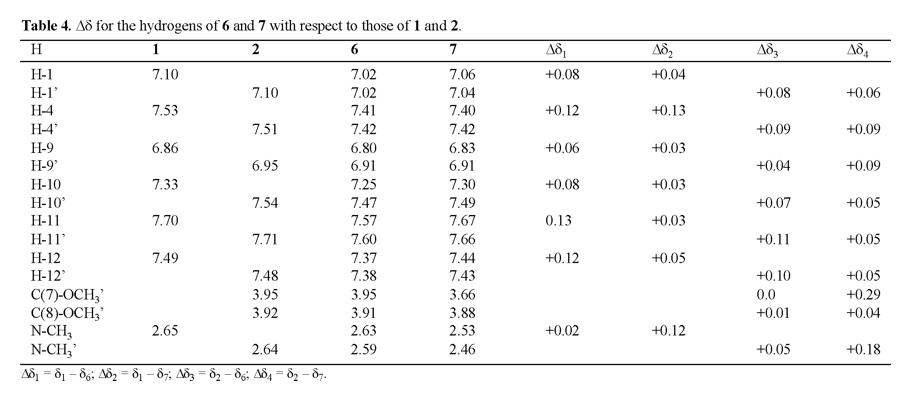

The comparison of the chemical shifts of the hydrogens of the dimers with respect to those of the corresponding monomeric fragments indicates that there is a shielding effect in the dimers. Table 4 shows the chemical shifts for the hydrogens of bocconarborines A and B (assigned also as 6 and 7, respectively, in Table 4) with respect to the monomer (±)-6-acetonyldihydroanguinarine (1), and the same table shows the chemical shifts for the prime hydrogens of the dimers with (±)-6-acetonyldihydrochelerythrine (2). The difference Δδ = δHmonomer − δHdimer is included in Table 4 and the constancy of the positive differences was in agreemment with an endo-endo arrangement of the benzophenanthridines (Fig. 3) [29]. An endo-exo arrangement would presumably produce both shielding and deshielding effects, while the exo-exo arrangement would produce deshielding effects in the chemical shifts, which are not observed.

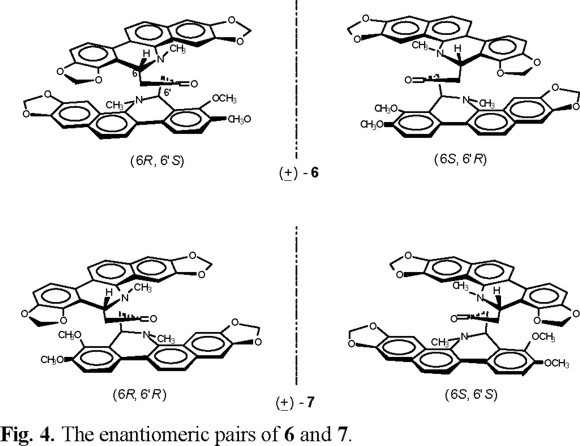

Comparative structural analysis of the molecular models for both diastereomers considering the preferred conformations deduced above (the exo- arrangements for the 1,3-disubstituted acetone (Fig. 1), Ψ-axial orientation of the acetonyl residue linked to the dihydropyridine (Fig. 2), and the endo-endo- arrangement of the benzophenanthridines (Fig. 3), allowed to identify the structures depicted in figure 4 [30]. From this conformational projections it could be proposed that the methoxyl groups in bocconarborine A (6) tend to be out of the space comprised between the two benzophenanthridines, while the same groups in bocconarborine B (7) are located inside this space. Therefore, the 6R,6'S + 6S,6'R configuration could be assigned to the (±)-6 diastereomer (methoxyl hydrogens at lower field), while the 6R,6'R + 6S,6'S configuration could be assigned to the (±)-7 diastereomer (methoxyl hydrogens at higher field).

Antimicrobial evaluation of the extracts, fractions and compounds 1-4 (see the experimental section), allowed to identify that compound 3 exhibited activity against S. aureus, S. faecalis and C. albicans (MIC: 25, 25 and 12 µg/ml, respectively), in agreement with the activity of some benzophenanthridine alkaloids, and with some of the traditional uses of this species.

From a biogenetic point of view, the presence of the alkaloids (±)-4, meso-5, (±)-6 and (±)-7 clearly correlate structurally with the acetonyl derivatives (±)-1 and (±)-2. Considering the number of possible monomeric fragments reported in the literature, many additional combinations of 1,3-bis-benzophenanthridinyl acetone alkaloids may be found in Bocconia and taxonomically related species.


Experimental section

General Experimental Procedures. Melting points were determined on a Fisher-Johns apparatus and are not corrected. Optical rotations were measured on a JASCO DIP 360 polarimeter. IR spectra were recorded on a FT-IR Nicolet Magna 750. MS were measured on a JEOL JMS-AX505HA mass spectrometer and NMR spectra were taken on Unity 300 and Unity Plus 500 instruments. TLC was performed on silica gel 60 Macherey Nagel Duren, Alugram SilF/UV 254, and silica gel 60 0.04-0.063/230-400 mesh ASTM and mesh 70-230 were used for the column chromatographies. Compounds were visualized on UV light or spraying with a 1 % solution of (NH4)4Ce(SO4)4 in sulfuric acid 2N.

Plant Material. Leaves and stems of B. arborea S. Watson were collected in Morelos State, México, in February, 1996. A voucher specimen (MEXU 822267) is deposited in the National Herbarium (MEXU), Instituto de Biología de la Universidad Nacional Autónoma de México.

Extraction and Isolation. Dried and powdered plant material (1 kg) was extracted with dichloromethane at room temperature (3 times, 24 h each) and then with ethanol (3 times, 24 h each). Elimination of the solvents at reduced pressure afforded 40 g and 120 g of residues, respectively. Part of the ethanolic extract (26 g) was adsorbed on silica gel (70-230) and chromatographed on a silica gel (230-400) column packed with n-hexanechloroform (20:1), and using increasing amounts of chloroform, and then mixtures of chloroformmethanol as eluting system. The chromatography was developed at reduced pressure [31]. Some fractions were further rechromatographed to give, in order of increasing polarity: (±)-1 (100 mg), (±)-2 (310 mg), and (±)-3 (52 mg). The dichloromethane residue (40 g) was adsorbed on silica gel (70-230) and applied to a column packed with silica gel (230-400) suspended in n-hexane. The column was developed at reduced pressure [31] with mixtures of n-hexane-EtOAc. Fractions eluted with n-hexane-EtOAc (20:1) were rechromatographed using mixtures of n-hexane-CHCl3 as eluent, to give additional amounts of (±)-1 (100 mg). Fractions eluted with n-hexane-EtOAc (9:1) were rechromatographed in an open column using n-hexane-CHCl3-MeOH (1:1:0.1) as constant eluent, and recrystallization of some fractions from MeOH-CHCl3 provided (±)-4 (40 mg). 1H NMR analysis of some fractions indicated the presence of meso-5 (ca. 3 % with respect to (±)-4). From fractions eluted with n-hexane-EtOAc (4:1) of the main column was obtained a residue, which was further rechromatographed in an open column packed with n-hexane and eluting with mixtures of n-hexane-EtOAc. This column afforded (±)-6 (40 mg) as the less polar constituent, and subsequent fractions afforded (±)-7 (45 mg) as the more polar constituent.

(±)-6 Acetonyldihydrosanguinarine (1). Colorless powdery solid, mp 190-191 °C (lit [20]: 194-195 °C), Rf 0.58 (n-hexane-CHCl 3-MeOH,1.5:1.5:0.05); [α ]D = 0° (CDCl3); IR (CHCl3) νmax 1711, 1470, 870 cm−1; 1H NMR (500 MHz) and 13C NMR (125 MHz), see Table 1.

(±)-6 Acetonyldihydrochelerythrine (2). Colorless powdery solid, mp 199-200 °C (lit [21]: 194 °C), Rf 0.53 (n-hexane-CHCl3-MeOH, 1.5:1.5:0.05); [α]D = 0° (CDCl3); IR (CHCl3) νmax 1712, 1604, 1492, 1463, 1417, 1359, 1275, 1083, 1041 cm−1; 1H (300 MHz, CDCl3) δ 7.71 (1H, d, 8.4, H-11), 7.54 (1H, d, 9, H-10), 7.51 (1H, s, H-4), 7.48 (1H, d, 8.4, H-12), 7.10 (1H, s, H-1), 6.95 (1H, d, 8.4, H-9), 6.04 (2H, dd, 2.1, 1.2, -OCH2O-), 5.04 (1H, dd, 11.4, 3.6, H-6), 3.95 (3H, s, (C-7)-OCH3), 3.92 (3H, s, (C-8)-OCH3), 2.64 (3H, s, N-CH3), 2.58 (1H, dd, 15.0, 11.4, H-13B), 2.25 (1H, dd, 15.0, 3.6, H-13A), 2.06 (3H, s, -COCH3).

(±)-6 Methoxydihydrochelerythrine (3). Yellow solid, mp 248-250 °C (lit [3]: 210 °C); Rf 0.43 (CHCl3-MeOH, 2.9:0.1); [α]D = 0° (CDCl3); IR (CHCl3) νmax 1496, 1464, 1448, 1416, 1275, 1067, 1040, 946 cm−1; 1H NMR (300 MHz, CDCl3) δ 7.78 (1H, d, 8.5, H-11), 7.70 (1H, s, H-4), 7.62 (1H, d, 9.0, H-10), 7.47 (1H, d, 8.5, H-12), 7.12 (1H, s, H-1), 7.04 (1H, d, 9.0, H-9), 6.05 (2H, s, -OCH2O-), 5.55 (1H, s, H-6), 3.96 (3H, s, (C-7)-OCH3), 3.93 (3H, s, (C-8)-OCH3), 3.46 (3H, s, (C-6)-OCH3), 2.76 (3H, s, N-CH3); EIMS m/z (rel. int.): 379 [M]+ (40), 348 (100), 333 (37), 318 (20), 290 (27), 174 (20).

(±)-Sanguidimerine (4). Colorless powdery solid, mp 180 °C (lit [23b]: 174 °C), Rf 0.56 (n-hexane-CHCl3-MeOH, 1.5:1.5:0.05), [α]D = 0° (CHCl3), IR (CHCl3) νmax 2924, 1712, 1602, 1440, 1352, 1250, 1040, 940, 857 cm−1; 1H NMR (300 MHz, CDCl3) see Table 2; EIMS m/z (rel. int.): 720 [M]+, 389 (3), 332 (26), 317 (100), 259 (5), 201 (8), 158 (7).

(±)-Bocconarborine A (6). Colorless powdery solid, mp 159-163 °C, Rf 0.43 (n-hexane-CHCl3-MeOH, 1.5:1.5:0.05), [α]D = 0° (CHCl3), IR (CHCl3) νmax 2928, 2900, 2854, 2802, 1713, 1602, 1494, 1463, 1442, 1416, 1361, 1274, 1240, 1103, 1081, 1043, 948, 861 cm−1; 1H NMR (500 MHz, CDCl3) see Table 3; 13C NMR (CDCl3, 125 MHz) δ 207.02 (CO), 152.14 (C-8'), 148.08, 148.01, 147.70, 147.50, 147.11, 145.69 (C-7'), 144.28 (C-7), 139.30 (C-4b), 132.57, 130.99, 130.88, 128.39, 127.57, 127.31, 124.86, 123.79, 123.77, 123.36, 123.21, 119.86 (C-11), 119.67 (C-11'), 118.67 (C-10'), 116.41 (C-6a), 116.22 (C-10), 111.46 (C-9'), 107.28 (C-9), 104.30, 104.16, 101.59 (OCH2O), 100.91 (OCH2O), 100.75, 100.63, 60.93 (C-7'-OCH3), 55.80 (C-8'-OCH3), 54.81 (C-6'), 53.56 (C-6), 47.23 (C-13), 46.79 (C-15), 42.99 (CH3-N), 42.77 (CH3'-N); HRFABMS m/z 736.2404 [M + 1]+ for C44H36N2O9 (calcd [M + 1]+ m/z: 736.3421).

(±)-Bocconarborine B (7). Colorless powdery solid, mp 181 °C (dec.), Rf 0.41 (n-hexane-CHCl3-MeOH, 1.5:1.5:0.05), [α]D = 0° (CHCl3), IR (CHCl3) νmax 2960, 2898, 2841, 1712, 1602, 1492, 1463, 1442, 1415, 1361, 1101, 1082, 1041, 948, 858 cm−1; 1H NMR (500 MHz, CDCl3) see Table 3; 13C NMR (CDCl3, 125 MHz) δ 206.53 (CO), 152.07 (C-8'), 148.11, 148.07, 147.55, 147.17, 145.49, 144.37, 139.35, 131.081, 130.99, 128.34, 127.44, 127.38, 124.86, 123.83, 123.77, 123.47, 123.18, 120.00 (C-11), 119.68, (C-11'), 118.69 (C-10'), 116.45 (C-10), 116.35, 111.50 (C-9'), 107.38 (C-9), 104.21, 104.15, 101.48 (OCH2O), 100.94 (OCH2O), 100.78, 100.70, 60.68 (C-8'-OCH3), 55.77 (C-7'-OCH3), 54.39 (C-6'), 53.87 (C-6), 47.08 (C-13), 46.54 (C-15), 42.74 (CH3-N), 42.56 (CH3'-N); EIMS m/z (rel. int.): 736 [M]+ (5), 405 (3), 389 (7), 348 (100), 332 (60), 317 (7), 290 (6).

Biological Activities. The dichloromethane and ethanol extracts, the main fractions of the column chromatographies, as well as compounds 1-4 were tested against S. aureus, S. faecalis, E. coli, P. aeruginosa, S. sonnei, K. pnemoniae, and C. albicans, following the procedures described previously [18, 19]. Bioguided fractionation allowed to identify that 3 displayed activity against Staphylococcus aureus (ATCC 29213), Streptococcus faecalis (ATCC 29212) and Candida albicans (ATCC 10231) (MIC: 25, 25 and 12 µg / mL, respectively, gentamicin: 2.5 µg / mL; nystatin: 5 µg / mL).



We thank Víctor Navarro (Centro de Investigación Biomédica del Sur, IMSS, Xochitepec, Morelos), Rocío Patiño, María Isabel Chávez, Beatriz Quiroz, Luis Velasco, and Javier Pérez Flores (Instituto de Química de la UNAM) for their assistance. This project was supported in part by UNAM (DGAPA-IN221198) and CONACyT (Project 3419P-N9607).


References and notes

1. Preininger, V. The Alkaloids: Chemistry and Pharmacology. Ed. A. Brossi, Academic Press, New York 1986, 29, 1-98.         [ Links ]

2. Carlquist, S.; Zona, S. IAWA Bulletin 1988, 9, 253-267.         [ Links ]

3. Manske, R. H. F. Can. J. Res. 1943, 21, 140-143.         [ Links ]

4. Navarro, V.; Villarreal, M. L.; Rojas, G.; Lozoya, X. J. Ethnopharmacol. 1996, 53, 143-147.         [ Links ]

5. Sofora, E. A.; Odebiyi, O. O. Planta Med. 1979, 36, 204-207.         [ Links ]

6. Clark, G. W.; Clark, D.; Park, Y. H.; Mitscher, L. A. Lloydia 1978, 41, 145-150.         [ Links ]

7. Cordell, G.A.; Farnsworth, N. R. Heterocycles 1976, 4, 393-427.         [ Links ]

8. Cheng, C. C.; Zee-Cheng, R. K. Y. J. Med. Chem. 1975, 18, 66-71.         [ Links ]

9. Stermitz, F. R.; Gillespie, J. P.; Amoros, L. G.; Romero, R.; Stermitz, T. A. J. Med. Chem. 1975, 18, 66-71.         [ Links ]

10. Tin-wa, M.; Bell, C.L.; Bevelle, C.; Fong, H. H. S.; Farnsworth, N. R. J. Pharm. Sci. 1974, 63, 1476-1477.         [ Links ]

11. Nakanishi, T.; Susuki, M.; Mashiba, A.; Ishikawa, K.; Yokotsuka, T. J. Org. Chem. 1998, 63, 4235-4239.         [ Links ]

12. Seth, M. J. Nat. Prod. 1979, 42, 187-197.         [ Links ]

13. Lenfeld, J.; Kroutil, M.; Marsálek, E.; Slavík, J.; Preininger, V.; Šimánek, V. Planta Med. 1981, 43, 161-165.         [ Links ]

14. Martínez, M. Las Plantas Medicinales de México. Ed. Botas. 3rd. Edition. México, D.F. 1944, 165-172.         [ Links ]

15. Baytelman, B. Acerca de Plantas y Curanderos. I.N.A.H. México, D. F. 1983, 452 pp.         [ Links ]

16. Domínguez, X. A.; García Delgado, J.; Monroy, A.; Armendáriz, L. G.; Alcalá, A.; Quevedo, J.; Rojas, P. Can. J. Chem. 1965, 43, 679-682.         [ Links ]

17. Díaz, J. L. Usos de las Plantas Medicinales de México. Monografías Científicas II, IMEPLAM. México, A. C. 1977, 329 p.         [ Links ]

18. Navarro, V.; Rojas, G.; Delgado, G.; Lozoya, X. Arch. Med. Res. 1998, 29, 191-194.         [ Links ]

19. Navarro, V.; Delgado, G. J. Ethnopharmac. 1999, 66, 223-226.         [ Links ]

20. Furuya, T.; Ikuta, A.; Syõno, K. Phytochemistry 1972, 11, 3041-3044.         [ Links ]

21. MacLean, D. B.; Gracey, D. E. F.; Saunders, J. K.; Rodrigo, R.; Manske, R. H. F. Can. J. Chem. 1969, 47, 1951-1956.         [ Links ]

22. Hanooka, M.; Motonishi, T.; Mukai, C. J. Chem. Soc. Perkin Trans I 1986, 2253-2256.         [ Links ]

23. (a) Tin-wa, M.; Fong, H. H. S.; Abraham, D. J.; Trojanek, J.; Farnsworth, N. R. J. Pharm. Sci. 1972, 61, 1846-1847.         [ Links ] (b) Tin-wa, M.; Farnsworth, N. R.; Fong, H. H. S.; Trojanek, J. Lloydia 1970, 33, 267-269.         [ Links ]

24. Tin-wa, M.; Kim, H. K.; Fong, H. H. S.; Farnsworth, N. R. Lloydia 1972, 35, 87-89.         [ Links ] Chelidimerine (5) has been reported as a constituent of Corydalis flabellata: Khan, M. A.; Lewis, D. E.; Shah, G. N.; Mabry, T. J. Rev. Latinoam. Quím. 1990, 21, 140-141.         [ Links ] However, the spectroscopic data presented corresponded to the diastereomer 4. Therefore, sanguidimerine (4) is the real constituent for this species.

25. The structure 6 (or 7) was reported previously, but the configurations at the chiral carbons were not determined. Oechslin, S. M.; König, G. M.; Oechslin-Merkel, K.; Wright, A. D.; Khan, I. A.; Miyagawa, M.; Sticher, O. Planta Med. 1991, 57, Supplement Issue 2, 104-105.         [ Links ]

26. Although the preferred conformation 3-pentanone (R = CH3) corresponds to that in which the methyl groups are eclipsed with the carbonyl oxygen (syn / syn), it may be considered that the volume of the benzophenantridine residues can destabilize this arrangement. Karabatsos, G. J.; Fenoglio, D. J. Top. Stereochem. 1970, 5, 167.         [ Links ] The twelve major conformations are the three included in the Figure 1 and the following nine:

27. Eliel, E. L.; Wilen, S. H. Stereochemistry of Organic Compounds. John Wiley & Sons. New York, 1994.         [ Links ]

28. There are additional orientations of the benzophenanthridines that could be described as orthogonal to those depicted in Fig. 3, however, they may be considered as intermediates to the extreme arrangements.

29. Kang, J.; Hilmersson, G.; Santamaría, J.; Rebek, J. J. Am. Chem. Soc. 1998, 120, 3650-3656.         [ Links ]

30. Some preliminary theoretical calculations (PCModel, Serena Software) were performed in order to determine the preferred conformations of (±)-6 and (±)-7, and they were in agreement with the main conformations deduced for the acetone residue, and with the axial orientation of the acetonyl residue. Regarding the spatial arrangements of the benzophenanthridines, these calculations showed that the planes form an angle of ca. 35-40 °. However, these calculations are not conclusive.

31. (a) Pelletier, S. W.; Chokshi, H. P.; Desai, H. K. J. Nat. Prod. 1986, 49, 892-900.         [ Links ] (b) Coll, J. C.; Bowden, B. F. J. Nat. Prod. 1986, 49, 934-936.         [ Links ]
