1 Introduction
Increased research in Science, Technology, Engineering and Mathematics (STEM) disciplines has boosted the count of scientific documents, which are majorly constituted of math formulae. As a consequence, a number of Math Information Retrieval (MIR) systems, which can retrieve mathematical contents alongside plain text, have come into being. Math tasks [1,2,21] of NII Testbeds and Community for Information access Research (NTCIR) conferences [7,6,8] have also triggered widespread development of competent MIR systems.
Current MIR systems are either adapted versions of conventional text-search engines [11] or the systems developed from scratch [14,15,17]. While the text-search engines adapted for MIR perform linearization and plain text matching to retrieve formulae, the MIR systems developed from scratch employ novel formula indexing and search techniques. Although the challenges in designing such math-aware systems are enormous, the inability to account for ambiguity of formula, whereby the same formula may have different alternative interpretations, can cause severe performance degradation. Consider, for example, the ambiguous formula
(a) Using Pythagorean theorem to compute hypotenuse (c) of a right-angled triangle, whose base is 'b' and perpendicular is 'a'.
(b) Computing linear eccentricity (c) of hyperbola, with 'a' being distance from the center to the vertex and 'b' being the half distance between the asymptotes.
Given the two above-mentioned documents and a user query

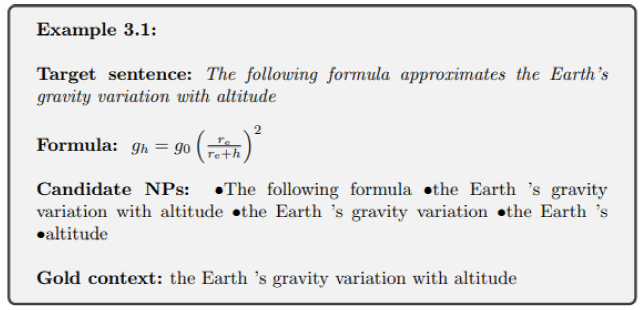

The work described in this paper is based on a reasonable assumption that the context of formula is one of the Noun Phrases (NPs) of the sentence containing formula (henceforth called target sentence). Therefore, the context extraction task reduces to parsing the target sentence, extracting all the candidate NPs, and devising an algorithm to select the most appropriate NP from among the diverse pool of candidate NPs. However, as the most appropriate NP does not adhere to a strict pattern, the task of context extraction turns out to be challenging.
The following three example situations elaborate on this particular insight.
In example above, the three candidate NPs for the context of formula
In example 1.2 above, the candidate NPs for the context of formula (

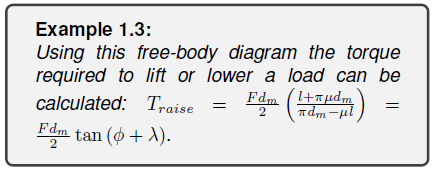

In example 1.3 above, the candidate NPs for the context of formula are: "this free-body diagram", "the torque required to lift or lower a load", "the torque" and "a load". Also, the most appropriate context (i.e. "the torque required to lift or lower a load”) is the longest of all NPs and appears somewhere in the middle of the parse tree generated for target line.
To summarize, the uncertainty in position of occurrence of the context in the target sentence poses challenge to the design of context extraction system. Nevertheless, owing to the advantages of formula semantification, recent years have witnessed a surge in the research activities concerned with context extraction. Some such activities include use of nearest noun method [13,10], sentence-pattern based method [10,20] and machine learning approach [10,20]. After having identified all the NPs in target sentence, the nearest noun method considers nearest NP to be the context of formula. The sentence-pattern based method works under the assumption that the formulae are often linked to their contexts through specific words or group of words, such as "denotes , "describes , "means , "is given by and so on. For instance, in example 1.3 above, the formula and context are linked through the pattern, namely "can be calculated . However, the method incurs failure in retrieving context-formula pairs which do not adhere to such fixed patterns. The machine learning based method [10] pairs math formula with "all NP" and "minimal NP" in the target sentence and extracts features for each pair. Thereafter, each pair is fed to a binary classifier to decide if the NP is most appropriate context for the formula.
The main contribution of this paper lies in devising a context extraction system, which extracts target sentences from scientific documents, parses all such sentences using Stanford Shift-Reduce Constituency Parser1[22,4], extracts all NPs from the parse trees of target sentences, assigns weight to different candidate NPs of a formula using certain heuristics, tunes the weights using a development set containing formulae and their respective gold contexts, and eventually extracts most appropriate contexts from target sentences of test formulae. The implemented system performs reasonably well in comparison to other competent systems.
Rest of the paper is structured as follows: Section 2 reviews past works related to extraction of context of formula and identifier definition. Section 3 comprehensively describes working of different constituents of the implemented system. Section 4 describes experimental setup used to develop and evaluate the system. Section 5 presents experimental results and in-depth analysis of results to comprehend strengths and weaknesses of the implemented system. Section 6 concludes the paper and points directions for future research.
2 Related Works
In past, the works related to extraction of contexts of formulae and definitions of their constituent identifiers have been prominent. As the two categories of works closely resemble, the following subsections elaborate on past developments related to both the categories.
2.1 Extraction of Formula Context
It is a usual practice to compare performance of any context extraction system with the performances of nearest noun and sentence-pattern based methods, which were introduced in the previous section. Sentence-pattern based method often uses the seven distinct patterns, described in [10,19] and shown in Table 1, for discovery of context.
Table 1 Patterns used in sentence-pattern based method. MATH: math formula; DEF: definition of math formula i.e. context; OTHERMATH: other math formula
| Sl.No. | Patterns |
|---|---|
| 1 | ... denoted (as | by) MATH DEF |
| 2 | (let | set) MATH (denote | denotes | be) DEF |
| 3 | DEF (is | are)? (denoted | defined | given) (as | by) MATH |
| 4 | MATH (denotes | denote | (stand | stands) for | mean | means) DEF |
| 5 | MATH (is | are) DEF |
| 6 | DEF (is | are) MATH |
| 7 | DEF (OTHERMATH)* MATH |
Table 2 Sample entries of the development set
| Target sentence | Formula | Candidate NPs | Gold context |
|---|---|---|---|
| The units of specific contact resistivity are typically therefore in |
|
• The units of specific contact resistivity • The units • specific contact resistivity |
• The units of specific contact resistivity |
| The level of interaction can be measured by the Gravity model of trade |
|
• The level of interaction • The level • interaction • the Gravity model of trade • the Gravity model • trade |
• the Gravity model of trade |
| Often, momentum transfer is given in wavenumber units in reciprocal length |
|
• momentum transfer • wavenumber units • reciprocal length |
• momentum transfer |
| Assuming infinite planes, the magnitude of the electric field E is |
|
• infinite planes • the magnitude of the electric field E • the magnitude • the electric field E |
• the magnitude of the electric field E |
| The total Hamiltonian of an atom in a magnetic field is |
|
• The total Hamiltonian of an atom in a magnetic field • The total Hamiltonian • an atom • a magnetic field |
• The total Hamiltonian of an atom in a magnetic field |
| The following formula approximates the Earth’s gravity variation with altitude |
|
• The following formula • the Earth ’s gravity variation with altitude • the Earth ’s gravity variation • the Earth ’s • altitude |
• the Earth ’s gravity variation with altitude |
The work described in [9] views context extraction as a binary classification problem, wherein the description candidates associated with formulae are classified as correct or incorrect. Performances of nearest noun, sentence-pattern and machine learning methods for context extraction are compared and analyzed. The model using "All NP" approach and all possible feature augmented to machine learning approach depicts better performance than the model using minimal NP approach.
Work described in [20] focuses on connecting mathematical mentions, namely names, definitions and explanations, with corresponding mathematical expressions contained inside Japanese scientific papers. A Support Vector Machine (SVM) trained using features, such as basic patterns and linguistic information, helps select correct description for an expression and outperforms conventional pattern based method.
The guideline to annotate mathematical expressions with their respective definitions is described in [10]. The annotated data is used to examine performance of proposed context-extraction method. The proposed machine learning method extracts a set of 10 features (such as distance of candidate NP from the formula, Parts Of Speech (POS) tags of the text surrounding candidate NP, and so on) for candidate NPs and compares them with gold context. Under the constraint of strict matching, the machine learning method significantly outperforms nearest noun and pattern matching based methods.
The MARACHNA system [12] exploits Natural Language Processing (NLP) methods for extracting information from mathematical texts. More specifically, the MARACHNA generates ontologies for mathematical information extracted from different sources, and later stores them in a Knowledge Base (KB). The KB also stores different keywords and texts associated with a formula.
Concept Description Formula (CDF) approach [16] prospects coreference relation, if any, between the formula and context. The claim is made that extracting keywords using CDF and associating them with formulae will ease the task of MIR. Text preprocessing, text matching, pattern generation and pattern matching constitute key steps of CDF approach. Experimented using Wikipedia articles, the system depicts competence in finding coreference relation between text and formula.
An approach [5] to disambiguate mathematical expressions computes similarity between the words extracted from surrounding text of formula and a collection of term clusters derived from Content Dictionaries of OpenMath [3]. Subsequently, the cluster which shares highest similarity with the words in surrounding text is considered to be the most accurate textual interpretation of the formula.
2.2 Extraction of Identifier Definition
Similar to formula, the meaning of an identifier may differ across documents or even across the formulae inside same document. For instance, the symbol 'E' in a formula may designate electric field or Young's modulus. As the extractions of formula context and identifier definition share same underlying concerns, this subsection reviews some of the past works related to identifier definition extraction.
The Mathematical Language Processing (MLP) project [13] computes probabilities of identifier-definition pairs using POS based distance and sentence positions. Identifier definitions are discovered using pattern-based and statistical approaches. While the pattern-based approach uses 6 static patterns, the statistical approach extracts candidate definitions and ranks them using a weighted sum. Concretely, the statistical approach of MLP is a five-step process: (i) Detecting formulae from the documents (ii) Extracting identifiers from the formula (iii) Finding identifiers in surrounding text (iv) Finding candidate phrases/tokens for identifiers, and (v) Ranking candidate phrases/tokens using weighted sum.
The recall measure for statistical approach is found to be greater than that of pattern-based approach. Moreover, the statistical approach is least affected by the change in sentence structure.
Semantification of identifiers in formula is further improved through discovery of namespaces [18]. Although the concept of namespaces primarily applies to software development, the idea is extended to mathematical identifiers. Using NLP techniques, namespaces are discovered from the surrounding text of a formula. In summary, the identifier-definition extraction suing namespace approach is a four-step process: (i) Automatic discovery of namespaces (ii) Clustering of documents (iii) Building namespaces, and (iv) Building namespace hierarchy.
3 System Description
Key constituents and working principle of the system are explained in subsequent subsections.
3.1 Corpus Description
We experimented with the system using open source Wikipedia corpus2 of NTCIR-12 MathIR task [21]. Unlike the arXiv corpus, the Wikipedia corpus is intended for non-technical users. Each document in the corpus contains scientific text alongside the formulae encoded using Presentation MathML, Content MathML and TEX.
3.2 Preprocessor
Owing to the presence of redundant HTML tags and spaces in the target sentences extracted from Wikipedia documents, the preprocessing of sentences was felt necessary prior to parsing. The job of preprocessor, therefore, is to remove all such redundant tags, spaces, links to footnotes and references, and so on. Table 3 shows sample examples of the preprocessings done by preprocessor.
Table 3 Sample examples of preprocessing done by preprocessor
| Original target sentence | Processed target sentence |
|---|---|
|
measure; is not translation-invariant, but does satisfy the relation |
so Gaussian measure is a Radon measure; is not translation-invariant, but does satisfy the relation |
| The magnetic diffusivity is defined as: |
The magnetic diffusivity is defined as: |
|
equation for Boyle’s law is |
The mathematical equation for Boyle’s law is |
3.3 Stanford Shift-Reduce Constituency Parser
The Stanford Shift-Reduce Constituency parser maintains the sentence on queue and the parse tree on stack. A set of transitions, namely shift, unary reduce, binary reduce, finalize and idle, are applied on the current state of the parse tree, unless the queue gets empty and the stack contains complete parse tree. Further, details related to the parser can be seen here3. Some sample processed target sentences and their respective parse trees as generated by the parser are shown in Table 4.
Table 4 Target sentences and their respective parse trees
| Target sentence | Parse tree |
|---|---|
| The RMSD of an estimator | (ROOT (NP (NP (DT The) (NN RMSD)) (PP (IN of) (NP (DT an) (NN estimator))))) |
| The level of interaction can be measured by the Gravity model of trade |
(ROOT (S (NP (NP (DT The) (NN level)) (PP (IN of) (NP (NN interaction)))) (VP (MD can) (VP (VB be) (VP (VBN measured) (PP (IN by) (NP (NP (DT the) (NN Gravity) (NN model)) (PP (IN of) (NP (NN trade)))))))))) |
| The units of specific contact resistivity are typically therefore in |
(ROOT (S (NP (NP (DT The) (NNS units)) (PP (IN of) (NP (JJ specific) (NN contact) (NN resistivity))))(VP (VBP are) (ADVP (RB typically))(ADVP (RB therefore)) (X (IN in))))) |
| The wave number k is the absolute of the wave vector |
(ROOT (S (NP (DT The) (NN wave) (NN number) (NN k)) (VP (VBZ is) (NP (NP (DT the) (JJ absolute)) (PP (IN of) (NP (DT the) (NP (NN wave) (NN vector)))))))) |
3.4 Noun Phrase Extractor
After parsing, the parsed target sentences are fed to Noun Phrase Extractor (NPE), which extracts all different NPs from all the parsed sentences. Some examples of the candidate NPs extracted by the system are shown in Table 2. Up to this stage, a total of 4,919 instances (i.e. formulae, their target sentences, their parsed target sentences and all the candidate NPs present in parsed target sentences) are generated from 500 Wikipedia documents. Next, out of all such 4,919 instances, a set of 100 instances is selected as development set, and another different set of 100 instances is selected as test set. A development set is required to tune weights assigned to different candidate NPs of a target sentence. Moreover, for each instance in development set and test set, a gold context is manually selected from the candidate NPs. While the purpose of selecting gold contexts for development set is tuning of weights, the purpose of selecting gold contexts for test set is testing efficacy of the system for predicting correct context. Table 2 shows some sample entries of the development set. It also shows different candidate NPs from which the gold context is selected.
3.5 Weight Assigner
Weight Assigner (WA) uses certain heuristics in assigning weights to different NPs as extracted by the NPE. Specifically, the following heuristics govern weight assignment:
(a) The WA only considers isolated NP (an NP which neither subsumes any NP nor is subsumed by any NP), maximal NP (an NP which subsumes one or more NPs, but is not subsumed by any other NP) and nearest NP (an NP which is nearest to the formula and may or may not be isolated and/or maximal NP) for weight assignment, and the rest candidate NPs are discarded. The isolated or maximal NP, which occurs farthest from the formula, is assigned a weight
(b) In some cases, the nearest NP itself is the most appropriate context for the formula. Therefore, an additional weight, equal to
-
(c) Yet another heuristic is based on the observation that in most cases, if the farthest NP in original set of candidate NPs is an isolated NP, and the second farthest NP is a maximal NP, then the isolated NP is often trivial and the maximal NP is most appropriate context for formula. Consider the example 3.1 shown in Figure 1 to elucidate this point. In this example, the farthest NP is "The following formula", which is also an isolated and trivial NP. Furthermore, the second farthest NP is "the Earth 's gravity variation with altitude", which is also a maximal NP and the gold context for formula.
Therefore, under such situation, an additional weight equal to
Table 5 describes weights assigned to different candidate NPs, using above-mentioned heuristics, under different example situations.
Table 5 Weights assigned to different candidate NPs of development set by WA
| Target sentence | Candidate NPs | NPs selected by WA for weight assignment |
Weights assigned |
|---|---|---|---|
| The level of interaction can be measured by the Gravity model of trade |
• The level of interaction • The level • interaction • the Gravity model of trade • the Gravity model • trade |
• The level of interaction • the Gravity model of trade • trade |
W
begin
W begin +f W nearest |
| Often, momentum transfer is given in wavenumber units in reciprocal length |
• momentum transfer • wavenumber units • reciprocal length |
• momentum transfer • wavenumber units • reciprocal length |
W
begin
W begin +f W begin +2f+ W nearsest |
| Assuming infinite planes, the magnitude of the electric field E is |
• infinite planes • the magnitude of the electric field E • the magnitude • the electric field E |
• infinite planes • the magnitude of the electric field E • the electric field E |
W
begin
W begin +f+W second W nearest |
| The total Hamiltonian of an atom in a magnetic field is |
• The total Hamiltonian of an atom in a magnetic field • The total Hamiltonian • an atom • a magnetic field |
• The total Hamiltonian of an atom in a magnetic field |
W
begin
W nearest |
| Rectangular hyperbolas have eccentricity |
• Rectangular hyperbolas • eccentricity |
• Rectangular hyperbolas • eccentricity |
W
begin
W begin +f+W nearsest |
| The Rydberg constant is seen to be equal to |
• The Rydberg constant | • The Rydberg constant | W begin +W nearsest |
After the weights are assigned to different candidate NPs of a target sentence, and the weights are tuned using Weight and Addend Tuner (see subsection 3.6), the one having a maximum weight is predicted as the context of corresponding formula.
3.6 Weight and Addend Tuner
As the initial values of three different weight measures
3.7 System Testing
The efficacy of best configuration selected by WAT is examined using a test set comprising 100 previously unseen test instances. System predicted contexts are compared with the gold contexts of test instances, and the F-score is computed.

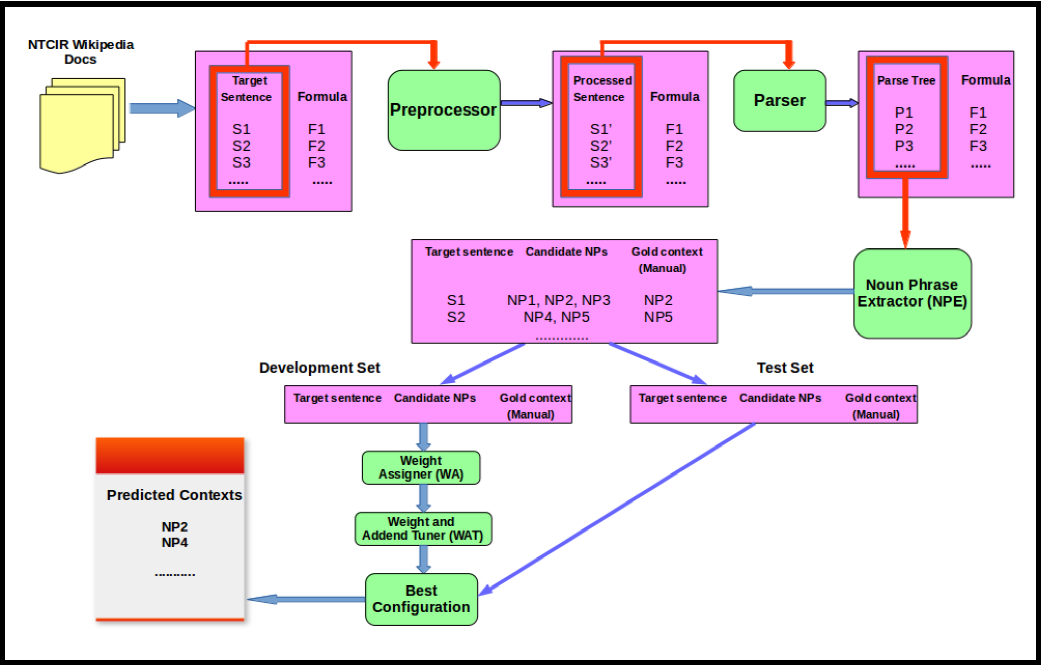

Figure 3 shows working principle and different constituents of the implemented system.
4 Experimental Design
To develop and test the system, following experimental setups are employed:
(a) As mentioned in previous section, the system predicted contexts are evaluated on the ground of F-score. However, to compute F-score (see Equation 3), precision and recall measures need to be computed beforehand. While Precision P (see Equation 1) gives a measure of the correct context predictions out of the total contexts predicted, Recall R (see Equation 2) gives a measure of correct context predictions out of the total gold contexts:
5 Results and Analysis
System results and their comprehensive analysis are presented in this section. Following points regarding the implemented system and the predicted contexts are worth noting:
(1) System attains a maximum development set F-score of 67% for the following values of weights and addend: W begin = 0.6, W second = 0.4, W nearest = 0.1 and f = -0.2. A negative value of addend f is indicative of the fact that the value of weight W begin is decremented by 0.2, every time, on going from farthest maximal/isolated NP to the nearest maximal/isolated NP.
(2) F-scores of the implemented system for development set and test set are 67% and 65%, respectively. The system predicts contexts (either correct or incorrect) for all the instances in development and test sets. Some sample examples of gold contexts, predicted contexts and their associated weights are shown in Table 6. For some of the test target sentences, there are more than one probable gold contexts (see example 5 of Table 6). In all such cases, the predicted context is considered relevant, if it is any one of the gold contexts.
(3) To assess the comparative strengths, the performance of proposed system is compared with those of nearest NP and sentence-pattern based methods (see Table 1 of Related Works section for different sentence patterns). Figure 2 shows F-scores of the three methods for development and test sets, and the scores are indicative of the fact that the proposed method significantly outperforms the two conventional and naive methods in predicting most appropriate context for a given formula. While the nearest noun method assumes nearest NP to be the context of formula, the sentence-pattern based method assumes presence of certain patterns between context and formula. Such naïve assumptions are not always correct; hence the poor performance.

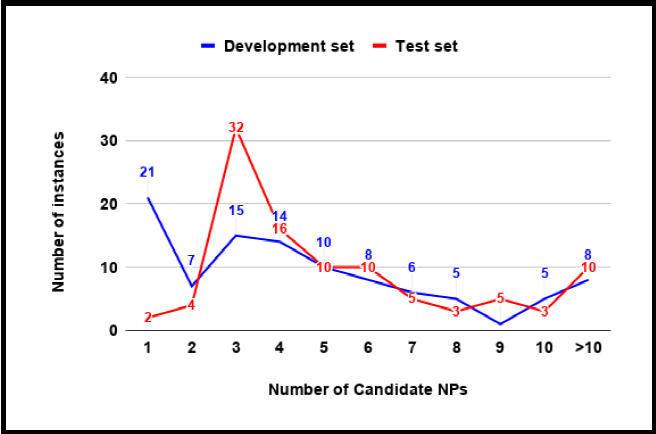

(4) Different number of candidate NPs are extracted by the implemented system for different target sentences in development and test sets. The graph shown in Figure 4 shows statistical distribution of number of candidate NPs in the two sets, which can be interpreted as follows: "3 candidate NPs are extracted for 15 target sentences in development set and 32 target sentences in test set. Similarly, 2 candidate NPs are extracted for 7 target sentences in development set and 4 target sentences in test set." The plot is indicative of the fact that the two sets vary in terms of the instances corresponding to different number of candidate NPs. To further ascertain correlation, if any, between development and test sets, Pearson correlation coefficient (r) is computed between number of instances in two sets corresponding to different number of candidate NPs. The value of r equal to 0.387 (more close to 0 than 1) confirms that the two sets are almost uncorrelated. Also, even though the development and test sets are almost uncorrelated, the implemented system delivers comparable performance. This confirms that the performance of system is independent of the nature of target sentences and, hence, the system is neither overfit nor underfit.
Table 6 Sample examples of gold contexts and predicted contexts
| Target sentence | Gold context | Predicted context (weight) |
|---|---|---|
| Using this free-body diagram the torque required to lift or lower a load can be calculated: |
the torque required to lift or lower a load |
the torque required to lift or lower a load (0.8) |
| In its general form, the steering law can be expressed as |
the steering law | the steering law (0.9) |
| The gravity depends only on the mass inside the sphere of radius |
radius | the mass inside the sphere of radius (0.8) |
| The Young Equation relates the contact angle to interfacial energy |
The Young Equation | The Young Equation (0.6) |
| The BEST theorem states that the number ec(G) of Eulerian circuits in a connected Eulerian graph G is given by the formula |
(a) The BEST theorem (b) the number ec(G) of Eulerian circuits in a connected Eulerian graph G |
the number ec(G) of Eulerian circuits in a connected Eulerian graph G (0.8) |
5.1 Error Analysis
Even though the proposed approach works effectively for substantial variety of test instances, the following shortcomings are worth considering:
(a) The system incurs in failure in situations where the gold context is absent in the sentence containing formula. In example 5.1 (shown in Figure 5), the system incorrectly infers one of the NPs of target sentence to be the correct context, as the gold context (i.e "Rayleigh criterion") is present in some previous sentence and not in the sentence containing formula. Although it may be accounted by extending the window size from a single sentence to multiple sentences or even complete passage, such an attempt will lead to significant increase in number of NPs which are unrelated to the formula.
(b) System lacks ability to combine different NPs in a systematic or meaningful way. More specifically, the system fails to account for situations wherein the gold context is intricate combination of two or more candidate NPs. For instance, in example 5.2 (shown in Figure 6), the gold context is combination of two candidate NPs, namely the pressure force" and "an isothermal fluid", but the system incorrectly predicts only partial gold context.
(c) The system also incurs failure if the gold context does not adhere to the heuristics as mentioned in subsection 3.5. For instance, WA assigns weights only to maximal NP, isolated NP and nearest NP, and discards all other candidate NPs. However, in some cases, the gold context may be one of the minimal NPs, instead of being maximal NP, isolated NP or nearest NP. The gold context initial momenta" is a minimal NP in example 5.3 (shown in Figure 7).
6 Conclusion and Future Directions
This paper proposes and implements a system, which can extract textual description (also called "context") of math formula present inside scientific document. Preprocessor, Shift-Reduce Constituency Parser, Noun Phrase Extractor (NPE), Weight Assigner (WA), and Weight and Addend Tuner (WAT) form key constituents of the implemented system, which work in a sequential fashion to predict most appropriate context for a given formula. After the sentences containing formula (target sentences) are processed and parsed, different Noun Phrases (NPs) are extracted from the parse trees using NPE. Eventually, the WA assigns weights to different NPs using certain heuristics, and the WAT tunes values of those weights using a development set containing gold contexts for target sentences.
Thereafter, the best set of weight values are used to predict context for test target sentences. The proposed method achieves a test set F-score of 65% and significantly outperforms the conventional nearest noun and sentence-pattern based methods of context extraction.
Followings are some of the future research directions worth exploring:
(a) The WAT, as of now, uses trial and error to discover the best set of weight and addend values. Instead, in the future, multiple linear regression will be used to express F-score in terms of weights and addend. Subsequently, the constrained multivariable optimization, with constraints being
(b) Furthermore, it will be interesting to prospect the impacts of followings over performance of the system: (i) increase in development set size (ii) enabling support for judiciously combining different candidate NPs, and (iii) extending the context window size from a single sentence to multiple sentences.
