Microsurgical reconstruction in limb salvage due to a giant cell tumor of the distal radius. Case report

Reconstrucción microquirúrgica de la extremidad asociada a un tumor de células gigantes del extremo distal del radio. Reporte de caso

LJ Sánchez-Torres1  *

ML de la Parra-Márquez2

AM Cruz-Escalante3

R Ramírez-Barroso3

A Espinoza-Velazco4

1 Attending Physician of the Service of Hip and Pelvis surgery. Unidad Médica de Alta Especialidad. Hospital de Especialidades No. 25. Centro Médico Nacional del Noreste. Instituto Mexicano del Seguro Social. Monterrey, Nuevo León. México.

2 Attending Physician of the Plastic and Reconstructive Surgery Service. Unidad Médica de Alta Especialidad. Hospital de Especialidades No. 25. Centro Médico Nacional del Noreste. Instituto Mexicano del Seguro Social. Monterrey, Nuevo León. México.

3 Resident of Plastic Surgery. Hospital de Traumatología y Ortopedia No. 21. Monterrey, Nuevo León. México.

4 Attending Physician to the Oncosurgery Service. Unidad Médica de Alta Especialidad. Hospital de Especialidades No. 25. Centro Médico Nacional del Noreste. Instituto Mexicano del Seguro Social. Monterrey, Nuevo León. México.


The giant cell tumor of bone is one of the most controversial neoplasms due to growth patterns that may present. The case reported shows a very aggressive tumor in a classic location, but key to hand function. Rather than treat with radical surgery, was planned and performed a wide resection with an ulnar-carpus arthrodesis and microsurgical reconstruction of the defect throught an anterolateral thigh flap. The multidisciplinary approach of bone neoplasms produce a positive impact on patients.

Key words: Giant cell tumor of bone; wide resection; arthrodesis; anterolateral thigh flap


El tumor óseo de células gigantes es una de las neoplasias más controversiales debido a los patrones de crecimiento que pueden presentar. El caso reportado muestra un tumor muy agresivo en una localización clásica, pero clave para la función de la mano. En lugar de tratarla mediante cirugía radical, se planeó y realizó una resección amplia con artrodesis cúbito-carpiana y la reconstrucción microquirúrgica del defecto mediante un colgajo anterolateral de muslo. El abordaje multidisciplinario de las neoplasias óseas repercute positivamente en los pacientes.

Palabras clave: Tumor óseo de células gigantes; resección amplia; artrodesis; colgajo anterolateral de muslo


Giant cell tumor is a bone tumor that has been known since the 19th century when Sir Astley Cooper in 1818 called this condition fungus medullary exostoses,1 and later in 1940, Jaffe, Lichtennstein and Portis redefine it to as it is now known,2 which according to the classical definition of Mario Campanacci, is an intramedullary bone tumor with specific preference by age and location, composed of mononuclear cells and giant cells that resemble osteoclasts and presenting a growth potential variable and unpredictable.3 This lesion represents approximately 5% of all primary bone neoplasms,4,5,6,7,8,9 and 20% of benign bone tumors.5,6 This tumors occur most frequently between the second and fourth decades of life.4,6,7 The most common locations are in descending order: distal femur, proximal tibia and distal radius,3,5 all of them in metaphyseals zones and in intimate contact with the subchondral bone.

The clinical manifestations of the giant cell tumor of bone are mainly local pain with increased volume and hypersensitivity, and may also exist pathological fracture secondary to the cortical thinning caused by the lesion.10

From the radiological point of view it is an osteolytic lesion with a pattern of destruction usually geographical, expansive and eccentric, which may present septa in the interior. Due to rupture of the cortical, a soft tissue shadow can be observed secondary to tumor invasion into the surrounding tissues. Campanacci et al described a system of radiological staging11,12 in which a clinical-radiological correlation is noted:

  • Stage I: they are lesions that do not distort or perforate the cortical,11 which is indeed thinned. The tumor is usually well demarcated by a fine more or less well-defined halo. Clinically they’re lesions with minimal symptomatology, or with an indolent course. It is estimated that only 10% of giant cell tumor of bone are diagnosed at this stage.3 They are usually latent lesions, i.e. they correspond to grade 1 Enneking classification.13

  • Stage II: are those in which an image clearly osteolytic is seen which also distorts or expands the cortex, but even without spread to peripheral soft tissue. There´s no any sclerosus halo settling to the lesion, however it is possible to specify the transition between the sick and the healthy bone. There is established symptomatology and its growth is stable. Approximately 70% of cases are diagnosed at this stage.3 Usually are active lesions that clinically correspond to grade 2 of Enneking.13

  • Stage III: they are osteolytic lesions that penetrate the cortex and extends to the surrounding soft tissues; sometimes a phantom bone imaging its observed. There is not an accurately lesion limits, being in this type of injury where the highest rate of local recurrence occurred. These lesions are often associated with pathologic fractures.3 Are aggressive tumors with a fast growth that clinically correspond to a grade 3 of Enneking.13

There are several treatment options for giant cell tumors, we can however summarize them in intralesional resections (radiological stages I and II of Campanacci lesions), wide resections (radiological stage III of Campanacci) and radical procedures. This last alternative treatment is reserved for aggressive lesions that involve a great amount of soft tissue, important cutaneous commitment, and/or major neurovascular invasion. Giant cells tumors of the distal end of the radius has a particular and well known tendency of local recurrence, in addition to being the one that more easily develop metastasis or lung histologically benign implants (in relation to the rest of the locations).

Known as anterolateral thigh flap to the septocutaneous or musclecutaneous flap, based on the perforator artery of the descending portion of the lateral femoral circumflex artery.14,15,16 It was first described in 1984.

Since its initial description, the anterolateral thigh flap has gained popularity in its use as a flap of soft tissue for reconstruction of regional and distance defects.15

The marking of the flap is based on the location of the skin vessels supplying the territory of the flap. The anatomical references include the anterior superior spine iliac and the side edge of the upper pole of the patella; the flap is focused at the midpoint of a longitudinal line which unites them. A circle of 3 cm radium defines the area in which skin vessels, septocutaneous vessels or the perforator musculocutaneous come out; subsequently It is designed the cutaneous shovel around the defined dermal vessels. The dimensions of the flap can be as large as 35 cm long and 25 cm wide.14,15 The versatility of this flap is such that can be designed with dermal portion, fascia and even muscle. The fascia lata possessing vascular pedicle that can be used in tendon reconstruction.16 Also used in the treatment of shrink scars and contractures in the hand, as well as to treat large defects of soft tissue with loss of blood vessels, in which case the pedicle is lodged in the vascular defect with satisfactory results.17,18 In what refers to oncological origin reconstructions, the anterolateral thigh flap provides a proper tissue coverage with special characteristics, as it might be used in composite form, including the reconstruction of tendons, support structures, and through the femoral cutaneous nerve, nerve structures that will allow us to preserve the sensitivity.19,20

Case presentation

Male patient 23-year-old without any genetic and personal background of importance. He began his condition in August 2015 with volume increase at the level of the left wrist, as well as light local hyperthermia and progressive limitation to the normal ranges of joint mobility. Through imaging studies it is detected a lytic, expansive, extracompartimental and heterogeneous component bone tumor at expense of the distal radius (Figure 1). Thick needle biopsy is performed, and already with histopathological report of giant cell tumor of bone, is referred to our medical unit.

The patient was received by the plastic surgery department. Physical examination at that time suggest a great mass of neoplastic tumor lobulated that severely compromise the skin cover of the region without exposure of the mass (Figure 2). The movements of the wrist are abolished by trigger pain and disability secondary to the extent growth of the neoplasm. Radiologically is already with a phantom bone sign.21

Figure 1: X ray showing a lytic and destructive lesion (phantom bone sign) in the distal radius consistent with a giant cell tumor.

Figure 2: Clinical appearance of the lesion.

The patient was surgically scheduled for extend resection including cutaneous coverage for the poor condition of this and the scar from previous biopsy, as well as reconstruction through ulnar centralization and ulnar-carpal arthrodesis directed the third ray, plus anterolateral contralateral thigh flap.

Surgical technique

Prior identification trough vascular Doppler of the radial neurovascular package and measurement of dimensions of the skin to be included in the surgical specimen, tissue is then drawn and then approached including a spindle of damaged skin (Figure 3) (en bloc resection using the criteria of broad Enneking margins) continuing with the completion of fasciocutaneous flaps from the remnants of the cutaneous cover in the region of the forearm and wrist of the patient.

Figure 3: Layout of the area for resection and the path of the radial neurovascular bundle.

Once resected most of the tumor (Figure 4), and preserving a layer of healthy muscle tissue, proceeds to make proximal radial resection of approximately half of the length being gradually distally released the surgical specimen. Once identified the tendons trapped at the interior of the tumor mass were identified, and resected at the wrist, on the tumor edge, being released from it, and then retracted and preserved following the path of their respective pulley, then the complete resection of the distal radius is done, including the first carpal line.

Figure 4: Surgical specimen product of wide resection.

For 15 minutes a surgical lavage is performed using hydrogen peroxide within the surgical bed, the ulcer is then centralized and an ulnar-carpus arthrodesis is completed. For this purpose A 9 holes 3.5 DCP plate was used (Figure 5). Extensors tendon repaired were carried out. Simultaneously to this late stage of the procedure the anterolateral thigh flap was performed; a 16 x 10 cm skin flap was harvested, including a fascia lata compound for extensor retinaculum reconstruction using microsurgical approach (Figure 6).

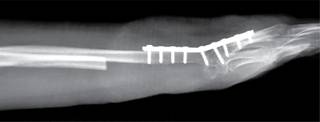

Figure 5: Radiological and postsurgical control.

Figure 6: Final clinical appearance.

Once the procedure has been complete, a cast anteriorly placed was used, and an intensive program of physical therapy and rehabilitation was established.

Two months after procedure the patient is functionally with flexion and extension full of fingers 2 to 5, with limitation to the full flexion of the left thumb with oral intake of risedronate. Currently no evidence of tumoral activity and with radiological arthrodesis achieved.


Giant cell tumor of bone is a benign neoplasm of locally aggressive behavior that can even require radical procedures in extreme cases. Early diagnosis is the key to less aggressive treatments and with a lower functional deficit. Control of the disease is the priority. The distal radius is one of the classic locations for giant cell tumors, followed by the knee. The great mobility of the wrist and hand, is the importance of this anatomical region. The circumstances which may lead to the development of large tumors vary from educational causes and health systems, to those inherent to the histological nature of the neoplasm. Current medicine requires multidisciplinary approaches which provide a combination of skills for the patient outcome and the innovation in terms of new therapeutic modalities. The case presented here is exposed to a neoplasm of fast growth in a critical area for upper extremity function. An alternative treatment, nothing reprehensible might have been the amputation of the affected segment, the great bone damage and the condition of soft tissue could well justify it. In this patient, it was possible to focus on a multidisciplinary strategy and fortunately the outcome has been satisfactory. Ulnar-carpus arthrodesis result in the loss of mobility of the wrist and the forearm pronosupination. If this fusion is in the right position, it is possible to preserve a greater degree of function far superior to an amputation and its external prostheses. The function of the hand as such is practically preserved. The skin coverage obtained through the anterolateral thigh flap, has been excellent.


Multidisciplinary approach of certain bone neoplasms, as well as a large number of pathological entities in special conditions, is likely to do better both medical and functional, compared with treatments considered perspective of a single specialty.


1. McCarthy EF. Giant-cell tumor of bone: an historical perspective. Clin Orthop Relat Res. 1980; (153): 14-25. [ Links ]

2. Fernández-Vázquez JM, Aziz J, López-Márquez A, Camacho-Galindo J. Tumor de células gigantes en el extremo distal del radio. An Med Asoc Med Hosp ABC. 2004; 49(3): 135-46. [ Links ]

3. Campanacci M. Giant cell tumor. In: Bone and soft tissue tumors: clinical features, imaging, pathology and treatment. 2a edition; 4. Springer; 1999: 99-142. [ Links ]

4. Greenspan A, Remagen W. Miscelánea de tumores y lesiones seudotumorales. En: Tumores de huesos y articulaciones. Marbán; 2002; 7: 311-66. [ Links ]

5. Panchwagh Y, Puri A, Agarwal M, Anchan C, Shah M. Giant cell tumor - distal end radius: Do we know the answer? Indian J Orthop. 2007; 41(2): 139-45. [ Links ]

6. De la Garza NJM, Ceccopieri CA, Cruz-Ortiz H, Díaz-Rodríguez LR, Martínez-Macías R. Tumor de células gigantes de hueso. Aspectos generales de 11 casos. Rev Med Hosp Gen Mex. 1999; 62(4): 240-4. [ Links ]

7. Oh JH, Yoon PW, Lee SH, Cho HS, Kim WS, Kim HS. Surgical treatment of giant cell tumour of long bone with anhydrous alcohol adjuvant. Int Orthop. 2006; 30(6): 490-4. [ Links ]

8. Moreno-Wright E, Moreno-Hoyos LF, Tecualt-Gómez R, Morfín-Padilla A, Padilla-Longoria R, Roji-Alarcón C, et al. Utilidad del metilmetacrilato en el tumor de células gigantes óseo. Acta Ortop Mex. 2003; 17(6): 281-6. [ Links ]

9. Athanasian EA, Wold LE, Amadio PC. Giant cell tumors of the bones of the hand. J Hand Surg. 1997; 22(1): 91-8. [ Links ]

10. Sánchez-Torres LJ, Santos-Hernández M. Aloinjerto masivo y artrodesis de la muñeca para un tumor de células gigantes del radio distal. Acta Ortop Mex. 2011; 25(1): 50-6. [ Links ]

11. Athanasian EA. Aneurysmal bone cyst and giant cell tumor of bone of the hand and distal radius. Hand Clin. 2004; 20(3): 269-81, vi. [ Links ]

12. Catalan J, Calábria da Fonte A, Beal-Lusa JR, Dias de Oliveira A, Soares de Melo E, Justino-Júnior RO, et al. Tumor de células gigantes ósseo: aspectos clínicos e radiográficos de 115 casos. Radiol Bras. 2006; 39(2): 119-22. [ Links ]

13. Enneking WF, Spanier SS, Goodman MA. A system for the surgical staging of musculoskeletal sarcoma. Clin Orthop Relat Res. 1980; (153): 106-20. [ Links ]

14. Song YG, Chen GZ, Song YL. The free thigh flap: a new free flap concept based on septocutaneous artery. Br J Plast Surg. 1984; 37(2): 149-59. [ Links ]

15. Wei FC, Mardini S. Colgajos en cirugía reparadora. Barcelona: Elsevier; 2009: 539-40. [ Links ]

16. Wang HT, Fletcher JW, Erdmann D, Levin LS. Use of the anterolateral thigh free flap for upper-extremity reconstruction. J Hand Surg Am. 2005; 30(4): 859-64. [ Links ]

17. Adani R, Tarallo L, Marcoccio I, Fregni U. First web-space reconstruction by the anterolateral thigh flap. J Hand Surg Am. 2006; 31(4): 640-6. [ Links ]

18. Sananpanich K, Tu YK, Kraisarin J, Chalidapong P. Flow-through anterolateral thigh flap for simultaneous soft tissue and long vascular gap reconstruction in extremity injuries: anatomical study and case report. Injury. 2008; 39 Suppl 4: 47-54. [ Links ]

19. Lee N, Roh S, Yang K, Kim J. Reconstruction of hand and forearm after sarcoma resection using anterolateral thigh free flap. J Plast Reconstr Aesthet Surg. 2009; 62(12): e584-6. [ Links ]

20. Windhofer C, Karlbauer A, Papp C. Bone, tendon, and soft tissue reconstruction in one stage with the composite tensor fascia lata flap. Ann Plast Surg. 2009; 62(6): 665-8. [ Links ]

21. Sánchez-Torres LJ, Santos HM. Descripción del signo radiológico del hueso fantasma y revisión de otros hallazgos relacionados. An Radiol Mex. 2012; 11(3): 136-42. [ Links ]
