Bot. sci vol.95 no.3 México Jul./Set. 2017

Taxonomy and floristics

Molecular phylogeny and morphologic data of strains of the genus Coelastrella (Chlorophyta, Scenedesmaceae) from a tropical region in North America (Yucatan Peninsula)

Katia Ancona-Canché1

Silvia López-Adrián2

Margarita Espinosa-Aguilar3

Gloria Garduño-Solórzano4

Tanit Toledano-Thompson1

José Narváez-Zapata5

Ruby Valdez-Ojeda1

1 Unidad de Energía Renovable, Centro de Investigación Científica de Yucatán A.C. Mérida, Yucatán, Mexico.

2 Facultad de Veterinaria y Zootecnia, Universidad Autónoma de Yucatán. Mérida, Yucatán, Mexico.

3 Unidad de Bioquímica y Biología Molecular de Plantas, Centro de Investigación Científica de Yucatán A.C. Mérida, Yucatán, Mexico.

4 Facultad de Estudios Superiores Iztacala, UNAM, Estado de Mexico, Mexico.

5 Centro de Biotecnología Genómica, Instituto Politécnico Nacional. Reynosa, Tamaulipas, Mexico.



Scenedesmaceae family exhibits great morphological variability. High phenotypic plasticity and the presence of cryptic species have resulted in taxonomic re-assignments of Scenedesmaceae members.

Study strains:

Strains CORE-1, CORE-2 and CORE-3 were characterized.

Study site:

Yucatan Peninsula


Morphological analyses were executed by optical and scanning electron microscopy. Phylogenetic relationships were examined by ITS-2 and ITS1-5.8S-ITS2 rDNA regions.


Optical and scanning electron microscopy analyses indicated spherical to ellipsoidal cells and autospore formation correspond to members of the family Scenedesmaceae, as well as observable pyrenoid starch plates. Detailed morphology analysis indicated that CORE-1 had visible granulations dispersed on the cell wall, suggesting identity with Verrucodesmus verrucosus. However CORE-1 did not show genetic relations with this species, and was instead clustered close to the genus Coelastrella. CORE-2 did not show any particular structure or ornamentation, but it did show genetic relations with Coelastrella with good support. CORE-3 showed meridional ribs from end to end, one of them forked and well pronounced, and orange cells in older cultures characteristic of Coelastrella specimens. Phylogenetic trees of ITS-2 and ITS1-5.8S-ITS2 rDNA sequences indicated with good support that all strains were related to the genus Coelastrella despite their morphologic differences.


This study reports freshwater Coelastrella strains from a tropical region in North America (Yucatan Peninsula) for the first time. The results contribute to knowledge of Coelastrella species, and the fact that they do not always show structures that are useful for taxonomic assignment, probably as a result of phenotypic plasticity.

Keywords: Microalgae strains; internal transcript spacer-2 (ITS-2); Scenedesmaceae; ITS1-5.8S-ITS2 rDNA analysis; Yucatan peninsula; Tropical region in North America



La familia Scenedesmaceae exhibe gran variabilidad morfológica La alta plasticidad fenotípica y la presencia de especies crípticas han resultado en reasignaciones taxonómicas de los miembros de la familia Scenedesmaceae.

Cepas bajo estudio:

Las cepas CORE-1, CORE-2, CORE-3 fueron caracterizadas.

Sitio de estudio:

Península de Yucatán.


Los análisis morfológicos fueron realizados por microscopía óptica y electrónica de barrido. Las relaciones filogenéticas fueron examinadas por las regiones ribosomales ITS-2 e ITS1-5.8S-ITS2.


Los análisis de microscopía óptica y electrónica de barrido indicaron que las células elipsoidales y la formación de autoesporas corresponden a miembros de la familia Scenedesmaceae, así como el pirenoide y los gránulos de almidón. El análisis detallado de la morfología indicó que CORE-1 presentó granulaciones visibles dispersas en la pared celular, sugiriendo identidad con Verrucodesmus verrucosus. Sin embargo, CORE-1 no mostró relaciones genéticas con esta especie, sino que se agrupó cerca del género Coelastrella. CORE-2 no mostró ninguna estructura u ornamentación en particular, aunque mostró relaciones genéticas de buen soporte con Coelastrella. CORE-3 mostró verrugas o costillas meridionales de polo a polo, uno de ellos bifurcado y bien pronunciado, y en cultivos viejos las células se tornaron de color naranja característico de los especímenes de Coelastrella. Los árboles filogenéticos de las secuencias del ADNr ITS-2 e ITS1-5.8S-ITS2, indicaron con buen soporte que todas las cepas se relacionan con el género Coelastrella a pesar de sus diferencias morfológicas.


Este estudio reporta por vez primera, el estudio de cepas de microalgas de agua dulce de Coelastrella en la región tropical de América del Norte (Península de Yucatán). Estos resultados contribuyen al conocimiento de las especies de Coelastrella, y al hecho de que no siempre muestran estructuras que son útiles para la asignación taxonómica, probablemente como resultado de la plasticidad fenotípica.

Palabras clave: Cepas de microalgas; espaciador del transcrito interno-2 (ITS-2); Scenedesmaceae; análisis del ADNr ITS1-5.8S-ITS2; Península de Yucatan; Región Tropical de Norte América

The coccoid green algae are one of the most troublesome taxonomic groups (Eliáš et al. 2010). Scenedesmaceae is the largest family with 54 genera (Guiry & Guiry 2016), each one displaying great morphological variability, maintained by genetic relationships resulting from autospores (Hegewald 1997), that consequently promote all other mutations (Krienitz & Bock 2012).

Simple morphology, phenotypic plasticity and the presence of cryptic species in the family Scenedesmaceae have contributed to taxonomic complication (Sciuto et al. 2015), resulting in constant reassignments (Eliáš et al. 2010), such as that which has occurred with various species of the Coelastrella subfamily Coelastraceae (Hegewald et al. 2010). However, the body of molecular data has supported the transfer of those specimens to other genera; e.g., Coelastrella multistriata possesses a close relationship with Scenedesmus vacuolatus. Despite morphologic differences, genetic similarities based on 18SrDNA supported the transfer of Coelastrella multistriata into Scenedesmus (Hanagata 1998). This is because the Coelastraceae subfamily with 11 species possesses a close relationship with the Scenedesmaceae family, despite morphologic differences. Coelastraceae show spherical, elliptical and long coenobia (Punčochářová & Kalina 1981), while Scenedesmaceae show flat, straight, and lightly curved coenobia (Guiry & Guiry 2016). Nevertheless, the close genetic relationship suggests that the subfamily Coelastroideae should be treated as the genus Coelastrella within Scenedesmaceae together with Coelastrum, Hariotina, Asterarcys and Dimorphococcus (Hegewald et al. 2010).

Coelastrella, named by Chodat (1922), shows distribution in Korean rivers (Song & Singh 2014), Australian soil (Tschaikner et al. 2007, Tschaikner et al. 2008), rock surfaces (Abe et al. 2004), Bulgarian soil (Uzonov et al. 2008), and an alpine zone in New Zealand (Gopalakrishnan et al. 2014). It was recently reported for the first time in freshwater in North America (Neofotis et al. 2016), but prior to this study it had not been reported in a tropical region of North America (Yucatan Peninsula). Its habitats range from aerial to terrestrial with relative humidity (40 %) or without (Song & Singh 2014), as well as at high altitudes (Gopalakrishnan et al. 2014).

Coelastrella shows morphologic traits similar to Scotiellopsis (Punčochářová & Kalina 1981). Although both belong to the Coelastroideae subfamily (Guiry & Guiry 2016), they are characterized by spherical to elliptical coenobia with meridional ribs on the cell surface, but they differ in number and polar thickening (Hanagata 2001). These structures are generally not visible under light microscopy, because there are also coenobia that lack cell wall ridges (Hegewald et al. 2010). In contrast, electron microscopy has aided elucidation based on these structures, although sometimes the cell wall might be artificially wrinkled during sample preparation (Kaufnerová & Eliáš 2013). Cell wall sculptures observed in Coelastrella by electron microscopy can be helpful for their identification (Tschaikner et al. 2007) meanwhile molecular identification will become a universal tool in botanical studies (Manoylov 2014). In this regard, ITS-2 sequencing has been successfully used to verify the taxonomy of closely related species (Ruhl et al. 2010), while ITS1-5.8S-ITS2 has been used to successfully confirm the identification of freshwater green microalgae strains (Timmins et al. 2009, Hadi et al. 2016). The ITS1-5.8S-ITS2 region from virtually all Viridiplantae can be amplified with a single set of universal primers (White et al. 1990), despite these markers being of high variability (Hall et al. 2010). The delimitation in Coelastrella needs more attention (Kaufnerová & Eliáš 2013). In fact, it has been suggested that morphological diversity raises the question of whether these algae are a natural assemblage or an artificial group (Hegewald et al. 2010). In this study, three strains from shallow waters of Yucatan were examined using optical and electron microscopy for ultrastructure analysis and using molecular data based on ITS-2 and ITS1-5.8S-ITS2 phylogenetic studies to gain more insights into their taxonomic status.

Material and methods

Microalgal strains. Three strains labeled CORE-1, CORE-2 and CORE-3 were studied. All of them were provided by the Marine and Freshwater Microalgae Collection of the Yucatan Peninsula (FICOYUC) at the Alfredo Barrera Marin Herbarium of the Universidad Autónoma de Yucatán in Mérida, Yucatán, México. All microalgae were first maintained in Bristol medium at 27 °C, 12:12 light-dark, with a light intensity of 100 µmol/m2/s. Growth curves for each microalga were carried out in 50 ml Erlenmeyer flasks containing 10 ml fresh TAP medium (Gorman & Levine, 1965). They were incubated at 27 ± 2 °C, 120 rpm (Newbrunswick Scientific, Excella E10), and a light intensity of 100 µmol/m2/s with a 16:8 (light/dark) photoperiod. Samples were taken every day (500 µL) and cell concentration was determined using a hemocytometer (Andersen 2005).

Morphological analysis. Morphology features observed through optical microscopy (Nikon, Eclipse E200) were recorded, placing special emphasis on cell wall structures as a means of taxonomic identification by SEM micrographs. Lugol’s solution (Jalmek SY050-13) was used for pyrenoid staining with the following procedure: 50 µL of Lugol’s solution was mixed in 200 µL of microalgae culture. Subsequently, one drop (10 µL) was taken and visualized under light microscopy. Starch granules were observed from pyrenoid staining (Kumar & Singh 1971, Throndsen 1978).

Scanning electron microscopy (SEM). For the SEM analysis, 200 mg of microalgal cells in stationary phase were used, because the growth stops and almost the same cell size is observable in all cells (Berge et al. 2012). They were recovered and centrifuged (Hettich, Mikro 200R) at 9,727 ×g for 20 min. The supernatant was discarded and the pellet was transferred to a nylon membrane (GE Healthcare Biosciences, RPN203B) and kept in desiccators under vacuum for 24 h in 2.5 % glutaraldehyde (Polysciences, 00376) at 4 °C. This procedure was repeated three times to guarantee cell fixation. Fixation agent was then removed by centrifugation at 9,727 ×g for 20 min. The pellet was subsequently washed six times in 0.2 M phosphate buffers solution (pH 7.1). Sequential dehydration was performed in an ethanol series (30, 40, 55, 70, 85 and 100 %) at 4 °C. Individual samples were placed in microporous specimen capsules (C1178, Sigma) to be dried using Critical Point Dryer (Samdri 795). The samples were then mounted on specimen mounts for scanning electron microscopes and gold coated (Desk-II Cold sputter/ETCH Unit). SEM was performed (JEOL JSM6360 LV) (Kaufnerová & Eliá? 2013).

Genetic identification. At the stationary growth phase, the microalgae cells were harvested by centrifugation (OrtoAlresa, Digicen 21R) (30 ml) and washed three times in bidistilled sterile water. The cells (c.a. 200 mg) were stored at -20 °C, until use. For DNA extraction, we followed the protocol modifications of Youssef et al. (2015).

ITS-2 and ITS1-5.8S-ITS2 amplification. ITS-2 and ITS1-5.8S-ITS2 amplifications were implemented using the forward and reverse primers proposed by Van Hannen et al. (2002) and Timmins et al. (2009) respectively. Both assays were carried out with 10 µL of reaction mixture containing 1x PCR Buffer, 2 mM MgCl2, 0.2 mM dNTPs (Bioline, DM109H), 1 mM primer, 1 U Taq DNA polymerase recombinant (Invitrogen 11,615-010) and 10 ng of DNA. PCR conditions for ITS-2 included 1 cycle of 1 min at 94 ºC for initial denaturation, followed by 35 cycles of 1 min at 94 ºC, 1 min at 55 ºC, 1.5 min at 72 ºC, and finally 7 min at 72 ºC. Conditions for ITS1-5.8S-ITS2 amplifications were 1 cycle of 5 min at 95 ºC for initial denaturation, followed by 30 cycles of 40 s at 95 ºC, 40 s at 56 ºC, 40 s at 72 ºC, and finally 10 min at 72 ºC. Amplicons were checked by electrophoresis on 1 % agarose gel in 1 x TAE buffer. The amplification products (fragments of approximately 314 pb from ITS-2 and 714 bp from ITS1-5.8S-ITS2), were purified using NucleoSpin® Gel and the PCR Clean-up commercial kit (Macherey-Nagel, Düren, Germany) to eliminate primers dimers according to the manufacturer’s instructions. Direct sequencing of the amplification products was carried out by a two-directional (reverse and forward) procedure (Clemson Sequencing Service).

The PCR products from ITS-2 sequencing showed double peaks in the electropherogram generated as an output of direct sequencing. They were therefore inserted in pGEM-T Easy Vector System (A1360, Promega) and cloned in Escherichia coli (DH5α) cells. The plasmids were purified with QIAprep Spin Miniprep Kit (27104, QIAGEN). The sequencing was subject to both forward and reverse sides using M13 primer.

ITS-2 and ITS1-5.8S-ITS2 sequence analysis. The ITS-2 (314 pb) and ITS1-5.8S-ITS2 sequences (714pb: 27pb of 18S rDNA; 213pb of ITS-1; 181pb of 5.8S rDNA and 280 pb of ITS-2) were subjected to a BLAST search to determine their identities and assess their homologies and similarities to those in GenBank. Sequences with E-value closer to 0.00, 100 % coverage and identity 96 % > with each entry were aligned using CLUSTALX (EMBL, Heidelberg, Germany) and manually adjusted by MEGA version 2.1. Molecular phylogenetic analyses by the maximum likelihood method based on the Kimura 2-parameter model (Kimura 1980) were conducted using MEGA version 2.1 (Kumar et al. 2016). One thousand replica samplings were analyzed for percent bootstrap values in a neighbor-joining tree. The percentage of trees in which the associated taxa clustered together is shown next to the branches. A discrete Gamma distribution was used to model evolutionary rate differences among sites (2 categories (+G, parameter = 0.0500)). Evolutionary analyses were conducted in MEGA 7 (Kumar et al. 2016). Reference sequences retrieved from GenBank of the ITS1-5.8S-ITS2 sequences were KX940913, KX940914, KX940915 for CORE-1, CORE-2 and CORE-3 respectively.


Morphological analysis. The morphology observed by light microscopy (LM) was complemented by scanning electron microscopy (SEM) micrographs. CORE-1 showed an ovoid to ellipsoidal cell shape and rough cell wall. Asexual reproduction was visible by autosporulation. Each sporangium was composed of 2-6 young autospores with visible pyrenoid (Figure 1 C). The cell arrangement in sporulation showed cells in two superposed lines. The cell measurements were 7.01±0.28 µm in length and 4.56±0.31 µm in width with some granulations of 159 nm dispersed on the cell wall (Figure 2 A-B: indicated by arrows). The pyrenoid was defined by two or three divisions of starch granules.

Figure 1 Vegetative cells of microalgae strains. A-C. CORE-1. A. unicellular organization of the cells. B. pyrenoid visible. C. autospores with pyrenoids. D-F. CORE-2. D. colonial organization. E. pyrenoid staining with starch cells. F. autospores in sporangium indicated by arrows. G-I. CORE-3. G. colonial organization. H. Visible starch sheaths of the pyrenoid. I. autospores in sporangium. J. orange appearance of the cells.

Figure 2 A-F. SEM of the cells of the study. CORE-1. A. cell wall appearance (granulations indicated by rows). B. well pronounced apex. CORE-2. C. vegetative cells. D. smooth appearance of the cell. CORE-3. E. meridional ribs. F. forked and well pronounced apex.

CORE- 2 showed spherical and ellipsoidal cell shapes with one pole lightly developed (Figure 1 D-F). The cell was of 8.4±1.2 µm in length by 6.5±0.91 µm in width (Figure 2 C-D). The cell wall was smooth and 2-8 autospores were observed per sporangium (Figure 1 F: indicated by arrows). The pyrenoid was observed after Lugol staining, showing mostly continuous starch granules.

CORE-3 showed ovoid cells of 10.0 ± 0.23 µm in length and 6.7 ± 0.14 µm in width. A smooth cell wall was observed via LM (Figure 1; G-I), while ribs in a meridional distribution were observed via SEM (Figure 2; E-F). One of the ends was observed to be forked and well pronounced. Autospore formation (2-8 autospores) was observed. A visible pyrenoid composed of two or three divisions of starch plates was observed, sometimes observed to be continuous without divisions and with the vacuole visible. One interesting characteristic was the orange coloration of cells in older cultures (Figure 1; J).

Genetic analysis. The sequences of each of the three strains were used as a “query” in nucleotide Blast tools (NCBI website) to recover the ten best matches for each input sequence, based on percentage of sequence coverage, E-value and percentage of identity. The sequences selected were used for ITS-2 and ITS1-5.8S-ITS2 rDNA phylogenetic tree construction. These displayed clusters with bootstrap values above 50 %. The length of each branch denoted evolutionary distance.

The phylogenetic tree resulting from ITS-2 sequences (Figure 3) presented a high support. CORE-1 was clustered with good bootstrap support, near to Asterarcys sp. MS3 and Coelastrella sp. M60. CORE-2 was well supported in its monophyly with Coelastrella sp. accessions (KU507, KU502). Meanwhile, CORE-3 was clustered with high support, but evolutionarily separate from other strains, and in a node dominated by the genus Coelastrella, together with Chlamydomonas moewusii and other related species, such as Haematococcus pluvialis and Imbribryum alpinum.

Figure 3 Phylogenetic tree inferred from ITS2 rDNA sequences constructed with the neighbor-joining method. The number of the branches indicated bootstrap values (1,000 replicates).

Using ITS1-5.8S-ITS2 sequences, the phylogenetic relationships were very similar and resolved at 50 % bootstrap values (Figure 4). CORE-1 forms a node with Scenedesmus rotundus CFR 1-06/FW, Asterarcys sp. MS3, and Coelastrella sp. CORE-2 was placed close to the same Coelastrella accessions, as in the ITS-2 phylogenetic tree. Meanwhile CORE-3 was paraphyletic with high support and clustered with others accessions of Coelastrella genera. This clustering confirms in a certain way, the relationship of all strains with Coelastrella species. It is important to mention that the phylogenetic tree constructed by both ribosomal regions analyzed showed well supported nodes. Therefore, the genetic relationship of the strains under study must be considered for taxonomic assignment.

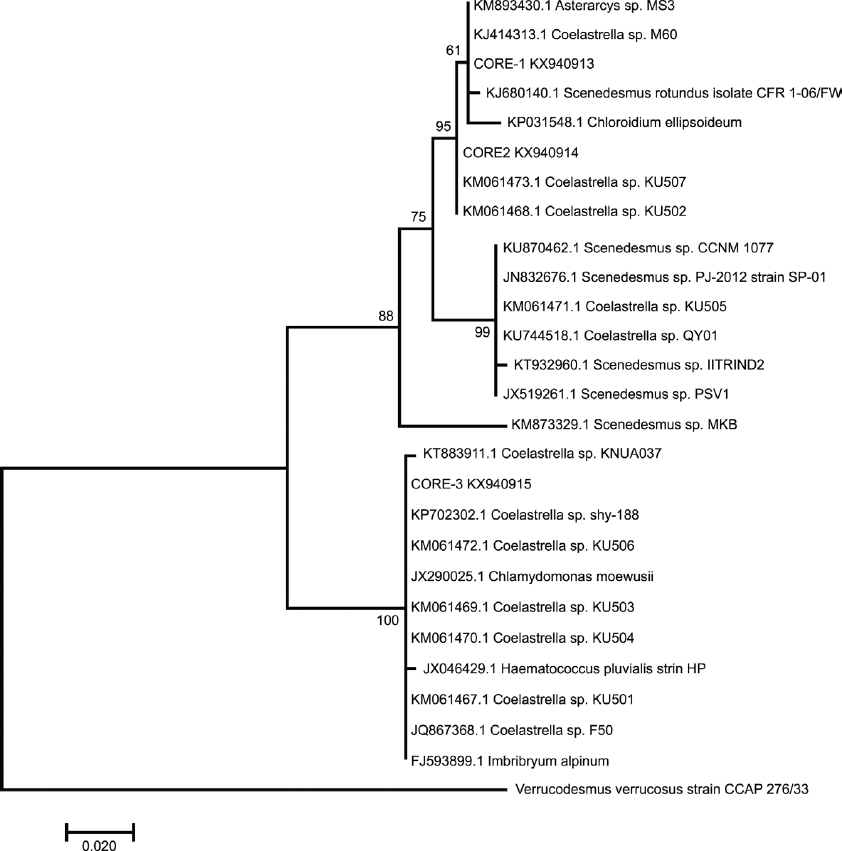

Figure 4 Phylogenetic tree inferred from ITS1-5.8S-ITS2 rDNA sequences constructed with the neighbor-joining method. The number of the branches indicated bootstrap values (1,000 replicates).

Verrucodesmus verrucosus was included to contrast taxonomically with CORE-1, but it was clustered as an external outgroup in both phylogenetic trees.


Morphologic analysis indicated that all strains belong to the family Scenedesmaceae. The autospore formation characteristic of Scenedesmaceae was visible in all strains under study, observed on light microscopy (Figure 1). SEM analysis of CORE-1 showed visible granulations dispersed over the cell wall surface of some cells and scarce in others (Figure 2; A-B). The granulations are a taxonomic character with identity to Scenedesmus verrucosus (Y.V. Roll) (Hegewald et al. 2013, Ramos et al. 2015), a basionym of Verrucodesmus verrucosus (Y.V. Roll) from their separation by rRNA gene sequences (ITS1/5.8S/ITS2) (Hegewald et al. 2013). Two lines of 6 intercalated cells were observed (Figure 1; C). Verrucodesmus verrucosus exhibits the arrangement of cells in two series of 4 or 8 cells as a taxonomic trait (Ramos et al. 2015). Thus, based on morphological analysis, CORE-1 belongs to V. verrucosus.

CORE-2 is rather simple and does not show any structure on the cell wall that could aid with its identification.

In CORE-3, meridional ribs were lightly evident, corresponding to the genus Coelastrella (Chodat 1922). Coelastrella belongs to the Scenedesmaceae (Hegewald & Hanagata 1999). This species is aerial to terrestrial with humidity (40 %) or without (Song & Singh 2014), and at high altitudes (Gopalakrishnan et al. 2014). It shows distribution in different regions (Abe et al. 2004, Tschaikner et al. 2007, Tschaikner et al. 2008, Uzonov et al. 2008, Song & Singh 2014), and was recently reported in North America (Neofotis et al. 2016). However prior to this study Coelastrella had not been reported in tropical regions of North America (Yucatan Peninsula).

CORE-3 showed meridional ribs characteristic of Coelastrella (Uzonov et al. 2008), and should therefore be considered Coelastrella sp. In CORE-3, an orange coloration was also observed in older cultures under light microscopy, consistent with Coelastrella specimens, which show a red (Guiry &Guiry 2016) or orange coloration (Hu et al. 2013) in matured cultures, similar to that of Coelastrella striolata var. multistriata (Trenkwalder) dependent on a low nitrogen concentration in the culture medium (Abe et al. 2004). The autospore number of CORE-3 (2-8) was different to Coelastrella members (Chodat 1922), which show 2-18 autospores released from mother cells (Guiry & Guiry 2016).

The rDNA sequences analyzed provided more insights into the taxonomic status. This is probably due to the increased number of taxa verified in algal gene libraries (Manoylov 2014). Phylogenetic analysis of the genus Coelastrella possesses higher molecular diversity, as suggested by our results via both ITS-2 and ITS1-5.8S-ITS2 sequence analysis and those of Kaufnerová and Eliáš (2013). Interestingly, through the ITS-2 or ITS1-5.8S-ITS2 phylogenetic trees, the positions of clades in the tree were resolved based on the high support.

The ITS-2 sequenced region has helped to discriminate at the species level, and clarified the relationships of Coelastrella with other genera of the family Scenedesmaceae, such as Hariotina, Asterarcys, Coelastrum and Dimorphococcus (Hegewald et al. 2010).

Contrary to the morphological analysis that showed identity with V. verrucosus, CORE-1 was nested within Coelastrella and Asterarcys by ITS-2 sequences and with the genera Coelastrella and Scenedesmus by ITS1-5.8S-ITS2 sequences, consistent with clustering by 18S rDNA sequences (Kaufnerová & Eliáš 2013) and ITS-2 region (Hewegald et al. 2010). Initially the Coelastraceae subfamily includes Asterarcys, a very different morphologic genus but one which has been nested between taxa nominally added to Coelastrella. A similar situation occurs with Scenedesmus rotundus (Hegewald et al. 2013) or Scenedesmus rubescens, which maintain close relationships with the genus Coelastrella (Chodat 1922), probably due to minor differences in the 18S rDNA sequence (Kaufnerová & Eliáš 2013), which were evidenced by the genetic markers analyzed in this study.

Morphology observed in CORE-1 indicated identity with Verrucodesmus verrucosus. However, molecular traits from two taxonomic markers indicated no genetic relation with V. verrucosus. Its position in the phylogenetic tree is very far away, and it can even be considered an external outgroup. Thus, it is not possible to conclude that CORE-1 belongs to V. verrucosus. On the contrary, there is a strong possibility that it is genetically closest to Coelastrella and distant to V. verrucosus.

CORE-2 forms a monophyletic clade with Coelastrella accessions reported as hydrogen producers (Pongpadung et al. 2015). Considering the absence of structures on the cell wall, it was not possible suggest taxonomic identity. However, based on molecular analysis CORE-2 should be considered to belong to Coelastrella.

The taxonomic identity of CORE-1 and CORE-2 was based on phylogenetic evidence. This has already been performed for members of Coelastrella, e.g. Coelastrella multistriata possesses a close relationship with Scenedesmus vacuolatus. Despite morphologic differences, genetic similarities based on 18SrDNA supported transfer of Coelastrella multistriata into Scenedesmus (Hanagata 1998).

CORE-3 formed one clade with Coelastrella and other very different genera with low support: Haematococcus pluvialis, Chlamydomonas moewusii (CCAP 11/64A) and Imbribryum alpinum. The only relation between CORE-3 and Haematococcus is the coloration of cultures due to astaxanthin production capability, because this genus is not related to the family Scenedesmaceae. On the other hand, it has been suggested that Chlamydomonas moewusii (CCAP 11/64A) was misidentified because it is morphologically different from Coelastrella (Kaufnerová and Eliáš, 2013). Imbribryum alpinum is also very different from the other species. The morphology and molecular characters of CORE-3 were consistent with Coelastrella, and the genetic results indicate that it probably belongs to Coelastrella.

Based on the results obtained, it is possible to suggest that Coelastrella members do not always show morphological traits congruent with Coelastrella descriptions. This is probably due to high susceptibly to phenotypic plasticity, which interferes with taxonomic assignments based only in morphology. The sequencing of molecular markers employed in this study was used for taxonomic assignment, supporting the assertion by Manoylov (2014) that “molecular identification will become a universal tool in biological studies”. In this regard, this report contributes to knowledge of Coelastrella species and provides the first description of three of them found in a tropical region of North America in the Yucatan Peninsula.


The three strains under study showed morphologic characteristics of the family Scenedesmaceae. The morphologic and molecular analysis of CORE-3 was close to the taxonomic descriptions of Coelastrella. Morphologic and genetic analysis of CORE-1 and CORE-2 rendered different results. While the morphologic traits of CORE-1 were quite similar to Verrucodesmus verrucosus, genetic analysis indicated a relationship with Coelastrella species, and did not support morphologic identity with V. verrucosus. CORE-2 did not show taxonomic traits because of the absence of structures. However, genetic analysis indicated that this strain belongs to Coelastrella.

Therefore, based on the high support of the nodes of the phylogenetic analysis by ITS-2 and ITS1-5.8S-ITS-2 sequences, all strains under study belong to the genus Coelastrella. Further sequencing analysis with 18S rDNA could contribute to supporting the phylogenetic status of CORE-1 and CORE-2 within Coelastrella.


The authors gratefully acknowledge the financial support granted by the Consejo Nacional de Ciencia y Tecnología (CONACyT, Mexico) through project No. 166371 and the graduate grant for the first author. We acknowledge Paola Marfil Lara’ help with editing the figures.

Literature cited

Abe K, Takizawa H, Kimura S, Hirano M. 2004. Characteristics of chlorophyll formation of the aerial microalga Coelastrella striolata var. multistriata and its application for environmental biomonitoring. Journal of Bioscience and Bioengineering 98: 34-39. DOI:10.1016/S1389-1723(04)70239-X [ Links ]

Andersen RA. 2005. Algal Culturing Techniques. Burlington: ElsevierAcademic Press. [ Links ]

Berge T, Daugbjerg N, Hansen PJ. 2012. Isolation and cultivation of microalgae select for low growth rate and tolerance to high pH. Harmful Algae 20: 101-110. DOI:10.1016/j.hal.2012.08.006 [ Links ]

Chodat R. 1921. Matériaux pour l’histoire des algues de la Suisse. Bulletin de la Société Botanique de Geneve 13: 66-114. [ Links ]

Elíâs M, Němcová Y, Škaloud P, Neustupa J, Kaufnerová V, Šejnohová L. 2010. Hylodesmus singaporensis gen. et sp. nov., a new autosporic subaerial green alga (Scenedesmaceae, Chlorophyta) from Singapore. International Journal of Systematic and Evolutionary Microbiology 60: 1224-1235. DOI:10.1099/ijs.0.012963-0 [ Links ]

Gopalakrishnan KK, Novis PM, Visnovsky G. 2014. Alpine Scenedesmaceae from New Zealand: new taxonomy. New Zealand Journal of Botany 52: 84-99. DOI:10.1080/0028825X.2013.859628 [ Links ]

Gorman DS, Levine RP. 1965. Cytochrome f and plastocyanin: their sequence in the photosynthetic electron transport chain of Chlamydomonas reinhardtii. Proceedings of the National Academy of Sciences USA 54: 1665-1669. [ Links ]

Guiry MD, Guiry GM. 2016. AlgaeBase. World-wide electronic publication. National University of Ireland, Galway. [ Links ]

Hadi SIIA, Santana H, Brunale PPM, Gomes TG, Oliveira MD, Matthiensen A, Oliveira MEC, Silva FCP, Brasil BSAF. 2016. DNA Barcoding Green Microalgae Isolated from Neotropical Inland Waters. PLoS ONE 11: e0149284. DOI:10.1371/journal.pone.0149284 [ Links ]

Hall JD, Fučíková K, Chien L. Lewis LA, Karol KG. 2010. An assessment of proposed DNA barcodes in freshwater green algae. Cryptogamie, Algologie 31: 529-555. [ Links ]

Hanagata N. 2001. New species of Coelastrella and Scenedesmus (Chlorophyceae, Chlorophyta). Journal of Japanese Botany 76: 129-136. [ Links ]

Hanagata N. 1998. Phylogeny of the subfamily Scotiellocystoideae (Chlorophyceae, Chlorophyta) and related taxa inferred from 18S ribosomal RNA gene sequence data. Journal of Phycology 34: 1049-1054. DOI:10.1046/j.1529-8817.1998.341049.x [ Links ]

Hegewald E. 1997. Taxonomy and Phylogeny of Scenedesmus. Algae 12: 235-246. [ Links ]

Hegewald E, Hanagata N. 2000. Phylogenetic studies on Scenedesmaceae (Chlorophyta). Algological Studies/Archiv für Hydrobiologie 100 (supplement):29-49. [ Links ]

Hegewald E, Wolf M, Keller A, Friedl T, Krienitz L. 2010. ITS2 sequence-structure phylogeny in the Scenedesmaceae with special reference to Coelastrum (Chlorophyta, Chlorophyceae), including the new genera Comasiella and Pectinodesmus. Phycologia 49: 325-335. DOI:10.2216/09-61.1 [ Links ]

Hegewald E, Bock C, Krienitz L. 2013. A phylogenetic study on Scenedesmaceae with the description of a new species of Pectinodesmus and the new genera Verrucodesmus and Chodatodesmus (Chlorophyta, Chlorophyceae). Fottea, Olomouc 13: 149-164. DOI: 10.5507/fot.2013.013 [ Links ]

Hu C-W., Chuang L-T., Yu P-C., Chen C-NN. 2013. Pigment production by a new thermotolerant microalga Coelastrella sp. F50. Food Chemistry 138: 2071-2078. DOI:10.1016/j.foodchem.2012.11.133 [ Links ]

Kaufnerová V. Eliáš M. 2013. The demise of the genus Scotiellopsis Vinatzer (Chlorophyta). Nova Hedwigia 97: 415-428. DOI:10.1127/0029-5035/2013/0116 [ Links ]

Kimura M. 1980. A simple method for estimating evolutionary rate of base substitutions through comparative studies of nucleotide sequences. Journal of Molecular Evolution 16: 111-120. DOI:10.1007/BF01731581 [ Links ]

Krienitz L, Bock C. 2012. Present state of the systematics of planktonic coccoid green algae of inland waters. Hydrobiologia 698: 295-326. DOI 10.1007/s10750-012-1079-z [ Links ]

Kumar HD, Singh HN. 1971. A textbook on algae. London: Macmillan Education UK. [ Links ]

Kumar S, Stecher G, Tamura K. 2016. MEGA7: Molecular evolutionary genetics analysis version 7.0 for bigger datasets. Molecular Biology and Evolution 33: 1870-1874. DOI:10.1093/molbev/msw054 [ Links ]

Manoylov KM. 2014. Taxonomic identification of algae (morphological and molecular): species concepts, methodologies, and their implications for ecological bioassessment. Journal of Phycology 50: 409-424. DOI:10.1111/jpy.12183 [ Links ]

Song MA, Lee O-M. 2014. A study of newly recorded genera and species of aerial algae in the order Chlorococcales (Chlorophyta) from the Hongcheon-river, Korea. Journal of Ecology and Environment 37: 315-325. DOI:10.5141/ecoenv.2014.034 [ Links ]

Neofotis P, Huang A, Sury K, Chang W, Joseph F, Gabr A, Twary S, Qiu W, Holguin O, Polle JEW. 2016. Characterization and classification of highly productive microalgae strains discovered for biofuel and bioproduct generation. Algal Research 15: 164-178. DOI:10.1016/j.algal.2016.01.007 [ Links ]

Pongpadung P, Liu J, Yokthongwattana K, Techapinyawat S, Juntawong N. 2015. Screening for hydrogen-producing strains of green microalgae in phosphorus or sulphur deprived medium under nitrogen limitation. Science Asia 41: 97-107. DOI: 10.2306/scienceasia1513-1874.2015.41.097 [ Links ]

Punčochářová M, Kalina T. 1981. Taxonomy of the genus Scotiellopsis Vinatzer (Chlorococcales, Chlorophyta). Algological Studies/Archiv für Hydrobiologie 27 (supplement):119-147. [ Links ]

Ramos GJ.P, Bicudo CE de M, Moura CW do N. 2015. Scenedesmaceae (Chlorophyta, Chlorophyceae) de duas áreas do Pantanal dos Marimbus (Baiano e Remanso), Chapada Diamantina, Estado da Bahia, Brasil. Hoehnea 42: 549-566. DOI:10.1590/2236-8906-03/2015 [ Links ]

Ruhl MW, Wolf M, Jenkins TM 2010. Compensatory base changes illuminate morphologically difficult taxonomy. Molecular Phylogenetics and Evolution 54: 664-669. DOI:10.1016/j.ympev.2009.07.036 [ Links ]

Sciuto K, Lewis LA, Verleyen E, Moro I, La Rocca N. 2015. Chodatodesmus australis sp. nov. (Scenedesmaceae, Chlorophyta) from Antarctica, with the emended description of the genus Chodatodesmus, and circumscription of Flechtneria rotunda gen. et sp. nov. Journal of Phycology 51: 1172-1188. DOI: 10.1111/jpy.12355. [ Links ]

Throndsen J. 1978. The dilution culture method. In: Sournia A (ed). Phytoplankton Manual. Paris: UNESCO, Monographs on Oceanographic Methodology 6, 218-224. [ Links ]

Timmins M, Thomas-Hall SR, Darling A, Zhang E, Hankamer B, Marx UC, Schenk PM. 2009. Phylogenetic and molecular analysis of hydrogen-producing green algae. Journal of Experimental Botany 60: 1691-1702. DOI:10.1093/jxb/erp052 [ Links ]

Tschaikner A, Gärtner G, Kofler W. 2008. Coelastrella aeroterrestrica sp. nov. (Chlorophyta, Scenedesmoideae) a new, obviously often overlooked aeroterrestrial species. Algological Studies 128: 11-20. DOI:10.1127/1864-1318/2008/0128-0011 [ Links ]

Tschaikner A, Ingolić E, Stoyneva MP, Gärtner G. 2007. Autosporulation in the soil alga Coelastrella terrestris (Chlorophyta, Scenedesmaceae, Scenedesmoideae). Phytologia balcanica 13: 29-34. [ Links ]

Uzonov BA, Stoyneva MP, Gärtner G, Kofler W. 2008. First record of Coelastrella species (Chlorophyta: Scenedesmaceae) in Bulgaria. Berichte des Naturwissenschaftlichen-Medizinischen Verein Innsbruck 95: 27-34. [ Links ]

Van-Hannen E, FinkGodhe P, Lurling M. 2002. A revised secondary structure model for the internal transcribed spacer 2 of the green algae Scenedesmus and Desmodesmus and its implication for the phylogeny of these algae. European Journal of Phycology 37: 203-208. DOI:10.1017/S096702620200361X [ Links ]

White TJ, Bruns T, Lee S, Taylor JW. 1990. Amplification and direct sequencing of fungal ribosomal RNA genes for phylogenetics. In: Innis MA, Gelfand DH, Sninsky JJ, White TJ (eds.) PCR protocols: a guide to methods and applications PCR protocols: a guide to methods and applications. San Diego: Academic Press, pp. 18. [ Links ]

Youssef M, Valdez-Ojeda R, Ku-Cauich JR, Escobedo-GraciaMedrano RM. 2015. Enhanced Protocol for Isolation of Plant Genomic DNA. Journal of Agriculture and Environmental Sciences 4: 172-180. DOI:10.15640/jaes.v4n2a20 [ Links ]

Received: January 12, 2017; Accepted: February 09, 2017

* Corresponding author: Victoria Sosa, e-mail:, Tel: (52) 999 9428330. Fax: (52) 999 9813900

Creative Commons License This is an open-access article distributed under the terms of the Creative Commons Attribution License
