Madera y bosques

versión On-line ISSN 2448-7597versión impresa ISSN 1405-0471

Madera bosques vol.24 no.3 Xalapa dic. 2018  Epub 19-Dic-2018

Artículos científicos

Modeling anthropic factors as drivers of wildfire occurrence at the Monarch Butterfly Biosphere

Modelación de los factores antrópicos como conductores de la ocurrencia de incendios forestales en la Reserva de la Biosfera de la Mariposa Monarca

Michelle Farfán Gutiérrez1

Diego R. Pérez-Salicrup2  *

Alejandro Flamenco-Sandoval1

Sergio Nicasio-Arzeta2

Jean-François Mas3

Isabel Ramírez Ramírez3

1Universidad de Guanajuato. División de Ingenierías, Departamento de Ingeniería Geomática e Hidráulica. Guanajuato, Guanajuato, México.

2Universidad Nacional Autónoma de México. Instituto de Investigaciones en Ecosistemas y Sustentabilidad. Morelia, Michoacán, México

3Universidad Nacional Autónoma de México. Centro de Investigaciones en Geografía Ambiental. Morelia, Michoacán, México.


Fire regimes in coniferous forests in Central Mexico have been severely disturbed by land use change and fire management activities. Hence, it is critical to assess the contribution of anthropic and environmental factors that drive the occurrence of fires in these forests. This information is essential for the effective planning of fire management and wildfire prevention policies. In this study, we identified the potential drivers of fire occurrence within the Monarch Butterfly Biosphere Reserve (MBBR) and modeled their spatial pattern through generalized linear mixed models. We employed fire event data for five years (2009-2013) and the spatial distribution of anthropic infrastructure and biophysical variables such as forest biomass and slope. We found fire occurrence increased with total population and forest edge density. The derived spatial model showed an acceptable accuracy (AUC = 0.71) for fire occurrence based on 2014 and 2015 fire events used to evaluate the model. To improve the model, we suggest the incorporation of direct fuel measurements. From our analyses, we suggest to develop fire management guidelines particularly in sites with high population density and close to forest fragments within the MBBR.

Keywords: human factors; coniferous forest; generalized linear mixed models; spatial probability


Los regímenes de incendios en bosques de coníferas en el centro de México han sido severamente modificados por el cambio de uso de la tierra y las actividades de manejo de incendios. Por lo tanto, es crítico evaluar la contribución de factores antrópicos y ambientales que impulsan la ocurrencia de incendios en estos bosques. Esta información es esencial para la planificación eficaz de la gestión de incendios y las políticas de prevención de incendios forestales. En este estudio, identificamos los potenciales causantes de la aparición de incendios dentro de la Reserva de la Biosfera de las Mariposas Monarca (RBMM) y modelamos su patrón espacial a través de modelos lineales generalizados y mixtos. Utilizamos datos de eventos de incendios durante cinco años (2009-2013) y la distribución espacial de la infraestructura antrópica y variables biofísicas como la biomasa forestal y la pendiente. Se encontró que la ocurrencia de incendios aumentó con la población total y la densidad de los bordes del bosque. El modelo espacial derivado mostró una precisión aceptable (AUC = 0.71) para la ocurrencia de incendios basados en los eventos de incendios de 2014 y 2015 utilizados para evaluar el modelo. Para mejorar el modelo, sugerimos la incorporación de mediciones directas de combustible. A partir de nuestros análisis, se sugiere desarrollar pautas de manejo de incendios particularmente en sitios con alta densidad de población y cerca de fragmentos de bosque dentro de la RBMM.

Palabras clave: factores humanos; bosque de coníferas; modelos mixtos lineales generalizados; probabilidad espacial.


Forest fires are a major disturbance in many parts of the world, with considerable impacts on vegetation and on human societies (Pyne, Andrews and Laven, 1996; Bowman et al., 2009). In sites with little direct human impact, variables associated with natural fire regimes, such as frequency, size, seasonality and intensity of fires, are governed by natural processes and biophysical conditions, such as climate, vegetation, and topography. In human dominated landscapes, anthropogenic activities modify fire regimes through actions such as fire suppression or an increase in the incidence of ignitions through activities associated with land use (Heyerdahl et al., 2003; Krebs, Pezzatti, Mazzoleni, Talbot and Conedera, 2010). Clearly, human pressure through land use and fire management activities have altered fire regimes both at local and global scales (Chuvieco, Giglio and Justice, 2008; Marlon et al., 2008; Martínez, Vega-Garcia and Chuvieco, 2009). Consequently, the current patterns of fire regimes have dramatically changed during the last decades (Moreno, Vázquez and Vélez, 1988; Westerling, Hidalgo, Cayan and Swetnam, 2006; Martínez-Torres, Cantú-Fernández, Ramírez-Ramírez y Pérez-Salicrup, 2015), becoming one of the main drivers of forest degradation.

Although human activities have clearly altered fire regimes, this process is not globally homogeneous and is dependent on the types of ecosystem and associated human activity. In fact, regional studies hint at a complex relationship between fire regime characteristics and human activities. For instance, Syphard et al. (2007), found in California that fire density was strongly associated with distance to the wildland-urban interface, and by population density and vegetation type, but fire frequency was only associated by vegetation type. Di Bella, Jobbágy, Paruelo and Pinnoc (2006) found that in South America, agriculture suppresses fire density in arid regions but enhances it in humid environments, suggesting that agriculture prevents biomass burning in semiarid areas but enhances it in humid environments, where biomass accumulates at faster rates. In general terms, Guyette, Muzika and Dey (2002), identified four ways in which humans influence the amount of burnt land (or the burned area fraction): anthropogenic ignitions, fuel production, fuel fragmentation, and cultural behavior. All these factors are linked to population density.

Human caused changes in fire regimes are particularly critical near or in natural protected areas. More important, understanding the effects of human activities on several aspects of a fire regime is essential and would allow for the generation of more realistic fire management plans. Protecting nature reserves from catastrophic disturbances associated with wildfires requires a management strategy that considers the driving factors of forest fire occurrence, and adjustment of local strategies. Under this approach there are several studies that have evaluated the relationships between different types of driving factors like landscape elements such as distance to roads with effects in the frequency of human-ignited fires (Alencar, Solorzano and Nepstad, 2004; Syphard et al., 2007). Also, fire occurrence appears to be positively associated with population density (Keeley and Fotheringham 2001; Guyette et al., 2002). Furthermore, the agricultural frontier provides abundant ignition sources, where fires frequently escape beyond their intended boundaries and ignite adjacent forests (Nepstad et al., 1999; Alencar et al., 2004).

There have been only few studies in Mexico that address the pattern of fire occurrence in coniferous forests based on landscape elements (Roman and Martinez, 2006; Ávila-Flores et al., 2010). Furthermore, Mexico is a country where a great proportion of forest resources is distributed in special land tenure system. In "ejidos" and "indigenous communities" land is owned by farmers and indigenous communities, decisions about forest management are taken collectively, and human presence in forested ecosystems is extremely conspicuous, particularly in the central and southern portions of the country (Martínez-Torres, Castillo, Ramírez and Pérez-Salicrup, 2016).

In this study, we evaluated which anthropic landscape factors are associated with the occurrence of fire in the Monarch Butterfly Biosphere Reserve (MBBR), where the implementation of fire management actions must overcome the daunting problems related to land use change (i.e., conversion to pastures and agriculture), illegal logging, and an inadequate management of forest resources (Ramírez, Azcárate and Luna, 2003; Merino and Hernández, 2004; Honey-Rosés 2009; Brower et al., 2016). We first assessed the driving factors from the landscape using historical fire records (2009-2013), as well as environmental and anthropogenic variables associated to fire ignition. Then, we developed a spatially explicit model of forest fire probability within the MBBR.


The main objective of the current study is to assess the influence of several driving factors like anthropogenic and biophysical landscape elements on the performance of static, spatially explicit fire occurrence probability.

Materials and methods

Study area

Location. The MBBR is located in central Mexico, between Mexico and Michoacan States (Fig. 1). The MBBR constitutes the largest hibernation habitat of the monarch butterfly (Danaus plexippus L.), which migrates from the eastern portions of the United States and Canada to these forests (Slayback and Brower, 2007). Its territory encompasses a total area of 56 259 ha, divided in two buffer (42 707 ha) and three (13 551 ha) core zones (Comisión Nacional de Áreas Naturales Protegidas [Conanp], 2001). The core zones are the Altamirano Mountain in the north, the Chincua, Campanario, Chivati-Huacal, and Lomas de Aparicio Hills in the center, and the Pelón Mountain in the south. Cerro Altamirano constitutes a single mountain detached from the larger part of the reserve. In this study, we excluded it from our analyses.

Figure 1 Location of the MBBR and fire occurrence pattern during the period of 2009 to 2013.

Relief, Vegetation Types and Land Uses. The MBBR is part of the Trans-Mexican Volcanic Belt physiographic province (Ferrusquía-Villafranca 1990), which includes basically mountainous areas in central Mexico. It is characterized by a discontinuous mountain system, intensely dissected by strong tectonic processes, consisting of a set of hills and low hills, with a maximum elevation in the northern part of 3640 meters above sea level and with abrupt slopes. Vegetation types include dense conifer forests dominated or codominated by Abies religiosa (locally known as oyamel), Pinus spp., and Cupressus lusitanica; and mixed conifer and broad-leaved forests which include species of the genera Quercus, Alnus, Arbutus, and Cleyera, among others (Espejo, Brunhuber, Segura and Ibarra, 1992; Madrigal, 1994). Agriculture is the most important economic activity in the study area, where the dominant land uses are irrigated and rainfed agriculture with rotation cycles, followed by cattle pastures and forest management activities associated with timber extraction (Ramírez et al., 2003).

Forest Fire Regime. Knowledge regarding the forest fire regimes at MBBR is still limited. According to Martínez-Torres et al. (2016), the monitoring institutions of fire occurrence at MBBR are the National Forestry Commission (Conafor) and the Natural Protected Areas National Commission (Conanp) brigades' reports. Thereafter, Cantú (2013) assessed the reliability of the fire database of 2012. Most of the fires recorded were described as having low or moderate intensities in accordance with Agee (1993) and Sugihara, van Wagtendonk and Fites-Kaufman (2006).

Fire Database

We used the fire database from various federal institutions, such as Conafor and Conanp. The former government-based agency coordinates operations for fire prevention and control and keeps a registry of all fire events in the country along with latitude and longitude coordinates. We used information on fires from 2009 to 2013. The latter is the government agency in charge of natural protected areas. Only the fires of 2012 and 2013 were verified on the field. The heterogeneity of this fire data base makes it difficult to assess data quality in the extension of the surface area burned. Therefore, we used only records of geographic coordinates as occurrences fire events, with a total of 41 records of fire occurrence. We did not use the hotspot of MODIS sensor that are accessible through the Comisión Nacional para el Conocimiento y Uso de la Biodiversidad[Conabio] (2015).

Empirical Variables

Since we hypothesized that anthropogenic factors shape fire occurrence, we gathered data related to ignition sources and human presence (Table 1). To express these variables, we compiled spatial data of land use types (Ramírez-Ramírez, 2001), roads (Instituto Nacional de Estadística y Geografía [Inegi], 2011), human population per locality (Inegi, 2010), total tree biomass, and dead tree and stump density (Inventario Nacional Forestal y de Suelos 2009-2012; Conafor, 2012). We employed the digital elevation model from the Shuttle Radar Topography Mission (CGIAR Consortium for Spatial Information [CGIAR-CSI] undated) to estimate the slope and aspect factors. The friction map is based on the notion that movement in the terrain usually requires certain amount of effort and/or energy. Due to this "friction", spatial interactions tend to occur more often over short distances and low-grade slopes. We estimated this variable from road maps (scale 1:250 000) and 90 m. digital resolution elevation models (DEM) (Farfán, Mas and Osorio, 2012). We generated four classes for the friction map, 1- zero friction, 2 -moderate friction, 3- high friction, and 4 - very high friction. Finally, we defined edge density using a classification between forest and non-forest cover from the vegetation and land use map updated from the first version by Ramírez-Ramírez (2001) every three years. Therefore, we use the updated version for 2012 and then we estimated the mean forest cover binary raster (forest = 1) using ARCGIS (version 10.2) "focal statistics" tool with a 20 × 20 pixel window. The resulting raster contained values from zero to 1, where zero represents pixels in non-forest areas away from the edge of the forest, and one-valued pixels are away from forest edges but within the forest. As we wanted to assess the impact of edge, we set a value of 0.5 as the maximum value, where the influence of forest and non-forest is the same. Pixels with values > 0.5 were reclassified by their complement (1 - pixel value). The spatial resolution of the cells of each aforementioned variables was 90 m.

Table 1 Empirical variables selected as a source of explanatory fire occurrence pattern at the Monarch Butterfly Biosphere Reserve, México.

Types of variables Variable Description Data Source CODE
Environmental Total biomass Interpolated using IDW method by ArcGis 10.2 spatial analyst tool Inventario Nacional Forestal y de Suelos (INFyS) B
Dead trees density Number of dead trees per hectare interpolated using IDW method by ArcGis 10.2 spatial analyst tool INFyS DTD
Slope Slope in degrees calculated by ArcGis 10.2 surface analysis tool Shuttle Radar Topography Mission S
Stump density Number of stumps per hectare interpolated using IDW method by ArcGis 10.2 spatial analyst tool INFyS SD
Anthropic Total population per locality Interpolated using IDW method by ArcGis 10.2 spatial analyst tool Instituto Nacional de Estadística y Geografía (Inegi 2010) TP
Friction Four categories: 1- zero friction, 2 -moderate friction, 3- high friction, and 4 - very high friction Farfán et al. (2012) FR
Road density Number of roads per hectare calculated using DINAMICA EGO Inegi RD
Distance to road Euclidian distance in meters calculated by ArcGis 10.2 spatial analyst tool Inegi (2011) DR
Distance to core zone Euclidian distance in meters Comisión Nacional de Áreas Naturales Protegidas (Conanp) DCZ
Distance to cattle pasture Euclidian distance in meters Ramírez-Ramírez (2012) DP
Distance to agriculture DA
Distance to urban zone DUZ
Edge density Average of the number of forest pixels in a 20 × 20 window calculated by ArcGis 10.2 with focal statistics tool ED

Data Analyses

Generalized Linear Mixed Models and Model Averaging. We analyzed the correlation degree between variables by Spearman coefficient analyses and assessed which variables were correlated. When two variables had a correlation coefficient ≥ 0.6 (r ≥ 0.6) we retained only one of the variables, and discarded the other to avoid variance inflation for correlated variables (i.e. redundant variables were excluded; Wintle, Elith and Potts 2005; Zhang, Lim and Sharples et al., 2017). We evaluated the remaining response variables by means of generalized linear mixed models (GLMMs). We fitted a binomial distribution with a logit function to build a set of models representing all possible combinations of one (N = 14), two (N = 77) and three (N = 285) response variables, and used the southern aspect as a random variable to control for variability among the explanatory variables most closely associated with fire occurrence (Demidenko, 1987). We corrected the models for overdispersion (Crawley, 2002), and dis-carded resulting models with non-significant intercept values and a variance inflation factor (VIF) ≥ 2 (Fox, 2008). We assessed the level of support of the remaining models (N = 44) through the small-sized bias-correction version of Akaike Index Criterion (AICc), and selected those with a ∆AICc < 2 (Burnham and Anderson, 2002). Then we estimated the conditional (GLMM R2c) and marginal (GLMM R2m) R2 of the best-supported GLMMs models, following Nakagawa and Schielzeth (2013) procedures. The first represents the amount of variability explained by the whole model (fixed and random effects), while R2m is the variability explained only by the fixed effects.

Finally, to identify the influential variables of fire occurrence, we built a subset of models representing all possible combinations of the response variables found in the best-supported models from above. We averaged all the models to obtain the mean and 95% confidence interval (CI) of the variables coefficients, and considered those variables whose values did not include zero as influential. We performed all statistical analyses in the program R (R Development Core Team, We employed the coefficients derived from the best model to generate a fire probability map at one square kilometer grid cell resolution with a total of 836 cells.

Model Validation. The relative operating characteristic (ROC) analysis is a widely used quantitative method to assess the performance of spatial models that produce a probability map, which presents the sequence in which the model selects grid cells to determine the occurrence of a certain event (Pontius Jr. and Schneider, 2001; Mas, Soares Filho, Pontius, Farfán Gutiérrez and Rodrigues, 2013). In this study, ROC was employed to assess the effectiveness of the model in predicting the probability of occurrence of fire. ROC measures the accuracy of the model by comparing the map of predicted fire probabilities with the binary burned vs. unburned map of subsequent observed fires of 2014 and 2015. If the true events coincide perfectly with the higher ranked probabilities, then the area under the curve (AUC) is equal to one, since the ROC curve begins at the point (0,0), goes up the horizontal axis to the point (0,1), and shifts to the right reaching the point (1,1). A random probability map produces a diagonal ROC curve in which the true positive rate equals the false positive rate at all threshold points. Any probability map that has a ROC curve below the diagonal has less predictive power than a random map (Mas et al., 2013).


Spearman Correlation Analysis

Two pairs of variables were correlated (r ≥ 0.6): road density (RD) with distance to roads (DR); and biomass (B) with density of dead trees (DTD) (Fig. 2). We selected distance to roads and biomass for inclusion in the GLMM regression analysis.

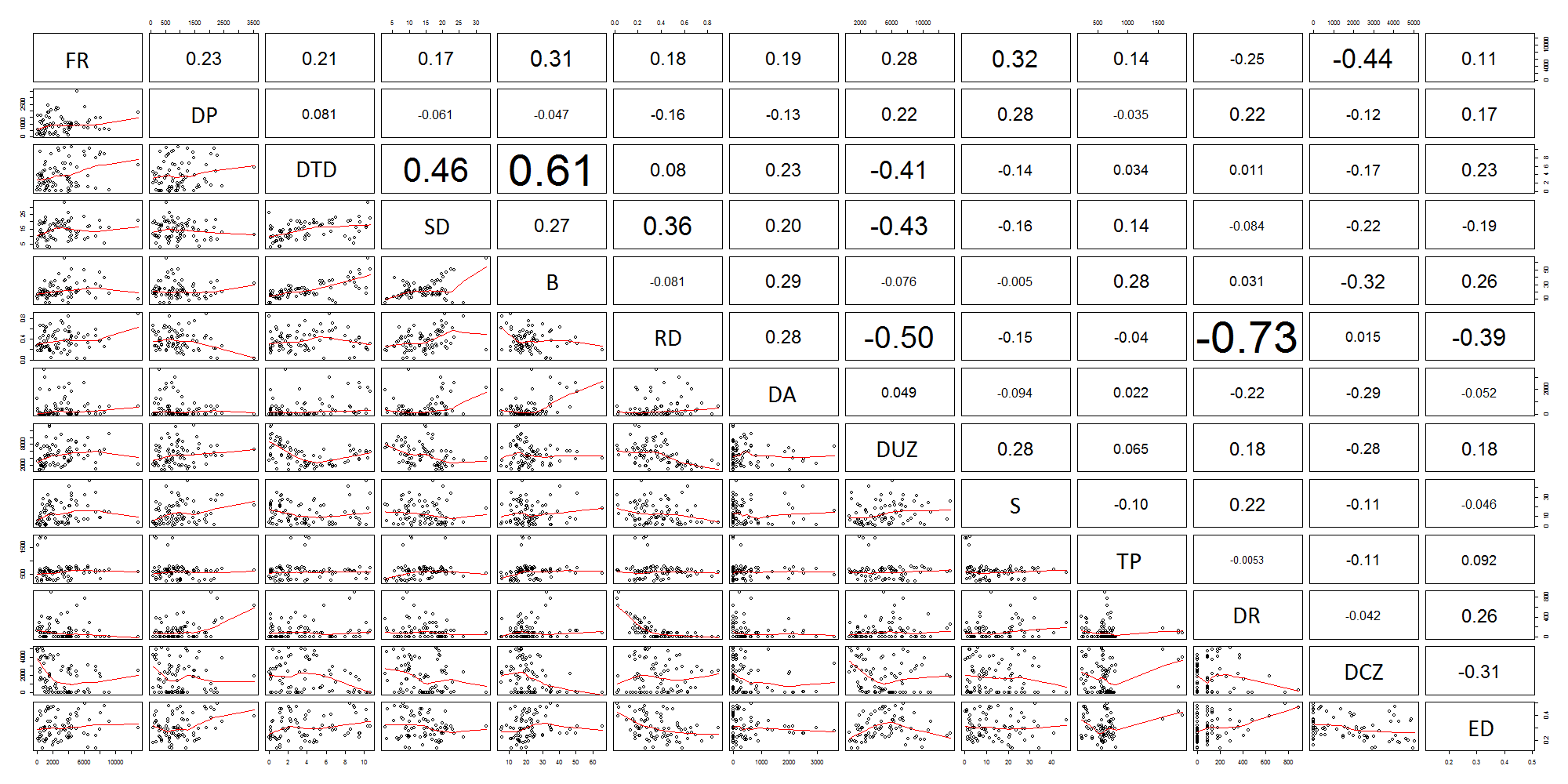

Figure 2 Spearman Correlation matrix with all the empirical variables. FR: friction, DP: distance to cattle pasture, DTD: dead trees density, SD: stump density, B: total biomass, RD: road density, DA: distance to agriculture, DUZ: distance to urban zone, S: slope, TP: total population per locality, DR: distance to roads, DCZ: distance to core zone, ED: edge density. The font size of the numbers reflects correlation degree between variables.

Generalized Linear Mixed Models

The GLMM regression analysis produced a prediction of fire occurrence with six best-fitted models (Table 2). The first best model suggested that this occurrence was significantly correlated with the variables ‘total population’ and ‘edge density’. Although models that are more complex explained greater variability, only population density and edge density were influential to explain fire occurrence, according to the averaged models (Fig. 3).

Table 2 Summary of the best-fitted GLMMs for explaining fire occurrence at the Monarch Butterfly Biosphere Reserve, Mexico.

Modela Intercept (SE) AICcb ΔAICc - LLc R2md R2ce
TP + ED ˗2.7 (0.96) 103 0 ˗ 48.32 0.28 0.28
S + TP + ED ˗2.28 (1.03) 103.8 0.84 ˗ 47.63 0.30 0.30
DR + TP + ED ˗3.31 (1.16) 104.1 1.17 ˗ 47.8 0.31 0.31
DUZ + TP + ED ˗3.24 (1.17) 104.6 1.61 ˗ 48.02 0.28 0.3
DCZ + TP + ED ˗2.79 (0.98) 104.9 1.92 ˗ 48.17 0.28 0.28
SD + TP + ED ˗3.00 (1.09) 104.9 1.95 ˗ 48.19 0.28 0.28

aTP = Total population, ED = Edge density, S = Slope, DR = Distance to roads DUZ = Distance to urban zone, DCZ = Distance to core zone, SD = Stump density.

bAICc = Small-sized bias-correction version of Akaike Index Criterion

c-LL = Negative log-likelihood function.

dR2m = Marginal R2

eR2c = Conditional R2

(A and B) The points and the vertical lines represent the mean and 95 % confidence intervals (CI). *Influential variables, whose CI did not include zero. SD: stump density, DUZ: Distance to urban zone, S: slope, TP: total population per locality, DR: distance to roads, DCZ: distance to core zone, ED: edge density.

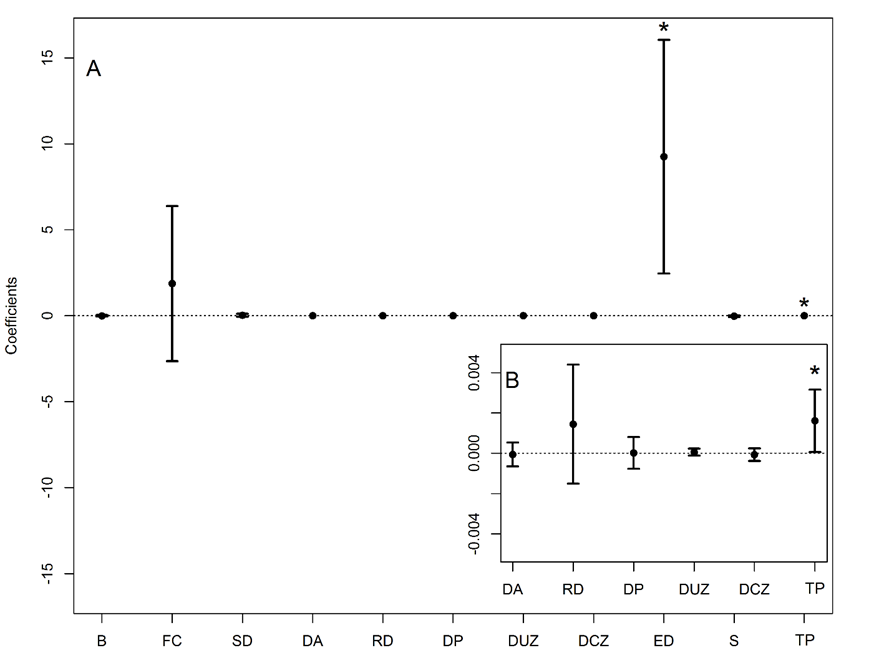

Figure 3 Estimated parameters of each variable obtained by model averaging (N = 64).

The best-fit model indicated that fire occurrence was favored where human population and forest fragmentation scored high values (Fig. 4). In Figure 5 it is possible to observe the spatial distribution of the values taken by these two variables.

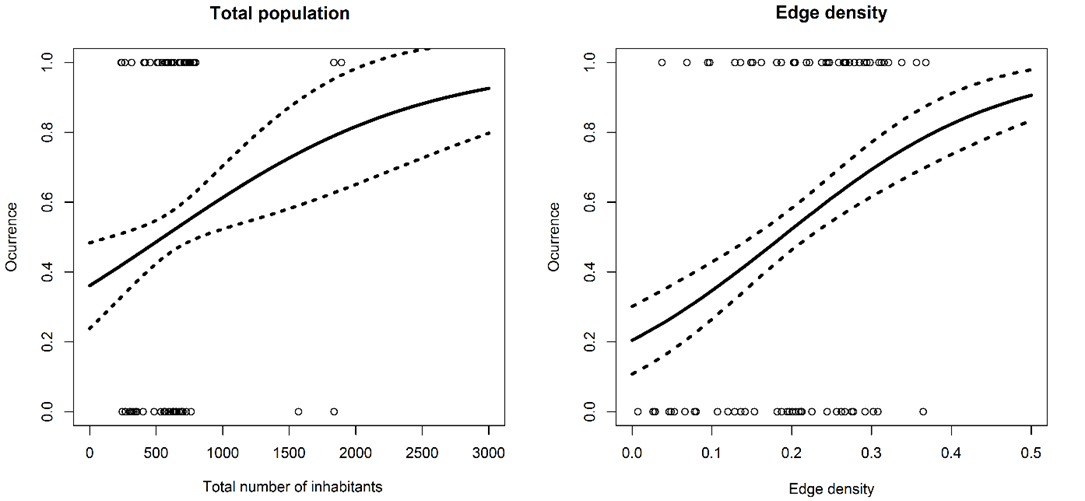

Figure 4 Response curves of fire occurrence to significant predictor variables, total population per locality and edge density. With pointwise twice-standard-error curves (dotted lines).

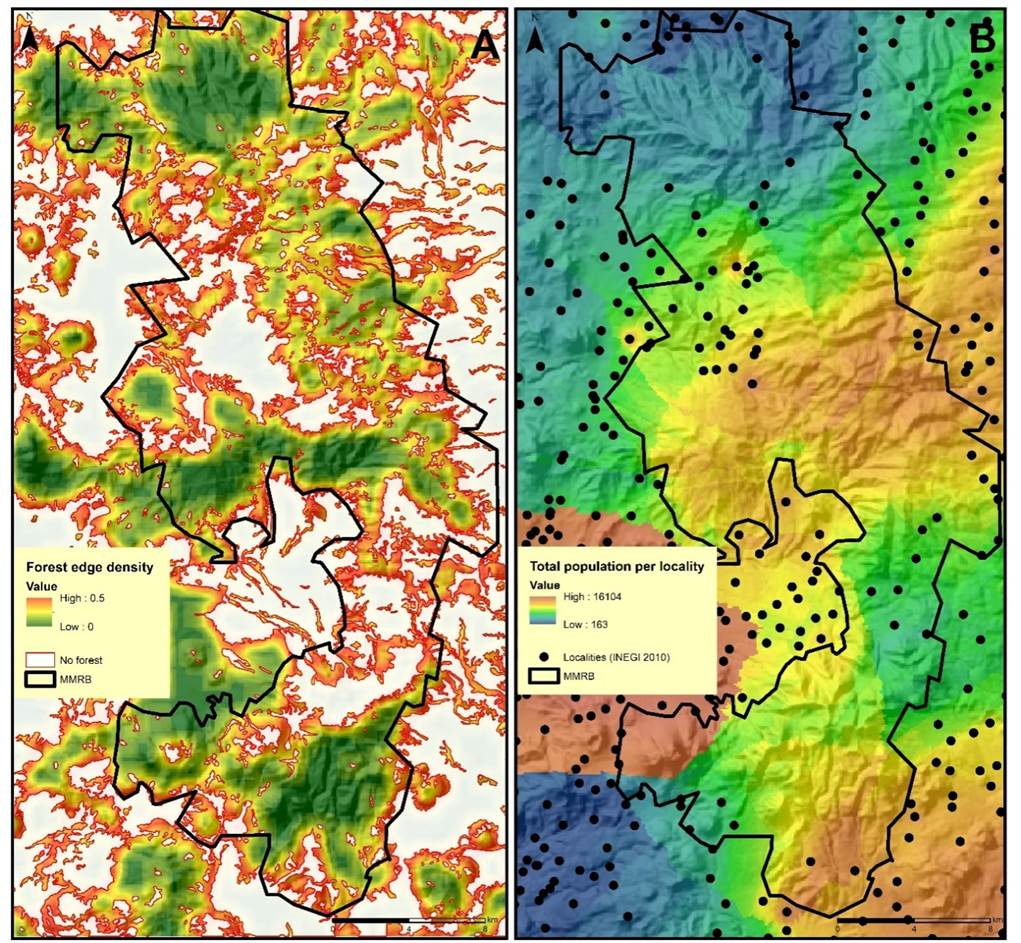

Figure 5 A) Forest edge density and B) total population per locality.

The spatial model of fire occurrence from the best-fitted model (Table 2, Fig. 6) showed that the highest probabilities of fire occurrence are located at the surroundings of the MBBR core areas, where high total population and forest edge scores are present. We interpret the significance and direction of influence of these variables to indicate that increased human activity increased the probability of fire occurrence in the region.

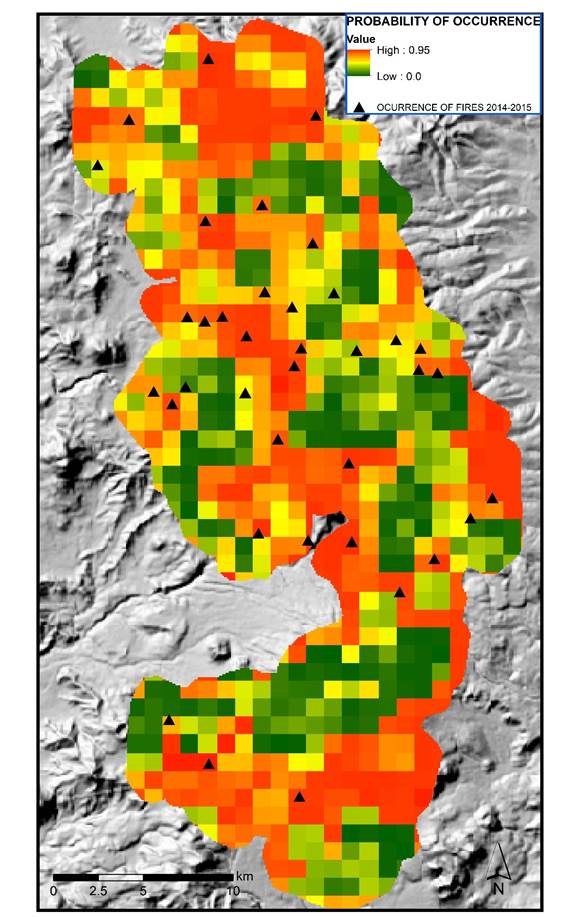

Figure 6 Forest fire probability map based on total population and edge density and the fire occurrence of 2014 and 2015 which were used as validation records of the model.

The AUC of the ROC analysis of this model was 0.71 (Fig. 6), indicating a 71% of concordance between predicted probabilities and observed outcomes. The curve represents the cumulative tallies of false and true positives for all the cells in the modeled area. True positives are cells where the model and observed forest condition “burned” coincide.


Identifying the driving factors of forest fires is essential for their management (Ávila-Flores et al., 2010). There are few studies that have focused on the causes of forest fire occurrence from the geographical perspective for Michoacan and Estado de Mexico states. Our results suggest that the occurrence of fire at the MBBR is influenced by a combination of factors that vary across the region and involve both physical and anthropogenic characteristics of the landscape. The significant positive correlation of fire occurrence with edge density is consistent with numerous studies where fires are more common along forest edges (Cochrane, 2001; Cochrane and Laurance, 2002). This association might be caused by the fact that forest edges are drier (Kapos, Ganade, Matsui and Victoria, 1993) and have higher tree mortality (Ferreira and Laurance, 1997; Laurance et al., 1997), than the core of a forest fragment, which might in turn increase fuel loads. In addition, forest edges in our study area are the boundary of agriculture and areas with cattle pastures, where land burning for crop and pasture regrowth is commonly employed as a management tool (Martínez-Torres et al., 2016). Fine litter, dead woody debris and canopy openness at forest edges might increase with the frequency and intensity of the adjoining land burning, thus creating a positive feedback where fire risk and danger increase. The spatial scale of fire occurrence is also driven by the shape of the forest fragments, whose complexity is correlated to its edge density. Hence, in the MBBR, total population, which in turn could be associated with an increase in the activities that generate forest fragmentation, may increase forest susceptibility to fire.

Total population per locality was an important variable in our model. This variable showed a positive influence on ignition occurrence, meaning a higher probability of ignition in the more populated areas, as was previously hypothesized. In regions where most fires are human-caused, this is a logical result, and in several other studies, total population, changes in population, and population density were found to positively relate to wildfire ignitions (Cardille, Ventura and Turner, 2001; Mercer and Prestemon, 2005). While these studies employed linear methods to investigate fire occurrence, studies using nonlinear methods often show that, after a threshold, fire occurrence tended to decrease with higher population densities. It appears that this is associated with declines in ignitions when human population density and development results in a reduction of forested area (Keeley, 2005; Syphard et al., 2007; Syphard, Radeloff, Hawbaker and Stewart, 2009). This pattern is not reflected by our results, probably because the sparse location of settlement within the MBBR, the persistence of forested areas, and the lack of localities with a high total population keep the relationship in the range of positive linear relation. Although the aforementioned studies have used population density, we used total population by localities and obtained a positive correlation. These results imply that fire managers must consider human influence together with biophysical characteristics such as those represented for the variable forest edge density when making decisions regarding the allocation of suppression and hazard mitigation resources. If human presence is not explicitly included in decision making, inefficient decisions may result, because fire occurrence is related to human presence on the landscape.

Our model explains roughly one-third of the total deviation in fire occurrence. Several reasons may be responsible for this limited explanatory power. First, it would be illusive to pretend that such a multifaceted phenomenon as the occurrence of forest fires in a highly complex topography can be explained by only a few variables. Other variables such as socio-economic aspects and forest management practices would be needed to develop a more complete understanding of the determinants of forest fire occurrence.

Second, because of the lack of direct data, proxies had to be used as predictors. We hypothesized that these proxies could influence fire drivers, which in turn might impact fire occurrence. From our analyses, we suggest that not all hypotheses regarding the proxies can be confirmed. For example, distance to pasture and distance to agriculture on fire occurrence.

Hosmer and Lemsow (2000) established that ROC is a threshold-independent measure of model discrimination, where a value of 0.5 indicates no discrimination. When 0.7 ≤ ROC < 0.8, discrimination is acceptable, and 0.8 ≤ ROC < 0.9 denotes an excellent discrimination. Alencar et al. (2004) developed empirical functions to relate occurrence of understory forest fire to landscape features, throughout regression analyses, separating for years of the El Niño Southern Oscillation (ENSO), and non-ENSO years. The ROC of the model that best predicted understory fires in both ENSO and non-ENSO years, was 0.778 and 0.751 respectively. Alonso-Betanzos and others (2003) developed a fire prediction model based on neural networks. They assessed AUC ROC curves for several years, ranging from 0.757 to 0.915. Lozano, Suárez-Seoane and de Luis (2007) assessed several spectral indices derived from satellite image data to modeling fire occurrence probability throughout logistic regression. The ROC values varied from 0.70 to 0.85 for all the assessed regression models. As mentioned earlier, our result of 0.71 indicates that the model has acceptable discrimination.

To discern the relative weight of each variable more accurately, we suggest integrating other analytical methods. Ouyang, Yung Han and Tong (2016) have found that machine learning algorithms, like random forest or conditional inference trees, showed greater predicting power of AUC than logistic regression. These also prevented bias detected in classification and regression tree algorithms. However, to achieve this, they used over 1,000 sample points. On the other hand, the three-dimensional kernel density estimator, a nonparametric descriptor tool, has been used to draw up smoothed maps which represent the continuous spatial density distribution of forest fires, including its time evolution (Tonini, Pereira and Parente, 2017).

Finally, we must underscore the lack data on fuel loads. Fuel loading is one of the three basic elements (oxygen, heat and fuel) that fires need to ignite. Fuel quantification can be done through direct measures in periodic forest inventories. The inclusion of this factor may be essential in modeling fire occurrence in the study area. It is clear that models will not improve considerably unless fuels loads are quantified, particularly in response to fire management practices.


This study highlights the importance of examining multiple causes of forest fire occurrence in the emblematic MBBR. Fires at the MBBR are not randomly spread throughout the landscape but are mediated by the condition of the remaining forest and present human activity. Specifically our study shows that human influences, such as land use change and the creation of forest edges, is strongly related with fire occurrence. The mapped probabilities of fire occurrence show the places where such condition is present. Forest fragmentation combined with slope and total population, correlates with a high likelihood of forest fires. These factors should be considered as fundamental elements in the design of forest fire prevention programs.

To increase the certainty of the model it would be necessary to incorporate other explanatory factors which were not analyzed here (e.g., fuel loadings, soil humidity, etc.) in combination with a longer period of fire occurrence records. This would produce a more comprehensive understanding of the factors underlying fire occurrence patterns and their spatial relationships. Nevertheless, the probabilities estimated here can be useful in the development of a fire management plan at MBBR.


The research reported in this manuscript was possible thanks to the support for projects SEP-CONACYT 154434, PAPIIT-UNAM IN209716, and supported by the PASPA-UNAM program granted to Diego R. Pérez-Salicrup; and PAPIIT-UNAM IN301215 granted to M. Isabel Ramírez. Michelle Farfán Gutiérrez conducted this research with the support of a postdoctoral scholarship from the DGAPA program while at Universidad Nacional Autónoma de México. Authors want to thank Franco Ambás Lastra, Mariana Cantú Fernández, Erika Garduño Mendoza, and Pablo Jaramillo López for field data on fires in the Monarch Butterfly Biosphere Reserve. We also want to thank CONANP-MBBR for their permission to conduct this research.


Agee, J. (1993). Fire ecology of Pacific Northwest forests. Washington, D.C.: Island Press. [ Links ]

Alencar, A., Solorzano, L., & Nepstad, D. (2004). Modeling forest understory fires in an eastern Amazonian landscape. Ecological Applications, 14(4), 139-149. doi: 10.1890/01-6029 [ Links ]

Alonso-Betanzos, A., Fontenla-Romero, O., Guijarro-Berdiñas, B., Hernández-Pereira, E., Paz Andrade, M. I., Jiménez, E., Legido Soto, J. L., & Carballas, T. (2003). An intelligent system for forest fire risk prediction and firefighting management in Galicia. Expert Systems with Applications, 25, 545-554. [ Links ]

Ávila-Flores, D., Pompa-García, M., Antonio-Nemiga, X., Rodríguez-Trejo D., Vargas-Pérez, E., & Santillán-Pérez, J. (2010). Driving Factors for Forest Fire Occurrence in Durango State of Mexico: A Geospatial Perspective. Chinese Geographical Science, 20, 491-497. doi: 10.1007/s11769-010-0437-x [ Links ]

Bowman, D. M., Balch, J. K., Artaxo, P., Bond, W. J., Carlson, J. M., …, & Pyne, S. J. (2009). Fire in the Earth system. Science, 324(5926), 481-484. doi: 10.1126/science.1163886 [ Links ]

Brower, L. P., Slayback, D. A., Jaramillo-López, P., Ramirez, I., Oberhauser, K. S., Williams, E. H., & Fink, L. S. (2016) Illegal logging of 10 hectares of forest in the Sierra Chincua monarch butterfly overwintering area in Mexico. American Entomologist, 62, 92-97. doi: 10.1093/ae/tmw040 [ Links ]

Burnham, K., & Anderson D. (2002). Model selection and multimodel inference: a practical information-theoretic approach. New York: Springer. [ Links ]

Cantú Fernández, M. (2013). Incendios del 2012 de la Reserva de la Biósfera Mariposa Monarca: caracterización y respuesta institucional. Tesis de licenciatura. Universidad Nacional Autónoma de México, Morelia, Michoacán, México. [ Links ]

Cardille, J., Ventura, S., & Turner, M. (2001). Environmental and social factors influencing wildfires in the upper Midwest, United States. Ecological Applications, 11(1), 111-127. doi: 10.1890/10510761(2001)011[0111:EASFIW]2.0.CO;2 [ Links ]

Chuvieco, E., Giglio, L., & Justice, C. (2008). Global characterization of fire activity: toward defining fire regimes from Earth observation data. Global Change Biology, 14, 1488-1502. doi: 10.1111/j.1365-2486.2008.01585.x [ Links ]

Cochrane, M. (2001). Synergistic interactions between habitat fragmentation and fire in ever-green tropical forests. Conservation Biology, 15, 1515-1521. doi: 10.1046/j.1523-1739.2001.01091.x [ Links ]

Cochrane, M., & Laurance, W. (2002). Fire as a large-scale edge effect in Amazonian forests. Journal of Tropical Ecology, 18, 311-325. doi: 10.1017/s0266467402002237 [ Links ]

Comisión Nacional para el Conocimiento y Uso de la Biodiversidad [Conabio] (2015). Sistema de alerta de incendios. México. Recuperado de to its spatial resolution of 1 km considered inadequate given the full extent of the study area. [ Links ]

Comisión Nacional de Áreas Naturales Protegidas [Conanp] (2001). Programa de Manejo de la Reserva de la Biosfera Mariposa Monarca, México. [ Links ]

Comisión Nacional Forestal [Conafor] (2012). Inventario Nacional Forestal y de Suelos. Informe 2009-2012. Zapopan, México. [ Links ]

Crawley, M. (2002). Statistical computing: An introduction to data analysis using S-Plus. New York: Wiley. [ Links ]

CGIAR Consortium for Spatial Information [CGIAR-CSI] (s/f) SRTM 90m Digital Elevation Database v4.1. Retrieved from [ Links ]

Demidenko, E. (1987) Generalized Linear Mixed Models, in Mixed Models: Theory and Applications with R (2nd ed), Hoboken, NJ, USA: John Wiley & Sons, Inc. doi: 10.1002/9781118651537.ch7 [ Links ]

Di Bella, C., Jobbágy, E., Paruelo, J. & Pinnoc, S. (2006). Fire density controls in South America. Global Ecology and Biogeography, 15, 192-199. [ Links ]

Espejo, S., Brunhuber, M., Segura, W.G., & Ibarra, C. (1992). La vegetación de la zona de hibernación de la mariposa monarca (Danaus plexippus L.) en la Sierra Chincua. Tulane studies in zoology and botany, supplementary publication 1, 79-99. [ Links ]

Farfán, M., Mas, J.F. & Osorio, L. (2012). Interpolating socioeconomic data for the analysis of deforestation: a comparison of methods. Journal of Geographic Information System, 4(4), 358-365. [ Links ]

Ferreira, L., & Laurance, W. (1997). Effects of forest fragmentation on mortality and dam-age of selected trees in central Amazonia. Conservation Biology, 11, 797-801. doi: 10.1046/j.1523-1739.1997.96167.x [ Links ]

Ferrusquía-Villafranca, I. (1990). Regionalización biogeográfica. In. Instituto de Geografía, Atlas Nacional de México (p. Mapa IV.8.10). México, D.F. [ Links ]

Fox, J. (2008). Applied Regression Analysis and Generalized Linear Models. In J. Fox, & S. Weisberg (Eds.), An R Companion to Applied Regression (2nd ed.). Thousand Oaks, CA: Sage. [ Links ]

Guyette, R. P., Muzika, R. M. & Dey, D. C. (2002). Dynamics of an anthropogenic fire regime. Ecosystems, 5(5), 472-486. doi: 10.1007/s10021-002-0115-7 [ Links ]

Hosmer D.W., & Lemesow, S. (2000). Applied logistic regression (2nd ed.). New York: Wiley . [ Links ]

Heyerdahl, E.K., & Alvarado, E. (2003). Influence of climate and land use on historical surface fires in pine-oak forests, Sierra Madre Occidental, Mexico. In Veblen, T. T., Baker, W. L., Montenegro, G., & Swetnam, T. W. (Eds.) Fire and climatic change in temperate ecosystems of the western Americas (196-217). New York: Springer-Verlag. [ Links ]

Honey-Rosés, J. (2009). Illegal logging in common property forests. Society & Natural Resources, 10, 916-930. doi: 10.1080/08941920903131120 [ Links ]

Instituto Nacional de Estadística y Geografía [Inegi] (2010). Censo de Población y Vivienda 2010. México. [ Links ]

Instituto Nacional de Estadística y Geografía [Inegi] (2011). Conjunto de datos vectoriales de carreteras y vialidades urbanas Edición 1.0 por Entidad Federativa 2011. México. [ Links ]

Kapos, V., Ganade, G., Matsui, E., & Victoria, R. (1993). ∂ 13 C as an indicator of edge effects in tropical rainforest reserves. Journal of Ecology, 81, 425-432. doi: 10.2307/2261521 [ Links ]

Keeley, J. (2005). Chaparral fuel modification: what do we know-and need to know? Fire Management Today, 65, 11-12. [ Links ]

Keeley, J., & Fotheringham C. (2001). Historic fire regime in Southern California shrub-lands. Conservation Biology, 15, 1536-1548. doi: 10.1046/j.1523-1739.2001.00097.x [ Links ]

Krebs, P., Pezzatti, G. B., Mazzoleni, S., Talbot, L. M., & Conedera, M. (2010). Fire regime: history and definition of a key concept in disturbance ecology. Theory in Biosciences, 129(1), 53-69. doi: 10.1007/s12064-010-0082-z [ Links ]

Laurance, W. F., Laurance, S. G., Ferreira, L. V., Rankin-de Merona, J. M., Gascon, C., & Lovejoy, T. E. (1997). Biomass collapse in Amazonian forest fragments. Science, 278(5340), 1117-1118. doi: 10.1126/science.278.5340.1117 [ Links ]

Lozano, F. J., Suárez-Seoane, S., & de Luis, E. (2007). Assessment of several spectral indices derived from multi-temporal Landsat data for fire occurrence probability modelling. Remote Sensing of Environment, 107(4), 533-544. doi: 10.1016/j.rse.2006.10.001 [ Links ]

Madrigal, S. X. (1994). Características generales de la región forestal oriental del Estado de Michoacán, México. Morelia, México: UMSNH. [ Links ]

Marlon, J. R., Bartlein, P. J., Carcaillet, C., Gavin, D. G., Harrison, S. P., Higuera, P. E., Joos, F., Power, M. J., & Prentice I. C. (2008). Climate and human influences on global biomass burning over the past two millennia. Nature Geoscience, 1(10), 697-702. doi: 10.1038/ngeo313 [ Links ]

Martínez, J., Vega-Garcia, C., & Chuvieco, E. (2009). Human-caused wildfire risk rating for prevention planning in Spain. Journal of Environmental Management, 90(2), 1241-1252. doi: 10.1016/j.jenvman.2008.07.005 [ Links ]

Martínez-Torres, H. L., Cantú-Fernández, M. X., Ramírez-Ramírez, M. I., & Pérez-Salicrup D. R. (2015). Fires and Fire Management in the Monarch Butterfly Biosphere Reserve. In: Oberhauser, K., Nail, K. R. & Altizer, S. (Eds.) Monarchs in a Changing world: Biology and Conservation of an Iconic Butterfly (pp. 179-189). Cornell University Press. [ Links ]

Martínez-Torres, H. L. , Castillo, A., Ramírez, M. I., & Pérez-Salicrup, D. R. (2016). The importance of the traditional fire knowledge system in a subtropical montane socio-ecosystem in a protected natural area. International Journal of Wildland Fire, 25(9), 911-921. doi: 10.1071/WF15181 [ Links ]

Mas, J. F., Soares Filho, B., Pontius, R. G., Farfán Gutiérrez, M., & Rodrigues, H. (2013). A suite of tools for ROC analysis of spatial models. ISPRS International Journal of Geo-Information, 2(3), 869-887, doi: 10.3390/ijgi2030869 [ Links ]

Mercer, D. E., & Prestemon, J. P. (2005). Comparing production function models for wildfire risk analysis in the wildland-urban interface. Forest Policy and Economics, 7(5), 782-795. doi: 10.1016/j.forpol.2005.03.003 [ Links ]

Merino, P. & A. Hernández. (2004). Destrucción de instituciones comunitarias y deterioro de los bosques en la Reserva de la Biosfera Mariposa Monarca, Michoacán, México. Revista Mexicana de Sociología, 2, 261−309. [ Links ]

Moreno, J. M., Vázquez, A., & Vélez, R. (1998). Recent history of forest fires in Spain. In J. M. Moreno (Ed.) Large forest fires (pp. 159-186) Leiden, Netherlands, Backhuys Publishers. [ Links ]

Nakagawa, S. & Schielzeth, H. (2013). A general and simple method for obtaining R2 from generalized linear mixed-effects models. Methods in Ecology and Evolution, 4(2), 133-142. doi: 10.1111/j.2041-210x.2012.00261.x [ Links ]

Nepstad, D. C., Verssimo, A., Alencar, A. , Nobre, C., Lima, E., Lefebvre, P., Schelesinger, P., Potter, C., Moutinho, P., Mendoza, E., Cochrane, M. , & Brooks, V. (1999). Large-scale impoverishment of Amazonian forests by logging and fire. Nature, 398(6727), 505-508. doi: 10.1038/19066 [ Links ]

Ouyang, W., Yung Han, C. & Tong, S. T. Y. (2016). Modeling wildfire ignition distribution and making prediction of human-caused wildfire. Int’l Conf. Artificial Intelligence, ICAI’ 16, 335-341. [ Links ]

Pavlek K., Bišćević, F., Furčić, P., Grđan, A., Gugić, V., Malešić, N., Moharić, P., Vragović, V., Fuerst-Bjeliš, B. & Cvitanović, M. (2016). Spatial patterns and drivers of fire occurrence in a Mediterranean environment: a case study of southern Croatia. Geografisk Tidsskrift-Danish Journal of Geography. 117(1), 1-14. [ Links ]

Pontius, R. G. , & Schneider, L. C. (2001). Land-cover change model validation by an ROC method for the Ipswich watershed, Massachusetts, USA. Agriculture, Ecosystems & Environment, 85(1), 239-248. doi: 10.1016/S0167-8809(01)00187-6 [ Links ]

Pyne, S., P Andrews, & Laven, R. (1996). Introduction to wildland fire (2nd ed.). New York: John Wiley. [ Links ]

Ramírez, M. I. , Azcárate, J. G., & Luna, L. (2003). Effects of human activities on monarch butterfly habitat in protected mountain forests, Mexico. The Forestry Chronicle, 79(2), 242-246. doi: 10.5558/tfc79242-2 [ Links ]

Ramírez, M. I. (2001). Cambios en las cubiertas del suelo en la Sierra de Angangueo, Michoacán y Estado de México, 1971-1994-2000. Investigaciones geográficas, (45), 39-55. [ Links ]

Román Cuesta, R.M. & Martínez V., J. (2006). Effectiveness of protected areas in mitigating fire within their boundaries: case study of Chiapas, Mexico. Conservation Biology, 20(4), 1074-1086. doi: 10.1111/j.1523-1739.2006.00478.x [ Links ]

Slayback, D. A. , & Brower, L. P. (2007). Further aerial surveys confirm the extreme localization of overwintering monarch butterfly colonies in Mexico. American Entomologist, 53(3), 146-149. doi: 10.1093/ae/53.3.146 [ Links ]

Sugihara, N., J. van Wagtendonk, & Fites-Kaufman, J. (2006). Fire as an ecological process. In N. Sugihara, J. van Wagtendonk, K. Shaffer, J. Fites-Kaufman, & A. Thode (Eds.), Fire in California’s ecosystem. Berkeley and Los Angeles, California: University of California Press. [ Links ]

Syphard, A. D., Radeloff, V. C., Keeley, J. E., Hawbaker, T. J., Clayton, M. K., Stewart, S. I., & Hammer, R. B. (2007). Human influence on California fire regimes. Ecological applications, 17(5), 1388-1402. doi: 10.1890/06-1128.1 [ Links ]

Syphard, A. D. , Radeloff, V. C. , Hawbaker, T. J., & Stewart, S. I. (2009). Conservation threats due to humancaused increases in fire frequency in Mediterranean-climate ecosystems. Conservation Biology, 23(3), 758-769. doi: 10.1111/j.1523-1739.2009.01223.x [ Links ]

Tonini, M., Pereira, M.G. & Parente, J. (2017). Evolution of forest fires in Portugal: from spatio-temporal point events to smoothed density maps. Natural Hazards, 85, 1489-1510. [ Links ]

Wintle, B.A., Elith, J., & Potts, J. M. (2005). Fauna habitat modelling and mapping: a review and case study in the Lower Hunter Central Coast region of NSW. Austral Ecology, 30, 719-738. https://doi: 10.1111/j.1442-9993.2005.01514.x [ Links ]

Westerling, A. L., Hidalgo, H. G., Cayan, D. R., & Swetnam, T. W. (2006). Warming and earlier spring increase western US forest wildfire activity. Science, 313(5789), 940-943. doi:10.1126/science.1128834 [ Links ]

Zhang, Y., Lim, S. & Sharples, J. J. (2017). Wildfire occurrence patterns in ecoregions of New South Wales and Australian Capital Territory, Australia. Natural Hazards, 87, 415-435. [ Links ]

This paper must be cited as:

Farfán G., M., Pérez-Salicrup, D. R., Flamenco-Sandoval, A, Nicasio-Arzeta, S., Mas, J.-F., & Ramírez R., I. (2018). Modeling anthropic factors as drivers of wildfire occurrence at the Monarch Butterfly Biosphere. Madera y Bosques, 24(3), e2431591. doi: 10.21829/myb.2018.2431591

Received: July 09, 2017; Accepted: March 16, 2018

* Autor de correspondencia.

Creative Commons License This is an open-access article distributed under the terms of the Creative Commons Attribution License
