Revista mexicana de ciencias geológicas

versión On-line ISSN 2007-2902versión impresa ISSN 1026-8774

Rev. mex. cienc. geol vol.39 no.1 Ciudad de México abr. 2022  Epub 28-Nov-2025

https://doi.org/10.22201/cgeo.20072902e.2022.1.1665

Regular articles

Diversity of Crinozoa (Echinodermata: Eocrinoidea, Blastoidea, Crinoidea) from the Paleozoic of Mexico.

Diversidad de Crinozoa (Echinodermata: Eocrinoidea, Blastoidea, Crinoidea) del Palezoico de México

Blanca Estela Buitrón-Sánchez1

Francisco Javier Cuen-Romero2  *

Rogelio Monreal2

Iván Manuel Cuadros-Mendoza3

1 Departamento de Paleontología, Instituto de Geología, Universidad Nacional Autónoma de México, Ciudad Universitaria, 04510, Mexico City, Mexico.

2 Departamento de Geología, Universidad de Sonora, Blvd. Luis Encinas y Rosales, 83000, Hermosillo, Sonora, Mexico.

3 Facultad de Ingeniería, Universidad Nacional Autónoma de México, Ciudad Universitaria, 04510, Mexico City, Mexico.


ABSTRACT

Paleozoic outcrops in Mexico containing echinoderms are located to the north, center and south of the country, mainly in the states of Baja California, Sonora, Chihuahua, Tamaulipas, Coahuila, Hidalgo, Puebla, Guerrero, Oaxaca, and Chiapas. These rocks correspond to marine carbonates deposited in warm shallow environments, with an approximate age of 541 to 251 Ma. Also containing a varied and diverse biota made up of phylloid algae, foraminifera (fusulinids), coralline sponges, corals, bryozoans, brachiopods, mollusks, trilobites and echinoderms. In order to know the diversity of Crinozoa from the Paleozoic of Mexico, an analysis of the species documented for the country was carried out, with the objective of contributing to the knowledge of the biostratigraphy and paleogeography of Mexico. The methodology consisted of a detailed analysis of bibliographic sources with information on echinoderms from the Paleozoic of Mexico. Cambrian eocrinoids (Gogia, and Ubaghsicystis) are distributed mainly in Sonora. Crinoid plates from the Carboniferous and Permian, particularly morphospecies of the genera Cyclocaudex, Cyclocrista, Heterostelechus, Lamprosterigma, Mooreanteris, Pentagonopternix, Preptopremnum, and Pentaridica, are widely distributed throughout the country. Analysis of the Mississippian-Permian biota indicates that the cosmopolitan distribution of the fauna studied in this work is due to the connections between the seas of western North America and eastern Asia. The Late Permian benthic fauna of Sonora was widely dispersed in the Tethyan realm, which stretched from western North America to North Africa and Asia. The comprehensive study of Paleozoic marine stratigraphic successions and their biotic content provided information on faunal migrations regarding the Paleozoic carbonate facies. It also contributed to reconstructing the geographical, climatological, and ecological characteristics of the Paleozoic of Mexico.

Keywords: Paleobiodiversity; invertebrates; echinoderms; paleobiogeo-graphy; Paleozoic; Mexico

RESUMEN

Los afloramientos paleozoicos en México con equinodermos se ubican al norte, centro y sur del país, principalmente en los estados de Baja California, Sonora, Chihuahua, Tamaulipas, Coahuila, Hidalgo, Puebla, Guerrero, Oaxaca y Chiapas. Estas rocas carbonatadas marinas fueron depositadas en ambientes cálidos poco profundos, con una edad aproximada de 541 a 251 Ma. También contienen una biota variada y diversa compuesta por algas filoides, foraminíferos (fusulínidos), esponjas coralinas, corales, briozoos, braquiópodos, moluscos, trilobites y equinodermos. Con el objetivo de conocer la diversidad de Crinozoa del Paleozoico de México, se realizó un análisis de las especies documentadas para el país, con el objetivo de contribuir al conocimiento de la bioestratigrafía y paleogeografía de México. La metodología consistió en un análisis detallado de fuentes bibliográficas con información sobre equinodermos del Paleozoico de México. Los eocrinoides cámbricos (Gogia y Ubaghsicystis) se distribuyen principalmente en Sonora. Las placas de crinoideos del Carbonífero y Pérmico, en particular las morfoespecies de los géneros Cyclocaudex, Cyclocrista, Heterostelechus, Lamprosterigma, Mooreanteris, Pentagonopternix, Preptopremnum y Pentaridica, están ampliamente distribuidas por todo el país. El análisis de la biota del Misisípico-Pérmico indica que la distribución cosmopolita de la fauna estudiada en este trabajo se debe a las conexiones entre los mares del oeste de América del Norte y el este de Asia. La fauna bentónica del Pérmico tardío de Sonora estaba muy dispersa en el dominio del Tethys, que se extendía desde el oeste de América del Norte hasta el norte de África y Asia. El estudio exhaustivo de las sucesiones estratigráficas marinas del Paleozoico y su contenido biótico proporcionó información sobre las migraciones de fauna con respecto a las facies carbonatadas del Paleozoico. También contribuyó a reconstruir las características geográficas, climatológicas y ecológicas del Paleozoico de México.

Palabras clave: paleobiodiversidad; invertebrados; equinodermos; paleobiogeografía; Paleozoico; México

INTRODUCTION

The continents and seas have been subject to great changes in their position, shape, and oceanic characteristics, changes that were originated by the dynamics of the tectonic plates, and within this framework a numerous and diverse biota developed (Pantoja, 1970; Anderson and Silver, 1979; Baldis and Bordonaro; 1981; Campa-Uranga and Coney, 1983; Coney, 1983; Stewart et al., 1984; 1990, 1999, 2002; González-León, 1986; Pérez-Ramos, 1992; Ramos and Keppie, 1999; Sánchez-Zavala et al., 1999; Almazán et al., 2006; Sour-Tovar et al., 2007).

Paleozoic marine outcrops of Mexico exposed in the states of Baja California (La Pintas, Navas-Parejo et al., 2018). Sonora (Caborca, El Chihuarruita, Sahuaral, Arivechi, Bisani, Cerros El Tule, Sierra Las Mesteñas, and Sierra Agua Verde), Chihuahua (Placer de Guadalupe-Sierra Plomosas), Tamaulipas (Cañón de Peregrina); while in south-central Mexico are exposed in the estates of Hidalgo (Calnali), and Puebla (San Salvador Patlanoaya), and in the southern region, in Guerrero (Olinalá), Oaxaca (Nochixtlán-Ixtaltepec) and Chiapas (Paso Hondo and Chicomuselo), which generally correspond to marine carbonate rocks deposited in warm shallow-water seas, these rocks have ages between 545 and 252 million years, with little representation of the Silurian, containing numerous and diverse fossils, including echinoderms (Buitrón, 1992; Buitrón et al., 2008) (Figure 1).

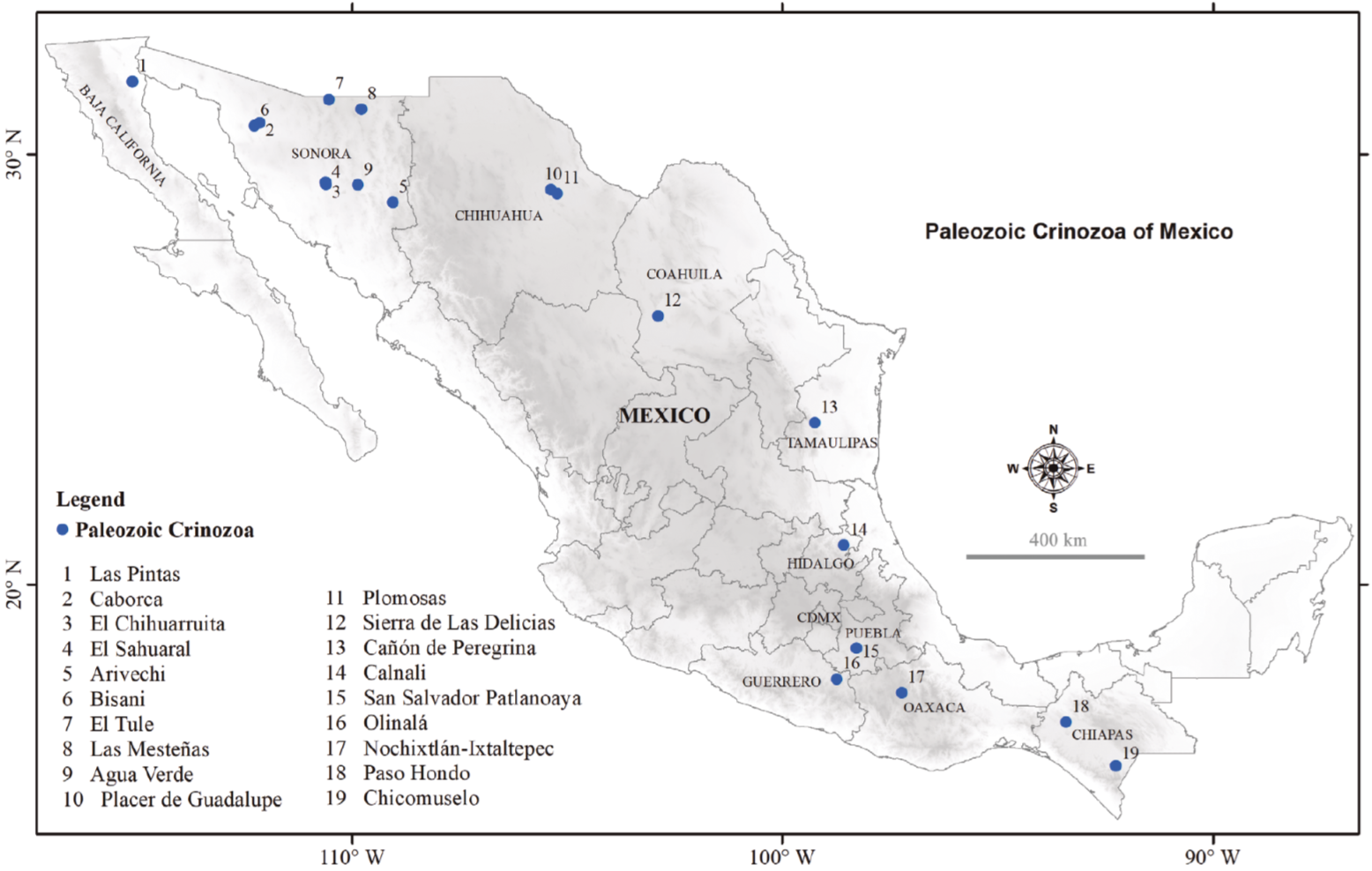

Figure 1 Map showing Paleozoic localities in Mexico containing echinoderms.

In the areas of Caborca, Bisani, Cananea, San José de Gracia, Mazatán, and Arivechi in the state of Sonora, Cambrian sedimentary rocks with algae and invertebrates that have been studied by several authors are exposed (Cooper et al., 1952; Stewart et al., 1984, 1999, 2002; González-León, 1986; McMenamin, 1985, 1987; Almazán, 1989; Cuen-Romero et al., 2016, 2018, 2019; Beresi et al., 2019.

Also, in Sonora, there are outcrops of upper Paleozoic sequences deposited in a carbonate shallow-water platform (Cordilleran System) thrusted by oceanic basin siliciclastic and carbonate rocks (Orozco-Grajeda, 2005). The Cordilleran System rocks correspond to deposits of continental shelves in shallow seas, which developed on the western edge of Laurentia (North American Craton) (Poole et al., 2005).

Paleozoic marine biota of Mexico, in general is mainly constituted by cyanobacteria algae (Cooper et al., 1952; Gómez-Espinosa et al., 2008; Beraldi et al., 2018; Buitrón et al., 2012; Vachard, et al., 2017), foraminifera (Vachard, et al., 1993, 1997, 2000a, 2000b, 2017; Pérez-Ramos, 2002; Gómez-Espinosa et al., 2008; Buitrón et al., 2012), sponges (Almazán et al., 2007; Buitrón et al., 2007a; Cuen-Romero et al., 2013; Beresi et al., 2012, 2017, 2019), archaeocyathids (Cooper et al., 1953; Debrenne, 1987; Debrenne et al., 1989; Buitrón et al., 2000), cnidaria (Easton, 1958; González-León, 1986; Buitrón et al., 2012; Villanueva-Olea 2016; Buitrón et al., 2000), bryozoans (González-León, 1986; González-Mora et al., 2018), brachiopods (Cooper et al., 1952; Buitrón et al., 2005b; Buitrón et al., 2012; Jiménez et al., 2018; Torres-Martínez et al., 2018), hyolithids (Cooper et al., 1952; MacMenamin, 1985; Buitrón et al., 2017a; Devaere et al., 2019), mollusks (Yochelson, 1968; Buitrón et al., 2000; Gómez-Espinosa et al., 2009; Buitrón et al., 2012), trilobites (Cooper, et al. 1952; Pantoja and Robison, 1967; Robison and Pantoja 1968; Rivera, 1988; Cuen-Romero et al., 2016, 2018, 2019; Sundberg and Cuen-Romero, 2021), conodonts (Brunner, 1987; Navas-Parejo, 2018; Lara-Peña et al., 2020), graptolites (Carrillo-Bravo, 1961; Peiffer-Rangin et al., 1980; Rivera and Buitrón, 1986; Sour-Tovar and Buitrón 1987; Riva and Ketner, 1989; Debrenne et al., 1989) and ichnofossils (Buitrón et al., 2016).

The echinoderms are represented by Cambrian eocrinoids-blastoids (Nardin et al., 2009; Buitrón et al., 2017b, 2021) and by numerous plaques of isolated Mississippian-Permian crinoids (Strimple, 1971; Buitrón, 1977, 1992; Buitrón et al., 1987, 2000, 2004, 2005a, b, 2006, 2015a, b, 2016; Buitrón and Solís, 1993; Esquivel-Macias et al., 2000, 2004, 2005; Solís-Marín et al., 2013), which in most cases formed encrinites (Gómez-Espinosa and Buitrón, 2017).

Considering the abundant existing information on the Paleozoic outcrops of Mexico, as well as the existing works on echinoderms, it is important to carry out an evaluation of the Crinozoa fauna for the country, with the objective of contributing to the knowledge of the biostratigraphy and paleogeography of the group.

METHODOLOGY

Previous works are the data base used for this work, an exhaustive review of the existing bibliographic references with Paleozoic Crinozoa material was performed. The information was compiled in a database and later analyzed by locality and geological age.

Exhaustive bibliographical research was done on diverse sources for echinoderms in the Paleozoic rocks of Mexico (Baja California, Sonora, Chihuahua, Tamaulipas, Hidalgo, Puebla, Guerrero, Oaxaca, and Chiapas).

The data included in this paper is organized by location, and geologic period; also, the stratigraphy, ecology and paleogeographic conditions during the sedimentation is provided (Figures 2 and 3). The classification used is based on Guensburg and Sprinkle (2003) and Wright et al. (2017).

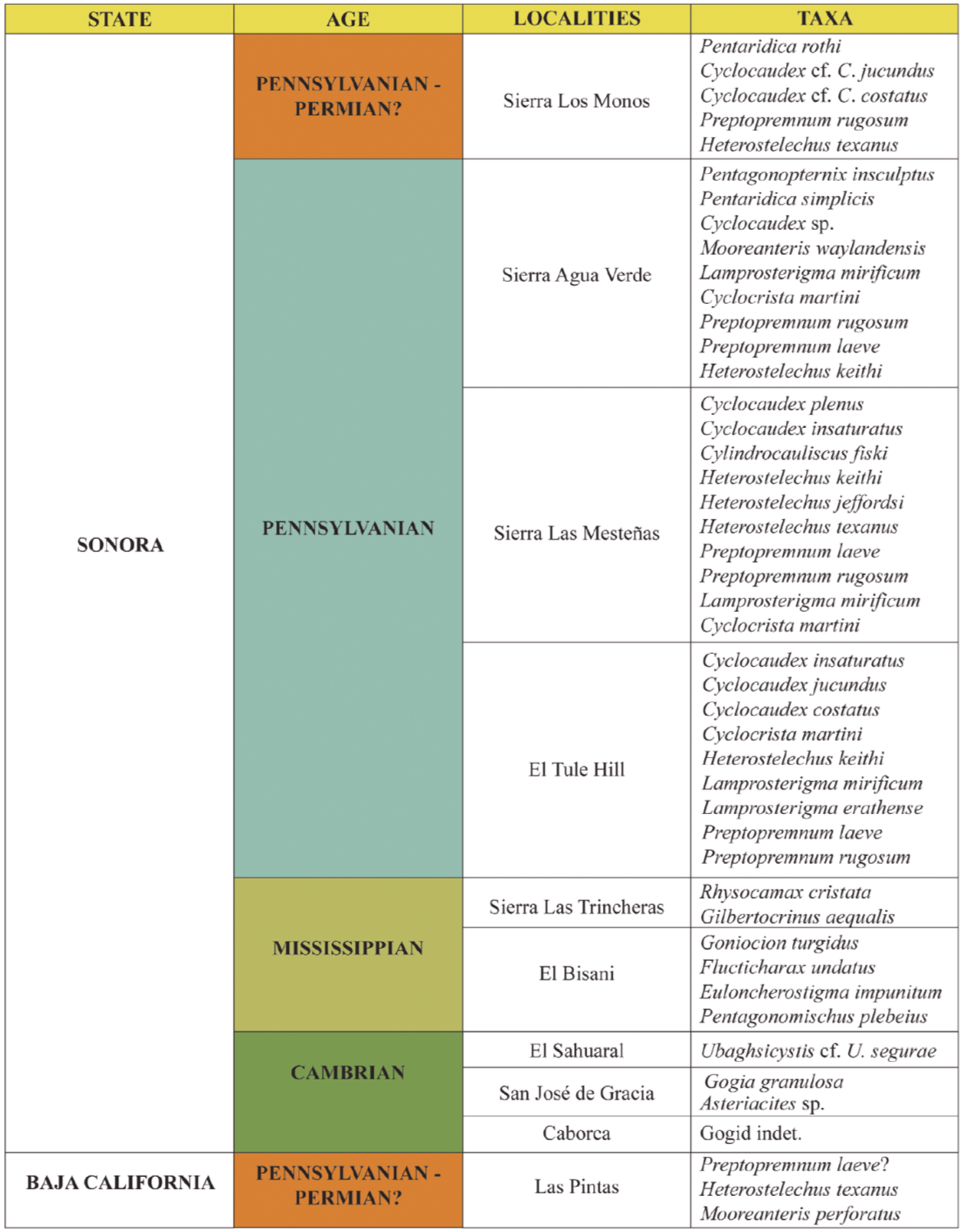

Figure 2 Taxa belonging to the localities of Sonora and Baja California states.

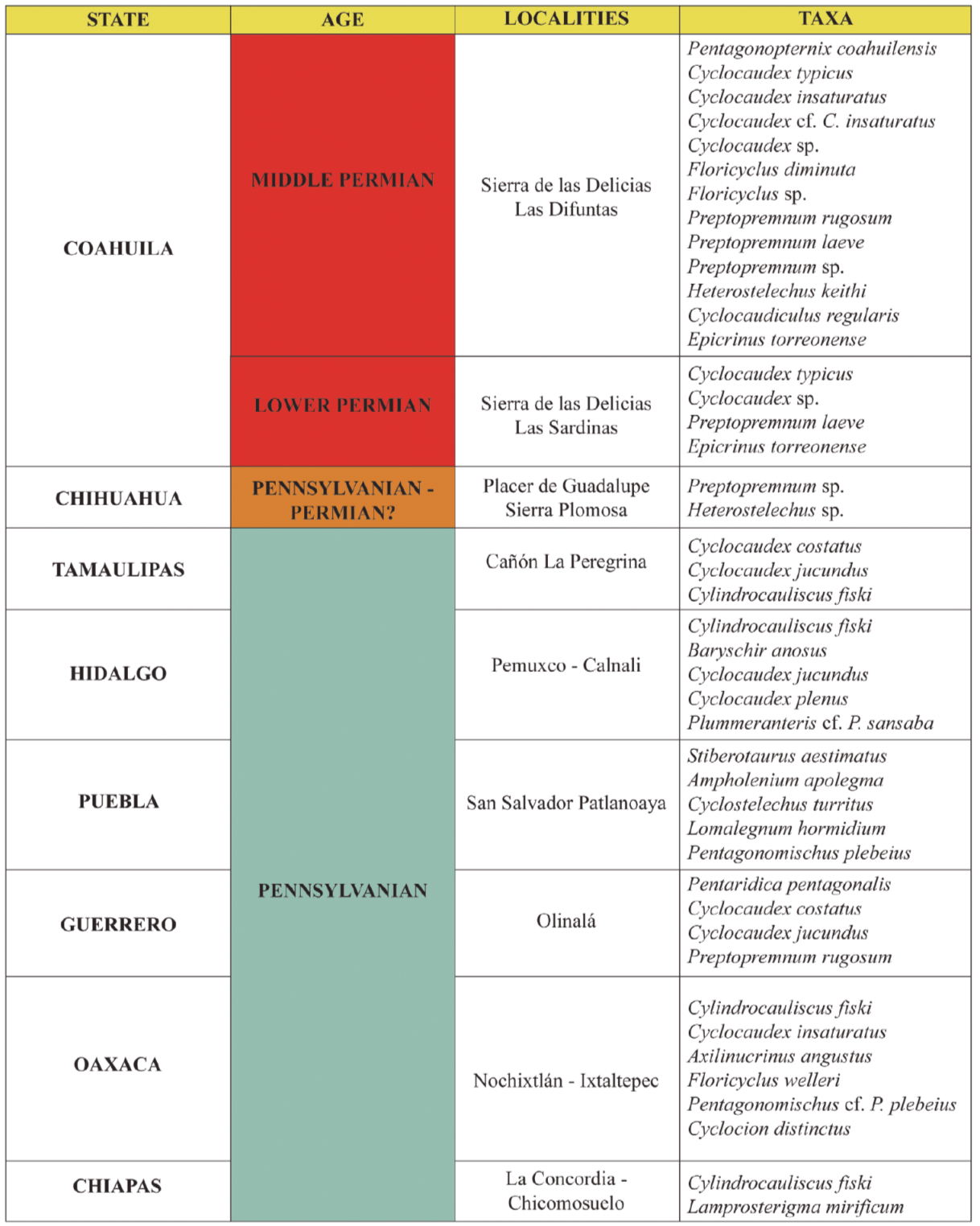

Figure 3 Taxa belonging to the localities of Coahuila, Chihuahua, Tamaulipas, Hidalgo, Puebla, Guerrero, Oaxaca, and Chiapas states.

CAMBRIAN ECHINODERM DIVERSITY OF SONORA

Caborca area

Sprinkle (1973) mentioned the presence of isolated plates of gogid blastoids in the Cambrian sedimentary rocks exposed in the Caborca region, located to the northwest of Sonora (Figures 1, 2). Also, Durham (1978) mentioned the possible existence of eocrinoids in the same area.

San José de Gracia, El Chihuarruita Hill

The Chihuarruita hill is located near the San José de Gracia town, 40 km to the northeast of Hermosillo, within the coordinates 29°17’05’’N, 110°35’03’’W (Figures 1, 2). The lower Cambrian outcrops in the region have a diverse fauna of invertebrates. Nardin et al. (2009) reported the presence of the eocrinoids-blastoid species assigned to Gogia granulosaRobison, 1965 from a bioclastic limestone. Later, Cuen-Romero et al. (2016) and Buitrón et al. (2017b) reported isolated plates of Gogia granulosa from the middle Cambrian Proveedora Formation (540 Ma) made up of sandstone and quartzite; and from the Buelna Formation (525 Ma) made up of limestone, shale, and sandy limestone. Also, the presence of trace fossils of the ichnogenus Asteriacites von Schlotheim, 1820 may correspond to an echinoderm starfish printing (Seilacher, 2007; Zamora et al., 2010; Buitrón et al., 2016). The biotic association allowed to establish paleogeographic relationships with Alberta (Canada), California, Nevada, Utah, and Idaho (United States of America), Spain and France (Europe), North Korea (Asia), and Australia.

San José de Gracia, El Sahuaral Hill

A middle Cambrian sedimentary sequence assigned to the El Gavilán Formation constituted by shale and oolitic limestone outcrops in the central Sonora. This unit is exposed at the Sahuaral hill, near the town of San José de Gracia, located at the coordinates 29°21’N and 110°37’W, where the eocrinoid species Ubaghsicystis cf. U segurae was described by Gil-Cid and Domínguez-Alonso (2002). The Cambrian succession of Sonora, with the presence of Ubaghsicystis, and sponges, hyolithids, brachiopods, and trilobites, was part of the margin from the Laurentia craton during this period (Buitrón et al., 2021). Regarding the composition of the biotic community, it is inferred that the environment of deposition is a shallow-water carbonate platform with well-oxygenated tropical waters, which prevailed during the Cambrian in North America. The distribution of the Cambrian biota of San José de Gracia denotes that there was a vast faunal province that comprised northern Mexico, southwestern Canada, southeastern United States of America, Greenland, northern Europe, Antarctica and northeast Australia, which were part of the Panthalassic Ocean, Figures 1, 2.

MISSISSIPPIAN ECHINODERM DIVERSITY OF SONORA

El Bisani

The Bisani area is located in the Caborca region, in northwestern Sonora (Figures 1, 2). In this locality, Early Mississippian crinoid species were identified in the Represo Formation, corresponding to Goniocion turgidusMoore and Jeffords, 1968; Flucticharax undatuMoore and Jeffords, 1968; and Euloncherostigma impunitum, Moore and Jeffords, 1968; as well as the Late Mississippian species Pentagonomischus plebeius, Moore and Jeffords, 1968 which were described by Moore and Jeffords (1968) from the Mississippian of the USA. The colonial coral Lithostrotionella confluensEaston, 1958 and the conodonts Gnathodus cuneiformisMehl and Thomas, 1947 and Gnathodus typicusCooper, 1939, confirmed the age of the sequence. The biota was present in in tropical shallow-water carbonate platforms seas. Due to the distribution of similar species, the region is paleogeographically related to Iowa, Kentucky, and Illinois in the United States of America, belonging to the North American Craton Province (Buitrón et al., 2015a).

Sierra Las Trincheras

The Sierra Las Trincheras is located in east-central Sonora, in the coordinates 29°03’35’’N and 110°35’55’’W (Figures 1, 2). Buitrón et al. (2008) cited two crinoids species collected in a partially recrystallized massive-bedded gray limestone. Among these, the species Rhysocamax cristatusMoore and Jeffords, 1968 that was previously reported from Iowa and Alabama, USA (Moore and Jeffords, 1968; Raymond, 2003), from Poland (Gluchowski, 1981, 2001) and from western Siberia (Dubatolova and Dubatolova, 1984), and Gilbertocrinus aequalis was reported from Kentucky, USA (Moore and Jeffords, 1968).

PENNSYLVANIAN ECHINODERM DIVERSITY OF SONORA

The Pennsylvanian localities in Sonora correspond to El Tule Hill, Sierra Las Mesteñas, and Sierra Agua Verde. These Upper Paleozoic outcrops represent sequences of carbonate platform thrusted by siliciclastic and carbonate ocean basin sediments (Orozco-Grajeda, 2005). Shallow-water shelf sediments correspond to continental shelf deposits of the western edge of Laurentia (North American Craton) (Poole et al., 2005).

El Tule Hill

The El Tule Hill is located in northeast Sonora, near the border to the United States of America, in the coordinates 37°17’22’’ to 31°18’45’’N and 110°16’00’’ to 110°19’00’’W (Figure 1, 2). In this area, sedimentary rocks are exposed and contain a biota constituted by diverse invertebrates and calcareous algae, whose age range from Lower Mississippian to Permian. In this region, Buitrón et al. (2004, 2006, 2008 and 2012) identified the crinoid species Cyclocaudex insaturatusMoore and Jeffords, 1968; Cyclocaudex jucundusMoore and Jeffords, 1968; Cyclocaudex costatusMoore and Jeffords, 1968; Cyclocrista martiniMoore and Jeffords, 1968; Heterostelechus keithiMiller, 1968b; Lamprosterigma mirificum, Moore and Jeffords, 1968; Lamprosterigma erathenseMoore and Jeffords, 1968; Preptopremnum laeveMoore and Jeffords, 1968; Preptopremnum rugosumMoore and Jeffords, 1968. The species have also been reported from Ohio, Texas, and Kansas, USA (Moore and Jeffords 1968) and from the Carboniferous of Pribalkhash in Kazakhstan (Dubatolova and Dubatolova, 1984). Thanatocenosis is typical of shallow tropical seas whose species have a strong affinity to faunas of the mid-continental region in the USA and to faunas of the Eurasian-Arctic province.

Sierra Las Mesteñas

The Sierra Las Mesteñas is located in northeast Sonora, at coordinates 30°58’ to 31°05’N, 109°45’ to 108°52’W (Figures 1, 2). In the northeastern portion of the Sierra Las Mesteñas, marine sediments assigned to the Naco Formation are exposed. Buitrón et al. (2004, 2008) documented the crinoid species Cyclocaudex plenusMoore and Jeffords, 1968; Cyclocaudex insaturatus; Cylindrocauliscus fiski Moore and Jeffords, 1968; Heterostelechus keithiMiller, 1968b; Heterostelechus jeffordsiMiller 1968a; Heterostelechus texanusMoore and Jeffords, 1968; Preptopremnum laeve; Preptopremnum rugosum; Lamprosterigma mirificum and Cyclocrista martini from the Pennsylvanian (Villanueva-Olea et al., 2016).

Sierra Agua Verde

The Sierra Agua Verde is located 110 km to the northeast of Hermosillo (Figures 1, 2). In this area, a 294 m thick sequences of limestone and shale assigned to the La Joya Formation is exposed. The unit contains colonial corals of the genus SyringoporaGoldfuss, 1826 and numerous plates and columnar fragments of crinoids of the genera: PentaridicaMoore and Jeffords, 1968; PentagonopternixMoore and Jeffords, 1968; CyclocaudexMoore and Jeffords, 1968; MooreanterisMiller 1968c; LamprosterigmaMoore and Jeffords, 1968; Cyclocrista, Moore and Jeffords, 1968; PreptopremnumMoore and Jeffords, 1968; and CycloscapusMoore and Jeffords, 1968 (Figure 4). Also, the unit contains fragments of gastropods and bryozoans. The thanatocenosis is typical of benthos in shallow tropical seas. The analysis of the distribution of the species allowed to establish paleogeographic relationships with elements of the Carboniferous biota of Texas and Kansas in the USA, belonging to the North American Craton province, (Ochoa-Camarillo and Sosa-León, 1993; Buitrón et al., 2005a, 2005b, 2007a, 2015b; Gómez-Espinosa and Buitrón, 2017; Jiménez et al., 2018; Villanueva-Olea et al., 2019).

Figure 4 Encrinite from the Pennsylvanian of the Sierra Agua Verde, Sonora, showing isolated crinoid plates and articulated crinoids. Scale line = 1 cm.

PENNSYLVANIAN-PERMIAN? ECHINODERM DIVERSITY OF SONORA

Caborca-Los Monos

Los Monos Hill is located in the Caborca region in northeast Sonora (Figures 1, 2). The Monos Formation comprises more than 600 m of siltstone and sandstone that alternate with fossiliferous limestone (Cooper et al., 1953), which middle part contains a diverse biota, represented by fusulinids, corals, bryozoans, brachiopods, gastropods, ammonites, and crinoids. The crinoid species in the area are Pentaridica rothiMoore and Jeffords, 1968; Cyclocaudex cf. Cyclocaudex jucundusMoore and Jeffords, 1968; Cyclocaudex cf. Cyclocaudex costatusMoore and Jeffords, 1968; Preptopremnum rugosum, and Heterostelechus texanus, which were previously described by Moore and Jeffords (1968) from the late Pennsylvania and Permian of Texas, USA. Some fusulinids from the Permian of Sonora are characteristic of the North American craton (Midcontinent, Glass Mountains), specifically with exotic lands of the faunal region of the North American Cordillera and related to the faunas of the Eurasian-Arctic provinces, (Buitrón et al., 2004; 2007b; Vachard et al., 2000b).

PERMIAN ECHINODERM DIVERSITY OF CHIHUAHUA

Placer de Guadalupe-Sierra Plomosas

In the east-central region of Chihuahua, Paleozoic rocks are exposed at Placer de Guadalupe and Sierra Plomosas-Monillas areas (Figures 1, 3). Marine and continental sedimentary rocks are exposed in the Placer de Guadalupe area (Bridges, 1965; Barboza-Gudiño et al., 2016). The Plomosa Formation consists of sandstone and siltstone, containing crinoid plates of PreptopremnumMoore and Jeffords, 1968 and HeterostelechusMoore and Jeffords, 1968. The Plomosa Formation represents deposition in a marine transgression cycle deposited along the intracratonic Pedregosa Basin, which was interrupted by the first pulsations of the Appalachian Orogeny, originated by the collision of Laurentia with Gondwana during the late Permian to Middle Jurassic (Escamilla-Herrera et al., 1991).

PENNSYLVANIAN ECHINODERM DIVERSITY OF TAMAULIPAS

La Peregrina canyon

The La Peregrina canyon is located in the state of Tamaulipas, in the coordinates 24°23’ to 24°13’N and 99°29’ to 99°19’W (Figures 1, 3). The Del Monte Formation (Pennsylvanian) consists of limestone, sandstone, and shale (Carrillo-Bravo, 1961; Buitrón et al., 1998). The unit contains the crinoid species Cyclocaudex costatus, Cyclocaudex jucundus, and Cylindrocauliscus fiski, described by Buitrón et al. (1998).

PENNSYLVANIAN ECHINODERM DIVERSITY OF HIDALGO

Pemuxco-Calnali

The state of Hidalgo is located in the east-central region of Mexico. The Pemuxco area is located between the coordinates 20°36’ to 20°45’N and 98°27’ to 98°35’W (Figures 1, 3). The Tuzancoa Formation (Pennsylvanian) contains the crinoid species Cylindrocauliscus fiski; Baryschir anosusMoore and Jeffords, 1968; Cyclocaudex jucundus; Cyclocaudex plenus; Plummeranteris cf. P. sansabaMoore and Jeffords, 1968; previously described from Iowa, Illinois, and Kentucky, USA, (Moore and Jeffords, 1968; Arellano et al. 1998; Buitrón et al., 2008; 2017c).

PENNSYLVANIAN ECHINODERM DIVERSITY OF PUEBLA

San Salvador Patlanoaya

In southern Puebla, the Patlanoaya Formation which consists of sandstone, tuffaceous shale, siltstone, and tuffaceous sandstone is exposed, Figures 1, 3, (Velasco de León and Buitrón. 1992; Vachard et al., 2000a; Buitrón et al., 2008) The unit contains the Pennsylvanian crinoid species Stiberotaurus aestimatusMoore and Jeffords, 1968; Ampholenium apolegmaMoore and Jeffords, 1968; Cyclostelechus turritusMoore and Jeffords, 1968; Lomalegnum hormidiumMoore and Jeffords, 1968; and Pentagonomischus plebeius (Moore and Jeffords, 1968).

LOWER PALEOZOIC ECHINODERM DIVERSITY OF GUERRERO

Olinalá Area

Lower Paleozoic rocks outcrop in the Olinalá region of the state of Guerrero (Figures 1, 3). These rocks are assigned to the Olinalá and Cualac Formations. The Olinalá Formation consists of 550 m of shale, sandstone, conglomerate, siltstone, and limestone. The unit contains the crinoid species Pentaridica pentagonalisMoore and Jeffords, 1968; Cyclocaudex costatus; Cyclocaudex jucundus; and Preptoprennum rugosum. These species were also described from Colorado, Texas, Kansas, and Ohio USA (Flores de Dios and Buitrón, 1982; Vachard et al., 1993; González-Arreola et al., 1994).

PENNSYLVANIAN ECHINODERM DIVERSITY OF OAXACA

Nochixtlán-Ixtaltepec

The Ixtaltepec Formation consists of limestone, sandstone, and shale from the Lower-Middle Pennsylvanian, exposed in the Nochitlán-Ixtaltepec area (Figures 1,3). The unit contains the crinoid species Cylindrocauliscus fiski, and Cyclocaudex insaturatus (Buitrón et al., 2000; 2008). Villanueva et al. (2011) cited the morphospecies Axilinucrinus angustus; Cyclocaudex insaturatus; and Floricyclus welleriMoore and Jeffords, 1968 from the Middle Mississippian of the Santiago Formation; Axilinucrinus angustus was reported from the Middle Mississippian of the Ixtaltepec Formation; Pentagonomischus cf. P. plebeiusMoore and Jeffords, 1968 and Cyclocion distinctusMoore and Jeffords, 1968 from the Early-Middle Pennsylvanian of the Ixtaltepec Formation. The analysis of the distribution of crinoids from the Lower Mississippian-Middle Pennsylvanian of Oaxaca, denotes similarity with the morphospecies of the Mid-Continental region located in east-central USA, (Villanueva et al., 2011).

PENNSYLVANIAN ECHINODERM DIVERSITY OF CHIAPAS

La Concordia-Chicomosuelo

The Lower Santa Rosa Formation outcrops in La Concordia and Chicomosuelo areas of Chiapas, in the coordinates 92°03’N, 15°60’W (Figures 1, 3). The unit consists of shale interbedded with fine-grained quartzite, phyllite, shale, and conglomerate in the Aguacate River. The unit contains corals, bryozoans, bivalves, ammonites, and crinoids. The crinoid species documented are Cilindrocaulisus fiski and Lamprosterigma mirificum. These species allowed to correlate localities of the Pennsylvanian of Texas, USA (Hernández-García, 1973; Buitrón 1977; Buitrón et al., 2008).

PERMIAN ECHINODERM DIVERSITY OF COAHUILA

La Concordia-Chicomosuelo

In the Sierra Las Delicias (Figures 1, 3) thirteen crinoid species were described in the Las Delicias Formation, belonging to the middle Permian species Pentagonopternix coahuilensisVillanueva-Olea, et al., 2021; Cyclocaudex typicusMoore and Jeffords, 1968; Cyclocaudex insaturatus, Cyclocaudex cf. C. insaturatusMoore and Jeffords, 1968; Cyclocaudex sp., Floricyclus diminutaVillanueva-Olea et al., 2021; Floricyclus sp., Preptopremnum rugosum, Preptopremnum laeve, Preptopremnum sp., Heterostelechus keithi, Cyclocaudiculus regularisMoore and Jeffords, 1968; Epicrinus torreonenseVillanueva-Olea et al., 2021. As well as the lower Permian species Cyclocaudex typicus, Cyclocaudex sp., Preptopremnum laeve, and Epicrinus torreonense (Villanueva-Olea et al., 2021).

DISCUSSIONS

Crinoids were very abundant in the Paleozoic seas of the world; they evolved rapidly in such a way that the teak and the articular plates of the column are used as age indicators for the rocks that contain them (Stukalina, 1967, 1988; Moore and Jeffords, 1968).

At the beginning of the Cambrian period, the seas were populated by an abundant and diverse biota, which included representatives of most of the current invertebrate groups. Among the main phyla that began in the Cambrian are the Porifera, Brachiopoda, Mollusca, Arthropoda, and Echinodermata, which continued to evolve through time and thus, to be of great stratigraphic value.

During the early Paleozoic, diverse taxa of invertebrates constituted the biotic community of San José de Gracia, such as sponges, brachiopods, arthropods and echinoderms. They lived in marine environments such as in shallow, tropical, well-oxygenated waters on carbonate platforms with normal salinity, and with abundant nutrients that led to a great diversity and early evolution.

The distribution of the Cambrian biota of San José de Gracia denotes a wide faunal province that was a part of the Quay Ocean, that includes several localities in Mexico (Caborca, and Ures) and the United States of America (Idaho, Utah, and California), Europe (Italy), Asia (India, and Pakistan) and Tasmania.

Analysis of the Mississippian-Permian biota indicates that the cosmopolitan distribution of the fauna studied is due to the connections between the seas of western North America and eastern Asia (Figure 5). The benthic fauna of the Late Permian of Sonora was widely dispersed in the Tethyan sea, which stretched from western North America to North Africa and Asia. (Buitrón et al., 2004, 2008).

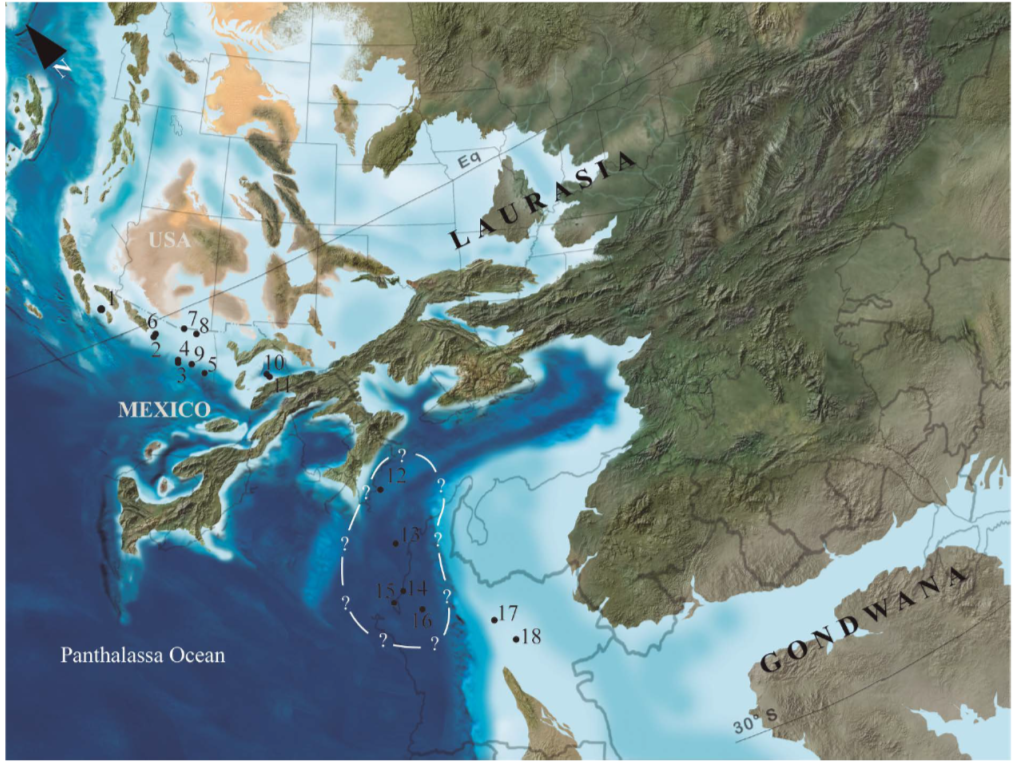

Figure 5 Possible paleogeographic location during Pennsylvanian of the sequences included in this study. 1: Las Pintas, 2: Caborca, 3: El Chihuarruita, 4: El Sahuaral, 5: Arivechi, 6: Bizani, 7: El Tule, 8: Las Mesteñas, 9: Agua Verde, 10: Placer de Guadalupe, 11: Plomosas, 12: Sierra de Las Delicias, 13: Cañón de Peregrina, 14: Calnali, 15: San Salvador Patlanoaya, 16: Olinalá, 17: Nochixtlán-Ixtaltepec, 18: Paso Hondo, 19: Chicomuselo. Paleogeographic map modified after ©2013 Colorado Plateau Geosystems, Inc.

The outcrops containing Paleozoic rocks in Mexico are found in the states of Sonora (Arivechi, Bisani, El Tule, Sierra Agua Verde, La Proveedora, Las Norias, Placeritos, Pozo Nuevo, and San José de Gracia), Chihuahua (Placer de Guadalupe), Tamaulipas (La Peregrina Canyon) located in the northern region of the country; while in the central-south zone they are exposed in the states of Hidalgo (Calnali), Puebla (San Salvador Patlanoaya), Guerrero (Olinalá), Oaxaca (Nochistlán-Ixtaltepec) and Chiapas (La Concordia, Chicomuselo and Aguacate River).

The Paleozoic rocks of Sonora are carbonate rocks deposited in a shallow-water marine environment. These rocks have an age between 541 and 251 Ma, approximately. They contain a varied and diverse biota constituted of phylloid algae, foraminifera (fusulinids), coralline sponges, corals, bryozoans, brachiopods, and crinoids, and numerous species of the genera Cyclocaudex, Cyclocrista, Heterostelechus, Lamprosterigma, Mooreanteris, Pentagonopternix, Preptopremium, Cycloscaspus, and Pentaridica.

A comprehensive study of Paleozoic marine rock sequences and their biotic content will allow to understand faunal migrations regarding the carbonate facies of the Paleozoic sequences. This knowledge will also contribute to better understand the geographical, climatological, and ecological characteristics of the Paleozoic of Mexico.

ACKNOWLEDGMENTS

This research was carried out within the framework of the projects: CONACyT No. 165826; ECOS-Francia; CONACyT-México No. M13U01 “Evolución de los Ecosistemas del Paleozoico de México” and CONACyT No. 235970 “La Revolución del Cámbrico y la gran radiación del Ordovícico en el norte de México y Oaxaca”.

We thank the anonymous reviewers that helped greatly to improve this manuscript.

REFERENCES

Almazán, E., 1989, El Cámbrico-Ordovícico de Arivechi del Estado de Sonora: Universidad Nacional Autónoma de México, Revista, Instituto de Geología, 8, 58-66. [ Links ]

Almazán, E., Buitrón, B.E., Franco-Vega, O., 2006, Formación Pozo Nuevo: una nueva secuencia litoestratigráfica de plataforma del Ordovícico temprano de la región central de Sonora, México: Revista Mexicana de Ciencias Geológicas, 23(1), 23-38. [ Links ]

Almazán, E., Buitrón, B.E., Vachard, D., Mendoza-Madera, C., Gómez-Espinosa, C., 2007, The late Atokan (Moscovian, Pennsylvanian) chaetetid accumulations of Sierra Agua Verde, Sonora (NW Mexico), composition, facies and paleoenvironmental signals, in Álvaro, J.J., Aretz, M., Boulvain, F., Munnecke, A., Vachard, D., Vennin, E. (eds.), Paleozoic Reefs and Bioaccumulations: Climatic and Evolutionary Controls: Geological Society, London, Special Publications, 275, 189-200. [ Links ]

Anderson, T.H., Silver, L.T., 1979, The role of the Mojave-Sonora megashear in the tectonic evolution of northern Sonora, in Anderson, T.H., Roldan-Quintana, J. (eds)., Geology of northern Sonora, Guidebook - Field Trip: Geological Society of America, 27, 59-68. [ Links ]

Arellano, J., Vachard, D., Yussim, S., Flores de Dios, A., 1998, Aspectos Estratigráficos, Estructurales y Paleogeográficos del Pérmico inferior al Jurásico Inferior en Pemuxco, Estado de Hidalgo, México: Revista Mexicana de Ciencias Geológicas , 15(1), 9-13. [ Links ]

Baldis, A.J., Bordonaro, O.L., 1981, Vinculación entre el Cámbrico del noroeste de México y la Precordillera Argentina: Anais do II Congreso Latino-Americano de Paleontología, 1, 1-10. [ Links ]

Barboza-Gudiño, J.R., Torres-Hernández, J.R., Villasuso-Martínez, R., 2016, Revisión estratigráfica y estructura de la Sierra Plomosas, Chihuahua: Revista Mexicana de Ciencias Geológicas , 33(2), 221-238. [ Links ]

Beraldi, C.H., Cuen-Romero, F.J., Buitrón, B.E., 2018, Cambrian Oncolites from San José de Gracia, Sonora, México: Paleontología Mexicana, 7(1), 23-56. [ Links ]

Beresi, M.S., Cabaleri, N., Buitrón, B.E., Rodríguez, M., Heredia, S., Tortello, F., 2012, Microfacies y paleoambientes del Ordovícico Inferior del Cerro Salazar, Sonora Central, México: Revista Mexicana de Ciencias Geológicas , 29(2), 330-345. [ Links ]

Beresi, M.S., Botting, J., Palafox, J.J., Buitrón, B.E., 2017, New reticulosan sponges from the middle Cambrian of Sonora, Mexico: Acta Geológica Polonica, 62(4), 691-703. [ Links ]

Beresi, M.S., Buitrón, B.E., Cuen-Romero, F.J., Palafox, J.J., 2019, Escleritomos de Chancelloria eros y escleritos del Cámbrico medio, (Serie 3, Piso 5) de Sonora Central, México: Revista Mexicana de Ciencias Geológicas , 36(1), 54-63. [ Links ]

Bridges, L.W., 1965, Estudios geológicos en el Estado de Chihuahua, Parte 1. Geología del área de Plomosas, Chihuahua. Universidad Nacional Autónoma de México: Boletín del Instituto de Geología, 74, 1-134. [ Links ]

Brunner, P., 1987, Microfacies y microfósiles de las rocas carbonatadas del Paleozoico de San Salvador Patlanoaya, Puebla, México: Revista de la Sociedad Mexicana de Paleontología, 1(1), 98-111. [ Links ]

Buitrón, B.E., 1977, Invertebrados (Crinoidea y Bivalvia) del Pensilvánico de Chiapas: Revista del Instituto de Geología, 1(2), 144-150. [ Links ]

Buitrón, B.E., 1992, Las rocas sedimentarias marinas del Paleozoico inferior de México y su contenido biótico, in Gutiérrez-Marco, J.C., Saavedra, J., Rábano, I. (eds.), Paleozoico inferior de Ibero-América: Spain, Universidad de Extremadura, 193-201. [ Links ]

Buitrón, B.E., Patiño, J., Moreno, A., 1987, Crinoides del Paleozoico tardío (Pensilvánico) de Calnali, Hidalgo: Revista de la Sociedad Mexicana de Paleontología, 1(1), 125-136. [ Links ]

Buitrón, B.E., Solís-Marín, F., 1993, La biodiversidad en los equinodermos fósiles y recientes de México: Revista de la Sociedad Mexicana de Historia Natural, 64, 209-231. [ Links ]

Buitrón, B.E., Arellano, J., Flores de Dios, A., 1998, Crinoides del Pensilvánico del Cañón de la Peregrina, Estado de Tamaulipas, México (abstract), in Primera Reunión Nacional de Ciencias de la Tierra: Mexico City, Mexico Unión Geofísica Mexicana, 184. [ Links ]

Buitrón, B.E., Flores de Dios, A., Vachard, D., 2000, Nuevos hallazgos de invertebrados paleozoicos (Scyphozoa-Conulata) Archaeogastropoda-Trochina y Echinodermata-Crinoidea en la región de Nochixtlán-Ixtaltepec, Oaxaca: Geos, 20(3), 298. [ Links ]

Buitrón, B.E., Almazán, V.E., Vachard, D., 2004, Benthic invertebrates, of Carboniferous-Permian age, from Sonora: Their paleogeographic implications (abstract), in 32th International Geological Congress: Florencia, Italia, APAT - Italian Agency for the Environmental Protection and Technical Services, 202. [ Links ]

Buitrón, B.E., Almazán, V.E., Vachard, D., Gómez-Espinosa, C., Mendoza, M.C., 2005a, Crinoides Pensilvánicos asociados a facies “arrecifales” de Chaetétidos en Sierra Agua Verde, Estado de Sonora, México: Boletín Informativo Unión Geofísica Mexicana A.C., II, 25(1), 338. [ Links ]

Buitrón, B.E., Silva, P.A., Flores de Dios, A., Vachard, D., 2005b, New macrofauna and macroflora from Olinalá region, Guerrero State: Annales de la Société Géologique du Nord, 2(2),169-176. [ Links ]

Buitrón, B.E., Almazán, V.E., Vachard, D., Gómez- Espinosa, C., 2006, Carboniferous crinoids from México and their biogeographic significance (abstract), in Kölner Forum für Geologie und Paläontologie Carboniferous Conference Cologne Program and Abstracts: Cologne, Köln University, 16. [ Links ]

Buitrón, B.E., Gómez-Espinosa, C., Almazán, V.E., Vachard, D., 2007a, A late Atokan regional encrinite (early-late Moscovian, Middle Pennsylvanian) in the Sierra Agua Verde, Sonora state, NW Mexico, in Álvaro, J.J., Aretz, M., Boulvain, F., Munnecke, A., Vachard, D., Vennin, E. (eds.), Paleozoic reefs and bioaccumulations: climatic and evolutionary controls: Geological Society Special Publications: Geological Society, London , Special Publication, 275, 201-209. [ Links ]

Buitrón, B.E., Almazán, E., Vachard, D., 2007b, Middle Permian crinoids (Echinodermata, Crinoidea) from Cerros Los Monos, Caborca, Sonora, Mexico and paleogeographic considerations: Revista Mexicana de Ciencias Geológicas , 24(3), 344-353. [ Links ]

Buitrón, B.E., Gómez-Espinosa, C., Almazán, E., Vachard, D., Laguarda-Figueras, A., Solís-Marín, F., 2008, A review of the crinoid columnals (Echinodermata-Crinoidea) from the Carboniferous of Mexico: Revista de Biología Tropical, 56 (3), 1-12. [ Links ]

Buitrón, B.E., Vachard, E., Almazán, V.E., Palafox, J.J., 2012, Una secuencia cratónica del Carbonífero al Pérmico inferior expuesta en los cerros El Tule, noreste de Sonora, México: Revista Mexicana de Ciencias Geológicas , 29(1), 39-62. [ Links ]

Buitrón, B.E., Vachard, D.C., Clausen, S., Palafox, J.J., Gómez-Espinosa, C., 2015a, Los crinoides (Echinodermata-Crinoidea) del Misisípico de la región de Bísani-Caborca, Sonora: Implicaciones paleogeográficas: Revista Paleontología Mexicana, 65(4), 2-11. [ Links ]

Buitrón, B.E., Chacón-Wences, O., Vachard, D., Palafox-Reyes, J.J., Jiménez-López, J.C., Sour-Tovar, F., 2015b, Pennsylvanian biota of the Sierra Agua Verde, Sonora, Mexico: biostratigraphic and paleogeographic considerations: Revista Mexicana de Biodiversidad, 86(2), 521-527. [ Links ]

Buitrón, B.E., Corona, G.N., Cuen-Romero, F.J., Palafox, J.J., Ramírez-Guerrero, G., 2016, Icnofósiles del Cámbrico inferior de San José de Gracia, Sonora: Revista Paleontología Mexicana, 5(1), 33-40. [ Links ]

Buitrón, B.E., Cuen-Romero, F.J., Huerta-Ruiz, A., Montijo-González, A., 2017a, Hiolítidos del Cámbrico (Hyolitha) de San José de Gracia, Sonora, México. Consideraciones estratigráficas y paleogeográficas: Revista Paleontología Mexicana, 6(1), 25-34. [ Links ]

Buitrón, B.E., Cuen-Romero, F.J., Montijo-González, A., Beresi, M., 2017b, Equinodermos Gogia granulosa (Echinodermata: Blastoidea) del Cámbrico temprano-medio en Sonora, México: paleoecología y paleogeografía: Revista de Biología Tropical , 65(1), S160-S167. [ Links ]

Buitrón, B.E., López-Lara, O., Vachard, D., Hernández-Barroso, S., 2017c, Algunos crinoides (Echinodermata-Crinoidea) del Pérmico de la región de Pemuxco, Hidalgo: Boletín de la Sociedad Geológica Mexicana, 69(1), 21-34. [ Links ]

Buitrón, B.E., Cuen-Romero, F.J., Beresi, M.S., Monreal, M., 2021, First record of Ubaghsicystis (Eocrinoidea-Echinodermata) from the Cambrian (Miaolingian, Wuliuan) of Sonora, Mexico: Biostratigraphical and Paleoecological Considerations: Revista Biología Tropical, 69(1), 51-61. [ Links ]

Campa-Uranga, M.F., Coney, P.J., 1983, Tectono-Stratigraphic terranes and mineral resource distributions in Mexico: Canadian Journal of Earth Sciences, 26, 1040-1051. [ Links ]

Carrillo-Bravo, J., 1961, Geología del Anticlinorio Huizachal-Peregrina al NW de Ciudad Victoria, Tamaulipas: Asociación de Geólogos Petroleros, 13, 98. [ Links ]

Coney, P.J., 1983, Un modelo tectónico de México y sus relaciones con América del Norte, del Sur y el Caribe: Revista del Instituto Mexicano del Petróleo, 15(6), 6-15. [ Links ]

Cooper, C.L., 1939, Conodonts from a Bushberg-Hannibal Horizon in Oklahoma: Journal of Paleontology, 13(4), 379-422. [ Links ]

Cooper, G.A., Arellano, A.R.V., Johnson, J.H., Okulitch, V.J., Stoyanow, A., Lochman, C., 1952, Cambrian Stratigraphy and Paleontology near Caborca, northwestern Sonora, México: Smithsonian Miscellaneous Collections, 119, 1-184. [ Links ]

Cooper, G.A., Dunbar, C.O., Duncan, H., Miller, A.K., Knight, J.B., 1953, Permian fauna at El Antimonio, Western Sonora, Mexico: Smithsonian Miscellaneous Collections, 119(2), 1-111. [ Links ]

Cuen-Romero, F.J., Beresi, M.S., Montijo, A., Buitrón, B.E., Minjárez, I., De la O, M., Palafox, J.J., 2013, Chancelloriia Walcott, 1920 y Reticulosa Reid, 1958 del Cámbrico medio de San José de Gracia, Sonora, México: Boletín de la Sociedad Geológica Mexicana , 65(3), 581-590. [ Links ]

Cuen-Romero, F.J., Valdez-Holguín, J.E., Buitrón, B.E., Monreal, R., Sundberg, F., Montijo-González, A., Minjarez-Sosa, I., 2016, Cambrian Stratigraphy of San José de Gracia, Sonora, Mexico: El Gavilán Formation, a new lithostratigraphic unit of middle Cambrian open shelf environment: Boletín de la Sociedad Geológica Mexicana , 68(3), 429-441. [ Links ]

Cuen-Romero, F.J., Valdez H.J., Buitrón, B.E., Monreal, R., Enríquez-Ocaña. L.F., Aguirre, E., Ochoa-Granillo, J.A., Palafox, J.J., 2018, Trilobite-based biostratigraphy (Arthropoda-Trilobita) and related faunas of the Cambrian from Sonora, México: Journal of South American Earth Science, 83, 227-236. [ Links ]

Cuen-Romero, F.J., Valdez-Holguín, J.E., Buitrón, B.E., Monreal, R., Enríquez-Ocaña, L.F., Hinojosa, E.A., Ochoa-Granillo, J.A., Grijalva-Noriega, F.J., Palafox, J.J., 2019, Paleoecology of Cambrian communities of central Sonora, Mexico: Paleoenvironmental and biostratigraphic considerations: Journal of South American Earth Sciences, 92, 631-645. [ Links ]

Debrenne, F., 1987, Archaeocyatha from Mexico in the Smithsonian Institution. New data from recent collectings: Geobios, 20, 267-273. [ Links ]

Debrenne, F., Gandin, A., Rowland, S., 1989, Lower Cambrian bioconstructions in Northern Mexico (Sonora). Depositional setting, paleoecology and systematic of Archaeocyatha: Geobios, 22, 137-195. [ Links ]

Devaere, L., Clausen, S., Sosa-Leon, J.P., Palafox, J.J., Buitrón, B.E., Vachard, D., 2019, Early Cambrian Small Shelly Fossils from northwest Mexico: Biostratigraphic implications for Laurentia: Palaeontologia Electronica, 22.2.41A, 1-60. [ Links ]

Dubatolova, Y.U.A., Dubatolova, E.V., 1984, Echinodermata. Klass Crinoidea (Phylum Echinodermata, Class Crinoidea), in Kanygin, A.V. (ed.), Paleozoic yugo-vostoka zapadnosibirskoi plity Akaemiya Nauk USSR: Sibirskoe Otdeleni Trudy Instituta Geologiya i Geofiziki, 158-165. [ Links ]

Durham, J.W., 1978, A Lower Cambrian Eocrinoid: Journal of Paleontology, 52(1), 195-199. [ Links ]

Easton, W.H., 1958, Mississippian fauna in Northwestern Sonora Mexico: Smithsonian Miscellaneous Collections , 119(3), 1-40. [ Links ]

Escamilla-Herrera, A., Hernández-Mejía, J., Eguizábal-Martínez, F.J., 1991, Estudio integral del Paleozoico en Chihuahua y Coahuila, Proyecto CAO-3515: Instituto Mexicano del Petróleo, 253. [ Links ]

Esquivel-Macias, C., Ausich, W.I., Buitrón, B.E., Flores de Dios, A., 2000, Pennsylvanian and Mississippian pluricolumnal assemblages (Class Crinoidea) from Southern Mexico and new occurrence of a column with a tetralobate lumen: Journal of Paleontology, 74(6), 1187-1190. [ Links ]

Esquivel-Macías, C., Solís-Marín, F., Buitrón, B.E., 2004, Nuevos registros de placas columnares de crinoideos (Echinodermata, Crinoidea) del Paleozoico superior de México, algunas implicaciones paleobiogeográficas y paleoambientales: Coloquios de Paleontología, 54, 15-23. [ Links ]

Esquivel-Macías, C., Flores-Castro, K., León-Olvera, R.G., 2005, Clasificación y Tafonomía de Algunos crinoideos (Echinodermata, Crinoidea) del Paleozoico superior de México con base en placas columnares: Paleos-Antiguo, 1(1), 1-17. [ Links ]

Flores de Dios, G.A., Buitrón, B.E., 1982, Revisión y aportes a la estratigrafía de la Montaña de Guerrero: Universidad Autónoma de Guerrero, Serie Técnico-Científica, 12, 28. [ Links ]

Gil-Cid, M.D., Domínguez-Alonso, P., 2002, Ubaghsicystis segurae nov. gen. y sp., nuevo Eocrinoide (Echinodermata) del Cámbrico Medio del Norte de España: Coloquios de Paleontología, 53, 21-32. [ Links ]

Gluchowski, E., 1981, Paleozoic crinoid columnals and pluricolumnals from Poland: Zeszyty Naukowe Akademii Gorniczo-Hutniczej: Geologia, 7, 29-57. [ Links ]

Gluchowski, E., 2001, Crinoidea, in Malinowska, L. (ed.), Budowa geologiczna Polski: Atlas skamienialosci przewodnich i charakterystycznych III, 1c/z.1, 383-395. [ Links ]

Goldfuss, G. A., 1826, Petrefacta Germaniæ tam ea: Düsseldorf, Anstalt, Arnz & Comp., 71 pp. [ Links ]

Gómez-Espinosa, C., Vachard, D., Buitrón, B.E., Almazán, E., Mendoza-Madera, C., 2008, Pennsylvanian Fusulinids and calcareous algae from Sonora (Northeastern Mexico): Comptes Rendus Palevol, 7(5), 259-268. [ Links ]

Gómez-Espinosa, C., Buitrón, B.E., Vachard, D., 2009, Análisis tafonómico del gasterópodo cf. Donaldina robusta (Heterobranchia: Streptacididae) del Pensilvánico medio de la Formación La Joya Paleozoico tardío de Sierra Agua Verde, Sonora, México: Revista Biología Tropical, 58(1), 183-194. [ Links ]

Gómez-Espinosa, C., Buitrón, B.E., 2017, Procesos tafonómicos en una encrinita regional pensilvánica (Atokano), Sonora, México: Revista de Biología Tropical , 6(1), 147-159. [ Links ]

González-Arreola., C., Villaseñor-Martínez, A.B., Corona-Esquivel, R., 1994, Permian fauna of the Los Arcos Formation, Municipality of Olinalá, State of Guerrero, Mexico: Revista Mexicana de Ciencias Geológicas , 11(2), 214-221. [ Links ]

González-León, C., 1986, Estratigrafía del Paleozoico de la Sierra El Tule, noroeste de Sonora: Revista Instituto de Geología, 6(2), 117-135. [ Links ]

González-Mora, S., Wyse-Jackson, P., Torres-Martínez, M.A., Buitrón, B.E., Barragán, M.R., Sour-Tovar, F., 2018, Hederella carbonaria Condra y Elias, 1944 from the Roadian (middle Permian) of Mexico: Bulletin of Geosciences, 93(4), 457-461. [ Links ]

Guensburg, T.E., Sprinkle, J., 2003, The oldest known crinoids (Early Ordovician, Utah) and a new crinoid plate homology system: Bulletins of American Paleontology, 364, 43. [ Links ]

Hernández-García, R., 1973, Paleogeografía del Paleozoico de Chiapas, México: Boletín de la Asociación de Geólogos Petroleros, 25, 79-134. [ Links ]

Jiménez, L.J., Sour-Tovar, F., Buitrón, B.E., Palafox, J.J., 2018, Braquiópodos del Paleozoico tardío de la Sierra Agua Verde, Sonora: implicaciones paleoecológicas y paleogeográficas: Revista Mexicana de Biodiversidad, 89, 637-650. [ Links ]

Lara-Peña, R.A, Navas-Parejo, P., Amaya-Martínez, R., 2020, New conodonts data related to the western Ouachita-Marathon-orogen: Age of the autochthonous Laurentian deformation Sonora: Journal of South American Earth Sciences, 103, 1-8. [ Links ]

McMenamin, M.A.S., 1985, Basal Cambrian small shelly fossils from La Ciénega Fm. NW, Sonora: Journal of Paleontology, 59(6), 1414-1425. [ Links ]

McMenamin, M.A.S., 1987, Lower Cambrian trilobites, zonation, and correlation of the Puerto Blanco Formation, Sonora, Mexico: Journal of Paleontology, 61(4), 738-749. [ Links ]

Mehl, M.G., Thomas, L.A., 1947, Conodonts from the Fern Glen of Missouri: Journal of Science Laboratory of Denison University, 40(4), 3-20. [ Links ]

Miller, T.H., 1968a, Heterostelechus jeffordsi Miller, new species, in Moore, R.C., Jeffords, R.M. (eds.), Classification and nomenclature of fossil crinoids based on studies of dissociated parts of their columns: University of Kansas Paleontological Contributions Echinodermata, 82. [ Links ]

Miller, T.H., 1968b, Heterostelechus keithi Miller, new species, in Moore, R.C., Jeffords, R.M. (eds.), Classification and nomenclature of fossil crinoids based on studies of dissociated parts of their columns: University of Kansas Paleontological Contributions Echinodermata, 82-83. [ Links ]

Miller, T.H., 1968c, Mooreanteris Miller, new genus, in Moore, R.C., Jeffords, R.M. (eds.), Classification and nomenclature of fossil crinoids based on studies of dissociated parts of their columns: University of Kansas Paleontological Contributions Echinodermata, 66-67. [ Links ]

Moore, R.C., Jeffords, R., 1968, Classification and nomenclature of fossil crinoids based on studies of dissociated parts and their columns. University of Kansas: Paleontological contribution. Echinodermata, 9, 1-86. [ Links ]

Nardin, E., Almazán, E., Buitrón, B.E., 2009, First report of Gogia (Eocrinoidea, Echinodermata) from the early-middle Cambrian of Sonora (Mexico) with biostratigraphical and paleoecological comments: Geobios, 42, 233-242. [ Links ]

Navas-Parejo, P., 2018, Carboniferous, Stratigraphy of Sonora a review: Revista Mexicana de Ciencias Geológicas , 35(1), 41-53. [ Links ]

Navas-Parejo, P., Lara-Peña, R.A., Torres-Martínez, M.A., Martini, M., 2018, Biostratigraphy and petrography of upper Paleozoic rocks of Sierra Las Pintas, northern Baja California: Journal of South American Earth Sciences, 84(1), 160-171. [ Links ]

Ochoa-Camarillo, A., Sosa-León, P., 1993, Geología y estratigrafía de la Sierra Agua Verde, con énfasis en el Paleozoico, Universidad de Sonora, Departamento de Geología, Bachelor thesis, 44 pp. [ Links ]

Orozco-Grajeda, D., 2005, Bioestratigrafía y paleogeografía del Paleozoico Superior del centro-este de Sonora, México, Universidad de Sonora, Departamento de Geología, Bachelor thesis, 118 pp. [ Links ]

Pantoja, J., 1970, Rocas sedimentarias paleozoicas de la parte centro-septentrional de Oaxaca: Guía de la excursión México-Oaxaca: Sociedad Geológica Mexicana, 67-84. [ Links ]

Pantoja, J., Robison, R.A., 1967, Paleozoic sedimentary rocks in Oaxaca, México: Science, 17, 1033-1035. [ Links ]

Peiffer-Rangin, F., Echevarri-Perez, A., Salas-Piza, G.A., Rangin, C., 1980, Sur la présence de l’Ordovicien supérieur á graptolites dans le nord-ouest du Mexique: Comptes Rendus de l’ Académie des Sciences, 290, 13-16. [ Links ]

Pérez-Ramos, O., 1992, Permian biostratigraphic and correlation between southeast Arizona and Sonora: Boletín del Departamento de Geología de la Universidad de Sonora, 9(2), 1-74. [ Links ]

Pérez-Ramos, O., 2002, Permian Fusulinids from Cobachi, central Sonora, México: Revista Mexicana de Ciencias Geológicas , 19(1), 25-37. [ Links ]

Poole, F.G., Perry, W.J., Madrid, R.J., Amaya-Martínez, R., 2005, Tectonic synthesis of the Ouachita-Marathon-Sonora orogenic margin of southern Laurentia: stratigraphic and structural implications for timing of deformational events and plate-tectonic model: Geological Society of America Special Papers, 393, 543-596. [ Links ]

Ramos, V.A., Keppie, J.D., 1999, Laurentia-Gondwana connections before Pangea: Geological Society of America, Special Paper, 336, 277. [ Links ]

Raymond, D.E., 2003, Crinoid columnals from Payne Chert of Madison and limestone counties Alabama (online), in The Geological Society of America, <, 2003, Crinoid columnals from Payne Chert of Madison and limestone counties Alabama (online), in The Geological Society of America, http://gsa.confex.com/gsa/2003SC/final-.program/abstract_49390.htm >, consulted in september 25th, 2021. [ Links ]

Riva, J., Ketner, K.B., 1989, Ordovician graptolites from the northern Sierra de Cobachi, Sonora, Mexico: Transactions of the Royal Society of Edinburgh, Earth: Sciences, 80, 71-90. [ Links ]

Rivera, C.E., 1988, Condiciones paleoambientales de depósito de las formaciones cámbricas del área de Caborca, Sonora, noroccidental: Universidad Nacional Autónoma de México: Revista Instituto de Geología, 7(1), 22-27. [ Links ]

Rivera, C.E., Buitrón, B.E., 1986, Establecimiento del límite Cámbrico-Ordovícico (Formación Tiñú) en Ixtaltepec., Estado de Oaxaca, México, (abstract) in VIII Convención Geológica Nacional de la Sociedad Geológica Mexicana: Mexico City, Mexico , 211. [ Links ]

Robison, R.A., 1965, Middle Cambrian Eocrinoids from Western North America: Journal of Paleontology, 39, 355-364. [ Links ]

Robison, R.A., Pantoja, J.J., 1968, Tremadocian trilobites from the Nochixtlán region, Oaxaca: Journal of Paleontology, 42(3), 767-800. [ Links ]

Sánchez-Zavala, J.L., Centeno-García, E., Ortega-Gutiérrez, F., 1999, Review of Paleozoic stratigraphy of Mexico and its role in the Gondwana-Laurentia connections before Pangea, in Ramos, V.A., Keppie, J.D. (eds), Geological Society of America, Special Paper, 336, 211-226. [ Links ]

Seilachher, A., 2007, Trace Fossils Analysis: Springer, 226. [ Links ]

Schlotheim, F. von, 1820, Die Petrefactenkunde auf ihrem jetzigen Standpunkte durch die Beschreibung seiner Sammlung versteinerter und fossiler Überreste des Thier- und Pflanzenreichs der Vorwelt: Becker, Gotha, LXII, 438. [ Links ]

Sour-Tovar, F., Buitrón, B.E., 1987, Los graptolitos del Tremadociano de Ixtaltepec, Oaxaca; consideraciones sobre el límite Cámbrico-Ordovícico en la región: Revista de la Sociedad Mexicana de Paleontología , 1(1), 380-394. [ Links ]

Sour-Tovar, F., Hagadorn, J. W., Huitrón-Rubio, T., 2007, Ediacaran and Cambrian index Fossils from Sonora, Mexico: Paleontology, 50(1), 169-175. [ Links ]

Solís-Marín, F., Honey-Escandón, M.B.I., Herrero-Perezrul, M.D., Benitez-Villalobos F., Díaz-Martínez J.P.,Buitrón-Sánchez, B.E., Palleiro-Nayar, J.S., Durán-González, A., 2013, The Echinoderms of Mexico: Biodiversity, Distribution and current state of knowledge, in Alvarado, J., Solis-Marín, F. (eds.), Echinoderm research and diversity in Latin American: Springer Verlag Berlin Heidelberg, 11-65. [ Links ]

Sprinkle, J., 1973, Morphology and evolution of the blastozoan echinoderms: Cambridge, Harvard University Museum of Comparative Zoology, Special Publication, 1-283. [ Links ]

Stewart, J.H., McMenamin, A.S., Morales-Ramírez, J.M., 1984, Upper Proterozoic and Cambrian Rocks in the Caborca Region, Sonora, México. Physical Stratigraphy, Biostratigraphy, Paleocurrent Studies and Regional Relations: United States Geological Survey Professional Paper, 1309, 1-36. [ Links ]

Stewart, J.H., Poole, F.G., Roldán, J., 1990, Tectonic and stratigraphy of the Paleozoic and Triassic southern margin of North America, Sonora, México: Arizona Geological Survey, Special Paper, 7, 183-202. [ Links ]

Stewart, J.H., Poole, F.G., Harris, A.G., Repetski, J.E., Wardlaw, B.R., Mamet, B.L., Morales-Ramírez, J.M., 1999, Neoproterozoic (?) to Pennsylvanian inner-shelf, miogeosynclinal strata in Sierra Agua Verde, Sonora, México: Revista Mexicana de Ciencias Geológicas , 16(1), 35-62. [ Links ]

Stewart, J.H., Amaya-Martínez, R., Palmer, A.R., 2002, Neoproterozoic and Cambrian strata of Sonora, Mexico: Rodinian supercontinent to Laurentian Cordilleran margin: Geological Society of America, Special Papers, 365, 5-48. [ Links ]

Strimple, H.L., 1971, A Permian crinoid from Coahuila, México: Journal of Paleontology, 45(6), 1040-1042. [ Links ]

Stukalina, G.A., 1967, On principles of classification of stems of ancient sea lilies: International Geology Review, 9(4), 549-555. [ Links ]

Stukalina, G.A., 1988, Studies in Paleozoic crinoid columnals and stems: Palaeontographica, 204, 1-66. [ Links ]

Sundberg, F.A., Cuen-Romero, F.J., 2021, Trilobites from the Crepicephalus Zone (upper Guzhangian Stage, Miaolingian Series, Cambrian) from northern Sonora, Mexico, and its correlation to Arizona and Texas, USA: Journal of South American Earth Sciences, 108, 103-185. [ Links ]

Torres-Martínez, M.A., Heredia, J.D., Sour-Tovar, F., Buitrón, B.E., Barragán, M.R., 2018, Permian brachiopods from Chiapas, Mexico: new Stratigrapical and paleobiogeographical insights: Paläontologische Zeitschrift, 93, 607-624. [ Links ]

Vachard, D., Oviedo, A., Flores de Dios, A., Buitrón, B.E., 1993, Barranca d’Olinalá (Guerrero): Une coupe de reference pour le Permien du Mexique Central; étude preliminaire: Annales de la Société Géologique du Nord , Lille, Francia, 2(2), 153-160. [ Links ]

Vachard, D., Flores de Dios, A., Buitrón, B.E., 1997, Sur une nouvelle localité a fusulinoides du Wordien (Permien supérieur) du Mexique; conséquences paléogéographiques: Geobios, 30(3), 361-370. [ Links ]

Vachard, D., Flores de Dios, A., Buitrón, B.E., Grajales, M., 2000a, Bioestratigraphie par fusulines des calcaires carboniferes et permies de San Salvador Patlanoaya: Geobios 33(1), 5-55. [ Links ]

Vachard, D., Flores de Dios, A., Pantoja, J., Buitrón, B.E., Arellano, J., Grajales, M., 2000b, Les fusulines du Mexique, une revue biostratigraphique et paléogéographique: Geobios 33(6), 655-679. [ Links ]

Vachard, D., Clausen, S., Palafox, J.J., Buitrón, B.E., Devaere., L., Hayardt, V., Regnier, S., 2017, Lower Ordovician microfacies and microfossils from Cerro San Pedro (San Pedro de la Cueva, Sonora, Mexico), as a westernmost outcrop of the newly defined Nuia Province: Facies, 63(18), 1-37. [ Links ]

Velasco-De León, P., Buitrón, B.E., 1992, Algunos crinoides (Echinodermata-Crinoidea) del Misisípico-Pensilvánico de San Salvador Patlanoaya, Estado de Puebla: Revista de la Sociedad Mexicana de Paleontología , 5, 71-81. [ Links ]

Villanueva-Olea, R., Castillo, K., Sour-Tovar, F., Quiroz-Barroso, S.A., Buitrón, B.E., 2011, Placas columnares de crinoides (Echinodermata: Crinoidea) del Misisípico de la región de Santiago Ixtaltepec, Municipio de Nochixtlán, Oaxaca. Consideraciones estratigráficas y paleobiogeográficas: Boletín de la Sociedad Geológica Mexicana , 63(3), 429-443. [ Links ]

Villanueva-Olea, R., Buitrón, B.E., Palafox, J.J., Piña-Flores, S., 2016, Crinoides (Echinodermata: Crinoidea) del Pensilvánico de sierra Las Mesteñas, NE de Sonora México: Revista Mexicana de Biodiversidad, 87, 1225-1234. [ Links ]

Villanueva-Olea, R., Barragán, R., Palafox, J.J., Jiménez, L. J., Buitrón, B.E., 2019, Microfacies and stable isotope analysis from the Carboniferous La Joya section in the Sierra Agua Verde, Sonora, México: Boletín de la Sociedad Geológica Mexicana , 71(3), 585-607. [ Links ]

Villanueva-Olea, R., Quiroz-Barroso, S.A., Quiroz-Barragán, J., Torres-Martínez, M.A., Sour-Tovar, F., 2021, Placas columnares de crinoideos de la Formación Las Delicias, Pérmico inferior y medio de Coahuila, México: Boletín de la Sociedad Geológica Mexicana , 73(1), 1-17. [ Links ]

Wright, D., Ausich, W., Cole, S., Peter, M., Rhenberg, E., 2017, Phylogenetic taxonomy and classification of the Crinoidea (Echinodermata): Journal of Paleontology, 91(4), 829-846. doi:10.1017/jpa.2016.142 [ Links ]

Yochelson, E.L., 1968, Tremadocian mollusks from the Nochixtlán region, Oaxaca, Mexico: Journal of Paleontology, 42(3), 801-803. [ Links ]

Zamora, S., Clausen, S., Álvaro, J.J., Smith, A.B., 2010, Pelmatozoa echinoderms as colonizers of carbonate firmgrounds in mid-Cambrian high-energy environments: Palaios, 25(12), 764-768. [ Links ]

How to cite: Buitrón-Sánchez, B.E., Cuen-Romero, F.J., Monreal, R., Cuadros-Mendoza I.M., 2022, Diversity of Crinozoa (Echinodermata: Eocrinoidea, Blastoidea, Crinoidea) from the Paleozoic of Mexico: Revista Mexicana de Ciencias Geológicas, v. 39, núm. 1, p. 43-53.

Received: November 08, 2021; Revised: February 14, 2022; Accepted: February 16, 2022

* Corresponding author francisco.cuen@ciencias.uson.mx

Creative Commons License This is an open-access article distributed under the terms of the Creative Commons Attribution License
