Chemicals

Phenol (99 %), formaldehyde (37 % aqueous solution), sodium hydroxide (98 %), glycerol ethoxylate (Mn ≈ 1000 g mol^-1), hexamethylene diisocyanate (99 %), sodium metabisulfite (99 %), Folin-Ciocalteu’s phenol reagent, sodium carbonate (99 %), aluminum chloride (99 %), ethanol (HPLC grade > 99.999 %), methanol (HPLC grade > 99.999 %), acetic acid (99.7 %), and rhodamine B (95 %) were purchased from Sigma Aldrich and used without further purification. Collagen was extracted from porcine dermis by enzymatic hydrolysis as reported. Polyurethane with blocked isocyanate groups was synthesized from glycerol ethoxylate and hexamethylene diisocyanate as reported.

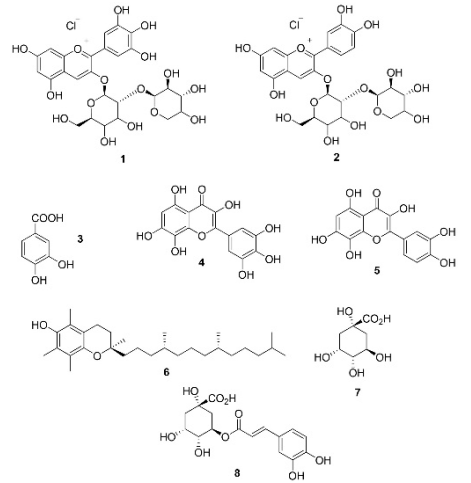

Extraction of polyphenols

Polyphenols were extracted by an ultrasound assisted process. 20 g of dried flowers (purchased from a local market) were washed with distilled water and placed in a beaker with 200 mL of EtOH:H₂O (7:3). The mixture was sonicated at 60 °C for 2 h and then flowers were removed, and the resulting solution was filtered under vacuum. The volume of solution was adjusted to 250 mL yielding a concentration of 3.2 wt.%. Total polyphenols in the extract were measured by the Folin- Ciocalteu’s method. For this, a solution of 10 mg mL^-1 of the extract was prepared in distilled water. Also, 2 wt.% Na₂CO₃ and 10 wt.% Folin-Ciocalteu’s reagent solutions were prepared in deionized water. Samples were prepared by mixing 40 μL of extract solution, 80 μL of Na₂CO₃ solution, and 100 μL of Folin- Ciocalteu’s reagent solution. The reaction proceeded by 15 min at room temperature and then the absorbance of samples was measured at 765 nm. Total polyphenols content was calculated comparing results with a calibration curve of gallic acid (0-1000 μg mL^-1). Results were expressed as mg gallic acid equivalent per g of dried weight (mg GAE/g dw).

The content of flavonoids was measured by a colorimetric method using aluminum chloride. A suitable reagent for flavonoids was prepared mixing 133 mg of aluminum chloride and 400 mg of sodium acetate in 100 mL of MeOH-H₂O-AcOH (14:5:1). Samples were prepared by mixing 0.1 mL of extract solution, 0.5 mL of reagent for flavonoids, and 1.4 mL of distilled water and they reacted by 30 min at room temperature. Then, the absorbance of samples was measured at 430 nm and the content of flavonoids was calculated comparing results with a calibration curve of quercetin (0-1000 μg mL^-1). Results were expressed as mg quercetin equivalent per gram of dried weight (mg QE/g dw). ^29,30

Synthesis of polymer networks

The synthesis of polymer networks (IPN-1, IPN-2, and IPN-3) was performed in a two-step process (Fig. 2). IPN-1 was formulated with phenol, formaldehyde, polyurethane, and collagen. For IPN- 2 and IPN-3, phenol was partially substituted with phenols extracted from Hibiscus sabdariffa. First, a phenolic polymer was synthesized following the typical procedure to obtain resols. A suitable amount of phenol and/or Hibiscus sabdariffa extract was mixed in 25 mL of deionized water and then 100 mg of NaOH was added as the catalyzer. The mixture was heated at 70 °C with continuous stirring and then, 1.48 g of formaldehyde was added, the mixture was reacted by 30 min. Simultaneously, 0.6 g of collagen (aqueous solution 6 mg mL^-1) were heated at 70 °C with magnetic stirring in a beaker. Once the phenolic polymer was formed, it was transferred to the beaker containing collagen and the resulting mixture was stirred until obtain a homogeneous mixture. Then, a suitable amount of polyurethane was added with vigorous stirring, and the mixture was reacted by 30 min at 60 ºC to obtain the polymer networks. At the end of the reaction the product was filtered and rinsed with deionized water and dried at room temperature. Designations and amounts used for the synthesis of polymer networks are shown in Table 1. Each material was prepared independently in triplicate.

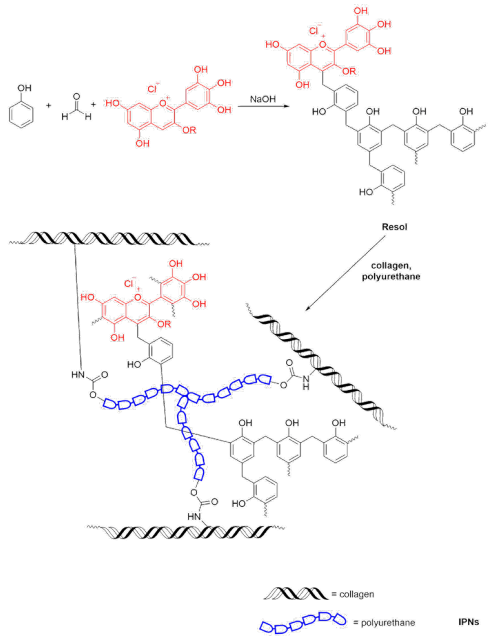

Fig. 2 Synthesis of interpenetrating polymer networks from polyphenols.

Physicochemical characterization

FTIR spectra were recorded with a Perkin Elmer Frontier spectrophotometer using an attenuated total reflection (ATR) accessory. Samples were previously dried at room temperature with a desiccator. The storage module (Gˈ) and the loss module (Gˈˈ) of hydrogels were measured by low amplitude oscillatory rheometry using an Anton-Paar Physica MCR 301 rheometer. Experiments were conducted at 37 °C with a plate-plate geometry (diameter = 40 mm). Measurements were performed with a 10 % of strain to ensure the viscoelastic behavior in the dynamic response of hydrogels.

The degradation behavior of hydrogels was studied in hydrolytic and proteolytic media. The hydrolytic media were aqueous solutions with pH 2, 7.4, and 12. The proteolytic media were aqueous solutions of papain (14 U/gel) and collagenase (14 U/gel). The experiments were performed in closed jars placing a sample of IPN (0.25 g) and 10 mL of the hydrolytic or proteolytic solution. Samples remained in repose at room temperature (25 ± 1 °C) and the mass of hydrogels was monitored at different time intervals. Experiments were performed in triplicate.

Release of polyphenols

To evaluate the release of polyphenols from IPN-2 and IPN-3 samples of these materials (0.25 g) were placed in closed jars with 10 mL of HCl aqueous solutions (pH = 1, 2, 4, and 6, these values were selected to carry out the UV-Vis measurements at the same λmax, the color of the extract change from red to green at higher values of pH) and they remained a 25 ± 1 °C without stirring. Aliquots (200 μL) were taken from the medium and their absorbance was measured at 516 nm.

Evaluation of in vitro biocompatibility

Cell proliferation

The growing of porcine fibroblasts in contact with the composite hydrogels for 48 h was evaluated with the Live/Dead fluorescence assay. Similarly, fibroblasts under the same conditions were stained with rhodamine B. Cell populations and proliferation were observed using a VELAB VE-146YT epifluorescence microscope.

Enzyme linked immunosorbent assay

The effect of the composition of the composite hydrogels on cell signaling was evaluated using ELISA for the detection of important cytokines in tissue inflammation and reconstruction processes, such as alpha tumor necrosis factor (TNF-α) and interleukin 10 (IL-10). The cytokines were determined in human monocytes growing in the presence of the composite materials for 48 h following the supplier's instructions (Invitrogen). Cells growing in PBS-1X were used as a reference control.

Analysis of data

All experiments were performed independently in triplicate. Average values and standard deviations are presented. Variability between data is analyzed with one-way ANOVA. Statistically significant differences were determined using the Tukey test (p <0.05). In the line dot graphs, the standard deviation bar is not presented in the graphs to avoid losing trends between the groups being compared.

Characterization of polymer networks

The chemical structure of polymer networks was analyzed by FTIR (Fig. 3(b)). The spectra of IPN-1, IPN-2, and IPN-3 showed some typical bands for phenol, collagen, and polyurethane. However, the spectra of IPN-2 and IPN-3 showed some weakened bands related to phenol due to the partial substitution of this compound by polyphenols extracted from Hibiscus sabdariffa. The absorption band in 3280 cm^-1 was assigned to the νArO -H vibration due to the phenolic polymers incorporated in the polymer networks. Another band related with phenolic compounds was observed in 1500 cm^-1 which is due to the νC-C vibration. For IPN- 2 and IPN-3 an absorption band in 1230 cm^-1 was observed and it was attributed to the Ar-O-R stretching from glycosylated polyphenols occurring in the Hibiscus sabdariffa extract. The presence of collagen in the polymer networks was confirmed by the presence of the amide I and amide II bands in 1640 and 1540 cm^-1 which are related with the polypeptide backbone. Further, a band in 1030 cm^-1 was assigned to the C-O and C-N stretching vibrations from amino and carboxylic acid residues occurring in collagen. The formation of the polymer networks was confirmed by the band in 1730 cm^-1 which is due to the νC=O vibration from urea and urethane groups which results from the reaction of isocyanate with amino or hydroxyl groups, respectively. Also, a band in 1099 cm^-1 due to the R-O-R stretching from the polyurethane backbone was observed.

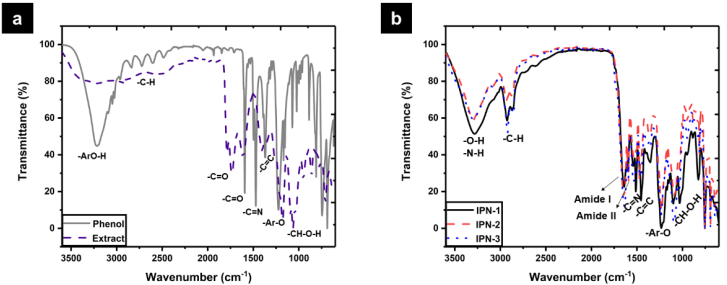

Fig. 3 FTIR spectra of: (a) Hibiscus sabdariffa extract vs. phenol, and (b) synthesized polymer networks.

Polymer networks are characterized by a high crosslinking degree and thus, by a high thermal, mechanical, and chemical stability. Thermal stability of polymer networks was analyzed by TGA and the thermograms are shown in Fig. 4(a). The dehydration temperature (10 % weight loss) for IPN-1, IPN -2, and IPN-3, was 236, 185, and 206 °C, respectively. Thermal degradation of polymer networks take place in two stages. The first weight loss in the range of 50 to 250 °C was attributed to the evaporation of physically adsorbed water, and the second in the range of 250 to 600 ºC corresponded to the exothermal decomposition by the random scission of polymer chains. Results showed that the incorporation of polyphenols in the polymer networks do not contribute to improve the thermal stability. Conversely, the degradation temperature of IPN-1 decreases from 422 °C to 363 and 386 °C for IPN-2 and IPN-3, respectively. Also, the residual weight corresponding to ashes obtained after calcination at 800 °C was 33.4, 19.8 and 15.8 % for IPN-1, IPN-2, and IPN-3, respectively. This shows that increasing the concentration of polyphenols in the polymer networks the thermal stability decreases.

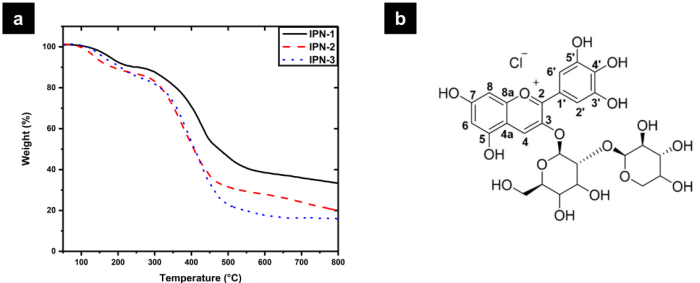

Fig. 4 (a) TGA thermograms of polymer networks and (b) labeled structure of delphinidin-3-sambubioside.

Phenol-formaldehyde resins typically have a high crosslinking degree due the high reactivity of phenol towards the electrophilic substitution in the positions 2, 4 and 6 acting as a trifunctional monomer. The loss of thermal stability could be attributed to the high tendency towards oxidation of polyphenols. However, a lower crosslinking degree could contribute to decrease the thermal stability of polymer networks. A theoretical analysis made by the density functional theory (DFT) of the reactivity of delphinidin-3-sambubioside showed that their main reactive sites are localized in C4, C8, O4´, and O7 (Fig. 4(b)). Only C4 is activated as an electrophilic site while C8 is activated as a nucleophilic site ³¹. Thus, incorporating polyphenols such as delphinidin and cyanidin in the phenolic prepolymers decreases the degree of polymerization because they contribute with only one electrophilic site while phenol provides three electrophilic sites. Thus, these polyphenols decrease the crosslinking degree of the resulting polymer networks decreasing their thermal stability as well. O4´ and O7 are activated for the nucleophilic attack, and they are suitable to conduct reactions like esterification. The high rigidity of the polyphenolic component prevents crosslinking with the collagen fibers interpenetrated with polyurethane. Indicating that a large part of the extract used remains physically loaded in the IPN collagen-polyurethane matrix, which is evident since IPN-3 showed greater mass loss in the first region.

Mechanical stability of polymer networks was evaluated by oscillatory rheometry measuring the storage modulus and the loss modulus (Fig. 5). For the three polymer networks, the storage modulus is higher than the loss modulus showing the typical behavior of hydrogels where the elastic behavior domines over the viscous behavior. At a frequency of 10 Hz the storage modulus of IPN was 837 Pa for IPN-1, while Gˈ for IPN-2 was 7930 Pa, and 1640 Pa for IPN-3, which represents an increase of 847 and 95 % respect to IPN- 1. The incorporation of polyphenols in polymer networks could increase the rigidity of polymer chains due to the presence of large and voluminous moieties, contributing to reinforce the resistance to the deformation of the matrix. Also, the intermolecular forces such as hydrogen bonding and π-π interactions established by polyphenolic moieties of the network could enhance the mechanical strength of polymer networks. However, if a high amount of polyphenols is used (in the IPN-3 case), some are not incorporated into the network but are trapped in the network, causing a decrease in the storage modulus.

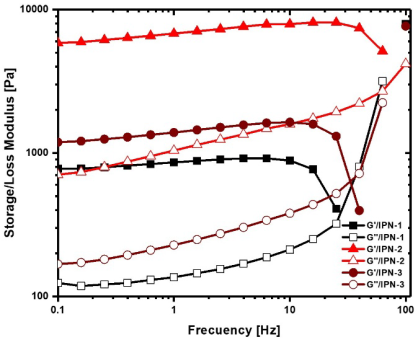

Fig. 5 Viscoelastic behavior of polymer networks analyzed by oscillatory rheometry.

Swelling and degradation behavior

Fig. 6 shows the swelling/degradation profiles of polymer networks in hydrolytic and proteolytic media. IPN-1 in acid medium showed a low swelling capacity, the polymer matrix was progressively swelling during the first seven days of contact reaching a 122 ± 1 % of swelling, then remained without significant variation without degradation. IPN-2 swelled more rapidly than IPN-1, the maximum swelling was observed after 10 days of contact (447 ± 1 % of swelling) followed by the accelerated loss weight until being completely degraded at the fourteenth day. IPN-3 reached a 204 % of swelling during the first 24 h of contact with HCl solution, followed by a drastic weight loss in the next 24 h. Then, the mass of the hydrogels remained almost constant for 11 days and finally after 14 days of contact were completely degraded. The residues obtained after 30 days in contact with hydrolytic and proteolytic media were analyzed by FTIR (spectra are provided in the supporting information) to understand the nature of the degradation process. The most significant changes in the FTIR spectra of IPN -2 and IPN-3 were the absence of the absorption bands at 1590 and 1500 cm^-1 due to the release of aromatic compounds such as polyphenols.

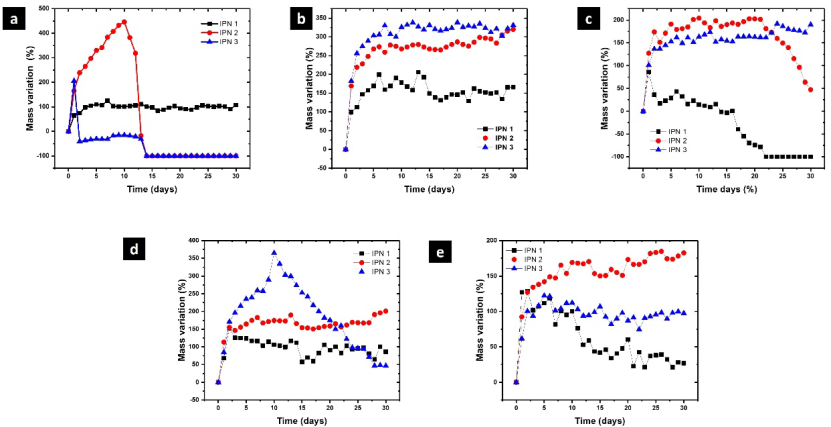

Fig. 6 Swelling/degradation profiles of polymer networks in: (a) 0.1 M HCl, (b) 0.1 M NaOH, (c) PBS-1X, (d) papain, and (e) collagenase.

The three polymer networks showed a similar behavior in alkaline medium, swelling during the first 6-7 days and remaining without significant mass variation during the posterior days. The swelling capacity decrease in the order IPN-3 > IPN-2 > IPN-1 showing that polyphenols from Hibiscus sabdariffa enhances the water absorption capacity of polymer networks. In general, polymer networks showed higher swelling degree in alkaline medium compared with acid medium. This could be attributed to the weak acid character of phenolic compounds. The pk_a of phenol is 9.99 and thus at pH 12 phenolic moieties are deprotonated acquiring negative charge. The electrostatic repulsion between negatively charged chains favors the water absorption inside the polymer matrix and increasing the swelling degree. At the end of the experiment, the FTIR spectra did not show significant changes, indicating that the polyphenols remain inside the IPN in alkaline medium.

Similarly, IPN-2 and IPN-3 showed better swelling behavior and hydrolytic stability than IPN-1 in PBS-1X (pH = 7.4). The maximum swelling capacity for IPN-1 was 85 ± 1 % after 24 h of contact with the saline solution. After, that the hydrogels begun to lose weight due to the progressive hydrolytic degradation being completely degraded after 22 days. For IPN-1, a decrease in the absorption band of amide I was observed disappearing almost for complete. This result indicate that collagen is the component most susceptible to being hydrolyzed in PBS-1X. There was not observed significant changes in the other bands of the spectrum, showing that the phenolic polymer and the polyurethane are not affected by the hydrolytic degradation.

The maximum swelling degree of IPN-3 in papain was 367 ± 2 % after 10 days of contact. Then, a progressive weight loss was observed but the material was not completely degraded after 30 days of contact with papain. In collagenase, a noticeable degradation was not observed for IPN-3. In proteolytic media, IPN-1 showed a low water absorption capacity reaching a 151 ±1 % in papain and 125 ±1 % in collagenase during the first 24 h. Then, samples were progressively degraded by the action of both enzymes which cleavage the peptide bond of collagen. This was confirmed by the absence of the amide I band in the FTIR spectrum which is typical of the collagen backbone. Finally, for IPN-2, the effects of proteolytic degradation were not noticeable. The presence of polyphenols in IPN improves resistance to proteolytic degradation. This could be used for wound healing dressings with resistance to degradation for extended periods of use.

Polyphenols release

Due to their high biological activity, polyphenols are an efficient alternative to synthetic compounds, responding to the need to find new options for chronic wound care. Nonetheless, polyphenols have some drawbacks when targeting wound applications, such as low stability and consequent decreased biological performance at the wound site. These limitations have been overcome using polymeric-based systems as carriers of polyphenols for wound healing, improving its stability, controlling the release kinetics, and therefore increasing the performance and effectiveness ³². As polymer networks are progressively degraded, some polyphenols are released to the medium. This process was monitored by UV- Vis spectroscopy and the concentration profiles at different values of pH are shown in Fig. 7. IPN-2 shows the maximum release of polyphenols reaching a concentration of 0.5 mg cm^-3 after 12 days at pH 6. These results are relevant because the pH of skin and blood is acid, being a favorable environment for the release of polyphenols during wound healing. The high structural rigidity is associated with the decrease in the release of polyphenols reaching 0.2 mg cm^-3 after 12 days at pH 4. The release of polyphenols is important to describe the biocompatibility of these polymer networks because they are biologically active compounds.

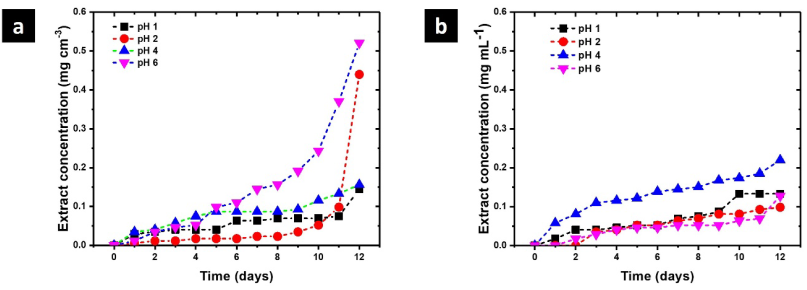

Fig. 7 Polyphenols release profiles for (a) IPN-2 and (b) IPN-3.

Evaluation in vitro of biocompatibility

Cell viability

The cytotoxic character of polymer networks was evaluated by the MTT assay. Fig. 8 shows that the increase in viability in porcine samples was from 20 to 80 % compared to the control sample. In the case of human monocytes, it was more than 40 % in some cases and in others less than 20 % compared to the control. According with Chowdhury et al., polyphenols increase the deposition of collagen and elastin by human dermal fibroblasts during the wound healing process ³³. Thus, biomaterials containing polyphenols can accelerate the wound healing process by the rapid reconstruction of the extracellular matrix. Further, the three polymer networks showed high cell viability for human monocytes observing values higher than 81 ± 9 % after 48 h of incubation. It worth to mention that the polymer networks containing polyphenols showed better performance than IPN -1 which is based on phenol. These results confirm that polyphenols enhance the biocompatibility of this kind of materials. Since the chemical structure of polyphenols is associated with increasing the activity of mitochondrial dehydrogenases in cells, favoring the reduction of MTT salts to formazan.

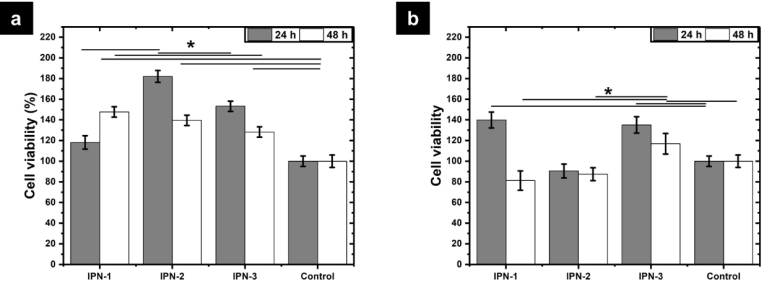

Fig. 8 Cell viability in vitro of (a) porcine fibroblasts and (b) human monocytes.

Cell proliferation

Fig. 9 shows images acquired by fluorescence microscopy of human monocytes stained with rhodamine B in contact with polymer networks after incubating for 48 h. The images revealed the presence of large and dense populations of monocytes confirming the biocompatible character of polymer networks observed by the MTT assay.

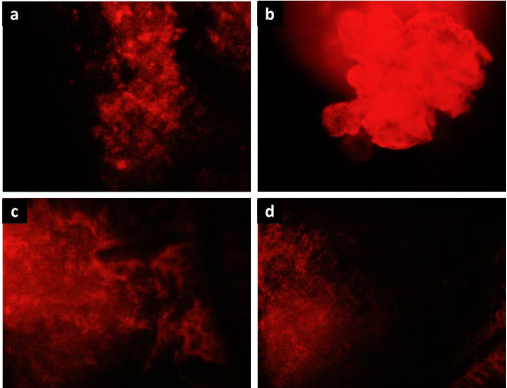

Fig. 9 Human monocytes stained with rhodamine B in contact with polymer networks after 48 h of incubation at 37 °C: (a) PBS-1X, (b) IPN-1, (c) IPN-2, and (d) IPN-3.

Cell signaling

It is well known that the intake of polyphenols contained in natural sources helps to modulate chronic inflammatory diseases, such as type 2 diabetes, rheumatoid arthritis, and inflammatory bowel disease, ³⁸. Also, it was reported that dietary tea polyphenols consumed by rats decreased the serum levels of pro-inflammatory factors such as TNF-α, IL-1β, and IL-6 showing that polyphenols protected rats from the effects of inflammation and tissue damage caused by fatigue ³⁹. Polyphenols reduce inflammation by suppressing the pro-inflammatory cytokines such as tumor necrosis factor-alpha (TNF-α) and inducing the apoptosis and decreasing DNA damage. Polyphenols have a potential role in prevention/treatment of inflammatory chronic diseases by regulating signaling pathways and suppressing inflammation. Also, polyphenols cause immunomodulatory effects against allergic reaction and autoimmune disease by inhibition of autoimmune T cell proliferation, and downregulation of pro-inflammatory cytokines ⁴⁰.

The cell signaling induced by the polymer networks was studied measuring two important cytokines involved in the wound healing process: TNF-α and IL-10, which are related with the inflammatory and anti-inflammatory response, respectively. The inflammatory phase in wound healing is considered as the preparatory process for the formation of new tissue. In this sense, TNF-α may have a beneficial role in wound healing, but it may have negative effects when it is overexpressed. An excess of TNF-α can inhibited the production of 3-hydroxyproline and thus the production of collagen ⁴¹. Fig. 10(a) shows the concentration of TNF-α secreted by human monocytes after being incubated in contact with polymer networks for 48 h at 37 °C. The concentration of TNF- α was around 50 pg cm^-3 and significative differences were not observed compared with the control (PBS- 1X). The concentration of TNF-α typically founded in human blood is around 10 pg cm^-3. Thus, IPN-1 and IPN-2 stimulate the secretion of this cytokine without an overexpression showing the beneficial effects of polyphenols for the wound healing process in modulating the inflammatory response. Decreased secretion of TNF-α by monocytes is observed with increasing polyphenol content (IPN-3).

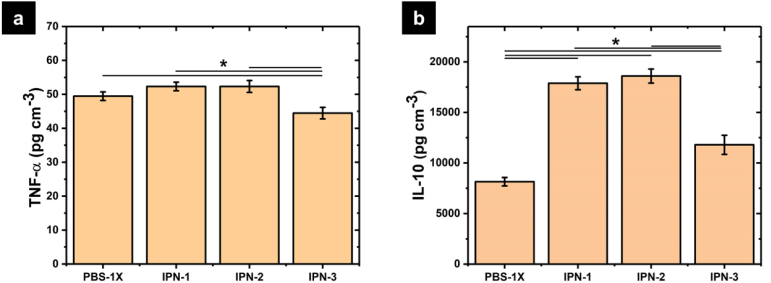

Fig. 10 Secreted cytokines for human monocytes in contact with polymer networks: (a) TNF-α and (b) IL-10.

Fig. 10(b) shows the concentration of IL-10 secreted by human monocytes showing a strong stimulation caused by IPN-2. The concentration in the medium was 18600 ± 700 pg cm^-3 supering the concentration founded in the control (8150 ± 215 pg cm^-3). The overexpression of IL-10 decreases the inflammatory response to injury, creating an environment conducive for regenerative adult wound healing, avoiding the abnormal collagen deposition and promoting the restoration of normal dermal architecture ⁴². From the above, polymer networks produced a favorable cell signaling for wound healing, benefiting the proinflammatory response and tissue regeneration. This improvement is suppressed by increasing the content of polyphenols.
