Introduction

Chemical fixation of CO₂ into value-added products was one of the promising strategies for CO₂ capture and storage, which play important roles towards the clean environment [¹-⁴]. As a promising way for CO₂ chemical utilization, the cycloaddition reaction of CO₂ with epoxides is promising due to both the view of 100% atomic economy and the wide applications of cyclic carbonates products in fine chemistry and industry [⁵,⁶]. However, due to the thermodynamic stability and kinetic inertness of CO₂, considerable efforts have been devoted to develop efficient catalytic systems for the CO₂ sustainable transformation. Recently, a wide range of catalytic systems have been successfully developed for the synthesis of cyclic carbonates, including metal complexes [⁷-⁹], metal-organic frameworks [¹⁰-¹²], covalent organic frameworks [¹³,¹⁴], InBr₃/NBu₄Br [¹⁵], Ag/TUD-1 [¹⁶], organocatalysts [¹⁷-¹⁹], Zn-Zr bimetallic oxide [²⁰], and others [²¹-²³]. Despite these advances, the development of a green and sustainable strategy for the chemical fixation of CO₂ into cyclic carbonates via the cycloaddition with epoxides remains a challenge for chemists.

Ionic liquids (ILs) have found numerous applications in various areas of reaction solvents and catalysis due to their negligible vapour pressure, thermal and chemical stability, non-flammable, nonvolatile, low toxicity and strong structural design prospects [²⁴-²⁸]. Through the functional design of anions and cations of ionic liquids, the use of ILs as catalysts in the efficient synthesis of cyclic carbonates via the cycloaddition of CO₂ and epoxides have been developed [²⁹-³¹]. However, the isolation of pure ILs from products and reusability has been the major issue in these processes in view of eco-sustainability. Immobilization of ILs onto solid supports could alleviate these issues, not only reduce cost, and enhance catalytic efficiency, but also facilitate catalyst separation and reutilization [³²-³⁵]. Amongst the available supports, magnetic mesoporous materials such as the inactive mesoporous silica materials modified by different magnetic active metal oxides have become as exceptional and significant solid supports due to the unique properties of high specific surface area, easy functionalization, well-defined size, controlled pore size distribution, innocuity and high biocompatiblity, good hydrothermal stability as well as easy separation and reusability [³⁶-⁴⁶]. Herein, a type of magnetic zinc ferrites modified SBA-15 supported ionic liquids via the immobilization of different amounts of functional ionic liquids onto active magnetic zinc ferrites modified SBA-15 supports have been designed to investigate their catalytic performance in the synthesis of cyclic carbonates via the cycloaddition of CO₂ and epoxides under mild conditions (Scheme 1). In addition, catalyst reusability was also carried out to assess the stability of the catalytic system.

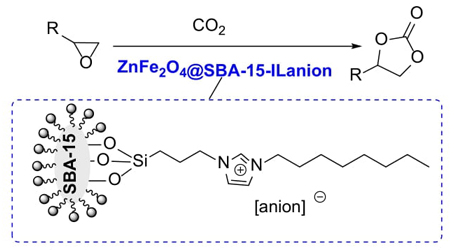

Scheme 1 Catalytic synthesis of cyclic carbonates with magnetic supported ionic liquids.

Experimental

Synthesis of magnetic supported ionic liquids

Magnetic zinc ferrites functionalized SBA-15 support ZnFe₂O₄@SBA-15 was synthesized following the previously reported methods [⁴²-⁴⁴]. The supported ionic liquids were prepared according to the similar procedures described in literatures (Scheme 2) [²⁵-²⁹, ³⁶-³⁹]. To a round-bottomed flask were added sodium ethoxide (0.3 mol), imidazole (0.3 mol) and ethanol (150 mL). The mixture was vigorously stirred at 70 ^°C for 8 h, then (3-chloropropyl) triethoxysilane (0.3 mol) was added into the solution gradually and stirred at 80 ^°C for 12 h. After filtering the slurry and evaporating the ethanol solvent to give 1. Next, 1-bromo-octan (0.2 mol) and 1 (0.2 mol) were dispersed in 120 mL of toluene, and the resulting mixture was stirred under nitrogen at 110 ^oC for 24 h. After this procedure, the excess solvent was isolated by liquid-liquid separation and the residue was dried under vacuum at 70 °C to give 2. Then, 2 (0.1 mol), potassium metavanadate (0.1 mol) or sodium dihydrogen citrate (0.1 mol) or sodium proline (0.1 mol), and methanol (60 mL) were refluxed under vigorous stirring for 24 h. The suspension was filtered, washed with ethanol and dried at 50 °C to give the anionic functionalized ionic liquids ILanion 3. Finally, the magnetic supported ionic liquids 4 were synthesized using a post-synthesis grafting method. A mixture of the as-prepared ZnFe₂O₄@SBA-15 (2.0 g), ILanion 3 (1.2 g), and ethanol (80 mL) was refluxed for 24 h. The resulting precipitates were centrifugalized, washed three times with dichloromethane and dried at 50 °C overnight to obtain ZnFe₂O₄@SBA-15-ILanion 4.

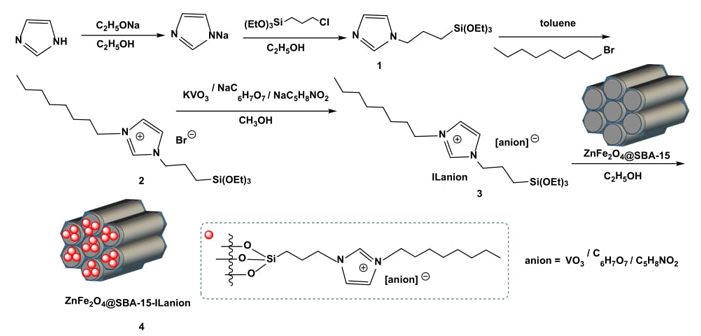

Scheme 2 Synthesis of magnetic supported ionic liquids.

Results and discussion

X-ray diffraction (XRD) was performed to investigate the structure of the supported ionic liquids. As can be seen from the Fig. 1, all the samples exhibited a broad diffraction peak between 2θ = 20-25°, which are assigned to the characteristic peak of mesoporous silica [⁴²-⁴⁵], suggesting the basic crystalline structure of ordered mesoporous materials. The characterization peaks at 2θ = 30.3°, 35.4°, 42.8°, 53.6, 56.5°, 62.4° assigned to the ZnFe₂O₄ crystal planes (220), (311), (400), (422), (511), (440), respectively (JCPDS card No. 221012). In addition, no obvious peaks about the ionic liquid species were observed, indicating a well dispersion on the support framework.

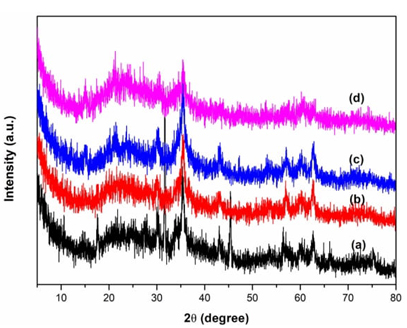

Fig. 1 XRD diffractograms of ZnFe2O4@SBA-15-ILVO3 (a), ZnFe2O4@SBA-15-ILC6H7O7 (b), ZnFe2O4@SBA-15-ILC5H8NO2 (c), and ZnFe2O4@SBA-15 (d).

The surface morphologies of samples are evaluated by SEM analysis. As shown in Fig. 2(d), ZnFe₂O₄@SBA-15 presents an irregular shape consisting of some spherical agglomerates with wrinkled nano-sized particles. Fig. 2(a-c) display the SEM images of the magnetic supported ionic liquids. After the immobilization of ionic liquid on the ZnFe₂O₄@SBA-15 support, the whole morphologies are retained, pointing to the preservation of the well-ordered structure in these supported ionic liquids. Comparatively, the typical aggregated small and irregular particles are clearly seen in these samples, which are attributed to the IL immobilization results. The EDX analysis revealed the presence of the corresponding elemental signals including C, Si, O, N, V, Fe, Zn in these supported ionic liquids (Fig. 3), indicating the successful immobilization of ionic liquid moieties on the support framework.

Fig. 2 SEM images of ZnFe2O4@SBA-15-ILVO3 (a), ZnFe2O4@SBA-15-ILC6H7O7 (b), ZnFe2O4@SBA-15-ILC5H8NO2 (c), and ZnFe2O4@SBA-15 (d), five times recycled ZnFe2O4@SBA-15-ILVO3 (e).

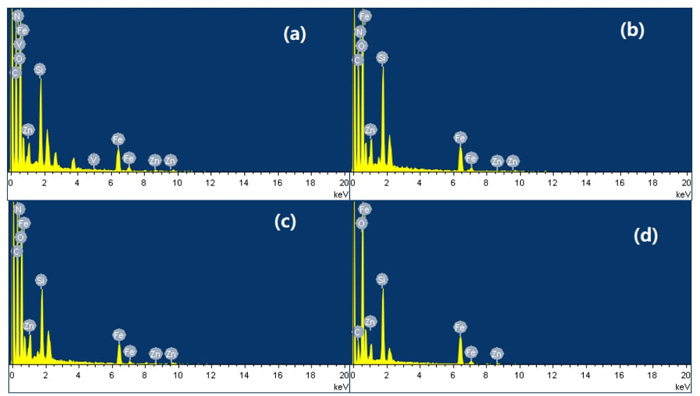

Fig. 3 EDX images of ZnFe2O4@SBA-15-ILVO3 (a), ZnFe2O4@SBA-15-ILC6H7O7 (b), ZnFe2O4@SBA-15-ILC5H8NO2 (c), and ZnFe2O4@SBA-15 (d).

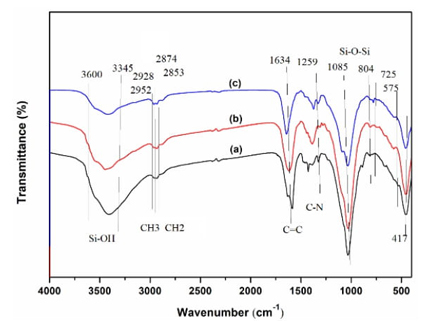

To validate and characterize the functional groups of the supported ionic liquids, FT-IR spectra of the samples are taken. As shown in Fig. 4, the peak around 3600-3345 cm^-1 was accounted for the characteristic band of hydroxyl stretching vibration. The peaks at around 2952-2853 cm⁻¹ are attributed to the C-H stretching vibration of CH₃ and CH₂. The characteristic peaks at around 1085 cm⁻¹ and 804 cm⁻¹ are attributed to the Si-O-Si stretching vibration. The absorption peaks around 1634 cm^-1, and 1259 cm^-1 are assigned to C=C, and C-N stretching vibrations of imidazole ring [²⁵-²⁷]. Also, the peak at around 725 cm^-1 is attributed to bending vibration of CH₂ units. Furthermore, the peaks at about 575 cm^-1, and 417 cm^-1 were assigned to the lattice vibration modes of ZnFe₂O₄ [⁴¹-⁴³]. The above results indicated that the existence of mainly characteristic groups and the successful immobilization of ionic liquid on the support. The UV-vis spectra of the samples are shown in Fig. 5. For the supported catalysts, three major adsorption peaks could be observed in the region of 210-450 nm, the absorption peaks centered at around 227 nm is attributed to Si-O transition, other absorption weak peaks located at around 398 nm and 439 nm are probably assigned to the absorption of zinc ferrite particles of ZnFe₂O₄ [³⁸-⁴¹]. At the same time, no remarkable peaks of ionic liquid are found on the UV-vis spectra of the supported ionic liquids, which might be due to their low loading and good dispersion on the support framework.

Fig. 4 FT-IR spectras of ZnFe2O4@SBA-15-ILVO3 (a), ZnFe2O4@SBA-15-ILC6H7O7 (b), ZnFe2O4@SBA-15-ILC5H8NO2 (c).

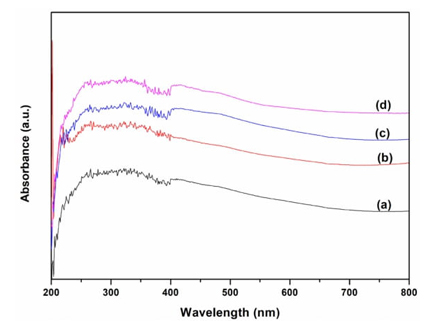

Fig. 5 UV-Vis spectras of ZnFe2O4@SBA-15-ILVO3 (a), ZnFe2O4@SBA-15-ILC6H7O7 (b), ZnFe2O4@SBA-15-ILC5H8NO2 (c), and ZnFe2O4@SBA-15 (d).

The structural characteristics of the superior supported catalysts ZnFe₂O₄@SBA-15-ILVO₃, and ZnFe₂O₄@SBA-15 are accomplished by a N₂ adsorption-desorption isotherms and BJH pore size distribution analysis. As shown in Fig. 6, these samples exhibit the type IV isotherms with H1 hysteresis loop at relative pressure (P/P₀) = 0.5-0.7, indicating their typical mesoporous structures. It is clearly found that the surface area and pore volume are significantly decreased from 145.7 m²/g, 0.59 cm³/g for ZnFe₂O₄@SBA-15, 80.2 m²/g, 0.42 cm³/g for ZnFe₂O₄@SBA-15-ILVO₃, respectively. The reduced surface area and pore volume may be due to the successful immobilization of ionic liquid on the support. Compared with the pure ZnFe₂O₄@SBA-15 support, the supported catalyst ZnFe₂O₄@SBA-15-ILVO₃ displayed no obvious change in terms of the pore size distribution (12.5 nm for ZnFe₂O₄@SBA-15, 12.8 nm for ZnFe₂O₄@SBA-15-ILVO₃). It is worth noting that after the loading of ionic liquid, the mesoporous structure of the catalyst can be well remained.

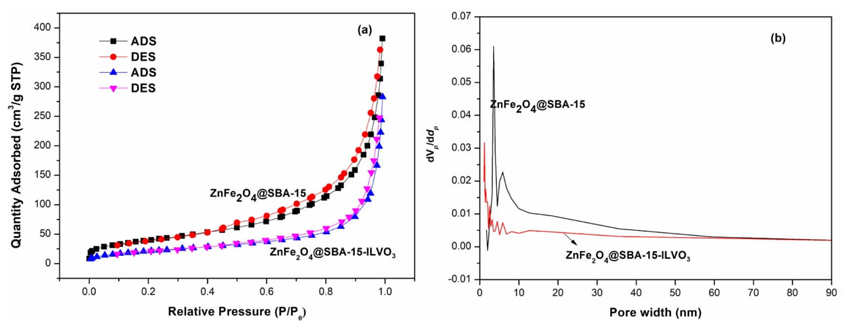

Fig. 6 (a) N2 adsorption-desorption isotherms and (b) pore size distributions of ZnFe2O4@SBA-15, and ZnFe2O4@SBA-15-ILVO3.

Initially, the catalytic performance of the magnetic supported ionic liquids was investigated employing the cycloaddition of CO₂ and propylene oxide with as the model reaction, and the results were summarized in Table 1. In a first set of experiments, the reaction was carried out in the presence of the three supported ionic liquids catalysts of ZnFe₂O₄@SBA-15-ILC₆H₇O₇, ZnFe₂O₄@SBA-15-ILC₅H₈NO₂ and ZnFe₂O₄@SBA-15-ILVO₃ (Table 1, entries 1-3). It was observed that ZnFe₂O₄@SBA-15-ILVO₃ achieved the best outcome, in terms of 98 % yield of propylene carbonate with 99.5 % selectivity (Table 1, entry 3). For comparison, bare magnetic support ZnFe₂O₄@SBA-15 or bulk ionic liquids as catalysts in the cycloaddition gave much low product yields (48~75 %) and selectivities (90.5~93.7 %) (Table 1, entries 4-7). Besides these, no product was obtained when the reaction in the absence any catalyst (Table 1, entry 8). The influence of the amount of suitable catalyst ZnFe₂O₄@SBA-15-ILVO₃ on the cycloaddition was also studied. It can be seen that the product yield increased with increasing the amount of catalyst from 0.05 g to 0.15 g (Table 1, entries 9, 10 and 3). No significant enhancement in the yield was observed with further increasing the catalyst amount to 0.3 g (Table 1, entries 11 and 12). Thus, the optimum catalyst amount was 0.15 g.

Then the influence of CO₂ pressure on the cycloaddition was also studied (Fig. 7(a)). It can be seen that the product yield and selectivity increased with increasing the CO₂ pressure from 0.2 MPa to 0.5 MPa. These results were related to the favorable diffusion between substrates and ZnFe₂O₄@SBA-15-ILVO₃ at the higher CO₂ pressures, resulting in more mass transfer and increasing the cycloaddition efficiency. No significant enhancement in the yield and selectivity was observed with further increasing the CO₂ pressure to 1.0 MPa. Excessive CO₂ pressure may reduce the concentration of propylene oxide, resulting in the slightly reduced product yield and selectivity. Thus, the optimum CO₂ pressure was 0.5 MPa. Moreover, reaction temperature was an important factor to affect the cycloaddition (Fig. 7(b)). It can be seen that the yield was increased in the reaction temperature up to 90 °C. Nevertheless, use of higher temperature beyond 90 °C would lead to a decreased yield and selectivity, which was due to the side reactions of isomerization and ring opening occurred at overly high temperatures (GC analysis). Accordingly, the appropriate temperature is 90 °C.

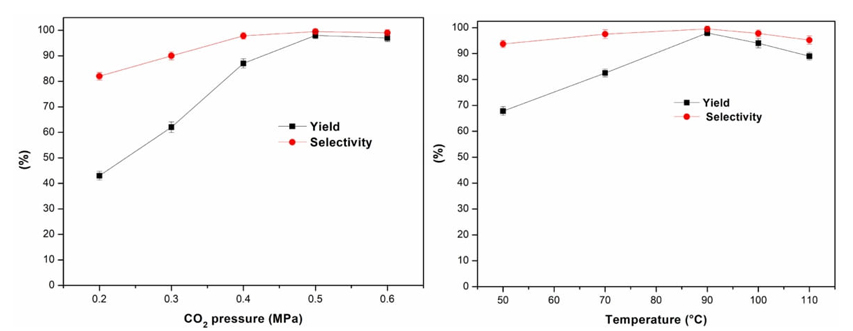

Fig. 7 (a) Influence of CO2 pressure on the cycloaddition (10 mmol propylene oxide, 0.15 g ZnFe2O4@SBA-15-ILVO3, 90 °C, 3 h), (b) influence of reaction temperature on the cycloaddition (10 mmol propylene oxide, 0.15 g ZnFe2O4@SBA-15-ILVO3, 0.5 MPa CO2, 3 h).

Furthermore, the thermal stability catalyst of ZnFe₂O₄@SBA-15-ILVO₃ was evaluated by thermogravimetric analysis (TGA) (Fig. 8(a)). The first weight loss of 5.4 % below 200 °C was attributed to the elimination of adsorbed water and solvent. The second weight loss of 20.06 % from 200 °C to 600 °C was due to the elimination and decomposition of the ionic liquid moieties. This analysis strongly confirmed that the catalyst possessed superior thermal stability (≤200 °C), which is beneficial to maintain its catalytic activity. Magnetic property of ZnFe₂O₄@SBA-15-ILVO₃ catalyst was evaluated by using a VSM curve (Fig. 8(b)). The catalyst exhibited a superparamagnetic property with magnetic saturation 12.6 emu/g, which can be easily separated from the reaction mixture via an external magnet. In order to further expand the practicability of the protocol, the reusability of the novel catalyst was then examined for the benchmark reaction under the optimal conditions (Fig. 8(c)). After completion of the reaction, the catalyst could be easily separated and collected from the reaction mixture with an external magnet, washed three times with CH₂Cl₂ and subjected to the next cycle. The catalyst could be reused five times for the reaction without considerable loss of catalytic activity, indicating that the catalyst had a good catalytic recyclability. In addition, the surface appearance features of the catalyst after five cycles is similar to that of the fresh one (SEM, Fig. 2(e)) and the structural features of the catalyst not changed after five cycles (FT-IR, Fig. 8(d)), which suggested that the magnetic catalyst has excellent product performance and stability.

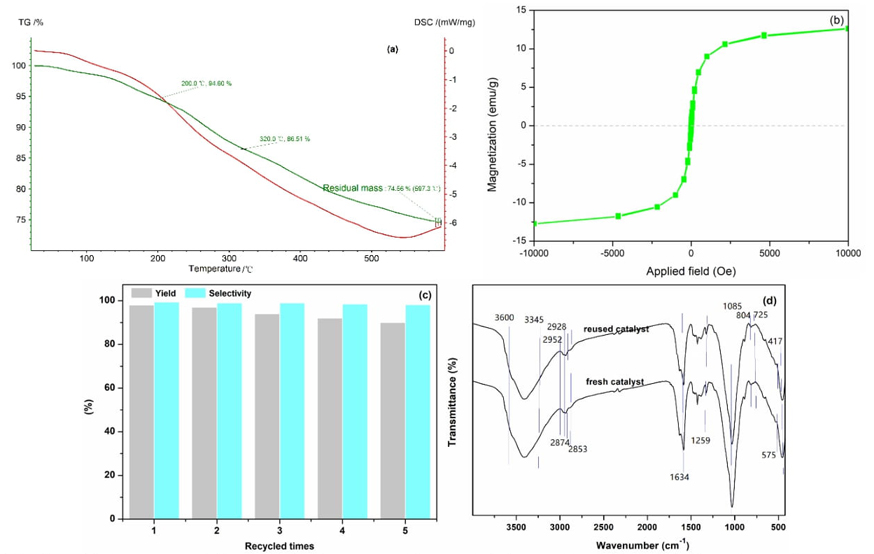

Fig. 8 (a) TG analysis, (b) magnetization curve, (c) recyclability study, and (d) FT-IR analysis of catalyst ZnFe2O4@SBA-15-ILVO3 after five times use.

To demonstrate the generality of this approach for the cycloaddition, a range of epoxides were then investigated (Table 2). The epoxides containing electron-donating or electron-withdrawing groups could be successfully converted into the corresponding cyclic carbonates in high to excellent yields (87~98 %) with excellent selectivities (98~99.7 %) under the optimal reaction conditions. Interestingly, 2-(chloromethyl)oxirane was the most reactive substrate and converted into 4-(chloromethyl)-1,3-dioxolan-2-one within 1.5 h (Table 2, entry 3). Furthermore, the carboxylation of 7-oxabicyclo[4.1.0]heptane required a long time of 4 h to obtain a high yield of 87 % (Table 2, entry 6), which may be due to the high steric hindrance during the reaction. These results indicated that the designed catalyst could be widely and efficiently used for the synthesis of cyclic carbonates through cycloaddition of CO₂ and epoxides.

Table 2 Catalytic synthesis of cyclic carbonates from epoxides and CO₂.^a

Entry	Epoxide	Product	Time (h)	Yield (%)b	Selectivity (%)c
1			3	91	99.3
2			3	98	99.5
3			1.5	98	99.7
4			3	95	99.2
5			3	96	99.3
6			4	87	98
7			3	92	99.1

^aReaction conditions: epoxide (10 mmol), CO₂ (0.5 MPa), ZnFe₂O₄@SBA-15-ILVO₃ (0.15 g), 90 °C. ^bIsolated yield. ^cGC analysis.

Based on the above experimental results and previous studies [¹⁵-²⁰, 29-31], a possible reaction pathway for the catalytic synthesis of cyclic carbonates from the cycloaddition of CO₂ with epoxides was proposed (Scheme 3). The catalyst ZnFe₂O₄@SBA-15-ILVO₃ provides a synergistic microenvironment, which could be more favorable to active CO₂ and epoxides. Initially, the substrate epoxide could be activated via the coordination interaction with the metal sites of ZnFe₂O₄@SBA-15 support to form an intermediate I, together with the adsorption and activation of CO₂ by the imidazolium cation to form carbonate species. Simultaneously, the VO₃ anion adds to the less sterically hindered C atom of epoxide via the nucleophilic attack for the formation of intermediate II. Next, there is nucleophilic interaction between the oxygen anion of intermediate II and CO₂, thus stimulates the formation of the intermediate acyclic carbonate III. Subsequently, intermediate III could be converted into the corresponding product via intramolecular nucleophilic substitution. The regeneration of the catalyst ZnFe₂O₄@SBA-15-ILVO₃ was used for the next cycle. The presence of intramolecular synergy of ternary active sites (metal sites of ZnFe₂O₄@SBA-15, VO₃ anion, and imidazolium cation) on the CO₂ cycloaddition significantly enhanced the activities of the catalyst in this reaction system. The combination of ionic liquid and magnetic zinc ferrites modified SBA-15 provides superior advantages in the separation of cyclic carbonates products, recovery, and reusability of catalyst via an external magnet under identical conditions.

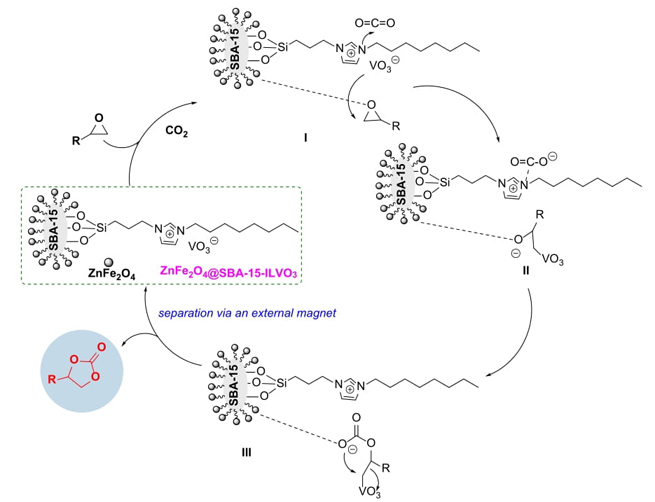

Scheme 3 Possible reaction pathway for the synthesis of cyclic carbonates.

Conclusions

In conclusion, a type of magnetic zinc ferrites modified SBA-15 supported ionic liquids were designed and synthesized and used as effective and heterogeneous catalysts for the synthesis of cyclic carbonates from epoxides and CO₂. The results showed that a range of epoxides with CO₂ employed in the presence of the catalyst ZnFe₂O₄@SBA-15-ILVO₃ leading to the corresponding products in high to excellent yields and excellent selectivities under mild conditions. Moreover, the catalyst could be easily recovered and reused for five times without a considerable decrease in catalytic activity. This procedure offers additional advantages in terms of ease work-up, feasibility, cleaner reaction profile, sustainable and stable recyclability of catalyst. This protocol provides a green and promising strategy for the synthesis of cyclic carbonates toward catalytic cycloaddition of CO₂ to epoxides.
