Introduction

The odontogenic keratocyst (OKC) is a developmental epithelial cyst arising from the remains of the dental lamina. The term OK was first used by Philipsen in 1953¹; although other authors mention that the term was first used in 1956². In 2005, it was classified by the World Health Organization (WHO) as a keratocystic odontogenic tumor (KOT). In 2017, KOT was again classified as a developmental odontogenic cyst³. And in the current classification, it continues to be considered as a cyst⁴. Compared with other cysts of the jaw, OKC is unique due to its distinctive clinical features, including potentially aggressive behavior, high recurrence rate, and an association with the nevoid basal cell carcinoma syndrome (NBCCS)⁵.

Approximately half of all keratocysts occur at the angle of the mandible and extend for varying distances into the ascending ramus and forward into the body^2,6. In many cases, patients are remarkably asymptomatic until the cysts reach a large size and involve the maxillary sinus, ascending ramus, condylar processes, and coronoids⁶. Symptoms related to pain, infection, or pathologic fracture may occur less frequently⁷. The most commonly used radiological imaging techniques in the study of OKCs are orthopantomography and computed tomography (CT)^8,9. OKCs may exhibit imaging features almost indistinguishable from other osteolytic lesions of the jaws; therefore, to obtain a definitive diagnosis, histopathologic examination is required⁹. Several treatment modalities have been reported, including marsupialization, decompression, enucleation with or without adjuvants, cryotherapy, and resection. Lesion recurrence rates vary according to the treatment modality chosen, with the lowest rate associated with surgical resection¹⁰.

Although most recurrences occur in the first 5 years, they can also occur after 10 years or even more¹¹. In large lesions, it is possible to perform decompression of the lesion by installing a cannula, for subsequent enucleation of the remaining OKC¹². As a driving factor of the fourth industrial revolution, 3D printing has had a global impact on healthcare, with 3D printed and patient-customized tools replacing outdated methods¹³. Virtual surgical planning and computer-aided fabrication of 3D printed devices provide the surgeon with multiple advantages¹⁴. When comparing traditional manufacturing methods with additive manufacturing and 3D printing, they stand out in their ability to manufacture complex structures faster and with high precision¹³. The materials currently used are mainly based on the use of naturally occurring polymers or synthetic molecules¹⁵. Biomed Clear^™ is a resin for ink light-curing 3D printing, with good physical and mechanical properties^15,16, this makes it able to remain for a long time in a biological environment and is biocompatible¹⁷.

Clinical case presentation

A 26-year-old female patient presented at the clinic of the School of Dentistry of the National School of Higher Education, Leon, UNAM, who reported a tumor in the mandible with approximately one year of evolution. In the extraoral physical examination, an increase in volume was observed in the right hemiface at the level of the middle and lower third of the face (Figure 1. A). In the intraoral examination, a lesion was observed expanding vestibular and lingual cortices; palpation was of indurated consistency, and no other systemic or important disease was found.

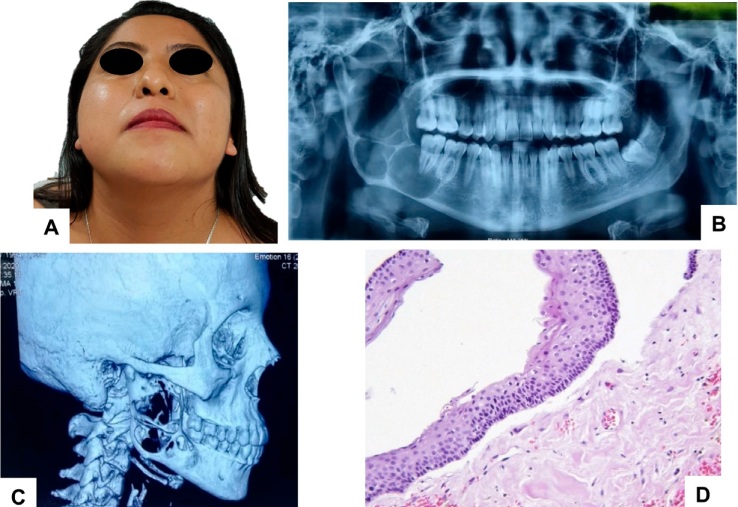

Figure 1 Initial photo. A. Antero-inferior view, volume increase in the right hemiface. Imaging studies. B. Orthopantomography shows multilocular areas at the level of the body, angle, and mandibular ascending branch. C. 3D reconstruction of computed tomography of the skull, showing osteolytic pattern with cortical expansion. D. Photomicrograph stained with hematoxylin and eosin at 100X, shows cystic cavity lined by parakeratinized stratified squamous epithelium with corrugated areas.

In the imaging studies, in the orthopantomography of the right side in the mandibular region, a multilocular radiolucent area was observed, from the first molar to the ascending branch, with well-defined and sclerotic borders. In the three-dimensional reconstruction of the simple cranial computed tomography, an image of the lytic aspect was observed, with fine septa in its interior of multilocular aspect with an expansion of bony cortices (Figure 1. B-C).

As a diagnostic impression OKC was suspected due to the location of the lesion, the multilocular radiolucency with well-defined borders, and the age of the patient. Conventional ameloblastoma and odontogenic myxoma were suspected as differential diagnoses. As part of the diagnostic protocol, an exploratory puncture was performed and the material was yellowish-white liquid, then an incisional biopsy of the lesion was performed, both at the same surgical time.

The histopathological study identified fragments of the capsule made up of lax fibrous tissue, which is mostly lined by stratified squamous epithelium of more or less uniform thickness of six to eight layers thick, with a parakeratinized wavy surface and a cuboidal to columnar basal layer that in multiple areas is detached from the capsule (Figure 1. D). The result of the histopathological study was: Odontogenic Keratocyst.

The design of the digital cannula was performed, first the DICOM format file of the patient’s CT scan was obtained, then in Blender software, the decompression cannula with a diameter of 0.5cm and a length of 2.5cm was designed, and then the 3D model was extracted in the form of STL data on the Formlabs Form 2^™ 3D printer (Formlabs Ohio Inc., Millbury, OH, USA). Medical grade resin with the trade name Biomed Clear™ (Product Code: FLBMCL01) from Formlabs (Formlabs Ohio Inc., Millbury, OH, USA) was used for the cannula impression (Figure 2).

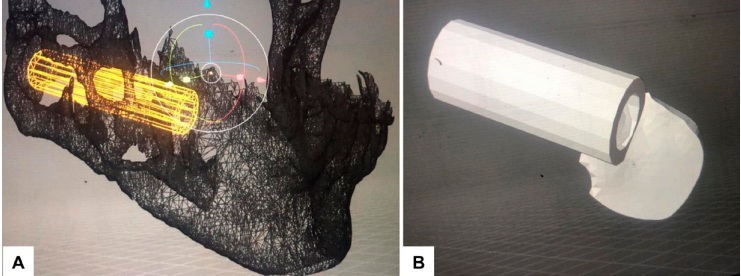

Figure 2 Virtual planning. A. Three-dimensional reconstruction of the mandible with custom-designed cannula. B. Cannula for keratocyst decompression

The treatment consisted of decompressing the cystic lesion with a custom-printed cannula for subsequent enucleation. An incision was made in the anterior border of the mandibular ramus and extended to the first molar, subsequently the second permanent molar was extracted, since it presented grade III dental mobility, due to bone loss. The cyst lumen was accessed and the 3D-printed cannula was placed and fixed with two 1.5 system screws to the remaining corticals. The lumen of the cannula was irrigated with 0.9% sodium chloride solution (NaCL) (Figure 3).

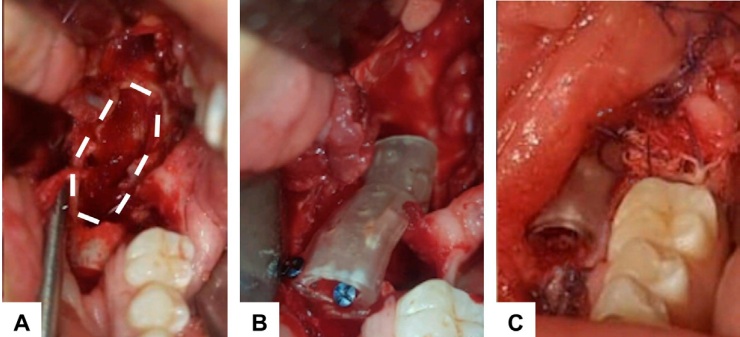

Figure 3 Transsurgical photographs. A. Lines show the limits of the cystic cavity. B. Cannula placement in the cyst lumen and screw fixation to the remaining bone cortex. C. Placement of 4.0 x 4.0 cm gauze embedded with 5-Fluorouracil

The patient attended follow-up appointments; in the control orthopantomograms at three months the lesion decreased in size (Figure 4. A), at nine months an increase in radiopacity was observed, with a residual radiolucent area in the mandibular body of less than three cm. At this time enucleation and curettage of the residual lesion plus peripheral ostectomy of one cm was performed, a gauze soaked with 5-fluorouracil solution was placed for 24 hours, then it was removed. It is important to mention that after decompression, a small radiolucent lesion was still observed at the level of the right coronoid process, which did not decrease in size, so coronoidectomy was also performed with a five mm margin in the same surgical time, thus eliminating the entire lesion (Figure 4. B). The final histopathological result of both samples was an odontogenic keratocyst. A control computed tomography was performed one year and eight months after the procedure, bone neoformation was observed in the mandibular body and ascending mandibular branch (Figure 4. C).

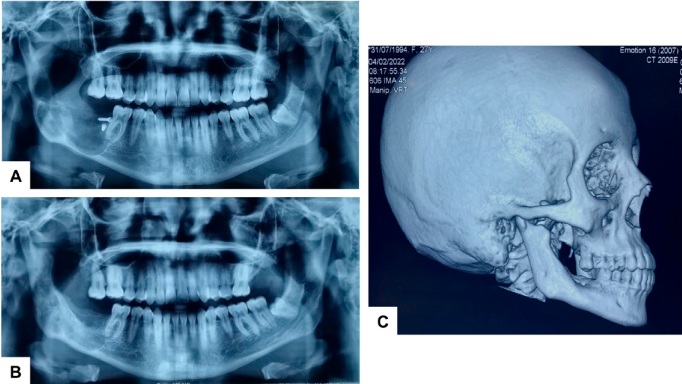

Figure 4 Control imaging studies. A. Orthopantomography at 3 months, lesion size decreases, and screws fixing the cannula to the bone are observed. B. Post-surgical orthopantomography at 9 months, there is increased radiopacity in the body, angle, and ascending mandibular branch. C. 3D reconstruction of skull computed tomography at one year and eight months, bone neoformation is observed with no data of relapse

Discussion

According to the World Health Organization (WHO) classification for odontogenic cysts and tumors, the OKC may represent a true cyst, but it is not a common cystic lesion. The lesion is distinct and requires special consideration because of its aggressive clinical behavior and high recurrence rate¹⁸. Although there is a predilection for men, in the case hereby presented it was a woman; it has been shown that when OKCs are associated with nevoid basal cell carcinoma syndrome (NBCCS) their ratio is 1:1, i.e. there is equal involvement for both men and women⁸. Regarding the age of the patient, it can be considered that she is within the age range most predisposed to present the lesion, which is between the second and third decade of life¹⁹, the patient was 26 years old. As for the location, it is generally located in the body and mandibular ramus, this location is the most frequently reported in the literature^18,19. The characteristics related to bucco-lingual expansion, disruption of the cortical bone, and presence of septa within the lesion, in addition to the multilocular pattern⁸, were confirmed with orthopantomography and computed tomography.

After confirming the diagnosis of OKC by histopathological result of the incisional biopsy, the treatment was performed in two surgical stages. The first stage consisted of decompression of the lesion using a custom-designed 3D-printed cannula and odontectomy of the second molar. Although technically marsupialization and decompression are different treatments, both aim to communicate the cyst lumen with the outside to reduce its pressure, induce a change in the cyst epithelium and thus decrease the size of the lesion, decompression followed by surgical enucleation is attributed as a first line of treatment of OKC^2,19.

The 3D-printed cannula was designed to be placed deep into the lesion without the risk of the lumen collapsing. Several devices have been used for decompression, including a bladder catheter fragment, Penrose tube, and intravenous or pediatric feeding catheters, all of which have shown favorable results for decompression^1,19. However, the 3D printed cannula has unique advantages in that its design is precise and customized for each patient, raw material costs are low and production speed is fast^16,17. However, it can be considered a disadvantage that not all surgeons are familiar with 3D technology. Biomaterials used for 3D printing can be natural or synthetic, such as polymers, as they have good physical and mechanical properties¹⁷. An example of this is Biomed Clear^™, it is a biocompatible resin used for applications requiring prolonged contact with skin and mucous membranes¹⁶. It is also compatible with hospital disinfection and sterilization methods. More generally, the integration of 3D printing into different facets of contemporary dentistry has enabled the production of complex surgical devices²⁰. Other important advantages include improved design software, marked cost reduction, and simplicity of production¹³.

The second molar associated with the lesion was removed due to its high degree of mobility, which conditioned a poor functional prognosis. Although there is no consensus as to whether the tooth involved in the odontogenic keratocyst should be extracted or preserved, there are studies that report that when the roots are in contact with the margins of the lesion and are preserved, they have a recurrence rate of 32.4% compared to those in which extraction is performed, whose recurrence is 3.6%²¹. Although these data are not conclusive as to whether or not the tooth involved in the lesion should be removed, they are important data to consider when making a decision.

In the second surgical stage, enucleation and curettage of the remaining cyst were performed along with peripheral ostectomy, plus the application of 5-fluorouracil as an adjuvant method. 5-fluorouracil is an antineoplastic drug that has been shown to induce apoptosis by inhibiting the Sonic Hedgehog (SHH) signaling pathway in the cells of the OKC²². In addition, it inhibits the enzyme thymidylate synthetase, essential for DNA synthesis; it is used as an adjuvant to enucleation, curettage, and peripheral ostectomy^23,24. However, its use has not been ruled out in the early stages of OKC, or those lesions of large size. There is no standard treatment protocol for OKC treatment; with a wide spectrum of modalities, treatment is chosen according to the clinical judgment of physicians on a patient-specific basis^23,25.

The coronoidectomy was also performed on the right side when it was observed that the lesion persisted in the coronoid process even after several months of treatment with decompression. In cases that do not respond to conservative management, i.e., when the size of the lesion does not regress after 6 months of decompression, these signs should be considered indicators of aggressiveness, therefore, such lesions should be treated by radical resection with margins of at least 5 mm from the radiographic edge of the lesion²⁶.

During the follow-up of this case, there was a notable clinical improvement of the patient as the lesion volume decreased. In the imaging studies, control orthopantomograms showed increased radiopacity at the site of the lesion, and the CT scan showed clear bone neoformation with no evidence of recurrence (Figure 4. B-C). This protocol has worked favorably in multiple reports, demonstrating the efficacy of decompression by decreasing the size of the lesion and minimizing damage to neighboring tissues, thus inducing bone neoformation progressively^7,19. Nevertheless, the high recurrence rate of odontogenic keratocyst should always be considered, so it is essential to follow it up periodically utilizing imaging tests^9,19.

Conclusions

Several treatment modalities are available for OKC. Clinical judgment plays a key role to choose the most appropriate one. It is important to consider the size of the lesion, growth rate, and degree of tissue invasion. Initial decompression with a customized 3D-printed cannula offers accuracy and precision in the initial treatment. In lesions refractory to conservative treatment, aggressive therapies should be used because of the high recurrence rate of OKC.
