Subducción de la placa Rivera bajo el bloque Jalisco visualizada a partir de datos magnetotelúricos

Fernando Corbo-Camargo¹*, Jorge Arturo Arzate-Flores², Román Álvarez-Béjar³, José Jorge Aranda-Gómez², and Vsevolod Yutsis⁴

¹ Posgrado en Ciencias de la Tierra, Centro de Geociencias, Universidad Nacional Autónoma de México, Blvd. Juriquilla no. 3001, C.P. 76230, Querétaro, México. * fercorbo@gmail.com

² Centro de Geociencias, Universidad Nacional Autónoma de México, Blvd. Juriquilla no. 3001, C.P. 76230, Querétaro, México.

³ Instituto de Investigaciones en Matemáticas Aplicadas y en Sistemas (IIMAS), Universidad Nacional Autónoma de México, Circuito Escolar, C.P. 04510, Ciudad Universitaria, México D.F., México.

Manuscript received: January 8, 2013
Corrected manuscript received: Mach 27, 2013
Manuscript accepted: April 6, 2013

ABSTRACT

Two magnetotelluric (MT) profiles perpendicular to the trench provide information on the subduction of the Rivera plate under the Jalisco block (JB). The geometry of the subducting slab is inferred by the anomalous conductor on the top of the profile in the central part of the JB. High conductivity zones (<50 ohm-m) at depths shallower than 10 km are associated to dewatering of the oceanic crust below the accretion prism in the SW of the profile. Away from the coast, observed upper crustal conductors (<10 km) are interpreted as partial melt related to the Central Jalisco volcanic lineament. The source of the crustal conductor in the central part of the MT profile, ~25-75 km inland and depths between 40 and 60 km, is interpreted as a region of interconnected fluids associated with the metamorphic dehydration of the oceanic plate. Contrasting resistivity in the mantle wedge at depths below 40 km suggests that hot mantle material may be migrating upwards, mixing with dehydration reaction products. Near Bahla de Banderas subduction appears steeper closer to the trench than toward the SW suggesting a twisted oceanic subducting slab beneath the continental crustal block. Our results support the mantle upwelling model as an explanation for the reported 1.5 km uplift of the central part of the JB and subsidence of the fore arc region, as well as a change in mantle properties at the NW edge of the JB, which is backed by seismic data.

Key words: magnetotelluric images, subducting slab, mantle upwelling, Jalisco block, Mexico.

Dos perfiles magnetotelúricos (MT) perpendiculares a la trinchera proporcionan información del proceso de subducción de la placa de Rivera debajo del bloque de Jalisco (BJ). A partir del conductor anómalo inclinado que se asocia a la interface activa se deducen rasgos de la geometría de la placa que subduce. Zonas de conductividad anómala (<50 ohm-m) a profundidades inferiores a los 10 km se asocian a la deshidratación de la corteza oceánica debajo del prisma de acreción en el SW del perfil. Lejos de la costa, los conductores observados a profundidades de la corteza superior (<10 km) se interpretan como zonas de fusión parcial relacionadas al lineamiento volcánico de Jalisco Central. La fuente de la zona conductora cortical en la parte central del perfil MT, aproximadamente 25 a 75 km dentro del continente y entre los 40 y 60 km de profundidad, se interpreta como una región de fluidos interconectados asociados con la deshidratación de la corteza oceánica por procesos de metamorfismo. El contraste de resistividades en la cuña del manto debajo de ~40 km sugiere la migración ascendente de material caliente del manto que se mezcla con productos de reacciones metamórficas de la placa oceánica. El proceso de subducción de la placa de Rivera ocurre a un ángulo más pronunciado y más cercano a la trinchera en la parte noroeste que hacia la parte sureste de la zona de subducción, lo que sugiere una placa oceánica flexionada hacia el NW debajo del bloque de corteza continental. Nuestros resultados apoyan un modelo de ascenso del manto en la parte centro oriental del BJ, que explica el levantamiento topográfico de más de 1.5 km y la subsidencia en la zona del ante-arco reportada, además de un cambio en las propiedades eléctricas del manto en la zona, que parecen variar rápidamente, como lo sugieren también los datos sísmicos.

Palabras clave: perfiles magnetolelúricos, placa en subducción, ascenso del manto, bloque Jalisco, México.

INTRODUCTION

The Jalisco block (JB) is a portion of the complex convergent plate boundary involving the subduction of the Rivera and Cocos oceanic plates beneath the North American continental crust. Its evolution includes rifting, batholith intrusion, early Cretaceous to Holocene volcanism, and active sedimentation (Taran et al., 2002). It is located between 19 and 21 degrees of latitude north, and 104 and 106 degrees of longitude west. The inland limits of the JB (Figure 1) are two rift systems, namely the Colima and the Tepic-Zacoalco extensional zones located east and north of the JB, respectively (Allan et al., 1991; Ferrari, 1995; Rosas-Elguera et al., 1996; Álvarez, 2002; Taran et al., 2002). The offshore limits are more ambiguous, although the Barra de Navidad fault (Figure 1a), and the submarine portion of the Manzanillo graben (Bourgois et al., 1988) have been proposed as part of these limits.

The JB can be divided into two domains based on the lithology of the exposed rocks. These are referred to as the southwestern and northeastern domains (Maillol et al., 1997; Álvarez et al., 2006). Outcrops in the southwestern domain are mainly Cretaceous to Paleocene calc-alkaline intrusive rocks (granite to tonalite, 100 to 60 Ma: Schaaf et al., 1995) and Cretaceous sedimentary and volcanosedi-mentary roof pendants (Figure 2). The Puerto Vallarta batholith is a high-silica granite with occasional white mica. Plagiogranites, gabbros, granites and granodiorites occur at the Manzanillo pluton. Late Triassic metasedimentary rocks and Middle Jurassic (~130 Ma) marine turbidites, outcropping in small areas, are similar to those found in the Guerrero and Alisitos terranes (Schaaf et al., 1995).

The northeastern domain is bounded by the Tepic-Zacoalco rift to the NE and the northern and central parts of the Colima rift to the SE (Figure 1). Most of the exposed rocks are volcanic and range in age from Cretaceous (114 Ma: Ferrari et al., 2000) to Pleistocene. Early Pliocene and Quaternary volcanoes form four volcanic fields: San Sebastian, Mascota, Los Volcanes-Atenguillo, and Ayutla (ellipses in Figure 2). A narrow zone connecting the southern ends of these fields form the NW-trending Central Jalisco volcanic lineament (CJVL). Isotopic ages for the CJVL obtained by Bandy et al. (2001) suggest younger volcanism towards the northwest of the JB. Composition of the volcanic rocks correspond to the three different magma series recognized in the Trans-Mexican Volcanic Belt: alkaline-potassic (lamprophyre), calc-alkaline, and intraplate alkaline (Gómez-Tuena et al., 2007). A remarkable feature of the JB is that most of the "true lamprophyres" analyzed in Mexico come from the CJVL and from the nearby Colima rift (Luhr et al., 2006). Lamprophyres are coeval with calc-alkaline volcanic rocks throughout the CJVL (Luhr et al., 2006; Righter and Rosas-Elguera, 2001). Within the JB, only the northern part of the Los Volcanes-Atenguillo volcanic field is formed by alkaline/high Nb intraplate-type volcanic rocks (Righter and Carmichael, 1992). Rock composition in the whole CJVL, in terms of silica content, ranges from ~48.5 wt% - 56 wt% and most rocks contain nepheline in the CIPW norm (Luhr, 1997). The magmatic diversity of western Mexico has been explained by invoking contributions of chemically different subduction agents as a function of slab depth and residual mineralogy: a low-pressure/temperature aqueous fluid would induce melting of the peridotitic mantle wedge and form typical calcalkaline volcanoes, whereas a deeper and hotter slab-derived melt (or supercritical liquid) would contribute to the formation of potassic magmas due to phengite/monazite/allanite breakdown. In this context, intraplate-like magmas derive from decompression melting of the upper mantle as a natural consequence of subduction geodynamics (Gómez-Tuena et. al., 2011).

The limit between the southwestern and northeastern domains coincides with a drainage divide located at the Cacoma and Manantlan ranges (Figure 2b). The Talpa and Mascota rivers flow northwestward until they reach the Valle de Banderas graben (Figure 1), where they turn towards the southwest (Figure 2b). The Armeria river drains the eastern half of the northeastern domain, and flows southeastward until it reaches the area located south of the Colima volcanic complex (Figure 2b). Clearly, the CJVL is located immediately northeast of a highland which runs parallel to the Pacific coast and the portion of the Middle America trench (MAT) between Bahia de Banderas and Manzanillo (Figure 2b).

Two of the most remarkable features of the JB are the belt of calc-alkaline batholiths exposed from Puerto Vallarta to the Colima rift, and the late Cretaceous (85-74 Ma) and Eocene (56-48 Ma) uplift of the southeastern domain of the block. Both phenomena are attributed to continental margin truncation caused by tectonic erosion during periods of high convergence rate, one at the beginning of the Eocene (54-50 Ma) and other that began at the early Oligocene (33 Ma) (Calmus et al., 1995). In addition, Durham et al. (1981) provided evidence of post-Miocene (<5 Ma) uplift (>0.06 mm/a) along the JB coast, based on geological and paleontological data, and Ramírez-Herrera et al. (2004) inferred an average uplift of 3 mm/a of the JB during the last 1300 years using radiocarbon dates of emergent paleoshorelines along the coast. Finally, a Neogene subsidence event has been reported by Mercier de Lépinay et al. (1997) in the offshore area off Manzanillo where the authors estimated an average subsidence rate of 0.35 mm/yr, which provides indirect proof of active tectonic uplift of the JB.

THE SUBDUCTION OF THE RIVERA AND COCOS PLATES

Subduction was continuous from Alaska to South America before the Middle Oligocene; in the Middle Miocene, the Baja California peninsula began separating from mainland Mexico (Atwater and Stock, 1998). A single plate subducting along a unique trench up to that time would be expected. However, such behavior was modified since the initial separation stages of the peninsula from mainland Mexico at ~14 Ma. At about that time the Magdalena microplate subducted under Baja California and the Jalisco block when they were still coupled together. At around 11 Ma the Rivera plate separated from the Cocos plate (DeMets and Traylen, 2000). The Pacific-Rivera spreading center initially extended as far south as the Clipperton fracture zone (Klitgord and Mammerickx, 1982), however, as the Mathematician ridge was abandoned the boundary between the plates was successively displaced northward, diminishing the original area of the Rivera plate. During the dynamic processes not only Baja California was rifted away, but the previously continuous trench was segmented and separated. Subduction along the peninsula ceased gradually, however, south of the JB the Cocos plate continued subducting.

Bandy et al. (1995) postulated that the limit between the Rivera and Cocos plates runs from El Gordo graben (EGG) and continues at depth along a line located east of the Colima rift (Figure 1). However, Garduño-Monroy et al. (1998) sustain that the SE limit of the JB is the Tamazula fault. On the other hand, recent seismic tomography (Yang et al., 2009) revealed that while there is no divergence at the trench between the motion of the two plates, there is a gap at depth between the two plates under the Colima rift. According to Yang et al. (2009), the gap may have caused a toroidal mantle flow favoring slab rollback and a steeper dip angle beneath the JB. The Rivera plate seismicity is not only lower than at the Cocos plate, but it is also shallower and ends in a seismic gap between latitudes of 19.5° and 20.5° (Nuñez-Cornú et al., 2002), which provides seismic evidences that the subducting slab shallows towards the NW. Another seismic study at the northern terminus of the MAT (Brown, 2007) shows that the oceanic crust underplates the continental crust north of Bahia de Banderas at depths of 30 km to its top, at a distance of 135 km from the trench.

MAGNETOTELLURIC SURVEY

Magnetotelluric (MT) surveys have been extensively used to probe plate convergent margins in many parts of the world. There are examples of the utility of the method to study physical processes beneath tectonically active zones. This is particularly true for the American continent along the eastern Pacific margin, for which a large number of MT studies with this purpose have been conducted (e.g., Kurtz et al., 1986, 1990; Waff et al., 1988; Wannamaker et al., 1989; Schwarz and Krüger, 1997; Arzate et al., 1995; Jording et al., 2000; Brasse et al., 2002; Jödicke et al., 2006; Soyer and Unsworth, 2006; Brasse et al, 2008). Subduction related anomalous conductors have been associated to the presence of fluids in the lower crust in this type of environment. Hyndman (1988) observed that interconnected, slightly saline (~0.5 -3%) water would be sufficient to reproduce the enhanced conductivities observed in the continental crust associated to the subduction of the oceanic lithosphere. The dehydration of the oceanic plate in terms of metamorphic reactions is presumed to occur on top of the slab at different T-P conditions and is invoked to explain the observed widespread enhanced conductivities associated to petrological differentiation or partial melting during subduction (Jödicke et al., 2006).

The magnetotelluric survey was conducted within the Jalisco Block; profile MT-1 extends from the SW coast of northern Jalisco across the boundary between the coastal region and the uplifted domain of the JB (Álvarez et al., 2006) reaching the NW-SE Tepic-Zacoalco rift zone; and profile MT-3 runs from the westernmost point of the JB, aligned with the Marieta island (Site 16) and along the western edge of the JB. Figures 1 and 2 show the location of the MT profiles, which are roughly perpendicular to the trench. The profiles comprise 25 stations with variable separation (~5 to 20 km), both starting at the shoreline and extending ~200 km in a N-NE direction. We acquired the data at each site registering continuously during periods of 22-24 hours using two MTU-2000 Phoenix magnetotelluric systems and measuring in the frequency range of 10² to 10^-3 Hz. The acquired time series of the measured electromagnetic (EM) fields (ex, ey, hx, hx, hz) were processed using standard fast fourier transform (FFT; e.g., Simpson and Bahr, 2005) and robust cascade decimation (Wight and Bostick, 1980) algorithms. The resulting impedances were then converted to resistivities and phase shift field curves that provided the basis of the resulting electrical model.

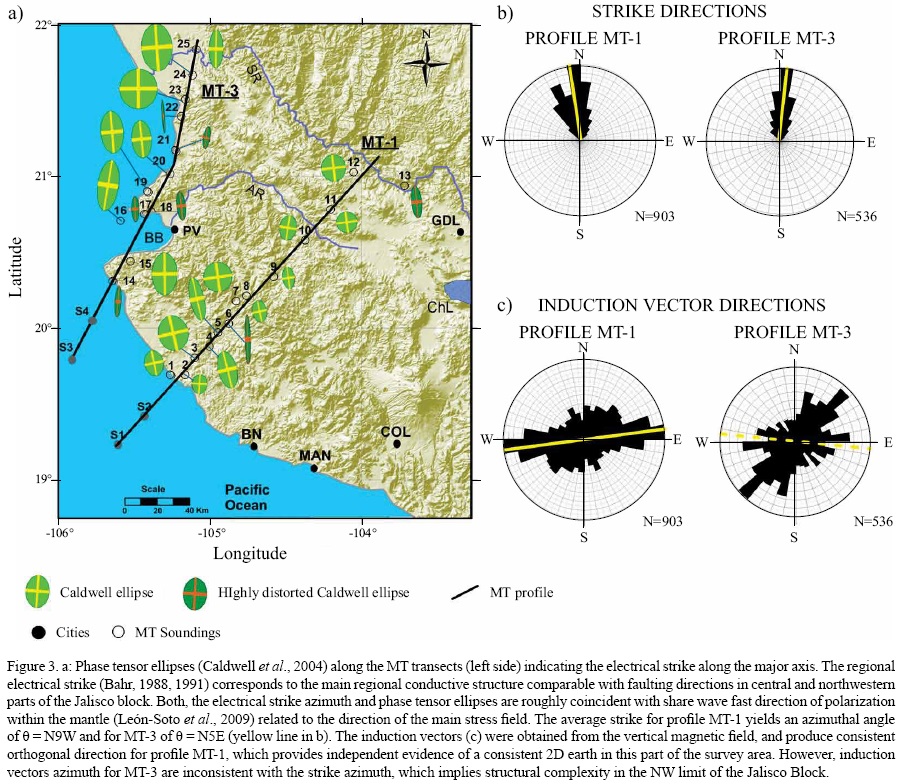

Induction vectors, geoelectric strike

2D INVERSION OF MT DATA

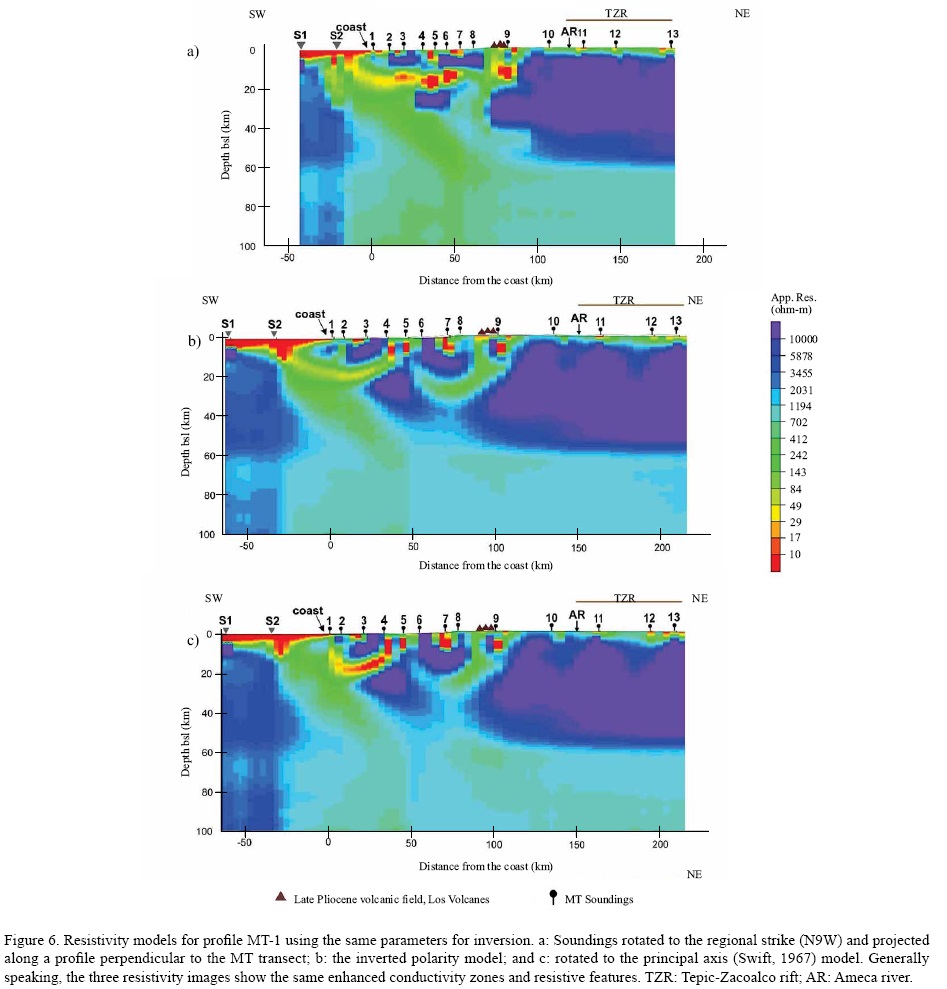

All sites of profile MT-1 were rotated to the regional strike (θ = N9W) and projected onto a profile line of azimuth N81E (dashed line in Figure 1) in order to meaningfully apply a 2D inversion algorithm. For the inversion of profile MT-3 we followed a similar strategy as for the MT-1; all sites were rotated to the corresponding regional electrical strike azimuth (θ = N5E) and a joint 2D inversion (transverse electric or TE, transverse magnetic or TM, and tipper) was performed using Rodi and Mackie (2001) inversion algorithm with same initial conditions: a 100 columns-50 rows mesh and 100 ohm-m half space model, as well as same error floors. The best sites average root mean square (RMS) misfit obtained for both MT-1 and MT-3 was below 4.7% after 65 minimum iterations. To take into account the sea effect we have included two offshore synthetic soundings in each inverted profile, namely S1, S2 for MT-1 and S3, S4 for MT-3. The oceanic layer thicknesses were taken from bathymetric data at the four locations, and the oceanic crustal thickness used was 7500 m for all synthetic sites. The water layer and slab resistivities were 0.2 ohm-m and 1000 ohm-m, respectively, which are accepted values for such media (e.g., Simpson and Bahr, 2005). The joint 2D inversion was carried out using a half space starting resistivity of 100 ohm-m, including the constrictions imposed by the fix synthetic resistivity structure offshore. We have done a number of test inversions varying the grid size, and always obtained the same main conductive features in the final models.

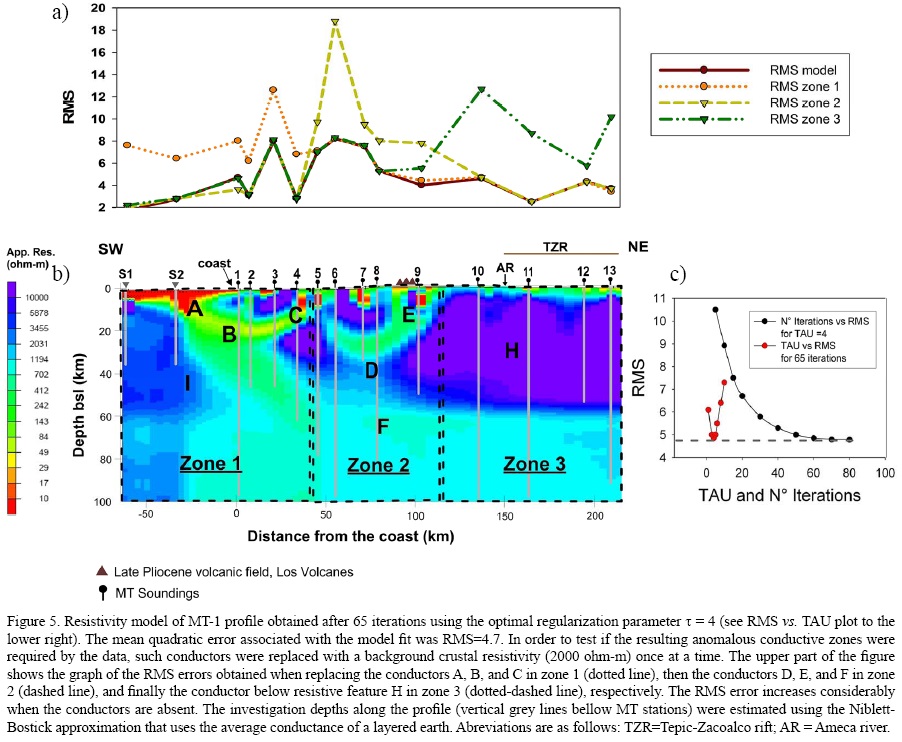

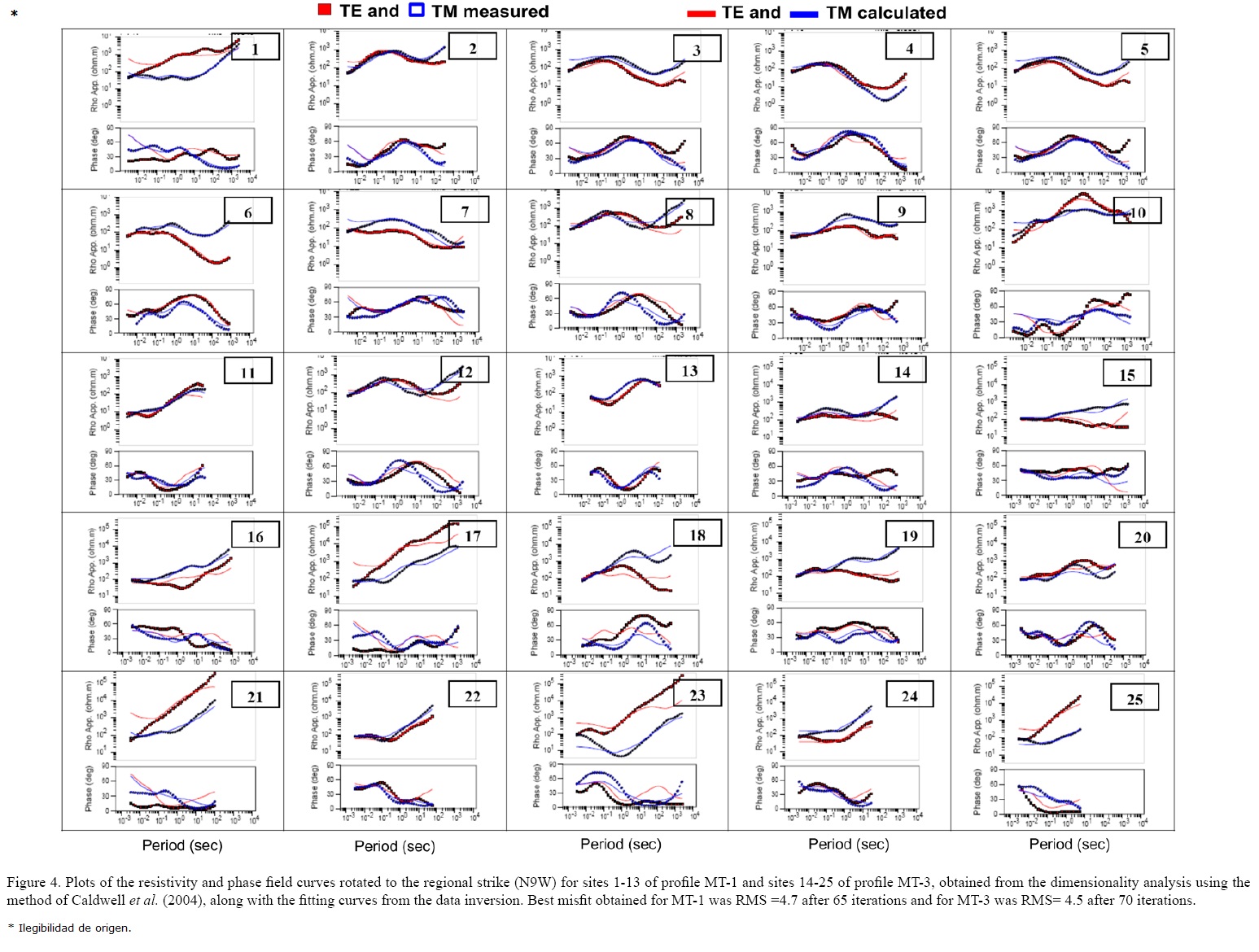

The fitting data strategy consisted in inverting the phases first by allocating large error floors to resistivities (>50%) and keeping low error floors for the phases (<5%). Subsequently, both error floors were kept low, 10% for resistivities and 5% or less for phases, until RMS average values for the sites were lower than 5%. Figure 4 shows the fitting curves for profile MT-1 with the best misfit (RMS= 4.7) obtained after 65 iterations. Static shift of data curves were minimum between sites and, when present, curves were corrected to resistivity levels of nearby sites. Applied corrections were generally smaller than one order of magnitude. We chose to minimize second derivatives using uniform Laplacian and a smoothing factor (τ) of 4. This value was determined through the optimization of the tradeoff between the RMS misfit and the smoothing of the models. The results for profile MT-1 are shown in Figure 5. In order to evaluate the influence of the conductors in the final result, the three main conductive zones were removed consecutively from the model. For each zone, a forward model was run replacing the respective conductor by a fixed background resistivity of 2000 ohm-m. This was done successively, first replacing the Zone 1 (conductors A, B and C), then the Zone 2 (conductors D, E and F), and finally the Zone 3 (conductor H). The RMS error increases considerably when the conductors are removed (Figure 5a) thus revealing that their presence is required by the data. The penetration depth of the EM signal was estimated at all MT sites by applying the Niblett-Bostick approximation that uses the average conductance for a layered earth (Niblett and Sayn-Wittgenstein, 1960; Bostick, 1977). Vertical grey lines in the resistivity section (Figure 5b) are the estimated depths of investigation obtained using the TE mode, which in general yields underestimated depth values with respect to those obtained using the TM mode of polarization (Jones, 1983). This suggests that penetration depths, which are in fact lower limits of investigation, are enough to probe the observed electrical conductivity structure down to depths of 60 km, and in some cases down to 80 km. For comparison, we also inverted the profile with the sites rotated to the principal axis (variable strike with frequency) using the same inversion parameters and mesh described above. The resistivity image obtained from the N9W rotated and projected model (a), the inverted polarity (b), and the rotated to the principal axis model (c) for profile MT-1 are shown in Figure 6. Observed differences between the principal axis and the regional strike models are mainly in the SW half of the profile, where most of the upper crustal anomalous conductors lie. However, all models show the same main general features, namely a resistive continental crust under the Tepic-Zacoalco Rift (TZR) about 40 km thick, a series of conducting bodies in the SW half of the profile at depths above 30 km, and a dipping moderate conductor (~100 ohm-m) associated to the top of the oceanic subducting Rivera plate that dips at the same angle, apparently independent of rotation.

DISCUSSION OF RESISTIVITY MODELS

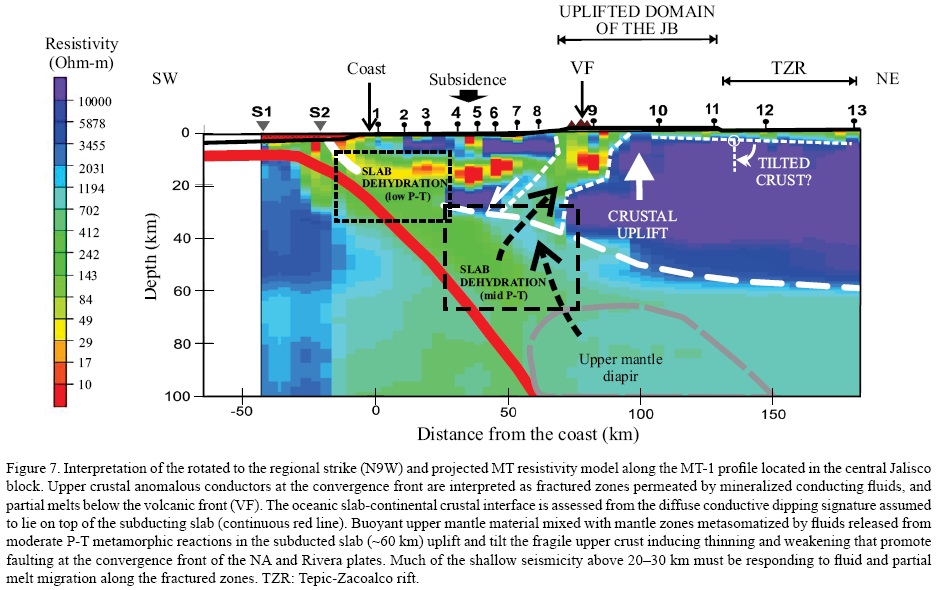

The interpretation of the projected and rotated to the regional strike resistivity model of profile MT-1 is presented in Figure 7, which in general shows a more conductive continental crust towards the trench. Conductive zones connecting with the surface can be associated to a combination of saturated fractures, upward fluid migration, and magma ascent feeding the volcanic front of central JB. The resistivity model depicts the subduction interface between the Rivera plate and the JB (red line), assumed to lie at the bottom of the elongated dipping conductor produced mainly by mineralized fluids. According to these results the altered crustal corner extents down to depths above ~30 km, within a distance of ~50 km onshore from the coast. In contrast to this broad conductive zone, the NE half of the profile model reveals a contrasting ~50-60 km thick resistive (>3 kOhm-m) continental crust overlain by a relatively thin (2-5 km) surface layer that associates with the conductive volcano-sedimentary infill of the Tepic-Zacoalco rift valley (TZR). The white dashed line in this section indicates the interpreted lower limit of the resistive continental crust that appears to be thinning towards the trench, where the continental crust seems intensely fractured, probably by a combination of subduction erosion and upwards migration of fluids.

The conductivity structure in the southwestern part of the profile obeys to fluids derived from low grade dehydration reactions mixed with saline fluids that permeated the rock matrix through micropores and fractures. Small percentages of interconnected saline fluids (1-5 %) have been shown to increase the electric conductivity by several orders of magnitude (Hyndman and Shearer, 1989), therefore the anomalous broad high conductivity zone (~10-50 Ohm-m) may be an indication of the electrical characteristics of the fluid as well as of the fracture pattern associated to the stress field at the active front. Although our lateral resolution is limited, the observed resistivity patches point out to a fragmented continental crust at the subduction corner. Overpressure at the bending plate and low grade metamorphic reactions that release fluids through the breakdown of hydrated minerals (e.g., smectites, micas and zeolites) at starting temperatures of ~150 °C (Peacock, 1990; Marquis and Hyndman, 1992; Rüpke et al., 2002) are thought to be responsible for the observed anomalous conductor; both crystal cleavage and interconnected fracture matrix are known to be efficient electric current promoters.

At depths between 40 and 60 km, and 25 to 75 km away the coast below the thinned crust, an extensive low resistivity (<100 Ohm-m) zone under the altered crust is interpreted as a mixture of metasomatic hydrous minerals and buoyant mantle materials above the unbended oceanic slab. Intense dewatering processes appear to occur in this depth interval by metamorphic reactions in the slab at intermediate P-T conditions. Jödicke et al. (2006) proposed that lawsonite-blueschist metamorphic reactions release considerable amounts of water at depths of ~40 km along the low angle subducting Cocos plate. Lawsonite breakdown alone is reported to have the potential to release 3.3 wt% water at ~450 °C and pressures above 1.6 GPa.

A remarkable feature of this region of the JB is the occurrence of lamprophyres along the volcanic front (Luhr et al., 2006). Within the JB, the northern part of the Los Volcanes-Atenguillo volcanic field is formed by alkaline intraplate-type volcanic rocks, whereas the volcanic fields along the CJVL are formed by calc-alkaline rocks and a roughly equal proportion of K2O-rich lamprophyric rocks (minettes, hornblende-lamprophyres, absarokites, and spes-sartites). Lamprophyres are igneous rocks characterized by the presence of hydrous minerales like phlogopite and/ or hornblende and the absence of plagioclase phenocrysts (Gómez-Tuena et al., 2011), which crystallize from K₂O-rich magmas with high water contents. Gómez-Tuena et al. (2011) interpreted that the compositional variability of magmatism in western Mexico is related to the addition to the mantle wedge of different subduction agents, presumably extracted from the slab at different metamorphic stages, leading to the formation of calc-alkaline and high-K2O volcanic rocks. The chemical character of the metamorphic minerals and fluids is similar to that recognized in arcs with a well-defined K₂O to slab depth (K-h) relationship, but the variations in the Rivera plate subduction zone occur in a margin that is much narrower than in other arcs because of the steeper subduction. Hydrous minerals in a mantle wedge metasomatized by subduction agents are more easily melted, and tapped to produce magmas with high water content that may ascend during extensional episodes through a weakened crust. In this scheme, the moderately conductive mantle plume drags hydrous minerals upwards from depths >80 km above the slab (Figure 7) into the melting zone. Also, intraplate-type magmas can originate by decompression melting related to diapiric upwelling of upper mantle material (Figure 7) negligibly modified by subduction agents. This evidence is consistent with the existence of a fragmented upper crust that allows the ascent of magmas and fluids. The dashed arrows in the resistivity images of Figure 7 indicate conductivity paths associated to migrating mineralized fluids and melts in the weakened crust. Besides, we postulate that the weakened crust and the buoyancy of upwelling hydrated mantle material induce uplift and consequent faulting of a sector of the Jalisco block.

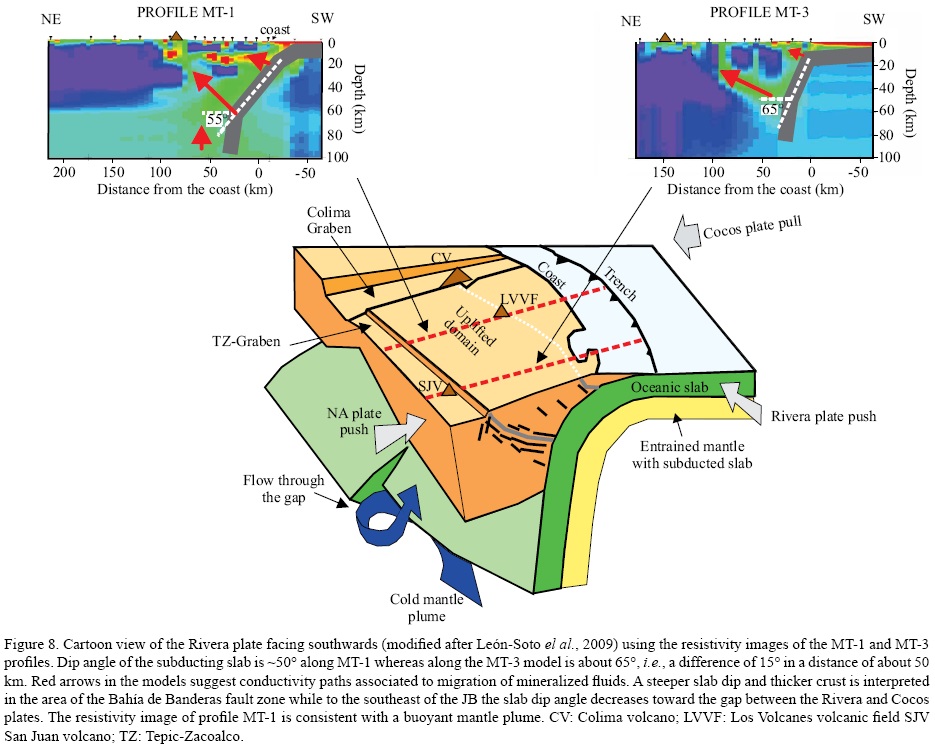

León-Soto et al. (2009) deduced that asthenospheric mantle material rises through a gap between the subducted Cocos and Rivera plates, inducing a toroidal flow in this area at a short distance from the trench. The infiltration of hot and buoyant asthenospheric mantle would have promoted slab steepening (Yang et al., 2009). These seismic derived models are consistent with the steeply subducting slab model of the MT-1 profile, where in addition an eroded and uplifted continental crust can be explained by the predicted mantle flow from the gap between the Rivera and Cocos slabs. The existence of mantle materials in the corner front of the subduction system is consistent with the relative abundance of mantle derived He in thermal waters (Taran et al., 2002) and magmas around the JB.

According to Kostoglodov and Bandy (1995) the maximum seismic length projected horizontally as well as the maximum depth of seismicity in the JB, both diminish westwards and wedge towards the Bahia de Banderas fault zone, suggesting that the subduction angle of the subducted Rivera plate varies rapidly along the JB, with increasing dip toward the northwest. This is supported by the conductivity images of the modeled profiles MT-1 and MT-3 regardless if we use principal axis or rotated to the strike models (Figure 8). The slab dip at ~60 km depth estimated from the model profile MT-1 is ~50° whereas that from model profile MT-3 is ~65°, a difference of 15° in a distance of about 50 km. Comparison of Yang et al. (2009) and Gorbatov and Fukao (2005) seismic tomographic P-wave velocity models confirm a steeper subduction towards the NW of the JB. Yang et al. (2009) tomography section A1-B1 is coincident with our resistivity image MT-1, however at crustal depths <60 km our model match better with the hypocenters of local seismicity than the P wave tomography model. The slab dip in the tomography model of Gorbatov and Fukao (2005) is similar to that in our MT-3 resistivity profile, which passes to the southwest of their transect C-C. Their velocity image along the segment coincident with our profile (nearly 200 km) is consistent with the results along the MT section in that both predict a steeper dip angle for the top of the oceanic crust at the NW corner of the Jalisco block. Results of numerical modeling by Cailleau and Oncken (2008) indicate that, regardless of the distribution of friction planes along the interface between the continental crust and oceanic subducting slab, there is at least one thrust fault rooting at the subduction interface and emerging toward the surface of the ground associated to volcanism. Their modeling also predicts subsidence in the fore arc zone always preceding uplift of the continental crust as is observed in the interpreted MT-1 section. The resistive continental crust may be as well tilted as suggested by our model results (Figure 7).

CONCLUSIONS

We have imaged the electrical conductivity distribution along two magnetotelluric transects, which provide insights into the Rivera Plate subducting geometry at depths above ~60 km at the northwestern corner of the Jalisco block. The enhanced conductivity zones along the two MT profiles unveil structural aspects at the convergence front of the Rivera and North American plates, which were previously unknown or only suspected. The orientations of the phase impedance polarization ellipses as well as independent determinations of the regional strike have nearly coincident directions with the convergence velocity field within the Rivera plate (Kostoglodov and Bandy, 1995) that describe its relative motion with respect to NA. Electric (strike and ellipses) and orthogonal magnetic field derived induction vectors are also consistent with trench normal, fast SKS directions associated to a two dimensional ~NNE mantle anisotropy in the central part of the JB (León-Soto et al., 2009); however, observed inconsistent induction vector directions at the NW end of the JB suggest a change in the electrical imprint of surrounding mantle, probably responding to a rapid change in the subduction regime.
