Optical, microstructural, functional and nanomechanical properties of Aloe vera gel/gellan gum edible films

Propiedades ópticas, microestructurales, funcionales y nanomecánicas de películas comestibles de gel de Aloe vera/goma gelano

J.S. Alvarado-González¹, J.J. Chanona-Pérez¹*, J. S. Welti-Chanes², G. Calderón-Domínguez¹, I. Arzate-Vázquez³, S. U. Pacheco-Alcalá⁴, V. Garibay-Febles⁴ and G. F. Gutiérrez-López¹

¹ Departamento de Ingeniería Bioquímica, Escuela Nacional de Ciencias Biológicas, Instituto Politécnico Nacional, Plan de Ayala y Carpió s/n, Col. Santo Tomás, C.P. 11340, México, D.F. *Corresponding author. E-mail: jorge_chanona@hotmail.com

³ Centro de Nanociencias y Micro y Nanotecnologías, Instituto Politécnico Nacional, Luis Enrique Erro s/n, Unidad Profesional Adolfo López Mateos, Col. Zacatenco, C.P. 07738, México, D.F.

⁴ Laboratorio de Microscopía de Ultra Alta Resolución, Instituto Mexicano del Petróleo, Eje Central Lázaro Cárdenas 152, Col. San Bartolo Atepehuacan, C.P. 07730, México

Received 30 of April 2012;
Accepted 25 of June 2012

Abstract

Edible films of Aloe vera gel (Al), gellan gum (Ge) and their blend (AlGe) were prepared by the casting method and dried in a conventional oven. Optical, microstructural, functional and nanomechanical properties were evaluated. The films elaborated had adequate optical properties to be used in foods; AlGe showed higher values of transpareney (6.5), total color difference (5.4) and extinction coefficient (0.052) than the Al and Ge; however, intermedíate gloss (34.4) and refractive index (1.53) values were obtained for AlGe, maybe promoted by chemical interactions between Aloe vera and gellan gum. Microscopy and image analysis techniques were used to evaluate the microstructure of pure and blend films; the interactions due to the crosslinked among the polysaccharides of the blend were elucidated by atomic force microscopy. Water sorption capacity (-0.42 %/min) and water vapor permeability (21.3 g-mm/d-m²-kPa) of AlGe were enhanced as compared to Al and Ge; besides the hardness (2.3 MPa) and elastic modulus (0.1 GPa) of the blend at nanometric level was reinforced with the gellan gum addition. The present research could be helpful to understand the blending effect on the property-structure-functionality relationships of edible films with potential use in food industry.

Keywords: edible films, Aloe vera, gellan gum.

Resumen

Se prepararon películas comestibles de gel de Aloe vera (Al), goma gelana (Ge) y su mezcla (AlGe), se utilizó el método de vaciado y se secaron en un horno convencional. Se evaluaron la propiedades ópticas, microestructurales, funcionales y nanomecánicas. Las películas elaboradas tuvieron propiedades ópticas adecuadas para su uso en alimentos; AlGe mostró altos valores de transparencia (6.5), diferencia total de color (5.4) y coeficiente de extinción (0.052) en comparación con la Al y Ge. Sin embargo, se obtuvieron valores intermedios de brillo (34.4) e índice de refracción (1.53) para AlGe; debido a las interacciones químicas entre Aloe vera y la goma gelano. Las técnicas de microscopía y el análisis de imágenes se usaron para evaluar la microestructura de películas puras y en mezcla; las interacciones debido al entrecruzamiento entre polisacáridos se elucidaron por medio del microscopio de fuerza atómica. La capacidad de absorción de agua (-0.42 %/min) y la permeabilidad al vapor de agua (21.3 g-mm/d-m²-kPa) de la AlGe se mejoraron con respecto a la Al y la Ge. Así como, a nivel nanométrico, la dureza (2.3 MPa) y el módulo elástico (0.1 GPa) de la mezcla se reforzó con la adición de goma gelano. La presente investigación podría ser de ayuda para entender el efecto del mezclado en las relaciones propiedad-estructura-funcionalidad de películas comestibles con potencial uso en la industria alimentaria.

Palabras clave: películas comestibles, Aloe vera, goma gelano.

1 Introduction

The global market of Aloe primary producís is valued around the 65 million dollars and more than 200 thousand million dollars in final producís, such as lotions, beverages and medical supplies (Pifia and Morales, 2010). Aloe gel is located in a zone between the abaxial and adaxial mesophile of Aloe vera plant. It is a viscous liquid inside the cells and organdíes of parenchyma tissue (Domínguez-Fernández et al., 2012). The gel contains 95.4% water and 4.6% of total solids, which 60 % of that total solids are mucilaginous polysaccharides, mainly glucomannan that is responsible of some functional properties of the Aloe such as cohesivity, swelling, water retention capacity, fat adsorption capacity, gelation capacity, among other (Rodríguez-González et al., 2012; Sittikijyothin et al, 2005).

Aloe gel is also used as an edible cover as it has been applied to fruits to retard color changes, weight loss and softening. In some cases Aloe gel allows to keep high levéis of total antioxidants and ascorbic acid in covered food producís (Castillo et al, 2010). Alternatively, the biopolymers are used to créate edible films that are applied as barriers to preserve and delay food deterioration. Recently researchers have been dedicated to créate edible films that improve the food properties such as color, texture, flavor and overall appearance (Abugoch et al, 2011; Bergo et al, 2010). However, Aloe gel films have high water permeability and some barrier lacks. Therefore, mixtures with some compounds (cellulose, gelatin, etc.) have been studied in order to improve water and gases diffusion of films (Saibuatong and Phisalaphong, 2010).

Gellan gum is also a well-known biopolymer for its functional characteristics such as high hardness and transparency, low water vapor permeability and smooth surfaces. Chemical structure of gellan is formed by repeated units of tetrasaccharides and the addition of very small quantities (around 0.5% w/v) to films enhances mechanical and barrier properties; mainly in presence of mannans where it creates a highly organized structure and compacted network of biopolymers (Miyoshi, 2007).

Furthermore, to design and créate functional edible films from pure components and blends, it is necessary to evaluate optical, physical, mechanical and microstructural properties in order to associate with the functionality and structure of edible films (Miranda et al, 2010). Thus, Mu et al. (2012), Zhang and Zhang (2012) and Porter and Felton (2010) describe a series of experimental techniques to determine physical, mechanical, adhesive, thermal and permeability properties on the edible films. On the other hand, the nanoindenter is a novel tool in the biological area, used usually in materials science to evaluate film-coated producís (Wei and Lin, 2005). Porter and Felton (2010) used a nanoindenler as an allernalive lo assess elastic modulus and hardness, the gloss determination using the glossmeter and the permeability by the cup method and concluded that those techniques allow the complete optimization and design of edible films.

2 Materials and methods

2.1 Procedure of films formation

Aloe vera gel (Aloe Jaumave SA de CV, México) with 3.3 % total solids content, as measured by refractometric method at 20° C (Abbe refactometer, Ermal optical Works, Japan), and gellan gum powder (catalog number: G1910) were used to made the edible films. Gellan gum was selected as support component to prepared edible films due to improvement of optical, barrier and mechanical properties (Tapia et al, 2008; Lau et al, 2001), such as transparency, water vapor permeability and high tensile strength (Tang, 1998; Pranoto et al, 2007; Lee et al, 2004). Glycerol (catalog number: G9012) was employed as plasticizer to obtain freestanding Aloe vera and blend films.

Gellan gum and glycerol were analytic grade and were provided by Sigma-Aldrich (USA).

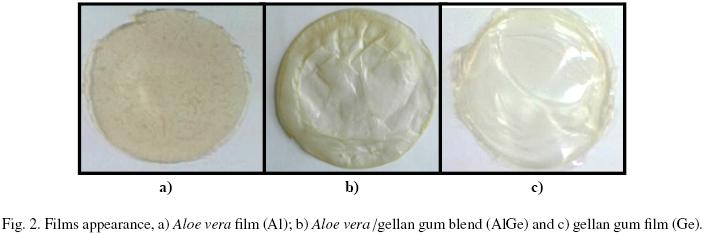

Aloe vera solution were heated at 60 °C and then added with 1% v/v of glycerol while agitating with a magnetic stirrer (Barnstead International, USA) for 15 minutes. Gellan gum solution (0.5% w/v) was prepared with distilled water preheated at 90 °C, without glycerol and stirred until total homogenization (30 minutes) with the same magnetic stirrer aforementioned. Blend solution was formed by a mixture of Aloe vera and gellan gum solutions at a volume ratio of 1:1 and stirred for 25 minutes. Films formulation were chosen based on several reports about elaboration of edible films (Banerjee and Bhattacharya, 2011; Carneiro-da-Cunha et al., 2010; Chen et al, 2010; Lau et al, 2001, Lee et al, 2004) and the volume ratio of blend films was selected in order to evaluate a formulation with a similar proportion of components. In contrast with Aloe films, the gellan films could be obtained without glycerol addition, because they were freestanding films and easily removable from container where these films were formed. Fifteen grams of edible films solutions were poured into glass Petri dishes of 60 x 15 mm (Pyrex, USA) and for film formation the solutions were dried in an oven (Shel Lab GI6, USA) at 60 °C until constant weight, according by Ramachandra and Srinivasa Rao, (2008). After drying, the formed films were placed in an automatic desiccator (Bel-Art Producís 420721115, USA) at ambient temperature and 15% relative humidity (RH) which according to Ramachandra and Srivinasa (2009) is the RH value appropriate for moisture homogenization of film samples; after 24 hours the samples were removed from the desiccator and then analyzed. Thus, three films were prepared and named as follow, Al (Aloe vera film), Ge (gellan gum film) and the blend of AlGe (Aloe vera/gellan gum film).

2.2 Optical properties

2.2.1. Transparency

Film transparency was estimated by using modified ASTM D1746-97 (ASTM, 2000c) method and according the procedure reported by Nadarajah (2005) with a spectrophotometer (Genesys 10-S, Thermo Fischer Scientific, USA). Film samples were cut into rectangular shapes and placed on the interior of the spectrophotometer cell. Transparency was calculated with the equation proposed by Hans and Floros (1997):

where A₆₀₀ is the absorbance at 600 nm and b is the thickness of the film (nm). Thickness was measured with an automatic micrometer (Fowler, IP54, China) with 0.2 μm of accuracy.

2.2.2. Color

Color parameters in CIELab color space were directly estimated with CR-400 colorimeter (Konica-Minolta, Sensing Inc, USA) with D65 light source, 0º and aperture diameter of 8 mm. Films samples (50 mm x 25 mm) were placed on a white standard píate (white calibration standard píate 19633130) and read to obtain the spectra data. Total color difference (ΔE) was calculated with the equation described by Monedero et al. (2008):

where ΔL* = L* - L*₀, Δa* = a* - a*₀, Δb* = b* - b*₀, being L*₀, a*₀, b*₀ the color parameter values of white standard píate and U, a*, b* the color parameter values of the film samples.

2.2.3. Refractive índex and extinction coefficient

An ellipsometer (UVISEL LT M200 AGMS, Yvon Horiba, France) was used to determined the refractive index (n) and extinction coefficient (k) of edible films according to the method reported by Murray and Dutcher (2006) and Nosal et al. (2005). The spectral range applied was 450 nm to 650 nm with an angle of incidence of 70° in three different areas selected randomly.

2.2.4. Gloss

The gloss parameter of the edible films was measured with a glossmeter (MG268-F2, KSJ, China) according the norm ASTM D523 (1999) and the method described by Villalobos et al. (2005). The films were cut (75 mm x 25 mm) and placed onto the black glass standard (Serial number F21010611) and read directly on the film surface at different incidence angles (20°, 60° and 85°). Results were expressed as gloss units (GU) referring to the black glass standard with a value approximately of 100 gloss units.

2.3.1. Light microscopy (LM) and image analysis

The microstructure surfaces of the edible films were visualized in a light microscope (Nikon Eclipse 50i, Japan). Film cuts of 2.5x2.5 cm were placed on a microscope slide and observed at lOx magnification at five different zones randomly. Images were captured with a CCD camera (Nikon DS-2Mv, Japan) and saved in RGB color and TIFF format by using the Nis Elements software (F2.30, Nikon, Japan). The acquisition conditions of images were always the same for all samples (exposure time: 1/1000 s, gain of 1.0 and contrast in enhanced mode).

Texture image analysis was applied to quantitatively characterize the surface microstructure of edible films. The image texture is a characteristic representing the spatial arrangement of the gray levéis of pixels of the image (Arzate-Vázquez et al, 2012). In this work two texture features were selected as parameters of study (Homogeneity: Hm and Entropy: En). Homogeneity, also called inverse difference moment is a measure of the local homogeneity of the image, higher values can be associated to smooth surfaces. Entropy measures the disorder or randomness of images, and can be used to characterize the image texture. It is an indication of the complexity within an image, so the more complex images, the higher entropy values. Thus, the images obtained from light microscopy were converted from RBG color to gray-scale images; subsequently, Gray Level Co-Ocurrence Matrix (GLCM) algorithms were applied to obtain texture features from gray scale images (Haralick et al, 1973). According to Haralick et al. (1973), with the GLCM algorithm is possible to calcúlate fourteen texture parameters. However, we only considered useful: homogeneity and entropy as the other parameters could be redundant as reported recently (Mendoza et al, 2007; Meraz-Torres et al, 2011; Arzate-Vázquez et al, 2012). The whole image analysis methodology was carried out using the software ImageJ v 1.34s (National Institutes Health, Bethesda, MD, USA). Thus, entropy measures the disorder or randomness of gray scale images and homogeneity is the measure of local variations of gray level values of images pixels (Yang et al, 2000; Arzate-Vázquez et al, 2012).

2.3.2. Environmental scanning electronic microscopy (ESEM)

ESEM system (XL 30, Philips, USA) was employed to visualize the overall morphology of film surfaces. This microscopy allows the essays of wet biological materials without previous preparation (Arzate-Vázquez et al, 2012). Thus, films of 4 mm x 4 mm were fixed on the sample holder with double-sided carbón tape, without metallic conductive cover, and observed under ESEM system. Micrographs were captured at 300x magnification in gray-scale using a voltage of 25 kV and finally stored at TIFF format in similar conditions reported by Quintanilla-Carvajal et al. (2011).

2.3.3. Atomic force microscopy (AFM)

AFM allows the analysis of the surface topography at nanometric levéis and makes possible the creation of 3D models showing in minor detail the microstructure of the sample such as interaction and arrangement of polymeric components. AFM (Multimode IV NanoScope, Veeco, USA) in tapping mode were applied to the films using SiN₄ tip (Yang et al, 2007). Scanning area was 1 μm x 1 μm and the micrographs were analyzed for surface roughness (Ra) with the software NanoScope v 7.30 (Veeco, USA). Ra values and 3D surfaces were obtained from the height images.

2.4 Functional properties

2.4.1. Water sorption capacity

where, W_S is the weight of the swollen film after 30 minutes and W_D is the weight of the dried film.

2.4.2 Water vapor permeability

Water vapor permeability (WVP) was obtained from a variant of the ASTM, E 96-80 (1989) gravimetric method (permeability cup). The experimental units employed in this determination were reproduced with some modifications from the method proposed by Bosquez-Molina et al. (2003). These authors defined the WVP in terms of the differences of the specific partial pressure and relative humidity of the saturated solutions, the stagnant air, the measures of height and wide of the desiccator and as well as permeability cups dimensions.

Metallic permeability cups (MPC) were used to determine the WVP edible films. The MPC (13-338, Fisher/Payne, USA) height ranks of 1.2 cm and cross section area of 10.5 cm². A desiccator with fíat top and a total height of 16 cm and diameter of 25.2 cm was used in the experiments. The distance between the MPC and the fíat top of the desiccator was 11.3 cm.

A saturated KNO₃ solution with a relative humidity of 93 % was used as the inner solution of the MPC and a NaCl solution with relative humidity of 75 % was poured in the lower part of the desiccator. The MPC was filled with the KNO₃ solution until reaching 0.6 cm of the vessel height and an edible film with a known weight was mounted on the upper side of the MPC. Once the edible film was set up, the MPC-sample system was weighed and put into the desiccator. The MPC-sample system was weighed every hour until reaching constant weight. The water vapor transmission rate (WVTR) was the first data acquired, a regression analysis were performed in terms of the modified formula reported by Wang et al. (2011):

where in Eq. (1) is water vapor transmission rate, W_S is the weight loss of the sample, t represents the treatment time and a is the cross section area exposed of the film.

Once the WVTR was calculated, the WVP was corrected by means of the methodologies reported by Gennadios et al. (1994) and Bosquez-Molina et al. (2003):

where in Eq. (2) WVTRc and WVTR_M are the corrected and measured water vapor transmission rate, respectively. In Eqs. (3) and (4) WVP_C and WVP_M are the corrected and measured water vapor permeability, respectively. While, P_KNO3 and P_NaCl are the partial pressures of the saturated solutions; P_Over and P_Under are the partial pressures of the films on the surface and underside the film, respectively and x is the film thickness. The partial pressures P_KNO3, P_NaCl, P_Over and P_Under were calculated with the geometrical data of the experimental unit correlating the distance of the MPC and the desiccator to the solutions of KNO₃ and NaCl according by Bosquez-Molina et al. (2003). The error percentage (% Error) was evaluated by using Eq. (5).

2.5 Nanomechanical properties

Nanomechanical properties were characterized as Carneiro-da-Cunha et al., (2010) using a nanoindenter (Nanoindentation Tester NHT, CSM Instruments, Switzerland) which contains a Berkovich diamond tip to penétrate the sample and genérate load-depth curves as is plotted in Fig. 1. The shape of the Berkovich indenter tip is a three-sided pyramid (Fig. 1). Oliver-Pharr method was used for calculated the nanomechanical properties (Fischer-Cripps, 2006). Sections of films were cut and mounted with glue on cover slips.

Test variables used were: máximum load of 2.5 mN, loading and unloading rate of 7.5 mN/min and pause of 35 seconds. Before testing, the instrument was calibrated with a fused silica calibration standard.

Hardness (Hd) and elastic modulus (Em) values were obtained from acquired load-depth curves based on the geometric of the Berkovich indenter mark (Fig. 1). The following equations were used to obtain those nanomechanical parameters:

where in Eq. (6); F is the force, h is the depth, h_p is the plástic depth and K and m are constants. The Eq. (7) describes the contact depth h_c, in terms of the depth h_s calculated from the intercept of the depth axis by the tangent line to the unloading curve and the e constant value of 0.25 for Berkovich and Vickers indenters (Lucca et al, 2010). And finally, Eq. (8) were used to calculate "A_p" that refers to the projected area of contact of the indenter estimated in h_c, where the C₀,..., C₈ are the machine compliance values in eight consecutive indentations upon a quartz piece of reference.

When the variables in Eqs. (6), (7) and (8) are calculated, the hardness and the elastic modulus can finally be estimated with the Krumova et al. (2002) and Oliver and Pharr (2004) equations. For the hardness:

Where in Eq. (9) Hd is the hardness, F_max the máximum test force and A_p is described in Eq. (8). The elastic modulus is given by the two successive equations:

where E_r is the reduced modulus, S is the initial unloading stiffness in the load-depth curve and A_pfrom the Eq. (8). When Eq. (10) is solved, the Em is finally estimated with the Eq. (11) where Em is the elastic modulus, v is the Poisson's ratio for polymeric samples estimated in 0.35 (Krumova et al, 2002) and v_i and E_i are the Poisson's ratio of 0.07 and elastic modulus of 1141 GPa of the indenter (Lavorgna et al., 2010), respectively. All calculus, hardness and elastic modulus were estimated by means of the nanoindenter software.

2.6 Statistical analysis

All the parameters were expressed as the mean value and its corresponding standard deviation. Three replicates were used in all experiments. One-way Analysis of Variance (one-way ANOVA) was applied to compare statistically the data; followed by a Tukey múltiple comparison test (Montgomery, 1991) with software SigmaStat 3.5. Significant differences were considered when P < 0.05. The plots were generated using the SigmaPlot software versión 10.0.

3.1 Optical properties

In Table 1, values of transpareney (Tp) at 600 nm of the films are shown. It is noticeable that, when films were opaque Tp values increased. Ge sample resulted the most transparent film (4.1) followed by Al (4.9) and AlGe (6.5). The AlGe had a higher transpareney value, than the one for hydroxylpropyl methyl cellulose blend films (Tp values of around 2) as reported by Jutaporn et al, (2011). According with Mu et al, (2012) the addition of dialdehyde carboxymethyl cellulose in gelatin edible films decrease the transpareney, this fact may be due to crosslinking of relatively long polysaccharides in the structure of films. In Fig. 2, a photograph of the three films is shown and by visual inspection is noticeable that Al presented an appearance more opaque and heterogonous than AlGe and Ge, while Ge was the most transparent and homogenous film in comparison with the other films and intermediate characteristics of transpareney and homogeneity are also observed in AlGe.

Tp results showed a similar tendency to ΔE values (Table 1). ΔE values of Al and Ge oscillated from 4.3 to 4.6 and it was not observed significant differences (P > 0.05). Previous works reported ΔE values close to 4.9 for Aloe gel layer dried with hot air (Femenia et al., 2003). In the case of AlGe, the ΔE value increased in comparison with Al and Ge, even though the ΔE value of AlGe corresponded to colorless films according with the ΔE values reported by Maria et al., (2008) for blends of gelatin and five different types of polyvinyl alcohol. This change can be associated to hydrogen bonds between the polysaccharides of blend (Alves et al., 2011).

Moreover, the Tp and ΔE values also can be related with the extinction coefficient (k), while k depends directly on the light absorption, consequently k could be correlated with the opacity. Thus, higher fe values can be associated to high film opacity (Jung and Kim, 2008). The Fig. 3 shows the k-wavelength plot, where the fe values for Ge remain invariants (from 0.037 to 0.036) trough spectrum range studied and the lowest values of k compared with the other films indicates the lowest value of opacity (Banerjee et al., 2011). Al was more opaque (from 0.041 to 0.045) than the Ge and consequently the fe values increased, while AlGe was the most opaque film (from 0.047 to 0.052). These results suggest that the chemical interactions between gellan gum and Aloe vera could influence the optical properties in the blend film (Banerjee and Bhattacharya, 2011; Lau et al., 2001).

Henee, Tp, ΔE, and k can be associated with the transmission and absorption of light; for this reason the AlGe showed a high opacity in comparison with Ge and Al. Thus, the high opacity of AlGe could be attributed to a major crosslinking between the mannans of Aloe vera and the tetrasaccharides units of gellan gum (Miyoshi, 2007).

In the case of the gloss measurements (Fig. 5), the tendeney was similar to the n values obtained. The glossiest film was the one elaborated with Ge, with very high values at all angles, especially at 60° (124 GU); this value was comparable to those obtained with films prepared with whey protein isolates, as they can reach 144 GU at 20° of light incidence (Lee et al, 2008). Gloss results depends on the illumination incidence angle, having been observed that médium values of gloss are effectively evaluated at 45°, while lower gloss values are better assessed when using higher angle values. This has been attributed to the enhancement of specular reflection when the incidence angle increases (Fabra et al., 2011), for this reason is necessary to evaluate the gloss at different angles. Therefore, the Al and AlGe did not show significant difference (P > 0.05) in gloss at 20° and 85° however at 60° is clear the separation of gloss values for films. As a result at 60°, the glossiest film was the one prepared with AlGe (34.4 GU) in comparison with Al (24.9 GU), where the gloss is improved in AlGe when the gum is added (Ward and Nussinovitch, 1997).

In overall, the optical properties (transpareney, color, n, k and gloss) determined in the films, can be associated with their polymeric structure and chemical composition of the biopolymer used. For instance gellan gum have a alignment structure in long chains of tetrasaccharides that provide structural support and homogeneity to the films, while the mannans oí Aloe vera provide a heterogonous and amorphous structure to the films. In the blend films these properties are combined and middle optical properties were observed in blend films; chemical interaction as hydrogen bonds and aldol condensation between carbonyl of the acetyl groups of mannans and carboxyl groups of tetrasaccharides could oceur, promoted by blending and drying process. Thus, gellan gum provides transpareney, gloss and structural support, while Aloe vera confers opacity, color and an amorphous structure to films when these components are blended.

Consequently, light properties as transmission (fe) and refraction (n) also was modified by structural and chemical interaction between the biopolymers used for elaboration of films.

3.2 Microscopy studies and image analysis

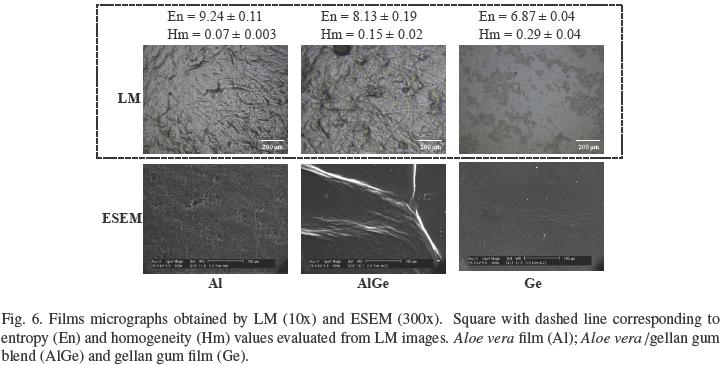

Fig. 6 shows LM and ESEM images of the films microstructure. In overall, Al presented the roughest structure followed by AlGe and Ge. In LM, the Al film showed rough surfaces associated to parts of cellular fibers, wall cell and cytoplasm (Domínguez-Fernández et al, 2012). While Ge presented the smoothest surface and homogenous microstructure, that can be attributed to the ordered arrangement of the tetrasaccharides in its polymeric chains (Dentini et al, 2001). AlGe showed a less rough surface than Al due to a minor content of cellular elements and also for the combination of the polymeric compounds of Al and Ge. To evaluate surface microstructure of the films image texture analysis provides parameters to measure homogeneity and disorder or complexity of images (Yang et al., 2000). Fig 6 shows the values of entropy (En) and homogeneity (Hm) for the LM images, these parameters expréss quantitatively the topography characteristics of the films micrographs. Consequently, Hm parameter indicates that Ge has the highest homogeneity (0.29), and the lowest entropy (6.87). With regard to Al, the En was high (9.24) in comparison with the other films, therefore the film is more heterogeneous with a Hm value of 0.07. While, AlGe showed intermedíate values of En (8.13) and Hm (0.15), that can be attributed to the combination of the organized structure of gellan gum and amorphous arrangement of Aloe vera, which yields structuring in the AlGe. A previous work showed that the En and Hm were similar to chitosan, alginate and blend films (Arzate-Vázquez et al, 2012).

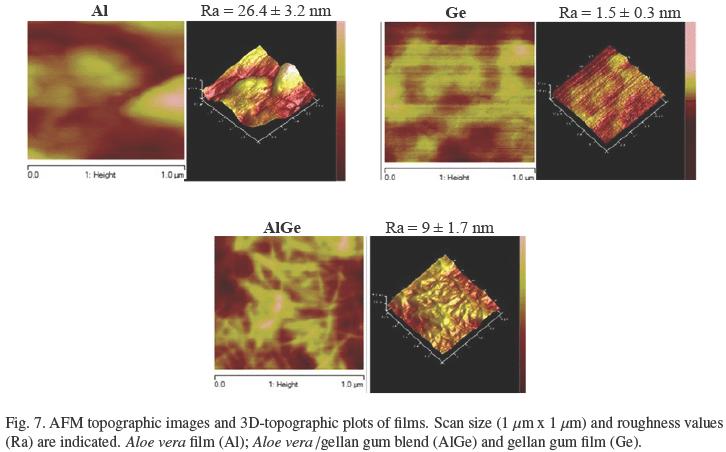

Images at major resolution were obtained by AFM; with this technique a small sean area (1 μm x 1 μm) can be studied. AFM resolve nanometric structures in the films (Fig. 7) and it allows observing some polymeric interactions (Fernández-Pan et al, 2010). The AFM images were evaluated by Ra parameter, this value was indicated at the top of each LM image (Fig. 4). Under AFM the Al exhibited a highly rough and non-uniform structure in comparison with the Ge, which is highly ordered and showed an aligned and homogeneous arrangement. Furthermore; the characteristic structure of Ge is probably induced by the interaction between its functional groups when the gelation is oceurring in gellan solutions. The channeling pattern is especially noticeable in the 3D image in Ge (Funami et al, 2008). In addition, a very smooth surface is reflected in the Ra value (1.5 nm) which is small in comparison with other films, such as chitosan or alginate edible films (Arzate-Vázquez et al., 2012). A highly heterogeneous surface raises the average of Ra values for Al (26.4 nm) in comparison with that of Ge.

Regarding AlGe, it had a microstructure with complex arrangement and fibrillar elements, although it still contains a relative homogenous topography as compare to Al. AFM images at nanometric resolution suggested that the blended structure can be related to the linking of the constituents rather than the effect of the drying process, maybe associated to gel-forming by means of the direct interactions of the two polymers of the blend (Oakenfull, 1991). AlGe topography images provided a Ra value of 9 nm and fibrillar structures with an average wide of 30 nm. This fact suggests the presence of non-covalent connecting bridges and matrix polysaccharides with the mannan and tetrasaccharides molecules (Moreira and Filho, 2008). Also, it is possible that the drying process promote covalent bonds between biopolymers by means of aldol condensation.

Microstructural studies provide useful information to explain the changes in optical, functional and nanomechanical properties. LM observations can be associated to overall appearance of films and with the optical properties; the blend films showed a microstructure that combines the homogenous structure of gellan gum and amorphous arrangement oí Aloe vera. In consequence the transpareney, color and gloss are influenced by structural and chemical interactions between the biopolymers used.

Also, the effeets of drying process and the structural interaction between biopolymers were more evident in ESEM images. From AFM images, it is possible to observe the structural interaction of biopolymers in the blend; and a descriptive structural model can be proposed. Thus, the globular and amorphous matrix of Aloe vera was reinforced structurally by the aligned polysaccharides chains of the gellan gum, these promote an external and internal cross-linking in the blend films. Covalent and non-covalent chemical bonds could be responsible of the structural changes in AlGe films and the values obtained in optical functional and nanomechanical properties are affected as well by those bonds. The combined influence of the blended and the drying process could explain the changes on the functional and mechanical properties in the blend films. Their effects are described in following sections.

3.3 Functional properties

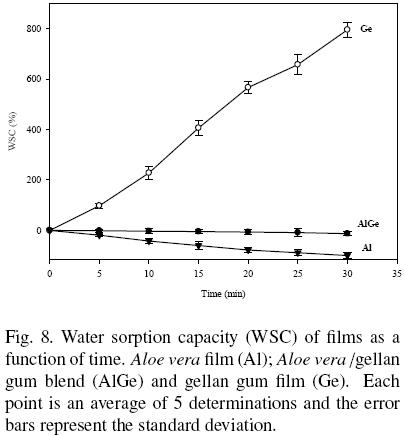

Water sorption capacity (WSC) as function of time for edible films is described in the Fig. 8, where Ge film showed positive WSC values, indicating a high capacity of water uptake, maybe due to swelling phenomenon. The Ge incremented WSC trough time, thus in 30 minutes WSC went from 0 % to 795 % and WSC rate was of around 23 %/min. The high WSC of Ge is associated to the arrangement of the gellan carbohydrate which develops a sponge like structure in the double helicoidal conformation of the gellan gum that allows the fast water uptake (Adachi, 2002; Dentini et al., 2001). Comparing with N-isopropylacrylamide hydrogel (Caykara, 2004) and chitosan films (Nadarajah, 2005), the Ge displays low swelling values.

Regarding Al, negative WSC values were observed, probably due to the high film solubility, as it was rapidly dissolved into the buffer and the integrity of the film completely lost after 30 minutes. Thus, negative WSC values trough time and a WSC negative rate of -3.3 %/min were found for Al. It has been reported for mucilaginous materials and some edible films, that disintegration usually occurs when the sample is wetted, for instance okra gum is dissolved in 24 minutes (Ikoni and Obiageli, 2010), hibiscus mucilage in 90 minutes (Padmakumari et al., 2011), and films made from pullulan mucilage have the property to dissolve quickly, as a result freestanding pullulan films are used to fight halitosis (Barkalow et al., 2002).

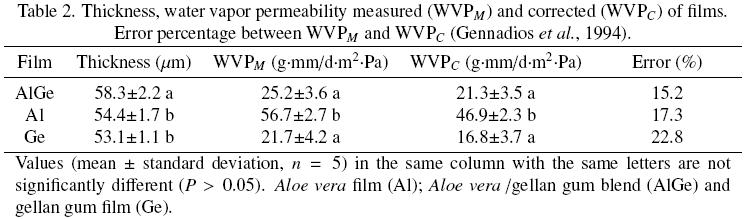

The barrier properties of edible film, as WVP_C and thickness, help to determine their possible final application, which in many cases include covering high moisture foods (Rojas-Graü et al, 2008). Thus, WVP_C values and thickness of films are presented in Table 2, also can be observed that WVP_M showed high errors in a range of 15.2-22.8 % with respect to WVP_C. It is recommendable to report the corrected WVP values, because the classical methods overestimate the water vapor permeability as has been mentioned by Gennadios et al. (1994) and Bósquez-Molina et al. (2003). Thickness remained similar for the Al and Ge samples, oscillating from 53.1 to 54.4 jum and not significant differences were found (P > 0.05); However, AlGe was thicker (58.2 ¡im) than the other films (P < 0.05). The interaction between polymers and the drying process could have induced the thickening of the blend film (Ghasemlou et al., 2011; ChenefaZ., 2010).

Al exhibited very high values of WVP_C (46.9 g·mm/d·m²·kPa), which means that the film allowed the diffusion of high amounts of water vapor. High WVP_C is commonly found in films made from hydrogels or soluble polysaccharides as Aloe and gellan gum. For instance, mesquite gum films with a thickness of 152 μm reach a WVP of 59.31 g·mm/d·m²·kPa (Bosquez-Molina et al., 2003) or alginate films (49 μm) a WVP of 146.8 g·mm/d·m²·kPa (Olivas and Barbosa-Cánovas, 2008).

WVPc for Ge sample was 16.8 g·mm/d·m²·kPa, that is 23.8 % less than Al. The low WVPc values of Ge can be explained based on the double-helix conformation of the gellan gum which creates a complex structure that moderately restricts the free permeation of water vapor (Takahashi et ai, 2004). Some authors have reported several WVP values for gellan films and coatings in ranges of 315.3 to 422.4 and 21.84 to 34.32 with variable thickness of 170 to 178 μm and 80 to 90 μm, respectively (Tapia et al, 2008; Yang 1997). Yang et al, (2010) reported WVP values for gellan films treated with calcium from 7.2 to 30.96 g·mm/d·m²·kPa and 30 μm to 65 μm, respectively, this report coincide with WVPc value of Ge obtained in the present work.

While, AlGe WVPc value was around 21.3 g·mm/d·m² kPa; WVPc values of Ge and AlGe had not significant difference (P > 0.05); this fact indicated an improvement of WVPc that is achieved when Aloe vera gel was mixed with gellan. The low value of WVPc found for AlGe could be explained by chemical interactions between mannans of Aloe vera and D-glucuronic acid of gellan gum that could créate aself-crosslinked structure in the polysaccharides blend (Dentini et al, 2001), which diminishes the water vapor flux into the film. Microstructural evidence of the polysaccharides crosslinking can be seen in the AFM results (Fig. 7). Comparing with other protein-based films AlGe has minimal WVPc; for example, films from wheat gluten, corn zein and pistachio globulin had WVP values from 95.9 to 48.3, from 32.8 to 50.9, and from 55.4 to g·mm/d·m²·kPa, respectively (Park et al., 1994; Zahedi et al, 2010). In this regard, Mikkonen et ai, (2010) also reported that the galactoglucomannans-based films had lower WVP (26 g·mm/d·m²·kPa and thickness around 40μm).

3.4 Nanomechanical properties

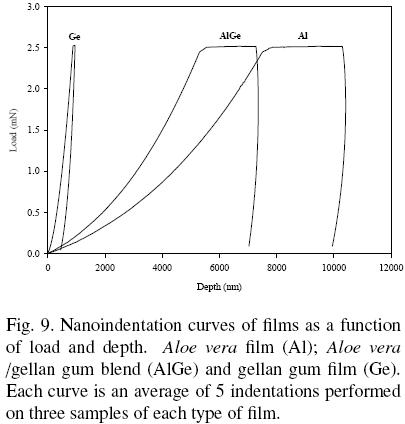

Fig. 9 shows the curves obtained by the nanoindenter, the three films showed different load-depth curves and Table 1 provides the Hd and Em values estimated for edible films. The Ge reached the máximum force at short displacement and Hd and Em values were high (171.9 MPa and 2.02 GPa, respectively) in comparison with Al and AlGe. The lack of glycerol in the Ge created a hard film, for that reason high Hd and Em values were obtained; therefore, Ge was not elastic and cracked easily. The Hd values found for Ge were similar to those reported for chitosan films (119-180 MPa) without glycerol (Wang et al, 2005; Lavorgna et al, 2010).

With respect to Al, the Berkovich indenter showed a deeper penetration into the film to reach the máximum load as compared to the other samples, consequently the load pause was larger and the unloading curve was more inclined. Therefore the Hd decreased to values around 0.9 MPa and the Em diminishes to 0.05 GPa, thus, Al can be describe as a soft and highly flexible film. The nanoindentation curve for AlGe was similar to Al, however the máximum force was reached with less displacement; the load pause was shorter than the one in Al and the load and unload curves had a less acute angle than the Al. The blend of the two polymers in AlGe enhances its nanomechanical properties with regard to the Al in around 40 % for Hd and in around 50% for Em. Nanoindentation technique allows to measure mechanical properties at nanometric levéis, thus can be suggested that the reinforcement of these properties in AlGe could be attributed to a polysaccharides nanonetwork with cross-links on the films (Vachon et al, 2003; Del-Valle et al, 2005). Arzate-Vázquez (2011) fabricated alginate/chitosan films and found by nanoindentation technique, Hd and Em values around 16.2 MPa and 0.21 GPa; in contrast, AlGe was less hard (2.3 MPa) and more elastic (0.1 GPa).

Conclusions

Al, Ge and AlGe showed acceptable optical properties to be used as edible films, due to their values are similar to those edible films reported in other works. AlGe showed a major opacity and a higher difference in color. However, AlGe has an adequate appearance for its use in food industry. Also AlGe acquired the optical characteristics of the pure components, presenting intermediate gloss and n values in comparison with Al and Ge; maybe due to chemical interactions of Aloe vera and gellan gum.

Microstructural studies and image analysis were successful for evaluating the complexity, homogeneity and roughness of films. Furthermore, microscopy images were useful to evaluate the microstructural changes due to blending effect of pure components and drying process. AFM observations provided structural evidences of crosslinking between the polysaccharides of Aloe vera and gellan gum.

Chemical and structural interactions occurring in AlGe improved its functional properties, conferring some water impermeability in comparison with Al and water vapor transmission rates similar to those obtained for Ge. Additionally, the nanomechanical properties of AlGe were enhanced with respect to Al and Ge. Thus, the actual work could be a guide to design and characterize pure and blended edible films with novel functional properties.

Acknowledgements

Javier Segundo Alvarado-González wishes to thank CONACyT for the scholarship provided. This research was financial through the projects, 20110627, 20121001 at the Instituto Politécnico Nacional (SIP-IPN-Mexico), 133102 (CONACyT) and Cátedra Coca-Cola para jóvenes investigadores 2011 (Coca Cola-CONACYT). The authors also wish to thank the Centro de Nanociencias y Micro y Nanotecnologías (CNMN) IPN and Instituto Mexicano del Petróleo.
