Crustáceos del Cretácico Superior de México y Colombia: faunas y ambientes similares durante el Turoniano
Francisco J. Vega1,*, Torrey Nyborg2, Alexis Rojas–Briceño3, Pedro Patarroyo3, Javier Luque4, Héctor Porras–Múzquiz5, and Wolfgang Stinnesbeck6
1 Instituto de Geología, Universidad Nacional Autónoma de México, Ciudad Universitaria, Coyoacán, 04510 México, D.F., México. * vegver@servidor.unam.mx
2 Department of Earth and Biological Sciences, Loma Linda University, Loma Linda CA, 92350, USA.
3 Departamento de Geociencias, Universidad Nacional de Colombia, A. A. 14490, Bogotá, Colombia.
]]> 4 Smithsonian Tropical Research Institute. Apartado Postal 0843–03092, Balboa, Ancon, Panama.5 Museo de Múzquiz A. C., Zaragoza 209, 26340, Múzquiz, Coahuila, México.
6 Geologisch–Paläontologisches Institut, Im Neuenheimer Feld 234, 69120 Heidelberg, Germany.
Manuscript received: April 23 2007
Corrected manuscript received: June 28, 2007
Manuscript accepted: July 5, 2007
ABSTRACT
Nine taxa represent the crustacean component of the Turonian fauna from the Eagle Ford Group limestones and marls that crop out in several quarries, northwest of Múzquiz, Coahuila, Mexico. Three crustacean taxa are found in common with deposits of similar age and paleoenvironment of the San Rafael Formation of Colombia. Planktic foraminifera, ammonoids, inoceramid bivalves, fishes, marine reptiles, a pterosaur and plant remains were preserved in the Múzquiz quarries, in what has been interpreted as an anoxic, low energy bottom at a water depth of no less than 50 m. The cirriped Stramentum preserved on the ammonite Forresteria is described. Stomatopod remains of the family Pseudosculdidae are described, their incompleteness and poor preservation prevent their detailed identification. One species of scyllarid lobster is included. An indeterminant species of nephropid lobster is also part of this assemblage. Presence of Gourretia aquilae (Rathbun) new combination, confirms correlation with the Eagle Ford Group in Texas. A systematic and morphologic review is provided for Cenomanocarcinus vanstraeleni Stenzel, a species widely distributed during Turonian times, and based on morphologic features of the abdomen and its relationship with coxae, it is assigned to the Podotremata. Also, preservation of soft tissue is reported from C. vanstraeleni and the scyllarid lobster. The raninid Cretacoranina sp. cf. C. dichrous (Stenzel) is also reported. In addition, two raninid taxa are described, their poor preservation prevents more detailed identification. The flattened appendages of C. vanstraeleni and of the raninid species suggest a burrowing habit and/or active swimming.
]]> Key words: Crustacea, Cretaceous, Turonian, Mexico, Colombia.
RESUMEN
Nueve taxa representan el componente de crustáceos de la fauna del Turoniano en las calizas y margas del Grupo Eagle Ford que aflora en varias canteras al noroeste de Múzquiz, Coahuila, México. Tres taxa de crustáceos se encuentran en común con depósitos de similar edad y paleoambiente de la Formación San Rafael en Colombia. Foraminíferos planctónicos, amonites, bivalvos inocerámidos, peces, reptiles marinos, un pterosauro y restos de plantas fueron preservados en las canteras de Múzquiz, en lo que ha sido interpretado como un fondo anóxico de baja energía, a una profundidad no menor a 50 m. El segundo reporte para esta localidad del cirripedio Stramentum sobre una concha de amonite, es ilustrado. Restos de estomatópodos de la Familia Pseudosculdidae son descritos, su pobre preservación previene una identificación detallada. Una especie de langosta scilárida es incluida. Una especie indeterminada de langosta nefrópida es también parte de esta composición. La presencia de Gourretia aquilae (Rathbun) nueva combinación, confirma una correlación con el Grupo Eagle Ford Group en Texas. Se ofrece una revisión sistemática y morfológica para Cenomanocarcinus vanstraeleni Stenzel, una especie ampliamente distribuida durante el Turoniano, y con base en características morfológicas del abdómen y su relación con las coxas, es asignada a los Podotremata. La preservación de tejidos blandos es reportada para la langosta scilárida y esta especie. El ranínido Cretacoranina sp. cf. C. dichrous Stenzel, 1945 es también reportado. Dos taxa más de ranínidos son incluidas, su pobre preservación previene una identificación más detallada. Los apéndices aplanados de ciertas especies sugieren un hábito enterrador y/o nadador activo.
Palabras clave: Crustacea, Cretácico, Turoniano, México, Colombia.
INTRODUCTION
The crustacean assemblage herein reported includes nine species. Clusters of the cirripedian Stramentum Logan, 1897 are found in discrete patches, attached to the ammonite shell Forresteria (Forresteria) sp. Previously, Stinnesbeck et al. (2005) illustrated Stramentum specimens attached to one specimen of Peroniceras tridorsatum (Schlüter, 1867) from the El Rosario quarry. Three incomplete specimens of pseudosculdid stomatopods, one scyllarid, and an indeterminant nephropid species are also present. Complete and articulated remains of Gourretia aquilae (Rathbun, 1935) confirm correlation with the Turonian Eagle Ford Group. The most abundant crustacean is a podotreme crab, Cenomanocarcinus vanstraeleni Stenzel, 1945. In the Múzquiz specimens, the third and fourth pairs of pereiopods have flattened articles, and the fifth pair is reduced. Chelae are preserved in most specimens; they are spiny and sharp, suggesting a possible carnivorous diet. Morphological features of the ventral part of the carapace, such as contact of abdominal segments with coxae, indicate that this genus should be considered as a podotrematous group, sensu Guinot and Tavares (2001). Raninid remains of Cretacoranina sp. cf. C. dichrous (Stenzel, 1945) are also found. An indeterminant raninid taxa is found in both the Mexican and Colombian deposits. Also a third raninid taxa is included. One specimen of large stomatopod and a regurgitated raninid appear to be semi–digested, and suggest that crustaceans were part of the diet of large vertebrates, possibly fishes.

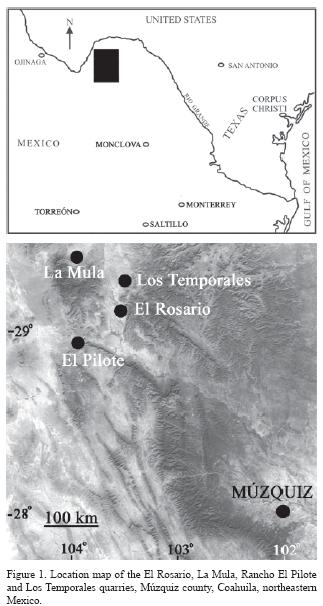

Eagle Ford Group, Coahuila, Mexico
]]> A series of small limestone quarries is exposed in the region north of Múzquiz, to the northwest of Coahuila state, Mexico (Figure 1). The quarries consist of limestones and marls of late Turonian to early Coniacian age, which preserve plant remains, planktic foraminifera, ammonoids, inoceramid bivalves, crustaceans, fishes, marine reptiles and a pterosaur (Blanco–Piñón et al., 2004, 2006; Nyborg et al., 2005; Stinnesbeck et al., 2005; Alvarado–Ortega et al., 2006). The El Rosario quarry deposits are considered part of the Upper Cretaceous Austin Group, which is a widespread limestone unit distributed in northeastern Mexico and southern Texas (Nyborg et al., 2005; Stinnesbeck et al., 2005). The La Mula quarry is considered as part of the Eagle Ford Group (Alvarado–Ortega et al., 2006). The Eagle Ford Group crops out in the Sabinas basin area and all of the northwest portion of Coahuila (López–Ramos, 1981). Biostratigraphy is based on planktic foraminifera and ammonites from El Rosario quarry, where an upper Turonian to lower Coniacian sequence has been reported (Stinnesbeck et al., 2005). Based on inoceramid bivalves, Alvarado–Ortega et al. (2006) indicated a Turonian age for the sediments at La Mula quarry. Other quarries herein reported include Rancho El Pilote and Los Temporales, equivalent in lithology and age to the La Mula quarry, and to the lower part of El Rosario quarry. Presence of the foraminifera Helvetoglobotruncana helvetica (Bolli, 1945) and Whiteinella baltica Douglas and Rankin, 1969 [also reported from the age–equivalent Cuautla Formation in southern Mexico (Aguilera–Franco, 2003)], and of the bivalve Mytiloides (Inoceramus) labiatus (Schlotheim, 1813) in rocks that include crustacean remains, suggest that this assemblage is lower to middle Turonian age (Harries et al., 1996) (Figure 2). An oxygen–depleted bottom of an open marine shelf, with depths of 50 to 100 m has been interpreted for the Múzquiz deposits (Stinnesbeck et al., 2005). Phosphatized remains of vertebrates, including preservation of soft tissue (Stinnesbeck et al., 2005; Alvarado–Ortega et al., 2006), is also observed in some crustacean specimens from this report. In addition, several ammonite shells preserve one or several fishes in the living chamber, suggesting that fishes were using the empty shell as a shelter, or they were feeding on organic matter left inside the ammonite shell (Nyborg et al., 2005).
San Rafael Formation, Colombia
Villamil and Arango (1998), and Feldmann et al. (1999) described Turonian crustaceans from mass mortality surfaces in the San Rafael Formation, exposed near Samacá (Boyacá). Mass mortality layers from the siliceous unit in the upper part of the San Rafael Formation include specimens of Cenomanocarcinus vanstraeleni, previously reported as Ophthalmoplax spinosus Feldmann, Villamil, and Kauffman, 1999. Colombian specimens herein illustrated include C. vanstraeleni and one unidentified raninid. Both species are also present in the Turonian deposits of Múzquiz, Coahuila.
Crustaceans of the San Rafael Formation were collected near Pesca, Department of Boyacá in the Eastern Cordillera of Colombia, approximately 150 km northeast of Bogotá (Figure 3). The type section of the San Rafael Formation is located at Samacá (Etayo–Serna 1968), and includes 84 m of limestone beds and siliceous shales. According to Villamil (1996), the sequence is early to middle Turonian in age, but Feldmann et al. (1999) suggested an early Turonian age based on the presence of diagnostic ammonites, bivalves and planktic foraminifera. This sequence overlies the biogenic and siliciclastic deposits of the Churuvita Formation (Cenomanian), and underlies shale deposits of the upper Turonian? – Coniacian Conejo Formation. At Pesca, the stratigraphic section of the San Rafael Formation is 44 m thick (Figure 4), and is comprised of shale, thin limestone layers and siliceous shale. The siliceous shales in the upper part of the unit include Hoplitoides sp., crustacean and fish remains, that indicate correlation with the upper part of the type section of the San Rafael Formation (Villamil and Arango, 1998) of early Turonian age (Feldmann et al., 1999).
The studied material is deposited in the collection of the Museo de Múzquiz, Múzquiz, Coahuila, Mexico, acronym MUZ; Museo del Desierto, Prolongación Pérez Treviño, Centro Metropolitano Parque Las Maravillas, 25015 Saltillo, Coahuila, under acronym CPC; Colección Nacional de Paleontología, Instituto de Geología, UNAM, Ciudad Universitaria, Coyoacán, México DF, 04510, acronym IGM; Colecciones Paleontológicas del Departamento de Geociencias, Universidad Nacional de Colombia, A. A. 14490 Bogotá, Colombia, acronym UN–DG–CR; and in the collection of INGEOMINAS, Museo Geológico José Royo y Gómez, Dg. 53, N. 34–53, Bogotá DC, Colombia, acronym INGEOMINAS.
]]>SYSTEMATIC PALEONTOLOGY
Subphylum Crustacea Brünnich, 1772
Class Maxillopoda Dahl, 1956
Subclass Thecostraca Gruvel, 1905
Infraclass Cirripedia Burmeister, 1834
Superorder Thoracica Darwin, 1854
Order Lepadomorpha Pilsbry, 1916
Family Stramentidae Withers, 1920
Genus Stramentum Logan, 1897
Stramentum sp.
Figure 5.1 – 5.3
Description. Capitulum and peduncle typical for family, comprising 10 plates and 8 columns, respectively. Scutum subtrapezoidal, upper margin narrow; upper latus semitriangular, as high as scutum; tergum subtrapezoidal, about equal to height of upper latus; carina latus triangular, slightly higher but narrower than tergum.
Peduncle joins capitulum obliquely. Peduncle widest at summit. Scutal column plates subtrapezoidal, elongated. Upper lateral column plates of similar shape and size as those of scutal column. Carinal lateral column plates slightly narrower than the scutal and upper lateral column plates.
Material examined. 25 specimens attached to one ammonite shell, hypotypes MUZ–175 to MUZ–199.
Occurrence. Eagle Ford Group, lower–middle Turonian, Coahuila, Mexico, El Pilote.
Measurements. Hypotypes MUZ–175 (largest specimen), length = 9 mm, width = 7 mm; MUZ–186 (smallest specimen), length = 3 mm, width = 2 mm.
Discussion. All Stramentum specimens were preserved on one individual of the ammonite Forresteria (Forresteria) sp. The specimens do not show any preferred orientation, and even small individuals are found attached to older specimens. This suggests that the epibionts were living attached to the shell of Forresteria (Forresteria) sp. for a period of time, long enough to reproduce and populate the exterior portion of the phragmocone.
Stramentum specimens attached to ammonite shells have been documented by other authors, mainly for Cenomanian and lower Turonian deposits (Collins, 1986; Breton and Boine, 1993, among others). Previously, Stinnesbeck et al. (2005) illustrated one specimen of the ammonite Peroniceras tridorsatum (Schlüter) from the El Rosario quarry, with several specimens of Stramentum sp. attached. Distribution of these cirripedians on ammonite shells from the Múzquiz quarries suggests either that Stramentum lived attached while the ammonite was still alive, or that they used the shell as substrate after deposition on the sea bottom, which seems improbable due to the anoxic conditions interpreted for these beds (Stinnesbeck et al., 2005).
]]> Feldmann et al. (1999, fig. 2.1) reported the presence of Stramentum in the siliceous unit of the San Rafael Formation of Colombia, at the same stratigraphic level where other crustaceans were collected. However, they did not indicate if the cirripedians were associated with or attached to ammonite shells. Previous reports of Cretaceous cirripedians from Colombia include Loricula colombiana Royo y Gómez, 1941 from the Turonian of Albán–Cundinamarca, and L. alvaradoi Royo y Gómez, 1941 from the Albian of the black schists of the Río Negro in Pacho–Cundinamaca (Royo y Gómez, 1941). Specimens figured of those species resemble Stramentum, and were found attached to an indeterminant ammonite shell (Royo y Gómez, 1941, figs. 2 – 4). Gerhardt (1897) also reported Archaeolepas strobila Gerhardt (1897) from the Turonian of Pacho–Cundinamarca. Specimens of Stramentum sp. are also reported attached to the shell of the ammonite Hoplitoides sp. from the lower Turonian of the type locality of the San Rafael Formation at Villa de Leiva (Villamil and Arango, 1998, p. 138, fig. 71).Class Malacostraca Latreille, 1802
Subclass Hoplocarida Calman, 1904
Order Stomatopoda Latreille, 1817
Family Pseudosculdidae Dames, 1886
Pseudosculdidae
Figure 5.4 – 5.8
Description. Medium to large–sized carapace. Thoracic and abdominal somites rectangular; pleurite of eighth thoracic somite subtriangular; abdominal somites 1 – 3 of similar length, with rounded pleura, sixth abdominal somite the longest; telson semitriangular; right exopod ovate, external margin with a row of setae, internal margin with fine serrations; forked process slightly longer than exopod; endopod subovate, as long and wide as exopod, margin with fine serrations. Antennula long, wider than second thoracopods.
Merus of second thoracopods subrectangular, smooth; carpus subquadrate, half the length of merus; propodus subrectangular, with a row of five circular pits (setae insertions) on lower margin of inner surface; dactylus subtriangular, curved, two thirds the length of propodus, a longitudinal ridge is found near inner surface, three or four pits at proximal portion of thinner, inner surface.
]]> Material examined. Three specimens, hypotypes MUZ–227, MUZ–238, MUZ–245.Occurrence. Eagle Ford Group, lower–middle Turonian, Coahuila, Mexico, Rancho El Pilote.
Measurements. Hypotypes MUZ–227, length = 122 mm, width of abdominal somite 2 = 44 mm; hypotype MUZ–238, length = 47 mm, width = 18 mm; hypotype MUZ–245, length of right propodus = 24 mm, height =18 mm.
Discussion. The reported specimens represent the first fossil record of stomatopods for Mexico. A complete and updated list of fossil stomatopods is provided by De Angeli and Beschin (2006).
Second thoracopods preserved on the Mexican specimens reveal their stomatopod position. Exopod in hypotype MUZ–227 is composed of two segments; the shape of the forked process and the elongate, ovate endopod support its placement within the Pseudosculdidae.
Ahyong et al. (2007), and Ahyong and Garassino (2007) described and illustrate Archaeosculda phoenicia Ahyong, Garassino and Gironi, 2007, from the Cenomanian of Lebanon. This species is similar to the Mexican stomatopod in size and shape, but lack of complete telson and anterior portion prevents a detailed comparison.
Sculda sp. was reported from the Turonian of the San Rafael Formation (Feldmann et al., 1999). Sculda has lanceolate uropods, in contrast to the semiovate ones on the Mexican specimen. Schram (1968) described Paleosquilla brevicoxa from the Cenomanian of Colombia. According to Hof (1998a), this specimen resembles a modern Gonodactylidae. It is much smaller than the Mexican specimen and the shape of uropods is also very different. Ursquilla yehoachi (Remy and Avnimelech, 1955) from the Campanian of Israel and Jordan also is large (Hof, 1998b), but the telson seems to be different from the one preserved in the Mexican specimen, in having a semicircular shape.
Specimen MUZ–227 probably represents a regurgitated stomatopod (Figure 5.4), as the anterior portion of the body appears to have been crushed. In addition, the dactyli of second thoracopods are found on one side of the specimen.
Subclass Eumalacostraca Grobben, 1892
Superorder Eucarida Calman, 1904 ]]>
Order Decapoda Latreille, 1802
Suborder Pleocyemata Burkenroad, 1963
Infraorder Astacidea Latreille, 1802
Family Nephropidae Dana, 1852
Subfamily Nephropinae Dana, 1852
Nephropinae
Figures 5.9; 6.1, 6.2
Description. Small nephropid; cephalothorax slightly shorter than abdomen, cervical groove deep, inclined towards anteroventral margin, posterior margin broadly rounded; five branchial chambers subovate; eyes relatively large; antennae as long as first pereiopods, antennular peduncles with subcylindrical carpocerite and merocerite, merocerite half the length and height of carpocerite, antennular flagellum short; third maxilliped short, carpus rectangular, propodus subrectangular, narrow at junction with dactylus, dactylus suboval, half the length of propodus.
Abdomen with lateral grooves that separate terguites from pleura, pleura of abdominal somite 2 subrectangular, pleura of abdominal somites 3 and 4 subtriangular, pleura triangular on somite 6; telson subrectangular, smooth, uropods of similar shape and size, semitriangular, rounded lateral margins, with median longitudinal ridge, without diaeresis.
First pereiopods two–thirds the length of the body, merus rectangular, carpus subtriangular, two–thirds the length of merus, wider at junction with propodus, lower surface covered by granules, propodus rectangular, one–third longer than merus, fixed finger acute, triangular; dactylus lanceolate, one–third longer than fixed finger; second pereiopod subchelate, one third the length of first pereiopod, merus subrectangular, carpus two–thirds the length of merus, propodus half the length of carpus, fixed finger slightly curved downward, movable finger triangular, two–thirds the length of propodus; third pereiopod apparently subchelate, two thirds the length of second pereiopod, merus semirectangular, carpus subtrapezoidal, shorter at junction with merus, one–sixth the length of merus, propodus semirectangular, three times as long as carpus, fixed finger triangular, dactylus triangular, short, curved downward; fourth and fifth pereiopods not well preserved.
]]> Material examined. Three specimens, hypotypes CPC–267, CPC–268, MUZ–233.Occurrence. Eagle Ford Group, lower–middle Turonian, Coahuila, Mexico, Rancho El Pilote.
Measurements. Hypotypes CPC–267, cephalothorax length = 30 mm, height = 9 mm, abdomen length = 34 mm, height = 10 mm, first pereiopods length = 49 mm; CPC–268, cephalothorax length = 24 mm, height = 8 mm, abdomen length = 35 mm, height = 11 mm, first pereiopods length = 39 mm; MUZ–233, abdomen length = 38 mm, width = 12 mm.
Discussion. All specimens are molts, as they show disarticulation of cephalothorax and abdomen. The poor preservation of cephalothorax prevents comparison with other fossil nephropids. However, the Mexican material is similar to Palaeonephrops Mertin, 1941 in having abdominal segments with transverse grooves.
Infraorder Palinura Latreille, 1802
Family Scyllaridae Latreille, 1825
Scyllaridae
Figure 6.3 – 6.6
Description. Carapace of medium size; cephalothorax semioval, twice as long as abdomen, widest at posterior third. Anterior margin straight, broad concave orbits, anterolateral spines prominent. Antennal flagella subcylindrical, one–third the cephalothorax length.
]]> Abdomen subtrapezoidal, abdominal segments rectangular, decrease in width posteriorly, pleurae of second abdominal segment subtriangular.First to third pereiopods very similar in shape and length; fourth pereiopods similar, non–chelated, ischium subquadrate, merus rectangular, three times as long as ischium, carpus subtrapezoidal, slightly longer than ischium, wider at junction with propodus, propodus semitriangular, narrower at junction with dactylus, nearly as long as carpus, dactylus unciform, half the length of propodus; fifth pereiopod the shortest, two–thirds the length of fourth pereiopod, articles of same shape and proportions as those of fourth pereiopod.
Material examined. One specimen, hypotype CPC–269.
Occurrence. Eagle Ford Group, lower–middle Turonian, Coahuila, Mexico, Rancho El Pilote.
Measurements. Hypotype CPC–269, cephalothorax length = 30 mm, width = 15 mm, abdomen length = 11 mm, width = 9 mm.
Discussion. The specimen represents a medium–sized lobster. No clear carapace ornamentation was preserved. Pereiopods do not seem to be chelate. Phosphatized muscles were preserved as patches on several articles of pereiopods, but most clearly on the carpus of the right fourth pereiopod (Figure 6.6).
Förster (1984) described and illustrated two fossil species of scyllariids. Palibacus praecursor (Dames, 1886) from the Cenomanian of Lebanon differs from the Mexican specimen in having a semitrapezoidal cephalothorax, wider than long and antennal flagella that are also wider than long. Similarities are observed between the Mexican specimen and Parribacus cristatus Förster, 1984, from the Eocene of Italy, especially in shape and proportion of antennal flagella. The poor preservation of the Múzquiz specimen only allows placement at the family level at this time.
Infraorder Thalassinidea Latreille, 1831
Superfamily Callianassoidea Dana, 1852
Family Gourretiidae Sakai, 1999 ]]>
Genus Gourretia De Saint Laurent, 1973
Type species. Callianassa denticulata Lutze, 1937 (= Callianassa subterranea var. minor Gourret, 1887), by original designation.
Gourretia aquilae (Rathbun, 1935), new combination
Figures 6.7 – 6.12; 7.1
Callianassa aquilae Rathbun, 1935, p. 31, pl. 7, figs. 1–5.
Description. Thalassinoid of medium to small size, cephalothorax semitriangular, smooth, narrow on anterior portion. Branchial chambers suboval.
First pereiopods heterochelous; merus subrectangular, with a spine on its lower margin; carpus semicircular, as high as propodus on distal edge; propodus rectangular, elongate, three times as long as carpus, setal pits on upper margin; fixed finger elongate, triangular, with a prominent tooth on occlusal surface, located at one–third the length of the finger; movable finger slightly longer than fixed finger, triangular, occlusal surface smooth. Minor chela half as wide and long as major, elongated, rectangular, with palm tapering distally. Pereiopods 2 chelate, of similar shape and size, merus subrectangular; carpus subtriangular, half the length of merus, wider at junction with propodus; propodus as long as carpus, slightly higher, movable finger triangular; dactylus subrectangular, distal portion triangular, slightly longer than fixed finger; pereiopod 3 non–chelated, carpus semitriangular, wider at junction with propodus; propodus semitriangular, elongated, dactylus triangular, one–fourth the length of propodus; remaining pereiopods slender, segments rectangular, elongated.
Abdomen one–third longer than cephalothorax, abdominal somite 2 the largest, twice as long as somite 3, with rounded posterior margin; somite 3 with rounded pleura, slightly wider than pleura of somite 2; somite 4 as long and wide as somite 3, with semisquare pleura; somite 5 slightly longer than somite 4, with subtriangular pleura; somite 6 wider than somite 5. Pleopods elongated, thin; pleopods of somite 5 the longest, about half the length of abdomen. Tail fan one–third the length of abdomen; telson subsquare; uropodal endopod ovate and slightly wider than exopod, exopod ovate.
Material examined. Eleven specimens, hypotypes MUZ–220 to MUZ–225, MUZ–235 to MUZ–237, MUZ–248 and MUZ–249.
]]> Occurrence. Eagle Ford Group, lower–middle Turonian, Coahuila, Mexico, Rancho El Pilote.Measurements. Hypotypes MUZ–220, length of left cheliped = 46 mm; MUZ–221, length of left cheliped = 48 mm; MUZ–222, length of left manus = 24 mm; MUZ–223, length of left cheliped = 52 mm; MUZ–248, length of left cheliped = 43 mm; MUZ–249, length of left cheliped = 41 mm.
Discussion. Problems in working with fossil thalassinoids were mentioned by Schweitzer and Feldmann (2002), and they recognized the importance to have the merus and carpus preserved, in order to propose a confident generic identification. The specimens from Múzquiz are similar to the ones reported by Rathbun (1935) from the Eagle Ford Group in Texas, especially on the shape of chelipeds, and on shape and position of the fixed finger teeth. Toolson and Kues (1996) placed the species in Protocallianassa Beurlen, 1930. However, the Mexican specimens clearly show that the pereiopod 2 is chelate and the pereiopod 3 is subchelate. These features, along with a single proximal spine on the meri of P1 and small P1 tapering distally, suggest affinities with species of the genus Gourretia (de Saint Laurent and Le Loeuff, 1979; López–de la Rosa et al., 1998; Ngoc–Ho, 2003; Sakai, 2004; Sakai and Türkay, 2005). Recent axiids illustrated by Ngoc–Ho (2003) also show similarities with the Mexican specimens in the position of spine near the base on the lower margin of the cheliped carpus. The shape of P2 chelae is also similar. However, difference in size of major and minor P1, slender shape of palms and minor cheliped palm tapering distally are features that support inclusion of this species into the living genus Gourretia. Members of the family Micheleidae Sakai, 1992 have also unequal chelipeds and P2 chelate, but propodi of P2 and P3 are wider, and dactyli are more acute; also, remainder pereiopods are larger and stronger (Poore, 1994; 1997). Karasawa and Hayakawa (2000) described the micheleid Paki rurkonsimpu from the Campanian of Hokkaido, Japan. This species differs from the Mexican material in having two spines on ventral margin of P1 merus, and by the presence of setal pits on pleura of somites 2 – 6. Etallonia Oppel, 1861 was erroneously synonimized by Förster (1977) with Protaxius. According to Garassino and Schweigert (2006), Protaxius lacks a spine on the subchela, typical of Etallonia. Etallonia also differs from the Mexican specimens in having a curved movable finger of chelipeds, propodus of chelipeds more elongated, and difference in size of chelipes not so evident. Callianassa cenomaniensis A. Milne Edwards, 1861 from the lower Cenomanian of France has a more elongted carpus and more robust movable and fixed fingers than the ones observed in the Mexican specimens.
Infraorder Brachyura Latreille, 1802
Section Podotremata Guinot, 1977
Family Uncertain
Genus Cenomanocarcinus Van Straelen, 1936
Type species. Cenomanocarcinus inflatus Van Straelen, 1936, by subsequent designation of Stenzel, 1945.
Included species. Cenomanocarcinus inflatus Van Straelen, 1936, Cenomanian, France; C. vanstraeleni Stenzel, 1945, Cenomanian – Turnonian, Texas, North Dakota (USA), Germany, Colombia, Mexico; C. beardi Schweitzer, Feldmann, Fam, Hessin, Hetrick, Nyborg, and Ross, 2003, Turonian – Santonian, British Columbia, Canada.
]]> Diagnosis. Carapace subhexagonal, nearly as long as wide; rostrum narrow, triangular; orbits generally small, semicircular, with two notches; anterolateral margin with four to five spines; larger lateral spine divides anterolateral and posterolateral margins; posterolateral margin with one or two, or without spines; posterior margin convex; carapace regions defined by shallow grooves and ridges with tubercles of variable size and number on branchial, and protogastric to intestinal areas; cervical and branchiocardiac grooves distinct; sternum subpentagonal, elongated, with two triangular cavities on upper portion; abdomen semirectangular elongated, composed of six segments plus telson, all except telson with three elongated tubercles; segments in contact with coxae; chelae robust, of about equal size; P2 to P4 long, P5 subdorsal and reduced.Discussion. The genus had a wide distribution during Cenomanian – Santonian times. Cenomanocarcinus has been considered to be closely related to necrocarcinids. Förster (1968) included most of the necrocarcinid genera into the Calappidae De Haan, 1833. Differences between typical calappoids and necrocarcinids have been commented by Jagt et al. (2000) and Schweitzer et al. (2003). Schweitzer and Feldmann (2000) elevated the Necrocarcininae Förster, 1968 to family status, and provided a diagnosis for the family. Schweitzer et al. (2003) also offered a diagnosis for the Necrocarcinidae, and placed it into the Dorippoidea McLeay, 1838, based on similar features of carapace shape and morphology of chelipeds and pereiopods. Schweitzer et al. (2003) included the following genera into the Necrocarcinidae: Campylostoma Bell, 1858; Cenomanocarcinus Van Straelen, 1936; Hasaracancer Jux, 1971; Necrocarcinus Bell, 1863; Paranecrocarcinus Van Straelen, 1936; Pseudonecrocarcinus Förster, 1968. Larghi (2004) assigned questionably the Necrocarcinidae to the Podotremata, based on characters atypical of calappids, such as reduction of fifth pereiopods, and abdomen covering sternum, with abdominal segments in contact with coxae of pereiopods. Števic (2005) also provided a diagnosis for the Necrocarcinidae, with subdorsal and reduced P5, but placed the family as a possible Heterotremata.
In order to place Cenomanocarcinus within the Podotremata, we refer to Guinot and Quenette (2005, p. 330) "When ventral parts exist in fossil records and have been cleared from the matrix, the dimensional relations between the male abdomen and the thoracic sternum are fundamental, the rule being that a basal podotreme crab is characterized by its sternum completely covered by the male abdomen, which is in contact with the coxae of pereiopods". This feature is preserved in specimens of Cenomanocarcinus vanstraeleni Stenzel, 1945 from the Turonian of Mexico.
Several features of carapace and legs preserved in Corazzatocarcinus hadjoulae (Roger, 1946), suggest that this crab is also a podotreme, as proposed by Larghi (2004). The characteristic "H" shape on the dorsal carapace in Cenomanocarcinus, formed by the longitudinal branchial tuberculate ridges and a large tubercle on the cardiac region, defined by Schweitzer et al. (2003) is also observed in Corazzatocarcinus. However, differences of the long slender P2 and P3, and reduced P4 of Corazzatocarcinus, versus the well developed P4 with flattened propodi and dactyli of Cenomanocarcinus prevent placement of Corazzatocarcinus into the Dynomenidae, and that genus seem to have a more close affinity to the Dromiidae De Haan, 1833, but detailed review of abdomen and of its relationship with coxae on that genus may help define its systematic position.
Cenomanocarcinus vanstraeleni Stenzel, 1945
Figures 7.2 – 7.9; 8.1 – 8.11; 9.1 – 9.5
Cenomanocarcinus vanstraeleni Stenzel, 1945, p. 447–450, text–fig. 15; Förster, 1968, Abb. 4; Finsley, 1989, p. 98, 99, pl. 78, ph. 307, 308; Bishop, Brannen, Hill, Meyer, Pike, Sampson, 1992, fig. 7c.
Necrocarcinus vanstraeleni (Stenzel, 1945) Kues, 1980, p. 862–864, text–fig. 1.
Necrocarcinus (Cenomanocarcinus) vanstraeleni (Stenzel, 1945)? Toolson and Kues, 1996, p. 114–115, fig. 1.5.
Ophthalmoplax spinosus Feldmann, Villamil and Kauffman, 1999, p. 96, figs. 3.1, 3.2, 4.1, 4.2.
]]> Pinnotheres? sp. Feldmann, Villamil and Kauffman, 1999, p. 98, fig. 5.Diagnosis. Carapace semicircular to subhexagonal, nearly as long as wide; regions defined with ridges bearing tubercles on branchial, and protogastric to intestinal areas; cervical and branchiocardiac grooves distinct; cuticle covered by small, nearly microscopic granules; rostrum projected, triangular, with two smaller spines at the base; orbits small, semicircular, with two notches; anterolateral margin with four spines; a fifth larger lateral spine is projected posteriorly and divides anterolateral and posterolateral margins; posterolateral margins inclined, smooth; posterior margin convex; chelae of about equal size, with longitudinal rows of tubercles and spines; P2 to P4 long, P5 subdorsal and reduced; sternum subpentagonal, elongated, with two subtriangular cavities on its upper portion; abdomen semirectangular elongated, composed of six segments plus telson, all except telson with three elongated tubercles, segment 6 the largest, semiquadrate, telson triangular, two continuous longitudinal depressions extend parallel to lateral margins of abdominal segments, being more evident from segment 5 to 1.
Description. In order to acknowledge the complete and precise descriptions of Stenzel (1945) and Feldmann et al. (1999, as Ophthalmoplax spinosus), only morphological details are included that were not preserved in the type material.
Carapace medium to large, subhexagonal; posterior part of longitudinal branchial ridges with at least five tubercles; protogastric to intestinal longitudinal ridge with smaller tubercles; anterior margin narrow, orbits subcircular, rostrum triangular, with two smaller spines at the base; antennal flagellum twice as long as rostrum; anterolateral margin with four spines, decreasing in size toward orbital spine; prominent, elongate and acute lateral spine divides antero and posterolateral margins; posterolateral margin inclined, with two small spines on anterior third; posterior margin smooth, convex. Third maxillipeds long, pedunculate, about half of carapace length, coxa subtrapezoidal, with a median longitudinal tuberculate ridge; endognath basis subtriangular inverted, smooth, wider at junction with ischium, ischium subrectangular elongate, twice as long as basis, wider at midlength, with a longitudinal ridge on internal margin, merus ovate, half the length of ischium, with a distal notch; exognath ischium smooth, subrectangular, concave, as long as endognath but half its width, merus ovate.
On ventral side, subparallel to anterolateral margin, a sinuous tuberculate ridge extends from mid–carapace length to anterior margin, another smaller, smooth ridge lies parallel to the first one. Sternum subpentagonal, elongated, with two triangular cavities on its upper portion. Female abdomen elongate, subrectangular, slightly wider toward telson, composed by six segments, all rectangular, except for abdominal segment 6, which is nearly square; three aligned transverse ridges on each abdominal segment, except for the sixth segment, in which the middle ridge is positioned more anteriorly. Sides of abdominal segments in contact with coxae of pereiopods. Male? abdomen narrower, subrectangular, widest at telson, segments 5 and 6 semicircular, segments 4 and 3 rectangular. Possible sexual dimorphism, female larger.
Chelipeds of similar size and shape. Carpus of cheliped subquadrate, spinose; carpus of P2 surectangular, smooth, about one–fourth the length of merus; propodus subrectangular, elongate, smooth, nearly as long as merus, dactylus styliform, smooth, two–thirds as long as propodus; merus of P3 subrectangular, elongate, one–third longer and higher than merus of P3, with four tubercles at the base, carpus semitriangular, smooth, one–third the length of merus, much narrow at junction with merus, propodus subovate, smooth, two–thirds the length of merus, narrows to half its width at junction with carpus, a longitudinal pair of muscles extend on the lower third from junction of carpus to junction of dactylus, dactylus styliform, smooth, two–thirds as long as propodus; merus of P4 rectangular, smooth, two–thirds the length of P3 merus, carpus subtriangular, wider at junction with propodus, propodus subovate, smooth, about the length but twice the height of merus, wider at junction with dactylus; dactylus ovate, smooth, half the length of propodus; P5 reduced and subdorsal, ischium subtriangular, smooth, wider at junction with merus, merus subrectangular, wider at junction with ischium, one–third the length and one–fourth as high as merus of P4, carpus rectangular, smooth, two–thirds the length of merus, propodus subtriangular, smooth, wider at junction with dactylus, dactylus styliform, smooth, nearly as long as propodus.
Material examined. 24 specimens, hypotypes MUZ–200 to MUZ–204, MUZ–206 to MUZ–211, MUZ–212, MUZ–214 to MUZ–216, MUZ–218, MUZ–219, MUZ–226, MUZ–246; IGM–7655; UN–DG–CR001A, UN–DG–CR004; INGEOMINAS–B4V/6; INGEOMINAS–NZ4b–03.
Occurrence. Eagle Ford Group, lower–middle Turonian, Coahuila, Mexico, Rancho El Pilote, MUZ–200 to MUZ–204, MUZ–206, MUZ–207, MUZ–209, MUZ–211, MUZ–212, MUZ–214 to MUZ–216, MUZ–218, MUZ–219; LosTemporales, MUZ–246; El Rosario IGM–7655; San Rafael Formation, lower Turonian, Colombia, Pesca, Department of Boyacá, UN–DG–CR001A, UN–DG–CR004; Ubaté, Department of Cundinamarca, INGEOMINAS–B4V/6, INGEOMINAS–NZ4b–03.
Measurements. Hypotypes MUZ–209, carapace length = 76 mm, width = 58 mm; MUZ–208, carapace length = 43 mm, width = 45 mm; MUZ–210, carapace length = 44 mm, width = 46 mm; MUZ–204, P3 length = 66 mm; MUZ–216B, right cheliped length = 31 mm; MUZ–226, male?, carapace length = 22 mm, width = 26 mm; MUZ–215, male?, carapace length = 28 mm; MUZ–212, male?, carapace length = 36 mm; MUZ–246, female, carapace length = 32 mm, width = 34 mm; UN–DG–CR001A, carapace length = 15 mm, width = 9 mm; IGM–7655, carapace length = 75 mm, width = 98 mm; UN–DG–CR004, carapace length = 13 mm, width = 17 mm; INGEOMINAS–B4V/6, carapace length = 38 mm, width = 42 mm; INGEOMINAS–NZ4b–03, carapace length = 3.2 cm, width = 4.4 cm.
Discussion. Guinot and Breton (2006) stated that Cenomanocarcinus vanstraeleni and C. siouxensis were typically podotreme, and that the two species, as well as other necrocarcinids, might be referred to a new genus to be included in the Podotremata. Taxonomic affinities of Cenomanocarcinus have been commented by several authors (Schweitzer and Feldmann, 2000; Guinot and Tavares, 2001; Fraaije, 2002; Schweitzer et al., 2003; Larghi, 2004). A list of Cenomanocarcinus spp. is given by Schweitzer et al. (2003). The peculiar ornament on the dorsal carapace consisting of tuberculate transverse and longitudinal ridges has led some authors to synonymize Cenomanocarcinus with Necrocarcinus Bell, 1863 (Wright and Collins, 1972; Kues, 1980; Feldmann et al., 1993). Förster (1968) suggested that there are small differences that can separate the genera Cenomanocarcinus, Necrocarcinus and Orithopsis Carter, 1872. Fraaije (2002) offered a review of the systematic placement of Cenomanocarcinus, which he recognized as a valid genus, and according to Stenzel (1945) includes the following species: C. inflatus, C. vanstraeleni and C. oklahomensis (Rathbun, 1935). This last species was assigned to Necrocarcinus by Kues (1980) and by Schweitzer et al. (2003), who also described C. beardi Schweitzer, Feldmann, Fam, Hessin, Hetrick, Nyborg and Ross, 2003 from the Turonian – Santonian of British Columbia. Differences between C. vanstraeleni and the other two species are based on number of tubercles present on the branchial and cardio–intestinal ridges (see Stenzel, 1945, p. 449). Cenomanocarcinus inflatus from the upper Cenomanian of France also has a more ovoid carapace outline, and according to Stenzel (1945, p. 150) "Cenomanocarcinus vanstraeleni Stenzel is the most spinous and most tuberculate of the three species". Cenomanocarcinus siouxensis (Feldmann, Awutoua and Welshenbaugh, 1976) was also assigned to Necrocarcinus by Schweitzer et al. (2003). This species differ from Cenomanocarcinus vanstraeleni in being smaller, with a different disposition of dorsal carapace ridges, much larger orbits, third maxillipeds proportionally smaller, and a fused abdomen of different shape lacking typical transverse ridges of Cenomanocarcinus spp. Cenomanocarcinus beardi from the Turonian–Santonian of Vancouver Island has a more ovate carapace shape, it has fewer and stronger tubercles on the longitudinal and transverse branchial ridges, although the lateral spine is also very large.
]]> Larghi (2004) suggested that the specimen of Cenomanocarcinus cf. C. vanstraeleni reported from the upper Cenomanian of Israel by Remy and Avnimelech (1955), should be assigned to Corazzatocarcinus Larghi, 2004. This new genus is similar to Cenomanocarcinus in the presence of strong and continuous tuberculate ridges, tubercles of uniform size, smooth carapace areas between ridges, as well as the number of abdominal segments and their ornament of transverse ridges and tubercles (Larghi, 2004). However, there are substantial differences in the pereiopods of these two genera. Although fifth pereiopods of C. vanstraeleni are reduced as in Corazzatocarcinus hadjoulae (Roger, 1946), fourth pereiopods are the most conspicuous, followed by third pereiopods, with flattened propodus in both appendages, a semiovoid dactylus on fourth, and styliform on third pereiopods. Corazzatocarcinus hadjoulae has reduced fourth and fifth pereiopods, and second and third seem to be longer and thinner than in C. vanstraeleni.Feldmann et al. (1999) described the carcineretid Ophthalmoplax spinosus Feldmann, Villamil and Kauffman, 1999, and Pinnotheres? sp. from siliceous shales of the lower Turonian of Colombia, based on a collection of 23 specimens, and interpreted a mass mortality event caused by anoxia. Neumann and Jagt (2003) illustrated a ?carcineretid specimen from the lower Turonian black shales of Misburg, Germany. In the Colombian and German specimens, the morphology of chelipeds and fourth pereiopods is very similar to that of C. vanstraeleni specimens from Mexico. For this reason, we consider it important to compare the morphology of some specimens of O. spinosus directly with that of C. vanstraeleni. Figures 8.10 and 8.11 compare morphology of propodi and dactyli of fourth pereiopods, as well as third maxillipeds in specimens from Mexico and Colombia. Based on morphological similarities, stratigraphic position, and occurrences of these crustaceans associated with anoxia events, we propose that O. spinosus is the synonym of C. vanstraeleni, and that this species had a wide distribution during early Turonian times, as previously suggested by Kues (1980). Some carcineretid crabs have flattened propodi and dactyli on fifth pereiopods, and Ophthalmolax can have acute spines on fingers of chelipeds. However, these features seem to be a clear example of convergence between unrelated species, and they may reflect a carnivorous and/or scavenging habit.
Kues (1980, p. 864) mentioned that C. vanstraeleni... "lived subtidally, probably several kilometers from the shoreline." Stinnesbeck et al. (2005) suggested that deposition of Múzquiz quarries sediments was in an open marine shelf, several hundreds of kilometers south of the North American coastline. Paleoenvironmental interpretation for the deposits of the San Rafael Formation where C. vanstraeleni occurs, is of poorly oxygenated, relatively deep water, 40 to 60 km of the eastern shoreline of the Colombian epicontinental sea (Feldmann et al., 1999). Specimens from New Mexico and Colombia were interpreted to have suffered little or no transport at all, and Feldmann et al. (1999) suggested high population numbers for a pelagic to vagrant benthonic crustacean, linked to nutrient–rich waters, and that subsequent anoxia were responsible for mass–mortality events of these crustaceans and other organisms. Most specimens from the Múzquiz quarries are found articulated, and their size ranges suggests a well–represented population. Additionally, only two specimens were preserved in dorsal position, in relation to the stratigraphic plane. A few specimens are disarticulated, suggesting a minimum amount of transport. Although differentiation between molts and corpses is difficult in the kind of preservation of the crustacean remains from Múzquiz, we consider that most of them represent corpses, as soft tissues (muscles) are observed in the propodi of P3 of several specimens (Figure 9.4, 9.5). This same feature is observed in propodi of P3 of the specimen in figure 3.2 of Feldmann et al. (1999). According to Stenzel (1945), C. vanstraeleni is also well represented by copious material from Turonian deposits of Texas.
Cenomanocarcinus vanstraeleni appears to have been an abundant, widely distributed, predating/scavenging crab (Stenzel, 1945) on Turonian sea bottoms of no less than 50 m depth. Its abundance and completeness of carapace morphology allow to reconstruct phylogenetic relationships, as already stated by Stenzel (1945).
Subsection Archaeobrachyura Guinot, 1977
Superfamily Raninoidea De Haan, 1839
Family Raninidae De Haan, 1839
Subfamily Palaeocorystinae Lörenthey in
Lörenthey and Beurlen, 1929
Type species. Raninella schloenbachi Schlüter, 1879 by original designation.
Cretacoranina sp. cf. C. dichrous (Stenzel, 1945)
Figure 9.6 – 9.8
Description. Raninid of medium size, carapace rectangular, elongated; carapace covered by evenly distributed, fine small granules; anterolateral margins with two sharp spines; anterior margin straight, represents the widest part of carapace; lateral margins nearly straight, slightly rounded; posterior margin convex, two–thirds of maximum carapace width. Carapace covered by evenly spaced tubercles; cervical and branchiocardiac grooves deep.
Abdomen subtrapezoidal, segments rectangular, with sinuous sutures, segment 3 the widest. Third maxillipeds long, pedunculate, about half the length of carapace; endognath ischium subrectangular elongate, wider at junction with merus; merus ovate, elongated, two–thirds the length of ischium, with a distal notch; exognath concave, elongated, slightly longer than endognath ischium, merus semicircular, one–fourth the length of ischium.
Chelipeds of similar size and shape; ischium rectangular, slightly wider at both ends; merus rectangular, as long but slightly wider than ischium; carpus short, subtrapezoidal, two–thirds the length of merus; propodus rectangular, three times as long as carpus; fingers semitriangular, slightly concave, half the length of propodus. P2 long, merus rectangular, elongated; carpus subtrapezoidal elongated, half the length of merus, wider and sinuous at junction with propodus; propodus subrectangular, two–thirds the length of merus; dactylus unciform, as long as propodus. Only merus of P3 preserved, being rectangular. P4 long, merus rectangular elongated; carpus subtrapezoidal, wider at junction with propodus, which is subrectangular; dactylus unciform, as long as propodus. P5 relatively short, ischium suboval, concave and wider at junction with merus; merus subrectangular, elongated, about three times as long as ischium; carpus subtrapezoidal, two–thirds the length of merus, concave and wider at junction with propodus, which is semiquadrate, with rounded margins, half the length of carpus; dactylus broad, oval to semicircular, flattened, tip narrow.
Material examined. Two specimens, hypotype MUZ–234, and MUZ–247.
Occurrence. Eagle Ford Group, lower–middle Turonian, Coahuila, Mexico, Rancho El Pilote, MUZ–234, and MUZ–247.
Measurements. Hypotype MUZ–234, carapace length = 37 mm, width = 19 mm; MUZ–247, carapace length = 42 mm, width = 31 mm.
]]> Discussion. Although the Múzquiz specimens show certain similarities with Cretacoranina dichrous, the preservation of carapace is not adequate enough to confirm specific placement. Chelipeds and pereiopods 2 to 5 are preserved, but these features are not described with detail for the conferred species. The cuticular structure of C. dichrous has been described as ornamented with densely crowded granules which have flat, polished tops and which are separated by cracks or occasional pits (Stenzel, 1945; Haj and Feldmann, 2002). The cuticle ornamentation preserved in specimen MUZ–247, consists of fine granules, similar to the ones observed in the cuticle of Cretacoranina dichrous illustrated by Haj and Feldmann (2002, fig. 10.4).Cretacoranina dichrous is part of the crustacean assemblage reported from the Cenomanian Britton Shale of the Eagle Ford Group (Bishop et al., 1992), found along with Cenomanocarcinus vanstraeleni, which is also common in the Múzquiz deposits. Some similarities may be observed with the genera Eucorystes Bell, 1863 and Cristafrons Feldmann, Tshudy and Thomson, 1993, and specimens with better preservation will help define if this relatively abundant raninid belongs to Cretacoranina dichrous.
Raninidae 1
Figure 9.9 – 9.12
Description. Raninid of medium size, carapace elongate, suboval; plastron subrectangular elongate, with convex corners, sternites rectangular.
Left cheliped massive, carpus subtrapezoidal, elongated; manus as long as carpus, with two longitudinal rows of tubercles on external surface, fixed finger subrectangular, teeth on occlusal surface and upward directed spine on distal portion, movable finger smaller, triangular, with smooth occlusal surface. P2, P3, and P4 of similar size and shape, segments of uniform width; P5 about one–third proportionally smaller, but segments of similar shape as the ones of the other pereiopods, median longitudinal carina on all segments: merus rectangular, the longest of all segments; carpus subtriangular, narrow on junction with merus, half the length of merus; propodus rectangular, twice the length of carpus; dactylus lanceolate, two–thirds the length of propodus, narrow on junction with propodus.
Material examined. Seven specimens, hypotypes MUZ–229 to MUZ–232; UN–DG–CR003, CPC–271, INGEOMINAS–NZ1–02.
Occurrence. Eagle Ford Group, lower–middle Turonian, Coahuila, Mexico; Rancho El Pilote, MUZ–229; La Mula, MUZ–230, MUZ–231; Los Temporales, MUZ–232, CPC–271; San Rafael Formation, lower Turonian, Colombia, Pesca, Department of Boyacá, UN–DG–CR003, INGEOMINAS–NZ1–02.
Measurements. Hypotypes MUZ–232, carapace length = 34 mm; MUZ–231, carapace length = 32 mm; UN–DG–CR003, carapace length = 28 mm; INGEOMINAS–NZ1–02, carapace length = 5 mm.
Discussion. All specimens are preserved in ventral position. Morphology of pereiopods is very similar between the Mexican and the Colombian specimens. No detailed identification is possible at this time, without a specimen preserving the dorsal carapace. Specimens from Mexico and Colombia show similar shape of sternum and pereiopods. All pereiopods have: a median carina; an elongate, rectangular merus; short carpi; a subquadrate, rectangular propodus; and lanceolate dactylus.
]]> Beikirch and Feldmann (1980) illustrate and described Notopoides(?) pflugervillensis Beikirch and Feldmann, 1980, from the Campanian Austin Group of Texas. The morphology of the carapace and pereiopods of this species resemble the specimens here described, but the specimens from Texas are much smaller and the abdomen is long and slender.Raninidae 2
Figure 9.13, 9.14
Description. Raninid of medium size, carapace elongate, suboval; plastron subrectangular elongate, with convex corners; carapace marked by deep grooves and covered by evenly spaced, strong tubercles.
Abdominal segments rectangular, slightly wider than concave posterior margin.
Chelipeds of similar size and shape; propodus triangular, dactyli sharp, triangular elongated. P2 long, merus rectangular, with setal pits on lower margin; carpus subrhombic, half the length of merus, setal pits on lower margin; propodus semirectangular, elongate, slightly narrow at junction with carpus, twice the length of carpus; dactylus semicircular, distal edge with setae, one–third the length of propodus. P3 long, merus rectangular, with setal pits on lower margin; carpus triangular, wider at junction with propodus, one–third the length of merus; propodus semioval, narrows at both ends, twice the length of carpus, with setal pits on lower margin; dactylus unciform, concave, two–thirds the length of propodus. In P4, the longest pereiopod; ischium triangular, short; merus rectangular, five times as long as ischium, narrow on junction with carpus, setal pits on lower margin; carpus triangular, wider at junction with propodus, one–third the length of merus; propodus subtrapezoidal, elongate, much wider at junction with dactylus, twice the length of carpus; dactylus ovate to lanceolate, smooth, half the length of propodus. P5 reduced, subdorsal, propodus small, rectangular, carpus rectangular, inner margin with setae, dactylus unciform.
Material examined. Two specimens, hypotypes MUZ–228 and CPC–270.
Occurrence. Eagle Ford Group, lower–middle Turonian, Coahuila, Mexico, Los Temporales, MUZ–228, CPC–270.
Measurements. Hypotypes MUZ–228, carapace length = 44 mm, width = 28 mm; CPC–270, length = 58 mm, width = 32 mm.
Discussion. This raninid is clearly different from the other raninids described herein by possessing a stronger carapace sculpture of tubercles and deeply impressed grooves. The P3 and P4 appear to have broad, subtrapezoidal, flattened propodi, as well as oval dactyli. The P5 are reduced and appear to be subdorsal. The poor preservation prevents a more detailed identification.
]]> Specimen CPC–270 (Figure 9.14) probably represents a coprolite or the regurgitated carapace of this type of raninid, as dactyli of chelipeds, portions of granulated dorsal carapace, and oval dactyli of P4 are still recognizable. Study of stomach contents on some of the fossil fishes from the Múzquiz quarries may reveal if this crab was part of their diet.
CONCLUSIONS
The crustaceans from the Múzquiz quarries represent one of the most diverse assemblages reported from the Cretaceous of Mexico. Most specimens are preserved in ventral position, but with appendages articulated. This may indicate little or no transport of corpses. Anoxic conditions suggested previously for the Múzquiz deposits (Stinnesbeck et al., 2005) may have caused mass mortality events, as reported for deposits of similar age in Colombia (Feldmann et al., 1999). It is also important to note the flattened shape of appendages seen in Cenomanocarcinus vastraeleni, and in the two species of raninids here reported. This would indicate that most specimens covered themselves with the fine mud, either for protection or as a strategy to catch fishes and other invertebrates. Bishop et al. (1992) suggested that both C. vanstraeleni and Cretacoranina dichrous were semi–infaunal decapods. However, dactyli of P3 in these two species are unciform, and there is also the possibility that these crustaceans lived associated with floating algae, as remains of this type of algae are found in the Múzquiz sediments (W. Stinnesbeck, pers. obs.)
The correlation between Colombian and Mexican crustaceans (Stramentum sp., Cenomanocarcinus vanstraeleni and Raninid 1) is significant as an indication of a wide distribution for certain species, such as C. vanstraeleni, whose distribution during Turonian times included New Mexico, Texas, Coahuila, Colombia, and probably Germany. Worldwide distribution of marine paleobiotas has been discussed by other authors (Gallo et al., 2007). The Múzquiz brachyuran crustaceans represent "primitive" podotreme groups, in a time prior to the diversification of the more "advanced" eubrachyuran groups. In a recent contribution, Breton and Collins (2007) documented 14 taxa from the Cenomanian stratotype in France.
ACKNOWLEDGMENTS
Our sincere gratitude to D. Guinot, R. Feldmann, H. Karasawa and R. Fraaije for their valuable comments to improve the original manuscript. G. Poore, G. Bishop, G. Breton, M. Hendrickx and C. Hof offered their kind support with bibliography and comments. F. Etayo (INGEOMINAS, Museo Geológico José Royo y Gómez, Bogotá, Colombia) and H. Bermúdez (Geostratos, Bogotá, Colombia) provided geologic information and one specimen from Colombia. Support of A. González, A. de Stéfano and J. Padilla, Museo del Desierto, Coahuila, is highly appreciated. Special thanks to L. Martín–Medrano (Facultad de Ciencias, UNAM) for her technical support. Partial financial contribution to this project was provided by the Volkswagen–Stiftung (Volkswagen Foundation, project number I/78866) and by the Deutsche Forschungsgemeinschaft (STI 128/9), by the División de Investigaciones Sede Bogotá (project "Turonian deposits of central Colombia", grant DIB–20101001669, Universidad Nacional de Colombia) and by the German Academic Exchange Service (DAAD: grants A/03/06854 and A/06/0736).
REFERENCES
]]>Aguilera–Franco, N., 2003, Cenomanian – Coniacian zonation (foraminifers and calcareous algae) in the Morelos – Guerrero basin, southern Mexico: Revista Mexicana de Ciencias Geológicas, 20, 202–222. [ Links ]
Ahyong, S.T., Garassino, A., 2007, A new stomatopod from the Upper Cretaceous (Cenomanian) of Lebanon: Memorie della Società italiana di Scienze naturali e del Museo civico di Storia naturale in Milano, 35, 2, 5–7. [ Links ]
Ahyong, S.T., Garassino, A., Gironi, B., 2007, Archaeosculda phoenicia n. gen., n. sp., (Crustacea, Stomatopoda, Pseudosculdidae) from the Upper Cretaceous (Cenomanian) of Lebanon: Atti della Società italiana di Scienze naturali e del Museo civico di Storia naturale in Milano, 148, 1, 3–15. [ Links ]
Alvarado–Ortega, J., Blanco–Piñón, A., Porras–Múzquiz, H., 2006, Primer registro de Saurodon (Teleostei: Ichthyodectiformes) en la cantera La Mula, Grupo Eagle Ford (Cretácico Superior: Turoniano), Múzquiz, Estado de Coahuila, México: Revista Mexicana de Ciencias Geológicas, 23, 107–112. [ Links ]
Beikirch, D.W., Feldmann, R.M., 1980, Decapod crustaceans from the Pflugerville Member, Austin Formation (Late Cretaceous: Campanian) of Texas: Journal of Paleontology, 54, 2, 309–324. [ Links ] ]]>
Bell, T., 1858, A monograph of the fossil malacostracous Crustacea of Great Britain, Pt. II, Crustacea of the London Clay: Palaeontological Society Monograph, London, 40 p. [ Links ]
Bell, T., 1863, A monograph of the fossil malacostracous Crustacea of Great Britain, Pt. II, Crustacea of the Gault and Greensand: Palaeontological Society Monograph, London, 44 p. [ Links ]
Beurlen, K., 1930, Vergleichende Stammesgeschichte Grundlagen, Methoden, Probleme unter besonderer Beruchsichtigung der hoheren Krebse: Fortschritte der Geologie und Palaeontologie, 8, 317–586. [ Links ]
Bishop, G.A., Brannen, N.A., Hill, L.E., Meyer, J.P., Pike, A.J., Sampson, C., 1992, The Britton Notopocorystes assemblage: an Eagle Ford decapod assemblage from the Cretaceous of North–Central Texas, in Transactions of the 42nd Annual Convention, Jackson, MS: Gulf Coast Association of Geological Societies, p. 413–424. [ Links ]
Blanco–Piñón, A., Duque–Botero, F., Alvarado–Ortega, J., 2006, Lower Turonian Lagerstätten in Mexico: their relationship to OAE–2: in Annual Meeting, Philadelphia, PA: Geological Society of America, Abstracts with Programs, 38, 148. [ Links ] ]]>
Blanco–Piñón, A., Porras–Múzquiz, H., Vega–Vera, F., González–Rodríguez, K.A., Alvarado–Ortega, J., 2004, Múzquiz, Coahuila: a new fossiliferous locality, northern Mexico, en IX Congreso Nacional de Paleontología, Memorias, Tuxtla Gutiérrez, Chiapas: México, Sociedad Mexicana de Paleontología, p. 23. [ Links ]
Bolli, H.M., 1945, Zur Stratigraphie der oberen Kreide in den hoheren helvetischen Decken: Eclogae Geologicae Helvetiae, 37(2), 232–233. [ Links ]
Breton, G., Boine, G., 1993, Cinq Stramentum pulchellum (G. B. Sowerby, 1843), cirripédes pédoncules fixés sur une ammonite du Cénomanien moyen de Haute–Normandie (France): Bulletin trimestrel de la Societé géologique de Normandie et des amis du Muséum de Havre, 80, 19–25. [ Links ]
Breton, G., Collins, J.S.H., 2007, Decapod fauna from the Cenomanian stratotype: Memorie della Società Italiana di Scienze Naturali e del Museo Civico di Storia Naturale di Milano, 35, 2, 17–20. [ Links ]
Brünnich, M.T., 1772, Zoologiae fundamenta praelectionibus academicis accomodata. Grunde i Dyrelaeren: Hafniae et Lipsiae, 254 p. [ Links ] ]]>
Burkenroad, M.D., 1963, The evolution of the Eucarida, (Crustacea, Eumalacostraca), in relation to the fossil record: Tulane Studies in Geology, 2, 3–17. [ Links ]
Burmeister, H., 1834, Beitrage zur Naturgeschicte der Rankenfüsser (Cirripedia): G. Reimer, Berlin, 60 p. [ Links ]
Calman, W.T., 1904, On the classification of the Crustacea Malacostraca: Annals and Magazine of Natural History, series 7, 13, 144–158. [ Links ]
Carter, J., 1872, On Orithopsis Bonneyi, a new fossil crustacean: Geological Magazine, 9, 529–532. [ Links ]
Collins, J.S.H., 1986, A new Stramentum (Cirripedia) from the lower Turonian of Nigeria: Bulletin of the British Museum of Natural History, Geology, 40, 125–131. [ Links ] ]]>
Dahl, E., 1956, Some crustacean relationships: Lund Universität, Hanström Festschrift, 138–147. [ Links ]
Dames, W., 1886, Ueber einige Crustaceen aus den Kreideablagerungen des Libanon: Deutsche Geologische Gesselschaft, Zeitschrift, 38, 551–575. [ Links ]
Dana, J.D., 1852, Crustacea: United States Exploring Expedition During the Years 1838, 1839, 1840, 1841, 1842 Under the Command of Charles Wilkes, U.S.N., v. 13: C. Philadelphia, Sherman, 1620 p. [ Links ]
Darwin, C.R., 1854, A monograph on the sub–class Cirripedia. The Balanidae; the Verrucidae, etc.: London, Ray Society, 684 p. [ Links ]
De Angeli, A., Beschin, C., 2006, Stomatopodi Terziari del Veneto (Italia Settentrionale): Studi e Ricerche – Associazione Amici del Museo – Museo Civico "G. Zannato" Montecchio Maggiore (Vicenza), 13, 25–34. [ Links ] ]]>
De Haan, W., 1833–1850, Crustacea, in De Siebold, P.F., Fauna Japonica sive descriptio animalium, quae itinere in Japoniam, jussu et auspiciis superiorum, qui summum in India Batava Imperium tenent, suscepto, annis 1823–1830, collegit, notis, observationibus et adumbrationibus, illsutravit: Lugdunum Batavorum, A. Arnz, ix–xvi, I–xxxi, vii–xvii, +243 p., pl. A–Q, 1–55, circ. 2. [ Links ]
Douglas, R.G., Rankin, C., 1969, Cretaceous planktonic foraminifera from Bornholm and their zoogeographic significance: Lethaia, 2, 185–217. [ Links ]
Etayo–Serna, F., 1968, El Sistema Cretáceo en la región de Villa de Leiva y zonas próximas: Geología Colombiana, 5, 5–74. [ Links ]
Feldmann, R.M., Awutoua, E.E.B., Walshenbaugh, J., 1976, Necrocarcinus siouxensis a new species of calappid crab (Crustacea: Deapoda) from the Fox Hills Formation (Cretaceous: Maastrichtian) of North Dakota: Journal of Paleontology, 50, 985–990. [ Links ]
Feldmann, R.M., Tshudy, D.M., Thomson, M.R.A., 1993, Late Cretaceous and Paleocene Decapod Crustaceans from James Ross Basin, Antarctic Peninsula: The Paleontological Society Memoir, 28, 41 p. [ Links ] ]]>
Feldmann, R.M., Villamil, T., Kauffman, E.G., 1999, Decapod and stomatopod crustaceans from mass mortality lagerstatten: Turonian (Cretaceous) of Colombia: Journal of Paleontology, 73, 91–101. [ Links ]
Finsley, C., 1989, A Field Guide to Fossils of Texas: Austin, Texas Monthly Press, 188 p. [ Links ]
Förster, R., 1968, Paranecrocarcinus libanoticus n. sp. (Decapoda) und die Entwicklung der Calappidae in der Kreide: Mitteilungen der Bayerischen Staatssammslung für Paläontologische und historische Geologie, 7, 157–174. [ Links ]
Förster, R., 1977, Untersuchungen an jurassischen Thalassinoidea (Crustacea, Decapoda): Mitteilungen der Bayerischen Staatssammslung für Paläontologische und historische Geologie, 17, 137–156. [ Links ]
Förster, R., 1984, Bärenkrebse (Crustacea, Decapoda) aus dem Cenoman des Libanon und dem Eozän Italiens: Bayerische Staatssammlung für Paläontologie und historische Geologie, Mitteilung, 24, 57–66. [ Links ] ]]>
Fraaije, R.H.B., 2002, New calappid crabs (Crustacea, Decapoda, Brachyura) from the late Maastrichtian of The Netherlands: Journal of Paleontology, 76, 913–917. [ Links ]
Gallo, V., Cavalcanti, M.J., Andrade da Silva, H.M., 2007, Track analysis of the marine paleofauna from the Turonian (Late Cretaceous): Journal of Biogeography, 34, 1167–1172. [ Links ]
Garassino, A., Schweigert, G., 2006, The Upper Jurassic Solnhofen decapod crustacean fauna: review of the types from old descriptions (infraorders Astacidea, Thalassinidea, and Palinura): Memorie della Società Italiana di Scienze Naturali e del Museo Civico di Storia naturale in Milano, 34, 1, 1–64. [ Links ]
Gerhardt, K., 1897, Beiträge zur Kennitss der Kreideformation in Columbien: Neues Jahrbuch für Mineralogie, Geologie und Paläontologie, 11, 118–208. [ Links ]
Gourret, P., 1887, Sur quelques Décapodes Macroures nouveaux du Golfe de Marseille: Comptes Rendus Hebdomadaire des Séances de l'Académie des Sciences, 15, 1033–1035. [ Links ] ]]>
Grobben, C., 1892, Zur Kenntnis des Stammbaumes und des Systems der Crustaceen: Sitzungsberichte der Kaiserlichen Akademie der Wissenschaften in Wien, Mathematisch–Naturwissenschaftliche Classe, 101, 237–274. [ Links ]
Gruvel, A., 1905, Monographie des cirripèdes ou thécostracés: Paris, Mason et Cie, 472 p. [ Links ]
Guinot, D., 1977, Propositions pour une nouvelle classification des Crustacés Décapodes Brachyoures: Comptes Rendus de l'Acádemie des Sciences, Paris, serie D, 285, 1049–1052. [ Links ]
Guinot, D., Breton, G., 2006, Lithophylax trigeri A. Milne–Edwards & Brocchi, 1879 from the French Cretaceous (Cenomanian) and placement of the family Lithophylacidae Van Straelen, 1936 (Crustacea Decapoda Brachyura): Geodiversitas, 28, 591–633. [ Links ]
Guinot, D., Quenette, G., 2005, The spermatheca in podothreme crabs (Crustacea, Decapoda, Brachyura, Podotremata) and its phylogenetic implications: Zoosystema, 27, 267–242. [ Links ] ]]>
Guinot, D., Tavares, M., 2001, Une nouvelle famille de Crabes du Cretacé, et la notion de Podotremata Guinot, 1977 (Crustacea, Decapoda, Brachyura): Zoosystema, 23, 507–547. [ Links ]
Haj, A.E., Feldmann, R.M., 2002, Functional morphology and taxonomic significance of a novel cuticular structure in Cretaceous raninid crabs (Decapoda: Brachyura: Raninidae): Journal of Paleontology, 76, 472–485. [ Links ]
Harries, P.J., Kauffmann, E.G., Crampton, J.S., (redactores), Bengston, P., Cech, S., Crame, J.A., Dhondt, A.V., Ernst, G., Hilbrecht, H., López, G., Mortimere, R., Tröger, K.A., Walaszcyk, I., Wood, C.J., 1996, Lower Turonian Euramerican Inoceramidae; a morphologic, taxonomic and biostratigraphic overview: Universität Hamburg, Mitteilungen aus dem Geologisch–Paleontologischen Museum, 77, 641–671. [ Links ]
Hof, C.H.J., 1998a, Fossil stomatopods (Crustacea: Malacostraca) and their phylogenetic impact: Journal of Natural History, 32, 1567–1576. [ Links ]
Hof, C.H.J., 1998b, Late Cretaceous stomatopods (Crustacea: Malacostraca) from Israel and Jordan: Contributions to Zoology, 67, 257–266. [ Links ] ]]>
Jagt, J.W.M., Fraaye, R.H.B., van Bakel, B.W.M., 2000, Late Cretaceous decapod crustacean faunas of northeast Belgium and the southeast Netherlands: Montecchio Maggiore, Vicenza, Assoziacione Amici del Museo, Museo Civico "G. Zannato", Studi e Ricerche, 37–42. [ Links ]
Jux, U., 1971, Ein Brachyuren–Rest aus der Oberkreide Afghanistans: Paläontologische Zeitschrift, 45, 154–166. [ Links ]
Karasawa, H., Hayakawa, H., 2000, Additions to Cretaceous decapod crustaceans from Hokkaido, Japan, Part 1. Nephropidae, Micheleidae and Galatheidae: Paleontological Research, 4, 139–145. [ Links ]
Kues, B.S., 1980, A fossil crab from the Mancos Shale (Upper Cretaceous) of New Mexico: Journal of Paleontology, 54, 862–864. [ Links ]
Larghi, C., 2004, Brachyuran decapod Crustacea from the Upper Cretaceous of Lebanon: Journal of Paleontology, 78, 528–541. [ Links ] ]]>
Latreille, P.A., 1802–1803, Histoire naturelle, general et particuliére des crustacés et des insectes v. 3.: Paris, F. Dufart, 468 p. [ Links ]
Latreille, P.A., 1817, Les crustacés, les arachnidés et les insectes, in Cuvier, G., Le règne animal distribué d'après son organisation, pour servir de base à l'histoire naturelle des animaux et d'introduction à l'anatomie comparée: Paris, Déterville, edition 1, 653 p. [ Links ]
Latreille, P.A., 1825, Encyclopédie Méthodique. Histoire Naturelle. Entomologie, ou Histoire Naturelle des Crustacés, des Arachnides et des Insectes, vol. 10, Pt 1: Paris, Agasse, pp. 100–101. [ Links ]
Latreille, P.A., 1831, Cours d'Entomologie, ou de l'histoire naturelle des Crustacés, des Arachnides, des Myriapodes et des Insectes; à l'usage des élèves de l'école du Muséum d'histoire naturelle Annales I: Paris, Roret, 568 p. [ Links ]
Logan, W.N., 1897, Some new cirriped crustaceans from the Niobrara Cretaceous of Kansas: Kansas University, Quarterly, 6, 187–189. [ Links ] ]]>
López–de la Rosa, I., García–Raso, J.C., Rodríguez–Martín, A., 1998, First record of Gourretia denticulata (Lutze, 1937) (Crustacea, Decapoda, Thalassinidea) from the Atlantic coast of Spain: Scientia Marina, 62, 4, 393–395. [ Links ]
López–Ramos, E., 1981, Geología de México. Tomo II: México City, edited by author, 2a. Ed., 560 p. [ Links ]
Lörenthey, E., Beurlen, K., 1929, Die fossilen Decapoden der Länder der Ungarischen Krone: Geologica Hungarica, Series Palaeontologica, Fasciculus 3, 420 pp. [ Links ]
Lutze, J., 1937, Eine neue Callianassa–Art aus der Adria: Note dell'Instituto Italo–Germanico di Biologia Marina di Rovigno d'Istria, 2(1), 1–12. [ Links ]
MacLeay, W.S., 1838, On the Brachyurous Decapod Crustacea brought from the Cape by Dr. Smith, in Illustrations of the Annulosa of South Africa; being a portion of the objects of Natural History chiefly collected during an expedition into the interior of South Africa, under the direction of Dr. Andrew Smith, in the years 1834, 1835 and 1836; fitted out by "The Cape of Good Hope Association for Exploring Central Africa": London, Smith, Elder and Co., 53–71. [ Links ] ]]>
McLay, C.L., 1999, Crustacea Decapoda: Revision of the Family Dynomenidae, in Crosnier A. (ed.), Résultats des campagnes MUSORSTOM, volume 20: Mémoires du Muséum national d'Histoire naturelle, 180, 427–569. [ Links ]
Mertin, H., 1941, Decapode Krebse aus dem subhercynen und Braunschweicher Emscher und Untersenon sowie Bemerkungen über einige verwandte Formen in der Oberkreide: Nova Acta Leopoldiana, 10, 149–262. [ Links ]
Milne–Edwards, A., 1861, Histoire des Crustacés Podophtalmaires fossiles: Paris, Victor Masson et fils, 390 p. [ Links ]
Neumann, C., Jagt, J.W.M., 2003, A ?Carcineretid crab from Lower Turonian (Cretaceous) black shales of Misburg, Hannover area (Germany): Contributions to Zoology, 72, 161–163. [ Links ]
Ngoc–Ho, N., 2003, European and Meditterranean Thalassinidea (Crustacea: Decapoda): Zoosystema, 25, 439–555. [ Links ] ]]>
Nyborg, T., Alvarado–Ortega, J., Blanco, A., Vega, F.J., 2005, Taphonomy of fish preserved within ammonite chambers from the Upper Cretaceous Austin Group, Coahuila, México, in Geological Society of America, Abstracts with Programs, 37, 158. [ Links ]
Oppel, A., 1861, Die Arten der Gattungen Eryma, Pseudastacus, Magila und Etallonia: Jahreshefte des Vereins für Vaterländische Naturkunde in Württenberg, 17, 355–361. [ Links ]
Pilsbry, H.A., 1916, The sessile barnacles (Cirripedia) contained in the collections of the U. S. National Museum; including a monograph of the American species: United States National Museum, Bulletin, 93, 1–336. [ Links ]
Poore, G., 1994, A phylogeny of the families of Thalassinidea (Crustacea: Decapoda) with keys to the families and genera: Memoirs of the Museum of Victoria, 54, 79–120. [ Links ]
Poore, G., 1997, A review of the thalassinidean families Callianideidae Kossmann, Micheleidae Sakai, and Thomasiniidae de Saint Laurent (Crustacea: Decapoda) with descriptions of fifteen new species: Zoosystema, 19, 2–3, 345–420. [ Links ] ]]>
Rathbun, M.J., 1935, Fossil Crustacea of the Atlantic and Gulf Coastal Plain: Geological Society of America, Special Paper, 2, 1–160. [ Links ]
Remy, J.M., Avnimelech, M., 1955, Eryon yehoachi nov. sp. et Cenomanocarcinus cf. vanstraeleni Stenzel Crustacés décapodes du Crétacé supérieur de l'état d'Israel: Bulletin de la Societé géologique de France, Series 6, Tome 5, 311–314. [ Links ]
Roger, J., 1946, Les invertébrés des couches á poissons du Crétacé supérieur du Liban: Mémoires de la Societé Géologique de France, 23, 1–92. [ Links ]
Royo y Gómez, J., 1941, Crustáceos y Seudoterópodos del Cretácico de Colombia: Boletín de Minas y Petróleos, Bogotá, 121–144, 209–214. [ Links ]
Saint Laurent, M. de, 1973, Sur la systématique et la phylogénie desThalassinidea: Définition des familles des Callianassidae et des Upogebiidae et diagnose de cinq genres nouveaux (Crustacea Decapoda): Comptes Rendus de l'Académie des Sciences, series D, 277, 513–516. [ Links ] ]]>
Saint Laurent, M. de, Le Loeuff, P., 1979, Campagnes de la Calypso au large des côtes Atlantiques Africaines (1956 et 1959) (suite) 22. Crustacés Décapodes Thalassinidea. I. Upogebiidae et Callianassidae. In: Forest, J. (ed.), Résultats Scientifiques des Capmapgnes de la Calypso, Fascicle 11(22): Annales de l'Institut Océanographique, Monaco et Paris, 55, 29–101. [ Links ]
Sakai, K., 1992, The families Callianideidae and Thalassinidae, with description of two new subfamilies, one new genus and two new species: Naturalists, 4, 1–33. [ Links ]
Sakai, K., 1999, Redescription of Ctenocheles balssi Kishinouye, 1926, with comments on its systematic position and stablishment of a new subfamily Gourretinae (Decapoda, Callianasidae): Crustaceana, 72, 1, 85–97. [ Links ]
Sakai, K., 2004, Dr. R. Plante's collection of the families Callianassidae and Gourretiidae (Decapoda, Thalassinidea) from Madagascar, with the description of two new genera and one species of the Gourretiidae Sakai, 1999 (new status) and two new species of the Callianassidae Dana 1852: Crustaceana, 77(5), 553–601. [ Links ]
Sakai, K., Türkay, M., 2005, A redescription of Callianassa denticulata Lutze, 1937 with the designation of a neotype (Thalassinidea, Gourretiidae): Crustaceana, 78(3), 323–334. [ Links ] ]]>
Schlotheim, E.F. von, 1813, Beiträge zur Naturgeschichte der Versteinerungen in geognostischer Hinsicht: Frankfurt, Taschenbuch für die gesamte Mineralogie, 7(1), 1–134. [ Links ]
Schlüter, C.A. von, 1867, Beitrag zur Kenntnis der jüngsten Ammoneen Norddeutschlands: Bonn, A. Henry, 36 p. [ Links ]
Schlüter, C.A. Von, 1879, Neue und weniger bekannte Kreide– und Tertiärkrebse des nördlichen Deutschlands: Zeitschrift der Deutschen Geologischen Gesellschaft, 31, 586–615. [ Links ]
Schram, F.R., 1968, Paleosquilla gen. nov. a stomapod (Crustacea) from the Cretaceous of Colombia: Journal of Paleontology, 42, 1297–1301. [ Links ]
Schweitzer, C., Feldmann, R.M., 2000, New species of Calappid crabs from Western North America and reconsideration of the Calappidae sensu lato: Journal of Paleontology, 74, 230–246. [ Links ] ]]>
Schweitzer, C., Feldmann, R.M., 2002, New Eocene decapods (Thalassinidea and Brachyura) from Southern California: Journal of Crustacean Biology, 22, 4, 938–967. [ Links ]
Schweitzer, C., Feldmann, R.M., Fam, J., Hessin, W.A., Hetrick, S.W., Nyborg, T.G., Ross, R.L.M., 2003, Cretaceous and Eocene Decapod Crustaceans from Southern Vancouver Island, British Columbia, Canada: Ottawa, Ontario, National Research Council, NRC Research Press, 66 p. [ Links ]
Stenzel, H.B., 1945, Decapod crustaceans from the Cretaceous of Texas: Texas University, Publication 4401, 401–476. [ Links ]
Števcic, Z., 2005, The reclassification of brachyuran crabs (Crustacea: Decapoda: Brachyura): Natura Croatica, 14, supplement 1, 1–159. [ Links ]
Stinnesbeck, W., Ifrim, C., Schmidt, H., Rindfleisch, A., Buchy, M.C., Frey, E., González–González, A.H., Vega, F.J., Cavin, L., Keller, G., Smith, K.T., 2005, A new lithographic limestone deposit in the Upper Cretaceous Austin Group at El Rosario, county of Múzquiz, Coahuila, northeastern Mexico: Revista Mexicana de Ciencias Geológicas, 22, 401–418. [ Links ] ]]>
Toolson, E.K., Kues, B.S., 1996, Decapod Crustaceans from the Semilla Sandstone Member, Mancos Shale (Upper Cretaceous), North–Central New Mexico: Journal of Paleontology, 70, 111–116. [ Links ]
Van Straelen, V., 1936, Crustacés Décapodes nouveax ou peu connus de l'époque Crétacique: Musée royal d'Histoire naturelle de Belgique, 12, 1–50. [ Links ]
Villamil, T., 1996, Paleobiology of two new species of the bivalve Anomia from Colombia and Venezuela and the importance of the genus in recognition of the base of the Turonian: Cretaceous Research, 17, 607–632. [ Links ]
Villamil, T., Arango, C., 1998, Integrated stratigraphy of latest Cenomanian–Early Turonian facies of Colombia, in Pindell, J., Drake, C. (eds.), Eustasy and Tectonostratigraphic Evolution of Northern South America: Society for Sedimentary Geology (SEPM), Special Publication, 58, 129–159. [ Links ]
Williston, S.W., 1897, The Kansas Niobrara Cretaceous: Kansas University Geological Survey, 2, 235–246. [ Links ] ]]>
Withers, T.H., 1920, The Cirripede genus Stramentum (Loricula): its history and structure: Annals and Magazine, Natural History, Series 9, 5, 65–84. [ Links ]
Wright, C.W., Collins, J.S.H., 1972, British Cretaceous crabs: Palaeontographical Society of London, Monograph, 126, 1–114. [ Links ] ]]>
