The oldest stratigraphic record of the Late Cretaceous shark Ptychodus mortoni Agassiz, from Vallecillo, Nuevo León, northeastern Mexico
El registro estratigráfico más antiguo del tiburón del Cretácico Tardío Ptychodus mortoni Agassiz, de Vallecillo, Nuevo León, noreste de México
Alberto Blanco–Piñón1, Luis M. Garibay–Romero2,3, and Jesús Alvarado–Ortega2
1 Centro de Investigaciones en Ciencias de la Tierra, Universidad Autónoma del Estado de Hidalgo, Apdo. Postal 1–288, Admón. 1, 42001 Pachuca, Hidalgo, Mexico. albblanc@yahoo.com
2 Instituto de Geología, Universidad Nacional Autónoma de México, Ciudad Universitaria, 04510 México, D.F., Mexico.
]]> 3 Universidad Autónoma de Guerrero, Unidad Académica de Ciencias de la Tierra, Ex–Hacienda de San Juan Bautista, Taxco el Viejo, Guerrero. Mexico.
Manuscript received: February 7, 2006
Corrected manuscript received: November 2, 2006
Manuscript accepted: November 14, 2006
ABSTRACT
In this paper we report the oldest geologic world record of Ptychodus mortoni, from the Vallecillo Member (Agua Nueva Formation), at Vallecillo, Nuevo León, northeastern Mexico. The presence of the ammonite Watinoceras coloradoense, allows the placement of the sediments of the Vallecillo member within the lower Turonian (Watinoceras coloradoense zone). With reference to this new data, the presence of Ptychodus mortoni in the Vallecillo member extend the temporal distribution of this species into the earliest Turonian. Also, this study suggests that the utility of this shark species as biostratigraphic control in late Cretaceous sediments should be revised in greater detail.
Key words: Ptychodus mortoni, shark, lower Turonian, Late Cretaceous, Vallecillo, Mexico.
]]> RESUMEN
En este artículo se reporta el registro geológico más antiguo de Ptychodus mortoni, proveniente del miembro Vallecillo (Formación Agua Nueva), en Vallecillo, Nuevo León, noreste de México. La presencia del ammonite Watinoceras coloradoense, permite ubicar a los sedimentos del miembro Vallecillo dentro del Turoniano inferior (zona de Watinoceras coloradoense). De acuerdo con estos nuevos datos, la presencia de Ptychodus mortoni en el miembro Vallecillo extiende la distribución temporal de esta especie al Turoniano temprano. Además, este estudio sugiere que la utilización de esta especie de tiburón como control bioestratigráfico en sedimentos del Cretácico debe ser revisada en detalle.
Palabras clave: Ptychodus mortoni, tiburón, Turoniano temprano, Cretácico Tardío, Vallecillo, México.
INTRODUCTION
Ptychodus is a highly specialized durophagous shark that lived during the Late Cretaceous. It has a characteristic crushing dentition that allowed the shark to feed on hard–bodied preys, such as mollusks (Cappetta, 1987). Remains of this genus have been reported from the Albian to the Maastrichthian nearly worldwide (Johnson and Lucas, 2003).
Ptychodus mortoni is a ptychodontid species that is known from North America, Europe, and Africa (Cappetta, 1987). Blanco et al.(2001) and Blanco–Piñón et al.(2002) reported a small set of associated teeth of P. mortoni from the Turonian deposits in northeastern Mexico, collected in the Vallecillo quarries, state of Nuevo León (Figure 1). Blanco–Piñón et al. (2005) determined the age of the deposit as early Turonian, but did not presented the details about its stratigraphy. The purpose of this paper is to redescribe the specimen and its stratigraphic occurrence with a special emphasis on the fact that the specimen represents the oldest stratigraphic record for Ptychodus mortoni.
SYSTEMATIC PALEONTOLOGY
Class Chondrichthyes Huxley, 1880 ]]>
Subclass Elasmobranchii Bonaparte, 1838
Cohort Euselachii Hay, 1902
Order incertae sedis
Family Ptychodontidae Jaekel, 1898
Genus Ptychodus Agassiz, 1835
Ptychodus mortoni Agassiz, 1843

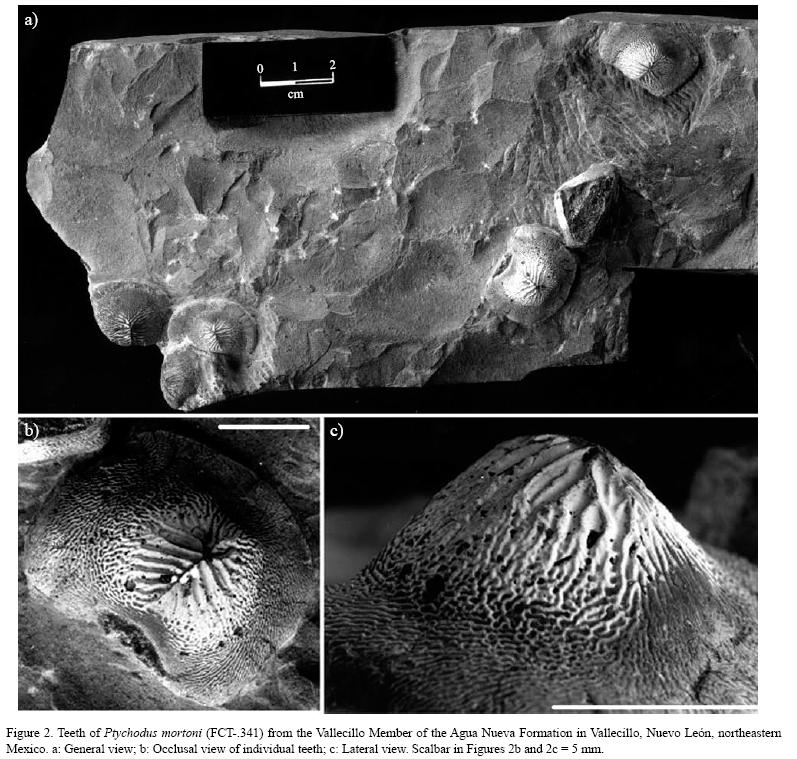

Referred specimen. FCT–341, six associated teeth (Figure 2) presumably from a single shark housed in the Colección Paleontológica at the Facultad de Ciencias de la Tierra (FCT), Universidad Autónoma de Nuevo León, Linares, Nuevo León, Mexico.

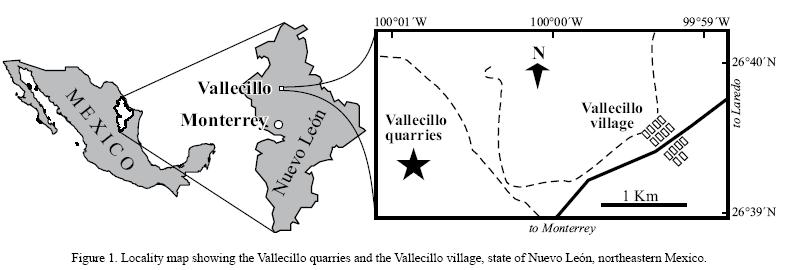

Occurrence. A limestone bed in the uppermost part of the Vallecillo Member of the Agua Nueva Formation, at Vallecillo, Nuevo León, northeastern Mexico (Figure 1).
Description. The six teeth vary in size and morphology (Figure 2a). In occlusal view, their shape is roughly rectangular with rounded corners, the anterior margin convex and the posterior one concave (Figure 2a). The length and width of these teeth range from 13 to 15 mm and from 19 to 25 mm, respectively. Their crowns are high and conical, measuring from 10 to 12 mm in crown height. There are about twelve ridges radiating from the apex of the crown, which are intensely branched and grade into a marginal area that is characterized by reticulated pattern (Figure 2c). A series of small cavities are present on the root surface, but other root features are not observable.
Remarks. Species of the genus Ptychodus are identified on the basis of crown shape and cusp morphology (Cappetta, 1987). The teeth of P. mortoni are distinguishable from other ptychodontid species by having a high, conical cusp with a series of radial ridges (Cappetta, 1987). This combination of characters is clearly observable in the specimen described here. Teeth of P. mortoni from Vallecillo show some morphological variation, which suggests a heterodont dentition. This condition along with the fact that Vallecillo teeth have a sharp cusp tip differentiates from the dentition of P. cyclodontis Mutter, Iturralde–Vinent y Carmona, 2005, which is the only other ptychodontid species with radial ridges on its tooth cusps.
]]>DISCUSSION

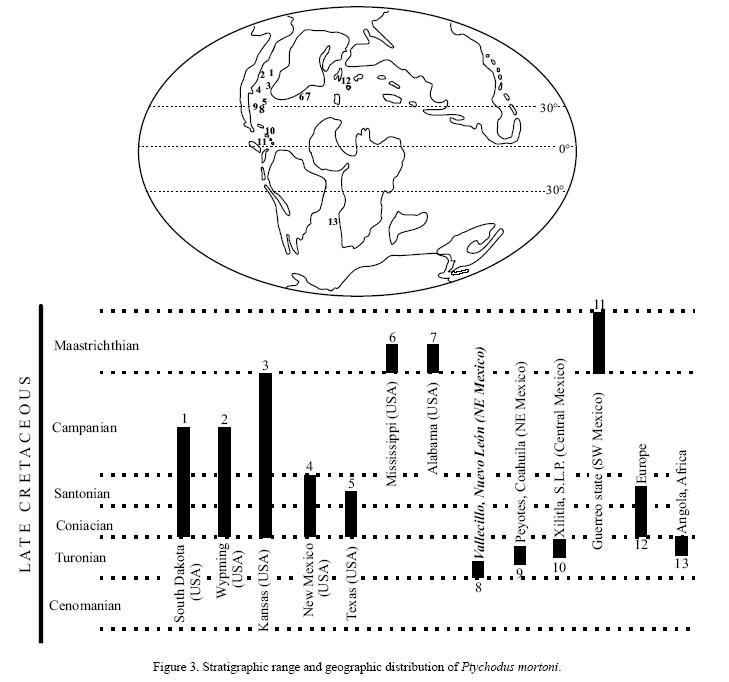

Figure 3 summarizes the stratigraphic range and geographic distribution of Ptychodus mortoni. The species is known from upper Turonian through lower Maastrichtian deposits. In Europe and Africa, P. mortoni is uncommon but has been reported from the middle to upper Coniacian of Belgium (Herman, 1977), England (Woodward, 1887, 1889), and Italy (D'Erasmo, 1922). In Africa, P. mortoni is known only from the Itombe Formation (upper Turonian) at the Cuanza Basin, in Angola (Antunes, 1961; Antunes and Cappetta, 2002). In the U.S., P. mortoni has been reported from Coniacian–Campanian deposits in the Gulf region (e.g., Alabama, Mississippi) and the Western Interior (e.g., Texas, New Mexico, Kansas, South Dakota and Wyoming) (Williston, 1900; Applegate, 1970; Cappetta, 1987; Williamson et al., 1989; Williamson and Lucas, 1990; Welton and Farish, 1993; Williamson et al., 1993; Cicimuri; 1998, Brito and Janvier, 2002; Johnson and Lucas, 2003; Everhart and Caggiano, 2004). In Mexico, P. mortoni has been described previously from upper Turonian rocks of Coahuila, northeastern Mexico (González–Barba et al., 2001), the Turonian Agua Nueva Formation in Xilitla, state of San Luis Potosí, central Mexico (Maldonado–Koerdel, 1956), and the lower Maastrichtian Mexcala Formation in the state of Guerrero (Alvarado–Ortega et al., 2004).
At the Vallecillo locality, the rock exposure consists of at least 2 m of a homogeneous sequence of laminated pink marlstone beds (Blanco et al., 2001, Blanco–Piñón et al. 2002). Towards the top of the section, the sequence grades into a monotonous, alternating gray–pinkish limestone and brown shale with a bed thickness varying from 10 to 20 cm. The Ptychodus specimen was collected from the uppermost part of the Vallecillo Member. The presence of the ammonite Watinoceras coloradoense Henderson (Blanco–Piñón et al., 2005) in the Vallecillo Member places this rock to be lower Turonian. This age assignment concomitantly marks the oldest known fossil record for Ptychodus mortoni. According to Gradstein et al. (1995), taxon range for W. coloradoense spans approximately from 93.5 to 92.6 million years.
According to its previously reported temporal distribution, remains of Ptychodus mortoni were considered as index fossils that signify the age range of Coniacian–Maastrichtian (see Johnson et al., 2002; Johnson and Lucas, 2003; Williams and Lucas, 2005). However, the specimen described here unequivocally confirms the presence of P. mortoni during the early Turonian. The extended chronostratigraphic range makes the species less useful as a biostratigraphical marker.
According to Blanco (2003) and Blanco et al. (2005), the Vallecillo Member was deposited in the outer part of a platform under anoxic/dysoxic conditions probably related to the late Cenomanian – early Turonian oceanic anoxic event (OAE–2). Besides Ptychodus mortoni, the fossil fauna of the Vallecillo Member includes unidentified lamniform sharks (Blanco et al., 2005),Nursallia gutturossum and other unidentified pycnodontid as well as undetermined pachycor–midfish. Teleostean fish are represented by Vallecillichthys multivertebratum (Ichthyodectiformes), Goulmimichthys roberti andAraripichthys sp. (Pachyrhizodontiformes sensu Cavin, 2001) (Blanco and Cavin, 2003); Robertichthys riograndensis and Rhynchodercetis regio (Dercetidae) (Blanco–Piñón and Alvarado–Ortega 2005, 2006); as well as Tselfatia formosa (Tselfatiiformes) (Blanco and Cavin, 2003). Reptiles are represented by non–determined turtles (Blanco et al., 2001) and a plesiopedal mosasaur (Jacobs et al., 2005). Invertebrates are represented by the ammonites Watinoceras color adoense (Blanco–Piñón et al., 2005), Mammites, Spathites and Collignoniceras (Blanco et al.2001); as well as bivalves of the genus Inoceramus (Blanco 2003). Among the groups enlisted above, inoceramids are the only shelled macroinvertebrates that could have served as pray taxa for Ptychodus mortoni, rather than ammonites or vertebrates such as the reptiles and the fishes. According to Cappeta (1987), the dentition of pattern of Ptychodus mortoni was capable of crushing shelled mollusk such as small inoceramids. Kauffman (1972) suggested this hybodontid shark species could attack small inoceramids rather than adults based on the presence of coprolite–like structures composed by crushed fragments of immature inoceramids. Until now, no evidence of attack of Ptychodus mortoni sharks on ammonites has been reported.
ACKNOWLEDGEMENTS
The authors are deeply grateful to the González family, especially to Roberto González (Vallecillo, Nuevo León, Mexico), who provided us the material described in this manuscript. We also thank L. Espinosa–Arrubarrena for the preliminary revision of this manuscript, and K. Shimada for his comments on the final version of this document. Special thanks goes to V. Griener for processing the photographs used in this paper, and M. Polcyn for providing part of the literature cited in this work. Financial support was provided by PROMEP (Project 72636363).
]]> REFERENCES
Agassiz, J.L.R., 1835–1843, Recherches sur les poisons fossils, 5 vols.: Neuchâtel et Soleure, Pettipierre, 1420 p. [ Links ]
Applegate, S.P., 1970, The Vertebrate fauna of the Selma Formation of Alabama, Part VIII. Fishes: Fieldiana Geology, 3(8), 381–433. [ Links ]
Antunes, M.T., 1961, Sur la faune de vertébrés du Crétacé de Iembe (Angola): Comptes rendus hebdomadaires des séances de l'Académie des sciences, 253(3), 513–514. [ Links ]
Antunes, M.T., Cappetta, H., 2002, Sélaciens du Crétacé (Albién–Maastrichtien) d'Angola: Palaeontographica, Abtheilung A, 264, 85–146. [ Links ]
Alvarado–Ortega, J., Garibay–Romero, L.M., Vega–Vera, F., 2004, Rayas fósiles del Cretácico Superior del Estado de Guerrero, en IX Congreso Nacional de Paleontología, Tuxtla Gutiérrez, Chiapas, Libro de Resúmenes: México, Sociedad Mexicana de Paleontología, p. 68. [ Links ]
Blanco, A., 2003, Lithographic marls from Vallecillo, N.L. Mexico; Agua Nueva Formation or a new lithologic unit? in Geological Society of America, Annual Meeting, Seattle, Washington: Geological Society of America, Abstracts with Programs 35(6), p. 87. [ Links ]
Blanco, A., Cavin, L., 2003. New Teleostei from the Agua Nueva Formation (Turonian), Vallecillo (NE Mexico): Comptes Rendus Palevol, 2, 299–306. [ Links ]
Blanco, A., Stinnesbeck, W., López–Oliva, J.G., Frey, E., Adatte, T., González, A.H., 2001, Vallecillo, Nuevo León; un nuevo yacimiento fosilífero del Cretácico tardío en el Noreste de México: Revista Mexicana de Ciencias Geológicas, 18(2),186–199. [ Links ]
Blanco–Piñón, A., Alvarado–Ortega, J., 2005, New Derretid fish (Aulopiformes: Teleostei) from the Early Turonian of Vallecillo, NE Mexico, in Poyato–Ariza, J. (ed.), Four International Meeting on Mesozoic Fishes – Systematics, Homology and Nomenclatura: Spain, Miraflores de la Sierra, Madrid, Universidad Autónoma de Madrid Ediciones, 43–46. [ Links ]
Blanco–Piñón, A., Alvarado–Ortega, J., 2006, Rhynchodercetis regio sp. nov.; A dercetid fish (Teleostei:Aulopiformes) from Vallecillo, Nuevo León State, Northeastern Mexico: Journal of Vertebrate Paleontology, 26(3), 552–558. [ Links ]
Blanco–Piñón, A., Shimada, K., González–Barba, G., 2005, Lamnoid vertebrae from the Agua Nueva Formation (Upper Cretaceous: lower Turonian), northeastern Mexico: Revista Mexicana de Ciencias Geológicas, 22(1), 19–23. [ Links ]
Blanco–Piñón, A., Frey, E., Stinnesbeck,W., López–Oliva, J.G., 2002, Late Cretaceous (Turonian) fish assemblage from Vallecillo, Northeastern México: Neues Jahrsrbuch für Geologie und Paläontologie, Abhandlung, 225(1), 39–54. [ Links ]
Bonaparte, C.L., 1838, Selachorum tabula analytica: Nuovi Annali delle Scienze Naturali, 1(2), 195–214. 16 p. [ Links ]
Brito, P.M., Janvier, P., 2002, A ptychodontid (Chondrichthyes, Elasmobranchii) from the Upper Cretaceous of South America: Geodiversitas, 24(4), 785–790. [ Links ]
Cappetta, H., 1987, Chondroichthyes II, Mesozoic and Cenozoic Elasmobranchii, in Schultze H.–P. (ed.), Handbook of Paleoichthyology, v. 3B: München, Verlag Dr. Gustav Fischer, 1–193. [ Links ]
Cavin, L, (2001), Goulmimichthys arambourgi Cavin 1995 and the phy–logenetic relationships of the Cretaceous Pachyrhizodontidae, in III International Meeting on Mesozoic Fishes–Systematics, Paleonvironments and Biodiversity, Serpiano (TL–CH), Abstracts, 16. [ Links ]
Cicimuri, D., 1998, Fossils elasmobranch of the Cretaceous System (Neocomian–Maestrichian), Black Hills Region, South Dakota and Wyoming: Rapid City, South Dakota, South Dakota School of Mines and Technology, Unpublished M. Sc. thesis, 196p. [ Links ]
D'Erasmo, G. 1922, Catalogo dei Pesci fossili delle Tre Venezie: Padova, Regia Università di Padova, Memoria dell' Instituto Geologico, 6, 181p. [ Links ]
Everhart, M, J., Caggiano, T, 2004, An associated dentition and calcified vertebral centra of the Late Cretaceous elasmobranch, Ptychodus anonymus Williston 1900: Paludicola, 4(4), 125–136. [ Links ]
González–Barba, G., Coutiño–José, M.A., Ovalles–Damián, E., Vega–Vera, F. J., 2001, New Maastrichthian Elasmobranch Faunas from Baja California Peninsula, Nuevo León and Chiapas States, Mexico, in III International Meeting on Mesozoic Fishes–Systematics, Paleoenvironments and Biodiversity, Serpiano (TL–CH), Abstracts, 26–27. [ Links ]
Gradstein, F.M, Agterberg,F.P., Ogg, J.G., Hardenbol, J., Van Veen, P., Thierry, J., Huang, Z., 1995, A Triassic, Jurassic and Cretaceous time scale, in Berggren, W. A., Kent, D. V., Aubry, M–P., Handerbol, J. (eds), Geochronology, Time Scales and Global Stratigraphic Correlation: Society for Sedimentary Geology Special Publication, 54, 95–126. [ Links ]
Hay, O.P., 1902, Bibliography and catalogue of the fossil vertebrata of North America: Bulletin of the United States Geological Survey, 179, 1–868. [ Links ]
Herman, J. 1977, Les sélaciens des terrains néocrétacés et paleocenes de Belgique et des contrées limitrophes–Eléments d'une biostrati–graphique inter–continentale. Mémoires pour sérvir a l' explication des cartas géologuiques et miniers de la Belgique: Service Géologique de Belgique, 15, 401 p. [ Links ]
Huxley, T.H., 1880, On the applications of the laws of evolution to the arrangement of the Vertebrata and more particulary of the Mammalia: Proceedings of the Zoological Society of London, 1880, 649–662. [ Links ]
Jacobs, L.L., Ferguson, K., Polcyn, M.J. Rennison, C., 2005, Cretaceous 813C stratigraphy and the age of dolichosaur and early mosasaurs: Netherlands Journal of Geosciences – Geology en Mijnbouw 84(3), 257–268. [ Links ]
Jaekel, O., 1898, UeberHybodus Agassiz: Sitzungsberichte der Gesellschaft Naturforschenden Freunde, 89,135–146. [ Links ]
Johnson, S.C., Lucas, S.G., 2003, Selachian Fauna from the Upper Cretaceous Dalton Sandstone, Middle Rio Puerco Valley, New Mexico– Guidebook in 54th Field Conference Geology of the Zuni Plateau: New Mexico, USA, New Mexico Geological Society, 353–358. [ Links ]
Johnson, S.C., Lucas, S.G., Friedman, V., 2002, Stratigraphic range and bioestratigraphic utility of the Cretaceous shark genus Ptychodus, in Geological Society of America, Annual meeting: Denver, Colorado, USA, Geological Society of America, Abstracts with Programs 34(6), p. 462. [ Links ]
Kauffman, E. G., 1972, Ptychodus predation upon a Cretaceous Inoceramus: Journal of Paleontology, 15(3), 439–444. [ Links ]
Maldonado–Koerdell, M., 1956, Peces fósiles de México, III. Nota preliminar sobre los peces del Turoniano Superior de Xilitla, San Luis Potosí, México: Ciencia, 16(13), 31–35. [ Links ]
Mutter , R. J., Iturralde–Vinent, M., Carmona, J.F., 2005, The first Mesozoic Caribbean shark is from the Turonian of Cuba: Ptychodus cyclodontis sp. nov. (? Neoselachii): Journal of Vertebrate Paleontology, 25(4), 976–978. [ Links ]
Welton, B. J., Farish, R.F., 1993, The Collector's Guide to Fossils Sharks and Rays from the Cretaceous of Texas: Lewisvile, Texas, Before Time, 204 p. [ Links ]
Williams, S.C., Lucas, S.G., 2005, The use of the Late Cretaceous Selachians Ptychodus and Squalicorax as biostratigraphic indicators in New Mexico, USA, in Poyato–Ariza, F.J. (ed.), Fourth Internacional Meeting on Mesozoic Fishes–Systematics, Homology, and Nomenclature, Extended Abstracts: Spain, Miraflores de la Sierra, Madrid, Universidad Autónoma de Madrid Ediciones, 271–272. [ Links ]
Williamson, T.E., Lucas, S.G., 1990, Late Cretaceous vertebrates from the Mulatto Tongue of the Mancos Shale, central New Mexico: New Mexico Journal of Science, 30, 27–34. [ Links ]
Williamson, T.E., Lucas, S.G., Pence, R., 1989, Selachians from the Hosta Tongue of the Point Lookout Sandstone (Upper Cretaceous, Santonian), central New Mexico: New Mexico, New Mexico Geological Society, Guidebook 40, 239–245 [ Links ]
Williamson, T.E., Kirkland, J.I., Lucas, S.G., 1993, Selachians from the Greenhorn Cyclothem ("Middle" Cretaceous: Cenomanian–Turonian), Black Mesa, Arizona, and the paleogeographic distribution of Late Cretaceous Selachians: Journal of Paleontology, 67(3), 447–474. [ Links ]
Williston, S.W.,1900, Selachians and Pycnodonts: University Geological Survey of Kansas, 6, 237–256. [ Links ]
Woodward, A. S., 1887, On the dentition and affinities of the sekachian genus Ptychodus Agassiz: Quaterly Journal of the Geological Society, 43, 121–131. [ Links ]
Woodward, A.S. 1889, Catalogue of the fossils fishes in the British Museum (Natural History), I. Elasmobranchii: London, British Museum of Natural History, 474p. [ Links ] ]]>
