Veterinaria México OA vol.4 no.2 México abr./jun. 2017

Short Communications

Quantitative evaluation of osteogenesis through infrared light. Pilot study

Pedro A. Lomelí Mejía1  *

Pablo A. González Lomelín2

Hugo Lecona Butrón3

Rene Domínguez Rubio4

Saúl R. León Hernández5

Itzel X. Luna Valdéz3

Víctor M. Domínguez Hernández1

1Laboratorio de Biomecánica, Instituto Nacional de Rehabilitación Luis Guillermo Ibarra Ibarra. Calz. México Xochimilco No. 289 Col. Arenal de Guadalupe, Delegación Tlalpan, C.P. 14389, Ciudad de México.

2Cirugía de Mano, Instituto Nacional de Rehabilitación Luis Guillermo Ibarra Ibarra. Calz. México Xochimilco No. 289 Col. Arenal de Guadalupe, Delegación Tlalpan, C.P. 14389, Ciudad de México.

3Bioterio y Cirugía Experimental. Instituto Nacional de Rehabilitación Luis Guillermo Ibarra Ibarra. Calz. México Xochimilco No. 289 Col. Arenal de Guadalupe, Delegación Tlalpan, C.P. 14389, Ciudad de México.

4Maestría en Ciencias de la Salud, Escuela Superior de Medicina. Instituto Politécnico Nacional. Plan de San Luis y Díaz Mirón s/n, Col. Casco de Santo Tomas, Delegación Miguel Hidalgo, C.P. 11340,Ciudad de México.

5Unidad de Apoyo a la Investigación. Instituto Nacional de Rehabilitación Luis Guillermo Ibarra Ibarra. Calz. México Xochimilco No. 289 Col. Arenal de Guadalupe, Delegación Tlalpan, C.P. 14389, Ciudad de México.


Different methods are available to evaluate the degree of bone healing. A good choice involves employing optical techniques with infrared light to evaluate the progress of bone consolidation. Because infrared light is absorbed in liquids and reflected in solids, it is possible to assess bone consolidation progress using an incident light source and a coupled photo sensor. We used a 940-nm light source that is capable of reaching bone to determine the degree of bone consolidation. Five New Zealand White rabbits were used according to the NOM-062-ZOO99 standard. In each animal, a fracture was generated in the left tibia, and the fragments were fixed using an external fixator constructed with Kirschner nails and dental acrylic cement. Progress in bone consolidation was evaluated at days 7, 23, and 34 after surgery. A linear dependence was observed between the days elapsed and the reflection of the infrared light.

Keywords: bone consolidation; infrared light; animal model; laser diode


Different methods are available to evaluate the degree of bone healing that are as simple as the transmission of complex sound waves (ultrasound) or as complex as bone densitometry and computed tomography. However, the cost-benefit ratio does not justify the use of the latter on a regular basis. A good choice involves employing optical techniques and taking into account the optical properties of tissues because it is possible to differentiate them according to their densities.

When collimated light is applied on a surface of any material, a fraction of it is absorbed to generate heat or perform photochemical reactions. The remaining portion is dispersed and may pass through the surface if it has sufficient power. However, the incident light might be reflected from different internal structures to the surface. This reflection depends on the optical properties, particularly the optical absorption coefficient, which is characteristic of each material. Infrared light is reflected in solids and absorbed in liquids. When the wavelength of 940 nm is applied to human skin, the IR radiation reaches muscle or bone with minimal losses due to its low optical coefficient of absorption.1,2 In the case of the fracture line, bone fractures consolidate with time, and reflection of IR radiation increases. Based on the nature of radiation (which does not change its frequency, but its intensity), it is possible to evaluate bone healing because it changes gradually over time. Thus, the optical properties depend on the level of bone consolidation (density of the fracture line), which is the starting point for the development of a device that uses a laser diode that emits IR light. Thus, we can observe how the fracture line is modified over time. A fraction of IR light applied on a tissue is reflected from all layers in pairs,3 as shown in Figure 1.

Reflection on the border of two layers of inhomogeneous tissue is known as diffuse reflection or Fresnel’s law4-6 and is calculated according to Equation 1.

Equation 1



= Reflectance (dimensionless) and

n1, n2

= Refraction index (dimensionless).

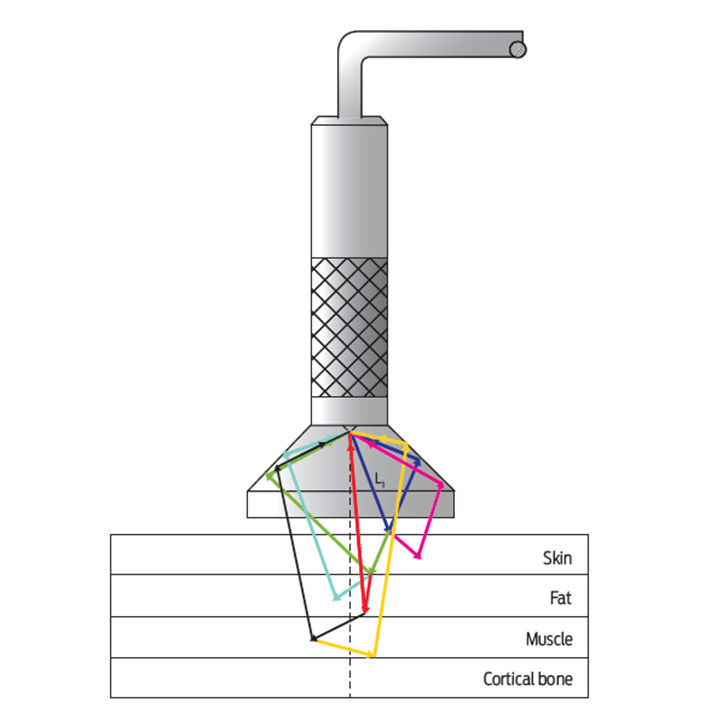

Figure 1 Laser light applied and reflected from the different tissue layers. This light is collected by the sensor and is subsequently processed.

RT total reflection was not strictly calculated, but the intensity detected with a photo sensor through an optical fibre corresponds to the optical response of all the tissue layers.7,8 To assess bone consolidation, two observations were made in this work: first in the contralateral zone, which is considered as a reference at 100 % consolidation independent of bone density, and then subcutaneously in the fracture line. The final reading is displayed on the computer as a percentage and is obtained using the program for the Arduino board. The main argument for developing this program assumes that an increase in bone density is directly proportional to the time elapsed.


Since the discovery of X-rays in 1895, it is possible to offer a diagnosis and treat bone fractures with scientific rigor. Another development that contributed to the field of orthopaedic trauma was computed tomography, which was invented in 1972. By using this technology, a bone can be observed through cuts in three dimensions with a precision of millimetres. It is possible to know the shape of a fracture line and its location, but it does have a problem when determining bone quality. For this purpose, bone densitometers were designed to assess the bone density gradients in the same bone by using laser light scanning. For this procedure, it is necessary to know the optical parameters of the tissues to be studied and to have mathematical software that allow the behaviour of a tissue to be modelled,9 or an assembly of tissues to obtain the desired graphic or image response. Regarding the study of the optical properties of the tissue, the first studies reported date to the time when Beer’s Law was unveiled.10 By using this application, only one tissue could be analysed by the incidence and transmission of a beam of monochromatic light.

In 1981, Wan et al. developed a theoretical model to explain the reflection and transmission of multilayer diffuse structures, such as human skin.11 They conducted an experimental study in sheep’s abdomen and chest skin. In 2000, The London College University in England performed a study of human skin in which the optical absorption coefficients of human skin were known in black and Caucasian skin.12,13 Thus, it is possible to understand the set of values of the broad range of human skin shades (optical properties of the skin). Cook conducted a study in 1993 to calibrate an X-ray device and used aluminum to simulate transverse and oblique fractures, finding that it was possible to detect fractures on the order of 0.05 mm. In his article, he noted that the fracture callus can exhibit an up to 20 % increase compared with the healthy contralateral side two weeks after attachment plate removal. He also mentions that the progress of consolidation for patients treated with an external fixator may be expressed as a percentage of the mineral density compared with the same site on the contralateral limb. Finally, he mentions that although the mineralization process is not linear with respect to time, it provides an idea of bone mineral density during the consolidation process.14

In 2002, Srinivasan et al. mentioned the reasons why devices containing any ionizing source, such as X-rays, are not fully recommended. In addition, he discovered that laser light in the range of 600 to 1 300 nm at low intensities does not represent a risk for health, thus prompting the development of new imaging technologies.15 The following year, a group of Australian researchers found that visible light is absorbed in the soft tissue.16 The incident intensity is reduced to 10 %. In contrast, when applying infrared light, it is reduced to only 5 %. In 2008, Krawiecki et al. developed a model to explain the absorption and scattering of light in human tissues. Using a mathematical model, he showed that dispersion and optical density can be considered the summation of a linear combination of coefficients and constants, whereas transmission can be considered a product of absorption and dispersion constants, which are characteristic of each tissue to be analysed. The model is consistent for a structure of up to eight different layers.17 Thus, it is clear that bone healing can be evaluated based on the change of the optical absorption coefficient, which depends on bone mineral density. Considering the experiences mentioned above, we believe that it is possible to design a device that provides information on the evolution of the fracture line versus time in a non-invasive manner.

Material and methods

Five New Zealand White (NZW) rabbits weighing 3 to 4 kg were used for this study with approval from the Bioethics Committee of the National Institute of Rehabilitation (INR-LGII). Care, feeding and use were performed according to the official standard NOM-062-ZOO99.

The procedure started by cannulating the marginal ear vein. Then, the left leg was shaved, and an anaesthetic was administered based on the rabbit’s the weight. Vital signs were continuously observed. Antisepsis was performed with isodine foam; sterile fields were placed, which allowed the left lower extremity to be exposed. Anatomical landmarks of the tibial anterior tuberosity and of the medial malleolus protrusion were identified. Then, an anteromedial approach of 1.5 cm in the middle third of the tibia was performed. The skin was dissected, and the tibial shaft was incised longitudinally. A 0.5 cm area of periosteum was stripped from the tibial shaft, and the cortical bone was exposed. Then, the osteotomy was performed using a handsaw. After the osteotomy, both fragments were fixed using an external fixator constructed with Kirschner nails and dental acrylic cement, as shown in Figure 2.

Figure 2 Reduction of tibia by external fixators made with Kirschner nails 0.045 inch in diameter and methylmethacrylate cement.

Results and discussion

Measurements were performed using IR light at the level of the fracture line from the first to the fourth week. The percentage of bone consolidation was in the range of 19-32 % for the first week, of 48-52 % after 23 days, and 64-73 % after 34 days.

Regarding computed tomography (CT), averages increased significantly from one measurement to another. The values increased from 419 in the first measurement to 700 in the second measurement and finally to 1080 in the third. Statistical analysis was performed using SPSS software version 17 (Friedman test for related samples p = 0.007). The CT results are presented in Table 1 at 7, 23 and 34 days after surgery.

Table 1 Results of the CT study in Hounsfield Units [HU]

High Pearson correlation coefficients were observed between the first two measurements of the percentage of bone healing by IR light and postsurgical days. As time increased, the consolidation percentages increased. Of note (Table 2), the correlation coefficient decreased for the last measurement on day 34 after surgery in rabbit 5 at 73 %, which is in contrast to the minimum expected consolidation of 91.5 %. It is likely that rabbit 5 exhibited delayed consolidation for unknown reasons because it was apparently in good health. However, the CT results are not consistent with the IR light because rabbit 5 registered high CT values.

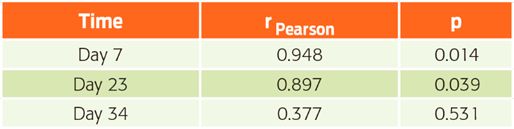

Table 2 Correlation coefficients of the percentage of consolidation measured by IR light with postsurgical advance days.

Finally, Figure 3 shows the overlapping correlations of CTs with consolidation percentage measured by IR light are shown, with the CT with postsurgical evolution days and consolidation percentage by IR light with postsurgical evolution days.

Figure 3 Superimposed scatterplots showing the relationships between variables. TAC LN PORCELIN = computed tomography (Hounsfield units) vs % of bone consolidation. TAC LN DIAS LN = days of experiment vs computed tomography (Hounsfield units). PORCELIN DIAS LN = days of experiment vs % of bone consolidation.


In this article, the functionality of a device that uses laser light IR (940 nm) to optically evaluate bone consolidation was estimated.18 The results obtained from only five rabbits are reported here given that the first rabbit died after the application of anaesthesia probably due to pre-existing health problems.

X-rays are useful to determine whether any fractures are present. However, X-rays do not indicate the progression of bone healing over time because the energy of X-rays can pass through the bone bridges that formed initially. Significant differences in terms of structural density can be observed until a maximum increase of osteoblasts occurs (typically on the fifteenth day after fracture reduction). In contrast, using optical methods, it is possible to observe significant changes starting on the third day. The reason for this sensitivity is that the optical absorption coefficient is altered depending on the level of cumulative mineralization and metabolism in the fracture, which depends on the time elapsed. Measurements made by means of IR light exhibit broad statistical correlation with the results obtained from the study of tomography. This fact underscores its use as a method of quantitative measurement of bone consolidation with significant potential in the clinic.

This study was conducted in an animal model (NZW rabbits 3-5 kg), which exhibits increased bone consolidation compared with humans. A proposal for the quantitative measurement in bone healing in humans is the next step to validate the use of IR light for fracture evaluation. It is important to make the necessary corrections to the device designed in this study.


We thank the MVZ Ricardo Mejenes López, MVZ Javier Pérez Gallaga, and the technician Juan Martín Ramírez Gómez for their valuable help in this research.


1. Simpson CR, Kohl M, Essenpreis M, Cope M. Near-infrared optical properties of ex vivo human skin and subcutaneous tissues measured using the Monte Carlo inversion technique. Phys Med Biol. 1998 Sep;43(9):2465-78. doi: 10.1088/0031-9155/43/9/003. [ Links ]

2. Jawad MM, Husein A, Azlina A, Alam MK, Hassan R, Shaari R. Effect of 940 nm low-level laser therapy on osteogenesis in vitro. J Biomed Opt. 2013;18(12):128001. doi: 10.1117/1.JBO.18.12.128001. [ Links ]

3. Li L, So-Ling C. Rendering human skin using a multilayer reflection model. Int J Math Comput Simulat. 2009;3(1):44-53. [ Links ]

4. Huxley AF. 1968. A theoretical treatment of the reflexion of light by multilayer structures. J Exp Biol. 1968:48(1):227-245. [ Links ]

5. Hébert M, Hersch RD, Becker JM. Compositional reflectance and transmittance model for multilayer specimens. J Opt Soc Am A Opt Image Sci Vis. 2007 Sep;24(9):2628-44. doi: 10.1364/josaa.24.002628. [ Links ]

6. Rohde SB. Modeling diffuse reflectance measurements of light scattered by layered tissues [Ph.D. Thesis]. [Merced, California(US)]: University of California, Merced; 2014. [ Links ]

7. Weissing FJ, Huisman J. Growth and competition in a light gradient. J Theor Biol. 1994; 168(3):323-36. doi: 10.1006/jtbi.1994.1113. [ Links ]

8. Bevilacqua F, Piguet D, Marquet P, Gross JD, Tromberg BJ, Depeursinge C. In vivo local determination of tissue optical properties: applications to human brain. Appl Opt. 1999;38(22):4939-50. doi: 10.1364/AO.38.004939. [ Links ]

9. Kulikov K. Laser interaction with biological material. Mathematical modelling. New York (US): Springer. 2014, pp. 47-65. doi: 10.1007/978-3-319-01739-6. [ Links ]

10. Sassaroli A, Fantini S. Comment on the modified Beer-Lambert law for scattering media. Phys Med Biol. 2004;49(14):N255-7. [ Links ]

11. Wan S, Anderson RR, Parrish JA. Analytical modeling for the optical properties of the skin with in vitro and in vivo applications. Photochem Photobiol. 1981;34(4):493-9. doi: [ Links ]

12. Simpson CR, Kohl M, Essenpreis M, Cope M. Near infrared optical properties of ex-vivo human skin and subcutaneous tissues measured using the Monte Carlo inversion technique. Phys Med Biol. 1998;43:2465-78. [ Links ]

13. Laufer J, Simpson CR, Kohl M, Essenpreis M, Cope M. Effect of temperature on the optical properties of ex-vivo human dermis and subdermis. Phys Med Biol 1998;43:2479-89. [ Links ]

14. Cook JE. Assessment of tibial fracture healing using dual energy X-ray absorptiometry. [Ms. C. Thesis]. [Durham (UK)]: Durham University. 1993. [ Links ]

15. Srinivasan R, Kumar D, Singh M. Optical tissue-equivalent phantoms for medical imaging. Trends Biomater. Artif. Organs. 2002;15(2):42-47. [ Links ]

16. Bjordal JM, Couppé C, Chow RT, Tunér J, Ljunggren EA. A systematic review of low level laser therapy with location-specific doses for pain from chronic joint disorders. Aust J Physiother. 2003;49(2):107-16. doi: 10.1016/s0004-9514(14)60127-6. [ Links ]

17. Krawiecki Z, Cysewska-Sobusiak A, Wiczynski G, Odon A. Modeling and measurements of light transmission through human tissues. Bull. Pol. Ac.: Tech. 2008;56(2):147-154. [ Links ]

18. Lomelí Mejía PA, Rodríguez León CE, Chaires Oria J, Domínguez Hernández VM, Lecona-Butron H, Araujo-Monsalvo VM, Cruz Orea A. Preliminary design of a device to optically evaluate bone consolidation. The Sci Tech, Int J Eng Sci. 2014;2:2-9 [ Links ]

Funding: This study was supported by CONACYT: SALUD-2009-01-113569.

Received: October 17, 2016; Accepted: March 30, 2017

*Corresponding author: Email address:

Conflicts of interest

The authors declared having no conflict of interest in this study.

Author contributions

PALM. Designed and directed research work. Wrote manuscript. PAGL. Performed animal surgery. HLB. Participated in surgery and animal care. SRLH. Analysed data and statistics. VMDH. Reviewed the manuscript. IXLV. Participated in surgery and animal care. RDR. Developed and programmed electronic device.
