2.1 Concrete specimens

The experimental program consisted of the analysis of the behavior of galvanic sensors installed in prismatic reinforced concrete specimens, with dimensions: (150 x 150 x 100) mm and two CA-50 steel bars with a diameter of 6.3 mm (1/4”) placed parallel to each other. Figure 1 illustrates the specimen configuration. For each concrete, 4 specimens were produced, totaling 8 samples.

Figure 1 (a) Configuration of the reinforced prismatic concrete specimen. (b) Partially immersed specimen.

In the specimens, the cover of the main bars was defined using NBR 6118:2015 as reference, considering that the structures or some of their elements may be exposed to very strong environmental conditions (Class IV). For Class IV, the standard indicates a minimum cover (c_min) of 50 mm, assuming that the specimens are representative of a beam or column. In this context, the cover of the main reinforcement in relation to the surface of the specimen, exposed to the NaCl solution, was 60 mm. On the sides of the specimens and on the surface exposed to air, the bars have a 30 mm cover, as shown in Figure 1(a).

In this experiment, two concretes conventionally used in concrete plants in the region of Curitiba (Brazil) were used, as shown in Table 1. The compressive strength test in concrete (Ø10 x 20 cm cylinders) was carried out in accordance with ^{NBR 5739 (2018)}. The average strength for this test was obtained from three samples for each series. The average compressive strength (f_cm) of concrete with (w/c) 0.75 was 20.62 MPa, and the f_cm of the concrete with (w/c) 0.45 was 39.36 MPa. The test was carried out with the specimens in saturated condition with a dry surface.

The 15 MPa mix simulates structural concrete from old buildings. It should be noted that structures built a few decades ago allowed characteristic strengths (f_ck) below 20 MPa. Furthermore, standards such as ^{ACI 318-14} recommend a minimum f_ck of 17 MPa for reinforced concrete structures exposed to moisture and an external source of chlorides (Class C2). The Brazilian standard ^{NBR 6118:1980} only established that the concrete should present a f_ck characteristic strength greater than 9 MPa, compatible with that adopted in the project, as well as meet the quality control criteria provided for in ABNT NBR 12655. However, the standard ^{NBR 6118:1980} did not include durability criteria for the execution of structural concrete according to the level of aggressiveness of the environment to which the concrete would be exposed.

The 30 MPa mix corresponds to Class III (marine or industrial atmosphere) according to ^{NBR 12655:2006} and the updated version of ^{NBR 6118:2014}, similar to the concrete recommended by ^{ACI 318-14} (f_ck = 30 MPa - w/c = 0.40) for the same exposure conditions. For the execution of the reinforced concrete specimens, the cement used was blended cement CP-II-F-32, which has up to 25% carbonaceous material (^{NBR 16697:2018}). The fine aggregate was a fine sand, and gravel was used as the coarse aggregate. The physical characterization of the aggregates and the standards considered for this are presented in Table 2.

The consistency of the concrete was measured using the slump test method, as recommended by the Brazilian standard ^{NBR 7223: 1992}. For both concretes, a fluidity in the range of 80 ± 10 mm was adopted in order to maintain a plastic consistency for molding all specimens, which did not require the use of chemical admixtures. After molding, the specimens were subjected to a curing process by immersion in water saturated with lime as indicated in the ^{NBR 5738:2003} standard for a period of 91 days.

A cure period longer than that recommended by the standard ^{NBR 5738:2003} (28 days) was chosen to simulate the concrete of a real structure that will have the need for field tests after a certain number of years of service. Therefore, no electrochemical readings were taken during the hardening of the concrete or during the concrete curing period. Since the objective is to simulate the interior of a real structure to evaluate the performance of the sensor, a period of stabilization of the concrete outside the curing chamber was not considered. Similar considerations were made in the work by ^{Rocha (2012}) and by ^{Dotto (2006}).

Finally, after the 91-day curing process, the specimens were placed in an oven to dry at 50°C for 5 days. Then, the lateral surfaces of the specimens were isolated from exposure to chlorides with an epoxy paint with the intention of making the contamination front only advance along the face with the 60 mm cover. To induce corrosion of the steel embedded in the concrete, an accelerated aging process that involves the absorption and diffusion of chloride ions in the cement matrix was used. Accelerated aging followed a partial immersion system alternated in cycles. The cycles consisted of drying in an oven at 50°C for 5 days and partial immersion of the specimens in water with 3.5% NaCl by mass for 2 days, as shown in Figure 1(b). This approach was adopted based on other works that used the same alternating immersion system (^{Freire, 2005}; ^{Dotto, 2006}; ^{Silva, 2010}; ^{Rocha, 2012}; Silva, 2017).

In addition, the adopted system and the salt concentration try to reproduce service conditions similar to a tidal variation zone within a marine atmosphere. In this region, there is contact with water contaminated with chlorides, with wetting and drying cycles. This characterizes a critical exposure condition in terms of reinforcement corrosion. The main degradation mechanism present in these conditions is the corrosion of the reinforcement by the action of chloride ions (Lima and Morelli, 2004), which is the attack considered to evaluate the performance of the sensors in this research.

2.2 Sensor configuration

The galvanic macrocell considered in the study is formed by copper and carbon steel. Carbon steel bars 60 mm in length and 6.3 mm (1/4") in diameter (anode) were used at different heights and installed on a copper plate (cathode) 50 by 50 mm and 4 mm thick. All metals were polished with steel brush. Then, they were rinsed with distilled water, immersed in alcohol and air dried. The area of the copper plate that acts as the cathode (Ac) in the galvanic sensor designed in the work was configured so that it was equal to the sum of the surface area of the anodes (Aa) that make up the galvanic macrocell for an Ac/Aa ratio = 0.97. Figure 2 shows a drawing of the galvanic sensor used in the study.

Figure 2 a) Galvanic sensor used in the study. b) Galvanic sensor installed inside the specimen. Source: Author.

Two of the sensor anodes were at a depth of 15 mm and the remaining two at a depth of 25 mm, with respect to the surface of the specimen exposed to the NaCl solution. These are the depths at which the sensor must produce the reinforcement depassivation information by the ingress of chlorides, as shown in Figure 2(b). Figure 3 shows the molding of the prismatic specimens and sensor installation.

Figure 3 a) Installation of main bars. b) Molds coated with oil and with the sensor positioned. c) Molding with the sensor embedded. Source: Author.

To fit the carbon steel bars to the copper plate, 4 holes 8.0 mm in diameter (> 6.3 mm) were made, as shown in Figure 4. The carbon steel bars were fixed to the copper plate with resin for cold welding in order to avoid an unwanted galvanic couple that could compromise the proper functioning of the sensor, in addition to exposing the device to premature degradation. For the external electrical circuit that connects the electrodes and allows the flow of electrons, a copper cable insulated with a PVC film and a 2.5 mm² cross section was used, which was welded to the metals involved. The welding points were protected with insulating polymeric material.

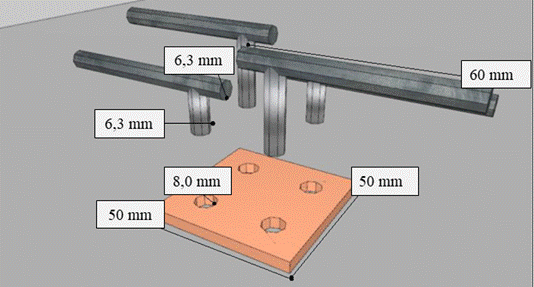

Figure 4 Sensor assembly diagram.

The choice of metals (electrodes) for the construction of the galvanic sensor was a function of the predetermined irreversible equilibrium potential (E_eq). Irreversible equilibrium potentials are electrode potentials that have changed under the influence of polarization or external factors. They are experimentally determined and are commonly called corrosion potentials (^{Gentil, 1996}). To determine them, a reference electrode is used, such as a standard hydrogen electrode. E_eq indicates the tendency of the electrode to undergo reduction or oxidation in a given medium. The greater the corrosion potential of the electrode in a table of potentials, the greater the tendency of the electrode to undergo oxidation, that is, to behave like an anode (Gentil, 1996; ^{Pawlick et al., 1998}; Souza, 2014).

The irreversible equilibrium potential of iron immersed in an electrolyte simulating sea water with reference to a hydrogen electrode is in the range of (-0.34 to 0.50) V. However, the corrosion potential of copper is in the range of (-0.02 to 0.05) V (^{Akimov, 1957}). In the study, the corresponding experimental procedure was not carried out to determine the irreversible potential value of the cathode and anode separately.

Finally, in order to make the sensor more practical, protect the copper cables and consequently improve the recording of electrochemical readings, electrical pin connectors were placed at all ends, as shown in Figure 5(b).

2.3 Characterization tests and electrochemical techniques

At each exposure cycle, electrochemical readings were conducted on the second day of partial immersion in water with 3.5% NaCl. In order to determine the potential of the sensor pairs throughout the aging process, the LabVIEW 8.5 data logger was used, which recorded the polarization potential difference (E_pair), as shown in Figure 5.

Figure 5 a) LabVIEW 8.5 data logger reading E_pair. b) Specemin with electrical pin connectors. Source: Calvo, (2018).

Theoretically, the potential of a galvanic couple (E_pair) is the result of the combination of the potentials of the metals involved. It is a spontaneous process caused by the different nature of the electrodes that leads to the polarization of both metals to a combined potential (E_pair) (^{Gentil, 1996}; ^{Pawlick et al., 1998}). That is, it is obtained from the difference between the positive potential corresponding to the cathode (E _cathode ) and the negative potential (E _anode ) corresponding to the anode, as shown in Equation (1) (Pawlick et al., 1998) in the environment in which they are inserted.

In practice, E _cathode is the polarization potential of the cathode and E _anode is the polarization potential of the anode. The polarization potential is the result of the displacement (ƞ) of the metal's irreversible equilibrium potential (E _eq ) by the formation of the galvanic couple. Thus, Equation 1 can be written in the form of Equation (2).

As no external current is applied to the galvanic macrocell, the polarization potential of the electrodes (anode and cathode) is always in the range of the natural potential of the metals inside the concrete (^{Mccarter and Vennesland, 2004}). Therefore, the E_pair value will fluctuate as a function of environmental conditions (^{Pawlick et al., 1998}). Thus, the E_pair value must be obtained empirically (^{Sousa, 2014}), and its value includes the values ​​of E_pair and ƞ, dispensing with the determination of these factors separately.

Thus, the data logger generated an individual reading corresponding to each of the anode-cathode pairs of the projected sensor. Each pair is recognized by the logger as an individual reading channel. It was analyzed whether the potential difference reading remains stable over time, as well as the type of reaction it indicated: galvanic (E_pair > 0) or electrolytic (E_pair < 0).

To record the galvanic current (I_gal), the electrochemical technique was used, using a Zero Resistance Ammeter - ZRA coupled to an SP-200 potentiostat and logging via EC-Lab software. This technique consists of measuring the galvanic current in a pair formed by different metals, one with an anodic behavior and the other with a cathodic behavior.

The technique is also used to perform some types of electrochemical noise measurements and consists of stabilizing the voltage between the working electrode and the counter electrode, and measuring the current and potential versus the reference electrode (EC-LAB., 2011). In this case, the working electrodes are the carbon steel bars of the galvanic sensor. As a counter-electrode, a stainless steel mesh was used and the reference electrode was the copper plate of the sensor.

In order to help validate the behavior of the sensor, the galvanic current and potential readings of the pair were correlated with the open circuit potential (E_corr) readings. Due to its simplicity, measuring the corrosion potential, E_corr, is the most used method in field determinations (^{Martínez and Andrade, 2009}). From these measurements, potential maps are drawn revealing the zones that are most likely to corrode in the active state (^{ASTM C876-15}).

A reading was taken at each anode, totaling 6 readings per specimen: four on the sensor anodes and two on the reinforcement bars. In the potential difference readings, a Cu/CuSO₄ reference electrode was used. To analyze the results in order to estimate the probability of corrosion in a given structure, the limits found in ^{ASTM C876-15} were considered.

However, there is still no regulation that establishes a fixed range of I_gal and E_pair values ​​to characterize the active state of steel in concrete. Therefore, it is not the absolute value of the current that should be considered, but the variation of its values ​​over time (Raupach and Schiessl, 2001; ^{Araújo et al., 2013}).

Finally, a qualitative test was performed using the colorimetric method by spraying silver nitrate (AgNO₃) to determine the depth of the penetration front of chlorides entering the concrete by absorption and diffusion, although it does not quantify the free chloride content (^{Real et al. al., 2015}; France, 2011, ^{Pontes et al., 2020}). The test consists of spraying an aqueous solution of 0.1 M AgNO₃ onto freshly fractured concrete slices. When the silver nitrate solution is sprayed onto the concrete surface, a photochemical reaction takes place. A white precipitate of silver chloride forms where free chlorides are present. In the region without chlorides or with combined chlorides, there is formation of a brown precipitate, silver oxide (^{Medeiros, 2008}; ^{Marcondes, 2012}).

To carry out the test, the specimens were broken in the direction of the flow of chlorides just before the test to prevent carbonation from occurring. In parallel, a test with phenolphthalein spray (1% in ethyl alcohol) was also performed on one of the specimens' slices to avoid false positives. In the presence of carbonates there is also the formation of a white precipitate (^{Jucá, 2002}).

After spraying the aqueous solution of silver nitrate, ten measurements of the depth of penetration of chlorides were performed, every 10 mm, following the recommendations of ^{NT BUILD 492 (2000)}. In this way, gross errors were avoided in reading the depth reached by chlorides. Before spraying the silver nitrate and phenolphthalein, each slice was brushed to remove surface dust.

3.1 Corrosion Potential

Figure 6 shows the results of Open Circuit Potential (E_corr) in specimens with 15 MPa concrete. Figure 7 shows the data corresponding to specimens with 30 MPa concrete. Both figures show the average of the readings obtained from the anodes of the galvanic sensor installed inside the specimens, with a cover thickness of 1.5 cm and 2.5 cm, respectively. Also represented in these figures are the averages corresponding to the main bars with a cover thickness of 6 cm.

At the end of the first wetting cycle, negative Ecorr values ​​(< -350 mV) were observed in the anodes installed at 1.5 cm and 2.5 cm, in both concretes. Several studies found more negative values ​​(indicating active corrosion) at the start of corrosion tests (^{Gurdián et al., 2014}; ^{Rocha et al., 2014}; ^{Capraro et al., 2016}; ^{Jiang et al., 2017}; Medeiros et al., 2014; , 2017; ^{Godinho et al., 2018}; Godinho et al., 2019; and Capraro et al., 2021). This behavior is related to the process of formation of the passivating film on the reinforcement, which involves the oxidation of the metal surface and, for this reason, generates electronegative readings at the beginning of the test (^{Poursaee, 2016}; ^{Meira, 2017}; ^{Ribeiro et al., 2018}).

Thus, E_corr gradually changes, transitioning from more negative values ​​to more positive values, until it stabilizes and indicates the formation of the passivating film (Sun et al., 2017) in the absence of aggressive agents inside the concrete. ^{Capraro et al. (2021}), for example, observed high negative values ​​(-600 mV / -700 mV) from the start of monitoring up to 800 days in all series exposed to dry chamber wetting and drying cycles (55 ± 5% R.H. and 23 ± 2 °C). Similarly, ^{Godinho et al. (2018}) observed readings in the range of -486 mV to -550 mV up to 100 days.

In order to encourage the formation of passive film on steel bars before molding, ^{Ghods et al. (2010}), ^{Nahali et al. (2014}), Williamson and Isgor, (2016) and ^{Godinho et al. (2019}) suggest the immersion of carbon steel bars in synthetic solutions that simulate the interior of the concrete before molding.

In this work, the monitoring of anodes installed at 1.5 cm and 2.5 cm did not show a stabilization level, but a tendency to become more electronegative as the chloride content inside the concrete increased.

With regard to the durability of concrete, ^{ABNT NBR 6118 (2014)} stipulates minimum cover values ​​(c_min) on the reinforcement according to the aggressiveness of the environment in which the structure is inserted. In this case, for the galvanic sensor anodes (1.5 and 2.5 cm), these values ​​were intentionally not respected. Adding to this the interconnectivity between the existing pores and micro-cracks in the paste, the efficiency of the physical protection that the cover provides is reduced.

According to ^{Leek (1991}) and ^{Ribeiro et al. (2014}), even with the alkaline reserve product of the Ca(OH)₂ content in concrete and the passivation film, the presence of chlorides inside the concrete can trigger the dissolution of the passive film and initiate the corrosive process. According to the authors Huafu et al. (2015) and ^{Jin et al. (2017}), as the degree of contamination by chlorides increases, the more negative the E_corr value tends to become.

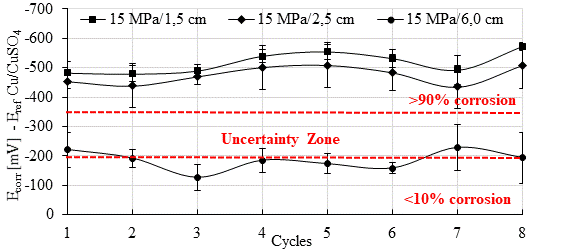

Figure 6 Corrosion potential for the 15 MPa mix. Source: Author.

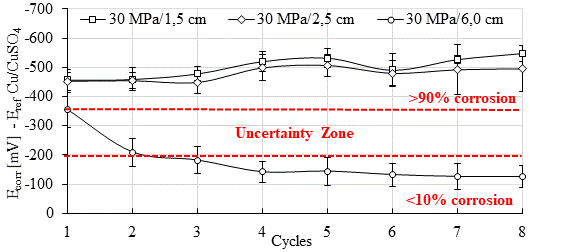

Figure 7 Corrosion potential for the 30 MPa mix. Source: Author.

On the other hand, in the main bars with 6 cm of cover, the probability of corrosion was less than 10% or in the range of (-200 to -350 mV) for both concretes. A similar behavior was observed by the authors ^{Romano et al. (2013}), who studied the performance of a sensor with electrodes at different depths in relation to the exposed surface of the specimen, namely: 1.5 and 3 cm. In the study, the electrode placed at a lower depth indicated depassivation before the electrode with a 3 cm cover. In addition, reinforcement bars of the specemin with a 4 cm cover depassivated 100 days after the sensor electrode was placed at a shallower depth.

Theoretically, more electronegative E_corr values ​​indicate a critical level of chloride ions around the sensor anodes. If anodes are installed at different depths, anodes closer to the outer surface, through which ion penetration takes place, should present more electronegative values ​​faster than those anodes located at greater depth (^{Romano et al., 2013}).

Finally, the ANOVA analysis of variance and the subsequent Tukey test with 95% confidence indicated that the concrete strength did not influence the results obtained during the corrosion potential test. Therefore, the behavior of this quantity in the specimens of both mixes was the same.

3.2 Pair potential

Figures 8 and 9 show the average potential values ​​of the pair for the six anodes of the system (corrosion sensor + steel bar). For 15MPa concrete, when the potential value of the pair was negative, the probability of anode corrosion was less than 10% or was in the uncertainty zone according to the open circuit potential readings.

Based on the results observed in this work, 20 mV/min is the potential value of the pair (E_pair) for the arrangement and metals used (carbon-copper steel), which characterizes the tested galvanic couple. In parallel, the threshold of 200 mV/min appears to indicate the change to the active state (indicated with a dashed line in Figures 8 and 9).

Thus, when the potential of the pair is in the range of 20 to 200 mV/min, as in the case of anodes with 1.5 cm and 2.5 cm cover in the first cycles, the corrosion is in the active state. From the 4th cycle onwards, the potential of the pair was greater than 200 mV/min, and the anodes were definitely in the active state, regardless of the cover. Positive E_pair values ​​indicate that the oxidation process predominates over the reduction process and the anode corrodes (anodic polarization). The greater the potential difference in the galvanic couple, the more intense the anodic polarization tends to be (^{Pawlick et al., 1998}, ^{Sousa, 2014}; ^{Fernandes and Martendal, 2015}) and the more intense is the corrosion reaction in the pair.

For the 30MPa concrete (Figure 9), a similar behavior was observed for the six anodes at 1.5, 2.5 and 6.0 cm depth. The concrete strength did not influence the results obtained during the pair potential test, according to statistical analysis (ANOVA and Tukey at 95% confidence). It is also noteworthy that the average error of the E_pair readings is small when compared to E_corr (Figs 6 and 7). Thus, it is possible to prove greater stability in the readings taken with the galvanic sensor.

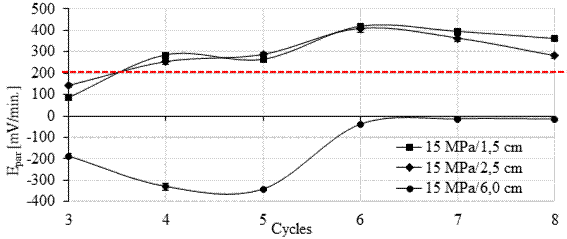

Figure 8 Pair potential for the 15 MPa mix. Source: Author.

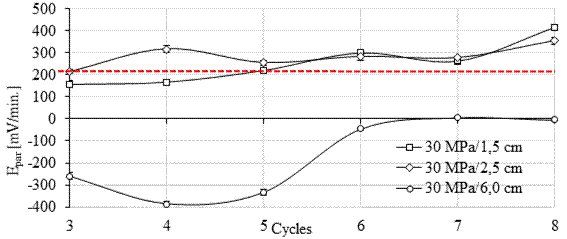

Figure 9 Pair potential for the 30 MPa mix. Source: Author.

^{Angst and Buchler (2015}) expose some intrinsic difficulties in monitoring the mixed potential of a galvanic macrocell (E_pair): (i) anodic and cathodic reactions generally occur in the same structural element, (ii) or it is not possible to place reference electrodes near the anode and cathode (iii) or the electrolyte conductivity is too high and therefore the potential difference is too low to be accurately measured.

Note, however, that ^{Angst and Buchler (2015}) refer to a macrocell formed on the surface of a steel bar, a product of the penetration of chlorides into the concrete that causes localized corrosion. A galvanic sensor, in a different way, is formed by small pieces of metal with different electrical potentials where one will act as an anode and the other as a cathode, embedded in the concrete at depths always smaller than that of the reinforcement (^{Andrade et al., 2008}; ^{Araújo et al., 2013}), which reduces the influence of the conductivity of the electrolyte.

It then remains to consider aspect (ii) mentioned by the authors: the possibility of placing reference electrodes close to the anode and cathode. Thus, in future tests that use the galvanic sensor proposed in this research, it is recommended to install a reference electrode as well. This practice will make it possible to separately determine the anode and cathode potential and thus be able to determine the polarization curve of each electrode, improving the monitoring of the galvanic couple potential.

It is also suggested to monitor the behavior of the potential of the pair (E_pair) in an environment free of aggressive agents until the parameter reaches an equilibrium point in the range of positive values, as its value is a function of the potentials of the metals that make up the galvanic couple inside the concrete (^{Pawlick et al., 1998}; ^{Mccarter and Vennesland, 2004}).

However, the stability of the sensor potential over time is also influenced by the anodic and cathodic current densities. In turn, the anodic and cathodic currents are a function of the anode area and the cathode area, respectively (^{Pawlick et al., 1998}).

Therefore, if the anode has insufficient area, the potential of the pair will shift to higher values ​​with an upper limit represented by the open circuit potential of the metal acting as the cathode. As the area of ​​the cathode in relation to the anode increases, the demand for electrons from the cathode increases, while the area of ​​the anode from which the electrons will be supplied decreases and, therefore, the rate of dissolution of the anode increases (^{Sousa, 2014}). Under these conditions, there is a risk that the anode degrades excessively and shortens the lifetime of the sensor. Therefore, the behavior of the galvanic sensor must be evaluated with a cathode/anode area (A_C/A_A) ratio equal to 1, in order to improve the functioning of the sensor proposed in the work.

Initially, the experimental program did not foresee the realization of this test, but it proved to be extremely important to understand the behavior of the sensor over time.

3.3 Galvanic current

Theoretically, when a corrosive process is established in the bars, the galvanic current increases in the range of positive values due to the variation in the anode potential, which assumes more negative values ​​compared to those obtained initially in its passive state (^{Araújo et al., 2013}; Lacerda and Muller, 2015). An increase in galvanic current accompanied by a decrease in the open circuit potential indicates that a critical level of chloride ions has been reached (^{Andrade et al., 2008}; Araújo et al., 2013).

In Figures 10 and 11 it is possible to observe that during monitoring, the galvanic current (I_gal) was negative during seven of the eight cycles in the six monitored anodes (four from the galvanic sensor and the two main bars). For the 15 MPa concrete (Figure 10), positive galvanic current values ​​were observed in cycle 7 after 141 days of monitoring. However, they became negative again in cycle 8. For the 30 MPa concrete, in Figure 11 it is observed that the galvanic current was positive in cycles 7 and 8.

In principle, positive current values ​​are in agreement with the open circuit potential more negative than -350 mV (corrosion probability > 90%), and with the pair potential greater than 200 mV/min, observed at the anodes installed at a lower depth (1.5 and 2.5 cm).

However, in the main bars installed with 6 cm of cover, E_pair indicated an electrolytic reaction during the monitoring, which means that the bars were in a passive state in agreement with the measured open circuit potential value. Therefore, the positive galvanic current (I_gal) record did not correspond with what was observed in the bars in the previous tests.

However, the galvanic current was close to zero throughout the test. Galvanic current values ​​close to zero are also indicative of the steel's passive condition (^{Park et al., 2005}; ^{Sousa, 2014}). Thus, similarly to what happened in the first stage of the experimental program with the sensors soaked in an aqueous solution (Calvo et al., 2017), I_gal showed greater inertia to identify the presence of an aggressive agent. Furthermore, according to ^{Ribeiro and Cunha (2014}), the galvanic current (I_gal) decays throughout the measurement, showing a capacitive behavior which makes monitoring difficult.

The results of galvanic current obtained in the six anodes (1.5, 2.5 and 6 cm) installed in the specimens of the 15 MPa mix were statistically equivalent to the values ​​of galvanic current recorded in the anodes installed in the test specimens of the 30 MPa mix.

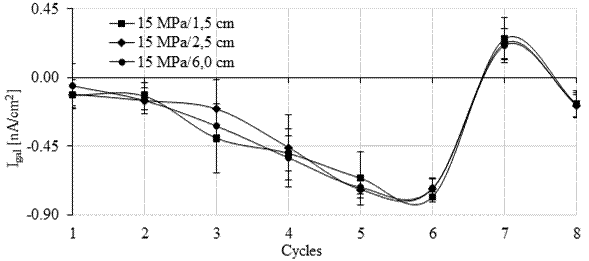

Figure 10 Galvanic current for the 15 MPa mix. Source: Author.

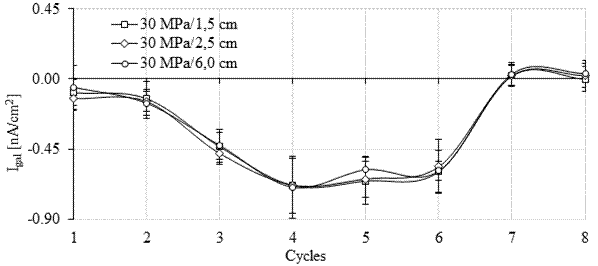

Figure 11 Galvanic current for the 30 MPa mix. Source: Author.

Finally, for data analysis, the linear model was applied, with the determination of R² to infer the correlation between the electrochemical techniques considered in the work. No correlation factor (R²) came close to 0.9; therefore, it cannot be affirmed that there is a positive linear relationship between the electrochemical techniques. That is, the measured quantities differ and do not converge. For this reason, this type of study is important, as the choice of the correct technique, or set of techniques, is essential for the monitoring to be efficient. However, the suggestions made earlier in order to improve the functioning of the sensor are essential in order to be able to understand and estimate the behavior of the quantities evaluated in the field accurately.

3.4 Chloride penetration by the colorimetric method

At the end of the corrosion monitoring, colorimetric tests with silver nitrate (AgNO₃ 0.1 M) and phenoltalein were performed. Figure 12 shows the appearance of the specimen slices after spraying the indicators. In none of the eight specimens tested was carbonated concrete observed, as indicated by the pink color in one of the specimen slices. This evidence that there is no carbonation in concrete is important to be sure that the colorimetric test of spraying a solution with silver nitrate will be effective, without indicating the false positive alerted in the works by ^{Pontes et al. (2020}).

In the slice on the left, it is possible to see two distinct regions in terms of color: one with a brown precipitate corresponding to the region without free chlorides, and another without color in the region affected by free chlorides, which indicates how far the chloride penetration front has reached. In Figure 12, the region without chlorides was delimited with a black line.

After 150 days at the end of the eighth cycle, the chloride penetration front reached an average depth of 7.6 cm in the 15 MPa concrete specimens and 7.2 cm in the 30 MPa concrete specimens. Therefore, in the concrete around the sensor anodes, a critical level of chlorides was reached. The results obtained on the sensor anodes during the E_corr and E_pair tests indicated a high probability of corrosion at the end of the test.

Figure 12 Colorimetric test (chloride penetration and carbonation) in the specimen after the end of monitoring.

It is observed that the depth of penetration of chlorides at the end of the cycles was similar between the 15 MPa and 30 MPa concretes. In this sense, it is necessary to point out that as well as porosity, cracking also provides facilities for aggressive agents to penetrate the concrete and initiate their destructive action in the structure. After the mass hardens, cracks are the result of drying shrinkage, reinforcement corrosion and alternating wetting and drying cycles, among other factors (^{Brandão and Pinheiro, 1999}). In this work, the three factors acted in combination, providing the appearance of microcracks, as shown in Figure 13.

The appearance of microcracks may have intensified the capillary penetration of water with chlorine ions, causing the concrete to present similar behaviors, different from what was observed under natural exposure conditions. Thus, drying in an oven at 50⁰C does not seem adequate and should be re-evaluated in other similar studies. However, studies that evaluated the penetration of chlorides in different Brazilian cements observed that concretes with CP-II-F have a high capacity for penetration of chlorine ions when compared to other types of cement, thus reducing the influence of the w/c ratio (^{Pereira, 2001}; ^{Crauss, 2010}; Fleet et al., 2018).

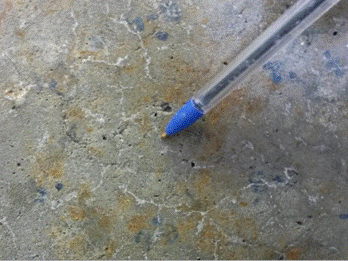

Figure 13 Microcracks in specimens.

On the other hand, even though the chloride penetration front reached the main bars (6 cm cover), the critical chloride content for the depassivation of the reinforcement was not reached in the concrete at this depth. This is because the probability of corrosion was less than 10% or in the uncertainty zone, whereas E_pair indicated an electrolytic reaction, or at most was in the range -5 to 20 mV/min.

In this sense, it is necessary to point out that the arrival of chlorides in the vicinity of the reinforcement, by itself, does not represent the beginning of the corrosion process. The process will only start when the Cl- ion content around the steel bar reaches the critical content (^{Jin et al., 2017}) in order to depassivate the steel.

Most standards set the permitted Cl- ion contents in relation to the cement mass. Although it is a very controversial point, the value of 0.4% in relation to the cement mass is a consensus in most standards (^{Cascudo, 1997}). The NP EN 206 standard, for example, adopts the value of 0.4% (^{Silva, 2017}) and ^{ABNT NBR 12655 (2006)} establishes 0.15% in the structure's service conditions.

Furthermore, by breaking the specimens, it was possible to confirm the presence of the corrosion product around the sensor bars, but not around the exposed part of the main bars (6 cm cover). It should be noted that the ends of the main bars were protected with gray insulating tape, so that only 60 mm of the bar was exposed, the same length as the sensor anodes, as shown in Figure 3(a).
