Materials and methods

Study site. The study site is in the State Reserve Ciénegas y Manglares of the northern coast of Yucatan, Mexico, close to the town of Sisal (21º 07’ 53.9” N and 90º 00’ 29.2” W). The climate of the zone is warm dry Bso(h’)w”(x’)i, according to the Köppen classification, modified by ^{García (1973)} with a precipitation/evapotranspiration ratio of less than 22.9, predominant summer rain (June-September), but with over 10 % the total annual rain falling in winter (December-January). There is an intra-estival drought, and the mean annual temperature is around 22 °C (^{Orellana et al. 1999}).

The soil type is rendzina, dark, with a depth ranging between 10 - 50 cm (^{González-Medrano 2003}). Due to the presence of interstitial water, the average salinity of the site is 2.7 ‰ and the mean pH is 6.6, while for the surface water, the salinity is 1.26 ‰ and the pH is 6.7. In the site, there are four abundant plant species: A. wrightii (Arecaceae), Cladium jamaicense (Cyperaceae), Scleria bracteata (Cyperaceae), and Rhynchospora colorata (Cyperaceae), with A. wrightii and S. bracteata dominating. When A. wrightii dominates the vegetation, the resulting association is known locally as a “tasistal” or floodable palm grove (^{Martínez & Galindo-Leal 2002}).

Sampling design. An area of 100 × 100 m (30 % of the wetland fragment) was selected and the presence of Acoelorraphe wrightii was identified; 19 individuals were selected at random, but each one complying with the following conditions: presence of inflorescences and a height between 2 and 2.5 meters, the aim being to reduce the effect of the variability produced by the age and physiological state of the plant. These were marked and samples were taken from their roots or rhizosphere every month from February to May 2007 (for root colonization) and in February and July (for spore extraction), during the dry season (flooded conditions at the beginning of the dry season), coinciding with the flowering season of the palm.

Mycorrhizal colonization. Fine roots (< 2 mm in diameter) were taken from nine of the marked individuals (^{Brundrett et al. 1996}) and these were washed, labeled and dyed (with Trypan blue) following the procedure of ^{Phillips & Hayman (1970)}, modified by ^{Hernández-Cuevas et al. (2008)}. Two to four permanent slides (containing 10 to 12 root fragments each) were prepared with the dyed roots and total mycorrhizal colonization as well as per structure (hyphae, vesicles, spores and coils) were quantified according to the method of ^{McGonigle et al. (1990)}, monitoring at least 100 optical fields at 100x magnification in a Nikon optical microscope. During the first sampling period (February), it was not possible to collect roots from all the 19 individuals selected due to the prevailing flood conditions which made it impossible to be sure that the roots collected belonged to the marked palms; therefore, we decided to take root samples only of nine individuals, the roots of the same individuals were collected during all sampling periods (February to May).

Spores of arbuscular mycorrhizal fungi. In order to isolate the spores present in the rhizosphere of Acoelorraphe wrightii, soil samples were taken around the 19 randomly selected individuals at the beginning and end of the dry season (February and July 2007). Around each selected palm tree, four soil samples were taken at a depth of up to 10 cm and combined to a final sample of 500 g of rhizospheric soil. Extraction of the spores was conducted on 50 g of dry soil using the wet-sieving method of ^{Gerdemann & Nicolson (1963)}, modified by ^{Hernández-Cuevas et al. (2008)}, using a set of sieves from 600 to 45 micrometers. Isolated spores were collected in semi-permanent preparations with polyvinyl alcohol (PVLG) and Melzer reagent for observation under an optical microscope (45X) and determination of the AM fungi species. Live and dead spores were quantified; spores were considered live when they appeared without damage on spore walls and presented cytoplasmic content, but were considered dead if the spore walls were damaged or if the spore was parasitized and had no cytoplasmic content.

To identify the AM fungi species, the morphological characteristics of the spores were observed: size, color, wall characteristics, number of strata, presentation of germination structures, subtending hypha and the occurrence of a reaction to the Melzer reagent. The AM fungi were then identified considering the species descriptions of the International Culture Collection of (Vesicular) Arbuscular Mycorrhizal Fungi (INVAM) web page (https://invam.wvu.edu/) the Manual for the identification of VA mycorrhizal fungi (^{Schenk & Pérez 1988}) and the web page (http://www.zor.zut.edu.pl/Glomeromycota/Taxonomy.html). The system proposed by ^{Schüβler & Walker (2010)} was utilized for the classification. In order to avoid mistakes during the identification process, only spores with cytoplasmic content and with clear morphological characters were employed to assign identity. Recently, the use of molecular tools for identifying communities of AM fungi has been development. However, since there is still absence of uniformity regarding the AMF-specific primer system that best reflect the diversity of AM fungi in a community (^{Kohout et al. 2014}), we decided to use the morphological characterization since we believe this approach remains valid to reach the aim of this study, as has been pointed out by other authors (v.g., ^{Oehl et al. 2004}, ^{Luo et al. 2016}).

Statistical analysis. For root colonization and spore number analysis we used the PROC MIXED method for repeated measures with the compound symmetry structure of covariance and type III sums of squares, considering the palm identity as random effect and month as fixed effect; since all data showed normality and homogeneity of variances these were not transformed, when significant effect of main factor differences was determined on pre-planned contrast. We used Statistical Analysis System (SAS) software 9.3.

Results

Mycorrhizal colonization. Mycorrhizal colonization of type Arum (intercellular hyphae without intracellular coils) was recorded in the roots of all of the sampled individuals of Acoelorraphe wrightii. Only three types of fungal structures were observed: hyphae, vesicles and spores. The percentage of total colonization differed significantly (F3, 24 = 7.76, p < 0.05, Figure 1a) among sampling times, with the months of February and April presenting the highest and lowest percentages of colonization, respectively. Significant differences were found among sampling times in terms of the percentage of colonization by hyphae (F3, 24 = 8.57 p < 0.05) (Figure 1b), vesicles (F3, 24 = 3.46, p < 0.05) (Figure 1c) and spores (F3, 24 = 9.42, p < 0.005) (Figure 1d). February presented the highest percentage of colonization for all structures while April presented the lowest percentage of colonization for hyphae and spores. The lowest percentage of colonization for vesicles was observed in May (Figure 1c).

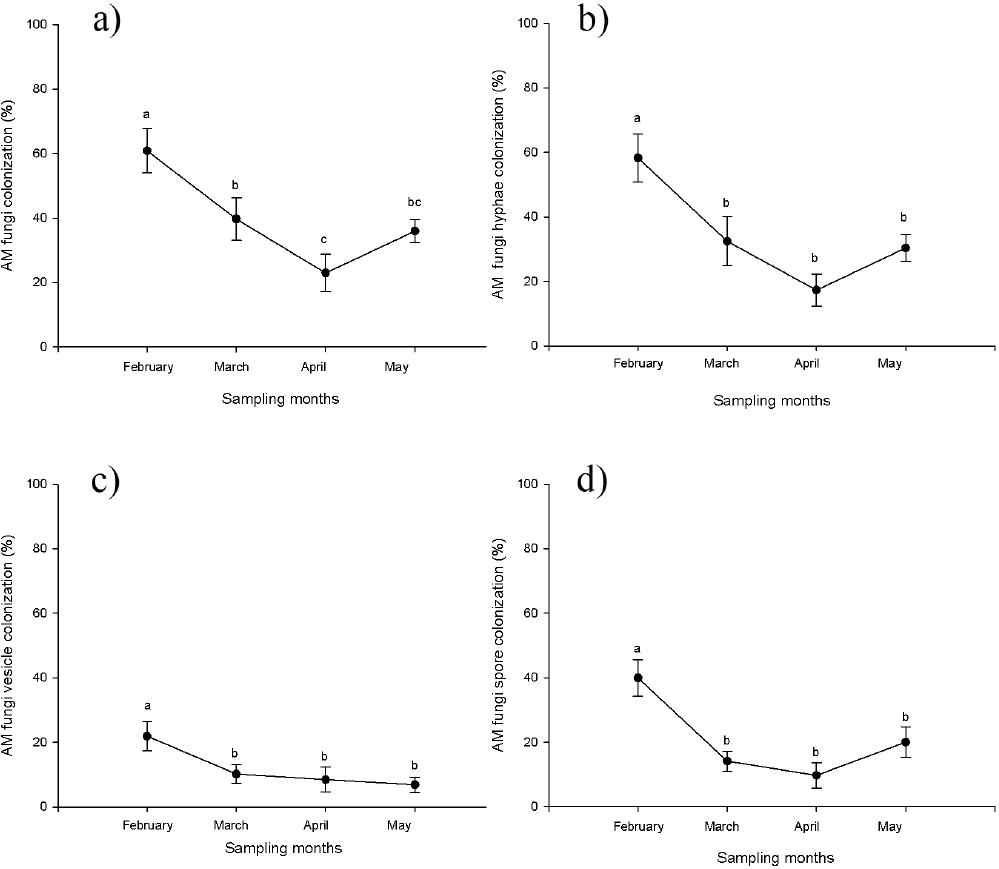

Figure 1 Percentage of mycorrhizal colonization in different sampling months (dry season February-May) in a wetland, where a) mean (±S.E.) total; b) mean (±S.E.) by hyphae; c) mean (±S.E.) by vesicles; d) mean (±S.E.) by spores. Means accompanied by the same letter do not differ significantly at p < 0.05.

Spores of arbuscular mycorrhizal fungi. A total of 22 species of AM fungi were found in the rhizosphere of A. wrightii (Table 1). These 22 species belonged to seven families and 12 genera, of the seven families of AMF recorded, Glomeraceae accounted for 50 % of the species, Acaulosporaceae for 18 %, Claroideoglomeraceae and Diversisporaceae each accounted for 9 %, while Gigasporaceae, Paraglomeraceae and Entrophosporaceae each accounted for 4.5 %. A total of 12 species were found at the beginning of the dry season (February) and 19 at the beginning of the rainy season (July) (Table 1).

The average total number of spores (live and dead) in 50 g of soil was 126 in February and 211 in July; however, no significant differences were found among sampling months. When comparing the number of live and dead spores there was no significant difference in February, whereas in July there was, on average, twice as many dead spores as live (F_1,18 = 7.08, p < 0.001) (Figure 2).

Figure 2 Mean number (±S.E.) of live and dead spores in 50 g of soil, in the months of February and July. Means accompanied by the same letter do not differ significantly at p < 0.05.

Discussion

Generally speaking, the results show that during the period of this study, Acoelorraphe wrightii roots presented mycorrhizal colonization and a total of 22 species of AMF were found in its rhizosphere, although the majority of the spores were damaged. The working hypothesis was supported in the sense that all the individuals analyzed presented arbuscular mycorrhizal colonization in their roots and that this fluctuated temporally. Moreover, a high richness of AM fungi species was found, which coincides with the expected results. The fluctuation in colonization values and number of spores is discussed below.

Acoelorraphe wrightii present Arum-type colonization, as has been reported in other palm species, such as Serenoa repens, Cocothrinax argentata, Pseudophoenix sargentii, Sabal palmetto and Thrinax morrisii (^{Fisher & Jayachandran 1999}, ²⁰⁰⁵). The type of colonization is influenced by both the identity of the host plant (^{Smith & Smith 1997}) and fungi (^{Dickson et al. 2007}), as well as the AM fungi efficiency which differs according to the plant species and the colonizing fungi (^{Cavagnaro et al. 2001}, ^{Mohammadi et al. 2008}).

Intercellular hyphae, vesicles and spores typical of the Arum colonization type were observed in the roots of A. wrightii (^{Cavagnaro et al. 2001}), but no arbuscules were observed. The absence of arbuscules in our observation may be due to their ephemeral nature (^{Smith & Read 2008}) and low frequency in field samples; but particularly in wetland plants mycorrhized roots commonly present a reduced number or even total absence of arbuscules (v.g., ^{Dolinar et al. 2016}, ^{Khan 1993}, ^{Sengupta & Chaudhuri 2002}). Absence of arbuscules in mycorrhizal roots has been explained as an effect of flooding (^{Dolinar et al. 2016}, ^{Wang et al. 2016}) this may support the results observed in the present work. The absence of arbuscules at some moment of interaction could be interpreted as an inactive mycorrhiza (^{Dolinar et al. 2016}, but see ^{Vallino et al. 2014}) or that the mutualistic exchange of nutrients is absent (^{Wang et al. 2016}) at that particular moment; nevertheless, to test any of these hypotheses a physiological experiment is needed.

Extensive evidence suggests that arbuscular mycorrhizal (AM) root colonization declines during extended periods of flooding (v.g., ^{Dolinar et al. 2016}, ^{Miller 2000}, ^{Ray & Inouye 2006}, ^{Stevens et al. 2011}, ^{Vallino et al. 2014}, but see ^{Xu et al. 2016}). A. wrightii presents fluctuations in the percentage of root colonization associated with the sampling month, however the highest percentage of root colonization was found in February (beginning of the dry season), while the lowest was presented when the site was no longer flooded (April and May); this may be because at the end of the dry season the soil drought may have limited fungal development, these results are in agreement with ^{Bohrer et al. (2004)} who found the highest mycorrhizal colonization level during the period of highest water table which coincides with the production of new roots in the plants. It has been demonstrated that AM colonization of the roots is also influenced by the physiological stage of the plant, for example, ^{Carvalho et al. (2001)} found that salt marsh plants presented greater mycorrhizal colonization during the periods of growth and flowering, independently of the abiotic characteristics. ^{Oliveira et al. (2001)} found that AM colonization in Phragmites australis of temporally flooded soils increased prior to flowering; therefore, it can be suggested that AM root colonization of wetland plants, as well as in other environments may be influenced by the phenology of the host plant (^{Bohrer et al. 2004}, ^{Xu et al. 2016}). Nonetheless, because this work covered only the flowering stage of A. wrightii, we cannot form a conclusion with reference to the main factor affecting AM colonization. Further research on seasonal mycorrhizal colonization of A. wrightii roots, including phenology of the plant, is required to understand the role of biotic and abiotic factors on AM root colonization seasonality.

The average number of live spores found in 50 g of soil was between 56 and 70, a level that can be considered low compared to that reported by ^{Jayachandran & Shetty (2003)} in the Florida everglades, where 936 to 6,214 spores were found in 50 g of soil (however, the authors did not report if all the spores were live). It has been reported that the number of spores can be influenced by the characteristics of the soil and by the structure of the vegetal community (^{Hetrick 1984}, ^{Janos 1980}). This difference can be attributed to the fact that the vegetal community of the site where the study of ^{Jayachandran & Shetty (2003)} was conducted was dominated by six plant species, while in this study site the plant community is dominated by only two species: Acoelorraphe wrightii and Scleria bracteata and this could have influenced the low number of spores found.

The number of spores found in the rhizosphere of Acoelorraphe wrightii change significantly over time. We found the highest number of spores at the onset of the rainy season, in July, which may have been due to dispersion of the AM fungal spores by wind (^{Warner et al. 1987}). This study supports the data reported by ^{Ramos-Zapata et al. (2011)} in a tropical coastal dune system, where the number of spores was greater during the rainy season because flooding can transport spores to less elevated sites and also coincides with ^{Xu et al. (2016)} who mention that, in the wetlands, many of the AM fungi propagules are transported by water and can remain active in the soil once the flooding is over.

The species richness of AM fungi in the tasistal is high, compared to that reported for wetland ecosystems. For example: ^{Sengupta & Chaudhuri (2002)} report seven species of AM fungi (predominating species of the genera Glomus and Gigaspora) in mangroves from the Ganges river; ^{Choudhury et al. (2010)} found 18 species of AM fugi in the rhizosphere of 23 species of wetland plants in Assam, India; and ^{Wang et al. (2015)} report six species of AM fungi (of the genera Glomus and Acaulospora) in two mangroves of southern China. The high AM fungi richness found in the present work, could be influenced by the surrounding vegetation, since the study site is surrounded by petens (islands of arboreal vegetation that include species of tropical medium sub-deciduous forest as well as mangrove elements) and the spores of these neighboring sites could move into this site, as explained above.

Another reason which can explain the high AM fungal species richness found in this work could be the high environmental heterogeneity. Flooding has been recognized as a driving force for heterogeneity and dynamics of wetlands (^{Day et al. 1988}, ^{Keddy 2010}, ^{Simões et al. 2013}, but see ^{Brinson 1993}), affecting the mycorrhizal interactions and distribution of AM fungi that colonize the roots; for example, some AM fungi prefer less anoxic soils and the fungal hyphae and spores are sensitive to low redox potential (^{Deepika & Kothamasi 2015}, ^{Neori & Agami 2016}, ^{Wang et al. 2015}, ^{Wolfe et al. 2007}). These environmental gradients might provoke a high species richness because species that can thrive under extremely harsh conditions and those that prefer a less challenging environment can actually coexist; consequently, this high environmental heterogeneity may complete the above explanation regarding the richness of species found in the present study.

Temporality plays an important role in terms of changes in the richness of AM fungal species within the site. Of the species found at the beginning of the rainy season, 47 % were exclusive to that season (Rhizophagus clarus, Rhizophagus intraradices, Sclerocystis sinuosa, Glomus ambisporum, Glomus microcarpum, Septoglomus constrictum, Gigaspora decipiens, Acaulospora scrobiculata, Acaulospora colombiana and Paraglomus occultum); while at the beginning of the dry season only three exclusive species (25 %) were recorded, (Rhizophagus fasciculatus, Scutellospora heterogama and Entrophospora infrequens). This could be due to the process described previously in which the rain may transport spores that originate in neighboring sites and, in the absence of rain in February; the spores are not being successfully transported at that time.

This is the first study to explore mycorrhizal arbuscular interaction in a coastal wetland of Mexico. The high species richness found in the rhizosphere of A. wrightii may be a result of different dispersion mechanisms of AM fungi, which, as has been reported before by other authors, can remain viable and establish the interaction with A. wrightii roots. The AM root colonization in A. wrightii, present in all the sampling months suggests that the species of AM fungi isolated can be found colonizing the root system; and that this is important for the plant, at least in the physiological stage (flowering) which was covered in this work, due to the different advantages this can provide, such as capture of nutrients and resistance to flooding. Further investigation is required on the colonization behavior in different physiological stages. It is important to produce more information in terms of the AM fungal community in ecosystems such as the wetlands, since these cannot be ignored in the management practiced in these ecosystems.
