Therya

versão On-line ISSN 2007-3364

Therya vol.10 no.1 La Paz Jan. 2019

http://dx.doi.org/10.12933/therya-19-690

Notes

First record of shrews (Eulipotyphla, Soricidae) in the Sierra de Otontepec, an isolated mountain in Veracruz, Mexico

Marco Mayen-Zaragoza1

Lázaro Guevara1  2  *

Giovani Hernández-Canchola1

Livia León-Paniagua1

1 Museo de Zoología “Alfonso L. Herrera”, Facultad de Ciencias, Universidad Nacional Autónoma de Mexico. Email: mayen.z.marco@gmail.com (MMZ); llg@st.ib.unam.mx (LG); giovani@ciencias.unam.mx (GHC); llp@ciencias.unam.mx (LLP).

2 Instituto de Biología, Universidad Nacional Autónoma de Mexico. Correspondence: Av. Universidad 3000, Circuito Exterior S/N Coyoacán, CP. 04510, Ciudad de Mexico Mexico.

Abstract:

Knowledge of the diversity and distribution of mammals in tropical and subtropical regions remains incomplete. This is especially true for many small species inhabiting remote areas with limited access. Here we present the first record of small-eared shrews (Soricidae, Cryptotis) from the Sierra de Otontepec, Mexico, an isolated mountain in the Gulf Coastal Plain that has remained poorly explored (Figure 1). We conducted a short-term survey in the Sierra de Otontepec using pitfall and Sherman traps during August 2016. Taxonomic identification was based on morphological and molecular analyses (Appendix 1). We collected six shrew specimens from the cloud forests in the Sierra de Otontepec (Figure 2). Morphological and molecular characterization indicated that all specimens collected were small-eared shrews belonging to the Cryptotis mexicanus species group (Table 1, Figure 3), a clade which is closely associated with cloud forests. Based on the morphological and molecular evidence, we refer to this population from the Sierra de Otontepec as C. mexicanus, Our results corroborate the importance of continued fieldwork in remote tropical areas. Overall, this finding offers relevant information that could be used to better understand the evolution and biogeographic history of this species group and its habitat.

Key words: cloud forests; Cryptotis; Mammalia; small-eared shrews

Resumen:

El conocimiento de la diversidad y distribución de los mamíferos en las regiones tropicales y subtropicales sigue siendo incompleto. Esto es particularmente notable para muchas especies pequeñas que habitan en áreas remotas de acceso limitado. Aquí presentamos el primer registro de musarañas (Eulipotyphla, Soricidae) de la Sierra de Otontepec, México, una montaña aislada en la llanura costera del Golfo que ha permanecido escasamente explorada (Figura 1). Nosotros realizamos un estudio a corto plazo en la Sierra de Otontepec utilizando trampas de caida y Sherman durante agosto de 2016. La identificación taxonómica se basó en análisis morfológicos y moleculares (Apéndice 1). Obtuvimos seis especímenes de musarañas en el bosque nuboso de la Sierra de Otontepec (Figura 2). La caracterización morfológica y molecular indicó que todos los especímenes recolectados eran musarañas de orejas pequeñas pertenecientes al grupo de especies de Cryptotis mexicanus (Tabla 1, Figura 3), un clado que está estrechamente asociado con los bosques nubosos. Con base en la evidencia morfológica y molecular, nos referimos a esta población de la Sierra de Otontepec como C. mexicanus. Nuestros resultados corroboran la importancia de continuar trabajo de campo en áreas tropicales remotas. En general, este hallazgo ofrece información relevante que podría usarse para comprender mejor la evolución y la historia biogeográfica de este grupo de especies y su hábitat.

Introduction

Knowledge of the diversity and geographical distribution of mammals in tropical and subtropical regions remains incomplete (Ceballos and Ehrlich 2009). This is due, in large part, to the fact that many species inhabit remote areas with limited accessibility. This is particularly problematic when collecting small and secretive species that are difficult to find. Small-eared shrews (Eulipotyphla, Soricidae) of the genus Cryptotis Pomel, 1848 comprise a group of small- to medium sized species occurring from southeastern Canada to northern South America (Choate 1970). With about 44 species (Zeballos et al. 2013), Cryptotis is one of the most diverse genera of small mammals in the Americas. Discovery and description of new species, new distributional records, and range extensions for this genus are not unusual even today (Woodman 2010; Guevara et al. 2014; Guevara and Sánchez-Cordero 2018a).

Recently, while working on mammal inventories, our field team discovered a handful of specimens of small-eared shrews in the cloud forest of the Sierra de Otontepec (Figure 1), an isolated mountain in Veracruz, Mexico, where biological inventories and research has been scarce (Hall and Dalquest 1963; Secretaría de Desarrollo Social y Medio Ambiente, SEDESMA, 2007). Here we provide morphological, molecular, and ecological information on these specimens that could be used to better understand the evolutionary and biogeographic history of the genus. Because the fauna in the Sierra de Otontepec is poorly known and most of the natural vegetation in the region has already been altered by human activity, we emphasize the biological relevance of this discovery.

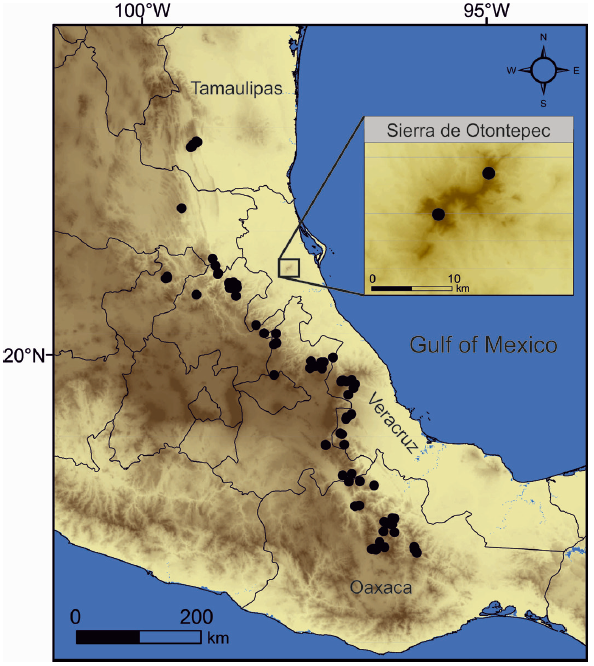

Figure 1 Map showing the known records (black dots) of the small-eared shrew, Cryptotis mexicanus, and the new records from the Sierra de Otontepec.

Materials and Methods

Study area. The Sierra de Otontepec (also known as Sierra de Tantima) lies on the eastern slope of the Sierra Madre Oriental, Veracruz, Mexico (Figure 1). It is a small, isolated volcanic mountain in the Gulf Coastal Plain that reaches an elevation of nearly 1,300 m, and with an extended range of nearly 20 km (SEDESMA 2007). The summit vegetation begins at 900 masl and consists largely of cloud forest, making it one of the northernmost stands of cloud forest in the Neotropics.

Fieldwork. The Mexican Ministry of the Environment (SEMARNAT) authorized the capture of mammals under the scientific collector permit SGPA/DGVS/12142/16 issued to LLP. Fieldwork was carried out for 15 consecutive days in August 2016. We used 10 pitfall and 80 Sherman traps, which were placed next to rocks around the bases of the trees and next to fallen trunks. We conducted trapping at two locations covered by dense cloud forest (Site 1: 21.26855278 N, -97.84444 W, 1,080 m; Site 2: 21.24715 N, -97.895 W, 1,020 m), which have not been intensively surveyed for small mammals. We followed standard recommendations on specimen capture, sacrifice and preparation (Sikes et al. 2016). We measured (mm) and weighed (g) voucher specimens in the field and deposited skins, skeletons, and tissues samples at the Mammal Collection of the Museo de Zoología “Alfonso L. Herrera”, Facultad de Ciencias, Universidad Nacional Autónoma de México (MZFC-M, Mexico City; Appendix 1).

Taxonomic identification. We focused morphological and molecular analyses on the comparison with members of C. mexicanus species group (C. magnus, C. nelsoni, C. mexicanus, and C. phillipsii) because of their greater similarity in pelage coloration, body size, size of forefeet and claws to the specimens from Sierra de Otontepec. We recorded the following cranial measurements for quantitative comparisons: condylobasal length (CBL), cranial breadth (CB), breadth of the palate across the second molars (M2B), and breadth across the first unicuspids (U1B). All measurements were taken with a Mitutoyo electronic caliper at 0.01 mm precision under a stereomicroscope (Appendix 1). We performed a principal component analysis (PCA) on the matrix correlation of four cranial variables to describe and evaluate the degree of differentiation among the species of the Cryptotis mexicanus group.

We also conducted a Bayesian Inference to determine the genetic affinity of the specimens from Sierra de Otontepec within the Cryptotis mexicanus group. We amplified the mitochondrial gene cytochrome b (cytb = 1,140 bp) by a polymerase chain reaction (PCR) using the pair of primers MVZ05 and H15915. The PCR profile included 3 min of initial denaturation at 95° C, followed by 35 cycles of 30 s of denaturation at 95° C, 1 min of annealing at 49° C, and 2 min for extension at 72° C. Finally, we included a step of 5 min of final extension at 72° C. We used the Montage PCR purification kit from Millipore, and the ABI PRISM BigDye Terminator cycle sequencing kit with AmpliTaq DNA polymerase for sequencing the PCR products in an ABI 3730XL sequencer (Applied Biosystems, Seoul, Korea). Both, cleaning of PCR products and sequencing reaction was performed in Macrogen Inc. (Seoul, Korea) following the standard protocols. The sequences generated were deposited in the GenBank database (Accession #’s MK286564-MK286565). We included 21 cytb sequences from the C. mexicanus species group and one sequence of C. parvus (used as outgroup) housed in the GenBank database (see accession numbers on Figure 4, downloaded on 07 November, 2018). Using PartitionFinder 2 (Lanfear et al. 2017), we selected the best scheme of partition and evolution model (cytb [1] = SYM+Γ; cytb [2] = F81+I; cytb [3] = GTR+I). We then incorporated this partition and evolution model in a phylogenetic analysis using Bayesian inference (MrBayes 3.2.3; Ronquist et al. 2012). We used three hot and one cold chains in two independent runs of 10 million generations, sampling data every 1,000 iterations. The final topology was obtained using a majority tree consensus and considering a burn-in of 25 %. We checked the convergence of our results and a good sampling (ESS > 200) in Tracer 1.6.

Figure 2 A) Specimen of a small-eared shrew collected in Sierra de Otontepec, Mexico. B) Typical cloud forest habitat of the Sierra de Otontepec, where small-eared shrews were collected.

Figure 3 Plot of the first 2 principal components from a principal component analysis (PCA) of four cranial measurements from C. magnus (1), C. nelsoni (2), C. mexicanus (3), C. phillipsii (4), and the specimens from Sierra de Otontepec (5).

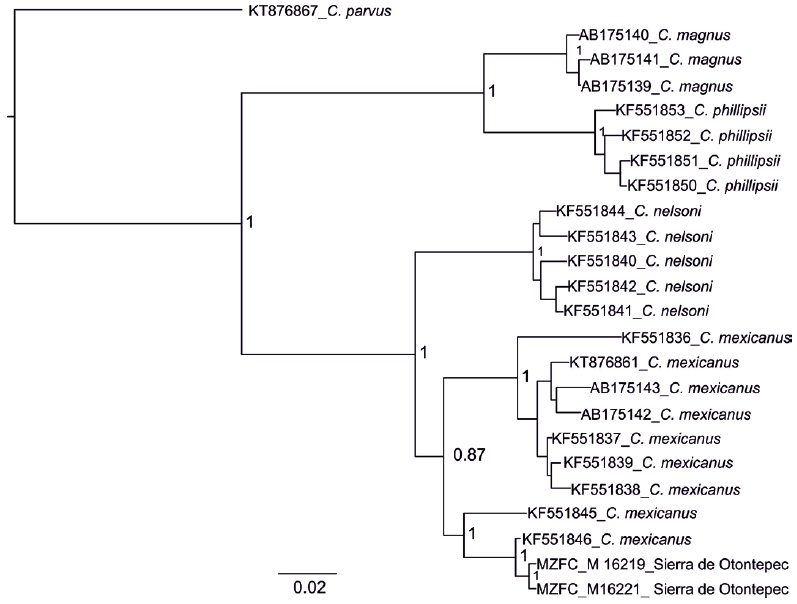

Figure 4 Majority-rule consensus tree from a Bayesian Inference showing the position of the specimens from Otontepec within the Cryptotis mexicanus species group. The numbers on clades indicate the posterior probability for each clade. The accession numbers of GenBank precede the scientific names.

Results

We obtained a total of six shrew specimens in the cloud forests from the Sierra de Otontepec; four were collected with pitfall traps and two with Sherman traps. The sample included three adult males (MZFC-M 16221, 16223-16224) and three adult females (MZFC-M 16219-16220, 16222), one of which was pregnant with five embryos (MZFC-M 16222). Other genera of mammals collected in this short-term survey were Handleyomys (rice rat), Sigmodon (cotton rat), and Marmosa (mouse opossum). The shrew specimens displayed previously reported external diagnostic characters of the Cryptotis mexicanus species group (Choate 1970; Guevara and Sánchez-Cordero 2018b). Principal components 1 and 2 explained 95% of the variation in the data (PC 1= 90 % and PC 2 = 5 %). The breadth of the palate across the second molars (M2B) and condylobasal length (CBL) contributed strongly to the first factor axis, providing a measure of overall cranial size. A plot of the two PCs showed that the specimens from Sierra de Otontepec tended to plot among the smaller species within the C. mexicanus species group (C. phillipsii and C. mexicanus) and overlapped partly with previously known specimens of C. mexicanus (Table 1; Figure 3). Bayesian Inference indicated that specimens from the Sierra de Otontepec are nested within C. mexicanus, which is supported by a high posterior probability (Figure 4). The rest of the relationships within the C. mexicanus species group resemble previous phylogenetic hypothesis (Guevara and Cervantes 2014; He et al. 2015).

Table 1 Loadings of four cranial measurements on the first two axes (PCs 1 and 2) of a principal component analysis of small-eared shrews (Cryptotis) from Mexican cloud forests.

PC 1 PC 2
CBL -0.955133 0.180397
CB -0.941390 0.231200
M2B -0.964130 -0.088268
U1B -0.933362 -0.326616

Discussion and conclusions

Morphological characterization indicates that the specimens collected in Sierra de Otontepec belong to the Cryptotis mexicanus species group, a clade comprising four species highly associated with cloud forests (C. magnus, C. mexicanus, C. nelsoni, and C. phillipsii; González-Ruiz et al. 2014; Guevara and Sánchez-Cordero 2018b). The fact that specimens from Sierra de Otontepec are morphological similar and are phylogenetically nested within C. mexicanus implies that there is no justification for the recognition of a new species for this new population. Therefore, we refer to the population from the Sierra de Otontepec as C. mexicanus, Interestingly, this first record of small-eared shrews in the Sierra de Otontepec is consistent with the potential distribution of the C. mexicanus group based on models of its climatic requirements using correlative techniques (Guevara and Sánchez-Cordero 2018b).

Our discovery corroborates the importance of continued surveys in remote tropical areas (Guevara et al. 2014). Very little is known about the biota and biogeographic history of the Sierra de Otontepec (SEDESMA 2007), which has gone largely unnoticed in the study of cloud forest vegetation. Hence, this discovery of small-eared shrews could also be used to better understand the origin and history of one of the northernmost islands of cloud forest in the Neotropical region. Finally, we highlight the relevance of montane cloud forest fragments like the Sierra de Otontepec because they are important reservoirs of endemic and endangered species that have a critical role in maintaining landscape-level biodiversity in an ecosystem with rapid rates of clearing and global conservation priority (Wilson and Rhemtulla 2018).

Acknowledgments

Financial support for fieldwork was provided by Fundación Pedro y Elena Hernández A. C. We thank A. Garrido, U. O. García-Vázquez, M. Trujano, J. C. Sánchez García and A. Jhosefat for all the logistic support in the field. We also thank Y. A. Gómez-Jiménez for his assistance in depositing the specimens in the MZFC-M. We thank the following curators and collection managers for access to the facilities and specimens included in Appendix 1: F. A. Cervantes and Y. Hortelano (CNMA); R. M. Timm (KU), J. Ramirez-Pulido and N. González-Ruíz (UAMI); and S. Peurach and N. Woodman (USNM).

Literature cited

Ceballos, G., and P. R., Ehrlich. 2009. Discoveries of new mammal species and their implications for conservation and ecosystem services. Proceedings of the National Academy of Sciences 106:3841-3846. doi.org/10.1073/pnas.0812419106 [ Links ]

Choate, J. R.. 1970. Systematics and zoogeography of Middle American shrews of the genus Cryptotis. University of Kansas. Museum of Natural History 19:195-317. [ Links ]

González-Ruiz, N., J., Ramírez-Pulido, and M., Gual-Díaz. 2014. Mamíferos del bosque mesófilo de montaña en México. pp. 305-326 in Bosques mesófilos de montaña de México: diversidad, ecología y manejo (Gual-Díaz, M., and A. Rendón-Correa, eds.). Comisión Nacional para el Conocimiento y Uso de la Biodiversidad, Mexico City, Mexico. [ Links ]

Guevara, L., and F. A., Cervantes. 2014. Molecular systematics of small-eared shrews (Soricomorpha, Mammalia) within Cryptotis mexicanus species group from Mesoamérica. Acta theriologica 59:233-242. [ Links ]

Guevara, L., V., Sánchez-Cordero, V. L., León-Paniagua, and N., Woodman. 2014. A new species of small-eared shrew (Mammalia, Eulipotyphla, Cryptotis) from the Lacandona rain forest, Mexico. Journal of Mammalogy 95:739-753. [ Links ]

Guevara, L., and V., Sánchez-Cordero. 2018a. New records of a critically endangered shrew from Mexican cloud forests (Soricidae, Cryptotis nelsoni) and prospects for future field research. Biodiversity Data Journal 6:p.e26667. [ Links ]

Guevara, L., and V., Sánchez-Cordero. 2018b. Patterns of morphological and ecological similarities of small-eared shrews (Soricidae, Cryptotis) in tropical montane cloud forests from Mesoamerica. Systematics and Biodiversity. doi.org/10.1080/14772000.2017.1470582 [ Links ]

Hall, E.R., and W.W., Dalquest. 1963. The mammals of Veracruz. University of Kansas Publications, Museum of Natural History 14:165-362. [ Links ]

He, K., N., Woodman, S., Boaglio, M., Roberts, S., Supekar, and J.E., Maldonado. 2015. Molecular phylogeny supports repeated adaptation to burrowing within small-eared shrews genus of Cryptotis (Eulipotyphla, Soricidae). PloS one 10: p.e0140280. [ Links ]

Lanfear, R., P. B., Frandsen, A. M., Wright, T., Senfeld, and B., Calcott. 2017. PartitionFinder 2: new methods for selecting partitioned models of evolution for molecular and morphological phylogenetic analyses. Molecular Biology Evolution 34:772-773. [ Links ]

Ronquist, F., M., Teslenko, P., Van der Mark, D. L., Ayres, A., Darling, S., Hôhna, B., Larget, L., Liu, M. A., Suchard, and J. P., Hulsenbeck. 2012. Mrbayes 3.2: efficient bayesian phylogenetic inference and model choice across a large model space. Systematic Biology 61:539-542. [ Links ]

Secretaría de Desarrollo Social y Medio Ambiente, SEDESMA. 2007. Programa de Manejo de la Reserva Ecológica Sierra de Otontepec. Serie: “Protejamos Nuestro Medio Ambiente”. Registro Estatal de Espacios Naturales Protegidos. Gobierno del Estado de Veracruz. [ Links ]

Sikes, R.S., and Animal Care and Use Committee of the American Society of Mammalogists. 2016. Guidelines of the American Society of Mammalogists for the use of wild mammals in research and education. Journal of Mammalogy 97:663-688. [ Links ]

Wilson, S. J., and J. M., Rhemtulla. 2018. Small montane cloud forest fragments are important for conserving tree diversity in the Ecuadorian Andes. Biotropica 50:586-597. [ Links ]

Woodman, N.. 2010. Two new species of shrews (Soricidae) from the western highlands of Guatemala. Journal of Mammalogy 91:566-579. [ Links ]

Zeballos, H., K., Pino, C. E., Medina, Pari, A., D., Chávez, N., Tinoco, and G., Ceballos. 2018. A new species of small-eared shrew of the genus Cryptotis (Mammalia, Eulipotyphla, Soricidae) from the northernmost Peruvian Andes. Zootaxa 4377:51-73. [ Links ]

1Associated editor: Jesús Maldonado

Appendix 1

Specimens examined and measurements (CBL-U1B) used for the morphological comparison (see methods for details). Specimens examined are housed in the following collections (followed by their abbreviations): National Collection of Mammals, Mexico City (CNMA); The University of Kansas Natural History Museum, Lawrence, Kansas (KU); Museum of Zoology ‘Alfonso L. Herrera’, Mexico City (MZFC); Collection of Mammals, Universidad Autónoma Metropolitana, Iztapalapa, Mexico City (UAMI); and National Museum of Natural History, Washington, District of Columbia (USNM).

SPECIES MUSEUM CATALOGUE NUMBER CBL CB M2B U1B
Cryptotis mexicanus MZFC 637 18.5 9.7 5.2 2.5
Cryptotis mexicanus MZFC 638 18.9 9.6 5.2 2.5
Cryptotis mexicanus MZFC 639 19.1 10.2 5.3 2.5
Cryptotis mexicanus MZFC 640 18.5 9.4 5.3 2.5
Cryptotis mexicanus KU 29548 18.4 10.0 5.6 2.6
Cryptotis mexicanus KU 29561 18.4 10.0 5.3 2.5
Cryptotis mexicanus KU 29552 18.5 9.8 5.3 2.5
Cryptotis mexicanus KU 29528 18.6 10.3 5.2 2.5
Cryptotis mexicanus KU 29555 18.7 9.9 5.2 2.5
Cryptotis mexicanus KU 29554 18.7 10.0 5.3 2.5
Cryptotis mexicanus CNMA 42741 17.6 9.4 5.1 2.4
Cryptotis mexicanus CNMA 42733 18.1 9.8 5.1 2.4
Cryptotis mexicanus CNMA 42748 18.3 9.5 5.2 2.4
Cryptotis mexicanus CNMA 42756 18.8 9.8 5.1 2.4
Cryptotis mexicanus CNMA 42744 18.9 10.0 5.3 2.4
Cryptotis mexicanus MZFC 8354 18.3 10.0 5.2 2.6
Cryptotis mexicanus MZFC 8332 18.3 9.9 5.0 2.3
Cryptotis mexicanus MZFC 8386 18.4 10.2 5.3 2.5
Cryptotis mexicanus MZFC 8400 18.5 9.8 5.0 2.3
Cryptotis mexicanus USNM 69733 18.4 9.7 5.4 2.4
Cryptotis mexicanus USNM 69615 18.4 9.7 5.3 2.4
Cryptotis mexicanus USNM 69609 18.4 9.8 5.3 2.5
Cryptotis mexicanus USNM 69605 18.6 9.9 5.4 2.4
Cryptotis mexicanus CNMA 29429 18.9 9.8 5.3 2.4
Cryptotis mexicanus CNMA 29431 19.0 10.0 5.3 2.4
Cryptotis mexicanus CNMA 29427 19.3 10.4 5.2 2.5
Cryptotis mexicanus USNM 68299 18.5 9.5 5.2 2.3
Cryptotis mexicanus USNM 68311 18.7 9.9 5.2 2.4
Cryptotis mexicanus USNM 68303 18.7 9.6 5.3 2.3
Cryptotis mexicanus USNM 68305 18.8 9.7 5.0 2.3
Cryptotis mexicanus CNMA 29989 17.5 9.7 5.0 2.3
Cryptotis mexicanus CNMA 35261 18.6 10.0 5.1 2.3
Cryptotis mexicanus CNMA 35260 18.7 10.2 5.1 2.5
Cryptotis mexicanus CNMA 34859 18.8 10.0 5.2 2.4
Cryptotis mexicanus CNMA 29991 19.0 10.1 5.2 2.5
Cryptotis mexicanus CNMA 29986 19.0 10.3 5.6 2.6
Cryptotis mexicanus CNMA 43060 18.4 9.7 5.1 2.3
Cryptotis mexicanus CNMA 43059 18.4 9.6 5.2 2.4
Cryptotis mexicanus CNMA 43053 19.1 9.9 5.3 2.5
Cryptotis mexicanus USNM 68525 18.4 10.0 5.2 2.4
Cryptotis mexicanus USNM 68523 18.4 9.8 5.3 2.3
Cryptotis mexicanus USNM 68526 18.4 10.2 5.1 2.4
Cryptotis mexicanus USNM 68532 18.5 10.0 5.2 2.4
Cryptotis mexicanus USNM 68528 18.7 9.9 5.3 2.3
Cryptotis mexicanus UAMI 11169 19.2 10.1 5.4 2.7
Cryptotis mexicanus UAMI 11170 19.2 10.2 5.2 2.5
Cryptotis mexicanus UAMI 11172 18.8 9.8 5.1 2.4
Cryptotis mexicanus UAMI 11176 19.0 10.1 5.2 2.4
Cryptotis mexicanus UAMI 11177 19.6 10.1 5.4 2.5
Otontepec MZFC 16224 18.6 9.7 5.3 2.6
Otontepec MZFC 16223 18.9 10.0 5.4 2.7
Otontepec MZFC 16222 19.5 10.1 5.4 2.8
Otontepec MZFC 16221 18.6 9.9 5.4 2.7
Otontepec MZFC 16220 18.8 9.8 5.3 2.6
Otontepec MZFC 16219 18.8 9.7 5.3 2.6
Cryptotis nelsoni CNMA 41961 19.0 10.1 5.6 2.6
Cryptotis nelsoni CNMA 41993 19.1 10.4 5.5 2.8
Cryptotis nelsoni CNMA 41959 19.4 10.6 5.8 2.9
Cryptotis nelsoni CNMA 41956 19.5 10.3 5.8 2.8
Cryptotis nelsoni CNMA 41992 19.9 10.3 5.7 2.8
Cryptotis nelsoni CNMA 41960 19.9 10.6 5.9 2.8
Cryptotis magnus CNMA 29468 23.0 11.3 6.3 3.1
Cryptotis magnus CNMA 29469 22.7 11.3 6.3 2.9
Cryptotis magnus CNMA 33609 23.3 11.7 6.9 3.3
Cryptotis magnus CNMA 29823 22.4 11.3 6.5 3.2
Cryptotis magnus CNMA 43057 22.2 11.3 6.3 3.2
Cryptotis phillipsii CNMA 44725 19.4 10.0 5.4 2.5
Cryptotis phillipsii CNMA 44727 20.0 9.9 5.8 2.5
Cryptotis phillipsii CNMA 44728 20.2 10.3 5.5 2.5
Cryptotis phillipsii CNMA 44729 19.9 10.0 5.5 2.5
Cryptotis phillipsii CNMA 44730 19.7 10.0 5.6 2.6

Received: September 28, 2018; Revised: October 24, 2018; Accepted: January 15, 2019

* Corresponding author: Lázaro Guevara, e-mail: llg@st.ib.unam.mx.

Creative Commons License This is an open-access article distributed under the terms of the Creative Commons Attribution License
