Revista mexicana de ciencias forestales
versão impressa ISSN 20071132
Rev. mex. de cienc. forestales vol.9 no.48 México Jul./Ago. 2018
https://doi.org/10.29298/rmcf.v8i48.150
Articles
Dynamic characteristics of 22 woods determined by the tranverse vibration method
^{1}Facultad de Ingeniería en Tecnología de la Madera, Universidad Michoacana de San Nicolás de Hidalgo. México.
The timber industry requires information on the technological characteristics of the material so that they are incorporated in new products with added value. The aim of the research was to determine the density, dynamic modulus, modulus of rigidity and damping ratio of 22 species. For each species, 20 specimens were prepared and vibration tests were conducted under freefree condition support. Dynamic modulus, modulus of rigidity and the damping coefficient were assessed. For each variable the mean, standard deviation and coefficient of variation were calculated. Linear regressions were calculated for a significance level of 95 % and their coefficients of determination of the variables as a function of density. Each species showed different dynamic characteristics, which allowed to observe the wide range of values that can be found between different species. The density values are distributed among a minimum of 391 kg m^{3} (Gyrocarpus americanus) and a maximum of 1 096 kg m^{3} (Tabebuia chrysantha), which allowed to examine a wide interval of densities. The density was found to be a good predictor of dynamic modulus (R^{2} = 0.86) and modulus of rigidity (R^{2} = 0.79). No significant correlation of damping ratio with density was found (R^{2} = 0.01).
Key words : Technological characteristics; damping coefficient; wood density; modulus of rigidity; dynamic modulus; specimens
La industria de la madera requiere información sobre las características tecnológicas del material para que se les incorpore a nuevos productos con valor agregado. El objetivo de la investigación que se describe fue determinar la densidad, el módulo dinámico, el módulo de rigidez y el coeficiente de amortiguamiento de 22 especies. De cada una se prepararon 20 probetas y se realizaron pruebas de vibraciones en condiciones de apoyo librelibre. Se calcularon el módulo de dinámico, el módulo de rigidez y el coeficiente de amortiguamiento. Para cada variable se calculó la media, desviación estándar y coeficiente de variación. La especie se consideró el factor de variación. Se obtuvieron las regresiones lineales para un nivel de significancia de 95 % y los coeficientes de determinación de las variables en función de la densidad. Cada taxon presentó características dinámicas diferentes, lo que permitió observar el amplio intervalo de valores que se pueden presentar entre diferentes taxa. La densidad se distribuyó en un intervalo amplio con un mínimo de 391 kg m^{3} (Gyrocarpus americanus) y un máximo de 1 096 kg m^{3} (Tabebuia chrysantha). Y se mostró como un buen predictor tanto del módulo dinámico (R^{2} = 0.86), como del módulo de rigidez (R^{2} = 0.79). No se registró una correlación significativa del coeficiente de amortiguamiento con la densidad (R^{2} = 0.01).
Palabras clave: Características tecnológicas; coeficiente de amortiguamiento; densidad de la madera; módulo de rigidez; módulo dinámico; probetas
Introduction
The forest products industry requires updated information on the technological characteristics of wood to be incorporated into new products with added value. The absence of physical and mechanical parameters of species with potential for industrial uses has the consequence that wood is not appreciated as a standardized material to be integrated rationally in the manufacture of new products and in wood construction. A contribution to the solution of this problem is to determine experimentally its useful characteristics for engineering calculation and design (^{Labonnote et al., 2015}).
The dynamic module and the rigidity module are characteristics that refers to the ability of a material to store elastic energy when deformed. When a structural element of wood is subjected to a deformation in bending, both parameters are related to the deformations corresponding to the combined bending and shear stresses. Hence, the dynamic module and the rigidity module have application in the probabilistic calculation of structures (^{Köhler et al., 2007}) and in their numerical modeling (^{Sucharda et al., 2015}).
The damping coefficient is a material property that represents the internal friction caused by dynamic stresses. This parameter is used as a reference in the characterization of species with vocation for the elaboration of articles whose function is the control of noise, the reduction of vibrations and the prevention of fatigue in structural elements (^{Ouis, 2003}).
Vibrations are a nondestructive evaluation method to determine the mechanical characteristics of wood (^{Pellerin and Ross, 2002}). In particular, transverse vibrations are used to determine the dynamic modulus (^{Hamdam et al., 2009}), the rigidity modulus (^{Da Silva et al., 2012}) and the damping coefficient (^{Brémaud et al., 2010}). In the same way, this technique is effective to describe wood composite products (^{JaeWoo et al., 2009}; ^{Wang et al., 2012}), to determine the elastic properties used in wood structures (^{Piter et al., 2004}; ^{Olsson et al., 2012}) and as a nondestructive method to make predictions of structural wood resistance (^{Ross, 2015}).
There are few precedents about the mechanical characterization of the 22 woods under study. ^{Tamarit and López (2007)} and ^{Silva et al. (2010)} describe some of the technological characteristics of various forest species. For four, the review of the country's bibliography shows little information regarding its dynamic properties (^{Sotomayor, 2015}). Therefore, the objective of this research was to determine the density, the dynamic modulus, the rigidity modulus and the damping coefficient of 22 Mexican wood species.
Materials and Methods
Materials
The experimental material consisted of pieces of sawn wood of 22 native forest species, from natural growth forests, collected in sawmills of Mexico. The pieces of wood were cut from the first log of the commercial trunk of different trees. The species were identified in the Laboratorio de Mecánica de la Madera, de la Facultad de Ingeniería en Tecnología de la Madera, of the Universidad Michoacana de San Nicolás de Hidalgo (Laboratory of Wood Mechanics, of the Faculty of Engineering in Wood Technology, of the Michoacán University of San Nicolás de Hidalgo). Table 1 lists the species under study.
Species  ρ  E _{ vt}  G _{ vt }  ζ _{ vt}

(kg m^{ 3} )  (MN m^{ 2} )  (MN m^{ 2} )
1  Gyrocarpus americanus Jacq.

391  6 276  548  0.023
CV  3.5  18.7  34.6  43.5
2  Tilia mexicana Schltdl.

442  10 133  491  0.018
CV  12.6  10.6  37.4  50.0
3  Enterolobium cyclocarpum (Jacq.) Griseb

448  6 076  582  0.035
CV  7.9  39.9  37.6  57.1
4  Cupressus lindleyi Klotzsch ex Endl.

486  9 058  1 031  0.025
CV  13.4  35.4  41.5  72.0
5  Cedrela odorata L.

517  10 063  307  0.012
CV  15.7  39.6  64.4  41.7
6  Alnus acuminata Kunth

528  10 072  897  0.019
CV  3.9  11.3  20.8  68.4
7  Swietenia macrophylla King

531  10 340  624  0.015
CV  6.5  25.5  60.4  66.7
8  Fraxinus uhdei (Wenz.) Lingelsh

592  9 693  1 206  0.010
CV  2.9  7.9  10.9  70.0
9  Tabebuia donnellsmithii Rose

598  9 726  1 084  0.025
CV  3.6  29.1  43.9  52.0
10  Dalbergia paloescrito Rzedowski & Guridi Gómez

624  10 493  1 126  0.023
CV  7.7  27.4  20.0  34.8
11  Tabebuia rosea (Bertol.) Bertero ex A.DC.

635  10 425  1 032  0.042
CV  5.4  15.1  15.5  57.1
12  Fagus mexicana Martínez

642  12 428  747  0.019
CV  7.5  36.0  44.4  73.7
13  Andira inermis (W.Wright) DC.

716  10 071  1 084  0.013
CV  4.0  12.5  38.2  76.9
14  Psidium sartorianum (O.Berg) Nied.

789  11 261  1 067  0.025
CV  3.6  28.4  61.4  52.0
15  Juglans pyriformis Liebm.

810  14 441  1 369  0.018
CV  3.3  27.1  54.4  50.0
16  Caesalpinia platyloba S.Watson

825  15 093  1 511  0.023
CV  2.6  17.1  24.7  60.9
17  Albizzia plurijuga (Standl.) Britton & Rose

844  15 796  1 792  0.023
CV  6.7  7.3  16.0  43.5
18  Quercus spp.

847  18 150  1 318  0.040
CV  3.5  17.1  22.0  75.0
19  Lysiloma acapulcensis (Kunth) Benth.

974  15 630  2 114  0.031
CV  3.7  7.1  13.6  32.3
20  Cordia elaeagnoides A. DC in DC.

992  18 588  1 449  0.017
CV  8.2  23.0  46.4  58.8
21  Acosmium panamense (Benth.) Yakovlev

1 005  18 644  1 622  0.013
CV  6.2  14.6  50.3  76.9
22  Tabebuia chrysantha (Jacq.) & G.Nicholson

1 096  18 623  2 320  0.029
CV  2.2  9.6  12.2  34.5
ρ = Density; E_{vt} = Dynamic module; G_{vt} = Rigidity module; ζ_{vt} = Damping coefficient; x = Mean; CV = Variation coefficient in percentage.
From five pieces of wood of each species, 20 specimens of 0.05 m × 0.05 m in their cross section and 0.4 m  0.5 m long, containing only sapwood and free of knots and deviations from the fiber were prepared. The specimens were oriented in the radial, tangential and longitudinal directions of the wood plane (Figure 1). Wood was stabilized for 24 months in a 2006 FITECMA conditioning chamber at 20 °C (± 1 °C) and a relative humidity of 60 % (± 2 %), until it reached a constant weight. The moisture content of the wood was determined by the weight difference method with complementary groups of standardized test pieces with dimensions of 0.02 m × 0.02 m × 0.06 m (^{ISO, 2014a}). Using these complementary groups of test pieces, the density of the wood was calculated with the weight / volume ratio at the time of the test (^{ISO, 2014b}). To estimate weight, an Ohaus Scout Pro SP2001 electronic balance, with a 200 g capacity and an accuracy of 0.01 g was used; while to measure volume, a Truper^{®} CALDU6mp caliper, with capacity of 150 mm and with a 0.01 mm accuracy, was used.
Methods
The vibration tests followed the protocol proposed by ^{SotomayorCastellanos et al. (2015)} and consisted of moving the specimen in freesupport condition and measuring the two natural frequencies corresponding to the first and second vibration modes. At the same time, the signal of the temporary decrement of the vibrations was captured. The freefree condition was accomplished by holding the specimen to two elastic supports considered with negligible rigidity and both placed in the nodes of the first vibration mode of the specimen. The configuration of the tests is shown in Figure 1.

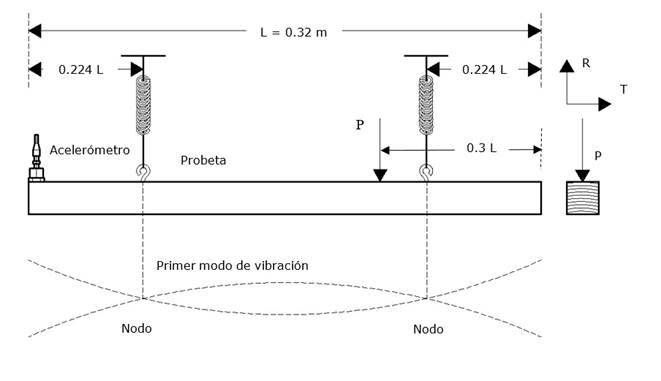

The vibrations were achieved by means of an elastic impact (P) in the direction transverse to the longitudinal direction (L) of the specimen by a Piezotronics^{TM} PCB hammer, 086B05 SN 4160 model. To measure the displacement of the specimen in the transverse direction, a Piezotronics^{TM} PCB accelerometer, 353B04 model (weight = 10.5 g) was placed on one end of each piece of wood, adhered with an adhesive wax (Petro Wax 080A109, PCB Piezotronics^{TM}.
Once the specimen was in vibration, the first two natural frequencies were measured from the frequency domain diagram obtained with an algorithm of the fast Fourier transform. At the same time, the logarithmic decrement was calculated from the damping signal of the vibrations. The natural frequencies and the logarithmic decrement were calculated by a Brüel and Kjær^{®} dynamic signal analyzer, 986A0186 model, provided with a Brüel and Kjær^{®} data acquisition and processing program, DSA104 model. The intensity of the impact and the amplitude of the vibrations were regulated with the help of the data acquisition and processing system.
The dynamic test in each test piece was repeated three times and the average of measured values was considered for further analysis. During the test, the moment of inertia of the cross section of the test specimen corresponding to the test was determined with the formula:
Where:
I = Moment of inertia of the cross section (m^{4})
b = Base of the test piece (m)
h = Height of the specimen
All the calculated parameters are marked with the subscript "vt" to identify them as derivatives of crosssectional vibration tests.
The model used to determine the modulus of elasticity and rigidity, was the equation of movement of a beam in transverse vibrations (1) proposed by ^{Weaver et al. (1990)}
Where:
E = Dynamic module (N m^{2})
G = Rigidity module (N m^{2})
I = Moment of inertia of the cross section (m^{4})
m = Mass per unit length (kg m^{1})
r = Turning radius of the cross section (m^{2})
A = Area of the cross section (m^{2})
K´ = Shape factor in shear
To solve Equation (1), the numerical solution developed for its application in wooden specimens by ^{Brancheriau and Baillères (2002)} was used.
The damping coefficient was calculated from the damping signal of the vibrations with the Equation (2) used by ^{Labonnote et al. (2013)}:
Where:
ζ_{vt} = Damping coefficient
δ = Logarithmic decrease
Where:
A_{n} = Amplitude of the vibration in the n cycle (m)
A_{n + 1} = Amplitude of vibration in n cycle + 1 (m)
Experimental design. In order to verify the normality of the distributions of the variables of response density, dynamic modulus, modulus of rigidity and coefficient of damping, the pointing and bias of the corresponding samples were calculated. When the normality test verified that the data came from normal distributions, an experiment was designed following the recommendations of ^{Gutiérrez and De la Vara (2012)}.
For each variable, its mean, standard deviation and percentage coefficient of variation were calculated. The species was considered the variation factor. The regressions and their coefficients of determination were calculated for a level of significance of 95 %, of the modulus of elasticity, of stiffness and of the damping coefficients as a function of density. The results were compared with those reported in the literature.
Results and Discussion
Table 1 shows the density and dynamic characteristics of the 22 woods. The species are arranged in ascending order with respect to their density. The moisture content of the wood was on average 11.5 % with a coefficient of variation of 1 %. It was considered that the moisture content was uniform in all wood samples and that it did not intervene significantly in the results.
The magnitude of the first frequency f1 varied from 756 Hz to 1 264 Hz, with a coefficient of variation of 16 %. The magnitude of the second frequency f2 varied from 1 877 Hz to 2 858 Hz, with a coefficient of variation of 20 %. The specific values to each test piece were used in the solution of Equation (1).
For the 22 woods, the values of bias and pointing included within the interval 2, +2, verified that the data of the density and of the dynamic and rigidity modules came from normal distributions. Particular case was the bias of the damping coefficient that showed a value of 2.46, that is, it was outside the expected range for data from a normal distribution. Likewise, for the damping coefficient, the aiming was 0.1863 and it was within the expected range for data from a normal distribution.
Density
The dynamic properties of wood depend, among other factors, on its porosity and the arrangement of its anatomical elements that serve as structures of mechanical resistance (^{Spycher et al., 2008}; ^{Salmén and Burgert, 2009}; ^{McLean et al., 2012}). In the same context, the basic chemical composition of wood and its extractable substances influence the variability of dynamic properties between species, within a species and in the position and type of wood in a tree (^{Thibaut et al., 2001}; ^{Carlquist, 2012}, ^{Se Golpayegani et al., 2012}; ^{Brémaud et al., 2013}). However, wood density is the physical parameter that is considered most useful as a predictor of mechanical characteristics (^{Niklas and Spatz, 2010}).
The magnitude of the density of the wood was distributed between a minimum of 391 kg m^{3} (Gyrocarpus americanus Jacq.) and a maximum of 1 096 kg m^{3} [Tabebuia chrysantha(Jacq.) & G.Nicholson], which allowed to examine a wide range of densities. With the exception of the wood of Cedrela odorata L., the coefficient of variation of the density of each species was below 10 %, a value similar to that registered by the Forest Products Laboratory of the United States of America (^{Forest Products Laboratory, 2010}). This result confirms the variability of the density of each species. The density acted as a good predictor of the dynamic module (Figure 2) and the rigidity module (Figure 3). On the other hand, a significant correlation of the damping coefficient with density was not verified (Figure 4).
Dynamic modulus
The magnitude of the dynamic module was between a minimum value of 6 076 MN m^{2} [Enterolobium cyclocarpum (Jacq.) Griseb] and a maximum of 18 644 MN m^{2} [Acosmium panamense (Benth.) Yakovlev] (Table 1). The dispersion of the dynamic module as a function of the density of the 22 woods of this investigation (Figure 2, Table 2) is compared to data of the dynamic module determined by transverse vibrations of ^{Brémaud et al. (2012)}.
This research  R²  Brémaud et al. (2012)  R²
E_{vt} = 17.608 ρ + 50.7  0.86  E_{vt} = 23.238 ρ  2410.6  0.60
This research  Bucur (2006)
G_{vt} = 2.235 ρ  406.5  0.79  G_{vt} = 2.092 ρ  37.6  0.83
This research  Brémaud et al. (2012)
ζ_{vt} = 0.004 ρ + 19.7  0.01  ζ_{vt} = 0.016 ρ + 36.4  0.16
ρ = Density; Evt = Dynamic module; Gvt = Stiffness module; ζvt = Damping coefficient; R^{2} = Coefficient of determination
These results describe the diversity in the mechanical characteristics found in the woods studied and coincide with the deductions of ^{Bao et al. (2001)} and ^{Baillères et al. (2005)}. The variability of the technological properties of wood originates mainly from the diversity of the environment where the trees grow and the morphogenetic properties of the species.
The coefficient of variation of the dynamic modulus ranged between 7.1 % [Lysiloma acapulcensis (Kunth) Benth.] and 39.9 % (E. cyclocarpum). This variability within the species is of the same magnitude as that found by several researchers: ^{Cho (2007)} reports for five species a coefficient of variation ranging from 17.3 % to 25.2 %, species with densities of 419 kg m^{3} a 612 kg m^{3}; ^{Hamdam et al. (2009)} found coefficients of variation for six tropical species for the dynamic modulus of tropical woods ranging from 9.1 % to 30 % (240 kg m^{3} <ρ <440 kg m^{3}). ^{Brémaud et al. (2012)} determined for 98 species with a range of densities between 210 kg m^{3} and 1 380 kg m^{ 3 } , coefficients of variation that reach 33 %; ^{Da Silva et al. (2012)} published a coefficient of variation of 19.6 % for Copaifera langsdorffii Desf. wood (ρ = 844 kg m^{3}). This variation in the results can be explained from two perspectives.
On the one hand, the specimens were selected making sure that they did not have growth defects such as knots and fiber deviation. However, in the case of the woods studied and classified as tropical from temperate and humid climates (^{Tamarit and López, 2007}; ^{Silva et al., 2010}), it is difficult to find pieces of wood without growth anomalies. On the other hand, the pieces of wood from which the specimens were prepared, were acquired in establishments where wood from different geographical origins is gathered, which probably introduced a variability due to the quality of the station where the trees grew and this can be added to the natural variation within a species (^{Forest Products Laboratory, 2010}). However, this result allowed observing the wide range of values of the dynamic module that can be found between different species.
Rigidity modulus
The rigidity modulus of wood varied from a minimum of 307 MN m^{2} (C. odorata) to 2 320 MN m^{2} (T. chrysantha) (Table 1). Comparatively, ^{Yoshihara and Kubojima (2002)} recorded a rigidity modulus of 1 250 KN m^{2} for Pinus densiflora Siebold. & Zucc. wood (ρ = 660 kg m^{3}) and for Fraxinus spaethiana Lingelsh. Gvt = 910 MN m^{2} (ρ = 580 kg m^{3}); ^{Cho (2007)} refers rigidity modules from 650 MN m^{2} to 1 070 MN m^{2} for five wood species (419 kg m^{3} <ρ <612 kg m^{3}); ^{Hassan et al. (2013)} report a Gvt of 570 MN m^{2} for Pinus sylvestris L. wood with a density of 453 kg m^{3}; for the same species, ^{Roohnia and Kohantorabi (2015)} refer rigidity modules that vary from 594 KN m^{2} to 941 KN m^{2} (342 kg m^{3} <ρ <420 kg m^{3}).
The magnitude of the rigidity modulus of the 22 woods studied is similar to that described by ^{Bucur (2006)}, which exhibits a higher coefficient of determination compared to that of this investigation (Figure 5). The density of the wood is a predictor of the rigidity modulus (Table 2). Its coefficient of determination suggests that it is possible to estimate the rigidity module with certainty, which facilitates obtaining numerical values of this parameter that is complicated to determine experimentally.
The rigidity modulus exhibited coefficients of variation ranging from a minimum of 10.9 % (F. uhdei) to a maximum of 64.4 % (C. odorata) (Table 1). Several authors have also observed such variation. ^{Cho (2007)} established a coefficient of variation between 13.6 % and 24.6 % for five species; ^{Da Silva et al. (2012)} deterrmined a coefficient of variation for the rigidity modulus of 43.3 % for Copaifera langsdorffii Desf. wood (ρ = 844 kg m^{3}); the coefficient of variation of ^{Hassan et al. (2013)} was 21.3 % for Pinus sylvestris (ρ = 453 kg m^{3}); moreover, ^{Roohnia and Kohantorabi (2015)} obtained variation in the rigidity modules caused by the differences in the modality of the test used in their determination and this variability in the results between species goes along with the natural variation within a species.
Damping coefficient
The damping coefficient varied between a minimum of 0.010 (F. uhdei) and a maximum of 0.042 [Tabebuia rosea (Bertol.) Bertero ex A.DC.] (Table 1), values similar to those recorded by ^{Brémaud et al. (2012)} (Figure 4).
The coefficients of variation of the damping coefficient were between 32.3 % and 76.9 % and are higher than those found by other authors. The coefficients of variation of ^{Sedik et al. (2010)} range from 9.5 % to 29.4 % (210 kg m^{3} <ρ <350 kg m^{3}). Values of the coefficient of variation between 16 % and 44 % correspond to ^{Da Silva et al. (2012)} for Copaifera langsdorffii wood (ρ = 844 kg m^{3}). ^{Brémaud et al. (2011)} and ^{Brémaud et al. (2012)} reported coefficients of variation up to 41 % (210 kg m^{3} <ρ <1 380 kg m^{3}).
Figure 4 represents the dispersions of the damping coefficient as a function of the density of 22 woods of this research and is contrasted with the data of ^{Brémaud et al. (2012)}. The linear regression between ζvt and ρ is very weak (Table 2) and the results are mixed with those of that author; this number is similar to those of the same author (2011) and those of ^{Brancheriau et al. (2010)}. From the analysis of the results of this investigation and based on those of the cited authors, it can be deduced that, for the woods studied, the damping coefficient in transverse vibrations is independent of density.
Characteristics variability
The variation found in the values of the dynamic characteristics of the 22 species is similar to that of wood in general (^{Tamarit and López, 2007}; ^{Silva et al., 2010}; ^{Sotomayor, 2015}). This result can be explained from several perspectives.
The first of them, due to the wide material heterogeneity in different observation scales (^{Hofstetter et al., 2005}) and the diversity in the types and arrangement of their anatomical structure of wood (^{Guitard and Gachet, 2004}). In addition, wood is an anisotropic material, that is, the magnitude of its characteristics differs according to the direction of observation (^{Brémaud et al., 2011}).
Indeed, in the wood of angiosperm species, it is common to find crisscrossed thread, corrugated fiber and spiral, which possibly increased the variability of the results (^{Harris, 1989}). Also, taking into account the considerations of ^{Obataya et al. (2000)} and ^{Brancheriau et al. (2006)}, the porosity proper to each species, as well as the different percentages of rays in the woody plane of each of the woods studied, possibly influenced the magnitudes of the determined dynamic characteristics.
A second explanation of the variation refers to the parameters that describe the dynamic behavior of the wood, are related to the configuration of the tests carried out, particularly with the excitation frequencies (^{Chui and Smith, 1990}). In this way, the results reported here refer to a range of the first resonance frequency between 756 Hz and 1 234 Hz and the second one of 1 877 Hz and 2 858 Hz. Although these magnitudes are similar to those reported by ^{Brancheriau et al. (2010)} for dynamic bending tests with specimens of similar dimensions to those made here, each test represents a particular movement system and, consequently, the measurements may vary.
These particularities in the material structure of the wood and its mechanical behavior are reflected in an important difference between its modulus of elasticity and its rigidity modulus. To illustrate this particularity, Figure 5 presents the ratio between the modulus of elasticity and the rigidity modulus Evt / Gvt for the 22 woods, which varies between 7.39 (L. acapulcensis) and 32.75 (C. odorata). These relationships are similar to those reported by ^{Brémaud et al. (2011)} (5.3 <Evt / Gvt <26.5) and ^{Cha (2015)} (9.6 <Evt / Gvt <21.3), with the exception of C. odorata, which has an extreme and exceptional value. This perspective allows relatively positioning each species with respect to the set of woods studied. The Evt / Gvt ratio distinguishes the shape of the vibration mode of a piece of wood and the magnitude of its frequency ^{Brémaud et al. (2011)}. The higher the Evt / Gvt ratio, the lower the frequency.
As a prospective, the dynamic characteristics of the 22 woods studied may be useful for the valuation of these species in structural uses, particularly if they are used as nondestructive methods to estimate the resistance of wood for structural purposes. This classification must be established from parameters that are measurable in wood and independent of the species, as are the dynamic characteristics determined here (^{Ravenshorst et al., 2013}).
Conclusions
By means of vibration tests, density, dynamic modulus, rigidity modulus and damping coefficient of 22 woody species were determined. Each species presents different magnitudes of its dynamic characteristics. Their coefficients of variation are diverse and they are located within the scale for tropical woods reported in literature. The knowledge of the dynamic characteristics allows to differentiate each species for a possible particular use. If they are compared with the results reported in the bibliography, wood is probably valued for use in functions where mechanical resistance is important. The regression models for the dynamic and rigidity module as a function of density favorably explain the variability of the sample studied, so that the density was a good predictor of the dynamic module and the rigidity module. In contrast, no significant correlation of the damping coefficient with density was found.
