Physicochemical characteristics of the soil

The soil was clay loamy, with 47% sand, 21.8% silt and 31.3% clay. The field capacity was estimated at 26.5% and the permanent wilting point at 13.1%, with a usable moisture retention capacity of 13.1% (^{Pedroza-Sandoval et al., 2015}). The pH was alkaline (8.4), with an electrical conductivity of 0.52 dS m^-1 and had a very low content of organic matter (1.1%). The content of extractable P and inorganic N (N-NO₃+N-NH₄) were about 13 mg kg^-1 of soil.

Treatments and experimental design

Three treatments were evaluated: (1) without nitrogen fertilization; (2) 200 units of N ha^-1; and (3) 400 units of N ha^-1 (Table 1). Farmers in the Comarca Lagunera frequently apply 400 or more units of N ha^-1 for corn production. In the evaluated treatments, the N₂O emissions from these increasing doses of nitrogen fertilization were studied. An experimental design in completely random blocks with three repetitions was used. Statistical analysis was performed using the software: Statistical Analysis System (SAS) version 9.4 (^{SAS institute, 2008}). The comparison of means was made using Tukey’s test, α= 0.05.

Agronomic management

During the 2017 winter cycle, unfertilized forage oats were established at the experimental site, with the aim of homogenizing the edaphic conditions of the soil. Subsequently, tillage work was performed and the leveling of the terrain was carried out with Laser Plane^® equipment. The terrain was fallowed with vertical plow and then two passes of cross harrow were performed, finally the furrows were made with a separation between them of 0.76.

Sowing and fertilization

The sowing was carried out in dry soil on July 12, 2018, with a Gaspardo pneumatic precision planter supreme model. The variety of white corn ‘Cimarrón’ of Asgrow^® was used. The seed was treated one day before sowing with 500 ml of Thiamethoxam (350 g L^-1 of ia.) per 100 kg of seed, to prevent the attack of soil pests. The sowing density was 105 000 seeds per hectare (8 seeds per linear meter).

One hundred percent of the phosphorus and 50% of the dose of N corresponding to each treatment were applied at the time of sowing and immediately afterwards the establishment irrigation was applied. At 34 days after sowing (DDS), a cultural practice and ridging were carried out with a moldboard plow in order to break the ‘crust’ of the soil, eliminate weeds and apply the second nitrogen fertilization (50% remaining), to later apply the first supplemental irrigation (August 15).

Irrigation

Irrigation was carried out by gated pipe supplied by a well. The total volume of irrigation was estimated at 0.84 m. An over-irrigation to favor the emergence of the seed and four supplemental irrigations during the growth cycle were applied as shown in Table 2. The number of irrigations was carried out based on the water needs of the crop and the low retention of moisture of the sandy soil (13.1%).

Pest and weed control

Pest monitoring in the crop was carried out periodically, especially during the phenological stages of emergence, flowering and grain filling. To control the fall armyworm (Spodoptera frugiperda), permethrin (0.4% GR) granulates were directly applied to the bud (‘salereado’), when the crop was 15 DDS, subsequently, three applications of chlorpyrifos-ethyl 44.5% CE were made at 25, 33 and 65 DDS. At 60 DDS, a mixture of imidacloprid (19.6%) + betacyflutrim (8.4%) was applied in doses of 500 ml ha^-1 for the control of corn rootworm (Diabrotica ssp) and corn earworm (Heliothis zea). For the control of red spider, two applications of Abamectin (18 g ia. L^-1) were made at a dose of 1 L ha^-1 at 8 and 32 DDS.

Weed control was mainly performed manually, however, two herbicide applications were made: The first at 34 DDS in doses of 1 L ha^-1 of dimethylamine (2,4 D 49.4% S) in 300 L of water for broadleaf weeds, the second at 51 DDS, Nicosulfuron (4.21%) for narrow-leaf weeds, especially Johnson grass (Sorghum halepense).

Meteorological and soil variables

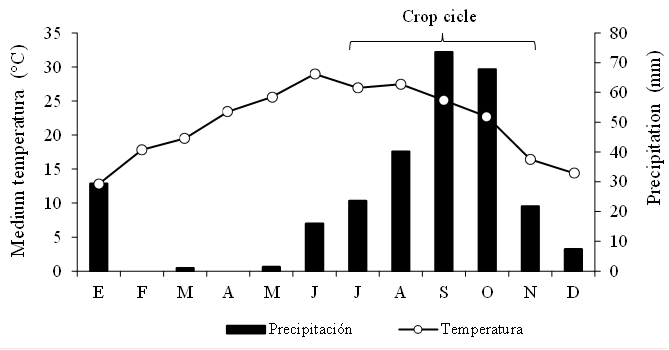

Temperature and precipitation data were recorded in the automated meteorological station of the Experimental Field throughout the crop cycle, the dynamics of inorganic N (N-NO₃ ^- + N-NH₄ ⁺) in the soil from 0 to 15 cm depth was also recorded, as well as the gravimetric moisture. Soil samples were collected around the PVC chambers during each gas sampling.

Measurement of nitrous oxide emission

Two PVC static flux chambers (^{Matson et al., 1996}) of six inches in diameter and volume of 3 216.9 ml were permanently placed in each experimental plot during the cultivation cycle. These were placed in the central furrow of each plot: one at the top of the ridge (B) and one at the bottom of the furrow, to evaluate the level of N₂O emissions in both conditions of the farmland (F) (Figure 1). Each chamber had a lid to close it hermetically when taking gas samples, which were performed once or twice a week.

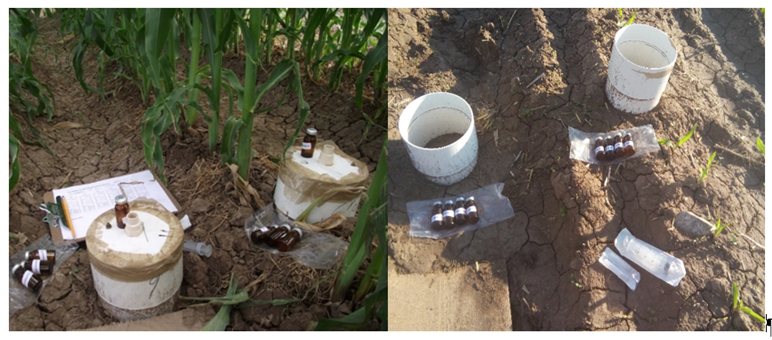

Figure 1 Placement of the static flux chambers at the ridge (B) and at the bottom (F) of the furrow with the necessary material for gas sampling.

On each date, gas samples were collected at 0, 10, 20 and 30 min, using syringes of 20 cm³, which were introduced through a septum strategically located in the lids of the chambers. Before taking the first sample (time zero), the needle was inserted through the septum of the chamber and by pumping the syringe, the air from the internal atmosphere of the chamber was mixed. After this, the samples were taken at the specified times. The samples were stored in sealed amber glass vials (14 ml) previously depressurized.

The gas samples were analyzed in a gas chromatograph (Shimatzu Model GC-2014 Greenhouse gas Analyzer). The chromatograph is equipped with an electron capture detector (ECD) that has a radiation source of ⁶³Ni and operates at a temperature of 325 °C. For the calibration of the chromatograph, a certified standard (Scotty Analyzed Gases, USA) with a concentration of 1 ppm of N₂O was used. For internal quality control, a standard with a concentration of 0.54 ppm of N₂O was used.

All gas samplings were performed at 10:00 am. Before each sampling, the ambient temperature and a blank sample were taken, which was collected from the environment outside the chambers. The evaluation of N₂O emissions was calculated according to ^{Millar et al. (2018)}, using the following equation: N₂O= (α×V×WA×60) /(A×MVcorr). Where, α is the slope of the concentration line vs time obtained in each sampling and it is measured in (ppmv min^-1), V is the volume of the upper space of the chamber (L), WA is the mass of N in N₂O (28), 60 is the conversion from hours to minutes, A is the surface area of the ground covered by the chamber (m²) and MVcorr is the standard molecular volume corrected by temperature and pressure of the locality.

The fluxes per hour and per m² were converted to daily fluxes per hectare (g N₂O-N ha^-1 d^-1). The average fluxes between one measurement date and another, by treatment, were obtained. The quantity of N₂O accumulated was calculated from the following equation: CB= CA+DA+DB2*B-A. Where: CA= accumulated gas emission on day A prior to day B, D_A= daily gas flux on day A, D_B= daily gas flux on day B, A/B = day number.

Soil moisture and measurement of inorganic N

At the same time as N₂O emission measurements were made in the field, soil samples (0-15 cm) were collected and placed in aluminum canisters previously weighed and labeled, both at the ridge and at the bottom of the furrow on 24 occasions. The gravimetric moisture of the soil was estimated, for which the samples were first weighed wet at the sampling site, then they were dried in an oven for 24 h at 105 °C, and then the dry weight was recorded. Before drying the soil samples, a wet subsample of 9 g was extracted and 90 ml of KCl 1M was added and stirred (1 min).

Subsequently, it was left to rest for 24 hours at room temperature and stirred again (1 min), it rested (60 min), then it was filtered (Whatman^® glass microfiber 1 μm GF/B). An aliquot (20 ml) was transferred to a polypropylene cup and subsequently evaluated for inorganic N content (N-NO₃ + N-H₄) by steam and Kjeldahl distillation (^{Jackson, 1976}).

Content of inorganic N in the soil

The average content of inorganic N of the soil (N-NO₃ ^- + N-H₄ ⁺) was closely related to the applied doses of nitrogenous fertilizer, both at the ridge and at the bottom of the furrow. The trend was adjusted to an exponential statistical model, obtaining a correlation coefficient (R²) that fluctuated between 0.81 and 0.99 (Figure 3). The average content of inorganic N in the soil, which can be considered as a base, in the treatment where no fertilizer was applied, was 28 mg kg^-1 of N. With the application of 200 kg of N ha^-1, the availability of this element increased about 60%, with respect to the previous treatment, and about double when 400 kg of N ha^-1 were applied.

Figure 3 Average content of inorganic N. a) N-NO₃ and N-NH₄ at the ridge and at the bottom of the furrow; b) relationship between the content of N-NO₃ and N-NH₄ and dose of nitrogen fertilization at the ridge and at the bottom of the furrow.

However, at the bottom of the furrow the increase in N was more tenuous, barely more noticeable in the treatment with application of 400 kg of N ha^-1 and there were no significant differences between treatments (p< 0.05) for this sampling site.

In general terms it was observed that, of the total inorganic N, the fraction in the form of N-NO₃ was on average 60% higher in the treatments with application of 200 and 400 kg ha^-1 of fertilizer, and the rest corresponded to the ammoniacal form (N-NH₄). A high nitrate content in the soil when not synchronized with crop demand is usually associated with an increased nitrogen loss by leaching and emission into the atmosphere. The nitrate concentrations found in this study coincide with those reported by ^{Millar et al. (2018)}.

Daily N₂O emissions

The average results of the flux of N₂O from the soil, in the corn production system, showed that there were significant differences (p< 0.05) due to the effect of the treatments. The flux of this greenhouse gas increased as a function of nitrogen fertilization doses, and the trend fitted an exponential model, both at the ridge and at the bottom of the furrow (Figure 4a). It was observed that the flux of N₂O in the treatment where no fertilizer was applied, in both sites, was similar (p< 0.05), with 22 g ha^-1 day^-1. In contrast, with the application of 400 units of N at the ridge, this was more than triple, while, at the bottom of the furrow, this difference was more than double; evidently there was migration of the N applied as fertilizer from the ridge towards the bottom of the furrow.

Figure 4 a) relationship between the average N₂O emission and the fertilization dose at the ridge and at the bottom of the furrow; b) relationship between average N₂O emission and average content of inorganic N of the soil (N-NO₃ ^-+N-NH₄ ⁺).

The average N₂O emission corresponding to the ridge, where the fertilizer was placed, was closely related (R²= 0.99) to the content of inorganic N of the soil. These results coincide with that reported by ^{Millar et al. (2018)} in that the application doses of nitrogen fertilizers, in this case of 400 units ha^-1 or more, at least double the emissions of N₂O, increase production costs and reduce the efficiency in the use of N by plants, which can be 40% or less (^{Peña-Cabriales et al., 2001}).

The N₂O emissions reported in various investigations are highly variable, even in the case of the same corn crop. No doubt this is due to the great variability of environments in which it is grown, the equally diverse doses and fertilization technology used, and the methods used in measuring emissions. The results of this research coincide with what was reported by ^{Millar et al. (2018)} and ^{Halvorson et al. (2010)}; however, the maximum level of nitrogen fertilization that these researchers evaluated was 280 kg ha^-1. Perhaps for this reason, in this research a higher emission of N₂ O (270 g ha ^-1 day^-1) was obtained at the ridge with the application of 400 kg of N ha^-1 (Figure 4b). On the other hand, ^{Alluvione et al. (2014)} report a flux of N₂O of up to 800 g ha^-1 day^-1 with the application of only 130 kg ha^-1 of urea.

The dynamics of N₂O flux throughout the cultivation cycle, in this evaluation, show that it increased rapidly after the application of the N fertilizer and irrigation events (> 60%) (Figure 5). With the soil saturated with moisture, the potential of N₂ emission is favored, rather than N₂O as the final product of denitrification (^{Bouwman, 1998}; ^{Robertson and Groffman, 2015}). Denitrification is the reduction of the nitrate of the soil to gases NO, N₂O and N₂. A wide variety of bacteria, mostly heterotrophic, can denitrify, so they use NO₃ instead of oxygen (O₂) as a terminal electron acceptor during respiration.

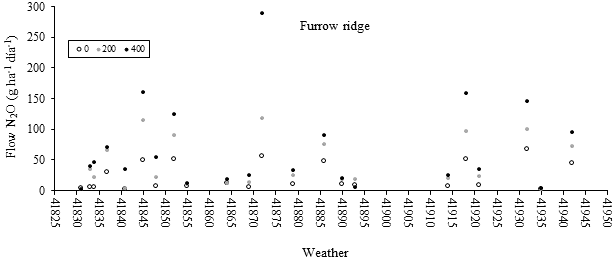

Figure 5 N₂O emissions of the soil in response to the application of increasing doses of nitrogen in forage corn in the Comarca Lagunera.

Because nitrate is a less efficient electron acceptor than O₂, most denitrifiers undertake denitrification only when O₂ is not available, which occurs when drainage in the soil is insufficient when it is saturated with water (^{Robertson and Groffman, 2015}).

After applying the second fertilization the phenomenon occurred again; however, a few weeks before the end of the cycle, other peaks of 100 g ha^-1 day^-1 are observed at the ridge (Figure 6). The high inherent spatial variability of N₂O emissions associated with large N inputs in agricultural production systems has been reported by ^{Parkin (1987)}; ^{Riley et al., (2001)}.

The weighted daily emissions increased according to the level of fertilization and then decreased rapidly to the flux level at the bottom of the furrow, where the fertilizer was not applied, that is, to 50 g ha^-1 day^-1 or less (Figure 6), due, on the one hand, to the desiccation of the soil, which limits the microbial activity, and on the other hand, to the fact that it was already consumed by the plants or lost by the different routes of the N cycle.

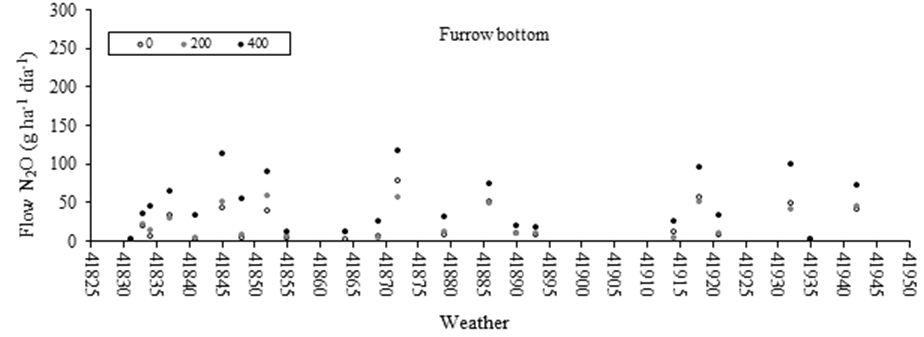

Figure 6 N₂O emissions of the soil in response to the application of increasing doses of nitrogen in forage corn in the Comarca Lagunera.

Accumulated N₂O emission

The N₂O emission accumulated during the culture cycle was exponentially related to the fertilization doses at the ridge (R²= 0.98) and at the bottom of the furrow (R²= 0.75) (Figure 7a). This behavior coincides with what is reported by ^{Hoben et al. (2011)} and ^{Millar et al. (2018)}, who also reported the same trend in N₂O emissions. However, the highest level of N₂O emission that was reached in this study: 7 000 g ha^-1 of N₂O at the ridge and 4 600 g ha^-1 of N₂O at the bottom of the furrow, compared to the cited studies, can be attributed to the higher dose of N applied, to the high temperature (maximums up to 45 °C) and the humidity available during the crop cycle (six irrigations were applied).

Figure 7 a) relationship between accumulated flux of N₂O and dose of nitrogen fertilization; b) relationship between accumulated N₂O emission and content of inorganic N of the soil.

There was also a high correlation at the level of concentrations of inorganic N in the soil and N₂O emissions (R²= 0.99) (Figure 7b), but not necessarily greater use of N by the crop. These data coincide with what was published by ^{Saynes et al. (2016)}, where they suggest that the GHG inventory in Mexico for the case of agriculture is underestimating N₂O emissions, since the emissions measured in the field were 5.3 kg N₂O-N ha^-1, which were not significantly different from 4.7 kg N₂O-N ha^-1 estimated by the Nitrogen Index (p< 0.7).

Crop yield

Forage and grain production increased as a function of N dose (Table 3). There were significant differences (p< 0.05) between the treatments without application of N (1) and the application of 200 and 400 kg of N (2 and 3), about double; however, between 200 and 400 kg of N (2 and 3), there were no significant differences (p< 0.05). These results suggest that 400 kg ha^-1 of N is an excessive dose, which was clearly manifested in the level of N₂O emissions, which increased exponentially with the increased application of N. According to ^{Castellanos et al. (2005)}, the nutritional demand for N of the corn crop is 22.5 kg N per tonne of grain produced on one hectare.

According to the highest level of grain production in this study (9.6 t ha^-1), the internal requirement of the crop was just over 200 kg ha^-1, so 400 units of N ha^-1 implied higher emission of N₂O. The soil, with 47% sand, necessarily favors the flow of water and nutrients to the interior of the profile, so the loss of the N that was applied in the fertilizer can be greater than in soils with less sand. Based on the above, it is necessary to implement agronomic management practices to increase the rate of use of N by the crop in the region. A more fractioned application of nitrogen fertilization or use of slow-release fertilizers could be alternatives to reduce N₂O emissions to the environment.
