Journal of the Mexican Chemical Society

versión impresa ISSN 1870-249X

J. Mex. Chem. Soc vol.62 no.2 México abr./jun. 2018

http://dx.doi.org/10.29356/jmcs.v62i2.410

Articles

Evaluation of the Role of Matrix Matching for LA-ICP-MS Calibration Approaches in Quantitative Elemental Analysis of Tooth Enamel

Barbara Wagner1  *

Olga Syta1

Luiza Kępa1

Ewa Bulska1

Irena Segal2

Ludwik Halicz1  2

1 Faculty of Chemistry, Biological and Chemical Research Centre, University of Warsaw, Żwirki I Wigury 101, 02-089 Warsaw, Poland

2 Geological Survey of Israel, 30 Malkhe Israel St., Jerusalem, 95501, Israel

Abstract:

A mineral apatite -based calibration approach for Laser Ablation Inductively Coupled Plasma Mass Spectrometry (LA-ICP-MS) was proposed in this work to be used for quantitative multielemental analysis of tooth enamel samples. Tooth enamel is composed mainly of hydroxyapatite therefore natural apatite crystals were expected to fit the matrix. Mineral samples were partially digested and quantitatively analyzed in respect of their bulk, elemental composition by means of ICP-MS/OES. The obtained quantitative data were used to construct the LA-ICP-MS calibration curves based on the apatite crystals for the selected 32 elements. The correlation coefficient values were calculated for each element and varied from none correlation for the most heterogeneous element (Al) to the value above 0.99 (U, REE, etc.), while calibration curve based on 3 selected mineral samples was applied. The usefulness of the proposed calibration approach was evaluated during investigations of elemental composition of tooth enamel and reference materials (NIST 1400, NIST 1486) leading to the promising results.

Key words: LA-ICP-MS; matrix-matching; calibration

Resumen:

En este trabajo, se presenta un nuevo procedimiento de calibración para la cuantificación multi-elemental en esmalte de dientes por ablación láser y espectrometría de masas con ionización en plasma acoplado inductivamente (LA-ICP-MS); basado en el uso de apatitas minerales. Debido a que el esmalte dental está compuesto principalmente por hidroxiapatitas, para simular composición de muestra en la etapa de calibración, se utilizaron cristales de apatitas naturales. Estos minerales fueron parcialmente digeridos, determinando en cada uno de ellos la concentración de 32 elementos por espectrometría de emisión atómica con excitación en ICP (ICP-OES). Los resultados obtenidos para tres diferentes minerales se utilizaron para construir las curvas de calibración en el método LA-ICP-MS; obteniéndose los valores del coeficiente de correlación desde totalmente insatisfactorio para el elemento más heterogéneo (Al) hasta el valor superior a 0.99 para tierras raras (U, REE, etc.). La utilidad del procedimiento de calibración propuesto se demostró mediante el análisis de dos materiales de referencia certificados (NIST 1400, NIST 1486). Finalmente, se llevó a cabo la determinación de la composición elemental del esmalte dental, arrojando resultados prometedores.

Palabras clave: LA-ICP-MS, simulación de matriz; calibración

Introduction

Laser Ablation Inductively Coupled Plasma Mass Spectrometry (LA-ICP-MS) is a powerful method for direct analysis of solids and allows for obtaining information on elemental composition with variable lateral or depth resolution and high sensitivity [1,2]. A number of substantive arguments support the use of LA-ICP-MS in geological [3-6] and biological investigations [7-9], such as tissue analysis, but on the other hand, there are also counter-arguments against it. One of the main restriction is the chemical diversity of samples, for which the matrix-matching of LA-ICP-MS analytical protocol can be very difficult. The use of suitable matrix-matched solid reference materials for calibration would increase the reliability of the final results [10,11].

The limited number of commercial matrix-matched reference materials promotes the use of various in-house standards. They are mainly used in the form of powders spiked with elements of interest before pressing to form a pellet. Mixing of powdered RMs with binding agents is an alternative way of their immobilization [12]. Nevertheless, these reference materials rarely reflect the physico-chemical properties of the analyzed materials, like density, hardness or absorption coefficient, which influence the interaction between laser and a sample. To overcome aforementioned limitation, matrix-matched natural minerals have been applied in quantitative analysis of titanites and sulfides [13,14]. The usefulness of natural materials and rocks as external standards can be observed in the number of commercially available certified reference materials produced from the geological samples. Sierra de Pachuca and Glass Buttes obsidians were applied in glass and obsidians provenance studies [15], while andesite (AGV2), granodiorite (GSP2) and rhyolite (RGM1) elaborated in U.S. Geological Survey were used in ceramic elemental analysis [16].

The majority of CRMs are silicates compounds; therefore, another challenge consists on very limited number of sulfide, carbonate and phosphate reference materials [17]. Bones are composed mainly of bio-apatites which are accompanied by different amount of organic substances, while tooth enamel is the most mineralized, and hard, calcified tissue [18]. Assuming similar chemical composition of enamel and natural apatite it was interesting to evaluate the possible use of well crystallized natural minerals as calibration standards for matrix-matched calibration approach for LA-ICP-MS elemental analysis.

Apatite is the most common representative of the phosphates group of minerals, it is also the one of few minerals which are produced and used by biological organisms. The basic formula of hydroxyapatite is Ca10(PO4)6(OH)2, but the hydroxyl groups (OH) can be replaced by fluoride, chloride or carbonate anion; phosphate groups can be replaced by carbonate, arsenate, silicate, vanadate or sulfate and the calcium cations may be replaced by magnesium, strontium, manganese, REE or other elements [19-21]. The P2O5 content in apatite (of igneous and metamorphic origin) can vary between ca. 37÷43 wt. %, whereas the CaO content varies between c.a. 52÷57 wt. % [20]. According to the literature, bones, teeth as well as sedimentary carbonate apatites contain only slightly less P2O5 (c.a. 35÷39 wt. %) and CaO (c.a. 46÷52 wt. %) [20,22]. Therefore, natural apatite crystals were expected to suit the matrix of tooth enamel better than SRM NIST 610 which is commonly used as the external standard during LA-ICP-MS investigations. It is also important to note, that natural apatite crystals are easily available and inexpensive. Large sets of crystals can be subjected to elemental analysis and only selected, the most homogeneous material can be used for the further investigations.

There are different calibration approaches described in the literature in the context of bone tissues analysis by means of LA-ICP-MS. Homogeneous NIST glass standards can be used without any additional pretreatment [23,24], while powdered matrix-matched in-house standards based on precipitated apatite [11,25] or Standard Reference Materials NIST 1400 (bone ash) and NIST 1486 (bone meal) [26] need pelletizing to allow execution of laser ablation. Both, NIST 1400 and NIST 1486, could be considered as the matrix matched reference materials but the interaction of laser energy with dense tooth enamel and the pressed pellets differs, therefore searching for a new calibration approach was still justified.

Fast screening of the bulk elemental composition of natural apatite crystals was proposed in this work to select the most appropriate crystals and construct the calibration curve based on the knowledge about their variable elemental composition. Johnstone et al. [26] reported the heterogeneity of elemental composition of natural apatite crystals while they were used during LA-ICP-MS determination of U and Th. Here, the use of natural apatite crystals may ensure tooth enamel matrix matching to construct multi-point calibration curves for over 30 elements. At the same time the certificate of NIST 1400 includes information about 17 elements, and NIST 1486 for 18 elements. The quantification of the obtained results for the Reference Materials (NIST 1400 and NIST 1486) and tooth enamel samples were compared for two approaches based either on the use of the non-matrix matched calibration utilizing NIST 610 as the external standard or on the proposed matrix-matched calibration.

Experimental

Geological samples

Five apatite crystals from various locations: unknown (A1); region of Baikal in Russia (A2 and A3); Atlas (A4 and A5) in Morocco were used in this study. Each of the selected crystals was cut into 2 pieces and devoted to the parallel, independent measurements either by direct LA-ICP-MS or by ICP-OES (major elements) and ICP-MS (trace elements) of the solutions obtained after mineral digestion.

Teeth samples

Two sets of tooth enamel samples were analyzed during this study to evaluate the proposed matrix-matched calibration procedure versus external standard method based on NIST 610. These samples represented: (i) five archaeological teeth (S_A1, S_A2, S_A3, S_A4, S_A5) dated back to the 16th century with no specific historical context, and (ii) five modern primary teeth (S_M1, S_M2, S_M3, S_M4, S_M5). Historic teeth were subjected to point laser ablation without preparation while modern samples were prepared in the form of cross-sections embedded in resin and microsampled with line laser ablation.

Certified Reference Materials

BCR-32 (http://irmm.jrc.ec.europa.eu/) and NIST NBS 120b phosphate rock [27] were used for quality control of the results during bulk analysis of apatite samples by ICP-OES and ICP-MS for major and trace elements. SRM NIST 1400 and SRM NIST 1486 (www.nist.gov) were used for quality control of the LA-ICP-MS results during analysis of both apatites and teeth samples. NIST 610 glass reference material was used for one of the LA-ICP-MS calibration approaches. Reference values for NIST 1400, NIST 1486 and NIST 610 were taken from GeoReM Geological and Environmental Reference Materials Database [28].

Instrumentation

ICP-OES (Optima 3300, Perkin Elmer) was used for major elements analysis and ICP-MS (Elan DRC-II, Perkin Elmer SCIEX, Canada) for trace elements determination in selected apatite crystals after their digestion. ICP-OES and DRC II ICP-MS systems were operated in their standard modes (Table 1). LA-ICP-MS (LSX-213 Nd:YAG laser ablation system, CETAC and NexION 300D, Perkin Elmer) was used for major, minor and trace elements analysis of archaeological teeth (point ablation mode), primary teeth (line ablation) and apatite crystals (point and line ablation modes) (Table 1).

Table 1 Instrumental setting and measurements conditions.

ICP-MS
(Elan 9000)
ICP-MS
(NexION 300D)
ICP-OES/MS
Rf, power, W 1050 1250 1250
Plasma Ar gas flow rate, L min−1 15 18 13
Auxiliary Ar gas flow rate, L min−1 1.0 1.2 1.1
Carrier Argas flow rate, L min−1 0.91 0.90 0.75
Dwell time per isotope, ms 10 10 100/50
LSX-200+ LSX-213 -
Wavelength, nm 266 213 -
Ablation mode point (n=7) line (n=3) -
Laser energy per pulse, mJ 5 5 -
Pulserepetitionrate, Hz 10 20 -
Beamdiameter, μm 100 100 -
Burstscounts 600 - -
Scan rate, μm s-1 - 25 -

ICP-OES and ICP-MS procedure

Before ICP-OES and ICP-MS measurements the apatites as well as SRM's phosphate rocks: BCR-32 and NBS 120b were powdered and fused with Li-metaborate (LiBO2) or sintered with sodium peroxide, then dissolved in 0.5 mol/L nitric acid and diluted to the appropriate concentration. Rh and Re were used as internal standards for ICP-MS, Sc was selected as an internal standard for ICP-OES measurements. The solutions obtained from Li-metaborate fusion were used during the analysis of major and minors elements (Na, Si, P, Ca, Al and Fe) by means of ICP-OES, whereas the solutions obtained after sintering with sodium peroxide were used during analysis of trace elements (Li, Mg, Cl, V, Cr, Mn, Ni, Cu, Zn, Rb, Sr, Mo, Cd, Sb, Ba, REE, Pb, Th and U) by ICP-MS.

LA-ICP-MS procedure

The surfaces of the remaining solid parts of all crystals as well as NIST 610 were cleaned by sonication in double distilled water for 15 minutes, then the samples were inserted into acetone (p.f.a., POCh Poland) and sonicated during 15 minutes to eliminate any organic and inorganic contaminations. Afterwards the samples were air-dried and placed in the ablation cell. Teeth samples were analyzed without any pretreatment. Ablation was executed from the locations selected carefully to omit inclusions visible at the surface of apatites. Transient signals were recorded for the following isotopes: 7Li, 23Na, 26Mg, 27Al, 29Si, 31P, 35Cl, 42Ca, 43Ca, 51V, 53Cr, 55Mn, 57Fe, 61Ni, 65Cu, 66Zn, 85Rb, 88Sr, 95Mo, 111Cd, 121Sb, 137Ba, 139La, 140Ce, 141Pr, 146Nd, 147Sm, 151Eu, 157Gd, 159Tb, 163Dy, 165Ho, 166Er, 169Tm, 173Yb, 175Lu, 208Pb, 232Th and 238U. For all LA-ICP-MS measurements, the samples were placed inside the ablation cell together with NIST SRM 610 (www.nist.gov). The standard was measured twice in the beginning and twice at the end of each measurement run to correct for instrumental drift. For each sample either 7 single point ablations (archaeological teeth) or 3 single line ablations (modern primary teeth) were executed and the registered transient signals were then used for quantification. For apatites both ablation modes (point and line) were applied to investigate the homogeneity of the minerals. Line ablation was performed after pre-ablation laser cleaning to avoid surface contamination. The LA-ICP-MS signals were background corrected, integrated and recalculated with 42Ca as the internal standard [24,27-29]. All results were normalized to 100 wt.% [30,31]. The assumption was made about the constant content of CaO equal to ca. 55.5 % in apatites [27]. Such estimations are widely used during analysis of minerals [29,31], moreover this particular value was then justified by the results obtained from the bulk analysis (Table 2). The criterion of 5% precision was used for the measurements performed under optimized LA-ICP-MS conditions.

Table 2 Quantitative data representing bulk elemental composition of the investigated apatites (the content of elements is expressed in mg/kg, oxides in wt. %).

A1
Mean ± SD
A2
Mean ± SD
A3
Mean ± SD
A4
Mean ± SD
A5
Mean ± SD
Li 2) 1.2 ± 0.2 2.6 ± 0.4 < LOD 0.23 ± 0.2 0.56 ± 0.3
Na2O 1) 0.29 ± 0.20 0.22 ± 0.10 0.14 ± 0.10 0.11 ± 0.10 0.27 ± 0.10
Mg 2) 181 ± 3 75.9 ± 5.0 50.9 ± 4.0 42.1 ± 2.0 143 ± 22
Al 2) 0.61 ± 0.4 9.6 ± 1.2 10 ± 2 5.1 ± 0.9 41 ± 9
SiO2 1) 0.23 ± 0.12 0.38 ± 0.17 0.53 ± 0.19 0.52 ± 0.16 0.36 ± 0.11
P2O5 1) 42.6 ± 0.1 41.0 ± 0.1 42.7 ± 0.1 43.1 ± 0.1 42.0 ± 0.1
Cl 2) 2697 ± 30 1424 ± 7 3019 ± 20 2815 ± 30 738 ± 10
CaO1) 54.3 ± 0.6 54.5 ± 0.6 55.4 ± 1.2 56.4 ± 0.8 55.2 ± 0.7
V 2) 24.0 ± 0.5 15.3 ± 0.2 34.4 ± 0.3 30.9 ± 0.6 18.7 ± 0.3
Mn 2) 118 ± 1 45 ± 2 163 ± 4 128 ± 4 62 ± 1
Fe 1) 333 ± 4 56.6 ± 1.0 260 ± 3 218 ± 3 75.6 ± 2.4
Zn 2) 1.7 ± 0.1 1.2 ± 0.1 < LOD 3.1 ± 0.2 1.2 ± 0.2
Rb 2) <LOD <LOD 0.13 ± 0.1 0.10 ± 0.09 0.27 ± 0.1
Sr 2) 467 ± 1 1138 ± 1 817 ± 1 845 ± 1 1464 ± 18
Ba 2) 7.0 ± 0.2 10.1 ± 0.4 1.8 ± 0.2 1.0 ± 0.1 97.3 ± 1.0
La 2) 2900 ± 74 64.1 ± 0.7 1621 ± 30 1339 ± 20 194 ± 5
Ce 2) 4200 ± 130 135 ± 9 2400 ± 48 2300 ± 65 332 ± 7
Pr 2) 356 ± 9 14.5 ± 0.2 275 ± 5 243 ± 7 30.2 ± 0.7
Nd 2) 1093 ± 20 54.3 ± 0.7 957 ± 16 859 ± 20 102 ± 2
Sm 2) 135 ± 2 10.5 ± 0.2 194 ± 4 179 ± 3.5 16.9 ± 0.2
Eu 2) 16.4 ± 0.4 2.3 ± 0.1 29.3 ± 0.5 28.6 ± 0.5 3.8 ± 0.1
Gd 2) 148± 4 10.4 ± 0.2 209 ± 3 196 ± 4 17.1 ± 0.4
Tb 2) 13.0 ± 0.3 1.6 ± 0.1 30.0 ± 0.4 29.8 ± 0.6 2.5 ± 0.2
Dy 2) 74.5 ± 1.4 8.7 ± 0.2 169 ± 2 164 ± 5 13.6 ± 0.3
Ho 2) 14.0 ± 0.3 1.7 ± 0.1 32.9 ± 0.6 31.8 ± 1.0 2.6 ± 0.2
Er 2) 37.0 ± 0.8 4.7 ± 0.2 91.3 ± 1.6 88.1 ± 2.0 7.5 ± 0.2
Tm2) 4.6 ± 0.2 0.6 ± 0.1 11.1 ± 0.1 10.7 ± 0.1 0.9 ± 0.1
Yb 2) 26.6 ± 0.4 3.5 ± 0.2 60.6 ± 1.0 60.6 ± 1.3 5.6 ± 0.2
Lu 2) 3.7 ± 0.2 0.5 ± 0.1 7.1 ± 0.2 7.2 ± 0.3 0.7 ± 0.1
Pb2) 0.7 ± 0.1 11.0 ± 0.3 3.3 ± 0.2 3.1 ± 0.2 9.6 ± 0.2
Th2) 184 ± 1 170 ± 4 210 ± 4 194 ± 5 147 ± 2
U 2) 9.3 ± 0.2 83.6 ± 2.4 21.7 ± 0.8 20.0 ± 0.7 62.8 ± 1.4

1) ICP-OES;

2) ICP-MS

Results and Discussion

The aliquots obtained after digestion of the first halves of apatite crystals were analyzed in respect of their elemental bulk composition by means of ICP-OES and ICP-MS. The obtained quantitative data are given in Table 2 giving the overview of the variable range of content of different elements in the crystals.

The remained halves of the apatite crystals were analyzed by LA-ICP-MS. Line ablation on the solid apatite samples was performed in order to estimate the degree of heterogeneity of the analyzed crystals. The majority of monitored isotopes were distributed homogeneously in the apatites, however some exceptions could be noticed (Na, Si, Al and Th) (Fig.1). Al was the most heterogeneous element among the investigated ones and it was excluded from the further investigations.

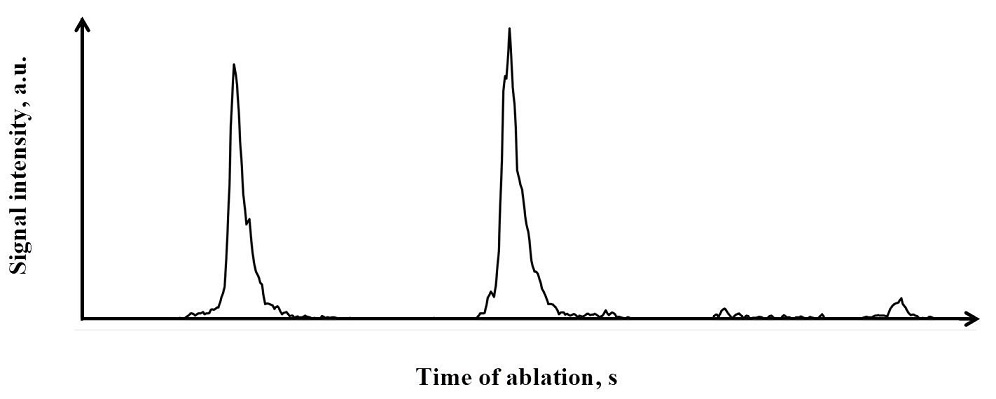

Fig. 1 Transient signal registered for 37Al during line ablation of the most heterogeneous apatite crystal.

Seven repetitive single spot ablations were executed from each mineral sample and the averaged results of all selected elements in 5 apatite standards were calculated. Assuming the general macroscopic homogenous bulk composition of the entire apatite crystal, the results of ICP-OES/MS measurements were then used as the known content of the respective elements in particular apatite crystal for the further investigations. The linear through zero calibration curves were constructed for each element with the reference values recalling data of the ICP-OES/MS analysis from Table 2. Calculated correlation coefficient values varied from no correlation (85Rb, 137Ba, 232Th) to 0.9833 (151Eu) if all apatite standards were recalled. The noticeable increase of the correlation coefficient values for the most elements regardless ablation mode was observed after rejection of the two most apparent outliers from each calibration curve (Table 3).

Table 3 R2 values for apatites calibration curves constructed based on 5 or 3 points using both ablation modes.

point ablation line ablation
5-point calibration 3-point calibration 3-point calibration
Li 0.9111 0.9685 0.9250
Na 0.5524 0.8841 0.9565
Mg 0.7303 0.9349 0.9929
Si 0.4017 0.9533 0.9356
Cl 0.3911 0.8739 0.9783
V 0.5213 0.8925 0.9902
Mn 0.8142 0.9848 0.9343
Fe 0.8150 0.9941 0.9869
Zn 0.4901 0.7337 0.9789
Rb - 0.9102 0.9606
Sr 0.9652 0.9884 0.9993
Ba - 0.9886 0.9600
La 0.9299 0.9985 0.9997
Ce 0.9983 0.9996 0.9911
Pr 0.9331 0.9994 0.9609
Nd 0.9301 0.9985 0.9975
Sm 0.9068 0.9984 0.9279
Eu 0.9972 0.9994 0.9721
Gd 0.9032 0.9981 0.9941
Tb 0.9098 0.9958 0.9860
Dy 0.8948 0.9998 0.9694
Ho 0.8820 0.9995 0.9752
Er 0.8684 0.9987 0.9790
Tm 0.8573 0.9994 0.9815
Yb 0.8939 0.9998 0.9789
Lu 0.8843 0.9996 0.9583
Pb 0.7251 0.9651 0.9758
Th - 0.4819 0.6563
U 0.9716 0.9983 0.9980

Due to variable elemental compositions of the mineral samples, the outliers originated from different crystals and the final calibration curves based on different apatite samples. The final 3-point calibration curves were characterized by the correlation coefficient values in the range of 0.4819 for 232Th to 0.9998 for 163Dy and 173Yb (Table 3). These values were even better if line ablation would be applied resulting in the R2 value from 0.6563 for 232Th to 0.9997 for 139La. The data presented in Table 3 refers to elemental analysis of 5 natural crystals selected ad-hoc. They represented random chemical composition, but according to the literature data a wider range of elemental concentrations can be expected in natural apatite crystals [32], therefore a careful selection and evaluation of other crystals would broaden the working range of the proposed matrix-matched calibration approach.

Evaluation of the necessity for using matrix-matched calibration

The usefulness of the proposed calibration approach was evaluated by comparison to the external calibration method with NIST 610 in elemental analysis of the selected certified reference materials: NIST 1400 (bone ash) and NIST 1486 (bone meal). The results obtained for both CRMs against either NIST 610 or apatites are within their standards deviation for the most of elements (Table 4). The use of the apatite calibration approach was beneficial for quantification of some elements (Na, Mg, Si, Cl, V, Sr and Ba), while for the others (Rb and Th) the calibration range and linearity of the calibration curve was not sufficient.

Table 4 Comparison of the quantification data obtained according to apatites calibration approach vs. NIST 610 (oxides are expressed in wt.%, elements - in mg/kg).

NIST 1400 NIST 1486
Element LOD Reference
values
NIST 610
calibration
Apatite
calibration
Reference
values
NIST 610
calibration
Apatite
calibration
Li 0.094 0.95 1.39 ± 0.28 0.60 ± 0.10 - 1.69 ± 0.21 0.76 ± 0.10
Na2O 0.00001 0.810 1.090 ± 0.170 0.840 ± 0.130 0.675 1.026 ± 0.021 0.790 ± 0.020
Mg 0.052 6840 8735 ± 276 6775 ± 214 4660 5609 ± 217 4391 ± 170
SiO2 0.0072 0.278 0.310 ± 0.150 0.250 ± 0.120 0.043 0.080 ± 0.010 0.067 ± 0.008
P2O5 0.0005 41.01 43.37 ± 1.39 43.79 ± 1.40 28.17 26.50 ± 0.52 27.01 ± 0.53
Cl 129 263.5 443 ± 185 293 ± 122 - 552 ± 93 369 ± 62
V 0.13 0.769 0.960 ± 0.560 0.870 ± 0.510 - <LOD <LOD
Mn 0.062 17 17 ± 2 20 ± 3 1 1.6 ± 0.3 2.0 ± 0.5
Fe 3.0 660 569 ± 282 455 ± 226 99 145 ± 27 117 ± 22
Rb 0.019 0.71 0.47 ± 0.06 0.16 ± 0.02 <0.9 0.46 ± 0.05 0.15 ± 0.02
Sr 0.018 249 391 ± 21 309 ± 17 264 392 ± 30 313 ± 24
Ba 0.14 240 349 ± 11 306 ± 10 189 404 ± 35 357 ± 31
La 0.01 0.386 0.370 ± 0.090 0.250 ± 0.060 - 0.036 ± 0.012 0.024 ± 0.008
Ce 0.009 0.821 0.630 ± 0.140 0.480 ± 0.110 0.02 0.38 ± 0.21 0.29 ± 0.16
Pr 0.009 0.086 0.070 ± 0.020 0.060 ± 0.020 - <LOD <LOD
Nd 0.06 0.316 0.260 ± 0.070 0.220 ± 0.060 - <LOD <LOD
Sm 0.07 0.0595 <LOD <LOD - <LOD <LOD
Eu 0.02 0.030 0.033 ± 0.004 0.029 ± 0.004 0.02 <LOD <LOD
Gd 0.08 0.064 0.090 ± 0.030 0.090 ± 0.030 - <LOD <LOD
Tb* 0.01 0.0096 <0.02 <0.02 - <LOD <LOD
Dy 0.05 0.0479 0.08 ± 0.07 0.08 ± 0.07 - <LOD <LOD
Ho 0.01 0.0105 0.02 ± 0.01 0.02 ± 0.01 - <LOD <LOD
Er 0.03 0.0254 0.03 ± 0.02 0.03 ± 0.02 - 0.03 ± 0.01 0.03 ± 0.01
Tm 0.01 0.0034 <LOD <LOD - <LOD <LOD
Yb 0.09 0.0183 0.11 ± 0.05 0.011 ± 0.05 - <LOD <LOD
Lu 0.01 0.009 0.02 ± 0.01 0.02 ± 0.01 - 0.01 ± 0.01 0.01 ± 0.01
Pb 0.09 9.07 10 ± 6 11 ± 7 1.335 2.2 ± 0.8 2.4 ± 0.8
Th* 0.02 0.123 <0.49 <0.56 0.0052 <LOD <LOD
U 0.01 0.066 0.14 ± 0.06 0.16 ± 0.06 0.028 0.03 ± 0.02 0.04 ± 0.02

* - the most heterogeneously distributed elements

The investigations of pelletized NIST 1400 and NIST 1486 were accompanied by elemental analysis of enamel teeth samples (Table 5 and Table 6).

Table 5 Comparison of the quantitative data of archaeological teeth analysis resulted from either recalculation vs NIST 610 or apatite-calibration approach (oxides expressed wt. %, elements - in mg/kg).

S_A1 S_A2 S_A3 S_A4 S_A5
NIST 610
Calibration
Apatites
calibration
NIST 610
calibration
Apatites
calibration
NIST 610
Calibration
Apatites
Calibration
NIT 610
calibration
Apatites
calibration
NIST 610
calibration
Apatites
Calibration
Li 1.4 ± 1.3 0.63 ±0.60 1.5 ± 0.3 0.65 ± 0.16 0.39 ± 0.17 0.18 ± 0.1 0.77 ± 0.29 0.34 ± 0.13 1.04 ± 0.27 0.47 ± 0.12
Na2O 0.93 ± 0.08 0.72 ± 0.06 0.71 ± 0.02 0.55 ± 0.02 0.79 ± 0.04 0.61 ± 0.03 0.89 ± 0.04 0.68 ± 0.03 0.67 ± 0.03 0.51 ± 0.02
Mg 2551 ± 203 1983 ± 158 1948 ± 100 1519 ± 78 2020 ± 138 1576 ± 108 2111 ± 116 1643 ± 90 1803 ± 187 1402 ± 146
SiO2 0.11 ± 0.09 0.08 ± 0.07 0.07 ± 0.02 0.06 ± 0.01 0.14 ± 0.12 0.11 ± 0.10 0.08 ± 0.05 0.07 ± 0.04 0.07 ± 0.02 0.05 ± 0.02
P2O5 44.54 ± 3.25 45.07 ± 3.29 44.44 ± 1.89 45.11 ± 1.91 44.32 ± 2.19 45.01 ± 2.22 44.49 ± 2.07 45.06 ± 2.10 44.78 ± 2.78 45.31 ± 2.81
Cl 4368 ± 1233 2896 ± 817 8176 ± 670 5437 ± 445 7196 ± 883 4787 ± 587 6482 ± 578 4302 ± 383 5680 ± 429 3765 ± 284
V 1.2 ± 0.9 1.0 ± 0.8 0.3 ± 0.2 0.18 ± 0.16 1.0 ± 0.3 0.91 ± 0.25 0.57 ± 0.18 0.52 ± 0.16 0.22 ± 0.17 0.20 ± 0.16
Mn 42 ± 17 51 ± 20 6 ± 2 7 ± 2 35 ± 16 42 ± 19 12 ± 7 14 ± 8 11 ± 2 13 ± 3
Fe 68 ± 15 55 ± 12 37 ± 5 30 ± 4 73 ± 35 59 ± 28 108 ± 30 86 ± 24 71 ± 19 57 ± 15
Rb 0.14 ± 0.10 - 0.11 ± 0.06 - 0.13 ± 0.06 - 0.16 ± 0.07 - 0.17 ± 0.07 -
Sr 144 ± 13 114 ± 10 139 ± 12 111 ± 10 102 ± 13 81 ± 10 219 ± 17 174 ± 13 180 ± 15 143 ± 12
Ba 11 ± 2 9.8 ± 1.8 5 ± 1 4.6 ± 0.9 3.0 ± 0.8 2.7 ± 1 13 ± 2 11 ± 2 5 ± 2 4.5 ± 1.7
La 0.27 ± 0.26 0.18 ± 0.15 0.04 ± 0.04 0.03 ± 0.02 0.19 ± 0.09 0.13 ± 0.06 0.52 ± 0.44 0.35 ± 0.30 6.0 ± 5.9 4.0 ± 3.9
Ce 0.20 ± 0.19 0.15 ± 0.14 0.08 ± 0.05 0.06 ± 0.05 0.33 ± 0.21 0.26 ± 0.16 0.33 ± 0.27 0.26 ± 0.21 0.47 ± 0.39 0.36 ± 0.34
Pr 0.08 ± 0.08 0.07 ± 0.06 0.01 ± 0.01 0.01 ± 0.01 0.06 ± 0.05 0.05 ± 0.04 0.09 ± 0.08 0.07 ± 0.07 1.2 ± 1.1 0.9 ± 0.8
Nd 0.46 ± 0.30 0.39 ± 0.26 0.15 ± 0.12 0.13 ± 0.12 0.29 ± 0.08 0.25 ± 0.07 0.42 ± 0.33 0.36 ± 0.28 5.2 ± 5.1 4.4 ± 4.2
Sm 0.10 ± 0.05 0.08 ± 0.04 <LOD <LOD 0.17 ± 0.05 0.15 ± 0.04 0.15 ± 0.07 0.13 ± 0.06 1.0 ± 0.8 0.8 ± 0.7
Eu 0.05 ± 0.02 0.04 ± 0.01 0.03 ± 0.02 0.03 ± 0.02 0.05 ± 0.04 0.05 ± 0.04 0.03 ± 0.03 0.02 ± 0.03 0.23 ± 0.22 0.21 ± 0.20
Gd 0.29 ± 0.25 0.28 ± 0.24 0.11 ± 0.06 0.11 ± 0.06 0.25 ± 0.24 0.24 ± 0.23 0.20 ± 0.14 0.19 ± 0.14 1.1 ± 1.1 1.0 ± 0.9
Tb 0.04 ± 0.03 0.04 ± 0.03 0.02 ± 0.01 0.02 ± 0.01 0.05 ± 0.05 0.05 ± 0.05 0.02 ± 0.02 0.02 ± 0.02 0.17 ± 0.13 0.17 ± 0.12
Dy 0.16 ± 0.16 0.16 ± 0.15 0.06 ± 0.04 0.06 ± 0.04 0.13 ± 0.11 0.13 ± 0.11 0.08 ± 0.06 0.08 ± 0.06 1.0 ± 0.9 1.0 ± 0.9
Ho 0.02 ± 0.02 0.02 ± 0.02 0.01 ± 0.01 0.01 ± 0.01 0.04 ± 0.03 0.03 ± 0.03 0.02 ± 0.02 0.02 ± 0.02 0.20 ± 0.19 0.19 ± 0.18
Er 0.17 ± 0.13 0.17 ± 0.13 0.04 ± 0.01 0.04 ± 0.01 0.10 ± 0.09 0.09 ± 0.08 0.06 ± 0.05 0.06 ± 0.05 0.6 ± 0.5 0.6 ± 0.5
Tm 0.03 ± 0.02 0.03 ± 0.02 0.02 ± 0.01 0.01 ± 0.01 0.03 ± 0.02 0.03 ± 0.02 0.02 ± 0.02 0.02 ± 0.02 0.11 ± 0.10 0.10 ± 0.09
Yb 0.38 ± 0.37 <LOD 0.13 ± 0.11 <LOD 0.21 ± 0.20 <LOD 0.14 ± 0.13 <LOD 0.54 ± 0.50 <LOD
Lu 0.05 ± 0.05 0.06 ± 0.05 0.05 ± 0.04 0.06 ± 0.04 0.04 ± 0.04 0.04 ± 0.05 0.02 ± 0.02 0.02 ± 0.02 0.08 ± 0.07 0.09 ± 0.07
Pb 11 ± 6 12 ± 7 1.6 ± 0.7 1.7 ± 0.8 91 ± 30 100 ± 33 50 ± 19 54 ± 21 9 ± 2 10 ± 2
Th 0.09 ± 0.07 0.10 ±0.08 0.03 ± 0.02 0.03 ± 0.02 0.05 ± 0.05 0.05 ± 0.05 0.05 ± 0.03 0.06 ± 0.04 0.09 ± 0.04 0.10 ± 0.05
U 0.04 ± 0.02 0.05 ± 0.03 0.02 ± 0.02 0.02 ± 0.02 0.10 ± 0.09 0.12 ± 0.10 0.22 ± 0.14 0.25 ± 0.16 0.14 ± 0.12 0.16 ± 0.15

Table 6 Comparison of usefulness of apatites vs. NIST 610 (oxides in wt. %, rest in mg/kg) calibration based on the exemplary modern primary tooth enamel samples.

S_M1 S_M2 S_M3 S_M4 S_M5
NIST 610
Calibration
Apatites
calibration
NIST 610
calibration
Apatites
calibration
NIST 610
Calibration
Apatites
Calibration
NIST 610
calibration
Apatites
calibration
NIST 610
calibration
Apatites
Calibration
Na2O 1.01 ± 0.04 0.85 ± 0.04 0.99 ± 0.6 0.84 ± 0.05 0.69 ± 0.05 0.49 ± 0.03 0.84 ± 0.06 0.69 ± 0.05 0.78 ± 0.03 0.60 ± 0.02
Mg 4138 ± 330 3037 ± 220 3838 ± 435 2990 ± 293 10187 ± 912 9181 ± 822 3266 ± 317 2244 ± 205 4066 ± 357 2879 ± 253
SiO2 <LOD <LOD <LOD <LOD <LOD <LOD <LOD <LOD <LOD <LOD
P2O5 42.39 ± 2.56 42.92 ± 2.59 42.46 ± 3.00 43.33 ± 3.08 42.21 ± 3.59 42.85 ± 3.57 42.12 ± 2.77 43.04 ± 2.83 42.03 ± 3.75 43.15 ± 3.88
Cl 1562 ± 207 1152 ± 153 2074 ± 465 1417 ± 318 1219 ± 125 817 ± 111 3421 ± 487 2246 ± 320 3039 ± 434 2182 ± 227
Mn 8 ± 2 9 ± 2 2 ± 1 3 ± 1 1 ± 0 2 ± 1 5 ± 1 6 ± 2 <LOD <LOD
Fe <LOD <LOD <LOD <LOD 49 ± 24 31 ± 15 42 ± 10 39 ± 10 75 ± 33 73 ± 31
Sr 288 ± 15 268 ± 14 140 ± 13 132 ± 12 184 ± 14 142 ± 11 120 ± 12 108 ± 10 159 ± 15 146 ± 14
Ba 5 ± 2 4 ± 2 3 ± 1 2 ± 1 12 ± 2 9 ± 2 <LOD <LOD <LOD <LOD

The comparison of quantitative results recalculated either in respect to NIST 610 or matrix-matched apatite calibration indicated that majority of elemental information remained coherent within their standard deviations regardless the procedure of applied quantification. The highest consistency of the results was observed for rare earth elements (REEs). The quantification of Na, Mg and Cl in all samples was underestimated if they were calculated vs NIST 610 as the external standard, therefore for these elements the use of apatite calibration approach allowed to increase the accuracy of the undertaken measurements.

Conclusions

The use of natural apatite crystals as matrix matched standards for LA-ICP-MS analysis of bone tissues was proposed and evaluated in this work. Natural apatite samples are easily accessible minerals with the general chemical characteristics similar to bone tissue, therefore they could be used for calibration of LA-ICP-MS for analysis of tooth enamel samples with no special pretreatment. The composition of tooth enamel available for LA-ICP-MS measurements could be useful for fast, micro-destructive screening of elemental similarities of archaeological samples. The orthodontic treatments that use variable modern metal alloys could be also evaluated by using the proposed matrix-matched calibration approach for investigations of tooth enamel models.

Several natural crystals were inspected in respect of their elemental bulk composition as well as the distribution of the selected elements within the investigated crystals. ICP-OES and ICP-MS were used for the determination of the content of selected elements and the obtained values were considered the target values for the optimization of the consequent LA-ICP-MS measurements. Although, the results of direct analysis of solid samples by LA-ICP-MS were influenced by the heterogeneity of their distribution, repetitive spot (n=7) or line (n=3) analyses assured reliable averaged results for the most of the investigated elements. Heterogeneous distribution and relatively very low concentration of Al, Rb, Th and Zn excluded the possibility to use LA-ICP-MS for reliable quantification of these elements in accordance to the proposed analytical procedure.

Elemental composition of NIST 1400 and NIST 1486 bone reference materials was determined by the LA-ICP-MS using either NIST 610 or apatite calibration approach and compared to the reference values. During validation of the procedure the data obtained for archaeological and modern samples confirmed usefulness of natural apatite crystals as in-house reference materials. The proposed calibration procedure based on the use of natural apatite crystals can be applied for the analysis of bone tissues by means of LA-ICP-MS with some restriction. The main advantage of the described analytical approach relied on a fast selection of best standard materials if the appropriate number of apatite samples would be tested.

The use of natural apatites matrix matched calibration for quantitative analysis of osseous tissues was evaluated. Although the matrix effects were not found prevailing for the final results of the most of the investigated elements, the use of apatites was beneficial for quantification of Na, Mg and Cl in tooth enamel. It can be expected that the usefulness of the apatite crystals calibration approach would increase for the greater number of tested apatite samples. Screening of their elemental composition would allow to select the most divergent crystals in respect to their elemental composition, leading to increase the calibration reliability and extension of the dynamic range for most of the elements. Based on this work it can be concluded that even 5 natural apatites could be successfully used as the solid matrix matched home standards for calibration approach devoted to elemental analysis of osseous samples by means of laser ablation ICP-MS.

References

1. Günther, D.; Jackson, S. E.; Longerich, H.P. Spectrochim. Acta B 1999, 54, 381-409 DOI: https://doi.org/10.1016/S0584-8547(99)00011-7. [ Links ]

2. Russo, R. E.; Mao, X. L.; Liu, H. C.; Gonzalez, J.; Mao, S. S. Talanta 2002, 57, 425-451 DOI: https://doi.org/10.1016/S0039-9140(02)00053-X. [ Links ]

3. Jochum, K. P.; Stoll, B.; Weis, U.; Jacob, D. E.; Mertz-Kraus, R.; Andreae, M. O. Geostand. Geoanal. Res. 2014, 38, 265-292 DOI: 10.1111/j.1751-908X.2014.12028.x. [ Links ]

4. Jarvis, K. E.; Williams, J. G.; Chem. Geol. 1993, 106, 251-262, DOI: https://doi.org/10.1016/0009-2541(93)90030-M. [ Links ]

5. Tang, M.; McDonough, W. F.; Arevalo, R. J. Anal. At. Spectrom. 2014, 29, 1835-1843, DOI: http://dx.doi.org/10.1039/C4JA00155A. [ Links ]

6. Günther, D. ; Quadt, A. V.; Wirz, R.; Cousin, H.; Dietrich, V. J. Mikrochim. Acta 2001, 136, 101-107, DOI: https://doi.org/10.1007/s006040170038. [ Links ]

7. Pozebon, D.; Scheffler, G. L.; Dressler, V. L.; Nunes, M. A. G. J. Anal. At. Spectrom. 2014, 29, 2204-2228, DOI: http://dx.doi.org/10.1039/C4JA00250D. [ Links ]

8. Urgast, D. S.; Feldmann, J. J. Anal. At. Spectrom. 2013, 28, 1367-1371, DOI: http://dx.doi.org/10.1039/C3JA50058F. [ Links ]

9. Becker, J. S.; Zoriy, M.; Becker, J. S.; Dobrowolska, J.; Matusch, A. J. Anal. At. Spectrom. 2007, 22, 736-744, DOI: http://dx.doi.org/10.1039/B701558E. [ Links ]

10. Giussani, B.; Monticelli, D.; Rampazzi, L. Anal. Chim. Acta 2009, 635, 6-21 DOI: 10.1016/j.aca.2008.12.040. [ Links ]

11. Gruhl, S.; Witte, F.; Vogt, J.; Vogt, C. J. Anal. At. Spectrom. 2009, 24, 181-188, DOI: http://dx.doi.org/10.1039/B813734J. [ Links ]

12. Pakieła, M.; Wojciechowski, M.; Wagner, B.; Bulska, E. J. Anal. At. Spectrom. 2011, 26, 1539-1543, DOI: http://dx.doi.org/10.1039/C0JA00201A. [ Links ]

13. Gilbert, S.; Danyushevsky, L.; Robinson, P.; Wohlgemuth-Ueberwasser, C.; Pearson, N.; Savard, D.; Norman, M.; Hanley, J. Geostand. Geoanal. Res. 2013, 37, 51-64 DOI: 10.1111/j.1751-908X.2012.00170.x. [ Links ]

14. Ødegård, M.; Mansfeld, J.; Dundas, S. H. Fres. J. Anal. Chem. 2001, 370, 819-827 DOI: http://dx.doi.org/10.1039/B100899O. [ Links ]

15. Kellett, L. C.; Golitko, M.; Bauer, B. S. J. Arch. Sc. 2013, 40, 1890-1902 DOI: https://doi.org/10.1016/j.jas.2012.11.014. [ Links ]

16. Comodi, P.; Buccianti, A.; Zucchini, A.; Merletti, M.; Bergamini, M.; Nazzareni, S. Archeom. 2014, 56, 58-77 DOI: 10.1111/arcm.12068. [ Links ]

17. Yong Sheng, L.; Zhao Chu, H.; Ming, L.; Shan, G. Chin. Sc. Bull. 2013, 58, 3863-3878 DOI: 10.1007/s11434-013-5901-4. [ Links ]

18. Reiche, I.; Favre-Quattropani, L.; Calligaro, T.; Salomon, J.; Bocherens, H.; Charlet, L.; Menu, M. Nucl. Instr. Meth. Phys. Res. B 1999, 150, 656-662 DOI: https://doi.org/10.1016/S0168-583X(98)00949-5. [ Links ]

19. McClellan, G.; Lehr, J. R. American Mineralogist 1969, 54, 1374-1379. [ Links ]

20. Piccoli, P. M.; Candela, P. A., in: Phosphates: Geochemical, Geobiological, and Materials Importance, Kohn, M. J.; Rakovan, J.; Hughes J. M., 2002, 31, 255-292. [ Links ]

21. Deer, W. A.; Chang, L. L. Y.; Howie, R. A.; Zussman, J. Rock-forming minerals, Ed. Geological Society, 1996. [ Links ]

22. Kohn, M. J. ; Schoeninger, M. J.; Barker, W. W. Geochim. Cosmochim. Acta 1999, 63, 2737-2747 DOI: https://doi.org/10.1016/S0016-7037(99)00208-2. [ Links ]

23. Ghazi, A. M.; Shuttleworth, S.; Angulo, S. J.; Pashley, D. H. J. Anal. At. Spectrom. 2000, 15, 1335-1341 DOI: http://dx.doi.org/10.1039/B001888K. [ Links ]

24. Cucina, A.; Dudgeon, J.; Neff, H. J. Arch. Sc. 2007, 34, 1884-1888 DOI: https://doi.org/10.1016/j.jas.2007.01.004. [ Links ]

25. Ugarte, A.; Unceta, N.; Pecheyran, C.; Goicolea, M. A.; Barrio, R. J. J. Anal. At. Spectrom. 2011, 26, 1421-1427 DOI: http://dx.doi.org/10.1039/C1JA10037H. [ Links ]

26. Bellis, D. J.; Hetter, K. M.; Jones, J.; Amarasiriwardena, D.; Parsons, P. J. J. Anal. At. Spectrom. 2006, 21, 948-954 DOI: http://dx.doi.org/10.1039/B603435G. [ Links ]

27. Govindaraju, K. Geostand. Newsl. 1994, 18, 331-331. [ Links ]

28. http://georem.mpch-mainz.gwdg.de , accessed in July 2017. [ Links ]

29. Gagnon, J. E.; Fryer, B. J.; Samson, I. M.; Williams-Jones, A. E. J. Anal. At. Spectrom. 2008, 23, 1529-1537 DOI: http://dx.doi.org/10.1039/B801807N. [ Links ]

30. Halicz, L.; Günther, D. J. Anal. At. Spectrom. 2004, 19, 1539-1545 DOI: http://dx.doi.org/10.1039/B410132D. [ Links ]

31. Liu, Y.; Hu, Z.; Gao, S.; Günther, D. ; Xu, J.; Gao, C.; Chen, H. Chem. Geol. 2008, 257, 34-43 DOI: https://doi.org/10.1016/j.chemgeo.2008.08.004. [ Links ]

32. Kempe, U.; Gotze, J. Mineral. Mag. 2002, 66, 151-172 DOI: 10.1180/0026461026610019. [ Links ]

Received: December 07, 2017; Accepted: February 19, 2018

* Corresponding author: barbog@chem.uw.edu.pl

Creative Commons License This is an open-access article distributed under the terms of the Creative Commons Attribution License
