Journal of the Mexican Chemical Society

versión impresa ISSN 1870-249X

J. Mex. Chem. Soc vol.61 no.2 México abr./jun. 2017



Articles

Synthesis and Structural Characterization of [BmMeBenz]2Ca(THF)2: Ca•••H-B interactions in a Sulfur-Rich Coordination Environment

Neena Chakrabarti1

Patrick J. Quinlivan1

Gerard Parkin1

1Department of Chemistry, Columbia University, New York, New York 10027, USA.

Abstract.

The bis(mercaptoimidazolyl)hydroborato calcium compound, [BmMeBenz]2Ca(THF)2, may be obtained by the reaction of Ca(BH4)2•2(THF) with 1-methyl-1,3-dihydro-2H-benzimidazole-2-thione. X-ray diffraction demonstrates that the [BmMeBenz] ligands coordinate in a κ3-S2H manner such that the calcium is eight-coordinate with a dodecahedral geometry that features two Ca•••H-B interactions.

Keywords: Calcium; bis(mercaptoimidazolyl)hydroborato; borohydride; 8-coordinate; X-ray structure

Resumen.

El compuesto bis(mercaptoimidazolil) hidroborato calcio, [BmMeBenz]2Ca (THF)2, puede obtenerse por reacción de Ca(BH4)2•2(THF) con 1-metil-1,3-dihidro-2H-bencimidazol-2-tiona. La difracción de rayos X demuestra que los ligantes de [BmMeBenz] se coordinan de una manera κ3-S2H de tal manera que el calcio presenta una coordinación ocho con una geometría dodecaédrica que presenta dos interacciones Ca•••H-B.

Palabras clave: Calcio; borohidrato de bis(mercaptoimidazolil); borohidruro; octacoordinado; estructura de rayos X

Introduction

Bis(mercaptoimidazolyl)hydroborato ligands, [BmR] [1], provide [S2] [2] donor arrays that have found much use [3-15] as counterparts to the well-known tris(mercaptoimida-zolyl)hydroborato class of ligands, [TmR] (Fig. 1) [16-19] An important aspect of this class of ligands is that the steric and electronic properties may be significantly modified by incorporation of a diverse array of R substituents (e.g. R = Me, Et, But, 1-Ad, Bz, Cy, Ph, p-Tol, o-Tol, p-C6H4Pri, 2,6-C6H3Me2, 2,6-C6H3Pri2, Mes and 2-biphenyl) on the nitrogen of the imidazolyl ring [20] and by benzannulation [21,22]. Despite the fact that [BmR] and [TmR] ligands have been widely employed, however, the majority of investigations pertain to the chemistry of the transition metals and post-transition metals, i.e. Groups 4 - 15, while that of the alkaline earth metals has received very little attention [23]. Therefore, we report here the synthesis and structural characterization of a bis(mercaptoimidazolyl)hydroborato calcium complex.

Fig. 1 Coordination of bis and tris(mercaptoimidazolyl)hydroborato ligands to metal centers.

Results and discussion

Access to metal complexes containing [BmR] and [TmR] ligands is generally provided via metathesis reactions with alkali metal derivatives, [BmR]M and [TmR]M (M = Li, Na, K), which are obtained by the reactions of MBH4 with the respective 2-mercaptoimidazole compound [16,18]. We have now demonstrated that the calcium complex, [BmMeBenz]2Ca(THF)2, may be obtained directly by the reaction of Ca(BH4)2•2(THF) [24] with 1-methyl-1,3-dihydro-2H-benzimidazole-2-thione (Scheme 1). The molecular structure of [BmMeBenz]2Ca(THF)2 has been determined by X-ray diffraction (Fig. 2 and Table 1), and is of interest for several reasons.

Scheme 1 Synthesis of [BmMeBenz]2Ca(THF)2

Table 1 Selected bond lengths (Å) and angles (˚) for [BmMeBenz]2 Ca(THF)2

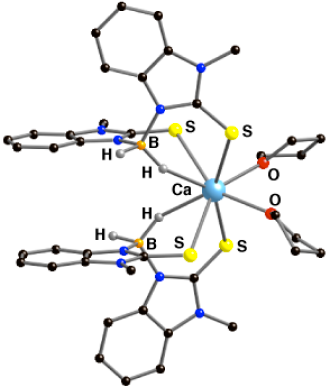

Fig. 2 Molecular structure of [BmMeBenz]2Ca(THF)2

Firstly, there are no examples of structurally characterized [BmR]M (M = Be, Mg, Ca, Sr, Ba) derivatives listed in the Cambridge Structural Database (CSD) [25]. Secondly, the coordination of the [BmMeBenz] ligand to calcium is of note because the related compound, [TmMe]2[Ca(OH2)6], is composed of discrete [TmMe]- anions, such that there is no interaction between calcium and the [TmMe] moiety [23]. The fact that the calcium atom of [TmMe]2[Ca(OH2)6] coordinates preferentially to the oxygen atoms of water molecules rather than the sulfur atoms of [TmMe] is, nevertheless, in accord with the general observation that alkaline earth metal compounds which feature M-S bonds are much less common than those with M-O bonds [26, 27]. For example, there are only 31 compounds with Ca-S bonds listed in the CSD, whereas there are almost 2000 compounds with Ca-O interactions [25]. Furthermore, there are only eight compounds in the CSD that have a sulfur-rich [S4Xn] coordination environment [28,29].

The Ca-S bond lengths within [BmMeBenz]2Ca(THF)2 [2.8467(15) Å - 2.8907(16) Å] compare favorably with the average value for compounds with Ca-S bonds that are listed in the CSD [2.946 Å]. For example, N,N-di-n-hexyldithiocarbamate [29a] and diphenyldithiophosphinate [28a], which are related bidentate [S2] donors with an LX Covalent Bond Classification [30], coordinate to calcium with Ca-S bond lengths in the range 2.84 - 3.04 Å. Interestingly, the Ca-S bond lengths for [BmMeBenz]2Ca(THF)2 are not substantially longer than the values for calcium thiolate compounds [2.776 Å - 2.851 Å] [31] in which the thiolate ligands serve as X donors. As such, it indicates that [BmMeBenz] is an effective ligand for calcium. The THF ligands also coordinate to calcium with Ca-O bond lengths [2.413(3) Å and 2.442(3) Å] that are comparable to the average value for Ca-THF compounds listed in the CSD [2.387 Å].

In addition to coordination by four sulfur donors and two THF ligands, the environment of calcium in [BmMeBenz]2Ca(THF)2 is supplemented by two secondary Ca•••H-B interactions with Ca•••H distances of 2.45(4) Å and 2.51(4) Å, values that are comparable to the CSD average of 2.46 Å [25,32,33,34]. Each [BmMeBenz] ligand thus possesses a κ3-S2 H coordination mode and thereby formally serves as an L2X donor. As such, the eight-membered ring of each {[BmMeBenz]2Ca} moiety adopts a “boat-like” configuration, which is required to allow the B-H bond to be in proximity of the metal center [35].

Density functional theory (B3LYP) geometry optimization calculations reproduce well the overall structure of [BmMeBenz]2- Ca(THF)2 (Fig. 3), including the presence of Ca•••H interactions with distances of 2.469 Å and 2.471Å [36,37]. It is also worth noting that the experimental Ca•••H distances observed for [BmMeBenz]2Ca(THF)2 [2.45(4) Å and 2.51(4) Å] are shorter than the values that have been reported for related bis(pyrazolyl)hydroborate compounds, namely [Bp]2Ca(THF)2 [2.77(2) Å and 3.01(3) Å] and [BpPri]2Ca(THF)2 [2.95(2) Å], which have been characterized as representing strong interactions on the basis that the distances are shorter than the sum of the van der Waals radii [38,39]. Furthermore, the bis(imidazolin-2-ylidene-1-yl)hydroborate compound, [H2B(ImBut)2]2Ca(THF), also possesses Ca•••H interactions [2.83 Å and 2.97 Å] which have been described as structurally significant [40].

Fig. 3 DFT (B3LYP) geometry optimized structure of [BmMeBenz]2- Ca(THF)2 (hydrogen atoms on carbon omitted for clarity).

In view of the presence of the Ca•••H-B interactions, the calcium center of [BmMeBenz]2Ca(THF)2 is eight-coordinate. Examination of calcium compounds listed in the CSD indicates that calcium exhibits a variety of coordination numbers, of which six-coordinate (33.5 %) and eight-coordinate (22.7 %) are the most common (Table 2) [41]. Eight-coordinate molecules are typically described in terms of one of two idealized structures, namely the D2d dodecahedron and the square antiprism [42]. Of these, [BmMeBenz]2Ca(THF)2 is best represented as possessing an idealized dodecahedral geometry (Fig. 4). A dodecahedral geometry may be identified by two mutually perpendicular trapezoids and, in this regard, the angle of 89.3˚ between the planes comprising S(2)-S(3)-O(1)-O(2) and S(1)-S(4)-H(1a)-H(2a) for [BmMeBenz]2Ca(THF)2 is much closer to that required for the dodecahedron (90.0˚) rather than that for the square antiprism (77.4˚) [42d]. Additional support for the assignment of a dodecahedral geometry for [BmMeBenz]2Ca(THF)2 is provided by the value of 0.94 for the eight-coordinate geometry index parameter, τ8 [43]. Specifically, an ideal dodecahedral geometry is characterized by a τ8 value of 1.0, whereas an ideal square antiprism is characterized by a τ8 value of 0.0.

Table 2 Distribution of calcium coordination numbers for compounds listed in the CSD.

Fig. 4 The dodecahedral core of [BmMeBenz]2Ca(THF)2. The sulfur atoms (yellow) occupy the B sites of the flattened tetrahedron, while the oxygen (red) and hydrogen (grey) atoms occupy the A sites of the elongated tetrahedron. The elongated and flattened distortions of the tetrahedra are relative to the C2 axis, which is vertical.

The dodecahedral geometry may also be described in terms of two interpenetrating tetrahedra, one of which is elongated (the A sites), and one of which is flattened (the B sites) [42b,c]. In terms of this latter description, the squashed tetrahedron is occupied by the [S4] array provided by the sulfur donors, while the elongated tetrahedron is occupied by the [O2H2] array provided by the THF and H-B moieties (Fig. 4). Although not common, calcium compounds that exhibit dodecahedral coordination environments are precedented [44,45]. However, there are few examples of eight-coordinate calcium compounds that have a sulfur-rich coordination environment. For example, there are only four eight-coordinate compounds with an [S4X4] motif listed in the CSD and none of these have a dodecahedral geometry [29].

Summary

In summary, the first structurally characterized bis(mercap-toimidazolyl)hydroborato calcium compound, [BmMeBenz]2- Ca(THF)2, has been obtained by the reaction of Ca(BH4)2• 2(THF) with 1-methyl-1,3-dihydro-2H-benzimidazole-2-thione. Calcium compounds with a sulfur-rich coordination environment are not common and [BmMeBenz]2Ca(THF)2 provides an example in which the calcium also participates in two Ca•••H-B interactions, such that the calcium is eight-coordinate with a dodecahedral geometry.

Experimental section

General Considerations

All manipulations were performed using a combination of glovebox, high vacuum, and Schlenk techniques under either a nitrogen or argon atmosphere [46]. Solvents were purified and degassed using standard procedures. NMR spectra were measured on Bruker 300 DRX and Bruker 400 Cyber-enabled Avance III spectrometers. 1H NMR spectra are reported in ppm relative to SiMe4 (δ = 0) and were referenced internally with respect to the protio solvent impurity (δ = 7.16 for C6D5H) [47]. 13C NMR spectra are reported in ppm relative to SiMe4 (δ = 0) and were referenced internally with respect to the solvent (δ = 128.06 for C6D6) [47]. Infrared spectra were recorded on a Perkin Elmer Spectrum Two spectrometer in attenuated total reflectance (ATR) mode, and are reported in reciprocal centimeters (cm‑1). Ca(BH4)2•2(THF) and 1-methyl-1,3-dihydro-2H-benzimidazole-2-thione were obtained commercially (Aldrich) and used as received.

X-ray Structure Determination

X-ray diffraction data were collected on a Bruker Apex II diffractometer. Crystal data, data collection and refinement parameters are summarized in Table 3, and are deposited in the Cambridge Crystallographic Data Centre (CCDC #1511150). The structures were solved by using direct methods and standard difference map techniques, and were refined by full-matrix least-squares procedures on F2 with SHELXTL (Version 2014/7) [48].

Table 3 Crystal, intensity collection, and refinement data.

Computational Details

Calculations were carried out using DFT as implemented in the Jaguar 8.9 (release 15) [49] suite of ab initio quantum chemistry programs. Geometry optimizations were performed with the B3LYP density functional [50] using the 6-31G** (H, B, C, N, S) basis set and the LACVP (Ca) basis set [51].

Synthesis of [BmMeBenz]2Ca(THF)2

A mixture of 1-methyl-1,3-dihydro-2H-benzimidazole-2-thione (105 mg, 0.64 mmol) and Ca(BH4)2•2(THF) (34 mg, 0.16 mmol) in a glass pressure vessel was treated with THF (ca. 4 mL) via vapor transfer from LiAlH4. The mixture was heated at 120˚C for 1 day, resulting in the formation of a white precipitate. The mixture was filtered to afford [BmMeBenz]2Ca(THF)2 as a white solid which was dried in vacuo (65 mg, 47%). Anal. calcd. C, 55.7%; H, 5.6%; N, 13.0%. Found: C, 55.5%; H 5.6%; N, 12.8%. Crystals of [BmMeBenz]2Ca(THF)2 suitable for X-ray diffraction were obtained from THF. 1H NMR (C6D6): 1.36 [m, 8H, [H2B{C4H4C2N2(CH3)CS}2]2Ca(C4H8O)2], 3.03 [s, 12H, [H2B {C4H4C2N2(CH3)CS}2]2Ca(C4H8O)2], 3.79 [m, 8H, [H2B{C4H4 C2N2(CH3)CS}2]2Ca(C4H8O)2], 4.47 [s, 4H, H2B{C4H4C2N2 (CH3)CS}2]2Ca(C4H8O)2], 6.48 [d, 3JH-H = 7 Hz, 4H, [H2B{C4 H4C2N2(CH3)CS}2]2Ca(C4H8O)2], 6.87 [m, 8H, [H2B{C4H4C2 N2 (CH3)CS}2]2Ca(C4H8O)2], 7.61 [d, 3JH-H = 7 Hz, 4H, [H2B {C4H4C2N2(CH3)CS}2]2Ca(C4H8O)2]. 13C {1H} NMR (C6D6): 25.6 [s, 4C, [H2B{C4H4C2N2(CH3)CS}2]2 Ca(C4H8O)2], 30.5 [s, 4C, [H2B{C4H4C2N2(CH3)CS}2]2Ca(C4 H8O)2], 68.7 [s, 4C, [H2B{C4H4C2N2(CH3)CS}2]2Ca(C4H8O)2], 108.9 [s, 4C, [H2B {C4H4 C2N2(CH3)CS}2]2Ca(C4H8O)2], 113.5 [s, 4C, [H2B{C4 H4C2N2 (CH3)CS}2]2Ca(C4H8O)2], 121.9 [s, 4C, [H2B{C4H4C2 N2(CH3)CS}2]2Ca(C4H8O)2], 122.6 [s, 4C, [H2B {C4H4C2N2 (CH3)CS}2]2 Ca(C4H8O)2], 134.4 [s, 4C, [H2B{C4 H4C2N2(CH3)CS}2]2Ca (C4H8O)2], 137.4 [s, 4C, [H2B{C4H4 C2N2(CH3)CS}2]2 Ca(C4H8 O)2], 170.3 [s, 4C, [H2B{C4H4C2 N2(CH3)CS}2]2Ca (C4H8O)2]. IR (ATR, cm-1): 3072 (w), 2826 (w), 2552 (w), 2213 (w), 1674 (s), 1601 (w), 1582 (w), 1497 (w), 1454 (w), 1421 (m), 1324 (m), 1288 (s), 1186 (m), 1127 (m), 1073 (w), 1027 (w), 933 (m), 807 (m), 732 (w), 702 (s), 685 (w), 666 (m).

Acknowledgments

We thank the National Science Foundation (CHE-1058987 and CHE-1465095) for support of this research.

References

1. (a) Kimblin, C.; Bridgewater, B. M.; Hascall, T.; Parkin, G. J. Chem. Soc., Dalton Trans. 2000, 891-897. (b) Kimblin, C.; Hascall, T.; Parkin, G. Inorg. Chem. 1997, 36, 5680-5681. [ Links ]

2. For [O2] and [Se 2] analogues, see: (a) Landry, V. K.; Buccella, D.; Pang, K.; Parkin, G. Dalton Trans. 2007, 866-870. (b) Landry, V. K.; Parkin, G. Polyhedron 2007, 26, 4751-4757. (c) Al-Harbi, A.; Rong, Y.; Parkin, G. Inorg. Chem. 2013, 52, 10226-10228. [ Links ]

3. (a) Hill, A. F.; Smith, M. K. Dalton Trans. 2006, 28-30. (b) Hill, A. F.; Smith, M. K. Organometallics 2007, 26, 3900-3903. (c) Rong, Y.; Sambade, D.; Parkin, G. Acta Cryst. 2016, C72, 806-812. [ Links ]

4. Hill, A. F.; Smith, M. K.; Wagler, J. Organometallics 2008, 27, 2137-2140. [ Links ]

5. (a) Kuan, S. L.; Leong, W. K.; Webster, R. D.; Goh, L. Y. Organometallics 2012, 31, 273-281. (b) Foreman, M. R. S.-J.; Hill, A. F.; Smith, M. K.; Tshabang, N. Organometallics 2005, 24, 5224-5226. (c) Abernethy, R. J.; Hill, A. F.; Neumann, H.; Willis, A. C. Inorg. Chim. Acta 2005, 358, 1605-1613.(d) Abernethy, R. J.; Foreman, M. R. S.-J.; Hill, A. F.; Tshabang, N.; Willis, A. C.; Young, R. D. Organometallics 2008, 27, 4455-4463. (e) Foreman, M. R. S.-J.; Hill, A. F.; Tshabang, N.; White, A. J. P.; Williams, D. J. Organometallics 2003, 22, 5593-5596. (f) Cade, I. A.; Hill, A. F.; Tshabang, N.; Smith, M. K. Organometallics 2009, 28, 1143-1147. [ Links ]

6. (a) Graham, L. A.; Fout, A. R.; Kuehne, K. R.; White, J. L.; Mookherji, B.; Marks, F. M.; Yap, G. P. A.; Zakharov, L. N.; Rheingold, A. L.; Rabinovich, D. Dalton Trans. 2005, 171-180. (b) Garcia, R.; Domingos, A.; Paulo, A.; Santos, I.; Alberto, R. Inorg. Chem. 2002, 41, 2422-2428 (c) Garcia, R.; Paulo, A.; Domingos, A.; Santos, I.; Pietzsch, H.-J. Synth. React. Inorg., Met.-Org., Nano-Met. Chem. 2005, 35, 35-42. (d) Garcia, R.; Paulo, A.; Domingos, Â.; Santos, I.; Ortner, K.; Alberto, R. J. Am. Chem. Soc. 2000, 122, 11240-11241. (e) Garcia, R.; Xing, Y.-H.; Paulo, A.; Domingos, A.; Santos, I. J. Chem. Soc., Dalton Trans. 2002, 4236-4241. [ Links ]

7. (a) Kuan, S. L.; Leong, W. K.; Goh, L. Y.; Webster, R. D. J. Organomet. Chem. 2006, 691, 907-915. (b) Abernethy, R. J.; Hill, A. F.; Tshabang, N.; Willis, A. C.; Young, R. D. Organometallics 2009, 28, 488-492. (c) Ma, Q.; Jia, A.-Q.; Chen, Q.; Shi, H.-T.; Leung, W.-H.; Zhang, Q.-F. J. Organomet. Chem. 2012, 716, 182-186. (d) Wang, X.-Y.; Ma, Q.; Duan, T.; Chen, Q.; Zhang, Q.-F. Inorg. Chim. Acta 2012, 384, 281-286. (e) Rajasekharan-Nair, R.; Darby, L.; Reglinski, J.; Spicer, M. D.; Kennedy, A. R. Inorg. Chem. Commun. 2014, 41, 11-13. [ Links ]

8. Crossley, I. R.; Hill, A. F.; Humphrey, E. R.; Smith, M. K. Organometallics 2006, 25, 2242-2247. [ Links ]

9. (a) Maffett, L. S.; Gunter, K. L.; Kreisel, K. A.; Yap, G. P. A.; Rabinovich, D. Polyhedron 2007, 26, 4758-4764. (b) Alvarez, H. M.; Krawiec, M.; Donovan-Merkert, B. T.; Fouzi, M.; Rabinovich, D. Inorg. Chem. 2001, 40, 5736-5737. (c) Alvarez, H. M.; Tanski, J. M.; Rabinovich, D. Polyhedron 2004, 23, 395-403. (d) Crossley, I. R.; Hill, A. F.; Willis, A. C. Organometallics 2005, 24, 4889-4892.(e) Crossley, I. R.; Hayes, J. J. Organomet. Chem. 2012, 716, 285-288. [ Links ]

10. (a) Mohamed, A. A.; Rabinovich, D.; Fackler, J. P. Acta Crystallogr. 2002, E58, m726-m727. (b) Beheshti, A.; Clegg, W.; Nobakht, V.; Mehr, M. P.; Russo, L. Dalton Trans. 2008, 6641-6646. (c) Hill, A. F.; Smith, M. K.; Tshabang, N.; Willis, A. C. Organometallics 2010, 29, 473-477. [ Links ]

11. (a) Philson, L. A.; Alyounes, D. M.; Zakharov, L. N.; Rheingold, A. L.; Rabinovich, D. Polyhedron 2003, 22, 3461-3466. (b) Alvarez, H. M.; Tran, T. B.; Richter, M. A.; Alyounes, D. M.; Rabinovich, D.; Tanski, J. M.; Krawiec, M. Inorg. Chem. 2003, 42, 2149-2156. [ Links ]

12. (a) Kimblin, C.; Bridgewater, B. M.; Hascall, T.; Parkin, G. Dalton Trans. 2000, 1267-1274. (b) Yurkerwich, K.; Coleman, F.; Parkin, G. Dalton Trans. 2010, 39, 6939-6942. (c) Hill, S. C.; Jones, D. S.; Rabinovich, D. Acta Crystallogr. 2006, E62, m702-m704. (d) Alvarez, H. M.; Gillespie, P. A.; Gause, C. D.; Rheingold, A. L.; Golen, J. A.; Rabinovich, D. Polyhedron 2004, 23, 617-622. [ Links ]

13. Imran, M.; Neumann, B.; Stammler, H. G.; Monkowius, U.; Ertl, M.; Mitzel, N. W. Dalton Trans. 2014, 43, 1267-1278. [ Links ]

14. Maria, L.; Domingos, A.; Santos, I. Inorg. Chem. 2001, 40, 6863-6864. [ Links ]

15. Crossley, I. R.; Hill, A. F.; Humphrey, E. R.; Smith, M. K.; Tshabang, N.; Willis, A. C. Chem. Commun. 2004, 1878-1879. [ Links ]

16. (a) Garner, M.; Reglinski, J.; Cassidy, I.; Spicer, M. D.; Kennedy, A. R. Chem. Commun. 1996, 1975-1976. (b) Reglinski, J.; Garner, M.; Cassidy, I. D.; Slavin, P. A.; Spicer, M. D.; Armstrong, D. R. J. Chem. Soc., Dalton Trans. 1999, 2119-2126. [ Links ]

17. (a) Rajesekharan-Nair, R.; Lutta, S. T.; Kennedy, A. R.; Reglinski, J.; Spicer, M. D. Acta Crystallogr. 2015, C70, 421-427. (b) Spicer, M. D.; Reglinski, J. Eur. J. Inorg. Chem. 2009, 1553-1574. (c) Smith, J. M. Comm. Inorg. Chem. 2008, 29, 189-233. (d) Soares, L. F.; Silva, R. M. Inorg. Synth. 2002, 33, 199-202. (e) Rabinovich, D. Struct. Bond. 2006, 120, 143-162. [ Links ]

18. (a) Kreider-Mueller, A.; Rong, Y.; Owen, J. S.; Parkin, G. Dalton Trans. 2014, 43, 10852-10865. (b) Parkin, G. New J. Chem. 2007, 31, 1996-2014. (c) Parkin, G. Chem. Rev. 2004, 104, 699-767. (d) Parkin, G. Chem. Commun. 2000, 1971-1985. [ Links ]

19. (a) Vahrenkamp, H. Acc. Chem. Res. 1999, 32, 589-596. (b) Vahrenkamp, H. Bioinorganic Chemistry - Transition Metals in Biology and their Coordination Chemistry, Wiley-VCH, Weinheim, 1997, 540-551. (c) Vahrenkamp, H. Dalton Trans. 2007, 4751-4759. [ Links ]

20. See, for example: (a) Yurkerwich, K.; Yurkerwich, M.; Parkin, G. Inorg. Chem. 2011, 50, 12284-12295. (b) Santini, C.; Lobbia, G. G.; Pettinari, C.; Pellei, M.; Valle, G.; Calogero, S. Inorg. Chem. 1998, 37, 890-900. (c) Kimblin, C.; Bridgewater, B. M.; Churchill, D. G.; Parkin, G. Chem. Commun. 1999, 2301-2302. (d) Tesmer, M.; Shu, M.; Vahrenkamp, H. Inorg. Chem. 2001, 40, 4022-4029. (e) Bakbak, S.; Bhatia, V. K.; Incarvito, C. D.; Rheingold, A. L.; Rabinovich, D. Polyhedron 2001, 20, 3343-3348. (f) Bailey, P. J.; Dawson, A.; McCormack, C.; Moggach, S.; Oswald, I. D. H.; Parsons, S.; Rankin, D.W. H.; Turner, A. Inorg. Chem. 2005, 44, 8884-8898. (g) Ibrahim, M. M.; Shu, M.; Vahrenkamp, H. Eur. J. Inorg. Chem. 2005, 1388-1397. (h) Mihalcik, D. J.; White, J. L.; Tanski, J. M.; Zakharov, L. N.; Yap, G. P. A.; Incarvito, C. D.; Rheingold, A. L.; Rabinovich, D. Dalton Trans.2004, 1626-1634. [ Links ]

21. Al-Harbi, A.; Rong, Y.; Parkin, G. Dalton Trans. 2013, 42, 11117-11127. [ Links ]

22. (a) Rong, Y.; Palmer, J. H.; Parkin, G. Dalton Trans. 2014, 43, 1397-1407. (b) Palmer, J. H.; Parkin, G. J. Mol. Struct. 2015, 1081, 530-535. (c) Palmer, J. H.; Parkin, G. Dalton Trans. 2014, 43, 13874-13882. [ Links ]

23. Çetin, A.; Ziegler, C. J. Dalton Trans. 2006, 1006-1008. [ Links ]

24. For a recent synthesis of calcium borohydride, see: Kuzdrowska, M.; Annunziata, L.; Marks, S.; Schmid, M.; Jaffredo, C. G.; Roesky, P. W.; Guillaume, S. M.; Maron, L. Dalton Trans. 2013, 42, 9352-9360. [ Links ]

25. Searches of the Cambridge Structural Database were performed with version 5.37. See: Groom, C. R.; Bruno, I. J.; Lightfoot, M. P.; Ward, S. C. Acta Cryst. 2016, B72, 171-179. [ Links ]

26. (a) Englich, U.; Ruhlandt-Senge, K. Coord. Chem. Rev. 2000, 210, 135-179. (b) Ruhlandt-Senge, K. Comments Inorganic Chem. 1997, 19, 351-385. [ Links ]

27. Balanta-Diaz, J. A.; Moya-Cabrera, M.; Jancik, V.; Toscano, R. A.; Morales-Juarez, T. J.; Cea-Olivares, R. Z. Anorg. Allg. Chem. 2011, 637, 1346-1354. [ Links ]

28. (a) Al-Shboul, T. M. A.; Volland, G.; Gorls, H.; Krieck, S.; Westerhausen, M. Inorg. Chem. 2012, 51, 7903-7912. (b) Bezougli, I. K.; Bashall, A.; McPartlin, M.; Mingos, D. M. P. J. Chem. Soc. Dalton Trans. 1998, 2671-2677. (c) Purdy, A. P.; George, C. F. Main Group Chem. 1996, 1, 229-240. [ Links ]

29. (a) Reck, G.; Becker, R. Acta Crystallogr. 2004, C60, m134-m136. (b) Levason, W.; Pugh, D.; Purkis, J. M.; Reid, G. Dalton Trans. 2016, 45, 7900-7911. (c) Wickleder, C.; Larsen, P. Z.Naturforsch. 2002, 57b, 1419-1426. (d) Farina, P.; Levason, W.; Reid, G. Dalton Trans. 2013, 42, 89-99. [ Links ]

30. (a) Green, M. L. H.; Parkin, G. J. Chem. Educ. 2014, 91, 807-816. (b) Green, M. L. H. J. Organomet. Chem. 1995, 500, 127-148. (c) Parkin, G. in Comprehensive Organometallic Chemistry III, Volume 1, Chapter 1.01; Crabtree, R. H. and Mingos, D. M. P. (Eds), Elsevier, Oxford, 2006. [ Links ]

31. (a) Englich, U.; Ruhlandt-Senge, K. Z. Anorg. Allg. Chem. 2001, 627, 851-856. (b) Chadwick, S.; Englich, U.; Noll, B.; Ruhlandt-Senge, K. Inorg. Chem. 1998, 37, 4718-4725. [ Links ]

32. For some examples of calcium compounds with Ca•••H-B interactions, see: (a) Harder, S.; Brettar, J. Angew. Chem. Int. Edit. 2006, 45, 3474-3478. (b) Cushion, M. G.; Mountford, P. Chem. Commun. 2011, 47, 2276-2278. (c) Collins, R. A.; Unruangsri, J.; Mountford, P. Dalton Trans. 2013, 42, 759-769. [ Links ]

33. It is worth noting that the Ca•••B distances for [BmMeBenz]2- Ca(THF)2 (3.41 Å and 3.47 Å) are larger than the CSD average (2.81 Å) because the latter includes [ Links ]

34. For calcium hydride compounds, see: (a) Spielmann, J.; Harder, S. Chem. Eur. J. 2007, 13, 8928-8938. (b) Harder, S.; Brettar, J. Angew. Chem. Int. Ed. Engl. 2006, 45, 3474-3478. (c) Harder, S. Chem. Commun. 2012, 48, 11165-11177. (d) Harder, S. Chem. Rev. 2010, 110, 3852-3876. (e) Hill, M. S.; Liptrot, D. J.; Weetman, C. Chem. Soc. Rev. 2016, 45, 972-988. (f) Jochmann, P.; Davin, J. P.; Spaniol, T. P.; Maron, L.; Okuda, J. Angew. Chem. Int. Edit. 2012, 51, 4452-4455. (g) Causero, A.; Ballmann, G.; Pahl, J.; Zijlstra, H.; Färber, C.; Harder, S. Organometallics, 2016, 35, 3350-3360. [ Links ]

35. While many {[BmR]M} compounds exhibit a “boat-like” configuration, examples with a “chair-like” configuration are also known. See, for example, reference 12b. [ Links ]

36. Although not structurally characterized by X-ray diffraction, Ca•••H distances of 2.67 Å have been calculated for hydrobis(2-thiopyridone)borate derivative, [Bmp]2Ca(THF)2. See: Naktode, K.; Reddy, T. D. N.; Nayek, H. P.; Mallik, B. S.; Panda, T. K. RSC Adv. 2015, 5, 51413-51420. [ Links ]

37. (a) Green, J. C.; Green, M. L. H.; Parkin, G. Chem. Commun. 2012, 48, 11481-11503. (b) Parkin, G. Struct. Bond. 2010, 136, 113-146. (c) Green, M. L. H.; Parkin, G. Struct. Bond. 2017, 171, 79-139. [ Links ]

38. Saly, M. J.; Heeg, M. J.; Winter, C. H. Polyhedron 2011, 30, 1330-1338. [ Links ]

39. A shorter Ca•••H interaction [2.47(2) Å] is, nevertheless, observed in the tris(pyrazolyl)borate complex, [TpBut]2Ca. See: Harder, S.; Brettar, J. Angew. Chem. Int. Ed. Engl. 2006, 45, 3474-3478. [ Links ]

40. Arrowsmith, M.; Hill, M. S.; Kociok-Kohn, G. Organometallics 2009, 28, 1730-1738. [ Links ]

41. (a) Katz, A. K.; Glusker, J. P.; Beebe, S. A.; Bock, C. W. J. Am. Chem. Soc. 1996, 118, 5752-5763. (b) Dudev, T.; Lim, C. Chem. Rev. 2003, 103, 773-787. (c) Pidcock, E.; Moore, G. R. J. Biol. Inorg. Chem. 2001, 6, 479-489. [ Links ]

42. (a) Hoard, J. L.; Silverton, J. V. Inorg. Chem. 1963, 2, 235-242. (b) Drew, M. G. B. Coord. Chem. Rev. 1977, 24, 179-275. (c) Kepert, D. L. Prog. Inorg. Chem. 1978, 24, 179-249. (d) Lippard, S. J.; Russ, B. J. Inorg. Chem. 1968, 7, 1686-1688. (e) Haigh, C. W. Polyhedron 1996, 15, 605-643. (f) Burdett, J. K.; Hoffmann, R.; Fay, R. C. Inorg. Chem. 1978, 17, 2553-2568. (g) Hlatky, G. G.; Crabtree, R. H. Coord. Chem. Rev. 1985, 65, 1-48. [ Links ]

43. τ8 = (θ − 77.4)/12.6, where θ is the dihedral angle between the two trapezoidal planes. See reference 29b. [ Links ]

44. (a) Gephart, R. T., III; Williams, N. J.; Reibenspies, J. H.; Sousa, A. S. De; Hancock, R. D. Inorg. Chem. 2008, 47, 10342-10348. (b) Clarke, E. T.; Squattrito, P. J.; Rudolf, P. R.; Motekaitis, R. Z.; Martell, A. E.; Clearfield, A. Inorganica Chim. Acta 1989, 166, 221-231. (c) Kepert, D. L.; White, A. H.; Willis, A. C. J. Chem. Soc. Dalton Trans. 1977, 1342-1349. (d) Strahs, G.; Dickerson, R. E. Acta Crystallogr. 1968, B24, 571-578. (e) Huang, B.; Pei, Y. M.; Wang, L. Acta Crystallogr. 2008, E64, m1621. (f) Emge, T. J.; Oliver, J. D.; Connor, D. S.; Thoman, S. M.; Jason, M. E. Acta Crystallogr. 1993, B49, 675-679. (g) Rogers, R. D.; Bond, A. H. Acta Crystallogr. 1992, C48, 1782-1785. (h) Putzas, D.; Rotter, H. W.; Thiele, G.; Brodersen, K.; Pezzei, G. Z. Anorg. Allg. Chem. 1991, 595, 193-202. (i) Thiele, G.; Putzas, D. Z.Naturforsch. 1988, B43, 1224-1234. [ Links ]

45. For calcium compounds that exhibit square antiprismatic coordination geometries, see reference 29d and: (a) Djeghri, A.; Balegroune, F.; Laidoudi, A. G.; Toupet, L. Acta Crystallogr. 2006, C62, m126-m128. (b) Gunes, M.; Valkonen, J. Acta Crystallogr. 2004, C60, i101-i103. (c) Vijayvergiya, V.; Padmanabhan, B.; Singh, T. P. Acta Crystallogr. 1995, C51, 2235-2238. (d) Blackburn, A. C.; Gerkin, R. E. Acta Crystallogr. 1993, C49, 1439-1442. [ Links ]

46. (a) McNally, J. P.; Leong, V. S.; Cooper, N. J. in Experimental Organometallic Chemistry, Wayda, A. L.; Darensbourg, M. Y., Eds.; American Chemical Society: Washington, DC, 1987; Chapter 2, pp 6-23. (b) Burger, B.J.; Bercaw, J. E. in Experimental Organometallic Chemistry; Wayda, A. L. ; Darensbourg, M. Y. , Eds.; American Chemical Society: Washington, DC , 1987; Chapter 4, pp 79-98. (c) Shriver, D. F.; Drezdzon, M. A.; The Manipulation of Air-Sensitive Compounds, 2nd Edition; Wiley-Interscience: New York, 1986. [ Links ]

47. Fulmer, G. R.; Miller, A. J. M.; Sherden, N. H.; Gottlieb, H. E.; Nudelman, A.; Stoltz, B. M.; Bercaw, J. E.; Goldberg, K. I. Organometallics 2010, 29, 2176-2179. [ Links ]

48. (a) Sheldrick, G. M. SHELXTL, An Integrated System for Solving, Refining, and Displaying Crystal Structures from Diffraction Data; University of Göttingen, Göttingen, Federal Republic of Germany, 1981. (b) Sheldrick, G. M. Acta Cryst. 2008, A64, 112-122. [ Links ]

49. (a) Jaguar, version 8.9, Schrodinger, Inc., New York, NY, 2015. (b) Bochevarov, A. D.; Harder, E.; Hughes, T. F.; Greenwood, J. R.; Braden, D. A.; Philipp, D. M.; Rinaldo, D.; Halls, M. D.; Zhang, J.; Friesner, R. A. Int. J. Quantum Chem. 2013, 113, 2110-2142. [ Links ]

50. (a) Becke, A. D. J. Chem. Phys. 1993, 98, 5648-5652. (b) Becke, A. D. Phys. Rev. A 1988, 38, 3098-3100. (c) Lee, C. T.; Yang, W. T.; Parr, R. G. Phys. Rev. B 1988, 37, 785-789. (d) Vosko, S. H.; Wilk, L.; Nusair, M. Can. J. Phys. 1980, 58, 1200-1211. (e) Slater, J. C. Quantum Theory of Molecules and Solids, Vol. 4: The Self-Consistent Field for Molecules and Solids; McGraw-Hill: New York, 1974. [ Links ]

51. (a) Hay, P. J.; Wadt, W. R. J. Chem. Phys. 1985, 82, 270-283. (b) Wadt, W. R.; Hay, P. J. J. Chem. Phys. 1985, 82, 284-298. (c) Hay, P. J.; Wadt, W. R. J. Chem. Phys. 1985, 82, 299-310. [ Links ]

Received: October 24, 2016; Accepted: February 10, 2017

Dedicated to the memory of Roberto Sánchez-Delgado, a wonderful man and an inspirational colleague.
