Introduction
Organotin compounds have been extensively studied in the structural chemistry. For organotin (IV) compounds present frequently the formation of polyhedra with tetrahedral, trigonal-bipyramidal, octahedral and pentagonal-bipyramidal coordination geometries, the final coordination number depends strongly on the number of organic substituents attached to tin atom and the nature of the ligands [1-6].
The organotin (IV) compounds and them derives exhibit antitumor activity [7, 8], biocides [9], material with non-linear optical properties [10], fluorescence probes for DNA traces [11], model systems like nucleotides [12], amino acids [13], peptides [14] and corrosion inhibitors [15].
In particular, diorganotin (IV) compounds derived from ligands containing nitrogen and oxygen donor atoms present increasing number of reports, mainly derivates of aminoacids and analogues have been investigated [16, 17]. Our current interest in the synthesis of organotin compounds and structural analysis [18-22], prompted us to extend our investigation in the synthesis of new organotin (IV) compounds, which could have corrosion inhibitors properties [23].
This paper describes the synthesis of three new di-n-butyl [bis (alkyl-aminopropionic acid)]tin (IV) (alkyl = octyl, dodecyl and octadecyl) 2a-2c, by the reaction of di-n-butyl (IV) oxide and alkyl aminopropionic acid (alkyl = octyl, dodecyl and octadecyl) 1a-1c in a 1:2 molar ratio. All compounds were characterized by 1H, 13C, 119Sn NMR, infrared spectroscopy, mass spectrometry and elemental analyses.
Results and Discussion
Herein we report the reaction of alkyl aminopropionic acids 1a-1c, with di-n-butyltin (IV) oxide in a 2:1 ratio to obtain di-n-butyl [bis (alkyl-aminopropionic acid)]tin (IV) 2a-2c as white solids (Fig. 1). The compounds 1a-1c were obtained through the reaction of alkyl amine (alkyl = octyl, dodecyl and octadecyl) and acrylic acid [24].
The 1H NMR spectra in CDCl3 of all the compounds 2a-2c (1H NMR data are summarized in Table 1) show only one set of signal for each magnetically equivalent H nucleus, thus both (n-Bu)2Sn proton and those of the ligands are in 1:2 ratio, respectively. For 2b and 2c compounds, this indicate the formation of unique species or a fast-exchanging equilibrium on the NMR time scale (Support information). For the compound 2b for example, the H3 and H4 (3.008 and 2.823 ppm) proton appeared as broad signals at higher field (∆δ = 0.05 and 0.083) with respect to the free ligand 1b (Support information). This suggests a shielding of these protons upon coordination giving evidence for the formation of a Sn-O bonded and NH→Sn coordination bond.
Table 1 Chemical shift of 1H NMR for compounds 2a-2c.
d (1H) relative to Si(CH3)4; solvent CDCl3. b: broad; m: unresolved pattern; t: triplet and J Hz.
For the compound 2b the 13C NMR spectrum in CDCl3, the carbon C3 and C4 appeared as broad signals (47.623 and 44.748 ppm) at low field (∆δ = 0.521 and 0.170) with respect to the free ligand 1b, the chemical shift of these carbons gave evidence for the formation of NH→Sn coordination bond. Likewise, the chemical shift of the signals of the compound 2b the carbons C1 and C2 appeared as broad signals (177.242 and 33.154 ppm) with respect to the carbons of free ligand 1b (∆δ = 0.316 and 1.254) giving evidence for the formation of Sn-O bonded. The 13C NMR data are summarized in Table 2.

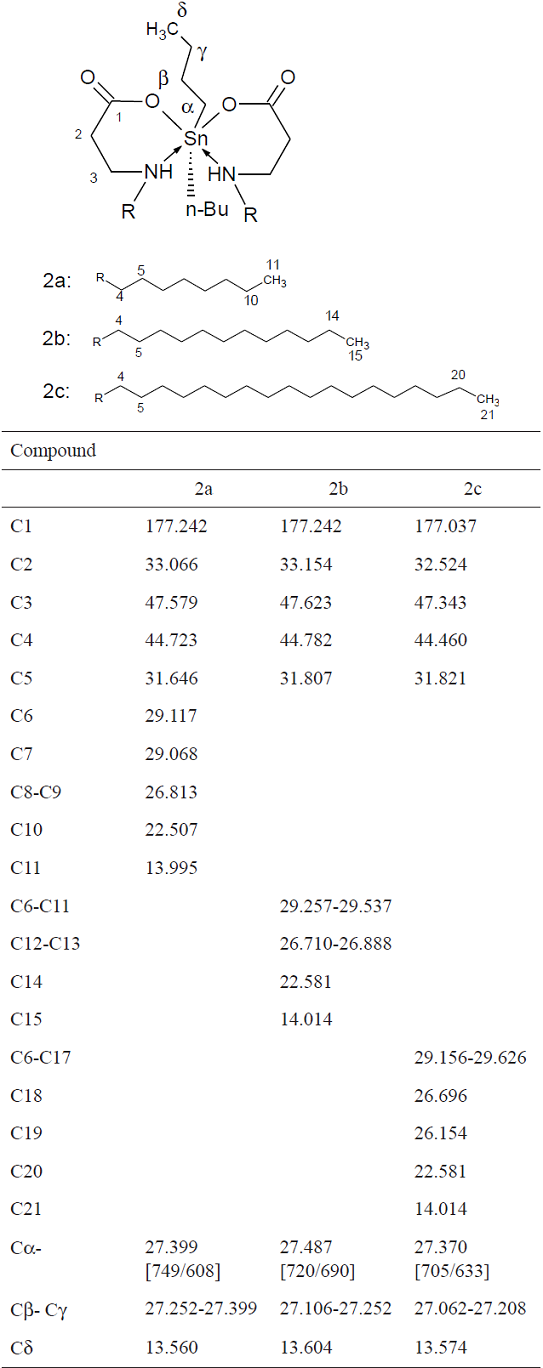

Table 2 Chemical shift of 13C NMR for compounds 2a-2c.
Chemical shifts in ppm respect to TMS 1J(13C-119Sn), 2J(13C-117Sn) coupling constant between square brackets.
All compounds (2a-2c) exhibited 1J(119Sn-13C) and 2J(117Sn-13C) coupling 749/608, 720/690 and 705/633 Hz respectively within the range of trans six-coordinated tin compound [16-19] The 119Sn NMR spectra of 2b and 2c at room temperature in chloroform show only one signal at -203.96 and -204.20 ppm respectively. This can indicate unique species or a fast exchanging equilibrium, on the NMR time scale. The chemical shifts are within the range of di-n-butyl (IV) hexacoordinated compounds¯[3-6, 18-22]. Neverthelees, for compound 2a, the 119Sn NMR spectrum show five signals in ca. 0.9:1.0:1.1:1.5:1.0 ratio, δ -176.21, -186.10, -194.50, -204.37 and -215.91 ppm associate to the hexa-coordinated species, this result suggested the existence of a mixture of an equilibrium between five different hexacoordinated isomers, two trans (I, II) and three cis (III, IV, V) in solution at room temperature, the isomerism is attributed a different arrangement of the ligands [28, 21] as show in Fig. 2, a possible explanation in formation of hexacoordinate isomers due to the presence of chain short, giving as a result the existence of equilibrium dynamic.
The IR spectra for the compounds 2a-2c exhibit one υ(C=O) carbonyl band in 1654 cm-1. Also a broad band one of them assigned to the N-H in 1566 cm-1 and other due Sn-O band is observed in 430 cm-1.

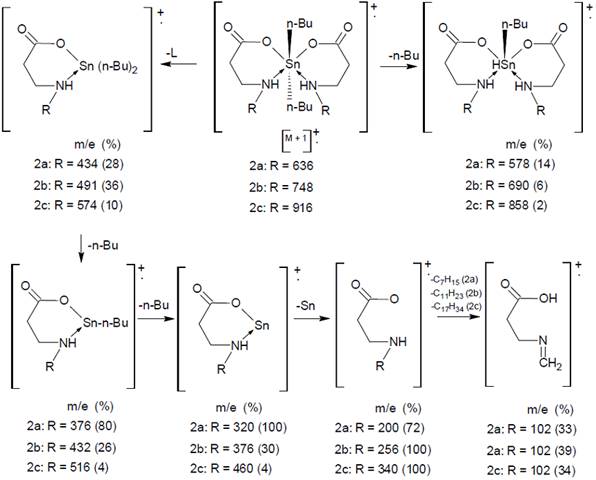

The mass spectra in all three cases for 2a-2c, (15 eV IE) displayed the presence of molecular ion confirming of the formation of the products, the fragmentation process start with the loss of a ligand, followed by loss of n-butyl groups (yielding the base peak for 2a), and later loss of Sn atom giving the base peak for compounds 2b and 2c. The spectra show others fragment ion and a possible fragmentation pattern is given in Fig. 3.
Experimental section
Materials
The reagents were purchased from Aldrich Co. Melting points were determined in open capillaries on Electrothermal melting apparatus (UK) and are uncorrected. IR spectra were recorded on Bruker Tensor-27 FT-IR using KBr pellets. 1H, 13C and 119Sn NMR spectra were recorded on VARIAN Mercury 200-BB spectrometer. The 1H and 13C chemical shifts [ppm] are relative to internal SiMe4 (TMS) and the 119Sn chemical shifts d [ppm] are relative to internal SnMe4. Results are presented as, chemical schift in ppm, multiplicity coupling constants in Hz, number of protons, proton´s position. Multiplicities are shown as the abbreviations: s (singlet), d (doublet), t (triplet), and m (multiplet). Mass spectra were obtained in HP 5973 MSD eV = 15.2 (Direct insertion probe). Elemental analyses were performed on CHNS analysis in Perkin Elmer Series II 2400. Solvent were commercially available reagent grade.
Synthesis of alkyl-aminopropionic acid 1a-3a (alkyl = octyl, docecyl and octadecyl)
Octyl-aminopropionic acid 1a: 5.0 g (0.038 mol) of octylamine was slowly added 3.35 g (0.046 mol) of acrylic acid; the reaction was placed in flask equipped with a magnetic stirred, thermometer and reflux system. The reaction was carried to 90-95 °C during 2 hours. After being cooled to room temperature the residue was treated with hexane, the solution is filtered and the residue was treated with chloroform, the solution was filtered and the solvent was evaporated under vacuum to yield 7.82 g (95 %) of compound 1a as white solid. Yield 95%; mp 86-87 °C; IR (KBr, υmax/cm-1) 3375 (N-H), 1655 (C=O); 1H NMR (200MHz, CDCl3 δ ppm): 0.856 (t, J = 6.6 Hz, 3H, H-11), 1.241 (m, 10H, H-6 to H-10), 1,721 (m, 2H, H-5), 2.506 (t, J = 5.5 Hz, 2H, H-2), 2.895 (t, J = 7.8 Hz, 2H, H-4), 3.055 (t, J = 5.5 Hz, 2H, H-3); 13C NMR (50MHz, CDCl3, δ ppm); 176.920 (C-1), 46.964 (C-3), 44.518 (C-4), 31.792 (C-2), 31.675 (C-5), 29.068 (C-6, C-7), 26.710 (C-8), 26.169 (C-9), 22.566 (C-10), 14.043 (C-11); elemental analysis: C11H23NO2 Calc.: C 65.97, H 12.22, N 6.95; found: C 65.65, H 12.18, N 6.94.
Dodecyl-aminopropionic acid 1b: 5.0 g (0.027 mol) of dodecylamine and 2.3 g (0.032 mol) of acrylic acid gave 6.52 g (94%) of compound 1b as white solid. Yield 94%; mp 89-90 °C; IR (KBr, υmax/cm-1) 3374 (N-H), 1655 (C=O); 1H NMR (200MHz, CDCl3, δ ppm): 0.879 (t, J = 6.6 Hz, 3H, H-15), 1.250 (m, 18H, H-6 to H-14), 1,746 (m, 2H, H-5), 2.522 (t, J = 6.0 Hz, 2H, H-2), 2.906 (t, J = 7.8 Hz, 2H, H-4), 3.057 (t, J = 6.0 Hz, 2H, H-3); 13C NMR (50MHz, CDCl3, δ ppm); 176.926 (C-1), 47.102 (C-3), 44.612 (C-4), 31.900 (C-2), 31.564 (C-5), 29.103-29.613 (C-6 to C-11), 26.731 (C-12), 26.394 (C-13), 22.689 (C-14), 14.137 (C-15); elemental analysis: C15H31NO2 Calc.: C 67.42, H 12.45, N 5.26; found: C 67.46, H 12.50, N 5.26.
Octadecyl-aminopropionic acid 1c: 5.0 g (0.018 mol) of octadecylamine and 1.6 g (0.022 mol) of acrylic acid gave 5.52 g (90%) of compound 1c as white solid. Yield 90%; mp 91-92 °C; IR (KBr, υmax/cm-1) 3374 (N-H), 1655 (C-O); 1H NMR (200MHz, CDCl3 δ ppm): 0.871 (t, J = 6.6 Hz, 3H, H-21), 1.244 (m, 26H, H-6 to H-20), 1,740 (m, 2H, H-5), 2.522 (t, J = 6.0 Hz, 2H, H-2), 2.900 (t, J = 7.8 Hz, 2H, H-4), 3.059 (t, J = 6.0 Hz, 2H, H-3); 13C NMR (50MHz, CDCl3, δ ppm); 176.920 (C-1), 47.052 (C-3), 44.548 (C-4), 31.909 (C-2), 31.734 (C-5), 29.127-29.698 (C-6 to C-17), 26.740 (C-18), 26.227 (C-19), 22.683 (C-20), 14.116 (C-21); elemental analysis: C21H43NO2 Calc.: C 73.06, H 13.26, N 4.15; found: C 72.99, H 13.45, N 4.11.
Synthesis of di-n-butyl [bis(alkyl-aminopropionic acid)]tin (IV) 2a-2c (alkyl = octyl, docecyl and octadecyl)
Complex di -n-butyl [bis(octyl-aminopropionic acid)]tin (IV) 2a: A solution of 0.5 g (0.00248 mol) of 1a in 100.0 ml of ethanol was placed in flask equipped with a magnetic stirred and dean-Stark trap and 0.3 g (0.0012 mol) of di-n-butyltin (IV) oxide were added. The suspension was refluxed during 10 hours. After being cooled to room temperature, the solvent was evaporated under vacuum. The residue was treated with chloroform, the solution was filtered and the solvent was evaporated under vacuum to yield 1.25 g (80 %) of compound 2a as yellow solid. Yield 80%; mp 90-91 °C; IR (KBr, υmax/cm-1) 1654 (C=O), 1566 (N-H), 430 (Sn-O); 1H NMR (200MHz, CDCl3 δ ppm): 0.877 (t, J = 6.6 Hz, 6H, H-11), 1.262 (m, 10H, H-6 to H-10), 1,662 (broad, 2H, H-5), 2.504 (broad, 2H, H-2), 2.869 (b, 2H, H-4), 3.045 (b, 2H, H-3), 1.215 (m, 4H, Hα-Hβ), 1.180 (m, 2H, Hγ), 0.877 (t, J=6 Hz, 3H, Hδ); 13C NMR (50MHz, CDCl3, δ ppm); 177.242 (C-1), 47.579 (C-3), 44.723 (C-4), 33.066 (C-2), 31.646 (C-5), 29.117 (C-6), 29.068 (C-7), 26.813 (C-8, C-9), 22.507 (C-10), 13.995 (C-11), 27.399 [Ca, 1J(119Sn-13C)=749, 1J(117Sn-13C)=608 Hz], 27.252-27.399 (Cβ-Cγ), 13.560 (Cδ); 119Sn NMR (200MHz, CDCl3, δ ppm) -176.21, -186.10, -194.50, -204.37, -215.91 ppm; elemental analysis: C30H62N2O4Sn Calc.: C 53.90, H 10.44, N 4.32; found: C 53.79, H 10.52, N 4.27.
Complex di -n-butyl [bis(dodecyl-aminopropionic acid)]tin (IV) 2b: 0.5 g (0.00194 mol) of 1b and 0.242 g (0.00097 mol) of di-n-butyltin (IV) oxide gave 1.15 g (81 %) of compound 2b as yellow solid. Yield 81%; mp 91-92 °C; IR (KBr, υmax/cm-1) 1654 (C=O), 1566 (N-H), 430 (Sn-O); 1H NMR (200MHz, CDCl3 δ ppm): 0.869 (t, J = 6.6 Hz, 3H, H-15), 1.242 (m, 18H, H-6 to H-14), 1,635 (b, 2H, H-5), 2.504 (b, 2H, H-2), 2.823 (b, 2H, H-4), 3.008 (b, 2H, H-3), 1.242 (m, 4H, Hα-Hβ), 1.242 (m, 2H, Hγ), 0.869 (t, J=6.6 Hz, 3H, Hδ); 13C NMR (50MHz, CDCl3, δ ppm); 177.242 (C-1), 47.623 (C-3), 44.782 (C-4), 33.154 (C-2), 31.807 (C-5), 29.257-29.537 (C-6 to C-11), 26.888 (C-12), 26.710 (C-13), 22.581 (C-14), 14.014 (C-15), 27.487 [Cα, 1J(119Sn-13C) = 720, 2J(117Sn-13C)=690 Hz], 27.252-27.106 (Cβ-Cγ), 13.604 (Cδ); 119Sn NMR (200MHz, CDCl3 δ ppm) -203.96 ppm; elemental analysis: C38H78NO4Sn Calc.: C 58.31, H 10.87, N 3.50; found: C 58.33, H 10.85, N 3.48.
Complex di -n-butyl [bis(octadecyl-aminopropionic acid)] tin (IV) 2c: 1.5 g (0.0044 mol) of 1c and 0.547 g (0.0022 mol) of di-n-butyltin (IV) oxide gave 2.5 g (78 %) of compound 2c as yellow solid. Yield 78%; mp 93 °C; IR (KBr, υmax/cm-1) 1654 (C=O), 1566 (N-H), 430 (Sn-O); 1H NMR (200MHz, CDCl3, δ ppm): 0.744 (m, 3H, H-21), 1.135 (m, 26H, H-6 to H-20), 1.532 (b, 2H, H-5), 2.367 (b, 2H, H-2), 2.725 (b, 2H, H-4), 2.914 (b, 2H, H-3), 1.135 (m, 6H, Hα,Hβ,Hγ), 0.744 (m, 3H, Hδ); 13C NMR (50MHz, CDCl3, δ ppm); 177.037 (C-1), 47.343 (C-3), 44.460 (C-4), 32.524 (C-2), 31.821 (C-5), 29.156-29.629 (C-6 to C-17), 26.696 (C-18), 26.154 (C-19), 22.581 (C-20), 14.014 (C-21), 27.370 [Cα, 1J(119Sn-13C)=705, 1J(117Sn-13C)=633 Hz], 27.062-27.208 (Cβ-Cγ), 13.574 (Cδ); 119Sn NMR (200MHz, CDCl3, δ ppm) -204.20 ppm; elemental analysis: C50H102N2O4Sn Calc.: C 73.51, H 11.06, N 4.37; found: C 73.19, H 11.11, N 4.42.
Conclusions

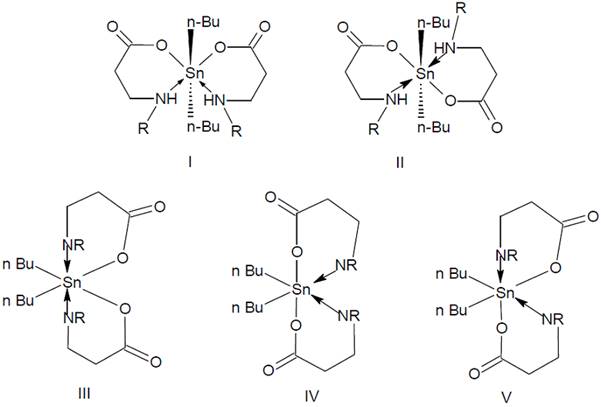

Novel di-n-butyl [bis (alkyl-aminopropionic acid)]tin (IV) (alkyl= octyl, dodecyl and octadecyl) 2a-2c were obtained. The hexacoordinated complexes were characterized by 1H, 13C, 119Sn NMR, infrared spectroscopy, mass spectrometry and elemental analyses. The compound 2a showed five hexa-coordinate species indicating the existence of a mixture in equilibrium between two trans (I, II) and three cis (III, IV, V) hexacoordinated isomers. Whereas for the compounds 2b and 2c only unique species were observed due to due to steric hindrance of alkyl substituents.
