Journal of applied research and technology

On-line version ISSN 2448-6736Print version ISSN 1665-6423

J. appl. res. technol vol.17 n.3 México May./Jun. 2019  Epub Apr 16, 2020



Articles

Density distribution effect on the analysis of the 6Li+ 58Ni reaction

Fatemeh Torabia  b  *

Elí Francisco Aguilera Reyesa

aDepartamento de Aceleradores‎, ‎Instituto Nacional de‎ ‎Investigaciones Nucleares‎, ‎Apartado Postal 18-1027‎, ‎Código Postal 11801‎,‎ México‎, ‎Distrito Federal‎, México

bDepartment of Physics‎, ‎Faculty of Science‎, ‎University of Mazandaran‎, ‎P.O. Box 47415-416‎, ‎Babolsar‎, ‎ Iran

Abstract

The effect of density variation on the optical-model (OM) analysis of 6Li + 58Ni is investigated by using bare potentials extracted from different density distributions of the weakly-bound 6Li nucleus. For each of the bare potentials, the real and imaginary parts of the direct-reaction and fusion polarization potentials are deduced from respective χ2 fittings to the elastic scattering and fusion data. The results obtained show that variations in the density distribution of the weakly-bound projectile can change the strengths of the dynamic direct-reaction polarization potential, however, it cannot make a noticeable difference on the OM predictions of fusion cross sections.

Keywords: optical model; weakly-bound system; density distribution

1. INTRODUCTION

In the last decades, considerable efforts have been made to analyze nuclear reactions induced by weakly-bound nuclei (Canto, Gomes, Donangelo, & Hussein, 2006; Canto, Gomes, Donangelo, Lubian, & Hussein, 2015; Gomes, Lubian, Padron, & Anjos, 2005; Kolata & Aguilera, 2009). There are different important dynamic and static properties of weakly-bound nuclei that can strongly affect the fusion mechanism of such systems (Bush, AlKhalili, Tostevin, & Johnson, 1996; Lubian et al., 2007; Gomes, Lubian, & Canto, 2009; Shrivastava et al., 2013; Lukyanov et al., 2017). Compared to the tightly-bound nuclei, the low separation energy of weakly-bound nuclei increases the probability of breakup, which is a typical dynamic feature in the collision of these systems. The static property of weakly-bound nuclei also makes the study of such systems different than that of the tightly-bound systems. A longer tail density distribution of a weakly-bound projectile can affect the bare potential and therefore the reaction mechanism. Considering the difference in the predictions of density distributions of a weakly-bound nucleus, it is of great interest to probe the sensitivity of the respective theoretical calculations to the variations of the density distribution. For this purpose, the 6Li nucleus is selected to investigate the importance of the density distribution in the analysis of weakly-bound nuclei.

The 6Li nucleus is one of the weakly-bound projectiles which has attracted much attention in the last years (Kukulin, Krasnopol´sky, Voronchev, & Sazonov, 1984; Otomar, Gomes, Lubian, Canto, & Hussein, 2013). Considering the exotic structure of 6Li, i.e., the extended density distribution and a cluster nature (α + d) with a break-up threshold energy of 1.48 MeV, the nuclear reactions induced by this stable, weakly-bound projectile have been the subject of many experimental and theoretical studies (Beck, Keeley, & Diaz-Torres, 2007; Shrivastava et al., 2009; Luong et al., 2013; Aguilera, Martinez-Quiroz et al., 2017; Camacho et al., 2010; So, Udagawa, Kim, Hong, & Kim, 2007). The present work is devoted to a comparative study done by using different density distributions for 6Li in the optical-model (OM) analyses of 6Li + 58Ni. In these calculations, we probe the effect of variations of the diffuseness parameter of 6Li on the predictions of the recently measured fusion cross sections for the 6Li + 58Ni system (Aguilera, Martinez-Quiroz et al., 2017). Toward this goal, we calculate three bare potentials for 6Li + 58Ni by the use of different two-parameter Fermi (2pF) density distributions, which include different diffuseness parameters, for 6Li. Employing these bare potentials in the OM, we derive the appropriate polarization potentials and calculate the fusion cross sections for the selected system. The obtained results are used to discuss the sensitivity of the OM analysis to the density distributions of a weakly-bound projectile.

In the next section, we describe the optical model potentials used, discussing in particular the bare potentials employed in the analysis of 6Li + 58Ni. The results and discussion are presented in Section 3 and finally the conclusions are drawn in Section 4.

2. THEORETICAL OUTLINE

To perform the OM analysis for the nuclear reactions, the total potential can be described in the following form

UTOT=Vbare+VCoul-[iWint+UF+UD] (1)

projectile and target nuclei and VCoul is the Coulomb potential with r C = 1.2 fm. The strong absorption after ions pass through the Coulomb barrier is described by adding a short-range imaginary potential, (iW int ), to the real part of the interaction. This imaginary potential has a volume Woods-Saxon shape with the depth, radius and diffuseness of W 0 = 50 MeV, r 0 = 1.0 fm, a 0 = 0.2 fm, respectively. In the OM, the effect of breakup on the fusion analysis has been taken into account, in a phenomenological way, by including the dynamic polarization potentials, i.e., U D (E) and U F (E), which account for couplings of the elastic channel to direct-reaction and fusion channels, respectively (So, Udagawa, Kim, Hong, & Kim, 2007; Kim, So, Hong, & Udagawa, 2002b). The polarization potentials are composed of real and imaginary parts as

UF,D=VF,D+iWF,D (2)

for which, the real and imaginary parts should satisfy the dispersion relation expressed by (Mahaux, Ngo, & Satchler, 1986; Nagarajan, Mahaux, & Satchler, 1985; Satchler & Love, 1979).

VE=VEs+E-EsπP0W(E')(E'-Es)(E'-E)dE' (3)

In this equation, V (E S ) shows the value of V (E) at the reference energy E = E S and P stands for the principal value.

The real and imaginary parts of the direct-reaction polarization potential, U D , are included in the OM analysis by using the energy-dependent form as

UDr,E=VDr,E+iWDr,E=VD0E+iWD0Ef'(r) (4)

where

f'r=4×EXP1+EXP2,         EXP=exp-r-RDaD (5)

Here, RD=rD(AP13+AT13), and r D and a D are the reduced radius and diffuseness, respectively. These parameters were obtained by using the experimental elastic scattering angular distributions of 6Li + 58Ni (Aguilera et al., 2009) and the method employed in Ref. (Aguilera, Kolata et al., 2017). The values found in this way are r D =1.61 fm and a D =0.68 fm. In addition to UD, the energy-dependent form of the fusion polarization potential is also included in the OM with the following form

UFr,E=VFr, E+iWFr,E=VF0 E+iWF0Efr (6)

where fr=1(1+exp(r-RF)/aF) , RF=rF(AP13+AT13), and the reduced radius and the respective diffuseness are taken as rF = 1.4 fm and aF = 0.43 fm (So et al., 2007; Kim et al., 2002b; Kim, So, Hong, & Udagawa, 2002a).

Using the total potential in the optical-model analysis, the fusion cross sections can be obtained from the following expression (Udagawa & Tamura, 1984)

 σfusE=2ћνχ+Wint+WFχ+ (7)

where χ (+) represents the distorted wave function that can satisfy the Schrodinger equation with U TOT .

The density distribution plays a major role in the calculations of the bare potential. Therefore, considering the extended density distribution of the weakly-bound nucleus, the OM analyses of 6Li + 58Ni are carried out through the use of bare potentials obtained from different density distributions of 6Li.

2.1 BARE POTENTIALS USED IN THE OM CALCULATIONS

In order to calculate the bare potential, use was made of the parameter-free Sao Paulo potential (SPP) which is given by Chamon et al. (2002).

VSPP=Vfoldre-4v2c2      (8)

Here v defines the relative velocity of the colliding ions, c is the speed of light, and V fold is obtained from

 Vfold(r)=ρr1ρr2V0δr-r1+r2dr1dr2 (9)

In this equation, V 0 = -456 MeV fm3 and ρ(r 1) and ρ(r 2) represent the matter densities of the colliding nuclei described by the two-parameter Fermi density distribution as

ρ(r) =ρ01+expr-R0α (10)

The diffuseness and radius are a = 0.56 fm and R 0 = 1.31A 1/3 - 0.84 fm extracted from a systematic study of densities (Chamon et al., 2002), and ρ 0 is determined from normalization to the nucleus mass. In addition to the diffuseness mentioned, to examine the effect of density variation of 6Li on the OM analysis of 6Li + 58Ni, we selected two other diffuseness values for the density distribution of 6Li as well. Considering the extended density distribution of 6Li and according to the studies done on its density distribution (Antonov et al., 2005; Dobrovolsky et al., 2002), we also used the 2pF density distributions with diffuseness values of 0.59 and 0.63 fm for this nucleus. Using each diffuseness mentioned, i.e., a = 0.56, 0.59, and 0.63 fm, for the 6Li density, we calculated the respective bare potential of the selected system. Each V bare obtained was employed in the OM and the respective appropriate polarization potentials were estimated for the system by using the FRESCO code and its search version, SFRESCO (Thompson, 1988).

3. RESULTS AND DISCUSSIONS

The OM analyses and calculations of the polarization potentials for 6Li + 58Ni were done in two steps. First, we used SFRESCO to find the real and imaginary parts of the direct-reaction polarization potential by considering U F =0. Based on each of the bare nuclear potentials obtained from different density distributions of 6Li, we carried out a χ 2 fitting to the elastic scattering data of 6Li + 58Ni (Aguilera et al., 2009) and extracted the strength parameters of U D , i.e., V D0 and W D0 . The values calculated by minimizing the χ 2 /N in each of the analyses are shown in Fig. 1 (a-c). The dashed curves in this figure demonstrate the results of the dispersion relation, Eq. (3), when the linear approximation shown by the solid line is used for W D0 (E). As it is seen, the depths found based on all three bare potentials can well satisfy the dispersion relation. From Fig. 1 it is also clear that the use of different bare potentials in the OM analyses leads to different sets of values for the real part of U D . More specifically, the OM analysis made by the bare potential derived from the more extended density distribution (a=0.63 fm) results in more negative values for the real part of U D . The physical interpretation is that the more diffuse

Figure 1 The real and imaginary depths of the direct-reaction polarization potentials obtained by using the bare potentials calculated from the density distributions with (a) α=0.56 fm, (b) α=0.59 fm, and (c) α=0.63 fm.

3. RESULTS AND DISCUSSIONS

The OM analyses and calculations of the polarization potentials for 6Li + 58Ni were done in two steps. First, we used SFRESCO to find the real and imaginary parts of the direct-reaction polarization potential by considering UF =0. Based on each of the bare nuclear potentials obtained from different density distributions of 6Li, we carried out a χ2 fitting to the elastic scattering data of 6Li + 58Ni (Aguilera et al., 2009) and extracted the strength parameters of UD, i.e., VD0 and WD0. The values calculated by minimizing the χ2/N in each of the analyses are shown in Fig. 1 (a-c). The dashed curves in this figure demonstrate the results of the dispersion relation, Eq. (3), when the linear approximation shown by the solid line is used for WD0(E). As it is seen, the depths found based on all three bare potentials can well satisfy the dispersion relation. From Fig. 1 it is also clear that the use of different bare potentials in the OM analyses leads to different sets of values for the real part of UD. More specifically, the OM analysis made by the bare potential derived from the more extended density distribution (a=0.63 fm) results in more negative values for the real part of UD. The physical interpretation is that the more diffuse densities actually extend the influence of the attractive nuclear forces to longer distances, which tends to be compensated by more repulsive polarization potentials. The bare potentials and direct reaction polarization potentials obtained here are used in the second step χ2 analysis to calculate the fusion polarization potential for the 6Li + 58Ni system.

Three bare potentials and their corresponding U D were independently used in the optical model and for each of them the real and imaginary depths of fusion polarization potential, V F0 and W F0 , were extracted from the simultaneous χ 2 fitting to the fusion and elastic scattering data of 6Li + 58Ni (Aguilera, Martinez-Quiroz et al., 2017, Aguilera et al., 2009). In these calculations, we kept U D found in Fig. 1 (a-c) fixed, and treated the real and imaginary depths of U F as adjustable parameters. The results showed that, independent of the V bare + U D used in the OM analyses, identical values for V F0 and W F0 are obtained. The values extracted are shown in Fig. 2. The result of Eq. (3) using the linear approximation for W F0 is demonstrated by the dashed curve in this figure. As it is seen, the V F0 and W F0 values obtained for U F can also satisfy the dispersion relation.

Figure 2 The real and imaginary depths for the fusion polarization potential.

The resulting values of U D and U F , together with the respective bare potentials, were used to calculate the fusion cross sections of the 6Li + 58Ni system in the OM. The theoretical values obtained are compared with the experimental data in Fig. 3. As it is observed, three different OM calculations done by using the bare potentials derived from different density distributions and their corresponding polarization potentials, result in similar predictions for the fusion cross sections of the weakly-bound system. As it is clear, the cross sections found are in agreement with the experimental data (Aguilera, Martinez-Quiroz et al., 2017) at higher energies. One can also see that the theoretical results cannot reproduce the experimental values at lowest energies. Similar to other 6Li-induced fusion reactions, such as 6Li + 64Zn (Di Pietro et al., 2013), the disagreement found between the theoretical values and the experimental ones may represent the possibility of contributions of direct reaction channels in the fusion measurements of 6Li + 58Ni. This possibility has been discussed in Ref. (Aguilera, Martinez-Quiroz et al., 2017).

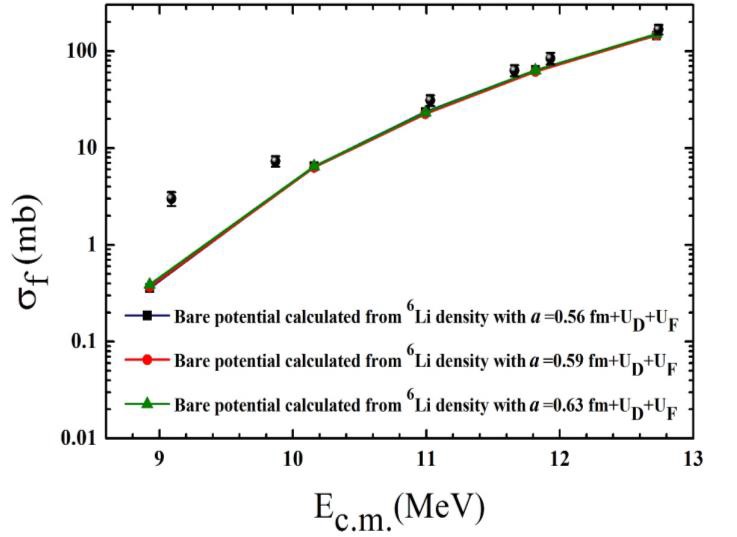

Figure 3 The fusion cross sections obtained from different bare potentials and their corresponding dynamic polarization potentials. The circles show the experimental data which were taken from Ref. (Aguilera, Martinez-Quiroz et al., 2017).

4. CONCLUSIONS

In this study, we examined the sensitivity of the OM analysis of elastic scattering and fusion data for 6Li + 58Ni to the density distribution of 6Li. Different bare potentials for the selected system were calculated by the use of three 2pF density distributions with different values of the diffuseness parameter for 6Li. Using the bare potentials obtained in the χ 2 analyses of the data resulted in different strengths for the direct polarization potential, but identical predictions for the fusion polarization potential, and similar values for the fusion cross sections of 6Li + 58Ni. Considering the results obtained, one can conclude that the density variations of the weakly-bound projectile in the OM analysis of 6Li + 58Ni can affect the description of the direct-reaction polarization potential and make it more repulsive for more extended density distributions, however, it cannot significantly influence the accuracy of the final fusion results.

ACKNOWLEDGMENTS

This work has been partially supported by CONACYT (México), under contract No. CB01-254619.

REFERENCES

Aguilera, E. F., Kolata, J. J., Martinez-Quiroz, E., Lizcano, D., Amador-Valenzuela, P., García-Flores, A., .& Carmichael, S. (2017). Elastic scattering of 10C + 27Al. In Journal of Physics: Conference Series (Vol. 876, No. 1, p. 012001). IOP Publishing. [ Links ]

Aguilera, E. F. , Martinez-Quiroz, E. , Amador-Valenzuela, P. , Lizcano, D. , García-Flores, A. , Kolata, J. J. , ... & Becchetti, F. D. (2017). Sub-barrier fusion of weakly bound 6Li with 58Ni. Physical Review C, 96(2), 024616. [ Links ]

Aguilera, E. F. , Martinez-Quiroz, E. , Lizcano, D. , Gómez-Camacho, A., Kolata, J. J. , Lamm, L. O., ... & Jiang, H. (2009). Reaction cross sections for 8B, 7Be, and 6Li + 58Ni near the Coulomb barrier: Proton-halo effects. Physical Review C , 79(2), 021601. [ Links ]

Antonov, A. N., Kadrev, D. N., Gaidarov, M. K., De Guerra, E. M., Sarriguren, P., Udias, J. M., ... & Krumova, G. Z. (2005). Charge and matter distributions and form factors of light, medium, and heavy neutron-rich nuclei. Physical Review C , 72(4) , 044307. [ Links ]

Beck, C., Keeley, N., & Diaz-Torres, A. (2007). Coupled-channel effects in elastic scattering and near-barrier fusion induced by weakly bound nuclei and exotic halo nuclei. Physical Review C , 75(5) , 054605. [ Links ]

Bush, M. P., Al-Khalili, J. S., Tostevin, J. A., & Johnson, R. C. (1996). Sensitivity of reaction cross sections to halo nucleus density distributions. Physical Review C , 53(6), 3009-3013. [ Links ]

Camacho, A. G., Aguilera, E. F. , Quiroz, E. M., Gomes, P. R. S., Lubian, J., & Canto, L. F. (2010). The Threshold Anomaly of weakly bound projectiles from recent elastic scattering measurements around the Coulomb barrier. Nuclear Physics A, 833(1-4), 156-171. [ Links ]

Canto, L. F. , Gomes, P. R. S. , Donangelo, R., & Hussein, M. S. (2006). Fusion and breakup of weakly bound nuclei. Physics reports, 424(1-2), 1-111. [ Links ]

Canto, L. F. , Gomes, P. R. S. , Donangelo, R. , Lubian, J. , & Hussein, M. S. (2015). Recent developments in fusion and direct reactions with weakly bound nuclei. Physics Reports, 596, 1-86. [ Links ]

Chamon, L. C., Carlson, B. V., Gasques, L. R., Pereira, D., De Conti, C., Alvarez, M. A. G., ... & Silva, C. P. (2002). Toward a global description of the nucleus-nucleus interaction. Physical Review C , 66(1) , 014610. [ Links ]

Di Pietro, A., Figuera, P., Strano, E., Fisichella, M., Goryunov, O., Lattuada, M., ... & Ostashko, V. (2013). Heavy residue excitation functions for the collisions 6,7 Li + 64Zn near the Coulomb barrier. Physical Review C , 87(6) , 064614. [ Links ]

Dobrovolsky, A. V., Alkhazov, G. D., Andronenko, M. N., Bauchet, A., Egelhof, P., Fritz, S., ... & Kraus, G. (2002). Nuclear Matter Distributions of Neutron-Rich Li-ISOTOPES from Proton Elastic Scattering in Inverse Kinematics. In Exotic Nuclei: EXON-2001 (pp. 388-403). [ Links ]

Gomes, P. R. S. , Lubian, J. , & Canto, L. F. (2009). Breakup effects in fusion reactions of stable weakly bound nuclei and light targets. Physical Review C , 79(2) , 027606. [ Links ]

Gomes, P. R. S. , Lubian, J. , Padron, I., & Anjos, R. M. (2005). Uncertainties in the comparison of fusion and reaction cross sections of different systems involving weakly bound nuclei. Physical Review C , 71(1) , 017601. [ Links ]

Kim, B. T., So, W. Y., Hong, S. W., & Udagawa, T. (2002a). Semiclassical character and optical model description of heavy ion scattering, direct reactions, and fusion at near-barrier energies. Physical Review C , 65(4) , 044607. [ Links ]

Kim, B. T. , So, W. Y., Hong, S. W., & Udagawa, T. (2002b). Simultaneous optical model analyses of elastic scattering, breakup, and fusion cross section data for the 6He + 209Bi system at near-Coulomb-barrier energies. Physical Review C , 65(4) , 044616. [ Links ]

Kolata, J. J. , & Aguilera, E. F. (2009). Interaction barriers for light, weakly bound projectiles. Physical Review C , 79(2) , 027603. [ Links ]

Kukulin, V. I., Krasnopol'sky, V. M., Voronchev, V. T., & Sazonov, P. B. (1984). Detailed study of the cluster structure of light nuclei in a three-body model:(I). Ground state of 6Li. Nuclear Physics A , 417(1), 128-156. [ Links ]

Lubian, J. , Correa, T., Paes, B., Figueira, J. M., Abriola, D., Niello, J. F., ... & Heinmann, D. M. (2007). 7Li breakup polarization potential at near barrier energies. Nuclear Physics A , 791(1-2), 24-35. [ Links ]

Lukyanov, V. K., Kadrev, D. N. , Zemlyanaya, E. V., Lukyanov, K. V., Antonov, A. N. , Gaidarov, M. K. , & Spasova, K. (2017). Probing the exotic structure of 8B by its elastic scattering and breakup reaction on nuclear targets. The European Physical Journal A, 53(2), 31. [ Links ]

Luong, D. H., Dasgupta, M., Hinde, D. J., du Rietz, R., Rafiei, R., Lin, C. J., ... & Diaz-Torres, A. (2013). Predominance of transfer in triggering breakup in sub-barrier reactions of 6,7Li with 144Sm, 207,208Pb, and 209Bi. Physical Review C , 88(3), 034609. [ Links ]

Mahaux, C., Ngo, H., & Satchler, G. R. (1986). Causality and the threshold anomaly of the nucleus-nucleus potential. Nuclear Physics A , 449(2), 354-394. [ Links ]

Nagarajan, M. A., Mahaux, C. C. , & Satchler, G. R. (1985). Dispersion relation and the low-energy behavior of the heavy-ion optical potential. Physical review letters, 54(11), 1136. [ Links ]

Otomar, D. R., Gomes, P. R. S. , Lubian, J. , Canto, L. F. , & Hussein, M. S. (2013). Nuclear and coulomb breakup of the weakly bound 6Li nucleus with targets in the range from A= 59 to 208. Physical Review C , 87(1) , 014615. [ Links ]

Satchler, G. R. , & Love, W. G. (1979). Folding model potentials from realistic interactions for heavy-ion scattering. Physics Reports , 55(3), 183-254. [ Links ]

Shrivastava, A., Navin, A., Diaz-Torres, A. , Nanal, V., Ramachandran, K., Rejmund, M.... & Palit, R. (2013). Role of the cluster structure of 7Li in the dynamics of fragment capture. Physics Letters B, 718(3), 931-936. [ Links ]

Shrivastava, A. , Navin, A. , Lemasson, A., Ramachandran, K. , Nanal, V. , Rejmund, M. , ... & Kailas, S. (2009). Exploring fusion at extreme sub-barrier energies with weakly bound nuclei. Physical review letters , 103(23) , 232702. [ Links ]

So, W. Y. , Udagawa, T. , Kim, K. S., Hong, S. W. , & Kim, B. T. (2007). Extended optical model analyses of elastic scattering and fusion cross sections for the 6Li + 208Pb system at near-Coulomb-barrier energies using a folding potential. Physical Review C , 75(2) , 024610. [ Links ]

Thompson, I. J. (1988). Coupled reaction channels calculations in nuclear physics. Computer Physics Reports, 7(4), 167-212. [ Links ]

Udagawa, T. , & Tamura, T. (1984). Heavy-ion subbarrier fusion in terms of the direct reaction technique. Physical Review C , 29(5), pp. 1922-1924. [ Links ]
