Assessment of erosion rates during rehabilitation of hardened volcanic soils (tepetates) in Tlaxcala
Evaluación de las tasas de erosión durante la rehabilitación de suelos volcánicos endurecidos (tepetates) en Tlaxcala
Mathieu Haulon1,*, Gerd Werner1, Gustavo FloresGarcía2, Andrea VeraReyes2, and Peter FelixHenningsen1
1 JustusLiebigUniversity of Giessen. Institut für Bodenkunde und Bodenerhaltung, HeinrichBuffRing 2632 (IFZ), D35392 Giessen, Germany. * firstname.lastname@example.org
2 Universidad Autónoma de Tlaxcala. Centro de Investigación en Ciencias Biológicas, Km 10.5 Autopista TlaxcalaSan Martín, 90120 Ixtacuixtla, Tlaxcala, México.
Manuscript received: November 4, 2005
Corrected manuscript received: March 7, 2007
Manuscript accepted: May 20, 2007
The emergence of tepetates (hardened volcanic ash layers) on the surface after erosion of the overlying horizon is widespread all over the TransMexican Volcanic Belt, and in particular in the State of Tlaxcala where it covers 15% of the state surface. The rehabilitation of tepetates can be a solution to the lack of arable land and to environmental problems related to surface runoff and soil erosion. The purpose of this investigation was to evaluate the effect of organic farming on erosion rates and to determine the relationship between runoff, soil loss, rain erosivity (EI30), soil organic carbon (SOC), vegetation cover (V) and aggregate stability (AS), by multiple regression analysis performed for individual erosive events (36) and for cumulative annual values.
Erosion and runoff rates were measured from 2003 to 2005 in five farmer's plots (580 to 2,020 m2) of 3% slope inclination. Two plots were reclaimed and cultivated since 2002 and three since 1989. Three different management techniques were applied in plots reclaimed in 1989: "conventional", "improved" and "organic", corresponding mainly to increasing incorporation of organic matter. Soil loss in plots reclaimed in 2002 ranged from 8.6 to 19.1 ton•ha-1•year-1 under conventional management and from 5.5 to 14.1 ton•ha-1•year-1 under organic farming. In plots reclaimed in 1989 the erosion rates are up to three times smaller than in recently reclaimed tepetates, with soil losses ranging from 1.1 to 5.6 ton•ha-1•year-1 and no significant (P<0.05) differences between management techniques. For individual events, runoff and soil loss are significantly dependant on EI30, SOC and V (r2=0.73 and 0.54 respectively). For annual values, the model accounted for an even larger proportion of the variance (r2=0.94 and 0.87, respectively). Even moderate incorporation of fresh organic matter significantly increased aggregate stability in both recently and older reclaimed tepetates. However, the percolation stability index was not correlated to SOC nor to erosion rates as we expected. In recently reclaimed tepetates, organic management enhanced carbon accumulation and vegetation cover, reducing runoff and soil loss in relation to conventional management.
Key words: tepetate, erosion, runoff, rehabilitation, organic management, Tlaxcala, Mexico.
El afloramiento de tepetates (capas endurecidas de cenizas volcánicas) en la superficie es un fenómeno muy extendido en la Faja Volcánica Transmexicana, y en particular en el Estado de Tlaxcala donde estos materiales ocupan 15% de la superficie del estado. La rehabilitación de los tepetates y su incorporación a la actividad agrícola se ha vuelto una necesidad social desde hace unas décadas para dar respuesta a una demanda creciente por nuevas tierras de cultivo, así como una necesidad ambiental para mitigar los problemas relacionados con los escurrimientos superficiales. El objetivo principal de este estudio fue evaluar el efecto del manejo orgánico sobre las tasas de erosión del suelo y determinar la relación entre pérdida de suelo, erosividad de las lluvias (EI30), escurrimientos, cobertura vegetal (V), carbono orgánico (COS) y estabilidad de agregados (EA) en tepetates en rehabilitación, mediante un análisis de regresión múltiple por evento (36 eventos seleccionados) y por año.
Durante los ciclos agrícolas de 2003 a 2005, se midieron las tasas de erosión en Santiago Tlalpan, Tlaxcala, en cinco parcelas campesinas (de 580 a 2,020 m2) con una pendiente de 3%. Dos de las parcelas fueron roturadas en 2002 y tres en 1989. Se evaluaron tres manejos diferentes: "convencional", "mejorado" y "orgánico" que corresponden a tres niveles de incorporación de materia orgánica. En las parcelas rehabilitadas en 2002, las tasas de erosión fueron significativamente (p<0.05) mayores en el manejo convencional (de 8.6 a 19.1 ton•ha-1•año-1) que en el orgánico (de 5.5 a 14.1 ton•ha-1•año-1). En las parcelas rehabilitadas en 1989, las tasas de erosión son hasta tres veces menores a las de los tepetates recién rehabilitados, variando entre 1.1 y 5.6 ton•ha-1•año-1, sin diferencia significativa entre manejos. Para eventos individuales, el escurrimiento y la pérdida de suelo se relacionaron con EI30, COS y V (r2= 0.73 y 0.54 respectivamente). Para valores anuales, el modelo explicó una proporción mayor de la varianza (r2= 0.94 y 0.87 respectivamente). La incorporación de materia orgánica al suelo, aun en dosis moderadas, incrementó significativamente la estabilidad de agregados, independientemente de los años de rehabilitación. Sin embargo, este parámetro no se relacionó satisfactoriamente con el contenido de carbono orgánico ni con la pérdida de suelo. En tepetates recién roturados, el manejo orgánico fomenta la acumulación de COS y garantiza mejor cobertura vegetal, lo que permite reducir las perdidas de suelo y agua.
Palabras clave: tepetate, erosión, escurrimiento, rehabilitación, manejo orgánico, Tlaxcala, México.
Emergence of tepetates in Tlaxcala
Tepetate is a vernacular Mexican term referring to hardened layers formed from pyroclastic materials, either exposed to the surface after erosion of the overlying soil, or part of the soil profile at variable depth (Zebrowski, 1992; Etchevers et al., 2003).
The causes of induration of tepetates are controversial: some authors state that the induration of tepetates is due to the accumulation of silica in the subsoil under ustic isomesic soil climate with 67 humid months. After erosion of the overlying soil, cycles of wetting and drying compact and indurate the Sienriched horizon (Miehlich, 1992). For other authors, pedogenic processes only consolidate the initial induration that resulted from the partial alteration of a volcanic ash into a tuff (Quantin, 1992; Hidalgo et al., 1997).
In Mexico, indurated volcanic soils cover 30,700 km2 and represent 27% of the TransMexican Volcanic Belt (Zebrowski et al., 1991). The state of Tlaxcala is one of the most affected by tepetates. Indurated volcanic soils cover 2,175 km2, of which 598 km2 are superficial tepetates (Werner, 1988). This area represents 15% of the state surface, and 21% of the arable lands.
The widespread emergence of tepetates is due to successive accelerated erosion periods which occurred when the environment was affected by climatic, demographic, social or political events over the last 4,000 years. Several studies showed evidence of accelerated erosion during prehispanic times in the PueblaTlaxcala region (Lauer, 1979), and in central Mexico (O'Hara et al., 1993).
According to AliphatFernández and Werner (1994), most of the erosion that led to the widespread emergence of tepetates in the PueblaTlaxcala region mainly occurred after the Spanish colonization and is the result of 1) the abandonment of the traditional intensive agriculture in terraces and the sophisticated irrigation system (PimentelBribiesca, 1992) after the decline of indigenous population; 2) the introduction of extensive cattle grazing; 3) the introduction of the plough and the abandonment of inserted crops (beans, squashes) in maize cropping; 4) the intensive deforestation to supply haciendas with building timber and industries in the 19th century with charcoal and firewood for steam machinery.
Rehabilitation of tepetates
The rehabilitation of tepetates for agriculture is well known since prehispanic times. This practice has developed in the last few decades to cope with the demand for arable land by the increasing population. The advent of heavy machinery to break up the hardened layer has promoted the expansion of this practice.

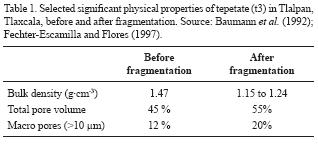

Rehabilitation of tepetates combines two actions: fragmentation and the subsequent management. Fragmentation consists of breaking up and loosening the hardened layer by subsoiling, deep ploughing and harrowing. This operation radically modifies the physical properties of the tepetate within a few hours (Table 1). These physical changes create the necessary conditions for water circulation and storage and for root development, but the fertility of the newlyformed material is still reduced because of the lack of carbon and nitrogen (Etchevers and Brito, 1997).
The rehabilitation management aims at turning the almost sterile material into a productive soil by improving the physical, chemical and biological properties of the soil to ensure sustainable crop production.

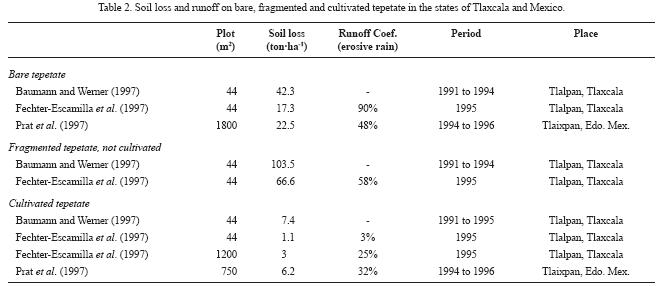

Results of previous studies on soil erosion on tepetates and under natural conditions in the states of Tlaxcala (Baumann and Werner, 1997; FechterEscamilla et al., 1997) and Mexico (Prat et al., 1997) are reported in Table 2. Values greatly depend on the size of the plot and on the meteorological conditions of the years the erosion was measured. The results show that bare tepetates produce high runoff rates (up to 90%), but moderate soil loss in situ due to its strong cohesive properties. Once fragmented, but not cultivated, soil loss increases considerably, whereas runoff rate decreases as a result of greater infiltration. Under cultivation, runoff and erosion rates decrease.

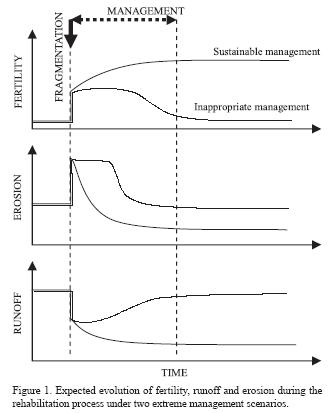

The results of these previous studies and field observations led to the development of a conceptual scheme of the evolution of erosion, runoff and fertility during the process of rehabilitation (Figure 1). The consequences of the physical changes of the tepetate as a result of the fragmentation (Table 1) on fertility, runoff and erosion are instantaneous. The management applied after fragmentation will determine the evolution of runoff, erosion and fertility over time. In the case of sustainable and ideal management, the improvement of physical properties ensures rapid decrease of erosion and runoff rates, which will guarantee, together with the improvement of chemical properties and biological activity, the progressive increase of soil fertility (Figure 2).
However, if the management technique is inappropriate, or if the fragmented plot is abandoned, the benefit of fragmentation on runoff will rapidly decrease because of sealing and compaction. The high erosion rates induced by fragmentation will remove within a few years the loosened layer, until the hardened horizon emerges again (Figure 3). This scenario has been observed in Tlaxcala for several rehabilitation programs, due to the lack of rehabilitation strategy and assessment for farmers.
Between the two extreme scenarios, there is a range of possible situations. The knowledge of the effects of cultivation practices on the hydrodynamics of tepetates is a key factor for successful rehabilitation, since it determines the water supply for the crop, and the conservation of the newly formed production potential.
The beneficial effect of organic farming on soil structure and erodibility has been widely reported (Watts et al., 2001; Shepherd et al., 2002; Bronick and Lal, 2005). Nevertheless, in the case of tepetates, the use of organic amendments during rehabilitation has been repeatedly recommended (Zebrowski et al., 1991; Arias, 1992; Márquez et al., 1992; PimentelBribiesca, 1992; Etchevers and Brito, 1997), but its effect on erodibility under field conditions has not been reported nor quantified. Moreover, there is little data available on erosion and runoff rates on rehabilitated tepetates at farmer plot scale and under natural climatic conditions.
The objectives of this study are to 1) assess the erosion rates of reclaimed tepetates in the short and medium term during the rehabilitation process; 2) evaluate the effect of management and age of rehabilitation on erosion rates; and 3) determine the main factors responsible for the erodibility of reclaimed tepetates.
MATERIALS AND METHODS
A mediumterm erosion study is being conducted in Santiago Tlalpan, Tlaxcala; the study was established in 2002. This paper considers the results obtained from 2003 to 2005.

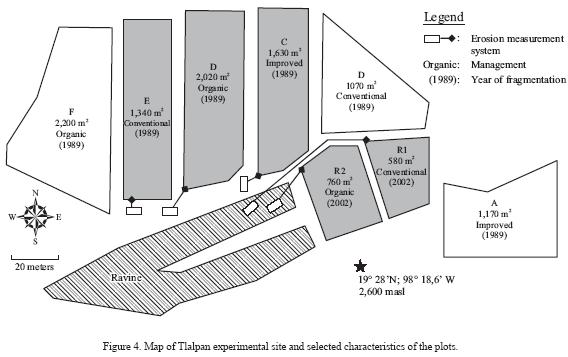

Tlalpan experimental site
The site was established in two stages: in 1989, a large area of bare tepetate, adjacent to a deep ravine and with 15% natural slope, was fragmented and six terraces of 3% diagonal slope were formed (A, B, C, D, E, and F). In 2002, two smaller plots were established at the head of the ravine (R1 and R2). All plots have the same slope, and were formed on the same tepetate formation, which has been identified as t3 (Werner, 1989). Five plots are equipped with erosion measurement systems (Figure 4).
Three different management techniques are being evaluated: conventional, conventional improved, and organic.
Conventional management is the one applied by the farmers in the study area: soil preparation with disc plough and harrow (additional operations are done depending on the crop), use of synthetic fertilizers, and use of phytoprotection products when necessary. The crop residues (straws) are sold or used for cattle pasture in spite of their poor nutritional value. Inputs are selfmoderated because of economic restrictions. The incorporation of organic matter is limited to the decomposition of roots and part of the crop residues, since cattle usually graze the land after the harvest.
Improved management is based on conventional management without any restrictions of inputs (all inputs required by the crop are applied), and use of associated crop (legumes). All crop residues are incorporated to the soil. The intention is to incorporate all organic matter available on the plot after harvesting, without any addition of external sources such as manure or compost, and with a minimum of time and work requirement.
Organic management involves the same soil cultivation practices as the other systems, but exclusively uses organic fertilizers (manure or compost) and includes an associated crop. Crop residues are composted with additional farm manure and then reincorporated to the plot providing more organic matter than the other management techniques (Table 3).
Plots fragmented in 1989 were cultivated using conventional management until 2002. The main crops were maize and wheat, without any external application of organic matter (only crop residues). The crops and fertilization applied during the three cycles of this study are presented in Table 3.
Assessment of soil loss and runoff
The erosion measurement system (Haulon et al., 2003) comprises an Hflume equipped with a water level recorder that measures the total runoff discharge, which is then channelled to a high capacity rotating tank (2,000 to 4,500 liters). In case the runoff volume exceeds the tank capacity, a hose connected to a plastic reservoir collects an aliquot of the overflow. Samples of the suspended and settled fraction of the soil particles in the tank are taken and their concentration is determined in the laboratory to calculate soil loss. After each storm, the tank is emptied and cleaned by rotation. In total, 76 erosive events were recorded over the 20032005 period. ANOVA was performed on Log10(E+1) and Log10(R+1) with E equals the soil loss (ton•ha-1 and R the runoff (mm) per event to compare erosion and runoff rates between plots. For the latter we used the Duncan test at 0.05 significance level.
Rainfall was registered by an event recorder connected to a tippingbucket rain gauge allowing a precise calculation of rainfall intensity and kinetic energy (KE). A daily pluviograph ensures the continuity of records in case of failure of the electronic device. Kinetic energy was computed using the equation used for the RUSLE (Renard et al., 1997):
KE = 11.9+8.73 Log10(I) if I < 76 mm•-1
KE = 28.3 if I > 76 mm•-1
The erosivity factor EI30 was calculated for each event and annually.
Aggregate stability was assessed using the percolation stability index (PS) according to the method developed by Becher and Kainz (1983). This index corresponds to the amount of deionised water that percolates through a column (length: 10 cm; diameter 15 mm) of 10 g of calibrated airdried aggregates, during 10 minutes and at a pressure of 20 cm water column. Aggregates of higher stability are assigned a higher PS value. Three replicates were performed.
The original test is performed on 12 mm diameter airdried aggregates. In this study, the method is widened as the test is performed on several aggregate sizes: 0.591 mm, 12 mm, and 23.15 mm. The interest is to evaluate the stability of a wider range of aggregate sizes so that the sample tested is more representative of the whole soil behavior. Based on this consideration, the weighted PS (PSw) was calculated to take into account the relative proportion of each aggregate size class.
PSw = ∑PSx•%x
where PSx is the percolation stability index for aggregate size x, and %x is the fraction of aggregate size x in relation to the other aggregate sizes tested.
In each plot, two composite samples from 10 subsamples were taken at 010 cm depth at the end of the rainy season. Soil organic carbon was measured by dry combustion (TOCA). Samples were measured once. The precision of the measurements was verified by running standard control samples regularly.
In 2003, vegetation cover was measured by a modified version of quadrat sighting frame (Stocking, 1994), which consisted of a board perforated with fifty 2 mmdiameter holes at 2 cm interval. In 2005, a new method based on digital photographs taken at 7 meters height and processed by image analysis software was used. In 2004, only visual observation was performed at maximum development stage of the crop. Repeated measures ANOVA was performed and Tukey HSD at 0.05 confidence level was used to compare means between treatments.
SOC and vegetation cover are the parameters most influenced by management and age of rehabilitation in our study. Using 36 selected erosive events, a multiple regression analysis was performed to explore the relationship between soil loss (E), runoff (R) rainfall erosivity (EI30), soil organic carbon (SOC) vegetation cover (V) and aggregate stability (AS). The same analysis was performed for annual values.
Rainfall erosivity, runoff and soil loss

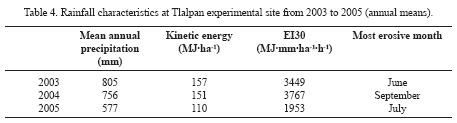

Annual precipitation ranged from 577 mm in 2005 to 805 mm in 2003. The R factor (EI30) ranged from 1953 to 3767 MJ•mm•ha-1•-1 (Table 4). Annual precipitation and erosivity measured between 2003 and 2005 are in the range of those previously reported by Baumann and Werner (1997).

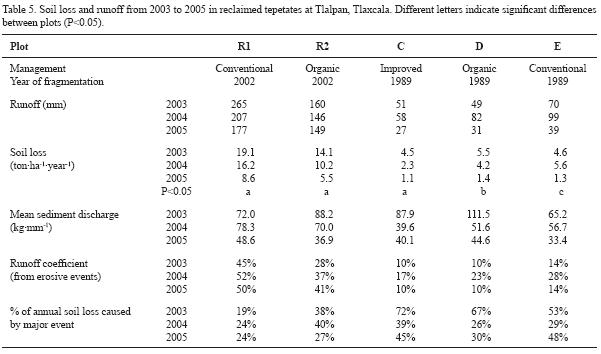

In recently reclaimed tepetates, erosion rates ranged from 5.5 to 19.1 ton•ha-1•year-1 depending on the annual rainfall amount (Table 4) and the management, with a mean value of 12.3 ton•ha-1•year-1 over the period of study (Table 5). Soil loss under conventional management was significantly (P<0.05) greater than under organic management, with a difference of 3.1 to 5 ton•ha-1•year-1. In tepetates reclaimed in 1989, erosion rates ranged from 1.1 to 5.5 ton•ha-1•year-1, with a mean value of 3.4 ton•ha-1•year-1 and no significant difference between management techniques. The same trend is observed in runoff, with annual values ranging from 146 to 265 mm in recently reclaimed tepetates, and from 27 to 99 mm in older reclaimed plots.
Soil properties and vegetation cover

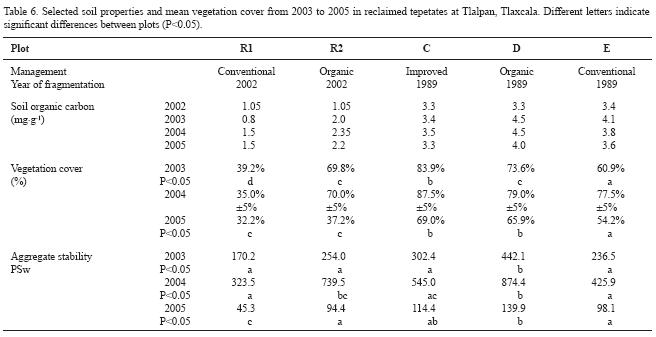

There is a strong annual variability in PSw values (Table 6). The time elapsed between the date of sampling and the date of testing differs from one year to another. In 2005, samples were analyzed a few weeks after they were air dried whereas samples from 2004 cycle were stored for more than a year before they were analyzed. This may have increased aggregate cohesion (Kemper and Rosenau, 1986; DíazZorita et al., 2002). Also, variation of structural stability within a treatment over a growing season can be as large, or larger, than the changes observed between treatments over a number of years (Perfect et al., 1990). Since variability between years can not be controlled in this study, the discussion of results only focuses on differences between plots within a year.
Management had a significant effect on PSw (p<0.001), independent of the year of rehabilitation. As expected, the lowest PSw values were obtained in the plot recently reclaimed under conventional management (R1) and the highest ones in the plot reclaimed in 1989 under organic management (D). Organic management in newly rehabilitated tepetate (R2) yielded similar PSw values than conventional and improved management in plots reclaimed in 1989 (C and E).
Vegetation cover depends on crop characteristics, which varies between years, and crop development, which is mainly responsible for differences between plots within a year. In turn, crop development depends on plant nutrition and water supply. Hence, water loss by runoff both affects and is affected by vegetation cover (Table 5).
In average, improved management provided significantly (P<0.05) greater vegetation cover than organic and conventional management in plots reclaimed in 1989, reaching up to 18% (Table 6). In these plots, vegetation cover is also larger than in plots recently cultivated in both recently and older reclaimed plots.
Soil organic carbon
Just after fragmentation, tepetates contained 1.05 mgâ g1 of SOC (R1 and R2). After 4 years of cultivation, SOC content increased to 2.2 mg•g-1 under organic management, and to 1.5 mg•g-1 under conventional management.
At the beginning of the experiment in 2002, SOC content was 3.3 mg•g-1 in all plots reclaimed in 1989. The organic management provided more accumulation of SOC over the period studied, from 3.4 to 4.0 mg•g-1. Unexpectedly, SOC content in improved management remained almost stable at 3.3 mg•g-1, whereas a small increase was observed in conventional management, from 3.3 up to 3.6 mg•g-1. The ANOVA showed that over the period R1<R2<C=E<D (P<0.05). However, further replicates would be necessary to increase the significance of the differences between plots.

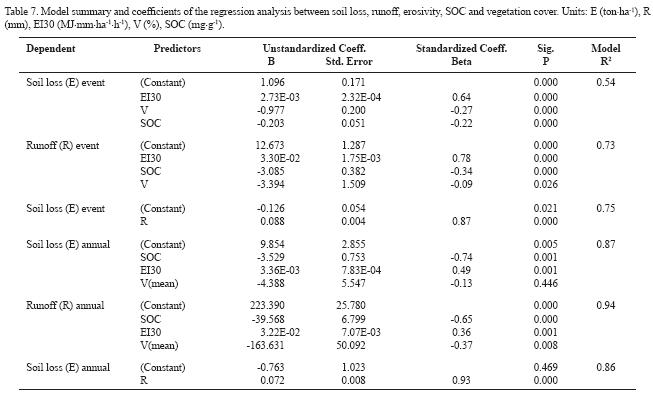

For individual events, runoff and soil loss are significantly dependant on EI30, SOC and V (R2=0.73 for runoff and R2=0.54 for soil loss, n=161). Their relationship can be formulated as follows:
E = 1.096 + 0.0027(EI30) 0.203(SOC) 0.977(V)
R = 12.7 + 0.033(EI30) 3.09(SOC) 3.39(V)
The erosivity factor (EI30) alone accounts for 59.5% of the variance in runoff and 39.3% in soil loss. Vegetation cover and SOC explain respectively another 0.9% and 12.8% of the runoff variance and 9.7% and 4.7% of the soil loss variance (Table 7). Therefore, among the factors affected by management and age of rehabilitation, runoff is most affected by SOC, whereas soil loss is more affected by vegetation cover.
As expected, soil loss is strongly correlated with runoff (R2=0.75, n=161), such as:
E = 0.126 + 0.088(R)
These equations are valid for erosive rainstorms only and for soil conditions found during the rainy season and after the crops were established. Their extrapolation to other circumstances or to other ranges of SOC content is not advised and should be avoided.
The models adjusted to cumulative annual runoff and soil loss explain a larger proportion of the variances than the models adjusted to individual events, although the contribution of each variable differs in the various models. For runoff (R2=0.94, n=15) and soil loss (R2=0.87, n=15), SOC is the main contributor, explaining respectively 79.8% and 65.3% of the variance (Table 7). Vegetation cover did not make any significant unique contribution to soil loss prediction. No significant relationship was found between PS and SOC (r2=0.14) nor between PS and soil loss (R2=0).
Erosion rates and erosivity
Rainfall characteristics recorded over the period are consistent with those reported previously at the same location from 1991 to 1995 (Baumann and Werner, 1997; FechterEscamilla et al., 1997).
In the study area, and more generally in semiarid areas, the major part of total soil loss is caused by a small number of rainstorms (Baumann and Werner, 1997; Prat et al., 1997). This is particularly true for the year 2003. The most erosive rainstorm occurred at the end of June when the soil was only 35% covered by vegetation, and caused between 53% and 72% of the total soil loss in plots reclaimed in 1989.
Erosion rates measured during this study are also in the range of those reported previously in reclaimed tepetates under natural conditions (Table 2). There are no studies available on soil loss tolerance in the case of tepetates, but for agronomic concerns such rates are acceptable and reclaimed tepetates cultivated for more than 13 years can be considered as stable. In recently reclaimed tepetates, organic management contributed to reducing erosion rates to between 3.1 and 5 tonâ ha1â year1. The major concern of erosion may not be soil loss but water loss which represents a serious limitation for crop production in Tlaxcala.
Factors affecting erodibility of reclaimed tepetates
The area of the plots reclaimed in 1989 is two to three times larger than that of recently reclaimed tepetate plots. The possible effect of plot size on soil loss is however uncertain: on one hand, plot length could increase flow velocity and particle detachment and as a result increase soil erosion; on the other hand, larger plots might present more depositional areas and, hence, reduce net erosion. In this study, we assume plot size effect is negligible.
In soils not affected by sodicity (Agassi et al., 1981; Barzegar et al., 1997), organic matter (OM) content is one of the main soil properties influencing aggregate and structure stability (Le Bissonnais, 1996). OM increases aggregate cohesive strength by bonding and/or holding particles together (e.g., Oades, 1984; Six et al., 2000) and decreases the wettability of aggregates because of its hydrophobic properties (Chenu et al., 2000; Goebel et al., 2005). In turn, aggregate stability reduces particle detachment, soil crusting, runoff and soil loss (Le Bissonnais, 1996). Vegetation cover provides direct protection to the soil and reduces aggregate breakdown from raindrop impact.
Multiple regression analysis clearly highlighted the role of SOC and vegetation cover in erosion of reclaimed tepetates. However the relationship we expected between SOC and PS and between PS and soil loss or runoff was non existent in our study. Other studies report that PS is a good indicator of structural stability to assess soil erosion (Mbagwu and Auerswald, 1999), and that it is significantly correlated with soil erosion (Auerswald, 1995).
Several hypothesis are suggested to explain this result: 1) SOC and PS are not correlated because only part of the OM is responsible for the formation and stability of aggregates (Tisdall and Oades, 1982; Golchin et al., 1995; Tisdall et al., 1997); 2) the methodology used is a source of bias: SOC and PS were measured independently on different samples taken at different dates. SOC should have been measured on the same aggregates used to measure PS; 3) the percolation stability index measures slaking potential (Auerswald, 1995; Mbagwu and Auerswald, 1999) and might not reflect the main mechanism of aggregate breakdown in reclaimed tepetates. This last suggestions is considered the least likely, but should be confirmed by clay mineralogy and electrolyte concentration studies to check on possible aggregate breakdown by differential swelling and physicochemical dispersion.
Effect of management and age of rehabilitation on erosion rates
The difference between SOC just after fragmentation (1.05 mg•g-1) and after 13 years of cultivation (3.3 mg•g-1) gives an indication of the accumulation of organic carbon in cultivated tepetates under conventional management. Since the incorporation of crop residue is minor, the accumulation of SOC in the conventional system is mainly due to root decomposition. These results are consistent with those of BáezPérez et al. (2002), who showed that organic carbon concentration in reclaimed tepetates increases rapidly in the first years of rehabilitation and tends to stabilize naturally around 5 mg•g-1 in monocropping systems after the first decade of rehabilitation, and over 10 mg•g-1 in systems with frequent manure applications and conservation tillage.

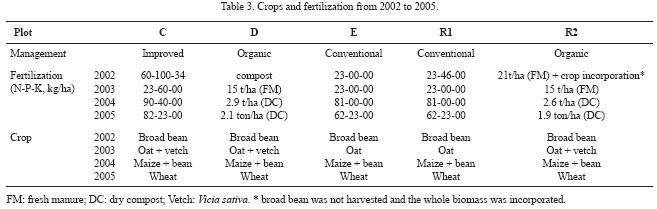

The addition of fresh organic matter (Table 3) is a way to magnify the accumulation of SOC in the soil during the first years of rehabilitation. In four years the accumulation of SOC in organic management (1.15 mg•g-1) was 2.5 times higher than in conventional management (0.45 mg•g-1). Considering that increasing SOC content by 1 mg•g-1 may prevent a soil loss of 3.5 ton•ha-1•year-1 and save 40 mm of water, the accumulation of SOC must be a primary objective in rehabilitation strategies. In plots reclaimed for more than a decade, the accumulation rate is smaller and a larger amount of organic matter will be required to achieve a substantial increase in SOC.
Results of percolation stability suggests that aggregate stability is the result of the combination of a long lasting stability that develops with time during the rehabilitation process, and of a temporary stability that depends on management and is able to develop rapidly after incorporation of OM, even in recently fragmented tepetates.
When fresh organic material is incorporated into the soil matrix, it is rapidly colonized by microbial decomposers which induce the formation and stabilization of aggregates (Golchin et al., 1994; Puget et al., 2000). Fungal hyphae mechanically bind the soil particles that surround the organic resource, and extracellular polysaccharides stick
them to cells of bacteria and fungi (Oades, 1993). Puget et al.(1995) also demonstrated that the SOM responsible for the stability of macroaggregates was younger than the one present in microaggregates, which explains why organic management in recently reclaimed tepetate can reach a similar or higher level of PS than plots with more years of rehabilitation.
However, macroaggregate stability (measured by the percolation method) did not seem to be responsible for the difference in erosion rates we observed. It suggests that soil structure improvement related to SOC rather than aggregate stability related to incorporation of fresh organic matter plays a major role in erosion processes in reclaimed tepetates.
Fertility limitations are responsible for lower crop development and vegetation cover in recently reclaimed tepetates. However, the study demonstrated that such limitations can be partly overcome by the use of associated crops and better nutrition. In 2003, the associated crop (vetch) resulted in increased vegetation cover from 61% (conventional management) to up to 84% (improved management) in plots reclaimed in 1989, and from 39% to 70% in plots reclaimed in 2002. The following year, in these plots the residual effect of the previous leguminous crop (vetch) along with the organic manure applied in the organic management provided better plant nutrition, resulting in greater vegetation cover (70%) than the conventional management (35%). In 2005, however, the vegetation cover over the period was equal for both management techniques, because of a nutrition deficit in the organic management attributed to a large C/N ratio of the compost that caused a lack of N for the plant. Such observation stresses the pertinence of the combination of organic and mineral fertilization to ensure optimum plant nutrition and vegetation cover. This is supported by the vegetation cover results obtained under improved management in plots reclaimed in 1989.
This study conducted over 3 years made clear that erosion rates and their evolution in reclaimed tepetates depends on SOC content and vegetation cover. After 14 years of rehabilitation, cultivated tepetates reached up to three times lower erosion rates than recently fragmented tepetate. In recently reclaimed tepetates, organic management enhanced carbon accumulation and vegetation cover, reducing runoff and soil loss in relation to conventional management. In tepetates reclaimed for more than 13 years, there is no significant effect of higher incorporation of organic matter on erosion rates, because of lower SOC accumulation rates.
The incorporation of fresh organic matter, even moderate, did increase significantly aggregate percolation stability in both recently and older reclaimed tepetates. However, percolation stability index was not satisfactorily correlated to SOC or to erosion rates as we expected.
Results obtained in this study confirm recommendations about the use of organic matter to improve soil fertility and conservation. Sustainable rehabilitation of tepetates depends on the ability of the management applied after fragmentation to promote SOC accumulation and provide vegetation cover.
This study was part of the REVOLSO project funded by the European Comission within the FP5 INCO/DEV program, contract ICA4200110052, and was also supported by the Fundación Produce Tlaxcala from 2002 to 2005. We would like to thank Sara Covaleda from the University of Salamanca and the team of Jorge Etchevers from the Colegio de Postgraduados for providing the soil organic carbon data. We are also grateful to the editors and two anonymous referees for their valuable suggestions to improve the manuscript.
