versión impresa ISSN 0188-8897

Hidrobiológica vol.27 no.2 México may./ago. 2017



Oxidative stress, lipid metabolism, and neurotransmission in freshwater snail (Pomacea patula) exposed to a water-accommodated fraction of crude oil

Estrés oxidativo, metabolismo lipídico y neurotransmisión en el caracol dulceacuícola (Pomacea patula) expuesto a la fracción hidrosoluble de petróleo crudo

Hugo F. Olivares-Rubio1

Lucía Salazar-Coria1

Armando Vega-López1

1Instituto Politécnico Nacional, Escuela Nacional de Ciencias Biológicas, Laboratorio de Toxicología Ambiental. Avenida Wilfrido Massieu s/n, Unidad Profesional Zacatenco, CDMX, 07738. México.



Crude oil is a super mixture of chemical compounds and is commonly found in aquatic environments. The tegogolo (Pomacea patula Baker, 1922) is a Mexican freshwater snail endemic to Lake Catemaco in Veracruz; currently, however, its distribution has expanded to many freshwater ecosystems that suffer the impact of crude oil spills and oil byproducts like fuels.


To assess a series of biomarkers involved in oxidative stress, neurotransmission, and fatty acid metabolism in tegogolos exposed to the water-accommodated fraction (WAF) of Maya crude oil (MCO).


Tegogolo specimens were exposed to WAF of MCO obtained from loads of 0.1, 1, 10 and 100 mg/L. We evaluated ROS ( O2-* and H2O2), oxidative stress (TBARS and RC=O), enzymes involved in antioxidant defense (SOD, CAT, and GPx), some enzymes involved in neurotransmission (AChE, GDA, and CbE activities), and biomarkers of fatty acids metabolism (fatty acids levels and AOX activity).


Clear biomarkers responses were observed only in some tissues. ROS were clearly higher than controls in the foot, head, and kidney; however, others biomarkers of oxidative stress remain statistically unchanged. SOD response was irregular with respect to controls and treatments. In contrast, CAT (foot) and GPx (foot and intestine) were the more active enzymes and their activities were higher than in controls. The responses of some enzymes involved in neurotransmission su ggest that compensation mechanisms exist between AChE and GDA in the foot and head. Fatty acids metabolism increased with exposure to WAF; however, these types of biomarkers seem unsuitable for monitoring the toxic effects produced by WAF at low environmental concentrations.


We can conclude that under the exposure conditions discussed herein, the tegogolos showed acclimation to WAF of Maya crude oil by complex mechanisms.

Keys words: Crude oil; fatty acid metabolism; neurotransmission; oxidative stress; snails



El petróleo crudo es una supermezcla de compuestos químicos y su presencia en ambientes acuáticos es común. El tegogolo (Pomacea patula Baker, 1922) es un caracol dulceacuícola endémico del lago de Catemaco, Veracruz, pero su distribución se ha expandido a muchos ecosistemas de agua dulce que sufren el impacto de los derrames de crudo y sus derivados.


Evaluar un conjunto de biomarcadores involucrados en el estrés oxidativo, neurotrans misión y metabolismo de ácidos grasos en especímenes expuestos a la fracción hidrosoluble (FH) de petróleo crudo maya (PCM).


Los caracoles se expusieron a la FH del PCM a partir de las cargas de 0.1, 1, 10 y 100 mg/L. Se midieron biomarcadores como ROS (O2-* y H2O2), daño oxidativo (TBARS y RC=O) y enzimas involucradas en defensa antioxidante (SOD, CAT y GPx), neurotransmisión (AChE, GDA y CbE) y biomarcadores del metabolismo de ácidos grasos (niveles de ácidos grasos y actividad AOX).


En algunos tejidos del tegogolo se observó una clara respuesta de los bio marcadores. Las concentraciones de ROS fueron superiores a los controles en el pie, la cabeza y el riñón; sin embargo, otros biomarcadores del estrés oxidativo no presentaron cambios significativos. La SOD fue irregular con respecto a los controles y entre tratamientos. Por el contrario, la CAT (pie) y la GPx (pie e intestino) fueron más activas. Las respuestas de las enzimas involucradas en la neurotransmisión sugieren un mecanismo compensatorio entre AChE y GDA en el pie y la cabeza. El metabolismo de los ácidos grasos aumentó con los tratamientos, aunque estos biomarcadores no parecen ser adecuados para monitorear los efectos de la FH del PCM a bajas concentraciones ambientales.


Es posible que en las condiciones de exposición los tegogolos mostraran aclimatación a la FH del PCM por mecanismos complejos.

Palabras clave: Caracoles; estrés oxidativo; metabolismo de ácidos grasos; neurotransmisión; petróleo crudo


Petroleum is a super complex mixture of chemical compounds with an estimated minimum of 50,000 different substances (Marshall & Rod gers, 2004). The main groups of compounds are aliphatic hydrocar bons, polyaromatic hydrocarbons (PAHs), heterocyclic of nitrogen and sulphur, endocrine compounds, and saturated fatty acids (Benassi et al., 2013). In addition, alkenes and heavy metals have been identified (Cote, 1976). Petroleum and its products are common pollutants in the aquatic environment (Crunkilton & Duchrow, 1990). As an example of the impacts of crude oil spills during one such spill in 2010, approxima tely 200 million gallons of South Louisiana crude oil were released into the northern Gulf of Mexico over the course of 87 days (Crone & Tolstoy 2010). Communities of aquatic macro-invertebrates have been suitable for environmental risk assessment in streams and rivers following spills of crude oil (Poulton et al., 1998). Recently, numerous studies have re ported that snails are appropriate for toxicity testing because they are benthic and have reduced mobility (Ma et al., 2014a). In addition, it is possible to perform tests under laboratory conditions to evaluate the potential damage provoked by environmental pollutants (Whitehead, 2013). One of the most common toxic effects in aquatic organisms is related to oxygen metabolism. Under aerobic conditions, cells can produce reactive oxygen species (ROS); in addition, the antioxidant sys tem in aquatic animals includes specific enzymes to reduce ROS levels (Hermes-Lima, 2004; Lushchak, 2011). Nevertheless, if antioxidant sys tems do not reduce ROS, their concentrations could be deleterious and induce oxidative stress. Oxidative stress is characterized by oxidation of biomolecules such as lipids, proteins, and nucleic acids (Lushchak, 2011). These oxidative damages caused by crude oil or its components could compromise energy provision as well as high energy demanding organs, such as the nervous system (Beal, 1995). Fatty acids (FA) are essential as energy sources and their concentrations could be suitable as biomarkers (Kowalczyk-Pecka et al., 2017). The acyl-CoA oxidase (AOX) is an enzyme that belongs to peroxisomal β-oxidation, which is the metabolic pathway to obtain energy from fatty acids (Cajaraville et al., 2003). Further, some enzymes, such as acetylcholinesterase (AChE) and glutamate decarboxylase (GDA), are involved in neurotransmission, i.e., a key function in the nervous system (Basu, 2015). In addition, carboxylesterases (CbE) are enzymes involved in the detoxification of compounds that can inhibit the activity of AChE (Fukuto, 1990).

The tegogolo Pomacea patula (Baker, 1922) is an edible freshwater mollusk, endemic to Catemaco Lake in Veracruz, Mexico (Carreón-Palau et al., 2003). However, due to the economic importance of this species, its culture has been developed in Central and Southern Mexico. The southern region of Mexico is an important supplier of oil resources (CNH, 2017). In addition, pollution associated with the petroleum indus try has been documented in this area (PROFEPA, 2017). The objective of this study was to select and assess a series of biomarkers involved in oxidative stress (contents of O2-* and H2O2, lipid peroxidation, and pro tein oxidation), antioxidant defense activity (SOD, CAT, and GPx), fatty acid metabolism indicators (fatty acid levels and acyl-CoA oxidase), and neurotransmission enzymes in the Pomacea patula mollusk exposed under controlled conditions to the WAF of Maya crude oil. The study compared some of the widely documented aspects related to toxic effects caused by petroleum, such as the oxidative stress response and other less-studied aspects, such as fatty-acid metabolism and neuro transmission indicators.


Animals and experimental design. Cultured specimens of the Mexi can freshwater snail tegogolo (Pomacea patula) were obtained from an aquaculture center located in Zacatepec (Morelos, México). Snails were maintained in glass aquariums with a capacity of 145 L using semi-hard synthetic water (0.22 g MgSO4, 0.18 g NaHCO3, 0.08 g KCl and 0.13 g CaSO4.2H2O per L) with constant aeration at 24±1 °C un der natural light-dark cycle at Mexico City latitude for three months until the experiments started. The snails were feed twice a week with lettuce obtained from a local supermarket. Healthy tegogolos of similar size (51.5 ± 2.96 mm) and weight (26.85 ± 3.87 g) were selected for the test. Groups of seven tegogolos were exposed for 96 h to the four concentrations of WAF obtained from different loads (0.1, 1, 10 and 100 mg/L) of Maya crude oil. The WAF fraction was obtained by the Singer et al. (2000) method. Maya crude oil was supplied by the Instituto Mexi cano del Petróleo (Mexico). Specimens of P. patula were treated in glass aquariums protected from the light in a total volume of 10 L. The control group was exposed to semi-hard synthetic water.

Chemical analysis. A sample of 1 L of exposure medium was collected after the snails were euthanized. The quantification of PAHs was un dertaken with a Biotek SynergyMX spectrofluorometer, using certified analytical standards obtained from Chem Service, Inc. (West Chester, PA), as previously documented (Dzul-Caamal et al., 2016).

Biomarker evaluation. Test specimens were measured with a Vernier caliper and weighed in analytical balance with a sensitivity of 0.1 g. Organisms were euthanized by fast-freezing them at -20 °C/30 min, as previously reported (Nica et al., 2015). Tissues of tegogolo (foot, head, intestine, mantle, digestive gland, and kidney) were obtained according to the anatomy of gastropods (Barnes, 1980). All tissues were weight and homogenized in a Glas-Col™ homogenizer in an ice bath as fo llows: foot and head in 10 mL of PBS 1X; the rest of the tissues in 3 mL of PBS 1X. 1.0 mL of the homogenates was centrifuged at 4,980 X g (9,000 rpm) and 4° C for 15 min in a Hermle Labnet Z216MK centrifuge to obtain the cytosolic fraction. The uncentrifuged and cytosolic frac tions were stored at -70°C until the biomarker assay was performed (less than 2 weeks).

Table 1 summarizes the methods used to assess biomarkers.

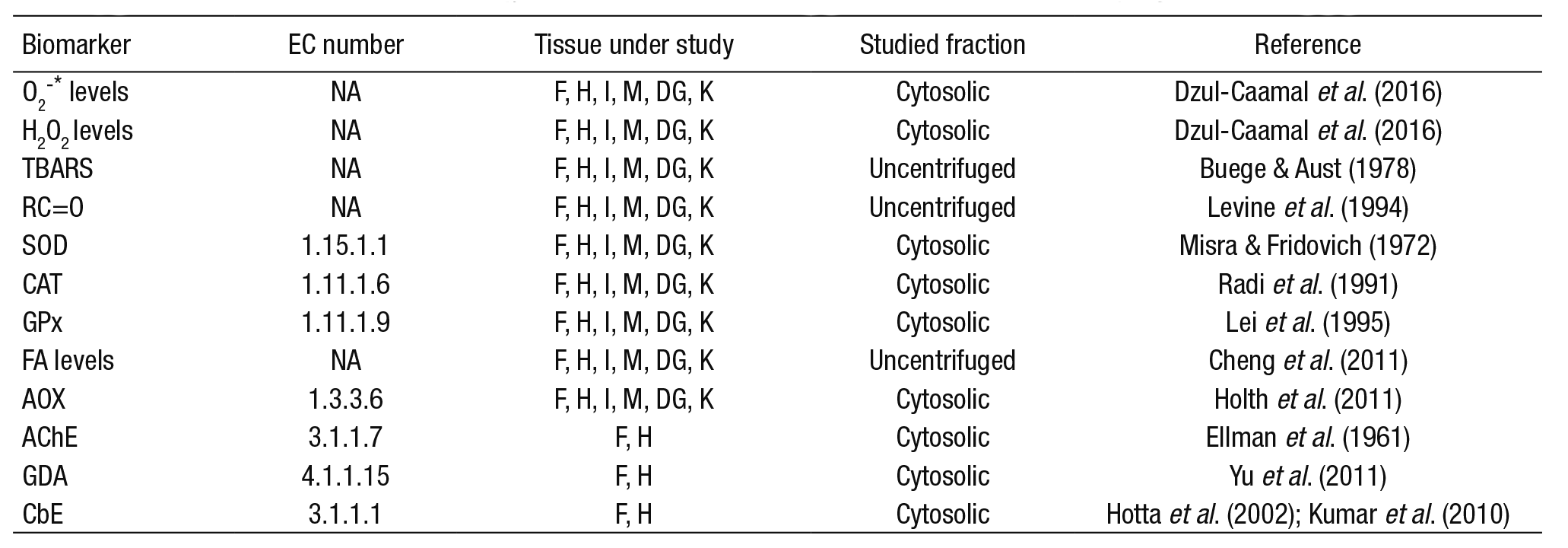

Table 1 Methods for biomarker evaluation in Pomacea patula (Baker, 1922) exposed to the water-accommodated fraction (WAF) of Maya crude oil

O2-*: superoxide anion; H2O2: hydrogen peroxide; TBARS: lipid peroxidation evaluated as thiobarbituric acid reactive substances; RC=O: protein oxidation evaluated as carbonyls (RC=O) content; SOD: superoxide dismutase activity (CuZn-SOD plus Mn-SOD); CAT: catalase activity; GPx: selenium-dependent glutathione peroxidase activity; FA: fatty acids; AOX: acyl-CoA oxidase activity; AChE: acetyl cholinesterase activity; GDA; glutamate decarboxylase activity; CbE: carboxylesterase activity. EC: Enzyme Commission number; NA: not applicable. F: foot; H: head; I: intestine; M: mantle; DG: Digestive gland; K: kidney.

Statistical analysis. Biomarker results were compared to controls and treatments by ANOVA, followed by post-hoc Dunnet´s Comparison Test. Statistical significance was set at p≤0.05 for all tests. Analyses were done in GraphPad Prism version 5.00 for Windows (GraphPad Software, San Diego, California, USA, To determine the im pact of the WAF of MCO in tissues of tegogolos, we calculated the IBRv2 according to Sanchez et al. (2013) and employed the general IBRv2 (gIBRv2) proposed by Dzul-Caamal et al. (2016) to integrate the IBRv2 values by tissue and treatment.


PAHs concentrations in the exposure medium. The concentration of the PAHs increased in relation to the load of Maya crude oil at the end of the experiment (Table 2). The proportion of individual compounds between loads did not show large variations, except for phenanthrene, benzo[a]pyrene (BaP), and fluoranthene. BaP was the PAH with the hig hest proportion in all loads. There was a lower percentage of total low molecular weight (LMW) PAHs than the high molecular weight (HMW) PAHs, due to their volatility and the characteristics of heavy crude oil.

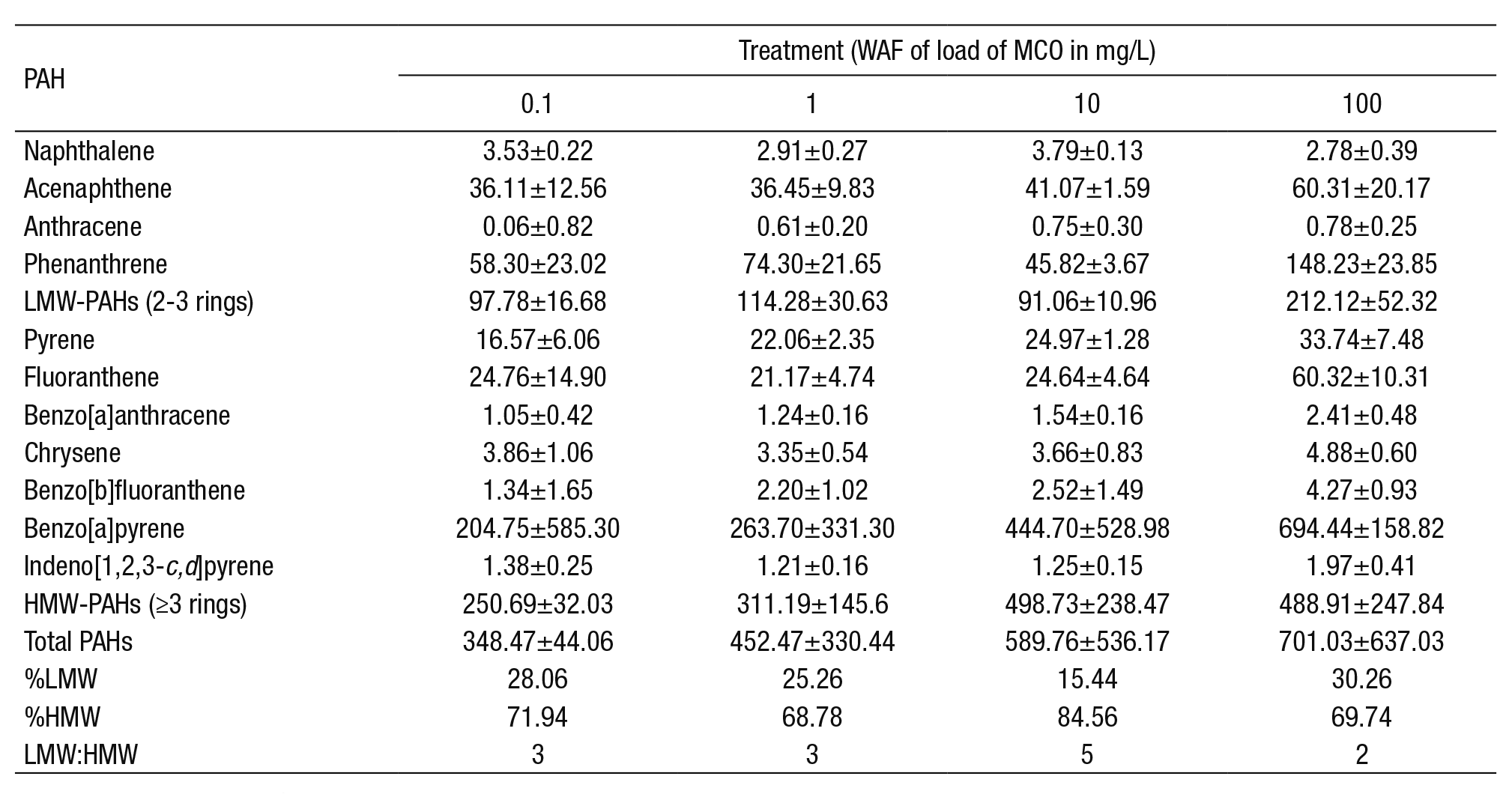

Table 2 Concentration of polyaromatic hydrocarbons (PAHs) in µg/L medium of exposure after 96 h of exposure. Mean ± standard deviation.

LMW: Low molecular weight; HMW: High molecular weight.

Biomarker responses. Most of the treatments show that the content of ROS was higher in the tissues of P. patula exposed to the WAF of Maya crude oil, as compared to controls. The tendency of O2-* and H2O2 was similar in the tissues under study. Wider differences were observed in the higher concentration of WAF particularly for the foot and kidney (p <0.05, Fig. 1a, f). A higher content of ROS was found in the head at 1 mg/L load (p <0.05, Fig 1b). In the intestine, the higher concentration of H2O2 was recorded at 1 mg/L; meanwhile, the high levels of O2-* was detected at 10 mg/L (Fig. 1c). In the tegogolo mantle, the content of ROS was irregular in treatments and was higher at the lower load of Maya crude oil (0.1 mg/L, Fig. 1d). Notably, in the digestive gland, the levels of ROS were similar to controls at 0.1 and 1 mg/L. However, from 1 to 100 mg/L, a slight reduction was observed (Fig. 1e).

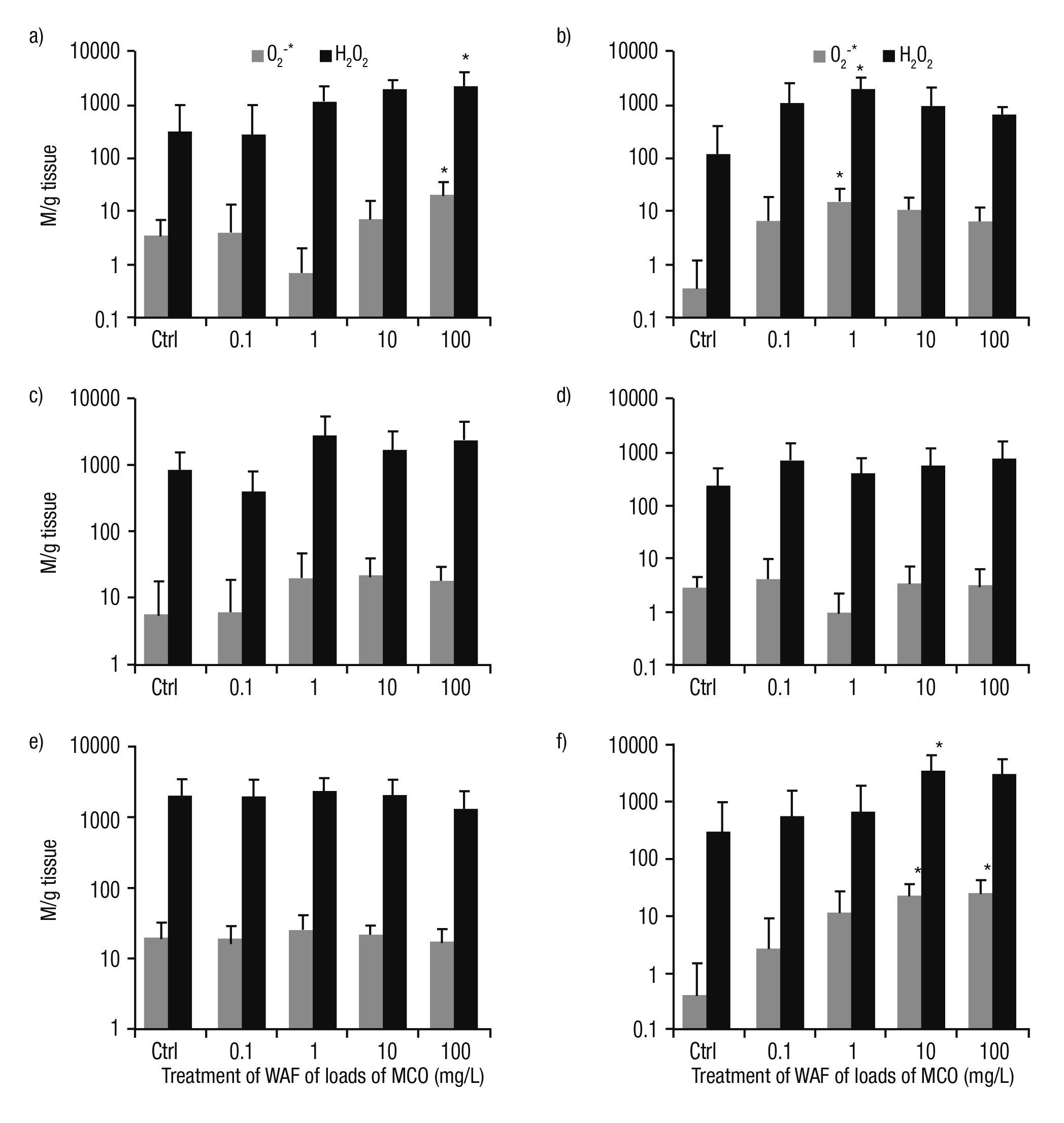

Figures 1a-f Content of ROS (O2-* y H2O2) in tissues of Pomacea patula exposed under controlled conditions to the WAF of MCO for 96 hours. Bars represent standard error of the mean. a) Foot, b) Head, c) Intestine, d) Mantle, e) Digestive gland, f) Kidney.

Oxidative stress. The response of lipid peroxidation and protein oxida tion in WAF treated gastropods was inconsistent compared to controls. In addition, the responses of these biomarkers were erratic among tis sues. We observed no significant differences in the foot (Fig. 2a). In the head, differences among TBARS and RC=O were found. The lipid peroxidation was higher at 0.1 mg/L; however, this oxidative damage diminished at greater WAF concentrations. Likewise, protein oxidation was similar to controls (Fig. 2b). Of importance, in the intestine, mantle, and digestive gland of P. patula treated at 1 mg/L, we detected higher oxidative damage (Figs. 2c-e). In the kidney, the greater level of lipid peroxidation was observed at 0.1 mg/L of crude oil load. In contrast, the protein oxidation in this tissue was lower than controls in all treatments (Fig. 2f).

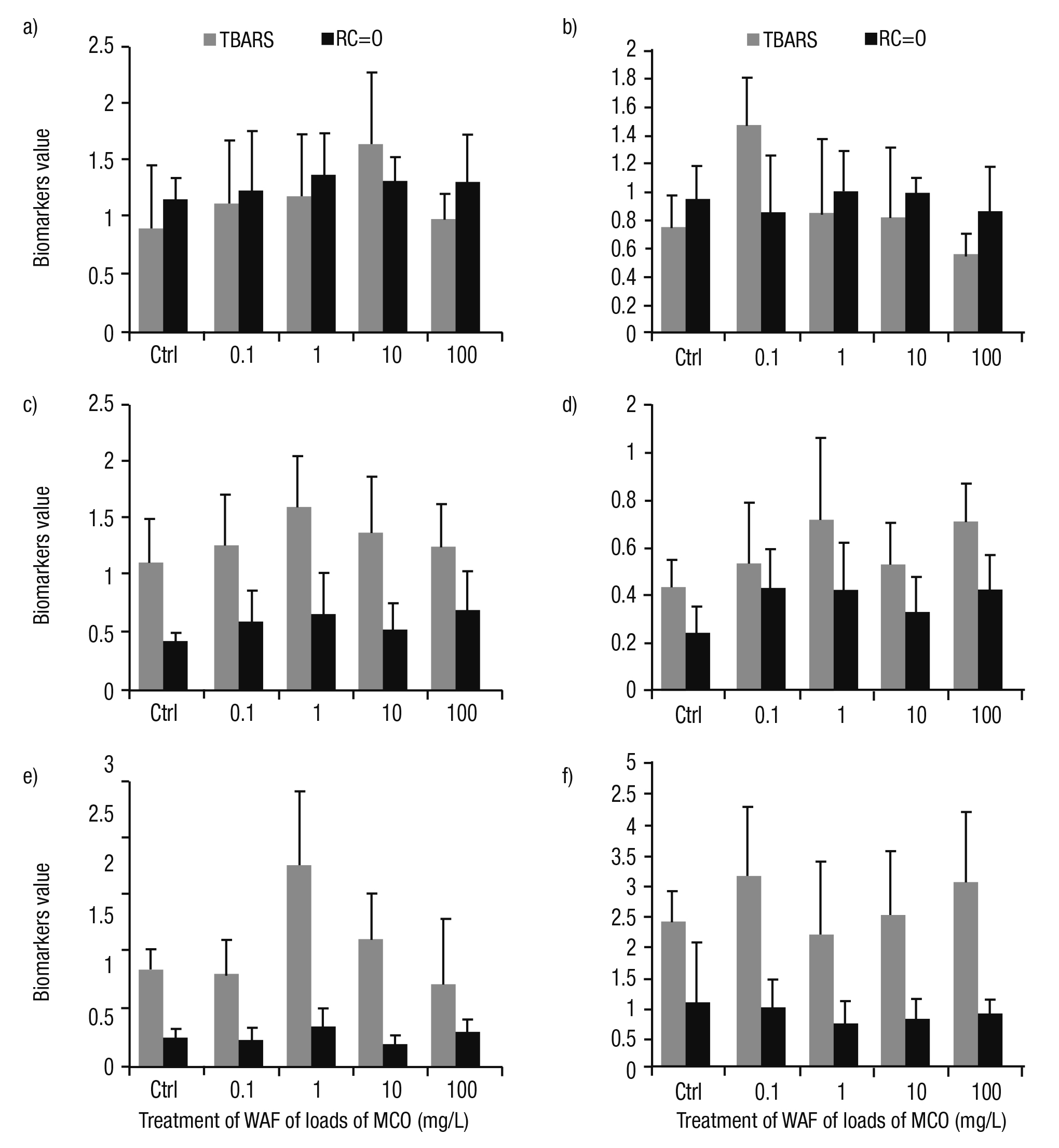

Figures 2a-f Oxidative damage measured as lipid peroxidation (TBARS) and protein oxidation (RC=O) in tissues of Pomacea patula exposed under controlled condi tions to the WAF of MCO for 96 hours. TBARS were presented as mmol TBARS/g tissue and RC=O as mmol RC=O/mg protein/g tissue. Bars represent standard error of the mean. a) Foot, b) Head, c) Intestine, d) Mantle, e) Digestive gland, f) Kidney.

Activities of enzymes involved in antioxidant defense. Several pat terns of responses were detected in the activities of enzymes involved in antioxidant defense (SOD, CAT, and GPx) in P. patula exposed to the WAF of Maya crude oil. In the tegogolo foot and head, the SOD activity did not show a trend compared to controls and treatments. In the foot, the activity of CAT increased with WAF concentration. In contrast, in the head, this response was inversely linked with the load of crude oil from 1 to 100 mg/L. The activity of GPx was clearly induced by exposure to the WAF of Maya crude oil compared to controls. Significant differences were found in this snail’s foot treated at 10 and 100 mg/L (p <0.05); in the head, significant differences were documented at 10 mg/L (p <0.05; Figs. 3a-b). In the intestine, the activities of CAT and GPx were higher than control specimens with the exception of CAT at 100 mg/L; however, in this tissue, the catalysis of SOD was irregular compared to controls and treatments (Fig. 3c). CAT activity in the mantle was indu ced at 0.1 and 1 mg/L. Nevertheless, at high concentrations (10 and 100 mg/L), CAT activity was reduced. SOD and GPx showed an irregular tendency in their metabolisms (Fig. 3d). In the digestive gland, higher activities of CAT and GPx were observed at 100 mg/L; meanwhile, SOD was similar and lower than controls (Fig. 3e). In the kidney, the catalysis of these enzymes reached a peak at 1 mg/L of a load of Maya crude oil. However, these activities were reduced at 10 and 100 mg/L (Fig. 3f).

Figures 3a-f Activity of enzymes involved in antioxidant defense (SOD, CAT, and GPx) in tissues of Pomacea patula exposed under controlled conditions to WAF of MCO for 96 hours. Bars represent standard error of mean. a) Foot, b) Head, c) Intestine, d) Mantle, e) Digestive gland, f) Kidney.

Fatty acid metabolism. The concentration of FA in the foot and intes tine of P. patula exposed to the WAF of Maya crude oil were higher than in controls (Figs. 4a, c). However, in the head, levels of FA were similar among exposed and unexposed snails (Fig. 4b). In the digestive gland and kidney of P. patula treated with the WAF, the concentration of FA was lower than controls, except those observed in the treatment with the WAF obtained from 1 mg/L of Maya crude oil (Figs. 4e-f). In the mantle, the content of these biomolecules was irregular compared to treatment (Fig. 4d).

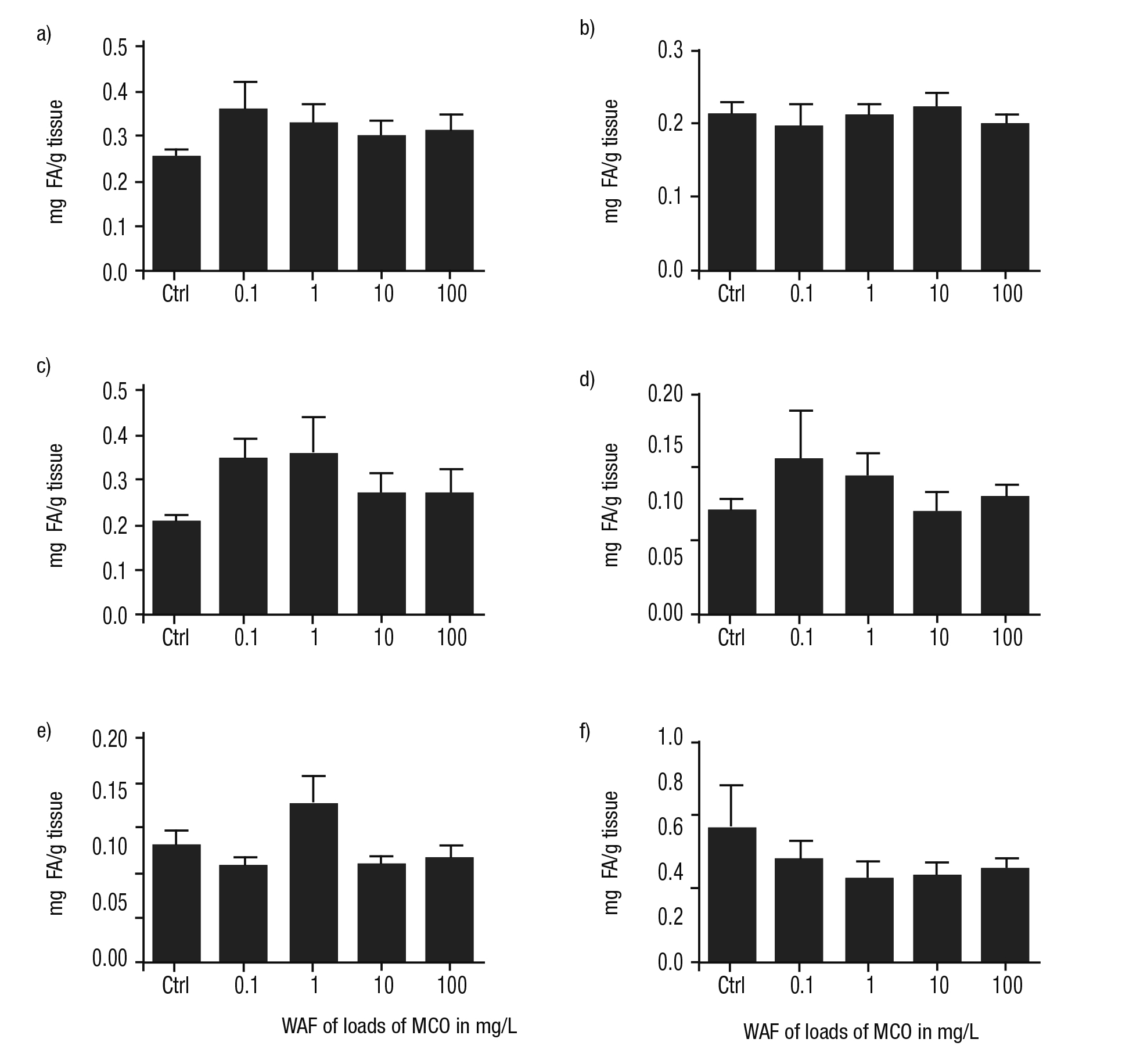

Figures 4a-f Concentration of FA in tissues of Pomacea patula exposed under controlled conditions to WAF of MCO for 96 hours. Bars represent standard error of the mean. a) Foot, b) Head, c) Intestine, d) Mantle, e) Digestive gland, f) Kidney.

The activity of AOX was higher in the foot and in the kidney of P. patula than in the control in all treatments, with exception of the cataly sis of this enzyme detected in the heads of snails exposed to the WAF of 0.1 mg/L of MCO (Figs. 5a-f). In contrast, in the mantle and in the digestive gland, an irregular activity of AOX was observed compared to controls (Figs. 5d-e). The maximum activities of AOX were detected at the WAF at the higher load of MCO (100 mg/L) solely in the snails’ foot and digestive gland.

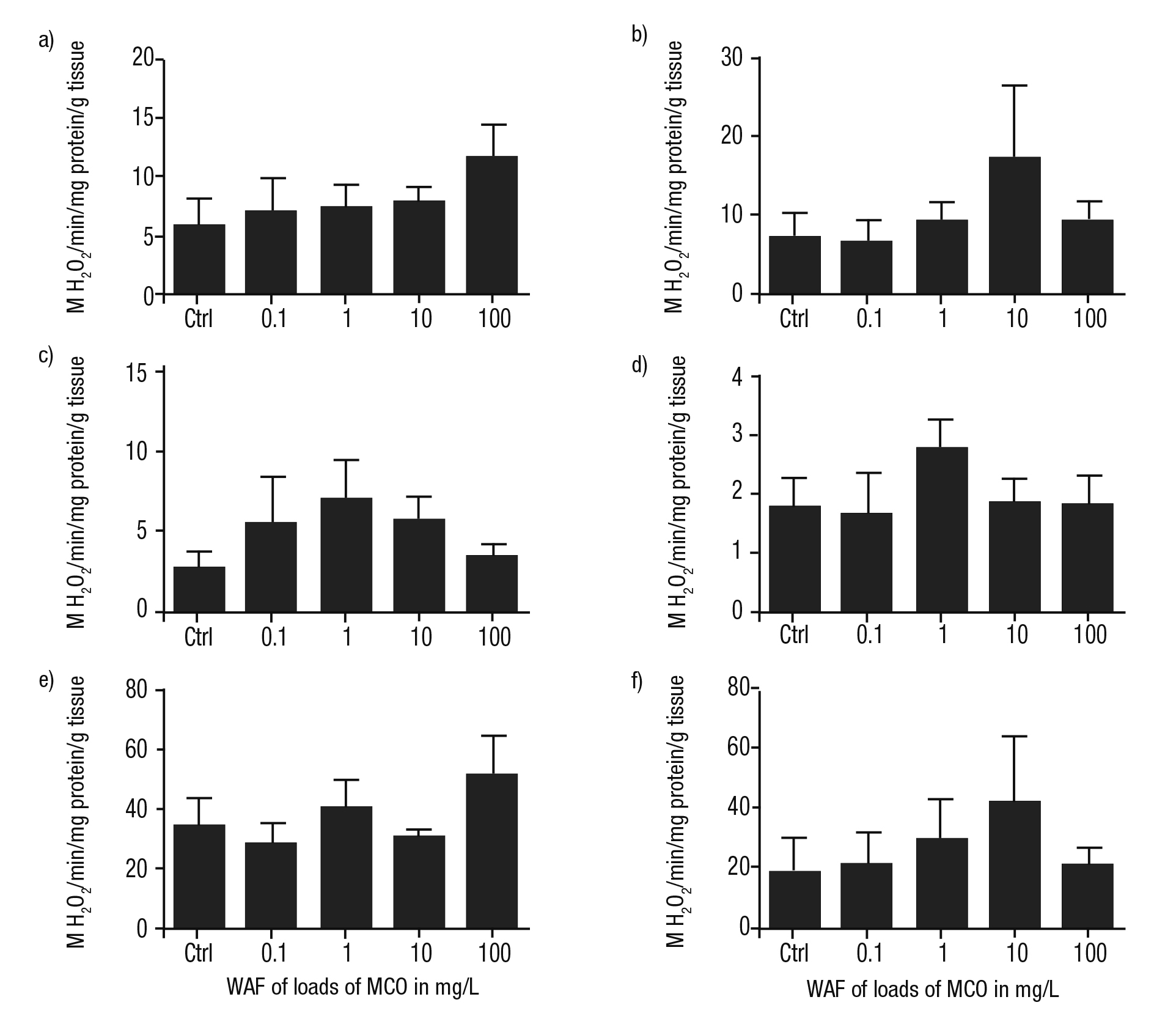

Figures 5a-f Metabolism of AOX in tissues of Pomacea patula exposed under controlled conditions to the WAF of MCO for 96 hours. Bars represent standard error of mean. a) Foot, b) Head, c) Intestine, d) Mantle, e) Digestive gland, f) Kidney.

Activity of enzymes involved in neurotransmission. In the head and foot of P. patula exposed to the WAF of MCO, AChE was higher than con trols in all cases and was related with WAF concentration. In addition, significant differences compared to controls were noted at WAF loads of MCO at 1, 10, and 100 mg/L (p ≤0.05) (Figs. 6a-b).

The catalysis of GDA in the head was lower than controls with a concentration-dependent response with statistical differences at WAF of 10 and 100 mg/L of MCO (Fig. 6d). Similarly, the activity of this en zyme in the foot was lower than control; however, at the WAF of 100 mg/L of MCO, an increase in this enzyme was found, even greater than controls (Fig. 6c).

In general, the activity of CbE in the head and foot of P. patula treated with the WAF of Maya crude oil was irregular compared to the treatments. Nevertheless, at the WAF of the lower load of MCO, an in crease of this enzyme was detected in both tissues (Figs. 6e-f).

Figures 6a-f Metabolism of enzymes involved in neurotransmission of Pomacea patula exposed under controlled conditions to the WAF of MCO for 96 hours. Bars represent standard error of mean. a) Activity of AChE in the foot, b) Activity of AChE in the head, c) Activity of GDA in the foot, d) Activity of GDA in the head, e) Activity of CbE in the foot, f) Activity of CbE in the head.

Integrated biomarker response. Higher values of gIBRv2 were found in the head and foot of P. patula exposed to the WAF of MCO followed by the digestive gland, intestine, kidney, and mantle. In terms of treatments, the higher value of gIBRv2 was found in specimens ex posed to the WAF at 1 mg/L and by treatments of the WAF at 0.1, 100, and 10 mg/L, respectively (Table 3).

Table 3 A values of the Integrated Biomarker Response index, version 2 (IBRv2) and general Integrated Biomarker Response index, version 2 (gIBRv2) for biomarkers in tissues of Pomacea patula exposed to water-accommodated fraction (WAF) of different loads of Maya crude oil for 96 h.


Several natural sources of pro-oxidants forces have been documented in aquatic organisms such as the electron-transport chain, oxygenases, auto-oxidation, and dependent systems of NADPH oxidases (Lushchak, 2011). Although the pro-oxidant/antioxidant balance in snails exposed to diverse pollutants has been studied, a lack of information about the content of ROS prevails. In this study, following exposure to the WAF of Maya crude oil, the levels of ROS in the tissues under study were higher than in their respective controls in the head of P. patula treated with the WAF from 1.0 mg/L, followed by the kidney (10 and 100 mg/L), and the foot (100 mg/L). Since crude oil contains more than 50,000 chemicals (Marshall & Rodgers, 2004), it is not possible to attribute the generation of ROS solely by decoupling the electron flux during the catalysis of specific isoforms of the CYP450 superfamily (Arzuaga & Elskus, 2010). The WAF has high bioavailability to organisms and its chemical charac teristics are related to the type of crude oil. There is a large variation in the chemical composition of different oils. The WAF of heavy crude oil, such as the Maya type, contains large amounts of water-soluble heavy molecules and microscopic oil droplets that are associated with HMW PAHs (Couillard et al., 2005). Chemical transformations occur in the so luble molecules allowing the decrease of the concentrations of the LMW compounds within a period of 24 h (Nebo et al., 1998), because of these transformations; in this study, the amounts of HMW PAHs overcame the temporary decline. The low variation of most individual PAHs between the different loads showed a reduced WAF weathering during the ex periment. Besides, crude oil contains transition metals such as Fe, Mn, and Cr, among others, which are involved in ROS induction by interfe rence of a metal-related process also brought about by generation of free radicals (Lushchak, 2011). Thus, we may speculate that HMW PAHs in addition to transitions metals and other compounds were responsible for ROS generation. With regard to the organ-specific response, it has been documented that some organs of the central nervous system are located in the head of the snails (Battonyai et al., 2012; Battonyai et al., 2014). In addition, the foot is responsible for locomotion (Miyamae et al. 2010; Longley, 2014). Thus, the cells which make up this system require large amounts of energy in order to function (Rigon et al., 2010; Panov et al., 2014). However, during the generation of energy, ROS could be induced in the mitochondria which is the principal organelle related to energy production (Sharp & Haller, 2014). The results in this study could be associated to these events; however, more studies are needed to clarify this point. Despite the lack of information about ROS levels in the snails’ kidneys, in fish a positive and negative selection of hematopoietic progenitor cells occurs (Davidson & Zon, 2004; Stachura et al., 2009) that involve the generation of ROS required for the extrinsic pathway of apoptosis. Besides, ROS induction is a defense mechanism of some immunocompetent mature cells, which are plentiful in the kidney (Janeway & Medzhitov, 2002).Oxidative stress response is the most reported biological response in snails exposed to several chemical compounds. In this study, the lipid peroxidation assessed as TBARS and protein oxidation evaluated as carbonyl proteins were greater in the tissues of P. patula exposed to the WAF of Maya crude oil compared to controls. Nevertheless, the differences observed were not statistically significant. Similar responses were found in some gastropods exposed to compounds different from crude oil (Cochón et al., 2007; Zheng et al., 2013). However, in other mollusk species, contrasting findings have been documented (Ansaldo et al., 2005; Kaloyianni et al., 2009; Itziou et al., 2011a; Itziou et al., 2011b; Ali et al., 2012; Ma et al., 2014a; Wang et al., 2014). Results of this study indicate the presence of efficient processes to reduce the induction of ROS in the foot, head, and kidney of P. patula, probably by unspecific antioxidant systems, as well as an efficient process mediated through the ATP-dependent ubiquitination, via endogenous proteases such as cathepsin c, calpain, and trypsin for degradation of RC=O (Hermes-Lima, 2004). This process is aimed at auto-regulating the oxidative damage induced by the WAF of Maya crude oil.

No significant changes in the catalysis of enzymes involved in antioxidant defense (SOD, CAT, and GPx) compared to controls were observed in tissues of tegogolos exposed to the WAF of MCO, with the exception of GPx in the foot and head of P. patula exposed to high con centration of WAF (10 and 100 mg/L). In addition to oxidative stress, the activity and presence of antioxidant systems are also widely studied in snails treated with pollutants (Ismert et al., 2002; Li et al., 2008; El-Gendy et al., 2009; Radwan et al., 2010; Ali et al., 2012; Bouétard et al., 2013; Zheng et al., 2013; Ma et al., 2014a; 2014b; Wang et al., 2014). Inactivity of SOD, particularly at high concentrations of the WAF of Maya crude oil, could be due to the oxidative stress induced by the accumulation of ROS (Liesivuori & Savolainen, 1991). Additionally, the damage to this enzyme could be due to reactive and oxidant meta bolites produced by biotransformation of many compounds, as is the case of PAHs (Gao et al., 2005; Vondrácek et al., 2009). In contrast, significant increases in GPx activity in the foot and head of P. patula exposed to high concentrations of WAF are likely due to the presence of H2O2 in the cells, since this ROS is the main substrate for these enzymes (Hermes-Lima, 2004). The induction of ROS could be different among tissues due to contact with the environment, but also to their energy de mands obtained through fatty-acid metabolism, among others sources. Consequently, the activity of enzymes involved in antioxidant defense could be linked to these pro-oxidant forces. It has not been possible to substantiate that oxidative stress participates in depleting the activity of these antioxidant defenses.

In this study, we found different patterns of response due to the concentration of FA in P. patula exposed to the WAF of MCO; however, in no case did we find significant results. In contrast, in other mollusk spe cies, significant results were found (El-Wakil & Radwan, 1991; Radwan et al., 1993; Radwan et al., 2008; Lyssimachou et al., 2009). Research suggests that the changes of FA content in snails exposed to stres sing agents could be explained by their synthesis to repair and prevent damage to organelle and cells, whereas its decrease could be due to utilization of energy requirements (Padmaja & Rao, 1994). Similarly to FA, the activity of AOX showed a different pattern of response among treatments and tissues, even though significant differences were not found. However, in other snail species exposed to inducers of the pe roxisome proliferator activated receptor alpha (PPARα), the response was irregular under laboratory conditions (Lyssimachou et al., 2009) or amplified in specimens from polluted sites (Cajaraville et al., 2003; Regoli et al., 2006). The lack of response to FA levels and AOX activity in P. patula treated with the WAF of Maya crude oil may have an adap tive significance as documented in other snail species (Arakelova et al., 2004) as a protective mechanism for reducing the toxic effects of WAF, as suggested by Padmaja & Rao (1994) in other species. The current results and previous reports denote the need of more studies aimed at increasing knowledge about fatty-acid metabolism in snails exposed to pollutants.

CbE activity, which is present in a range of organism including Bac teria, Eukaryota, and Archaea, is responsible for the hydrolysis of car boxylic esters, carboxylic thioesters, and esters of about 1684 substra tes (BRENDA, 2017) in the head and foot of P. patula exposed to the WAF of Maya crude oil, was irregular with regard to treatments and tissues. However, these findings were not significant, probably due to the varia ble bioavailability of carboxylic compounds in the WAF of Maya crude oil, as well as to the role of CYP450 isoenzymes involved in metabolism of PAHs as documented in snails (Wilbrink et al., 1991; Ismert et al., 2002). However, it is more likely that the specific aging or stimulation of the AChE will occur after the exposure to soluble compounds present in Maya crude oil. Increases in the catalysis of AChE in head and foot of P. patula treated with the WAF of MCO were found. Similar findings were documented in the Senegal sole Solea senegalensis (Kaup, 1858) exposed to the WAF of “Prestige” crude oil under laboratory conditions (Solé et al., 2008). These results suggest that compounds present in the WAF of Maya crude oil stimulate the activity of this enzyme. Likewise, it is probable that the degradation of acetylcholine overcomes the ba sal levels provoking deficiencies in this neurotransmitter. Since the acetylcholine participates in the activation of neuromuscular function, it is likely that this function in P. patula is inactive. Little information is available regarding the activity of AChE in snails exposed to petro leum hydrocarbons. However, inhibition has been documented in the catalysis of this enzyme in some snail species exposed mainly to pes ticides (Singh & Agarwal, 1983; Coeurdassier et al., 2001; Radwan & Mohamed, 2013; Khalil et al., 2015; Zheng & Zhou, 2017). The different responses documented in previous reports and in this study could be attributed to the presence of bioavailable compounds in WAF that are able to stimulate this enzyme, despite the lack of information about the complete characterization of the WAF obtained from Maya crude oil. Nevertheless, it is probable that the degradation of acetylcholine cau sed by WAF exposure could modify the response of P. patula, probably provoking the apparent lack of sensitivity of this snail species linked to reduced motility.

The catalysis of GDA in the head and foot of P. patula was reduced compared to the control, with exception of the activity detected in the foot at the higher WAF concentration. There are few reports regarding the activity of this enzyme in snails exposed to hydrocarbons. However, in the ganglia of a feral freshwater mussel Elliptio complanata (Lightfoot, 1786) exposed to dilutions of primary-treated effluent, decreases were docu mented in GABA catalysis, suggesting glutamatergic stimulation (Gag né et al., 2007), which exerts excitatory effects. This neurophysiological process probably occurs as a compensatory mechanism for depression of locomotion activity related with low levels of acetylcholine. Neverthe less, more studies are required to explore the neurotoxicity of petroleum hydrocarbons in freshwater snails as well as specific studies about the composition of the WAF obtained from Maya crude oil.

Comparing the tissues and concentrations of WAF, it is probable that two factors are involved in increased values of gIBRv2 in the head and foot of P. patula detected in this study: i) both are the main tissues in contact with the medium that contains petroleum hydrocarbons, and ii) the numerical effect of the three additional biomarkers involved in neurotransmission which was only measured in these tissues, mainly through their high nervous innervation in the foot and by the presence of some organs of the central nervous system in the head. However, the first hypothesis is the more likely, considering their regular contact with the polluted medium. Yet, the digestive gland showed higher va lues of gIBRv2 compared to intestine, mantle, and kidney. This could de due to its high capacity to uptake and concentrate contaminants, which suggests the usefulness of this organ for monitoring biochemical responses (Abdel-Halim et al., 2013).

Given the results of this study, we can conclude that the tegogolo foot was the most sensitive organ in terms of the biological response to exposure to the WAF of Maya crude oil. However, more studies are required in order to clarify the biotransformation, bioaccumulation, and detoxification involved in oxidative stress in gastropods exposed un der controlled conditions to diverse pollutants. The alterations of some enzymes involved in neurotransmission (AChE and CbE) seem to be suitable biomarkers for monitoring the toxic effects of hydrosoluble compounds present in the Maya crude oil found in this type of organism that also possesses mechanical defenses (shell and operculum) against environmental pressures. Research also confirms that crude oil is one of the most complex contaminants in the aquatic environment and the knowledge of its effects in aquatic organism should be increased.


This study was supported by the Instituto Politécnico Nacional, Secre taría de Investigación y Posgrado, SIP codes 20161462 and 20170766. H.F. Olivares-Rubio is a DSc. student who received a scholarship from CONACyT and BEIFI-IPN. A. Vega-López is a fellow of Estímulos al Des empeño en Investigación and Comisión y Fomento de Actividades Aca démicas (Instituto Politécnico Nacional) and the Sistema Nacional de Investigadores (SNI, CONACyT, México).


Abdel-Halim, K. Y., A. A. El-Saad, M. M. Talha, A. A. Hussein & N. M. Bakry. 2013. Oxidative stress on land snail Helix aspersa as a sentinel organism for ecotoxicological effects of urban pollution with heavy metals.Chemosphere93 (6): 1131-1138. DOI: 10.1016/j.chemosphere.2013.06.042 [ Links ]

Ali, D., S. Alarifi, S. Kumar, M. Ahamed & M. A. Siddiqui. 2012. Oxidative stress and genotoxic effect of zinc oxide nanoparticles in fres hwater snail Lymnaea luteola L.Aquatic Toxicology124-125: 83-90. DOI: 10.1016/j.aquatox.2012.07.012 [ Links ]

Ansaldo, M., R, Najle & C. M. Luquet. 2005. Oxidative stress generated by diesel seawater contamination in the digestive gland of the Antarc tic limpet Nacella concinna. Marine Environmental Research 59 (4): 381-390. DOI: 10.1016/j.marenvres.2004.06.003 [ Links ]

Arakelova, K. S., Chebotareva, M. A. & S. A. Zabelinskii. 2004. Physiology and lipid metabolism of Littorina saxatilis infected with trematodes. Dis Aquat Organ. 2004 Sep 8 60 (3): 223-231. [ Links ]

Arzuaga, X. & A. Elskus A. 2010. Polluted-site killifish (Fundulus heterocli tus) embryos are resistant to organic pollutant-mediated induction of CYP1A activity, reactive oxygen species, and heart deformities. Environmental Toxicology and Chemistry29 (3): 676-682. DOI: 10.1002/etc.68 [ Links ]

Benassi, M., A. Berisha, W. Romão, E. Babayev, A. Römpp & B. Spengler. 2013. Petroleum crude oil analysis using low-temperature plasma mass spectrometry. Rapid Communications in Mass Spectrometry27 (7): 825-834. DOI: 10.1002/rcm.6518 [ Links ]

Barnes, R. D. 1980. Invertebrate Zoology. Saunders College, Philadel phia. 1089 p. [ Links ]

Basu, N. 2015. Applications and implications of neurochemical biomar kers in environmental toxicology.Environmental Toxicology and Chemistry34 (1): 22-29. DOI: 10.1002/etc.2783 [ Links ]

Battonyai, I., Z. Serfőző & K. Elekes. 2012. Potassium channels in the Helix central nervous system: Preliminary immunohistochemical studies.Acta Biologica Hungarica 63 (Supplement 2): 146-150. DOI: 10.1556/ABiol.63.2012.Suppl.2.19 [ Links ]

Battonyai, I. , N. Krajcs, Z. Serfőző, T. Kiss & K. Elekes. 2014. Potassium channels in the central nervous system of the snail, Helix pomatia: Localization and functional characterization.Neuroscience 268: 87-101. DOI: 10.1016/j.neuroscience.2014.03.006 [ Links ]

Beal, M. F. 1995. Aging, energy, and oxidative stress in neurodegenera tive diseases.Annals of Neurology38 (3): 357-366. DOI: 10.1002/ana.410380304 [ Links ]

BRENDA. 2017. Available online at: Available online at: (downloaded June 18, 2017). [ Links ]

Bouétard, A., A. L. Besnard, D. Vassaux, L. Lagadic & M. A. Coutellec. 2013. Impact of the redox-cycling herbicide diquat on transcript ex pression and antioxidant enzymatic activities of the freshwater snail Lymnaea stagnalis.Aquatic Toxicology126: 256-265. DOI: 10.1016/j.aquatox.2012.11.013 [ Links ]

Buege, J. A. & S. D. Aust. 1978. [30] Microsomal lipid peroxidation. Methods in Enzymology 52: 302-310. DOI: 10.1016/S0076-6879(78)52032-6 [ Links ]

Cajaraville, M. P., I. Cancio, A. Ibabe & A. Orbea. 2003. Peroxisome prolife ration as a biomarker in environmental pollution assessment.Mi croscopy Research and Technique61 (2): 191-202. DOI: 10.1002/jemt.10329 [ Links ]

Carreón-Palau, A., E. Uria-Galicia, F. Espinosa-Chávez & F. Martínez-Jerónimo. 2003. Desarrollo morfológico e histológico del sistema reproductor de Pomacea patula catemacensis (Baker 1922) (Mollusca, Caeno gastropoda: Ampullariidae). Revista Chilena de Historia Natural76 (4): 665-680. DOI: 10.4067/S0716-078X2003000400010 [ Links ]

Cheng, Y. S., Y. Zheng & J. S. Vander Gheynst. 2011. Rapid quantitative analysis of lipids using a colorimetric method in a microplate for mat.Lipids46 (1): 95-103. DOI: 10.1007/s11745-010-3494-0 [ Links ]

CNH (Comisión Nacional de Hidrocarburos). 2017. Available online at: Available online at: (downloaded June 17, 2017) [ Links ]

Cochón, A. C., A. B. Della Penna, G. Kristoff, M. N. Piol, L. S. M. De Viale & N. V. Guerrero. 2007. Differential effects of paraquat on oxidative stress parameters and polyamine levels in two freshwater inverte brates.Ecotoxicology and Environmental Safety68 (2): 286-292. DOI: 10.1016/j.ecoenv.2006.11.010 [ Links ]

Coeurdassier, M., Saint-Denis, M., Gomot-de Vaufleury, A., Ribera, D. & P.M. Badot. 2010. The garden snail (Helix aspersa) as a bioindicator of organophosphorus exposure: effects of dimethoate on survival, growth, and acetylcholinesterase activity. Environmental Toxicology and Chemistry 20 (9): 1951-1957. DOI: 10.1002/etc.5620200913 [ Links ]

Cote, R. P. 1976. The effects of petroleum refinery liquid wastes on aquatic life, with special emphasis on the Canadian environment. National Research Council of Canada. NRC Associate Committee on Scientific Criteria for Environmental Quality, Ottawa, Ontario, Cana da K1A 0R6, publication number 15021, 77 p. [ Links ]

Couillard, C. M., Lee, K., Légaré, B. & L. King. 2005. Effect of dispersant on the composition of the water-accommodated fraction of crude oil and its toxicity ty larval marine fish. Environmental Toxicology and Chemistry 24 (6): 1496-1504. DOI: 10.1897/04-267R.1 [ Links ]

Crone, T. J. & M. Tolstoy. 2010. Magnitude of the 2010 Gulf of Mexico oil leak.Science330 (6004): 634-634. DOI: 10.1126/science.1195840 [ Links ]

Crunkilton, R. L., & R. M. Duchrow. 1990. Impact of a massive crude oil spill on the invertebrate fauna of a Missouri Ozark stream.Environmen tal Pollution63 (1): 13-31. DOI: 10.1016/0269-7491(90)90100-Q [ Links ]

Cruz-Orea, A., S. A. Tomás, A. Guerrero-Zuñiga & A. Rodríguez-Dorantes. 2004. Detection of an aromatic compound at the roots of Cy perus hermaphroditus by photoacoustic techniques. Inter national Journal of Thermophysics 25 (2): 603-610. DOI: 10.1023/B:IJOT.0000028493.87576.a0 [ Links ]

Dantán-González, E., O. Vite-Vallejo, C. Martínez-Anaya, M. Méndez-Sánchez, M. C. González, L. A. Palomares & J. Folch-Mallol. 2008. Production of two novel laccase isoforms by a thermotolerant strain of Pycnopo rus sanguineus isolated from an oil-polluted tropical habitat.Inter national Microbiology11 (3): 163-169. DOI: 10.2436/20.1501.01.xx [ Links ]

Davidson, A. J. & L. I. Zon. 2004. The ‘definitive’ (and ‘primitive’) guide to zebrafish hematopoiesis.Oncogene23 (43): 7233-7246. DOI: 10.1038/sj.onc.1207943 [ Links ]

Dzul-Caamal, R., L. Salazar-Coria, H. F. Olivares-Rubio, M. A. Rocha-Gómez, M. I. Girón-Pérez & A. Vega-López. 2016. Oxidative stress response in the skin mucus layer of Goodea gracilis (Hubbs and Turner, 1939) exposed to crude oil: A non-invasive approach.Comparative Bio chemistry and Physiology Part A: Molecular & Integrative Physiolo gy200: 9-20. DOI: 10.1016/j.cbpa.2016.05.008 [ Links ]

El-Gendy, K. S., M. A. Radwan & A. F. Gad. 2009. In vivo evaluation of oxi dative stress biomarkers in the land snail, Theba pisana exposed to copper-based pesticides. Chemosphere 77 (3): 339-344. DOI: 10.1016/j.chemosphere.2009.07.015 [ Links ]

El-Wakil, H. B., Radwan, M. A. 1991. Biochemical studies on the terres trial snail, Eubania vermiculata (Müller) treated with some pestici des. Journal of Environmental Science & Health, Part B Pesticides, Food Contaminants, and Agricultural Wastes 26 (5-6): 479-89. DOI: 10.1080/03601239109372750 [ Links ]

Ellman, G. L., K. D. Courtney, V. Andres & R. M. Featherstone. 1961. A new and rapid colorimetric determination of acetylcholinestera se activity.Biochemical Pharmacology7 (2): 88IN191-9095. DOI: 10.1016/0006-2952(61)90145-9 [ Links ]

Faksness, L. G., P. J. Brandvik & L. K. Sydnes. 2008. Composition of the water accommodated fractions as a function of exposure times and temperatures.Marine Pollution Bulletin 56 (10): 1746-1754. DOI: 10.1016/j.marpolbul.2008.07.001 [ Links ]

Ferket, H., R. Swennen, S. O. Arzate & F. Roure. 2006. Fluid flow evolu tion in petroleum reservoirs with a complex diagenetic history: An example from Veracruz, Mexico.Journal of Geochemical Explora tion89 (1): 108-111. DOI: 10.1016/j.gexplo.2005.11.040 [ Links ]

Fukuto, T. R. 1990. Mechanism of action of organophosphorus and car bamate insecticides.Environmental Health Perspectives87: 245-254. DOI: 10.1289/ehp.9087245 [ Links ]

Gagné, F., P. Cejka, C. André, R. Hausler & C. Blaise. 2007. Neurotoxico logical effects of a primary and ozonated treated wastewater on freshwater mussels exposed to an experimental flow-through sys tem.Comparative Biochemistry and Physiology Part C: Toxicology & Pharmacology146 (4): 460-470. DOI: 10.1016/j.cbpc.2007.04.006 [ Links ]

Gao, D., Y. Luo, D. Guevara, Y. Wang, M. Rui, B. Goldwyn, Y. Lu, E.C. Smith, M. Lebwohl & H. Wei. 2005. Benzo [a] pyrene and its metabolites combined with ultraviolet A synergistically induce 8-hydroxy-2´-deoxyguanosine via reactive oxygen species. Free Radical Biolo gy and Medicine 39 (9): 1177-1183. DOI: 10.1016/j.freeradbiomed.2005.06.005 [ Links ]

Hermes-Lima, M. 2004. Oxygen in biology and biochemistry: role of free radicals. In: Storey, K.B. (Ed.). Functional Metabolism: Regulation and Adaptation. Hoboken, New Jersey, Wiley-Liss, pp. 319-351. DOI: 10.1002/047167558X.ch12 [ Links ]

Holth, T. F., J. Beckius, I. Zorita, M. P. Cajaraville & K. Hylland. 2011. As sessment of lysosomal membrane stability and peroxisome prolife ration in the head kidney of Atlantic cod (Gadus morhua) following long-term exposure to produced water components.Marine En vironmental Research72 (3): 127-134. DOI: 10.1016/j.marenvres.2011.07.001 [ Links ]

Hotta, Y., S. Ezaki, H. Atomi & T. Imanaka. 2002. Extremely stable and versa tile carboxylesterase from a hyperthermophilic archaeon.Applied and Environmental Microbiology68 (8): 3925-3931. DOI: 10.1128/AEM.68.8.3925-3931.2002 [ Links ]

Ismert, M., T. Oster & D. Bagrel. 2002. Effects of atmospheric exposure to naphthalene on xenobiotic-metabolising enzymes in the snail He lix aspersa.Chemosphere46 (2): 273-280. DOI: 10.1016/S0045-6535(01)00124-2 [ Links ]

Itziou, A., M. Kaloyianni & V. K. Dimitriadis. 2011a. In vivo and in vitro effects of metals in reactive oxygen species production, protein carbonyla tion, and DNA damage in land snails Eobania vermiculata. Archives of Environmental Contamination and Toxicology 60 (4): 697-707. DOI: 10.1007/s00244-010-9583-5 [ Links ]

Itziou, A. , M. Kaloyianni & V. K. Dimitriadis. 2011b. Effects of organic con taminants in reactive oxygen species, protein carbonylation and DNA damage on digestive gland and haemolymph of land snails. Chemosphere 85 (6): 1101-1107. DOI: 10.1016/j.chemosphere.2011.07.043 [ Links ]

Lei X. G., J. K. Evenson, K. M. Thompson & R. A. Sunde. 1995. Glutathione peroxidase and phospholipid hydroperoxide glutathione peroxidase are differentially regulated in rats by dietary selenium. Journal of Nutrition 125: 1438-1446. [ Links ]

Levine, R. L., J. A. Williams, E. R. Stadtman & E. Shacter. 1994. Carbonyl as says for determination of oxidatively modified proteins. Methods in Enzymology 233: 346-357. DOI: 10.1016/S0076-6879(94)33040-9 [ Links ]

Li, X., L. Lin, T. Luan, L. Yang & C. Lan. 2008. Effects of landfill leachate effluent and bisphenol A on glutathione and glutathione-related enzymes in the gills and digestive glands of the freshwater snail Bellamya purificata. Chemosphere 70 (10): 1903-1909. DOI: 10.1016/j.chemosphere.2007.07.059 [ Links ]

Liesivuori, J. & H. Savolainen. 1991. Methanol and formic acid toxicity: bio chemical mechanisms. Pharmacology and Toxicology 69: 157-163. DOI: 10.1111/j.1600-0773.1991.tb01290.x [ Links ]

Livingstone. D. R. 2001. Contaminant-stimulated reactive oxygen spe cies production and oxidative damage in aquatic organisms. Marine Pollution Bulletin 42 (8): 656-66. DOI: 10.1016/S0025-326X(01)00060-1 [ Links ]

Longley, R. D. 2014. Pedal sole immunoreactive axons in terrestrial pul monates: Limax, Arion, and Helix. Biology Bulletin 226 (1): 19-28. DOI: 10.1086/BBLv226n1p19 [ Links ]

Lushchak, V. I. 2011. Environmentally induced oxidative stress in aquatic animals. Aquatic Toxicology 101 (1): 13-30. DOI: 10.1016/j.aquatox.2010.10.006 [ Links ]

Lyssimachou, A., J. C. Navarro, J. Bachmann & C. Porte. 2009. Triphenyltin alters lipid homeostasis in females of the ramshorn snail Marisa cornuarietis. Environmental Pollution 157 (5): 1714-1720. DOI: 10.1016/j.envpol.2008.12.013 [ Links ]

Janeway. C. A. Jr. & R. Medzhitov. 2002. Innate immune recognition. An nual Review of Immunology 20: 197-216. DOI: 10.1146/annurev.immunol.20.083001.084359 [ Links ]

Kainz, M. J. & A. T. Fisk. 2009. Integrating lipids and contaminants in aquatic ecology and ecotoxicology. In: Kainz, M., M. T. Brett, & M. T. Arts (Eds.). Lipids in Aquatic Ecosystems. Springer New York, pp. 93-113. DOI: 10.1007/978-0-387-89366-2_5 [ Links ]

Kaloyianni, M., S. Dailianis, E. Chrisikopoulou, A. Zannou, S. Koutsogiannaki, D. H. Alamdari, G. Koliakos & V. K. Dimitriadis. 2009. Oxidative effects of inorganic and organic contaminants on haemolymph of mussels. Comparative Biochemistry and Physiology Part C: Toxicology & Pharmacology 149 (4): 631-639. DOI: 10.1016/j.cbpc.2009.01.006 [ Links ]

Khalil, A. M. 2015. Toxicological effects and oxidative stress responses in freshwater snail, Lanistes carinatus, following exposure to chlor pyrifos. Ecotoxicology Environmental Safety 116: 137-142. DOI: 10.1016/j.ecoenv.2015.03.010 [ Links ]

Kowalczyk-Pecka, D., S. Pecka & E. Kowalczuk-Vasilev. 2017. Selected fatty acids as biomarkers of exposure to microdoses of molluscicides in snails Helix pomatia (Gastropoda Pulmonata).Environmental Pollu tion222: 138-145. DOI: 10.1016/j.envpol.2016.12.068 [ Links ]

Kumar, A. 2010. Effect of simvastatin on paraoxonase 1 (PON1) activity and oxidative stress. Asian Pacific Journal of Tropical Disease 3 (4): 310-314. DOI: 10.1016/S1995-7645(10)60075-2 [ Links ]

Ma, J., C. Zhou, Y. Li & X. Li. 2014a. Biochemical responses to the toxicity of the biocide abamectin on the freshwater snail Physa acuta. Eco toxicology and Environmental Safety 101: 31-35. DOI: 10.1016/j.ecoenv.2013.12.009 [ Links ]

Ma, J. , X. Dong, Q. Fang, X. Li & J. Wang. 2014b. Toxicity of imidazolium-based ionic liquids on Physa acuta and the snail antioxidant stress response. Journal of Biochemical and Molecular Toxicology 28 (2): 69-75. DOI: 10.1002/jbt.21537 [ Links ]

Marshall, A. G. & R. P. Rodgers. 2004. Petroleomics: The next grand cha llenge for chemical analysis. Accounts of Chemical Research 37 (1): 53-59. DOI: 10.1021/ar020177t [ Links ]

Misra, H. P. & I. Fridovich. 1972. The role of superoxide anion in the au toxidation of epinephrine and a simple assay for superoxide dismu tase. Journal of Biological Chemistry 247: 3170-3175. [ Links ]

Miyamae, Y., M. Komuro, A. Murata, K. Aono, K. Nishikata, A. Kanazawa, Y. Fu jito, T. Komatsu, D. Ito, T. Abe, M. Nagayama, T. Uchida, K. Gohara, J. Murakami, R. Kawai, D. Hatakeyama, K. Lukowiak & E. Ito. 2010. Contrary effects of octopamine receptor ligands on behavioral and neuronal changes in locomotion of lymnaea. Biology Bulletin 218 (1): 6-14. DOI: 10.1086/BBLv218n1p6 [ Links ]

Morales-Mora, M. A., B. Rodríguez-Pérez, S. A. Martínez-Delgadillo, E. Rosa-Domínguez & C. Nolasco-Hipólito. 2014. Human and ecotoxicological impacts assessment from the Mexican oil industry in the Coatza coalcos region, as revealed by the USEtox™ model. Environmental Science and Pollution Research International 21 (16): 9819-9831. DOI: 10.1007/s11356-014-2942-4 [ Links ]

Nerbo, H.J., Daling, P.S., Johnsen, S. & M. Buffagni. 1998. Chemical and toxicological characterization of water accommodated fractions relevant oil spill situations. Transactions on Ecology and environ ment. Vol. 20. WIT press. ISSN: 1743-3541. Available on line at Available on line at DOI: 10.2118/61468-MS (downloaded June 17, 2017). [ Links ]

Nica, D. V., Filimon, M. N., Bordean, D. M., Harmanescu, M., Draghici, G. A., Dragan, S. & I. I. Gergen. 2015. Impact of soil cadmium on land snails: a two-stage exposure approach under semi-field conditions using bioaccumulative and conchological end-points of exposure. PLoS One 10 (3): e0116397. DOI: 10.1371/journal.pone.0116397 [ Links ]

Padmaja, R.J. & M. B. Rao. 1994. Effect of an organochlorine and three organophosphate pesticides on glucose, glycogen, lipid and protein contents in tissues of the freshwater snail, Bellamya dissimilis (Mu ller). Bulletin of Environmental Contamination and Toxicology 53: 142-148. DOI: 10.1007/BF00205151 [ Links ]

Panov, A., Z. Orynbayeva, V. Vavilin & V. Lyakhovich. 2014. Fatty acids in ener gy metabolism of the central nervous system. BioMed Research International 2014: 472459. DOI: 10.1155/2014/472459 [ Links ]

Poulton, B. C., E. V. Callahan, R. D. Hurtubise & B. G. Mueller. 1998. Effects of an oil spill on leafpack-inhabiting macroinvertebrates in the Cha riton River, Missouri. Environmental Pollution 99 (1): 115-22. DOI: 10.1016/S0269-7491(97)00160-7 [ Links ]

PROFEPA (Procuraduría Federal de Protección al Ambiente). 2017. Available on line at: Available on line at: (downloaded June 17, 2017). [ Links ]

Radi, R., J. F. Turrens , L. Y. Chang, K. M. Bush, J. D. Crapo & B. A. Freeman. 1991. Detection of catalase in rat heart mitochondria. Journal of Biological Chemistry 266: 22028-22034. [ Links ]

Radwan, M. A. , K. A. Osman & A. K. Salama. 1993. Biochemical response of the brown garden snails, Helix aspersa to chlorfluazuron and flufenoxuron. Journal of Environmental Science and Health Part B 28 (3): 291-303. DOI: 10.1080/03601239309372827 [ Links ]

Radwan, M. A. , A. E. Essawy, N. E. Abdelmeguied, S. S. Hamed & A. E. Ah med. 2008. Biochemical and histochemical studies on the digestive gland of Eobania vermiculata snails treated with carbamate pesti cides. Pesticide Biochemistry and Physiology 90 (3): 154-167. DOI: 10.1016/j.pestbp.2007.11.011 [ Links ]

Radwan, M. A. , K. S. Gendy & A. F. Gad. 2010. Oxidative stress biomarkers in the digestive gland of Theba pisana exposed to heavy metals. Archives of Environmental Contamination and Toxicology 58 (3): 828-835. DOI: 10.1007/s00244-009-9380-1 [ Links ]

Radwan, M. A. & M. S. Mohamed. 2013. Imidacloprid induced alterations in enzyme activities and energy reserves of the land snail, He lix aspersa. Ecotoxicology Environmental Safety 95: 91-97. DOI: 10.1016/j.ecoenv.2013.05.019 [ Links ]

Regoli, F., S. Gorbi, D. Fattorini, S. Tedesco, A. Notti, N. Machella, R. Bocchet ti, M. Benedetti & F. Piva. 2006. Use of the land snail Helix aspersa as sentinel organism for monitoring ecotoxicologic effects of urban pollution: an integrated approach. Environmental Health Perspecti ves 114 (1): 63-69. DOI: 10.1289/ehp.8397 [ Links ]

Rigon, F., G. Mânica, F. Guma, M. Achaval & M. C. Faccioni-Heuser. 2010. Ultrastructural features of the columellar muscle and contractile protein analyses in different muscle groups of Megalobulimus ab breviatus (Gastropoda, Pulmonata). Tissue and Cell 42 (1): 53-60. DOI: 10.1016/j.tice.2009.08.001 [ Links ]

Rueda-Gaxiola, J. 1998. El origen del Golfo de México y de sus subcuen cas petroleras mexicanas con base en la palinología de lechos ro jos. Revista Mexicana de Ciencias Geológicas 15 (1): 78-86. [ Links ]

Sanchez, W., T. Burgeot & J. Porcher. 2013. A novel “Integrated Biomarker Response” calculation based on reference deviation concept. Envi ronmental Science and Pollution Research20 (5): 2721-2725. DOI: 10.1007/s11356-012-1359-1 [ Links ]

Sharp, L. J. & R. G. Haller. 2014. Metabolic and Mitochondrial Myopathies. Neurologic Clinics 32 (3): 777-799. DOI: 10.1016/j.ncl.2014.05.001 [ Links ]

Singer, M. M., D. Aurand, G. E. Bragin, J. R. Clark, G. M. Coelho, M. L. Sowby & R. S. Tjeerdema. 2000. Standardization of the preparation and quantization of water-accommodated fractions of petroleum for toxicity testing. Marine Pollution Bulletin 40: 1007-1016. DOI: 10.1016/S0025-326X(00)00045-X [ Links ]

Singh, D. K., & R. A. Agarwal. 1983. Inhibition kinetics of certain orga nophosphorus and carbamate pesticides on acetylcholinesterase from the snail Lymnaea acuminata. Toxicology Letters 19 (3): 313-319. DOI: 10.1016/0378-4274(83)90136-4 [ Links ]

Solé, M., D. Lima, M. A. Reis-Henriques & M. M. Santos. 2008. Stress biomarkers in Juvenile Senegal Sole, Solea senegalensis, exposed to the water-accommodated fraction of the “Prestige” Fuel Oil. Bulletin of Environmental Contamination and Toxicology 80 (1): 19-23. DOI: 10.1007/s00128-007-9289-1 [ Links ]

Stachura, D. L., J. R. Reyes, P. Bartunek, B. H. Paw, L. I. Zon & D. Traver. 2009. Zebrafish kidney stromal cell lines support multilineage hematopoie sis. Blood 114 (2): 279-289. DOI: 10.1182/blood-2009-02-203638 [ Links ]

Vondrácek, J., P. Krcmár, J. Procházková, L. Trilecová, M. Gavelová, L. Skálová, B. Szotáková, M. Buncek, H. Radilová, A. Kozubík & M. Machala. 2009. The role of aryl hydrocarbon receptor in regulation of enzymes in volved in metabolic activation of polycyclic aromatic hydrocarbons in a model of rat liver progenitor cells. Chemico-Biological Interac tions 180 (2): 226-237. DOI: 10.1016/j.cbi.2009.03.011 [ Links ]

Wang, X., Z. Liu, W. Wang, Z. Yan, C. Zhang, W. Wang & L. Chen. 2014. As sessment of toxic effects of triclosan on the terrestrial snail (Acha tina fulica). Chemosphere 108: 225-230. DOI: 10.1016/j.chemosphere.2014.01.044 [ Links ]

Whitehead, A. 2013. Interactions between oil-spill pollutants and natural stressors can compound ecotoxicological effects. Integrative and Comparative Biology 53 (4): 635-647. DOI: 10.1093/icb/ict080 [ Links ]

Wilbrink, M., E. J. Groot, R. Jansen, Y. De Vries & N. P. Vermeulen. 1991. Occurrence of a cytochrome P-450-containing mixed-function oxi dase system in the pond snail, Lymnaea stagnalis. Xenobiotica 21 (2): 223-233. DOI: 10.3109/00498259109039464 [ Links ]

Yu, K., S. Hu, J. Huang & L. H. Mei. 2011. A high-throughput colorimetric assay to measure the activity of glutamate decarboxylase. Enzyme and Microbial Technology 49 (3): 272-276. DOI: 10.1016/j.enzmictec.2011.06.007 [ Links ]

Zheng, S., Y. Wang, Q. Zhou & C. Chen. 2013. Responses of oxidative stress biomarkers and DNA damage on a freshwater snail (Bellamya aeruginosa) stressed by ethylbenzene. Archives of Environmen tal Contamination and Toxicology 65 (2): 251-259. DOI: 10.1007/s00244-013-9899-z [ Links ]

Zheng, S. & Q. Zhou. 2017. Intoxication and biochemical responses of freshwater snail Bellamya aeruginosa to ethylbenzene. Envi ronmental Science and Pollution Research24 (1): 189-198. DOI: 10.1007/s11356-016-7716-8 [ Links ]

Received: May 05, 2017; Accepted: June 29, 2017

Creative Commons License This is an open-access article distributed under the terms of the Creative Commons Attribution License
