Seasonal and spatial dynamics of a ciliate assemblage in a warm–monomictic Lake Alchichica (Puebla, Mexico)



Dinámica temporal y espacial de la comunidad de ciliados en un lago monomíctico–cálido Alchichica (Puebla, México)



Miroslav Macek^{1, 2}*, Dana Pestová^{1, 3} y María Elena Martínez Pérez¹



¹ Universidad Nacional Autónoma de México campus Iztacala, Av. de los Barrios 1, los Reyes Iztacala, Tlalnepantla, 54090 Edo. México, México. * E–mail: mirek@campus.iztacala.unam.mx.

² Biology Centre, Institute of Hydrobiology, Academy of Sciences of the Czech Republic, Na sádkách 7, 370 05 Ceské Budéjovice, Czech Republic.

³ Masaryk University Brno, Faculty of Science, Dept. Botany and Zoology, Kotlárská 2, 611 37 Brno, Czech Republic.



Recibido: 18 de enero de 2007
Aceptado: 21 de diciembre 2007



ABSTRACT

The distribution of the ciliate assemblage was surveyed along a depth gradient in the maar crater, athalassohaline, warm monomictic Lake Alchichica (Puebla, Mexico) from June 2003 to October 2006 (monthly). DAPI staining was employed to count ciliates while the Quantitative Protargol Staining was used for their identification. Peritrichs often numerically dominated the ciliate assemblage; a maximum of 54 cells ml^–1 (Rhabdostyla sp.) was observed in the surface layer at the end of the mixing period, during the development of diatoms (Cyclotella alchichicana), cyanobacterial (Nodularia sp.) bloom and its decay. Minute spirotrichs (particularly Halteria grandinella) and a haptorid, Belonophrya pelagica occasionally dominated the epilimnion while mixotrophic Euplotes cf. daidaleos and Pelagothrix sp. were important round the oxycline along with haptorids, particularly Phialina sp. Scuticociliates Cyclidium glaucoma, Uronema nigricans, and anaerobic ciliates Isocyclidium globosum and Caenomorpha sp. dominated within the hypolimnetic assemblages.

Key words: Ciliates, athalassohaline lake, anoxic.



RESUMEN

De junio de 2003 a diciembre de 2006 se estudió mensualmente la distribución de la comunidad de ciliados en el gradiente de profundidades del Lago Alchichica (Puebla, México), un lago cráter, tipo maar, atalasohalino de comportamiento monomíctico–cálido. La tinción de DAPI fue empleada para el recuento de los ciliados y la tinción de protargol cuantitativa para su identificación. Frecuentemente los ciliados perítricos dominaron numéricamente la comunidad. Al final del periodo de estratificación y durante el desarrollo de las diatomeas (Cyclotella alchichicana) y el florecimiento y posterior decaimiento de las cianobacterias filamentosas (Nodularia sp.), se observó un máximo de 54 cél. ml–¹ de Rhabdostyla sp. en la superficie del lago. Los espirotricos pequeños (particularmente Halteria grandinella) y los haptóridos como Belonophrya pelagica, dominaron ocasionalmente en el epilimnion, mientras que los ciliados mixotróficos: Euplotes cf. daidaleos y Pelagothrix sp. estuvieron asociados a los haptóridos grandes, particularmente a Phialina sp. y fueron importantes alrededor de la oxiclina. Los escuticociliados: Cyclidium glaucoma, Uronema nigricans y los ciliados anaerobios: Isocyclidium globosum y Caenomorpha sp. dominaron en el hipolimnion.

Palabras clave: Ciliados, lago atalasohalino, anoxia.



INTRODUCTION

The importance of ciliates in the pelagic marine microbial loop (sensu Azam et al., 1983) as well as in freshwater environments of a moderate trophic status has been demonstrated (Pace, 1982; Gates, 1984; Müller, 1989; Simek et al., 1990; Müller et al., 1991). Many authors have shown that an effective feeding and rapid growth of ciliates were detected when they could explore rich food–patches such as phase borders where food particles are accumulated (the thermocline or oxycline). It has been repeatedly documented that a peak in protozoa distribution temporarily coincided also with the decomposition of primary production (Taylor & Heynen, 1987; Weisse et al., 1990; Macek et al., 1994; Simek et al., 1995; James et al., 1995). Generally, a maximum of the ciliate distribution was found in the metalimnion or below it (reviewed in Beaver & Crisman 1989; Fenchel et al., 1990; Sherr et al., 1991; Macek et al., 1994; Simek et al., 1995), apparently related to microaerobic processes. If an oxycline did not occupy the same position as a thermocline, additional ciliate maxima could be found there and/or in the layer above the water body floor.

More information is available from shallow water bodies with light conditions, which are sufficient to provide both oxygenic and anoxygenic photosynthesis (Berninger et al., 1986; Finlay et al., 1996; Macek et al., 2001). Species of genera Loxodesand Spirostomum were related to nitrate and/or sulphate microbial reduction (Finlay et al., 1983; Guhl & Finlay 1993; Foissner et al., 1995) while others of Metopus and Caenomorpha, were found to be strictly anaerobic (Foissner et al., 1992; Decamp & Warren 1997).

However, Foissner et al. (1999) doubted the existence of typical anaerobic–pelagic (hypolimnion) species. Apart from peaks of the above mentioned ciliates, the presence of anaerobic ciliates was accepted as a result of migration of benthic species. The typical anaerobes (genus Caenomorpha but also scuticociliates) possess hydrogenosomes instead of mitochondria; moreover, their metabolic pathways need co–metabolism with symbiotic microbes (Esteban et al., 1993; Fenchel & Finlay, 1995). On the other hand, there is evidence that the "symbiont" acquisition could be provided via ingestion (van Hoek et al., 2000).

In the present study we have tried to provide more comprehensive information on the seasonal ciliate assemblage development throughout the water column including an anoxic layer of crater Lake Alchichica (Puebla, Mexico), from June 2003 to December 2006.



MATERIAL AND METHODS

Study site and sampling. We conducted the study in the large and deep maar–crater Lake Alchichica (Puebla, Mexico) with extended hypolimnetic anoxia classified as tropical, warm and monomictic (Filonov et al., 2006). Alchichica is located at 19° 24' N; 97° 24' W at an altitude of 2340 m.a.s.l. Mean and maximum depths are 40.9 and 62 m, respectively, surface area being 2.3 km²; salinity averaged 8.5 g L^–1. The climate of the region is dry–temperate, with a mean annual temperature of 12.9 °C and annual precipitation less than 400 mm.

The only sampling station was located above the maximum depth; samples from 5 to 12 depths were taken monthly (within 12:00 to 15:00) using a Niskin (USA) or IHE (Czech Republic) sampler. The sampling depths were decided according to in situ measured temperature and dissolved oxygen concentration, DO, which were assessed by means of a Hydrolab DS4/SVR4.

Fixation. Ciliates were fixed with acid Lugol's iodine, decolourised with thiosulfate this is fate and post–fixed with 2% formalin (Sherr & Sherr 1993), or eventually with 7% (^v/v) Bouin's fixative (Montagnes & Lynn 1987). Total picoplankton including autotrophic picoplankton, APP was fixed with 2% formalin (Straskrabová et al., 1999).

Quantification and identification of microorganisms. Ciliates were counted in the DAPI–stained samples (Porter & Feig 1980) and identified using a quantitative protargol staining (QPS) on cellulose–esters membranes (1.2 µm) according to Skibbe's (1994) modification of the Montagnes & Lynn (1987) method. Foissner et al. (1999) key, as well as the literature cited therein, was used for ciliate identification; however, higher taxa are presented according to Adl et al. (2005).

Autotrophic picoplankton (APP), particularly picocyanobac–teria, were evaluated in the samples concentrated onto polycarbonate membranes (0.2 urn) and mounted in an immersion oil via autofluorescence (epifluorescence microscope Leica, Germany) using the CY3 filter–set (green excitation and red observation–light); the commonly used yellow fluorescence of APP upon AO and FITC sets (Callieri & Stockner, 2002) was not sufficiently intense.

Data analysis. For the ciliate stratification analysis, all data were used; in order to determine the annual pattern of development, weighted mean–numbers were calculated within the whole water column, and for the top 20 m and the below 35 m layers, representing the epilimnion and the anoxic hypolimnion during the stratification period, respectively.



RESULTS

A total of about 40 taxa of ciliate have been identified to genus and, when possible, to species level, covering nearly all higher taxa of Ciliophora (important species listed in Table 1). Apart from several abundant taxa present during the whole sampling period and distributed throughout the water column (scuticociliates, peritrichs and spirotrichs), most of the present taxa appeared in low numbers during most of the study period.

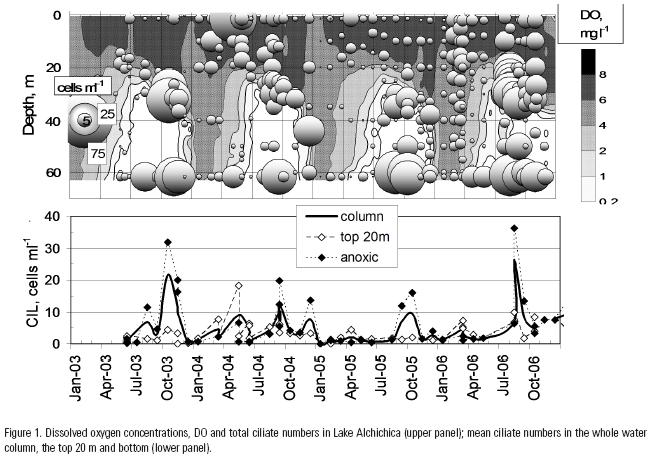

Average ciliate abundances in the whole water column ranged from undetectable numbers in January 2005 to 26 cells ml^–1 in September 2006 (Fig. 1). The highest water column means of ciliates were observed in the late stratification period (September to November); when the assemblage was almost exclusively dominated by scuticociliates, however, mainly in the oxycline–anoxic layers (Figs. 1, 2). An absolute maximum of 54 cells ml^–1 was observed in the surface in May 2004, when peritrichs colonizing Nodularia sp. filaments dominated the assemblage. During August to October, local maxima of over 40 cells ml^–1 were found, as mentioned above, in micro–aerobic–anoxic layers. Near bottom ciliate numbers reached the maximum of 40 cells ml^–1 in September 2005.

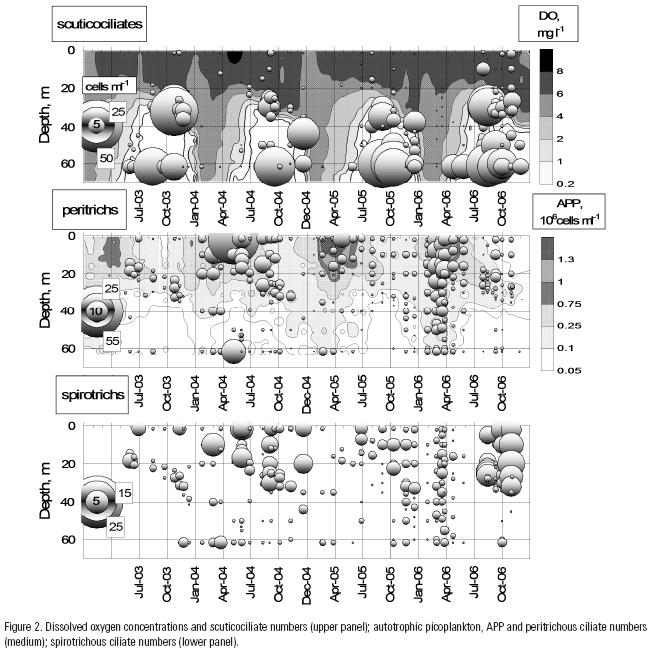

Peritrichs were the numerically dominant group in Alchichica (Fig. 2), contributing nearly 40% to the total numbers throughout the study period. They were characterised by small–sized taxa (<40 µm), either single–celled, non–attached (Pelagovorticella natans (Fauré–Fremiet, 1924) Jankowski, 1985, and Vorticella aquadulcis complex) or sessile Rhabdostyla sp. and unidentified Vorticella sp. Peritrichs contributed frequently >70% to the total ciliate abundance in the epilimnion. When Rhabdostyla sp. absolutely dominated the ciliate assemblage, it colonised a centric diatom, Cyclotella alchichicana Oliva et al., 2006 and/or filamentous cyanobacteria, Nodularia sp. (peaking March to May 2004 in epilimnion). Nearly all filaments of cyanobacteria were colonized, as well as diatoms, which frequently possessed ciliates at both sides of their centric cell. Around the oxycline, peritrichs abundances were of the similar value as those of spirotrichs; they were observed neither abundant in the anoxic hypolimnion nor around the oxycline.

Scuticociliates were the most abundant group in 2005 (68%) and throughout the study they formed 27% of the sampling average. Scuticociliates were found generally around the oxycline and in anoxic layers (Fig. 2), mainly represented by minute ciliates Uronema nigricans (Müller, 1786), Cyclidium glaucoma (Müller, 1773) and Cinetochilum margaritaceum Perty, 1852. They were also characteristic for the near–bottom ciliate assemblage, especially from August to October, when an anaerobic Isocyclidium globosum Esteban, Finlay & Embley, 1993 was observed (particularly in 2005).

Minute spirotrichs were observed to be distributed throughout the water column, and they formed about 10% of the total ciliate numbers (Fig. 2). Average sampling mean was about 15.0%, however, Halteria grandinella (Müller, 1773) Dujardin, 1841 solely contributed to 12.5%. Moreover, very small Halteria sp. and Rimostrombidium sp. (with globoid macronucleus) were found. Typical stratification of temperature, dissolved oxygen and ciliate numbers are presented in Figure 3.

Among haptorids, Belonophrya pelagica André, 1914 (Fig. 4b–d), Monodinium sp. (Fig. 4e) and Mesodinium acarus Stein, 1862 were the most abundant species. However, from the point of view of biomass, Phialina sp. (Fig. 4a) was the most important, followed by Lacrymaria sp. and Pelagolacrymaria sp. They were concentrated in thermocline–oxycline layers and round the anoxic boundary, accompanied by mixotrophic hypotrich, Euplotes cf. daidaleos Diller & Kowaris, 1966 (Fig. 5a–f). In addition to these groups, some very large ciliates, generally observed in micro–aerobic or anoxic conditions, particularly Holosticha kessleri Kessler (Wrzesniowski, 1877), Uroleptus rattulus Stein, 1859 (Fig. 5g) and Chaetospira sp. (Fig. 6h–j) showed very important contribution to the ciliate biomass. A minute Litonotus sp. was also found (Fig. 4f, g).

Among strictly anaerobic ciliates, Isocyclidium globosum (Esteban, Finlay & Embley, 1993) and a minute Caenomorpha sp. (Fig. 6a–d) were the most abundant; Epalxella sp. and Trimyema sp. were found in considerable numbers at the end of the stratification period (November 2003 and 2006).



DISCUSSION

Ciliate abundance and species richness found in Alchichica did not markedly differ from those reported from the oligo– to mesotrophic environment (Gates, 1984; Taylor & Heynen, 1987; Beaver & Crisman, 1989; James et al., 1995; Weisse & Müller, 1998; Foissner et al., 1999; Callieri & Bertoni, 1999; Callieri et al., 2002; Carrick, 2005; Macek et al., 2006). Although the annual–average ciliate abundances varied nearly two–fold, the ciliate dynamics apparently followed a similar annual pattern.

Generally, the highest ciliate abundances (>10 cells ml^–1) were found during the late stratification period (mainly scutico–ciliates) while the ciliates were scarce during the mixing period (December through February); local maxima were observed in the stratification onset in May 2004 as the result of the attached peritrichous ciliate peak in the epilimnion, during the Nodularia sp. bloom.

Such dynamics differed from the known patterns in template dimictic water bodies, where ciliate maxima were generally concentrated to the metalimnion, reflecting either spring (following mixing) or summer phytoplankton peak in the epilimnion (e.g., Carrick, 2005; Macek et al., 1994; Simek et al., 1990, 1995; Weisse & Müller, 1998). Numerically, free–swimming either omnivorous or algivorous ciliates, followed by peritrichs dominated.

In Alchichica, low ciliate abundances during the mixing period coincided with increasing APP numbers throughout the water column. During this period, the contribution of the different ciliate groups was distributed only within peritrichs and spirotrichs. The lake mixing was followed by the important peritrichous ciliate peak whenever the ciliates found sufficient abundance of phytoplankters to be colonised: filamentous cyanobacteria Nodularia sp. and/or diatoms Cyclotella alchichicana throughout the water column, and Chaetoceros elmorei Boyer mainly in the thermocline. Rhabdostyla sp. and unidentified minute Vorticella sp. contributed for about 25% and 20% as a sampling mean in numbers and biomass, respectively. Typical pelagic colonial peritrichous genera such as Epistylis or Zoothamnium from oligotrophic–mesotrophic environment (Macek et al., 1994; Müller et al., 1991; Salbrechter & Arndt, 1994; Foissner et al., 1999) were not found; however, Pelagovorticella natans and Vorticella aquadulcis complex were observed throughout the water column penetrating below the oxycline. The contribution of peritrichs to the total biomass was very high (compare, Macek et al., 1994, 2000; Lugo et al., 1998 with Salbrechter & Arndt, 1994; Weisse & Müller, 1998; Wille et al., 1999; Callieri et al., 2002, Macek, 2002; Macek et al., 2006).

The dominance of peritrichs, spirotrichs and scuticociliates was found a common feature in freshwater systems and marine environments (e.g., James et al., 1995; Simek et al., 1995). Minute (< 20 µm) picoplanktivorous heterotrophic spirotrichs such as oligotrichs (Rimostrombidium brachykinetum Krainer, 1995 and R. humile Petz and Foissner, 1992) and stichotrichs (Halteria spp.) dominated within bacterivorous ciliates in freshwater environments, at least during summer stratification period (Simek et al., 2000; Carrick 2005). Additionally, the peaks of H. grandinella and Halteria sp. have frequently been located at the food–rich and/or above bottom–layers (Foissner et al., 1999; Macek, 2002; Macek et al., 1996; Salbrechter & Arndt, 1994; Simek et al., 1995, 1996, 2000; Stabell, 1996; Weisse & Müller, 1998).

The predominance of large mixotrophic, fine– to coarse filter feeding ciliates was reported for oligotrophic lakes and coastal waters (Beaver & Crisman, 1989; Simek et al., 1996; Macek et al., 2001, 2006). Large oligotrichs (like Rimostrombidium lacustris Petz and Foissner, 1992 or a mixotrophic R. velox Jankowski, 1978) were found in lakes with a well–distinguished pelagic zone (cf., Taylor & Heynen; 1987; Müller et al., 1991; Salbrechter & Arndt, 1994; Weisse & Müller, 1998) but they were rather scarce in Alchichica. On the other hand, during the late stratification period, the peak of microaerobic/anoxic and/or mixotrophic species were found. The distribution of mixotrophic Euplotes cf. daidaleos and Pelagothrix sp. followed on a very fine way the oxygen depletion below the thermocline, which dropped down 30 m. Euplotes cf. daidaleos f requently dominated in the oxycline while Pelagothrix sp. was repeatedly observed in low numbers throughout the water column. Its occurrence in anoxic water layers with sufficient light was in concordance with published data on the role of its symbionts in the ciliate distribution (Berninger et al., 1986; Finlay et al., 1996; Foissner et al., 1999). A mixotrophy might support its growth in nearly anoxic environment such as it was observed either for prostomes (Finlay et al., 1996) or strombidiids (Macek et al., 2001); however, during August (2006), Euplotes sp. was found without an apparent presence of zoochlorelae.

Bacterial abundance in Alchichica was high enough to maintain the populations of scuticociliates (Pestová et al., 2008). Scuticociliates were typically connected with phytoplankton decay (Müller et al., 1991; Simek et al., 1995, 1996) following the summer peak, even though they were also found in very low numbers in the water column in the above timberline lakes (cf., Weisse & Müller, 1998; Callieri & Bertoni, 1999; Wille et al., 1999; Macek et al., 2002, 2006). In Alchichica, apparently, their peaks did not directly follow phytoplankton maxima, measured by Chl a, but could be related to the phytoplankton decay. Particularly, Cinetochilum margaritaceum was observed above the thermocline, Uronema nigricans around the oxycline meanwhile Cyclidium and related genera penetrated into the anoxic hypolimnion. It is in concordance with data by Bernard & Fenchel (1996), which proved that Uronema marina (synonymic with U. nigricans) was not able to grow without the oxygen. A minute Isocyclidium globosum found at the lake floor, covered with symbiotic bacteria (Fig. 6f) , had been first reported in a karstic lake (Esteban et al., 1993).

Other anaerobic ciliates, particularly Trimyema sp. and Caenomorpha sp. were less important even though they dominated at the lake floor occasionally. Due to a peculiar quality of anoxic water in Alchichica, we are lacking good protargol impregnated preparations but we could observe fluorescence of bacterial / archaeal symbionts of Caenomorpha sp. (Fig. 6d). Large anaerobic ciliates such as genera Loxodes or Spirostomum, were not found (Guhl & Finlay 1993; Macek et al., 1994, 2000).

Raptorial haptorids could be found frequently in oligotrophic waters (Lugo et al., 1998; Macek et al., 1994, 2000); also in Alchichica, we found regularly the heterotrophic gymnostomes Mesodinium acarus and Monodinium sp. (Fig. 4e) throughout the year but normally in low numbers. Other gymnostomes were present in elevated numbers, particularly Belonophrya pelagica (Fig. 4b–d) or biomass, particularly Phialina sp. (Fig. 4a).

Among undoubtedly algivorous species, only prostomes of the genus Prorodon were found in Alchichica but in negligible frequency. In comparison with other reported data, Balanion planctonicum Foissner, Berger and Kohmann, 1994 and Histiobalantium spp. that are typical for oligo– to mesotrophic low–alkaline environments (Müller et al., 1991; Salbrechter & Arndt 1994; Simek et al., 1995; Macek et al., 1996; Weisse & Müller 1998; Wille et al., 1999) were not found.



ACKNOWLEDGEMENTS

Research was granted to M. Macek as the grant UNAM DGPA/PAPIIT IN208502 and IN207206, internal FES UNAM grant PAPCA and to D. Pestová as a scholarship of Foreign Affairs Secretary of United States of Mexico. The research would have been impossible without the collaboration within the Alchichica investigating team and CONACYT projects 34893–T and 41167, granted to Dr. Javier Alcocer Durand to whom we thank for providing physical–chemical data. For sampling, we thank in particular to MSc. Laura Peralta Soriano and MSc. Luis A. Oseguera Pérez.



REFERENCES

Adl, S. M., A. G. B. Simpson, M. B. Farmer, R. A. Andersen, R. O Anderson, J. R. Barta, S. S. Bowser, G. Brugerolle, R. A. Fensome, S. Fredericq, T. Y. James, S. Karpov, P. Kugrens, J. Krug, C. E. Lane, L. A. Lewis, J. Lodge, D. H. Lynn, D. G. Mann, R. M. McCourt, L Mendoza, Ø. Moestrup, S. E. Mozley–Standridge, T. A. Nerad, C. A. Shearer, A. V. Smirnov, F. W. Spiegelz & M. F. J. R. Taylor. 2005. The new higher level classification of eukaryotes with emphasis on the taxonomy of protists. Journal of Eukaryotic Microbiology 52: 399–451.        [ Links ]

Azam, F., T. Fenchel, J. G. Field, J. S. Gray, L A. Meyer–Reil, & F. Thingsstad. 1983. The ecological role of water–column microbes in the sea. Marine Ecology–Progress Series 10: 257–263.        [ Links ]

Beaver, J. R. & T. L. Crisman. 1989. The role of ciliated protozoa in pelagic freshwater ecosystems. Microbial Ecology 17: 111–136.        [ Links ]

Bernard, C. & T. Fenchel. 1996. Some microaerobic ciliates are facultative anaerobes. European Journal of Protistology 32: 293–297.        [ Links ]

Berninger, U. G., B. J. Finlay & H. M. Canter. 1986. The spatial distribution and ecology of zoochlorellae–bearing ciliates in a productive pond. Journal of Protozoology 33: 557–563.        [ Links ]

Callieri, C. & R. Bertoni. 1999. Organic carbon and microbial food web assemblages in an oligotrophic alpine lake. In: Straskrabová, V., C. Callieri & J. Fott (eds.): Pelagic food web in mountain lakes. Mountain lakes Research Program. Journal of Limnology 58: 136–143.        [ Links ]

Callieri, C., S. M. Karjalainen & S. Passoni. 2002. Grazing by ciliates and heterotrophic nanoflagellates on picocyanobacteria in Lago Maggiore, Italy. Journal of Plankton Research 8: 785–796.        [ Links ]

Callieri C. & J. G. Stockner. 2002. Freshwater autotrophic picoplankton. A review. Journal of Limnology 61: 1–14.        [ Links ]

Carrick, H. J. 2005. An under–appreciated component of biodiversity in plankton communities: the role of protozoa in Lake Michigan (a case study). Hydrobiologia 551: 17–32.        [ Links ]

Decamp, O. & A. Warren. 1997. Observations on the morphology of Caenomorpha uniserialis Levander, 1894 (Ciliophora, Heterotrichida) isolated from a wastewater treatment plant. Acta Protozoologica 36: 105–110.        [ Links ]

Esteban, G., B. E. Guhl, K. J. Clarke, T. M. Embley & B. J. Finlay. 1993. Cyclidium porcatum n. sp.: a free–living anaerobic scuticociliate containing a stable complex of hydrogenosomes, Eubacteria and Archeobacteria. European Journal of Protistology 29: 262–270.        [ Links ]

Fenchel, T. & B. J. Finlay. 1995. Ecology and evolution in anoxic worlds. Oxford University Press. 294 P.        [ Links ]

Fenchel, T., L. D. Kristensen & L. Rasmussen. 1990. Water column anoxia: vertical zonation of planktonic protozoa. Marine Ecology – Progress Series 62: 1–10.        [ Links ]

Filonov, A., I. Tereshchenko & J. Alcocer. 2006. Dynamic response to mountain breeze circulation in Alchichica, a crater lake in Mexico. Geophysical Research Letters 33, L07404, doi:10.1029/ 2006GL025901.        [ Links ]

Finlay, B. J., A. S. W. Span & J. M. P. Harman. 1983. Nitrate respiration in primitive eukaryotes. Nature 303: 333–336.        [ Links ]

Finlay, B. J., S. C. Maberly & G. F. Esteban. 1996. Spectacular abundance of ciliates in anoxic pond water: Contribution of symbiont photosynthesis to host respiratory oxygen requirements. FEMS Microbiology Ecology 20: 229–235.        [ Links ]

Foissner, W., H. Berger & J. Schaumburg. 1999. Identification and ecology of limnetic plankton ciliates. Informationsberichte des Bayerische Landesamtes für Wasserwirtschaft, Heft 3/99.        [ Links ]

Foissner, W., H. Berger, & F. Kohmann. 1992. Taxonomische und ökologische revision der Ciliaten des Saprobiensystems – Band II. Peritrichia, Heterotrichida, Odontostomatida. Informationsberichte des Bayerische Landesamtes für Wasserwirtschaft, Heft 5/92.        [ Links ]

Foissner, W., H. Blatterer, H. Berger & F. Kohmann. 1995. Taxonomische und ökologische revision der Ciliaten des Saprobiensystems – Band IV. Gymnostomatea, Loxodes, Suctoria. Informationsberichte des Bayerische Landesamtes für Wasserwirtschaft, Heft 1/95.        [ Links ]

Gates, M. A. 1984. Quantitative importance of ciliates in the planktonic biomass of lake ecosystems. Hydrobiologia 108: 233–238.        [ Links ]

Guhl, B. E. & B.J. Finlay. 1993. Anaerobic predatory ciliates track seasonal migrations of planktonic photosynthetic bacteria. FEMS Microbiology Letters 107: 313–316.        [ Links ]

James, M. R., C. W. Burns & D. J. Forsyth. 1995. Pelagic ciliated protozoa in two monomictic, southern template lakes of contrasting trophic state: seasonal distribution and abundance. Journal of Plankton Research 17: 1479–1500.        [ Links ]

Lugo, A., J. Alcocer, M. R. Sánchez & E. Escobar. 1998. Littoral protozoan assemblages from two Mexican hyposaline lakes. Hydrobiologia 381: 9–13.        [ Links ]

Macek, M. 2002. Annual and spatial distribution of the ciliates in lakes of the Bohemian Forest. Silva Gabreta 8_: 95–108.        [ Links ]

Macek, M., A. Lugo–V. & G. Vilaclara–F. 2000. Pelagic ciliate assemblage of high–altitude Lake Atexcac (Puebla, México). In: Munawar, M., S.G. Lawrence, I. F. Munawar & D. F. Malley (Eds.): Aquatic ecosystems of Mexico: Status and scope. Ecovision World Monograph Series. Backhuys Publishers b.v., Netherlands, pp. 45–59.        [ Links ]

Macek, M., K. Simek, J. Pernthaler, V. Vyhnálek & R. Psenner. 1996. Growth rates of dominant planktonic ciliates in two freshwater bodies of different trophic degree. Journal of Plankton Research 18: 463–481.        [ Links ]

Macek, M., K. Simek & T. Bittl. 2001. Conspicuous oligotrichs' peak following winter stratification in a bog lake. Journal of Plankton Research 23: 353–363.        [ Links ]

Macek, M., G. Vilaclara A. Lugo. 1994. Changes in protozoan assemblage structure and activity in a stratified tropical lake. Marine Microbial Food Webs 8: 235–249.        [ Links ]

Macek, M., C. Callieri, K. Simek & A. Lugo Vazquéz. 2006. Seasonal dynamics, composition and feeding patterns of ciliate assemblages in oligotrophic lakes covering a wide pH range. Archiv für Hydrobiologie 166: 261–287.        [ Links ]

Montagnes, D. J. S. & D.H. Lynn. 1987. A quantitative protargol staining (QPS) for ciliates: method description and test of its quantitative nature. Marine Microbial Food Webs 2: 83–93.        [ Links ]

Müller, H. 1989. The relative importance of different ciliate taxa in the pelagic food web of Lake Constance. Microbial Ecology 18: 261–274.        [ Links ]

Müller, H., A. Schöne, R. M., Pinto–Coelho, A. Schweizer & T. Weisse. 1991. Seasonal succession of ciliates in Lake Constance. Microbial Ecology 21: 119–138.        [ Links ]

Pace, M. L. 1982. Planktonic ciliates: Their distribution, abundance and relationship to microbial resources in a monomictic lake. Canadian Journal of Fishery and Aquatic Sciences 39: 1106–1116.        [ Links ]

Pestová, D., M. Macek, M. E. Martínez Pérez. 2008: Ciliates and their picophytoplankton–feeding activity in warm–monomictic saline lake. European Journal of Protistology 44: 13–25.        [ Links ]

Porter, K. G. & Y. S. Feig. 1980. The use of DAPI for identifying and counting aquatic microflora. Limnology and Oceanography 25: 943–948.        [ Links ]

Salbrechter, M. & H. Arndt. 1994. The annual cycle of protozoo–plankton in the alpine, mesotrophic Lake Mondsee (Austria). Marine Microbial Food Webs 8: 217–234.        [ Links ]

Sherr, E. B. & B. F. Sherr. 1993. Protistan grazing rates via uptake of fluorescently labeled prey. In Kemp, P., B. Sherr, E. Sherr & j. Cole J. (Eds.): Handbook of Methods in Aquatic Microbial Ecology. Lewis Publishers, Boca Raton, pp. 695–701.        [ Links ]

Sherr, E. B., B. F. Sherr, T. Berman, & O. Hadas. 1991. High abundance of picoplankton–ingesting ciliates during late fall in Lake Kinneret, Israel. Journal of Plankton Research 13: 789–799.        [ Links ]

Simek, K., J. Bobková, M. Macek, J. Nedoma & R. Psenner. 1995. Ciliate grazing on picoplankton in a eutrophic reservoir during the summer phytoplankton maximum: a study at the species and community level. Limnology and Oceanography 40: 1077–1090.        [ Links ]

Simek, K., M. Macek, J. Seda & V. Vyhnálek. 1990. Possible food chain relationships between bacterioplankton, protozoans and cladocerans in a reservoir. Internationale Revue der gesamten Hydrobiologie 75: 583–596.        [ Links ]

Simek, K., M. Macek, V. Straskrabová, J. Pernthaler & R. Psenner. 1996. Can pelagic ciliates survive on a diet of picoplankton? Journal of Plankton Research 18: 597–613.        [ Links ]

Simek, K., K. Jürgens, J. Nedoma, M. Comerma & J. Armengol. 2000. Ecological role and bacterial grazing of Halteria spp.: small freshwater oligotrichs as dominant pelagic ciliate bacterivores. Aquatic Microbial Ecology 22: 43–56.        [ Links ]

Skibbe, O. 1994. An improved quantitative protargol stain for ciliates and other planktonic protists. Archiv für Hydrobiologie 130: 339–347.        [ Links ]

Stabell, T. 1996. Ciliate bacterivory in epilimnetic waters. Aquatic Microbial Ecology10: 265–272.        [ Links ]

Straskrabová, V., C. Callieri, L Cruz–Pizarro, P. Hartman, M. Macek, J. Nedoma & K. Simek. 1999. Investigations on microbial food webs in mountain lakes – aims and methods. In: Straskrabová, V., C. Callieri & J. Fott (eds.): Pelagic food web in mountain lakes. MOuntain LAkes Research Program. Journal of Limnology 58: 77–87.        [ Links ]

Taylor, W. D. & M. L. Heynen. 1987. Seasonal and vertical distribution of Ciliophora in Lake Ontario. Canadian Journal of Fishery and Aquatic Sciences 44: 2185–2191.        [ Links ]

Van Hoek, A. H. A. M., T. A. Van Alen, V. S. I. Sprakel, J. A. M. Leunissen, T. Brigge, G.D. Vogels & J.H.P. Hackstein. 2000. Multiple acquisition of methanogenic archaeal symbionts by anaerobic ciliates. Molecular Biology and Evolution 17: 251–258.        [ Links ]

Weisse, T. & H. Müller. 1998. Planktonic protozoa and the microbial food web in Lake Constance. Archiv für Hydrobiologie, Special Issue Advanced Limnology 53:223–254.        [ Links ]

Weisse, T., H. Müller, R. M. Pinto–Coelho, A. Schweizer, D. Springman & G. Baldringer. 1990. Response of the microbial loop to the phytoplankton spring bloom in a large prealpine lake. Limnology and Oceanography 35: 781–794.        [ Links ]

Wille, A., B. Sonntag, B. Sattler & R. Psenner. 1999. Abundance, biomass and size structure of the microbial assemblage in the high mountain lake Gossenköllesee (Tyrol, Austria) during the ice–free period. Journal of Limnology 58: 117–126.        [ Links ]
