SYNTHESIS AND CHARACTERIZATION OF CALCIUM HYDROXIDE OBTAINED FROM AGAVE BAGASSE AND INVESTIGATION OF ITS ANTIBACTERIAL ACTIVITY

SÍNTESIS Y CARACTERIZACIÓN DE HIDROXIDO DE CALCIO A PARTIR DE BAGAZO DE AGAVE: ESTUDIO DE PROPIEDADES ANTIBACTERIALES

Leonardo Chávez Guerrero1  *

Javier Garza-Cervantes2

Diana Caballero-Hernández3

Rodrigo González-López4

Selene Sepúlveda-Guzmán1

Elena Cantú-Cárdenas2

1Facultad de Ingeniería Mecánica y Eléctrica, Universidad Autónoma de Nuevo León. Pedro de Alba, Ciudad Universitaria, San Nicolás de los Garza, Nuevo León, México, C. P. 66455

2Facultad de Ciencias Químicas, Universidad Autónoma de Nuevo León. Pedro de Alba, Ciudad Universitaria, San Nicolás de los Garza, Nuevo León, México, C. P. 66455

3Facultad de Ciencias Biológicas, Universidad Autónoma de Nuevo León. Pedro de Alba, Ciudad Universitaria, San Nicolás de los Garza, Nuevo León, México, C. P. 66455

4Facultad de Ingeniería Civil, Universidad Autónoma de Nuevo León. Pedro de Alba, Ciudad Universitaria, San Nicolás de los Garza, Nuevo León, México, C. P. 66455

ABSTRACT

Calcium hydroxide (Ca(OH)2) is recognized as an efficient bactericide and is widely applied as a root canal filler in endodontic treatment. Ca(OH)2 is mainly produced by hydration of calcium oxide (CaO), a product of the thermal decomposition of calcium carbonate (CaCO3) from sources such as limestone. In this work, calcium hydroxide particles were synthetized by the thermochemical transformation of waste biomass from the tequila industry. Agave biomass processed at 600 °C was composed mostly of calcium carbonate (CaCO3), while calcination at 900 °C followed by hydration produced Ca(OH)2. The morphology and crystalline nature of the Ca(OH)2 particles were characterized by micro-Raman spectroscopy, scanning electron microscopy and X-ray diffraction analysis. Bactericidal activity of synthesized calcium hydroxide was evaluated with the agar diffusion assay. Our results provide evidence that Ca(OH)2 obtained from agave biomass is an effective bactericidal against Escherichia coli and Enterococcus faecalis. Biomass from agave is available in Mexico and the rest of the American continent, the use of processed bagasse for medical applications could provide a venue for the useful disposition of industrial waste.

Key words: renewable resources; ash; bactericide; Ca(OH)2

RESUMEN

El hidróxido de calcio (Ca(OH)2) es reconocido como un eficiente bactericida y es ampliamente utilizado como relleno de la raíz dental en tratamientos de endodoncia. El Ca(OH)2 es producido por la hidratación del óxido de calcio (CaO), un producto de la descomposición térmica del carbonato de calcio (CaCO3), obtenido principalmente de piedra caliza. En el presente trabajo, se sintetizaron partículas de hidróxido de calcio mediante la descomposición térmica de biomasa residual de la industria tequilera. La biomasa de agave se procesó a 600 °C, la cual se compone principalmente de carbonato de calcio (CaCO3), por lo que su calcinación a 900 °C y posterior hidratación producen el Ca(OH)2. La morfología y cristalinidad de las partículas de Ca(OH)2 se caracterizaron mediante el uso de espectroscopía Raman, microscopio electrónico de barrido y difracción de rayos X. La actividad bactericida del hidróxido de calcio obtenido, se evaluó mediante el ensayo de difusión en agar. Los resultados proveen evidencia de la efectividad del Ca(OH)2, obtenido de la biomasa de agave, contra Escherichia coli y Enterococcus faecalis. La biomasa de agave se encuentra ampliamente disponible en México y el resto del continente americano, por lo que el uso de bagazo de agave procesado en aplicaciones médicas, puede proveer una alternativa en la disposición y el uso de residuos agroindustriales.

Palabras clave: recursos renovables; ceniza; bactericida; Ca(OH)2

INTRODUCTION

Biomass harvest from semi-arid lands is a very promising source of supplies (Reynolds 2007), leaving cultivable lands focused on food production (Ragauskas et al. 2006). Xerophyte Agavaceae plants like Agave tequilana, are used as source of food, fibers, energy and spirit beverages such as tequila and mescal (Dalton 2005, López-Alvarez et al. 2012). The 300 known Agave species are all native from the American continent where 7500 years ago, agave fibers were used by ancient humans to make footwear (Kuttruff et al. 1998). More recently, the early 90’s witnessed an increase in the popularity of tequila around the world, becoming an attractive industry, not only for Mexican but also for foreign investors. The production of alcoholic beverages from Agave typically follows five steps: cooking, milling, fermenting, distilling and ageing (Martínez-Gutiérrez et al. 2015). As result, every year the tequila industry produces high volumes of bagasse, vinasse and CO2 as byproducts of small economical value (Robles-González et al. 2012). The traditional practices for the management and disposal of bagasse waste, involve sun drying the bagasse, followed by incineration for volume reduction. This produces large quantities of ash with a narrow chemical composition, dependent of the soil mineral composition where the agave is grown, and with potential for further exploitation (Bashan et al. 2006). Addressing this situation, several applications have been developed to take benefit from the agave bagasse, such as fuel (Chávez-Guerrero and Hinojosa 2010), in papermaking (Idarraga et al. 1999), fertilizer or compost (Martínez-Gutiérrez et al. 2013, Rodríguez et al. 2013), and a renewable source of calcium compounds like CaCO3 and Ca(OH)2 (Chávez-Guerrero et al. 2010). In particular, Ca(OH)2 has a wide range of applications. For instance it has been long used as a component in cement (González-López et al. 2015) and more recently as antifungal (Gómez-Ortíz et al. 2013) and bactericidal filling of root canals in endodontic treatment (Gomes et al. 2006) as many other common applications such as food additives and a material source for the production of pulp and steel.

The aim of this work is to provide evidence of the potential use of processed agave biomass waste from the tequila industry as a bactericidal agent against pathogenic bacteria such as Escherichia coli and Enterococcus faecalis. As well as to introduce a renewable source of Ca(OH)2 from agave bagasse, presenting an alternative source of this compound, with the potential to diminish the ecological impact of the tequila industry.

MATERIALS AND METHODS

The agave bagasse was dried at 120 °C for 2 h, then placed into an alumina crucible and heated at 600 °C for 2 h using a Thermolyne furnace to obtain ash, this sample was labeled ash 600. The ash was then heated at 900 °C for 5 h. In the next step, the ash was poured into deionized water and stirred in an ultrasonic bath for 10 min. The samples were left to dry at 100 °C for 5 h, the resulting sample was labeled ash 900. All samples were obtained in triplicate. Analytical grade Ca(OH)2 (Sigma-Aldrich), henceforth identified as commercial, was used as standard to compare the microstructure and bactericidal activity of the analyzed samples. The morphology and composition of the samples were determined using a FEI Scanning electron microscope (SEM) model XL30 with a Schottky field emitter gun (SFEG) with an energy dispersive X-ray microanalysis system and an acceleration voltage of 10 kV. All powders were analyzed by X-ray diffraction (XRD) in a D8 Advance Bruker powder diffractometer. The diffractogram patterns were collected from 2q = 10-60° using a Cu Kα radiation (λ = 1.5406 Å). Raman microspectrometry measurements were recorded at room temperature using a Thermo Scientific DXR Raman microscope with a 532 nm laser excitation. In order to test the compounds efficacy to inhibit microbial growth, an agar diffusion assay was carried on. Two bacteria were tested, Escherichia coli, ATCC 25922 (American Type Culture Collection, Rockville, MD) and Estreptoccocus faecalis, ATCC 29212. E. coli is a Gram-negative, facultative anaerobium, rod shaped bacteria, while E. faecalis is a non-motile, Gram-positive, facultative anaerobic microbe. Assay cultures were prepared by subculture in trypticase soy broth (Merck), culture purity was monitored by microscopy observation. Two hundred µL of culture or a ten-fold dilution were inoculated with a sterile bacterial spreader and smeared in the surface of Muller-Hinton agar plates (Bioxon). Approximately 10 µL of paste, made by mixing each sample with a small volume of water, was placed in equidistant positions in the agar surface. The plates were incubated at 37 °C for 24 h and later examined for inhibition halos surrounding the compounds. All tests were performed in triplicate for each microorganism.

RESULTS AND DISCUSSION

In figure 1 (a), the X-ray results show the main compounds present in the three analyzed samples. For ash 600, the resulting XRD pattern shows the reflection peaks assigned to calcium carbonate (▲). In the case of ash 900, the XRD pattern (Fig. 1c) is associated with the hexagonal crystalline shape of calcium hydroxide.

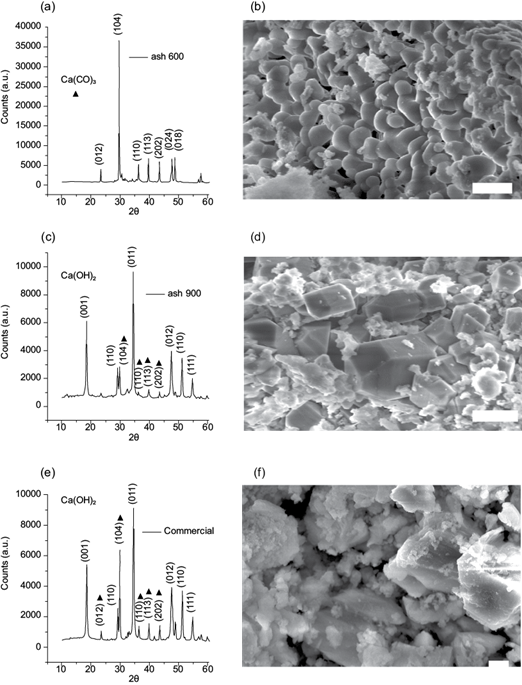

Fig. 1 Diffractogram patterns of the samples and scanning electron microscope images showing the morphology of (a-b) ash 600, (c-d) ash 900 and (e-f) commercial sample. Scale bar 2 µm. a. u. = arbitrary units

Theoretically, it would be expected for both ash 900 and commercial samples to match the profile available for comparison in the public database (PDF 00-004-0636). However, according to the results, the samples were composed of a combination of calcium hydroxide and calcium carbonate (Fig. 1e). It could be argued that CO2 was adsorbed by the samples during air exposure, resulting in a partial carbonation of the sample. In support of this explanation, a peak observed at 28.5 °C (unexpected for a calcium hydroxide sample) can be attributed to the repeated exposure of the reactive grade powder to the CO2 in the environment, once the container has been opened, producing a partial carbonation of the sample. Equation 1 represents the reaction occurring to CaCO3 (ash) during the heating process. In this process, 56 % (w/w) of the ashes remain as calcium oxide, then by burning 1000 kg of ash approximately 560 kg of CaO could be produced, leaving the total net CO2 emissions unaffected (Chávez-Guerrero et al. 2010).

(1)

Equation 2 represents the intermediate exothermic reaction to obtain calcium hydroxide, where lime is mixed with water to obtain Ca(OH)2. The treatment of 560 kg of CaO with water would produce 740 kg of calcium hydroxide. Equation 3 represents the carbonation of calcium hydroxide, which occurs spontaneously in the presence of CO2. Equation 3 thus, represents the behavior exhibited by the ash 900 and commercial sample, which exposure to environmental CO2 produced calcium carbonate, this was also suggested by the XRD results, shown in figure 1.

(2)

(3)

In figure 1b the original structure of the Agave fibers can still be discerned with small semicircular particles, while in ash 900 hexagonal crystals, characteristic of Ca(OH)2 can be observed (Fig. 1d). In figure 1f the commercial sample shows irregular particle shapes, this might be attributed to the use of grinded limestone during the production process of Ca(OH)2. Even if unexpected, the presence of CaCO3 in the bagasse, can be explained by plant physiology, plants are able to break and solubilize rock by excreting acidic compounds in root exudates (Bashan et al. 2006). This mechanism is used to obtain minerals from poor soils, providing an alternative source of nutrients. As such, this natural occurring mechanism could be exploited for the extraction of several compounds of economic interest, once the biomass has been used in the tequila manufacturing process.

Figure 2 shows the Raman spectra of ash 600 displaying the four characteristic peaks of CaCO3, while for the spectrum of ash 900, besides the expected peaks (Table I), displays an additional peak at 358 cm-1, suggesting the presence of hydrated lime (Tlili et al. 2002, Schotsmans et al. 2014). The Raman spectra of the commercial sample shows identical peaks to those obtained for Ca(OH)2. As it can be observed in the XRD patterns, both ash 900 and commercial samples contain a mixture of Ca(OH)2 and CaCO3, even though the peaks in the Raman spectra are similar in the samples of CaCO3 and Ca(OH)2. The explanation for this peak at 358 cm-1 is the presence of hydrated lime. Calculating the relative intensity (I/Io) of the peak associated to the hydrated lime (358 cm-1), it is possible to study the carbonation of Ca(OH)2 samples as shown in table I.

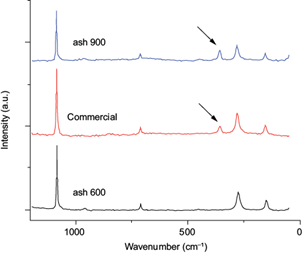

Fig. 2 Raman spectra of the three samples studied. The arrow indicates the peak at 358 cm-1. a.u. = arbitrary units

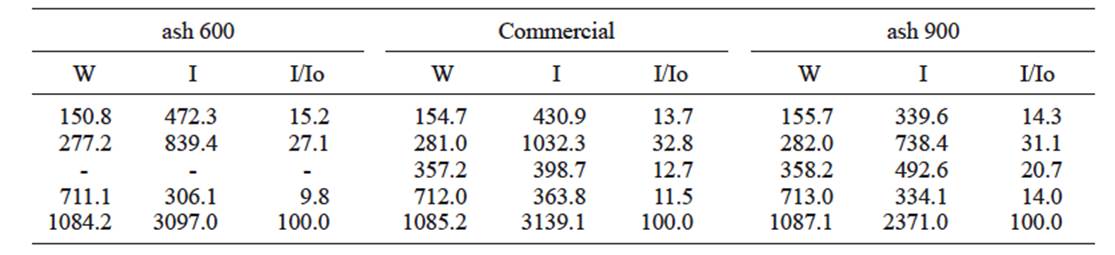

Table I Vibrational wavenumber (cm-1), intensities in arbitrary units and relative intensity (%), with dispersive Raman spectroscopy at 532 nm excitation

W = wavenumber I/Io = relative intensity I = intensity

Table I shows the relative intensity (I/Io) of the analysis, where both commercial sample and ash 900 exhibit the 358 cm-1 peak. It can be seen that the relative intensity is 12.7 % (I/Io=(398.7/3139.1)×100) for the commercial sample and 20.7 % (I/Io=(339.6/2371.0)×100) for ash 900, indicating a lower carbonation of the sample obtained from the agave bagasse (Schotsmans et al. 2014), something that can be corroborated by the XRD results and SEM images shown in figure 1. These differences in the carbonation degree between ash 900 and commercial sample might be attributed to a longer exposure of Ca(OH)2 to the environment, unlike ash 900, synthetized from CaO just a few hours before all the tests were performed. These observations suggest that Ca(OH)2 must be synthesized just before its application as bactericidal agent for maximum efficacy, thus avoiding the creation of CaCO3, which lacks antibacterial properties.

For the agar diffusion assay, after a 24 h incubation, E. coli and E. faecalis were observed covering the agar plate surface, displaying inhibition halos surrounding both samples of Ca(OH)2 ash 900 and commercial sample, while no effect was observed for calcium carbonate (ash 600), as it can be seen in figure 3a-b. In figure 3b, an amplification of the inhibition halo is presented. For E. faecalis, the width of the halo is about the same for commercial sample (1.7 mm) and ash 900 (2.1 mm), respectively. The ash 600 sample did not show an effect on bacterial growth, excluding the possibility of an inherent bactericidal activity of unprocessed ash.

Fig. 3 a) Agar diffusion assay showing inhibition halos surrounding ash 900 and commercial sample, b) Halos seen under the optical microscope at 8x. Scale bar 2 mm

In the case of E. coli, the inhibition halo width is very similar for ash 900 (1.9 mm) and commercial sample (2.1 mm). Nevertheless, halo size is not the main factor to consider for most of the potential applications, since the putative mechanisms for Ca(OH)2 bactericidal activity are contact-mediated.

CONCLUSIONS

The successful synthesis of calcium hydroxide using bagasse produced by the tequila industry was demonstrated by the XRD and the Raman spectroscopy analysis. According to the results, it can be concluded that Ca(OH)2 obtained by the thermochemical transformation of Agave bagasse harvested from semi-arid lands, exhibits antimicrobial activity against E. coli and E. faecalis, two pathogenic microorganisms of relevance. The synthesis of Ca(OH)2 from Agave bagasse and its antimicrobial activity provide evidence to support the continuous use of industrial byproducts.

Most importantly, biomass from Agave is abundantly available in Mexico, and the use of processed bagasse for medical applications could provide a venue for the useful disposition of industrial waste with an added value to the environment. Future work will focus on determining the extent of the bactericidal properties of Ca(OH)2 obtained from Agave bagasse. These properties will be tested against commercial Ca(OH)2, over longer periods of time and a battery of several pathogenic bacteria using solid and liquid media.

ACKNOWLEDGMENTS

To Programa de Apoyo a la Investigación Científica y Tecnológica, project IT465-15. To Centro de Innovación, Investigación y Desarrollo en Ingeniería y Tecnología and Facultad de Ingeniería Mecánica y Eléctrica. To Universidad Autónoma de Nuevo León.

REFERENCES

Bashan Y., Vierheilig H., Salazar B. and de-Bashan L. (2006). Primary colonization and breakdown of igneous rocks by endemic, succulent elephant trees (Pachycormus discolor) of the deserts in Baja California, Mexico. Naturwissenschaften 93 (7), 344-347. DOI: 10.1007/s00114-006-0111-4 [ Links ]

Chávez-Guerrero L. and Hinojosa M. (2010). Bagasse from the mezcal industry as an alternative renewable energy produced in arid lands. Fuel 89 (12), 4049-4052. DOI: 10.1016/j.fuel.2010.07.026 [ Links ]

Chávez-Guerrero L., Flores J. and Kharissov B. (2010). Recycling of ash from mezcal industry: A renewable source of lime. Chemosphere 81 (5), 633-638. DOI: 10.1016/j.chemosphere.2010.08.042 [ Links ]

Dalton R. (2005). Alcohol and science: Saving the agave. Nature 438, 1070-1071. DOI: 10.1038/4381070a [ Links ]

Gomes B.P., Vianna M.E., Sena N.T., Zaia A.A., Ferraz C.C. and de Souza Filho F.J. (2006). In vitro evaluation of the antimicrobial activity of calcium hydroxide combined with chlorhexidine gel used as intracanal medicament. Oral Surg. Oral Med. Oral Pathol. Oral Radio Endod. 102 (4), 544-550. DOI: 10.1016/j.tripleo.2006.04.010 [ Links ]

Gómez-Ortíz N., De la Rosa-García S., González-Gómez W., Soria-Castro M., Quintana P., Oskam G. and Ortega-Morales B. (2013). Antifungal coatings based on Ca(OH)2 mixed with ZnO/TiO2 nanomaterials for protection of limestone monuments. Appl. Mater. Interfaces 5 (5), 1556-1565. DOI: 10.1021/am302783h [ Links ]

González-López J., Ramos-Lara J., Zaldivar-Cadena A., Chávez-Guerrero L. , Magallanes-Rivera R. and Burciaga-Díaz O. (2015). Small addition effect of agave biomass ashes in cement mortars. Fuel Process. Technol. 133, 35-42. DOI: 10.1016/j.fuproc.2014.12.041 [ Links ]

Idarraga G., Ramos J., Zuñiga V., Sahin T. and Young R. (1999). Pulp and paper from blue agave waste from tequila production. J. Agric. Food Chem. 47 (10), 4450-4455. DOI: 10.1021/jf990045n [ Links ]

Kuttruff J. T., DeHart S.G. and O’Brien M.J. (1998). 7500 Years of prehistoric footwear from Arnold research cave, Missouri. Science 281 (5373), 72-75. DOI: 10.1126/science.281.5373.72 [ Links ]

López-Alvarez A., Díaz-Pérez A.L., Sosa-Aguirre C., Macías-Rodríguez L. and Campos-García J. (2012). Ethanol yield and volatile compound content in fermentation of agave must by Kluyveromyces marxianus UMPe-1 comparing with Saccharomyces cerevisiae baker’s yeast used in tequila production. J. Biosc. Bioeng. 113 (5), 614-618. DOI: 10.1016/j.jbiosc.2011.12.015 [ Links ]

Martínez Gutiérrez G.A., Íñiguez Covarrubias G., Ortiz-Hernández Y.D., López-Cruz J.Y. and Bautista Cruz A. (2013). Tiempos de apilado del bagazo del maguey mezcalero y su efecto en las propiedades del compost para sustrato de tomate. Rev. Int. Contam. Ambie. 29 (3), 209-2016. [ Links ]

Martínez-Gutiérrez G.A., Ortiz-Hernández Y.D., Aquino-Bolaños T., Bautista-Cruz A. and López-Cruz J.Y. (2015). Properties of Agave angustifolia Haw. bagasse before and after its composting. Com. Sci. 6 (4), 418. DOI: 10.14295/cs.v6i4.800 [ Links ]

Ragauskas A.J., Williams C.K., Davison B.H., Britovsek G, Cairney J., Eckert C.A., Frederick Jr. W.J., Hallett J.P., Leak D.J., Liotta C.L., Mielenz J.R., Murphy R., Templer R. and Tschaplinski T. (2006). The path forward for biofuels and biomaterials. Science 311 (5760), 484-489. DOI: 10.1126/science.1114736 [ Links ]

Reynolds J.F., Smith D.M.S., Lambin E.F., Turner B.L., Mortimore M., Batterbury S.P.J., Dowlatabadi H., Fernández R.J., Herrick J.E., Huber-Sannwald E., Jiang H., Leemans R., Lynam T., Maestre F.T., Ayarza M. and Walker B. (2007). Global desertification: Building a science for dryland development. Science 316 (5826), 847-51. DOI: 10.1126/science.1131634 [ Links ]

Robles-González V., Galíndez-Mayer J., Rinderknecht-Seijas N. and Poggi-Varaldo H. (2012). Treatment of mezcal vinasses: A review. J. Biotechnol. 157 (4), 524-546. DOI: 10.1016/j.jbiotec.2011.09.006 [ Links ]

Rodríguez R., Jiménez J.F., Del Real J.I., Salcedo E., Zamora J.F. and Íñiguez Covarrubias G. (2013). Utilización de subproductos de la industria tequilera. Parte 11. Compostaje de bagazo de agave crudo y biosólidos provenientes de una planta de tratamiento de vinazas tequileras. Rev. Int. Contam. Ambie. 29 (4), 303-313. [ Links ]

Schotsmans E., Wilson A., Brettell R., Munshi T. and Edwards H. (2014). Raman spectroscopy as a non-destructive screening technique for studying white substances from archaeological and forensic burial contexts. J. Raman Spectrosc. 45 (11-12), 1301-1308. DOI: 10.1002/jrs.4526 [ Links ]

Tlili M.M., Amor M.B., Gabrielli C., Joiret S., Maurin G. and Rousseau P. (2002). Characterization of CaCO3 hydrates by micro-Raman spectroscopy. J. Raman Spectrosc. 33 (1), 10-16. DOI: 10.1002/jrs.806 [ Links ]
