Revista mexicana de astronomía y astrofísica

versión impresa ISSN 0185-1101

Rev. mex. astron. astrofis vol.52 no.1 México abr. 2016



The formation mass of a binary system via fragmentation of a rotating parent core with increasing total mass

Guillermo Arreaga-García1

1 Departamento de Investigación en Física, Universidad de Sonora, Sonora, México. (garreaga@cifus.uson.mx)

Abstract:

We present a set of numerical simulations of the gravitational collapse of a uniform and rotating core, in which azimuthal symmetric mass seeds are initially implemented in order to favor the formation of a dense filament, out of which a binary system may be formed by direct fragmentation. We observe that this binary formation process is diminished when the total mass of the parent core M 0 is increased; then we increase the level of the ratio of rotational energy to the gravitational energy, denoted by β, initially supplied to the rotating core, in order to achieve the desired direct fragmentation of the filament. We measure the binary mass M f obtained from an initial M 0 and then show a schematic diagram M 0 vs β, where the desired binary configurations are located. We also report some basic physical data of the fragments.

Key Words: hydrodynamics; methods: numerical; stars: formation

Resumen:

Presentamos un conjunto de simulaciones numéricas del colapso gravitacional de un núcleo uniforme y rotante, en el cual semillas de masa con simetría azimutal se implementan inicialmente con el propósito de favorecer la formación de un filamento denso, a partir del cual un sistema binario se puede formar mediante fragmentación directa. Observamos que este proceso de formación binaria se inhibe cuando la masa total del núcleo progenitor M 0 se incrementa; entonces aumentamos el nivel de la razón de energía rotacional a la energía gravitacional, denotada por β, que se proporciona inicialmente al núcleo rotante con el propósito de lograr la fragmentación directa deseada del filamento. Medimos la masa binaria M f que se obtiene a partir de una masa inicial M 0 y construimos un diagrama esquemático M 0 vs β, en donde las configuraciones binarias deseadas se ubican. También reportamos algunos datos físicos básicos de los fragmentos.

1. INTRODUCTION

The formation of low mass-star binaries is well understood with regard to its basic physical princi ples; (Boden 2011; Stahler & Palla 2004). The essential events of this formation process are the gravitational collapse of cores and their fragmentation during an early evolution stage of the collapsing cores (Reipurth et al. 2002; Duchêne et al. 2004; Girart et al. 2004).

With regard to the theoretical aspect, numerical simulations aimed at reproducing the collapse of rotating cores began to be performed four decades ago. The best known example of isothermal fragmentation during a core collapse was first calculated by Boss & Bodenheimer (1979). This model is now called the "standard isothermal test it has been used for testing new codes and making code comparisons. The outcome of this classic model and of a variant of thereof calculated by Burkert & Bodenheimer (1993) and Bate & Burkert (1997) was a protostellar binary system.

The earliest papers on collapse were largely done with insufficient spatial resolution; see for instance Boss (1991). Therefore, these calculations suffered from artificial fragmentation due to violation of the Jeans condition (Truelove et al. 1997). Nowadays, a new generation of three-dimensional collapse calculations have improved so much in resolution, that they now reveal, in very valuable detail, the formation of a binary system or multiple systems of low mass proto-stars by starting with a density perturbation with azimuthal symmetry. This was successfully implemented long ago by Boss et al. (2000): see also Truelove et al. (1998), Klein et al. (1999), Boss et al. (2000), Kitsionas & Whitworth (2002) and Springel (2005). Many of these numerical experiments were done using a solar mass parent core, that collapsed under its self-gravity against its thermal pressure and rotational support to form a binary system composed of very low mass proto-stars (see the review by Tohline 2002). However, taking advantage of scaling relations valid in a nearly homologous isothermal collapse, Sterzik et al. (2003) demonstrated that the final properties of the binary system depend on the initial conditions of the parent core, such as its temperature, mass and angular momentum. The assumption of isothermality allows the existence of such scaling relations, so that the results obtained for the collapse of a one solar mass parent core can be scaled to cores of arbitrary mass only in the isothermal regime.

As for the observational aspect, recent technical improvements have made it possible to improve the spatial resolution and observe a few protostars in their Class 0 evolution stage; for instance, L1157-mm, CB230 IRS1 and L1165-SMM1, all isolated and located in the Cepheus Flare region (Tobin at al. 2013); there was evidence of direct observation of a disk, for instance, that with a radius of 125 AU surrounding the protostar L1527 (Tobin et al. 2012). However, spatial resolutions better than 50 AU are needed in order to produce basic physical information and provide clues regarding the mechanisms of binary system formation.

For the Taurus dark cloud, a correlation between the mass of the newly formed stars and the mass of the associated dense proto-stellar cores in the cloud was observed long ago (Myers 1983).

Recent VLA and CARMA observations have shown proto-stars in binaries with unprecedented resolution. Specifically, the proto-stellar masses of systems such as CB230 IRS1 and L1165-SMM1 have been detected in the range of 0.1 - 0.25 Mʘ. These are much more massive than the masses generally obtained by numerical simulations of binary formation, which result in an initial fragment mass of around 0.01 M ʘ , when the calculations must be stopped because of insufficient spatial resolution and small time steps. However, the fragments will accrete mass and continue to grow so long as infalling gas is available. Motivated by these discrepancies in mass, in this paper we study the formation mass of a binary system as a function of the total mass of its par ent core. To achieve this objective, we present high-resolution three-dimensional hydrodynamical simulations, done with the public code Gadget2, which implements the SPH technique in order to follow the gravitational collapse of a uniform and rotating core. This is a variant of the standard test case, in which we implemented a mass perturbation with the same mathematical structure as the density perturbation used by Boss et al. (2000), to enforce the formation of two antipode embryonic binary mass seeds during the early core collapse. This system evolved to a pair of well-defined mass condensations connected by a dense filament.

In this intermediate evolution stage of the core collapse, two events may take place according to the assembled mass of these mass condensations. If the assembled mass is small enough for the centrifugal force (due to core rotation) to overcome the gravitational attraction of the mass condensations, then they approach each other, achieve rotational speed, swing past each other and finally separate to form the desired fragments, which will become the binary system, in which the fragments orbit around one another. When the condensed masses are massive enough, then they approach each other, make contact and merge to form a single central proto-stellar mass condensation.

When the total mass of the parent core M 0 is increased, the merging event is thus favored while the binary formation process is hindered. The formed single central mass condensation is surrounded by a disk out of which two additional small mass condensations may be formed by disk fragmentation, so that this kind of simulation ends with a multiple system, dominated by a primary mass. Configurations of this kind were obtained by Hennebelle et al. (2004) by increasing the external pressure on a rotating core. To prevent the occurrence of merging, we increased the ratio of rotational energy to gravitational energy, β, supplied initially to the parent core, while keeping the ratio of thermal energy to potential energy, α, fixed for our all simulations. Matsumoto & Hanawa (2003) and Tsuribe (2002) studied the effects of different rotation speeds and rotation laws on the fragmentation of a rotating core. These authors introduced six types of fragmentation seen as the possible outcomes of a collapsing core. The configuration that interests us in this paper corresponds to their disk-bar type fragmentation. They also showed a configuration diagram whose axes were given by products of the free fall time t ff measured from the central density, multiplied by the initial central angular velocity 0, and the amplitude of the velocity perturbation of the m = 2 mode 2, respectively.

To start our study, we arbitrarily chose two initial β ratios: the lower value given by β = 0.045 and the higher value given by β = 0.14, while we fixed α = 0.24. The number of Jeans masses contained in a uniform spherical core is given by 1/α. Thus the number of fragments that we expect to form is 2. We thus constructed a schematic diagram the axes of which were Mo and the measured β, where we showed the kind of configuration obtained: either a primary or the desired binary. It is important to note that recent observations made by Tokovinin (2000) seem to confirm the existence of dwarf binaries with mass ratios q = M2/M1 from 0.95 to 1, as first described by Lucy & Ricco (1979); some examples of this kind of system are MM Her and EZ Peg, with q given by 0.98 and 0.99, respectively. The particular mechanism of fragmentation considered in this paper can be potentially useful as atemplate for studying binary systems with q close to 1.

Furthermore, as the parameter space relevant to the core collapse is so large, it is not easy to an ticipate the outcome of a given collapse simulation. A first effort for establishing a criterion of the type α β < 0.2, for predicting the occurrence of fragmentation of a rotating isothermal core was obtained by means of numerical simulations by Miyama et al. (1984), Hachisu & Heriguchi (1984) and Hachisu & Heriguchi (1985). Furthermore, Tsuribe et al. (1999) in a semi-analytical study constructed a configuration space whose axes were the dimensionless quantities α and β. Tsuribe (2000) introduced another fragmentation criterion based on the flatness of the core, such that the configuration diagrams α versus β were improved. It must be emphasized that numerical simulations seem to prove that these fragmentation criteria can only provide a clue regarding the fate of a specific initial core configuration but cannot predict its exact outcome nor the number of fragments that may be produced during its gravitational collapse. To study the initial formation stages of low-mass protostellar binary systems, Riaz et. al. (2014) have followed a similar strategy, in which the value of α changes whereas the value of β is kept fixed.

According to these fragmentation criteria, the values for α and β that we use in this paper favor the collapse of the core and the formation of the embryonic binary system according to Tsuribe et al. (1999), but it is still not clear what the next events will be, since they depend on the assembled mass, as we mentioned previously. So, we performed numerical simulations in order to determine exactly the main simulation outcome beyond the formation of the mass condensations.

In the early simulations on the collapse of rotating cores, the ideal equation of state was used as a first approximation. However, once gravity produces a substantial contraction of the core, the gas begins to heat. In order to take this heating into account, in our simulations we implemented a barotropic equation of state beos, as was proposed by Boss et al. (2000). The beos depends on a single free parameter, the critical density ρ crit. Arreaga-Garcia et al. (2008) reported a study of the effects of the change in the thermodynamic regime on the outcome of a particle-based simulation, where several values of the critical density were considered. The simulations that we present here increased the peak density up to three orders of magnitude within this adiabatic regime. Therefore, the scaling relations obtained under the assumption of isothermality are no longer valid for this final evolutionary stage of our simulations.

The outline of this paper is as follows: the basic physics of the core and the particle distribution that represents the initial core are described in § 2. The most important features of the time evolution of these simulations are presented by means of 2D iso-density plots in § 3. The relevance of these results in view of those reported in previous works is discussed in § 4. Further, we show the velocity distribution obtained for the binaries by means of iso-velocity 3D plots in § 4.3. Finally, some concluding remarks are given in § 5.

2. THE CORE

We consider a spherical core with radius R 0 = 4.99 x 1016 cm = 3335 AU, which is rigidly rotating around the z axis with an angular velocity Ω, so that the initial velocity of the i - th SPH particle is given by vi= x ri -Yi, xi, 0 .

In § 3 we will present the results of several simulation models in which the total core mass is systematically increased up to 5 Mʘ. We emphasize that we left the initial core radius unchanged, so that the average density increased instead. However, these models still correspond to a core, as defined statistically by Bergin & Tafalla (2007).

The time needed for a test particle to reach the center of the core when gravity is the only force act ing on it, is defined as the free fall time t ƒ ƒ by means of

1

where ρ o = 3.8 x 10-18 g cm-3 is the average density of a 1 Mʘ core with radius R 0 . These values of t ƒ ƒ and ρ o are used as normalizing factors for the plots presented below.

2.1. The radial mesh for core particles

We used an initial grid with spherical geometry so that a set of concentric shells was created and populated with SPH particles in the following sense. We divided the total volume V of the sphere of radius R 0 into a given number of bins, N bin, such that ∆V = V/N bin was the volume of a spherical shell. Each shell can be characterized by a radial interval (rl, r ƒ), such that its initial and final radius are rl and r ƒ, respectively. The radius r f was determined by the condition that ∆V be constant. Hence, we have

2

Thus, the first shell was determined by the radial interval (0,r 1), while the second shell was delimited by (r1, r 2) and so on. Let us now define the average radius r s and the radial width of a given shell as r s = (rl + r ƒ)/2 and δ s = (rf - rl ), respectively.

Then, by means of a Monte Carlo scheme, we populated each concentric shell with a given number of equal mass particles, N par, so that the particles were located randomly in all the available surfaces of the spherical shells. The spherical coordinates of the particles of a given shell (rs, θ,ϕ) are related to uniform random variables u and v (taking real values within the interval [ 0,1 ]) by the following equations:

3

We thus had a total of N bin x Npar particles distributed in the spherical volume of the core, such that the total mass in each shell was constant and given by N par mo, where mo is the particle mass, so that the global density of the core was also constant. To achieve a constant density distribution in a local sense, we further applied a radial perturbation to all the particles of a given shell such that any particle could be randomly displaced radially outward or inward, but preventing a perturbed particle from reaching another shell. The radial perturbations ϵ r applied to each SPH particle, regardless of the model, were at the order of ϵ r = δs/10.

In the first panel of Figure 1, one can appreciate the spherical nature of the initial mesh, as only the innermost radial shell is visible due to the huge contrast in density between this and the outer shells.

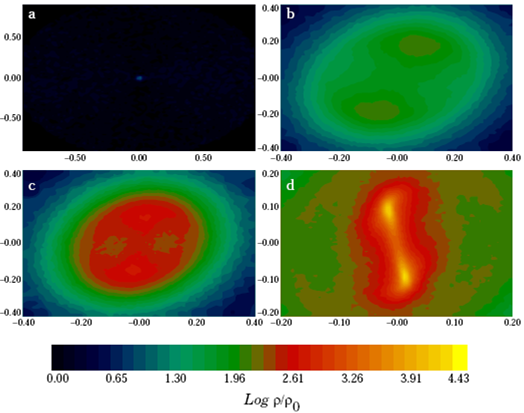

Fig. 1 Iso-density plot to show the early evolution of all the models. The color figure can be viewed online.

In all the simulations of this paper, we used a total of two million SPH particles, which according to the convergence study done by Arreaga-Garcia et al. (2007), is large enough to fulfill the resolution requirements described by Truelove et al. (1997).

2.2. Mass perturbation

We ensured that a binary system would be formed in the simulation by implementing a mass perturbation such that, if mo was the particle mass, the perturbed mass mi ; of particle i was mi = mo + mo * a cos (m ϕ i), where the perturbation amplitude was set to a = 0.1 and the mode was fixed at m = 2; ϕ is the azimuthal spherical coordinate.

There are other methods for the implementation of density perturbations, such as the Monte Carlo scheme, in which the particle mass remains unchanged. Nevertheless, the mass perturbation we implemented here was successfully applied in our previous papers on collapse (Arreaga-Garcia et al. 2007: Arreaga-Garcia et al. 2008), and remarkably also by other authors, such as Springel (2005). With particle mass variations within ten percent of the initial particle mass, as is the case of our simulations, there were no border or particle deficiency effects to worry about.

2.3. The barotropic equation of state

To take into account the heating of the gas due to both core contraction and energy dissipation from artificial viscosity we used the barotropic equation of state proposed by Boss (2000):

4

where γ = 5/3 and c o is the sound speed so that the corresponding temperature associated with the gas core is T ≈ 10 К. The critical density ρ сrit determines the change in the thermodynamic regime from isothermal to adiabatic. For the early phases of the collapse, when the peak density is much lower than the critical density, ρ max << ρсrit, the beos becomes an ideal equation of state; for the late phases of the collapse, when p max >> ρсrit, there is an increase in pressure according to ρ ≈ ρ 3/2 , then the beos becomes an adiabatic relation.

We used only one value given by ρ сrit = 5.0 x 10-14 g cm-3. As we will show in the following sections, in the simulations considered in this paper, the average peak density reached ranges around ρ = 2.5 x 10-11 such that the core density increased by up to 3 orders of magnitude within the adiabatic regime.

3. RESULTS

Simulations performed worldwide in order to follow the collapse of a uniform density core have proven that an isolated rotating core contracts to an almost flat configuration approximately within a free-fall time of dynamical evolution; see for instance Bodenheimer et al. (2000), Sigalotti & Klapp (2001) and references therein. Therefore, in order to illustrate our results, we used 2D iso-density plots for a slice of particles around the equatorial plane of the core.

Let us now emphasize some important features of the early evolution of the collapsing core, where the mass perturbation mentioned in § 2.2 plays a fundamental role. When the peak density reaches a value around 1.0 x 10-16g cm-3, the mass perturbation generates two well-defined mass condensa tions, which are clearly visible in the second panel of Figure 1. These mass condensations act as mass attraction centers. As more mass is being accreted by these centers, the peak density monotonically increases in them and in their surroundings as well, as can be noted by the color scale present in the central region of the core in the third and fourth panels of Figure 1. Thus, all the models considered here finish this first evolution stage with an embryonic binary system composed by two well-defined mass condensations connected by a filament.

As can be seen in Figure 2, our simulations easily satisfy some basic expectations, some of which are: (i) all the models collapse by the end of the simulation; (ii) the larger the value of β given initially to the core, the slower the core collapses; (iii) the more massive the initial core, the faster it collapses; (iv) there must be a maximum β value, so that for β > β max, the core simply expands without contracting.

Fig. 2 Time evolution of the peak density.

There are two competing forces that determine the next events to occur in the central core: on one hand, the gravitational force, so that each mass condensation pulls on the other, favoring their approach; on the other hand, the centrifugal force acting on each mass condensation, favoring their separation.

Now we shall separately illustrate the results of each model by means of colored iso-density figures. In Table 1 we summarize the considered models and their main results, according to the following entries: Column 1 gives the label and Column 2 shows the total mass of the parent core; in Column 3 we give the β initially provided to the core, while the maximum evolution time and peak density of the simulation are listed in the fourth and fifth columns, respectively; finally, the last column shows the configuration obtained, either binary or primary, as explained below.

Table 1 The models and their main results

3.1. Models with parent core mass up to M 0 = 1 M ʘ

The models considered in this section are those labeled with m075 and ml in Table 1. For all these models, the gravitational attraction between the formed mass condensations is very easily over come by the centrifugal repulsion; then the mass condensations avoid contact between them and fly apart to become true fragments which enter in orbit around one another. Thus, so we obtained the desired binary configurations.

The iso-density plots for the low and high β models with Mo = 0.75 Mʘ can be seen in Figure 4 and Figure 5, respectively. The binary separations are around 111 AU and 402 AU, respectively. A clear mass asymmetry can be seen between the fragments in the model m075b0045, as the masses are 0.12 Mʘ and 0.03 M ʘ , respectively. Meanwhile, for model m075b014 the masses of the fragments are almost the same, around 0.07 Mʘ.

Next, let us consider the results for the low and high β models with M = 1 Mʘ, which are shown in Figure 3 and Figure 6, respectively. The corresponding binary separations have now increased to 326 and 667 AU, respectively. The masses of the fragments for model mlb0045 are 0.16 Mʘ and 0.09 Mʘ, while for model m1b014 both masses are very similar, around 0.11 Mʘ.

Fig. 3 Iso-density plot for model mlb0045. The color figure can be viewed online.

Fig. 4 Iso-density plot for model m0p75b0045. The color figure can be viewed online.

Fig. 5 Iso-density plot for model m0p75b014. The color figure can be viewed online.

Fig. 6 Iso-density plot for model m1b014. The color figure can be viewed online.

Thus, we see that a small change in the total mass of the parent core produces a very large change in the resulting binary separation and mass. As expected, for the low β models the separation reached by the mass condensations is smaller than for the high β models.

3.2. Models with parent core mass M 0 = 1.5 M ʘ

In the low β model m1p5b0045 we saw for the first time that it did not produce a binary via the separation of its embryonic mass condensations, but instead we saw their merging. So, only a primary mass condensation was formed in the central core region, which was surrounded by small spiral arms, as can be seen in Figure 7. Soon thereafter, these spiral arms broke and separated from the primary so the simulation ended with a primary mass accompanied by two smaller mass condensations.

Fig. 7 Iso-density plot for model m1p5b0045. The color figure can be viewed online.

Following to our strategy, we then increased the angular velocity of this model up to the value where we obtained β = 0.11, so that we had now the model mlp5b011, in which we again obtained the appearance of a binary system via the separation of the embryonic mass condensations; see Figure 8. The binary separation in this case, 527 AU, was similar to that already seen in § 3.1 for the low β model m1b014. The masses of the fragments for this new model were 0.16Mʘ and 0.17Mʘ.

Fig. 8 Iso-density plot for model mlp5b011. The color figure can be viewed online.

The existence of model mlp5b011 tells us in advance that the high β model will form the desired binary, as can be seen in Figure 9, where we show the results for model mlp5b014. As was previously observed, the additional rotational energy produced a small increase in the binary separation, as we now obtained 585 AU, while the masses of the fragments were almost identical: 0.16Mʘ.

Fig. 9 Iso-density plot for model mlp5b014. The color figure can be viewed online.

3.3. Models with parent core mass M 0 = 2.5 M ʘ

As was the case in § 3.2, here the low β model m2p5b0045 produced a primary configuration, which is shown in Figure 10. However, the high β model m2p5b014 produced the desired binary configuration. For this reason, we expected to find a new β value, such that the model m2p5b0045 would become a binary system. So, by systematically increasing its β, we reached the value β = 0.13, where we found the desired configuration shown in Figure 11. The results for model m2p5b014 are shown in Figure 12.

Fig. 10 Iso-density plot for model m2p5b045. The color figure can be viewed online.

Fig. 11 Iso-density plot for model m2p5b013. The color figure can be viewed online.

Fig. 12 Iso-density plot for model m2p5b014. The color figure can be viewed online.

One would expect to find very similar physical properties for this pair of models, m2p5b013 and m2p5b014, as their initial β values are very similar. The binary separations are indeed very similar, around 259 and 262 AU, respectively. However, the masses of their fragments are different. This mass difference can be explained by closely looking at Figure 11, where one can notice that there is an important mass exchange between the mass condensations, since the additional rotational energy supplied is perhaps barely enough to separate them; so they do not become true fragments.

3.4. Models with parent core mass M o = 5 M ʘ

In this case we observed for the first time that even the high β model does not produce the desired binary configuration. But we can still compare models m5b0045 and m5b014, as they form two slightly different primary dominated configurations. In model m5b0045, an elongated central bar is formed with two additional mass condensations formed at the ends of the spiral arms, as illustrated in Figure 13. In model m5b014 we see again the formation of a central mass condensation, but in this case, it is surrounded by very long spiral arms, which break soon thereafter and separate from this central mass; see Figure 14.

Fig. 13 Iso-density plot for modelm5b045. The color figure can be viewed online.

Fig. 14 Iso-density plot for model m5b014. The color figure can be viewed online.

As usual, we then increased the level of the initial rotational energy, until the value of β = 0.21 was reached, for which we obtained the desired binary configuration, labeled now model m5b021; see Figure 15. The binary separation was 427 AU while the masses of the fragments were 0.6 Mʘ and 0.4 Mʘ.

Fig. 15 Iso-density plot for model m5b021. The color figure can be viewed online.

4. DISCUSSION

The main results of this paper are already contained in Tables 1, 2 and 3. However, it is more illustrative to present them visually. In Figures 16, 17, 18 and 19, we show: (i) the schematic diagram where the desired binary configurations are located; (ii) the obtained binary mass M f as a function of the total mass of the core M 0; (iii) the obtained binary separations and (iv) the distribution of the velocity field. Let us now comment upon the creation of each figure and the main results.

Fig. 16 Schematic diagram to show the location of the binary systems. The mass M 0 is given in terms of M ʘ .

Fig. 17 Binary mass given in terms of Mʘ

Fig. 18 Binary separation given in AU.

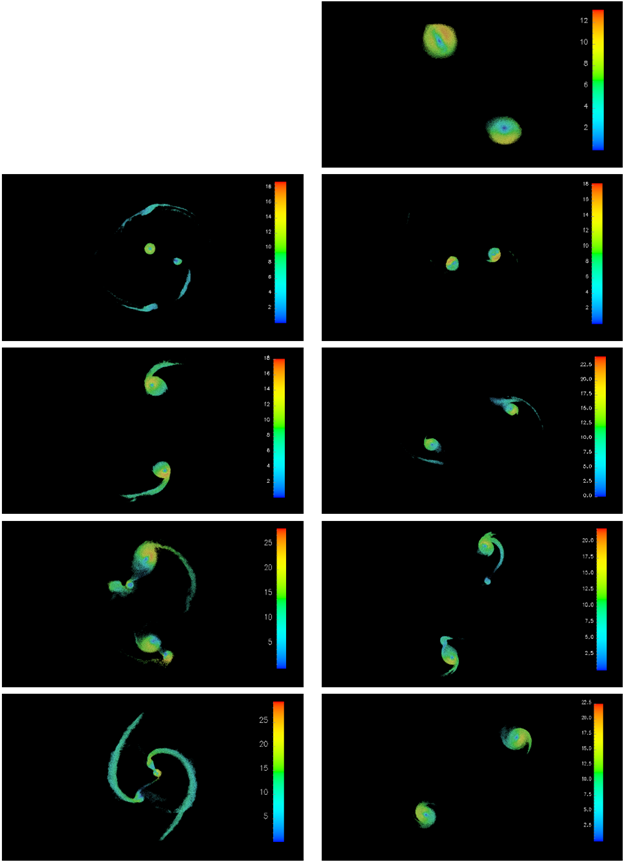

Fig. 19 Iso-velocity 3D plot; each model is normalized with its corresponding sound speed, ordered from top to bottom according to the mass of the parent core: m5b021 (first line right); m2p5b013 (second line left), m2p5b014 (second line right); m1p5b011 (third line left), m1p5b014 (third line right); m1b045 (fourth line left), m1b014 (fourth line right) and m0p75b045 (fifth line left), m075b014 (fifth line right). The color figure can be viewed online.

Table 2 Physical properties of fragments

Table 3 Binary separation and the sound speed

4.1. The schematic diagram of binary configurations

The calculated schematic diagram of desired binary configurations is illustrated in Figure 16. We first notice that there must exist a critical mass M crit that corresponds to a β crit, such that they separate two regimes: one where M 0 > Mcrit, in which the needed β to obtain the desired binary configuration must be higher than the β crit, but smaller than the maximum β max that allows the core to remain in a bounded configuration, that is, β would lie within the interval β ϵ crit, βmax).

Another regime, is that with M 0 < Mcrit, in which the needed β can take values in the interval 0 < β < β crit , where one can definitely obtain the desired binary configuration. However, there is still the possibility of having a binary configuration with even higher values of β ϵ (β crit, βmax), since the high value β = 0.14 was set arbitrarily.

The cores were observed to have low rotational velocities, so if we had a collapsing core with M0 < M crit, then according to Figure 16 it would be more likely for a binary configuration to result from its collapse. On the contrary, if we had a collapsing core with Mo > M crit, then it would be more likely for a primary system to result from its collapse.

4.2. The physical properties of binaries

Let us now consider Figure 17, recalling first that, as an approximation strategy to construct our simulation models, we increased in this paper the core mass Mo without changing the core radius R 0, so the core density was increased and therefore the free fall time was decreased; see equation 1.

The accreting mass rate can be approximately estimated by means of Ṁ = Mo/t ƒƒ ; that is, supposing the entire core mass had collapsed in a free fall time. The combinations of changes mentioned above, that is, an increasing M 0 with decreasing t ff, gives us an increasing for all the models under consideration.

A better estimate for the accreting mass rate was obtained by a semi-analytical approach to the col lapse of an isothermal core (Shu et al. 1987), which is given now by Ṁ = c03 /G, where c 0 is the sound speed and G is Newton's gravitational constant. In order to keep fixed in all models the ratio of thermal energy to gravitational energy, denoted by α, we increased the sound speed, so that the increased when the mass of the core increased, at least for the first stage of evolution where the isothermal approximation is valid.

So, the increase of the mass of the binary fragment with increasing mass of the parent core was expected, as the mass accretion rate also increases with the mass of the parent core. In this paper we confirmed this expectation and we measured the binary mass M f obtained from a given initial M 0. It should be noted that this fragment mass M f was determined in the following way: first we took the highest density particle in the region where the fragment was located. This particle is considered to be the center of the fragment. We then found all the SPH particles whose density was greater than or equal to some minimum density value given in advance by log10 min/ρo) = 5.0 and that were within a given maximum radius r max from the fragment center; see the second column of Table 2. These parameters correspond to a minimum density of 3.82 x 10-1g cm-3 and a maximum radius in the range of r max = 41-100 AU.

This set of particles defined the fragment and allowed us to calculate its integral properties; for instance, its mass M f, and the ratios α f and β f. These calculated integral properties are shown in Columns 3, 4 and 5 of Table 2, respectively. The number of selected particles lies in the range of 150 to 300 thousand, approximately.

In § 3, we mentioned the calculated mass of the binary configurations. It is still necessary to comment on the calculated energy ratios αƒ and β f. It was demonstrated by Arreaga-Garcia et al. (2012) that in general the fragments obtained by the fragmentation of a rotating core tend to virialize. We observed that for the last snapshot available in each simulation the sum of αƒ and β f was always less than 0.5, so the fragments were still collapsing.

Finally, in order to determine the binary separations illustrated in Figure 18, we simply calculated the distance between the centers associated with each fragment, as defined according to the procedure outlined in the previous paragraph. It is important to mention that the largest binary separations were obtained for the intermediate mass models: m1b014 and mlp5b011; see Table 3.

4.3. The velocity distribution of binaries

Now we shall discuss the velocity scale of the particles forming the fragments; see Figure 19. These plots are 3D representations formed by all the particles satisfying the following selection criteria: (i) they are located within the central region of the core, such that their projected radius r 2d = X2+ y2 is r 2d < r2d max ≡ 0.2 R0, irrespective of their z coordinate; (ii) they have a density higher than or equal to the minimum density value given in advance by log10 (ρ2dmin/ρo) = 4.0. These parameters correspond to a minimum density ρ 2dmin = 3.82 x 10-14g cm-3 and a maximum radius r 2d max = 668 AU. This selection procedure is similar to the one we used earlier to define a fragment. In this section, more particles were considered to make the 3D plots: in the range of 500-800 thousand, approximately.

We wish to point out that the models have different sound speeds, c 0, which are shown in Column 3 of Table 3. In Figure 19 we plot the magnitude of the velocity vector, normalized with the sound speed, so that we will now use a Mach ≡ v/c 0, as the unit of velocity to describe our results.

In all the models, we observed that: (i) only very few particles reach very high velocities, marked with red color in the plots; these ultra-fast particles are located very close to the central region of the fragment and are velocity-isolated, as no other neighboring particles have similar velocities; (ii) particles located exactly in the center of the fragment have the smallest velocity, which can even range from 0.01 to 0.1 Mach, marked with blue color in the plots; (iii) spiral arms are connected to their fragments by particles with small velocities, marked with soft blue or aqua color in the plots; not all of them are visible in these 3D plots, because their density is probably not large enough to satisfy our density selection criteria; (iv) the particles surrounding the innermost region of the fragments have intermediate velocities, marked with green color in the plots. These are the infailing particles from the spiral arms on the fragment. The particles that are still infalling reach the fragment through contact regions between the spiral arms and the fragment. The region where the infalling particles have radial speeds is marked with yellow color in the plots; (v) the co-existence of different color scales in a fragment indicates that a strong velocity gradient is present.

5. CONCLUDING REMARKS

In this paper we have considered the gravitational collapse of a rotating core using a spherical shell populated with SPH particles in order to represent the core at the initial simulation time.

First, we observed that this mesh geometry appropriately represents the relevant initial physics of the core, including the uniform density distribution and the rigid body rotation. There is an excess of density at early simulation times, as can be seen in Figure 2, which is likely to be a consequence of the huge surface density of the innermost radial shell.

Fortunately, the particles quickly adjust themselves and thus the core truly begins its collapse some time later.

Second, the approximation strategy followed in this paper, that of changing the core mass while keeping the core radius unchanged, can be replaced by another, equally valid strategy, for instance, one in which both the core mass and the radius are changed while the average core density is unchanged. Hence, in this paper we can discuss certain results obtained for a family of similar size cores with slightly increasing total mass, while for the latter case one could discuss a family of similar density cores with slight mass and size variations.

Third, we observed that the more massive the initial core, the lower its tendency to result in the desired binary system formed via the separation of the embryonic mass condensations. We prevented their merging by providing more initial rotational energy to the core. From the schematic configuration space reported in Figure 16, we conclude that it is more likely to have a binary system formed out of a small mass parent core and therefore the masses of the binaries are expected to be small as well.

Fourth, in order to calculate the integral properties and the velocity distributions of the obtained fragments, we chose particles by applying selection criteria based on two parameters lrho min and rmax whose values were fixed in advance. The selected particles were those that had a density greater than or equal to ρo x 10 lrho min and a position radius r < r max. Thus, one would expect slight differences in the reported results as they are definition-dependent.

Nevertheless, we find that there is a clear correlation between the mass of the obtained fragments and the mass of the initial collapsing core. In fact, the masses of the fragments are within the observational range reported by (Tobin at al. 2013).

Acknowledgment

GA. would like to thank ACARUS-UNISON for the use of their computing facilities in the development of this manuscript.

REFERENCES

Arreaga-García, G., Klapp, J., Sigalotti, L.G., & Gabbasov, R. 2007, ApJ, 666, 290 [ Links ]

Arreaga-Garcia, G., Saucedo, J., Duarte, R., & Carmona, J. 2008, RMxAA, 44, 259 [ Links ]

Arreaga-Garcia, G., & Klapp, J. 2010, A&A, 509, A96 [ Links ]

Arreaga-Garcia, G., Saucedo, J., 2012, RMxAA , 48, 61 [ Links ]

Balsara, D. 1995, JCoPh, 121, 357 [ Links ]

Bate, M.R., & Burkert, A., 1997, MNRAS, 288, 1060 [ Links ]

Bergin, E., & Tafalla, M. 2007, AR A&A , 45, 339 [ Links ]

Bodenheimer, P., 2011, Principles of star formation (Berlin, Springer-Verlag) [ Links ]

Bodenheimer, P., Burkert, A., Klein, R.I., & Boss, A.P., in Protostars and Planets IV, ed. V.G. Mannings, A.P. Boss & S.S. Russell, (AZ:UAP) [ Links ]

Boss, A.P., 1991, Natur, 351, 298 [ Links ]

Boss, A.P., Fisher, R.T., Klein, R., & McKee, C.F. 2000, ApJ , 528, 325 [ Links ]

Boss, A. P., & Bodenheimer, P. 1979, ApJ , 234, 289 [ Links ]

Burkert, A., & Alves, J. (2009), ApJ , 695, 1308 [ Links ]

Burkert, A., & Bodenheimer, P. 1993, MNRAS , 264, 798 [ Links ]

Duchêne, G., Bouvier, J., Bontemps, S., André, P., & Motte, F. 2004, A&A , 427, 651 [ Links ]

Girart, J. M., Curiel, S., Rodriguez, L. F., Honda, M., Canto, J., Okamoto, Y. K., & Sako, S. 2004, AJ, 127, 2969 [ Links ]

Hachisu, I. & Heriguchi, Y., 1984, A&A , 140, 259 [ Links ]

__________. 1985, A&A, 143, 355 [ Links ]

Hennebelle, P., Whitworth, A. P., Cha, S.-H., & Goodwin, S. P. 2004, MNRAS , 348, 687 [ Links ]

Kitsionas, S., & Whitworth, A. P. 2002, MNRAS , 330, 129 [ Links ]

Klein, R. I., Fisher, R. T., McKee, C. F., & Truelove, J. K. 1999, in Numerical Astrophysics 1998, ed. S. Miyama, K. Tomisaka, & T. Hanawa (Dordrecht: Kluwer), 131 [ Links ]

Lucy, L.B. & Ricco, E. 1979, AJ , 84, 401 [ Links ]

Matsumoto, T. & Hanawa, T. 2003, ApJ , 595, 913 [ Links ]

Miyama, S.M., Hayashi, C., & Narita, S., 1984, ApJ , 279, 621 [ Links ]

Monaghan, J.J., & Gingold, R.A. 1983, JCoPh , 52, 374 [ Links ]

Myers, P. C. 1991 in Fragmentation of Molecular Clouds and Star Formation, ed. E. Falgarone, F. Boulanger, & G. Duvert (Dordrecht, Kluwer), 221 [ Links ]

Reipurth, B., Rodriguez, L. F., Anglada, G., & Bally, J. 2002, AJ , 124, 1045 [ Links ]

Riaz, R., Farooqui, S. Z., & Vanaverbeke, S. 2014, MNRAS , 444, 1189 [ Links ]

Shu, F.H., Adams, F.C. and Lizano, S. 1987, AR A&A , 25, 23 [ Links ]

Sigalotti, L.G., & Klapp, J. 2001, IJMPD, 10, 115 [ Links ]

Springel, V. 2005, MNRAS , 364, 1105 [ Links ]

Stahler, S.W. & Palla, F., The formation of stars, Wiley-Vch, 2004 [ Links ]

Sterzik, M.F., Durisen, R.H., & Zinnecker, H., 2003, A&A , 411, Num. 2, 91 [ Links ]

Tobin, J.J, Hartmann, L., Chiang, H.F. et al. 2012, Natur , 492, 83 [ Links ]

Tobin, J.J, Chandler, C, Wilner, D.J., et al. 2013, ApJ , 779, 93 [ Links ]

Tohline, J.E., 2002, AR A&Astrophys, 40, 349 [ Links ]

Tokovinin, A.A., 2000, A&A , 360, 997 [ Links ]

Truelove, J.K., Klein, R.I., McKee, C.F., Holliman, J.H., Howell, L.H., & Greenough, J.A., 1997, ApJ , 489, L179 [ Links ]

Truelove, J. K., Klein, R. I., McKee, C. F., Holliman, J. H., Howell, L. H., Greenough, J. A., & Woods, D. T. 1998, ApJ , 495, 821 [ Links ]

Tsuribe, T., 2002, Progress of theoretical physics supplement, 147, 155 [ Links ]

Tsuribe, T. & Inutsuka, S-I., 1999, ApJ , 523, L155 [ Links ]

Tsuribe, T. & Inutsuka, S-I., 1999, ApJ , 526, 307 [ Links ]
