Lattice Boltzmann method modeling of magnetic water-based nanofluid through a permeable three-dimensional enclosure

M. Sheikholeslamia  b

S.A. Shehzadc  *

Ahmad Shafeed

F.M. Abbasie

R. Kandasamyf

Zhixiong Liig  h

aDepartment of Mechanical Engineering, Babol Noshirvani University of Technology, Babol, IRAN.

bRenewable energy systems and nanofluid applications in heat transfer Laboratory, Babol Noshirvani, University of Technology, Babol, Iran.

cDepartment of Mathematics, COMSATS Institute of Information Technology, Sahiwal 57000, Pakistan.

dPublic Authority of Applied Education and Training, College of Technological Studies, Applied Science Department, Shuwaikh, Kuwait.

eDepartment of Mathematics, COMSATS Institute of Information Technology, Islamabad, Pakistan.

fFAST, University Tun Hussein Onn Malaysia, 86400, Parit Raja, Batu Pahat, Johor State, Malaysia.

gSchool of Engineering, Ocean University of China, Qingdao 266110, China.

hSchool of Mechanical, Materials, Mechatronic and Biomedical Engineering, University of Wollongong, Wollongong, NSW 2522, Australia.


In this work, the mesoscopic theory is invoked to depict nanoparticle transportation through a porous cavity. Different amounts of Lorentz forces, Rayleigh number and permeability on the working fluid treatment have been examined. Al2O3-H2O is selected including the Brownian motion effect. Isokinetic, streamlines, and isotherms contours are various shapes of outputs. Results illustrate that the increase in magnetic forces lead toan increase in the conduction mode. Dispersing nanoparticles aids to incrase the Hartmann number.

Keywords: Non-Darcy model; nanoparticle; lattice Boltzmann method; MHD; permeable space

1. Introduction

Convection flow process has fascinated researchers due to its frequent uses fields such as electronic component cooling, food processing and crystal growth. Nanotechnology has been selected as a helpful passive methods to augment the rate of heating when magnetic forces exist. Haq et al. [1] scrutinized mass transfer of cross flow in a duct. They presented stream wise patterns in their report. Nawaz and Zubair [2] demonstrated the Hall Effect due to magnetic induction on radiative heat transfer of nano-plasma. They simulated in 3-dimensional spaces via FEM. Qi et al. [3] examined the application of TiO2 nanoparticles for cooling of Central Processing Unit (CPU). They scrutinized impacts of spherical bulges on the behavior of nanoparticles. Sheikholeslami et al. [4] illustrated the magnetizable hybrid nanofluid motion through a circular enclosure. They employed a variable magnetic force on the domain. Nabil et al. [5] demonstrated the peristaltic MHD flow of nanoparticles inside a duct. They considered various boundary conditions. Soomro et al. [6] scrutinized cooper nanoparticles transportation inside a cylinder. They reported a dual solution for the behavior of water based nanofluid. Sheikholeslami and Shehzad [7] scrutinized the nanoparticle flow through a permeable space due to MHD impact. Daniel et al. [8] considered the magnetic dissipation effect on stratification of nanofluid. They employed the radiation effect and viscous dissipation in energy equations. Hassan et al. [9] demonstrated Casson fluid transportation through a permeable media due to an external filed considering pulsatile flow. Rehman et al. [10] examined the nano liquid stagnation-point flow under magnetic field. They studied the exponential stretching sheet. Sheikholeslami [11] inspected the new way for simulation of nanoparticle exergy analysis under the Lorentz forces. Shoib et al. [12] examined the oscillating flow of non-Newtonian fluid over a plate. This plate was under the influence of MHD. Lu et al. [13] established the radiation effect on Carreau fluid behavior along a sheet. They added MHD impact with special boundary condition. Gibanov et al. [14] illustrated the second law behavior of nanoparticles in a cavity with a moving wall. They modeled mixed convection with a heat source. Astanina et al. [15] scrutinized natural convection of ferrofluid in an open porous cavity. Recent decade, different means have been employed to enhance the thermal properties of common fluid [16-43].

In this research, the effects of magnetic forces on migration of a water based nanofluid are displayed including the Darcy number impact. The 3D-problem is modeled by LBM. Outputs for various amounts of buoyancy, Darcy and Hartmann numbers are demonstrated.

2. Current geometry

A three-dimensional porous space filled with alumina is depicted in Fig. 1. The lower surface is hot and other boundaries are clear form that figure. A constant magnetic field is applied in the y direction.

Figure 1 Current 3D enclosure.

3. Boltzmann equations and mesoscopic scheme

3.1. Boltzmann equations

Here we present an application of LBM. To estimate the velocity and temperature, we should solve Boltzmann equations whose unknowns are the two distribution functions (g and f). According to Ref. [44], we used BGK model to simplify the equations as follows

-fix,t+fieqx,tτν-1Δt=fix+Δtci,t+Δt-ΔtciFk-fix,t (1)

τC-1gieqx,t-gix,tΔt=gix,t+gix,Δtci,t+Δt (2)

In Eqs. (1) and (2), τν and τc are relaxation times for velocity and temperature. “i” represents each direction and in current mode this varies from 0 to 18 because we used the D3Q19 model (Fig. 2). In such model, Eq. (2) can be used to show the lattice velocity of each direction:

Figure 2 Selected model.

ci=*20c0000-1-1-1-11110000-110-1-1110-1-110-1100-11000-11-11-1000100-1100000 (3)

We need to know the functions gieq and fieq which are given in [44]

wi1+uCics2T=gieq (4)

fieq=ρwi[12(ciu)2cs4-cs-2u22+1+(uci)2cs2] (5)

wi={1/18i=1:6;1/3i=0;1/36i=7:18} (6)

External Lorentz and buoyancy forces act according to

F=Fz+Fy+Fx (7)

Fz=3ρwiAsin2θzυ2-sinθxsin2θzwsinθx×0.5 cos2θzu-w cosθxsin2θz+gzβT-TmA cosθx-wBB3ρwi

Fy=-3BBwiρν+3Awiρ-νcos2θz-sinθz0.5w sin2θz+0.5u sin2θxsin2θz-υ sin2θzcos2θzx

Fx=-wiBB3ρυ-3ρwiA-ucos2θz+sin2θzw cosθx0.5+3wiAsin2θzu sinθz-υ cosθxsin2θz-sinθx

A=μL-2Ha2, Ha=LB0σμ

Da=KL2, BB=υDaL2

where B0 is magnitude of the magnetic field.

After solving the main equations, density, temperature and velocity can be calculated.

Temperature: T=igi[/p]

Momentum: ρu=icifi (8)

Flow density: ρ=ifi[/p]

3.2. Characteristics of working liquid

The properties of the nanofluid selected as working fluid of current paper can be calculated as [45]

1-ϕ+ρCpsρCpfϕ=ρCpnfρCpf (9)

ρβnf=ρβf1-ϕ+ϕρβs ρnfρf=1+ρsρfϕ-ϕ (10)

1+-ϕΔ-1+Δ+23ϕΔ-1-1=σnfσf (11)

χ=kpkf, Rf=-dp1kp-1kp,eff, knfkf=1+5×104ϕρfcp,fg'ϕ,T,dp×kbTdpρp+3x-1ϕx+2-x-1ϕ (12)

g'ϕ,dp,T=a10Lndp2+a7Lndp+a8Lnϕ+a6Lndp+a9Lnϕ+LnTa1+a3Lnϕ+a2Lndp+a4Lndp+a4LndpLnϕ+a5Lndp2 (13)

“nf”, “s” and “f” represent “nanofluid”, “solid particle” and “base fluid”. “dp ” is the particle diameter.

We calculated three important variables namely, Kinetic energy, Nuave and Nuloc according to below formulas:


Nuave=0101NudY dX,

Nuloc=knfkfδTδZz=0 (15)

The required constraints are listed in Tables I and II.

Table I Details for water and nanoparticles.

ρ(Kg/m3) Cp(j/kgk) k(W/mk) dp(nm) σ(Ω·m)-1
Pure water 997.1 4179 0.613 - 0.05
Al2O3 3970 765 25 47 10-12

Table II The coefficient values of Al2O3 nanofluid.

Coefficient values Al2O3-Water Coefficient values Al2O3-Water
a1 52.813488759 a6 -298.19819084
a2 6.115637295 a7 -34.532716906
a3 0.6955745084 a8 -3.9225289283
a4 4.17455552786E-02 a9 -0.2354329626
a5 0.176919300241 a10 -0.999063481

4. Independency of grid and validation

We should find unique solution which which are independent of the size. For this purpose, various grids have been used. As an example, Table III was reported. The code’s validation is visualized in Fig. 3 and Table IV [46-48]).

Table III Grid independency when Ra = 105, ϕ= 0:04 Da = 100 and Ha = 60.

Mesh size 51x51x51 61x61x61 71x71x71 81x81x81 91x91x91
Nuave 2.4167 2.4294 2.4371 2.4489 2.4499

Table IV Nusselt number for various Ha at Pr=0.733.

Ha Gr = 2 x104
Present Rudraiah et al [48]
0 2.5665 2.566894
10 2.26626 2.261644
15 1.09954 1.083047
100 1.02218 1.008833

Figure 3 Comparison of outputs between the present work and Ref. [46].

5. Results and discussion

In this report, we studied the behavior of a nanofluid in the presence of a uniform magnetic field inmersed in a 3D porous space. Using a homogenous model for the nanofluid, a nanoparticle concentration of 0.04 has been considered as working fluid. Outcomes are reported for various magnetic forces (Ha = 60, 0), buoyancy forces (Ra = 105, 104 and103) and Darcy number (Da = 100, to 0.001).

Figures 5, 6, 7, 8, 9 and 10 illustrate the impact of the significant variables on the hydrothermal behavior. The domain is affected by conduction when buoyancy force and permeability are low. A simple shape for temperature contours can be observed. As these factors grow, convective mode is gradually increased. The complex shape of the temperature profile is a result of the convective mechanism. Stronger rotating vortex and thermal plumes can be seen for the largest Ra and Da. In this situation, that includes the effects of the magnetic field, the velocity is reduced and the convection to decrease. So, the kinetic energy is reduced with the increase of Ha. Besides, the thermal plume vanishes as a result of the of strong Lorentz forces. Fig. 11 demonstrates the variation of the heat transfer rate with respect to the variables. Equation (16) has been obtained according to the outcomes of various cases

Nuave=2.22+0.58 log Ra+0.31 Da-0.29 Ha+0.46 logRaDa-0.45 logRaHa-0.32DaHa+0.56logRa2 (16)

The thickness of the boundary layer along the bottom surface decreases with the increase of Da and Ra. Nu decreases with the increase of Hartmann number. Increasing Ha makes the isotherms becomes denser.

Figure 4 Validation of LBM code for nanofluid (Khanafer et al. [24]) when ϕ = 0:1 and Pr = 6:8.

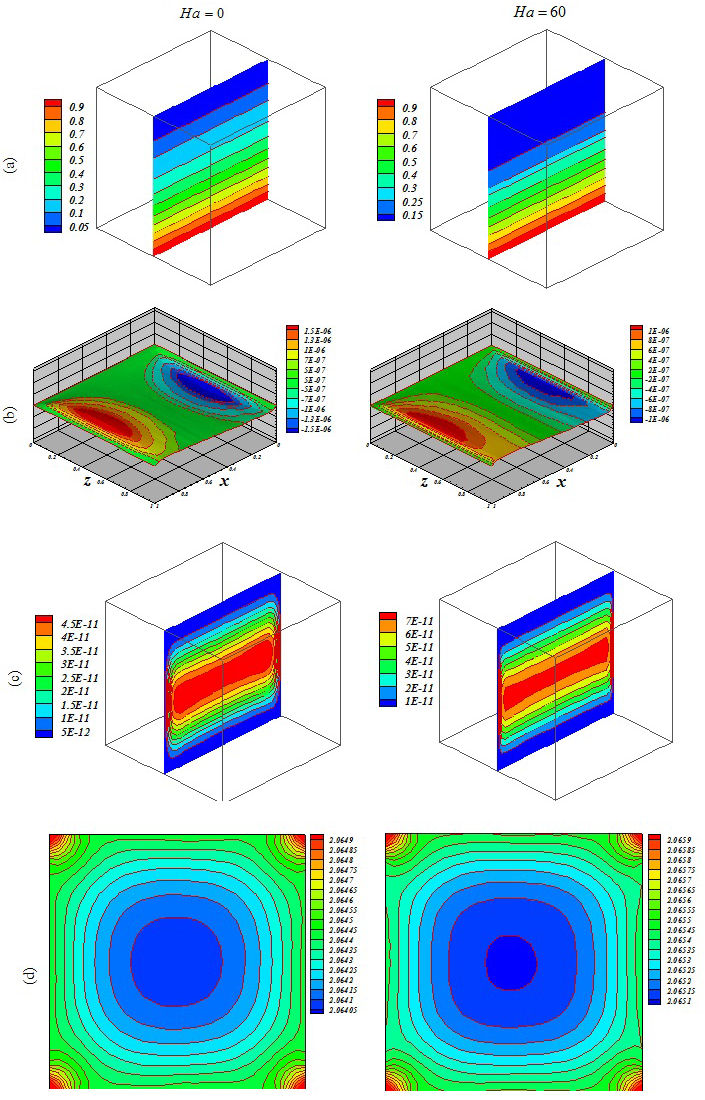

Figure 5 Influence of Lorentz forces on (a) isotherm, (b) streamlines, (c) isokinetic energy and (d) local Nusselt number at Y = y/L = 0:5 when Ra = 103, Da = 0:001, ϕ = 0:04 Ha = 0 and Ha = 60.

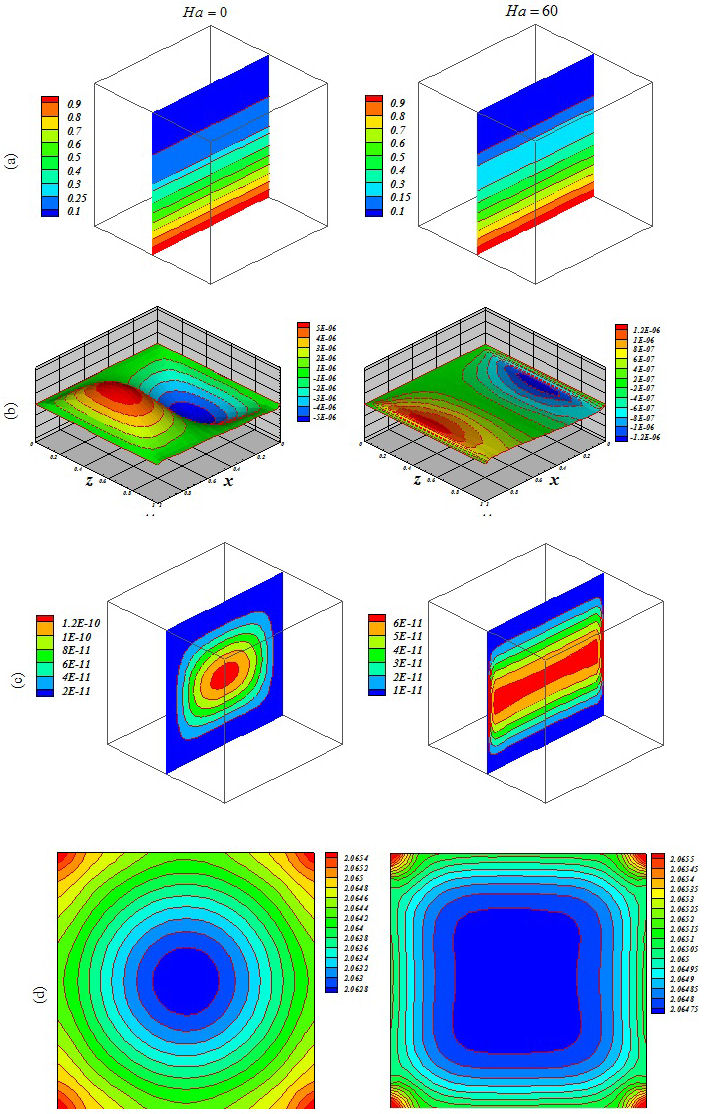

Figure 6 Influence of Lorentz forces on (a) isotherm, (b) streamlines, (c) isokinetic energy and (d) local Nusselt number at Y = y/L = 0:5 when Ra = 103, Da = 100, ϕ = 0:04 Ha = 0 and Ha = 60:

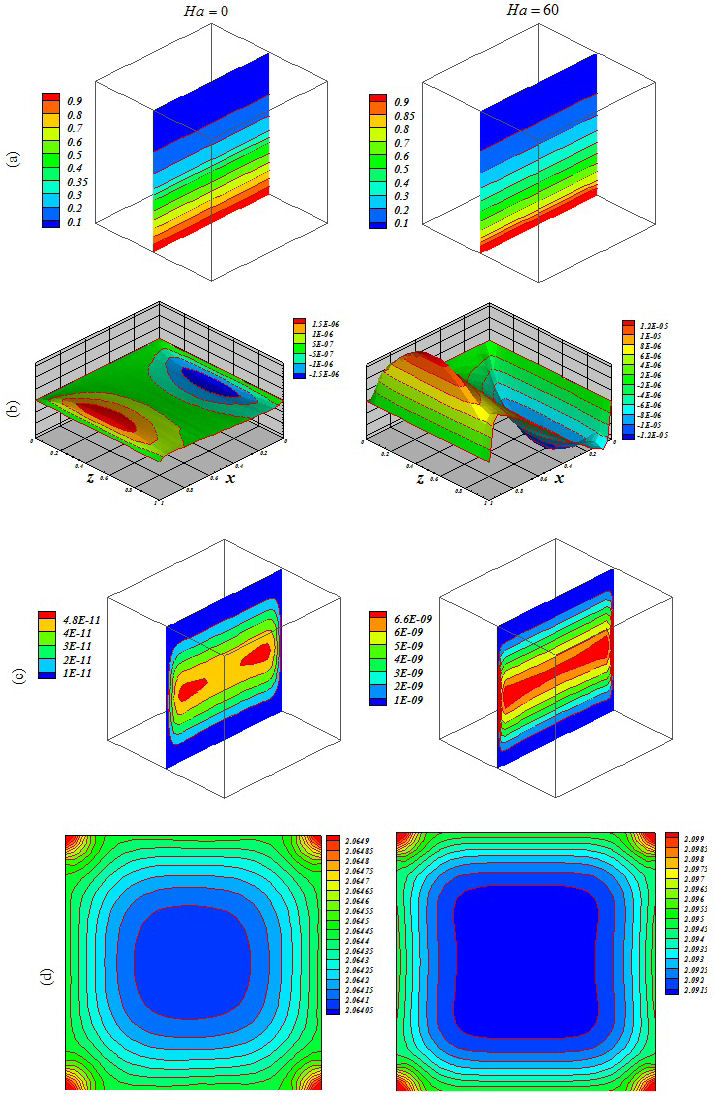

Figure 7 Influence of Lorentz forces on (a) isotherm, (b) streamlines, (c) isokinetic energy and (d) local Nusselt number at Y = y/L = 0:5 when Ra = 104, Da = 0:001, ϕ = 0:04, Ha = 0 and Ha = 60.

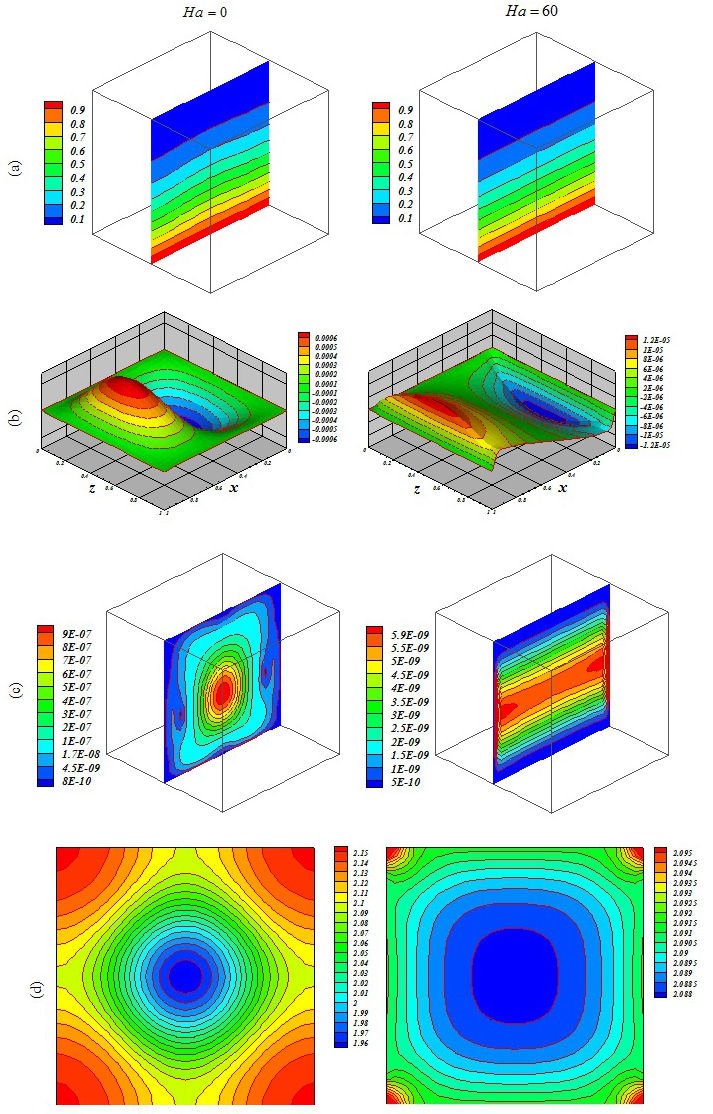

Figure 8 Influence of Lorentz forces on (a) isotherm, (b) streamlines, (c) isokinetic energy and (d) local Nusselt number at Y = y/L = 0:5 when Ra = 104, Da = 100, ϕ = 0:04, Ha = 0 and Ha = 60.

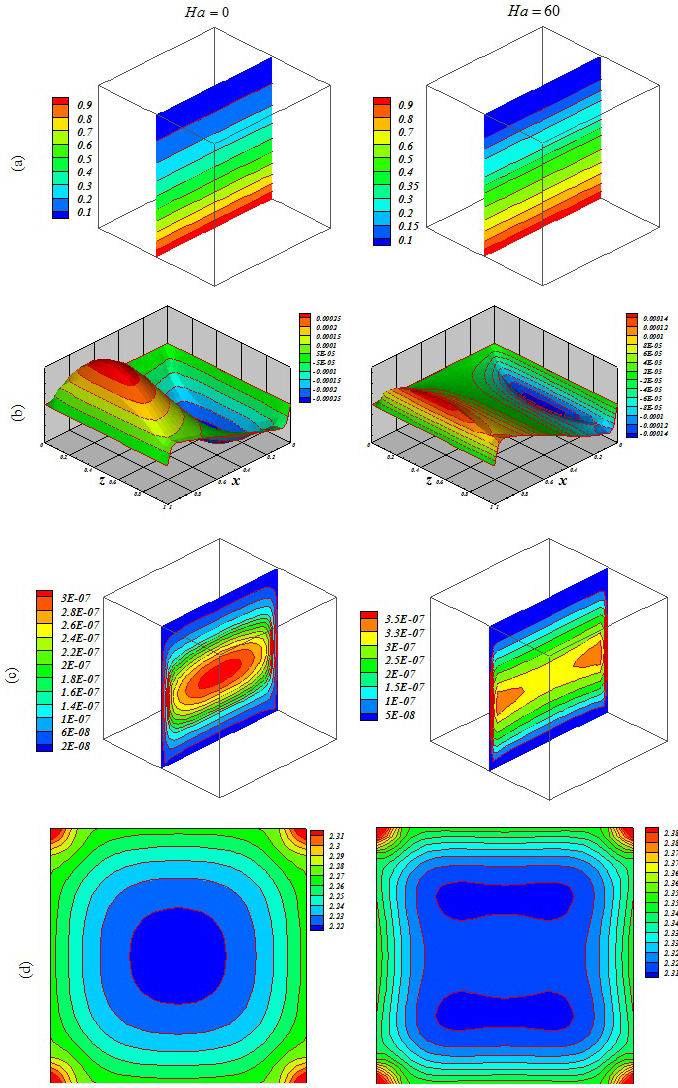

Figure 9 Influence of Lorentz forces on (a) isotherm, (b) streamlines, (c) isokinetic energy and (d) local Nusselt number at Y = y/L = 0:5 when Ra = 105, Da = 0:001, ϕ = 0:04, Ha = 0 and Ha = 60.

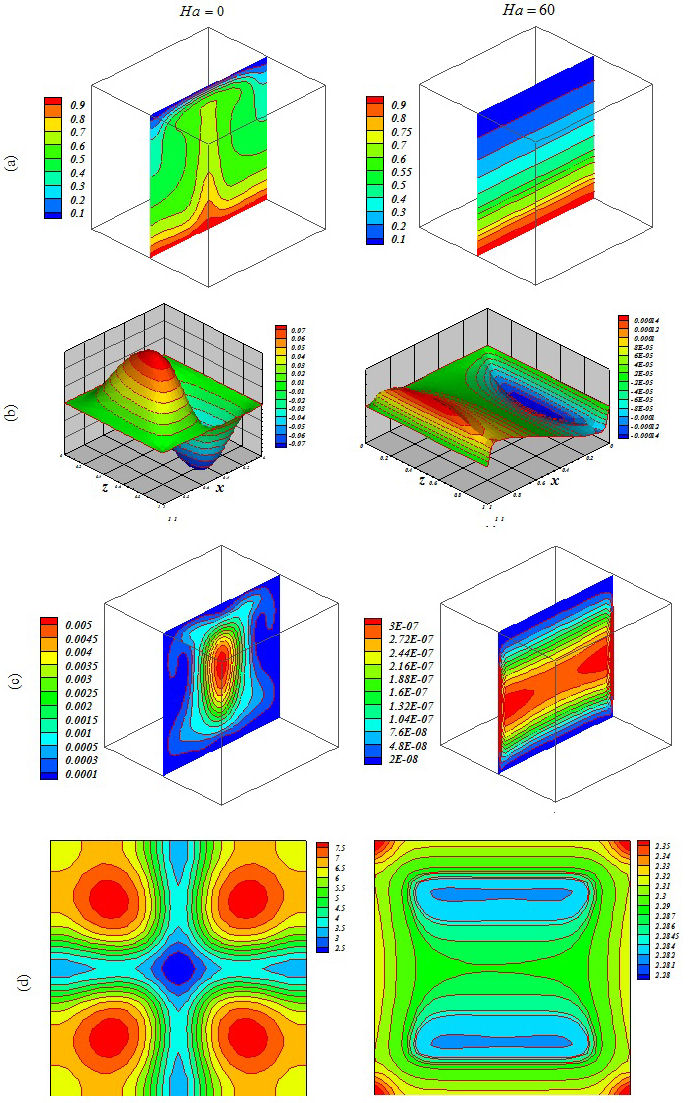

Figure 10 Influence of Lorentz forces on (a) isotherm, (b) streamlines, (c) isokinetic energy and (d) local Nusselt number at Y = y/L = 0:5 when Ra = 105, Da = 100, ϕ = 0:04, Ha = 0 and Ha = 60.

Figure 11 Impacts of Da, Ra and Ha on average Nusselt number when Ha = 30, Da = 50 and Ra = 104

6. Conclusions

In this mesoscopic modeling, the impact of a uniform Lorentz force on the convective transportat of nanoparticles through a porous 3D cavity has been studied. Lattice Boltzmann method which is founded on molecular theory can show ferrofluid behavior in no-Darcy medium. Such method provides the impact of Hartmann, Darcy numbers and buoyancy forces on ferrofluid. Results illustrated that the velocity of the nanofluid decreases with a decrease of buoyancy forces and permeability of space. As Lorentz forces enhance dispersing, nanoparticles becomes more significant. As permeability of space increases, the convective flow of nanofluid enhances.

Future work: As a new idea, this problem can be extended for variable magnetic field with hybrid nanofluid. Also, a two phase model for nanofluid can be employed.

Ha Hartmann number
g, f distribution functions
u, v, w Velocity components
K Permeability
Pr Prandtl number
Discrete velocity
K Thermal conductivity
cs Sound velocity
feq, geq Equilibrium distribution
Ec Kinetic energy
Grek symbols
ψ stream function
ρ Fluid density
Φ Nanoparticles concentration
ν Kinematic viscosity
σ Electrical conductivity
τ Lattice relaxation time
β Thermal expansion coefficient
α Thermal diffusivity
ave Average
f Pure fluid
loc Local


This paper was supported by the National Sciences Foundation of China (NSFC) (No. U1610109), Australia ARC DECRA (No. DE190100931) and Taishan Scholar of Shandong. Besides, the authors acknowledge the funding support of Babol Noshirvani University of Technology through Grant program No. BNUT/390051/98


1. R. Haq, F.A. Soomro, Z.H. Khan, and Q.M. Al-Mdallal, Physical Journal Plus, 132 (2017) 214. [ Links ]

2. M. Nawaz and T. Zubair, Results in Physics 7 (2017), 4111-4122. [ Links ]

3. C. Qi, N. Zhao, X. Cui, T. Chen, and J. Hu, Int. J. Heat Mass Transf. 123 (2018) 320-330. [ Links ]

4. M. Sheikholeslami, S.A.M. Mehryan, A. Shafee, and M.A. Sheremet, Journal of Molecular Liquids, 277 (2019) 388-396. [ Links ]

5. N.T.M. El-dabe, G.M. Moatimid, M.A. Hassan, and W.A. Godh, Research International Journal, 2 (2018) 00019. [ Links ]

6. F.A. Soomro, A. Zaib, R. Haq, and M. Sheikholeslami, International Journal of Heat and Mass Transfer 129 (2019) 1242-1249. [ Links ]

7. M. Sheikholeslami, and S.A. Shehzad, International Journal of Heat and Mass Transfer 106 (2017) 1261-1269. [ Links ]

8. Y.S. Daniel, Z.A. Aziz, Z. Ismail, and F. Salah, Chinese Journal of Physics, 55 (2017) 630-651. [ Links ]

9. M.A. Hassan, E.S.A. Nabil. T.M. El-dabe, and G.M. Moatimeid, International Journal of Current Engineering and Technology , EISSN 2277-4106, P-ISSN 2347-5161. [ Links ]

10. F. Ur Rehman, S. Nadeem, H. Ur Rehman, and R. Ul Haq, Results in Physics (2018) 8. [ Links ]

11. M. Sheikholeslami, Computer Methods in Applied Mechanics and Engineering 344 (2019) 319-333. [ Links ]

12. H. Shoib, T. Gul, S. Nasir, S. Islam, W. Ullah, and Z. Shah, Journal of Applied Environmental and Biological Sciences. 5 (2015) 25-34. [ Links ]

13. D. Lu, M. Ramzan, N. Huda, J.D. Chung, and U. Farooq, Scientific Reports, 8 (2018) 3709. [ Links ]

14. N.S. Gibanov, M.A. Sheremet, H.F. Oztop, and N. Abu-Hamdeh, European Journal of Mechanics B/Fluids 70 (2018) 148-159. [ Links ]

15. M.S. Astanina, M.A. Sheremet, H.F. Oztop, and N. Abu-Hamdeh, International Journal of Mechanical Sciences 136 (2018) 493-502. [ Links ]

16. M. Sheikholeslami, and S.A. Shehzad, International Journal of Heat and Mass Transfer 122 (2018) 1264-1271. [ Links ]

17. M. Sheikholeslami, and S.A. Shehzad, International Journal of Heat and Mass Transfer 120 (2018) 1200-1212. [ Links ]

18. K.R. Sekhar, G.V. Reddy, C.S.K. Raju, B. Pullepu, R. Kumar, and S.A. Shehzad, International Journal of Nanoparticles 9 (2017) 213-233. [ Links ]

19. Y. Qin, J. Luo, Z. Chen, G. Mei, L.-E. Yan, Solar Energy 171 (2018) 971-976. [ Links ]

20. M. Sheikholeslami, and S.A. Shehzad, International Journal of Heat and Mass Transfer 118 (2018) 182-192. [ Links ]

21. M. Sheikholeslami, and S.A. Shehzad, International Journal of Heat and Mass Transfer 115 (2017) 180-191. [ Links ]

22. W. Gao, L. Yan, L. Shi, Optoelectronics and Advanced Materials-Rapid Communications, 11 (2017) 119-124. [ Links ]

23. M. Sheikholeslami, S.A. Shehzad, F.M. Abbasi, and Li Zhixiong, Computer Methods in Applied Mechanics and Engineering 338 (2018) 491-505. [ Links ]

24. M. Sheikholeslami, M. Jafaryar, and Li Zhixiong, International Journal of Heat and Mass Transfer 124 (2018) 980-989. [ Links ]

25. Y. Qin, Renewable and Sustainable Energy Reviews, 52 (2015) 445-459 [ Links ]

26. W. Gao, W. F. Wang, Chaos, Solitons and Fractals, 89 (2016) 290-294. [ Links ]

27. M. Sheikholeslami, and S.A. Shehzad, International Journal of Heat and Mass Transfer 113 (2017) 796-805. [ Links ]

28. H. Hammed, M. Haneef, Z. Shah, S. Islam, W. Khan, and S. Muhammad, Appl. Sci. 8 (2018) 160. doi: 10.3390/app8020160. [ Links ]

29. M. Sheikholeslami, S.A. Shehzad, and Li. Zhixiong, International Journal of Heat and Mass Transfer 125 (2018) 375-386. [ Links ]

30. M. Sheikholeslami, Computer Methods in Applied Mechanics and Engineering 344 (2019) 306-318. [ Links ]

31. Y. Qin, Y. He, J.E. Hiller, G. Mei, Journal of Cleaner Production 199 (2018) 948-956 [ Links ]

32. M. Sheikholeslami, R. Haq, A. Shafee, and Z. Li, International Journal of Heat and Mass Transfer 130 (2019) 1322-1342. [ Links ]

33. W. Gao, W. F. Wang, International Journal of Computer Mathematics, 95 (2018) 1527-1547. [ Links ]

34. M. Sheikholeslami, M. Jafaryar, A. Shafee, and Z. Li, Journal of Thermal Analysis and Calorimetry, (2019). DOI: 10.1007/s10973-018-7866-7 [ Links ]

35. H. Sajjadi, and G.H.R. Kefayati, Heat Transfer-Asian Research 45 (2016) 795-814. [ Links ]

36. W. Gao, M. R. Farahani, The Computer Journal 60 (2017) 1289-1299. [ Links ]

37. M. Sheikholeslami, M. Barzegar Gerdroodbary, R. Moradi, Ahmad Shafee, and Zhixiong Li, Computer Methods in Applied Mechanics and Engineering, 344 (2019) 1-12. [ Links ]

38. M. Sheikholeslami, Journal of Molecular Liquids 266 (2018) 495-503. [ Links ]

39. M. Sheikholeslami, Journal of Molecular Liquids 265 (2018) 347-355. [ Links ]

40. Sun Fengrui, Yao Yuedong, and Li Xiangfang, The Heat and Mass Transfer Characteristics of Superheated Steam Coupled with Non-condensing Gases in Horizontal Wells with Multipoint Injection Technique. Energy, (2018) 143 995-1005. [ Links ]

41. Y. Qin, Y. Zhao, X. Chen, L. Wang, F. Li, and T. Bao, Construction and Building Materials 215 (2019) 114-118. [ Links ]

42. G. C. Dash, R. S. Tripathy, M. M. Rashidi, and S. R. Mishra, Journal of Molecular Liquids 221 (2016) 860-866. [ Links ]

43. W. Gao, L. Liang, T. W. Xu, and J. H. Gan, Open Physics, 15 (2017) 501-508. [ Links ]

44. Y.Y. Yan, and Y.Q. Zu, Int. J. Heat Mass Transfer 51 (2008) 2519-2536. [ Links ]

45. M.S. Kandelousi, Phys. Lett. A 378 (2014) 3331-3339. [ Links ]

46. B. Calcagni, F. Marsili, and M. Paroncini, Appl. Thermal Eng. 25 (2005) 2522-2531. [ Links ]

47. K. Khanafer, K. Vafai, and M. Lightstone, Int. J. Heat Mass Transfer 46 (2003) 3639-3653. [ Links ]

48. N. Rudraiah, R.M. Barron, M. Venkatachalappa, and C.K. Subbaraya, Int. J. Eng. Sci. 33 (1995) 1075-1084. [ Links ]
