Paleomagnetic Pole Positions and Geomagnetic Secular Variation from the Cretaceous Ponta Grossa Dike Swarm (Brazil)

Miguel Cervantes Solanoa

Avto Goguitchaichvilib

Mabel Menac

Luis Alva-Valdiviad

Juan Morales Contrerasb

Ruben Cejudo Ruizb

Héctor López Loerad

Ana María Solerd

Jaime Urrutia-Fucugauchie

a Escuela Nacional de Estudios Superiores Unidad Morelia Universidad Nacional Autónoma de México Morelia, México

b Laboratorio Interinstitucional de Magnetismo Natural Instituto de Geofísica Campus Morelia Universidad Nacional Autónoma de México Morelia, México

c Instituto de Geofísica Daniel Valencio Dpto. Ciencias Geológicas Facultad de Ciencias Exactas y Naturales Universidad de Buenos Aires, Argentina

d División de Geociencias Aplicadas del Instituto Potosino de Investigación Científica y Tecnológica A. C. San Luis Potosí, S. L. P., México

e Laboratorio de Paleomagnetismo Instituto de Geofísica Universidad Nacional Autónoma de México Ciudad Universitaria Delegación Coyoacán, 04510 México D.F., México


ABSTRACT

A detailed paleomagnetic and rock magnetic investigation has been carried out on the Early Cretaceous Ponta Grossa dike swarm in southern Brazil. This formation seems an excellent target for paleomagnetic study. The dikes are widely distributed over a large area, easy to access, and they record faithfully the geomagnetic field at the time of the eruption. Most of them are fresh and have been dated by K-Ar and Ar-Ar. Thermomagnetic experiments (low-field versus temperature curves) suggest low-Ti titanomagnetites as main remanence carriers, and their domain structure is characterised by a mixture of single-domain and multi-domain grains. Characteristic paleomagnetic directions are retrieved from 28 out of 29 sites (235 standard paleomagnetic cores). 17 sites show normal polarity, 10 sites show reverse polarity and one site shows an oblique direction, with negative inclination, separated 79° of the mean normal directions. The reversal test is positive at the 95% confidence level which ensures that the secondary remanent magnetizations were successfully removed and the sampling adequately averaged the palaeosecular variation. The paleosecular variation parameters values obtained in this study correlate with those determined for the Cretaceous Normal Superchron, between 125 to 84 Ma. The new paleomagnetic pole position (222.0° E, 88.1° S, N = 24, K = 35.68, A 95 = 5.0°) agrees well (within uncertainties) with the reference poles determined from Besse and Courtillot (2002), and disagree with those reported in previous studies. The new results should be considered for estimating the Cretaceous paleomagnetic poles for stable South America.

Key words: Ponta Grossa Dike Swarm; South America; Paleomagnetism; Cretaceous

RESUMEN

A detailed paleomagnetic and rock magnetic investigation has been carried out on the Early Cretaceous Ponta Grossa dike swarm in southern Brazil. This formation seems an excellent target for paleomagnetic study. The dikes are widely distributed over a large area, easy to access, and they record faithfully the geomagnetic field at the time of the eruption. Most of them are fresh and have been dated by K-Ar and Ar-Ar. Thermomagnetic experiments (low-field versus temperature curves) suggest low-Ti titanomagnetites as main remanence carriers, and their domain structure is characterised by a mixture of single-domain and multi-domain grains. Characteristic paleomagnetic directions are retrieved from 28 out of 29 sites (235 standard paleomagnetic cores). 17 sites show normal polarity, 10 sites show reverse polarity and one site shows an oblique direction, with negative inclination, separated 79° of the mean normal directions. The reversal test is positive at the 95% confidence level which ensures that the secondary remanent magnetizations were successfully removed and the sampling adequately averaged the palaeosecular variation. The paleosecular variation parameters values obtained in this study correlate with those determined for the Cretaceous Normal Superchron, between 125 to 84 Ma. The new paleomagnetic pole position (222.0° E, 88.1° S, N = 24, K = 35.68, A 95 = 5.0°) agrees well (within uncertainties) with the reference poles determined from Besse and Courtillot (2002), and disagree with those reported in previous studies. The new results should be considered for estimating the Cretaceous paleomagnetic poles for stable South America.

Palabras-clave: Ponta Grossa Dike Swarm; South America; Paleomagnetism; Cretaceous

Introduction

The study of the remanent magnetism recorded in rocks is the basis for constraining important problems in plate tectonics and paleogeographic reconstructions at different time scales. Paleomagnetic poles are often used to determine past location of continents. Reliable reconstructions of geological terrains cannot be obtained from poorly defined paleomagnetic poles, no matter how many sites are used. Precisely defined reference paleopoles (Besse and Courtillot, 2002) are crucial to produce robust paleocontinental reconstructions.

The Parana Magmatic Province and surrounding volcanic areas, including the Ponta Grossa Dikes have been subject of many paleomagnetic studies (Ernesto et al ., 1990, 1996, 1999; Raposo et al ., 1995; Raposo et al ., 1998; Alva-Valdívia et al ., 2003; Mena et al ., 2006). However, the paleomagnetic pole positions obtained in these studies present unusually high dispersion, which probably do not reflect the true characteristics of the Earth's magnetic field for the time interval of ∼140-120 Ma. As discussed by Alva-Valdivia et al . (2003), the apparent high scatter in paleomagnetic pole positions may be due to unrecognized tectonic disturbances (see also Ernesto et al ., 1990).

On other hand, the fine scale characteristics of the geomagnetic field during the Cretaceous is of great interest in understanding the long-term evolution of the geomagnetic field, related to the constant polarity superchron, the polarity reversal frequency patterns and paleosecular variation. The fluctuation of earth's magnetic field elements is closely connected to conditions in the Earth's liquid core and at the core-mantle boundary. Paleomagnetic data provide an invaluable source of information on the Earth's liquid core and deep interior.

There are two clear intervals in the geological past when the Earth's magnetic field remained with constant polarity for a considerable length of time: from about 125 to 84 Ma the polarity was normal (so-called the Cretaceous Normal Superchron-CNS) and from about 310 to 260 Ma the polarity was reversed (so-called the Permo-Carboniferous Superchron-PCRS). During the last decades, many investigations were devoted to study the morphology of the earth's magnetic field during the Cretaceous (Biggin et al ., 2008). Namely, most important question is related to the variability during and around the CNS. The particularity of this interval (125 to 84 Ma after Cande and Kent, 1995 and Tarduno et al ., 2002) is that Earth's magnetic field did not reverse polarity. Knowledge of the geomagnetic field behaviour just prior to CNS is patchy and largely unknown. Thus, more accurate paleomagnetic studies giving information about the past behavior of the geomagnetic field are strongly needed.

High quality paleomagnetic reference poles are required to distinguish true polar wander effects from relative hotspot motion, and to constrain major geodynamic events (Torsvik et al ., 2002; Somoza and Zaffarana, 2008). Major tectonic events characterize the mid-and late Cretaceous, with the final stages of Gondwana breakup, volcanic plateau emplacement and fast seafloor spreading rates (e.g., Taylor, 2006; Seton et al ., 2009).

The present study is aimed to determine precise Early Cretaceous paleomagnetic pole positions for stable South America, and contribute to the study of the fluctuations of the Earth¿s magnetic field just prior to the Cretaceous Normal Superchron. A preliminary paleointensity study was already reported from the Ponta Grossa dikes, analyzing 3 sites with 11 samples (Cejudo et al ., 2009). The present study expands on the initial reconnaissance study, based on 335 standard paleomagnetic cores belonging to 29 dikes.

Geological Setting and Sampling

The Parana-Etendeka area represents one of the largest known continental flood basaltic provinces. It is constituted of volcanic and sub-volcanic rocks, with the majority being tholeitic basalts and andesites with subordinate rhyolites, covering an area of around 1.2 × 106 km2 in southern Brazil (mainly), northern Argentina, Uruguay and Paraguay. Based on available radiometric data, it appears that these huge magmatic eruptions occurred between 133 and 132 Ma (Renne et al ., 1992, 1996).

Intra-continental volcanism that crop outs around the basaltic traps at the present time is younger, and comprises basaltic and andesitic dikes. The most important mafic dike swarms in Brazil occur in the Ponta Grossa (PG) region (Figure 1) and are associated with the flood basalt suites of the Paraná basin (Piccirillo et al ., 1990; Brandt et al ., 2010). The region is cut by hundred of dikes, predominantly basaltic and andesitic composition. There is now a general agreement that PG dikes were probably feeders of the stratovolcanoes built in northern Paraná (Sial et al ., 1987). Renne et al . (1996) reported a comprehensive geochronological study provided numerous 40Ar/39Ar high quality plateau ages. The age-probability distribution for the dominant pulse (131.4 ± 0.4 to 129.2 ± 0.4 Ma) shows a pronounced peak at 130.5 Ma. Thus, Ponta Grossa dikes are younger than the southern Paraná Magmatic Province lavas, which occurred at 133-132 Ma (Renne et al. , 1996).

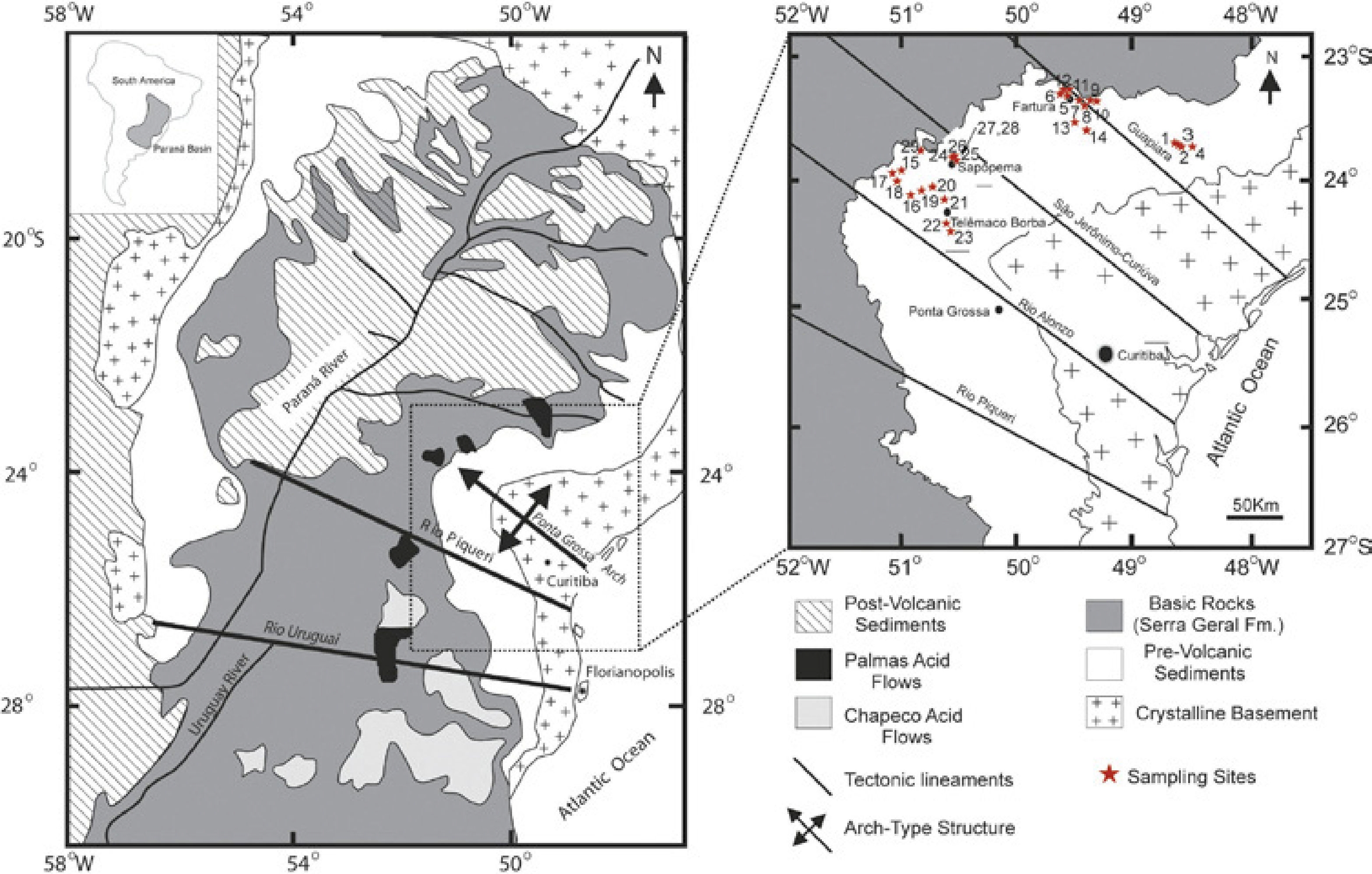

Figure 1 Simplified geologic map of Southern Brazil showing the location of studied sites (adopted from Brandt et al., 2009 and Cejudo et al., 2009).

We obtained 235 standard paleomagnetic cores belonging to 29 sites distributed along road outcrops in Ponta Grossa region, Southern Brazil (Figure 1). The samples were distributed throughout each dike both horizontally and vertically. In general, samples were obtained at least 30 cm distance from the dike edge (when possible). Cores were obtained with a gasoline-powered portable drill, and then oriented in most cases with both magnetic and sun compasses.

Laboratory Procedures

Magnetic experiments were carried out to find out the carriers of remanent magnetization, to estimate their domains states and grain sizes and to obtain information about their paleomagnetic stability. From each of the 29 studied dikes, one sample was selected for these experiments, which included the measurement of low-field susceptibility versus temperature (k-T) curves, the determination of hysteresis parameters and the measurement of isothermal remanent magnetization (IRM) acquisition curves. All hysteresis measurements were carried out with the AGFM-Micromag apparatus, while continuous thermomagnetic curves were obtained using Bartington susceptibility bridge equipped with furnace.

Thermomagnetic curves were measured in air, heating the samples up to 600 °C and cooling them down to room temperature. Curie points (T) were determined using the Prevot (1983)'s method. The most representative behaviour is reported on Figure 2a. It displays irreversible curves with a single ferromagnetic phase with a high Curie temperature near 550 °C, which corresponds to low-Ti titanomagnetite or slightly Alor Mg-substituted magnetite. We considered a curve to be reversible if the difference between initial magnetization before heating had started and final magnetization after cooling had been completed was less than ±10%.

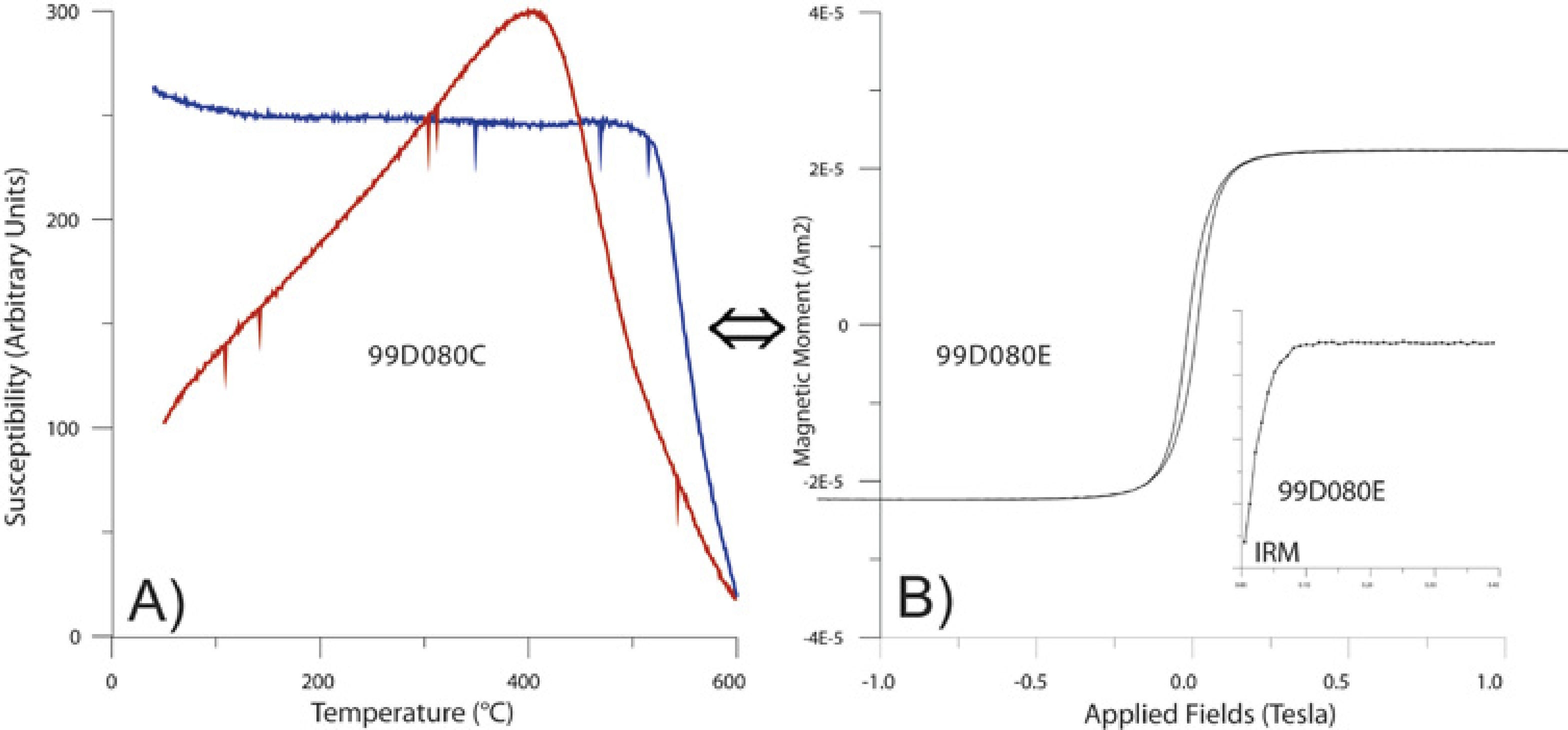

Figure 2 a) Susceptibility versus temperature (in air) curve of representative samples. b) Typical examples of hysteresis loop (corrected for dia/paramagnetism) of small chip samples from the studied volcanic units and associated IRM (isothermal remanent magnetization) curve.

Hysteresis parameters J (saturation magnetization), J (saturation remanence), H (coercivity) and H (coercivity of remanence) were obtained from hysteresis (Figure 2b) and backfield curves. Analysis of the measurements was performed with the RockMagAnalyzer 1.0 software (Leonhardt, 2006). The obtained values point that studied samples can be match to the PSD (pseudo-single-domain) magnetic grains. This behavior might be also explained by a mixture of single-domain (SD) and multi-domain (MD) particles (Dunlop, 2002). IRM acquisition curves (Figure 2b) show that more than 95% of saturation magnetization (SIRM) was reached with applied fields of less than 150 mT. Thus IRM measurements point to low-coercivity phases as main remanence carriers.

Remanent magnetization measurements were performed at the 'Laboratorio Interinstitucional de Magnetismo Natural' in Campus Morelia (UNAM) with a spinner JR6 (nominal sensitivity ∼10-9 Am2) magnetometer. Most of samples were cleaned by means of alternating field demagnetization using a LDA-3 demagnetizer, with 95 mT as maximum fields available. Eleven sites displayed a single paleomagnetic component (Figure 3, samples 99D015A), whereas in the remaining ones a viscous present-day normal-polarity overprint could also be observed that was easily removed (sample 99D010B). Some dikes however yielded relatively strong secondary components (sample 99D115A), which were removed after applying around 60 mT alternating fields. The origin of this overprint is probably related to hydrothermal alteration.

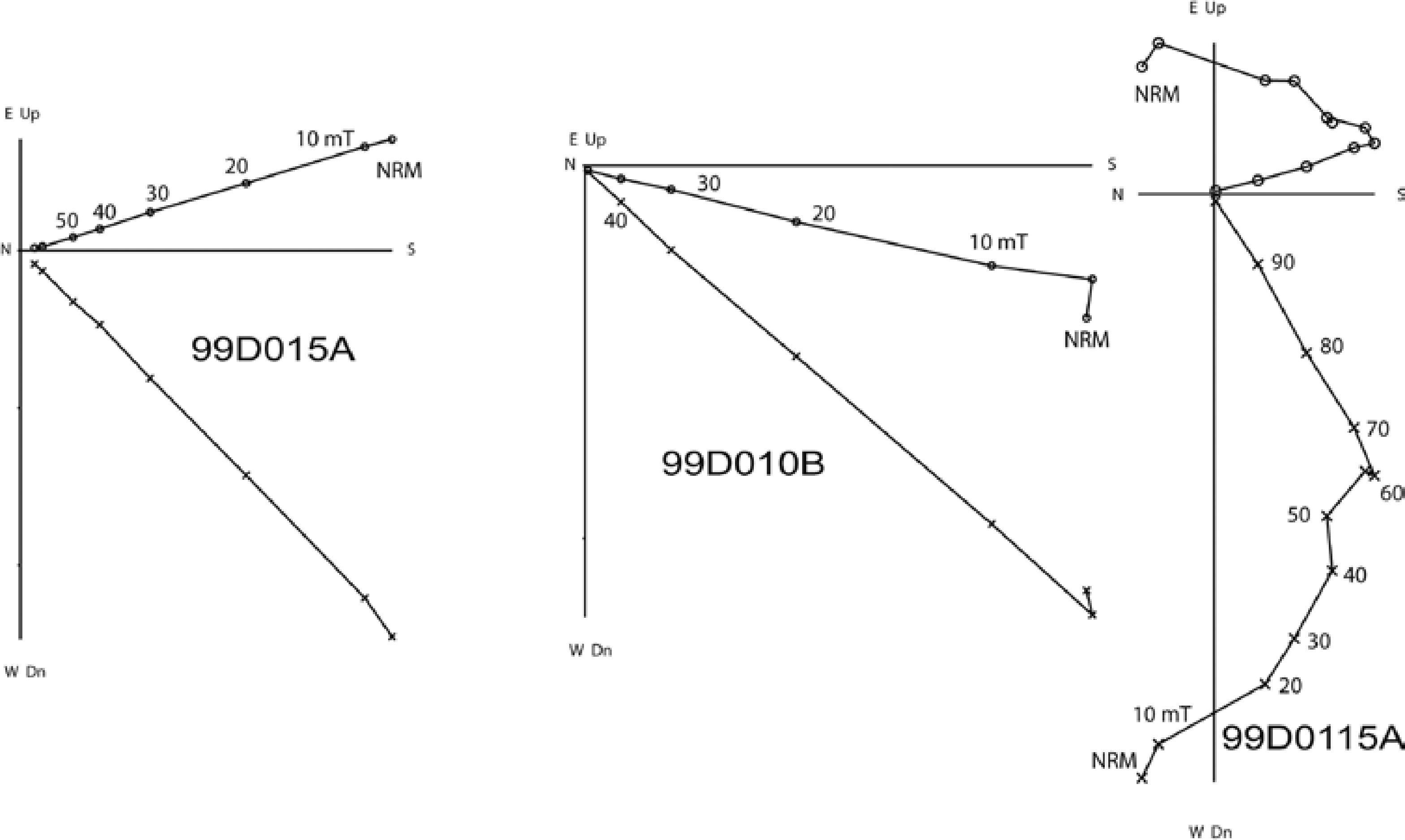

Figure 3 Orthogonal vector plots of stepwise alternative field demagnetization of three representative specimens.

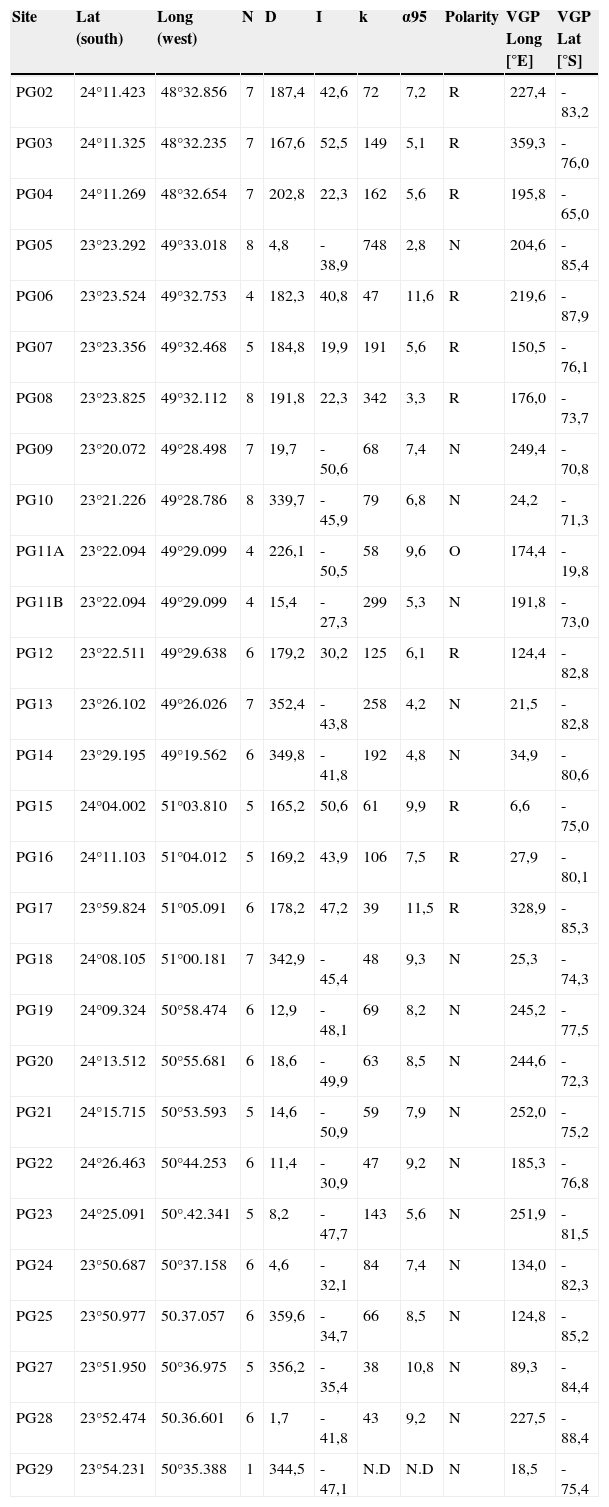

Table 1 Paleomagnetic results of studied samples. D, I : declination and inclination of the site mean directions; N is number of specimens used; k and a95 are Fisherian statistical parameters; VGP Long, VGP Lat : longitude and latitude of the virtual geomagnetic poles.

The direction of the characteristic magnetization (ChRM) was determined by the least squares method (Kirschvink, 1980), with 4 to 9 points being taken for the principal component analysis. The directions obtained were averaged by volcanic unit and the statistical parameters calculated assuming a Fisherian distribution.

Main Results and Discussion

17 sites show normal polarity remanences, 10 sites show reverse polarities and one site have an outlier oblique direction, with negative inclination, separated 79° of the mean normal direction (calculated before exclude it; Figure 4). The mean paleomagnetic direction for the normal polarity sites is I = -42.6°, D = 2.2°, k = 46.9, a =5.3°, N = 17 (k is precision parameter and N number of sites), while reversely magnetized sites give a mean direction with I = 37.8°, D = 182.2°, k = 27.62, a95 =9.3°, N =10. The reversal test as defined by McFadden and Lowes (1981) is accepted at the 95% confidence level and the reversal test from McFadden and McElhinny (1990) is positive with classification B (gc = 9.58°; go = 4.8°). This ensures that the secondary remanent magnetizations were successfully removed and the sampling adequately averaged the palaeosecular variation.

Figure 4 Stereoplot for site mean paleodirections corresponding to all 28 sites where reliable results are obtained.

For both sets, the quantil-quantil (Q-Q) plot for declinations using the uniform model is approximately linear, passing through the origin with a slope near 45° (Figure 5). The Q-Q Co-Inclination plot with exponential model is also linear, with a slope that gives an estimated k = 58.82. The Q-Q plot for two variables is approximately linear, passing through the origin and with a slope that give an estimate k = 42.16. The three k estimate values are statistically undistinguishable at 95% level using an F-test. These graphical tests suggest that the underlying distributions are fisherian.

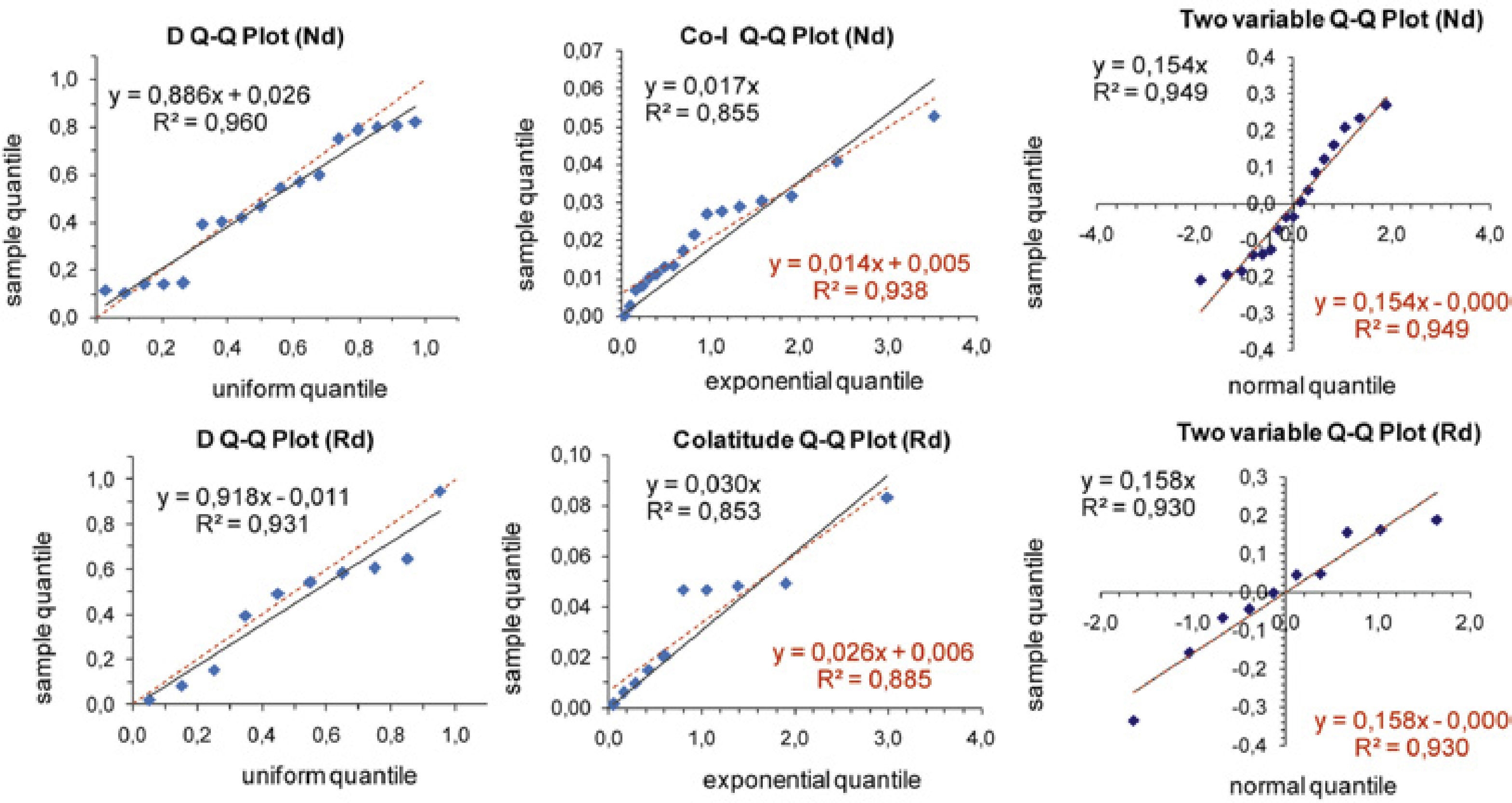

Figure 5 Probability plots for checking goodness of fit of the paleodirections to the Fisher distribution.

The distribution of the site-mean VGPs is somewhat elongated (Figure 6), with maximum elongation direction along the 24°-204° meridian. The eigenvalues of the VGP orientation matrix are t1 =25.714; t2 =0.987; t3 =0.299, then the elongation index is 3,3. Similar configuration was also found for coeval VGPs (Mena et al ., 2006, 2011). However, we consider the elongation not significant, since the VGP distribution yields a reasonably good fit with fisherian distribution when probability plots as well as formal testing procedures are used.

Figure 6 South VGPs distribution from 28 sites.

The VGPs quantil-quantil (Q-Q) plots are consistent with a fisherian distribution (Figure 7), with slopes that give estimated k = 43.5 from colatitudes and k = 73.1 from two variables. Using an F-test these values are statistically undistinguishable, at 95% confidence level, of the value k =39.6 estimate with the VGPs. Employing formal testing procedures, we obtain the following results for the modified statistics of Kolmogorov-Smirnov and Kuiper (Dn* , Vn*, MU (Vn ), ME (Dn ) and MN (Dn ); Fisher et al ., 1987): Longitude test: Dn *= 0.8677; Vn *= 1.2862; MU (Vn )=1.1780; colatitude test: Dn* =0.6381 ; Vn* = 1.0538; ME (Dn) =0,6162; Two-variable test: Dn* =0.7390; Vn* =1.3542; MN (Dn )= 0.7408. All values suggesting no departure from the Fisher model.

Figure 7 Probability plots for checking goodness of fit of the VGPs to the Fisher distribution.

Considering the PGVs from sites with α95 <10° (excluding PG6, PG17 and PG27 and the oblique site PG11a) the paleomagnetic pole (PP) is located at 222.0° longitude E, 88.1° latitude S, N = 24, K = 35.68, A 95 = 5.0°. The inclusion of all sites into the mean calculation gives: 222.4° longitude E, 88.4° latitude S, N = 27, K = 39.61, A 95 = 4.5°, which is not significantly different.

The mean paleomagnetic pole obtained in this study is shown in the present geographical reference frame in Figure 8 and listed in Table 2 together with previously published South American poles. In general, the pole obtained in this study, agrees reasonably well with other pole positions, in particular with Misiones (Argentina), Central Paraná Magmatic Province, Florianopolis Dikes (Brazil), Los Adobos (Geuna et al ., 2000) poles. However, some other similar age paleomagnetic poles (Central and Northern Paraná Bassin in Brazil and Arapey Formation in Uruguay) are clear outliers. As initially suggested by Ernesto et al . (1996) and recently confirmed by Goguitchaichvili et al . (2013), this may be due to some local tectonic rotations or insufficient sampling to average the paleosecular variation as well as to unrecognized structural disturbances. Overall, the Ponta Grossa poles are significantly different from the pole position estimated from the hotspot reconstruction (Muller et al ., 1993). This fact is attributed by several authors (i.e. Alva-Valdivia et al ., 2003, Cervantes et al ., 2010, Goguitchaichvili et al ., 2013) as cause of the true polar wander or hotspot motion. Somoza and Zaffarana (2008) analyzed the mid-Cretaceous poles for South America, concluding that there is no detectable motion with respect of the paleomagnetic axis for the interval 125 to 100 Ma. Somoza and Zaffrana (2008)'s study also shows that the corresponding paleolatitudes are inconsistent with true polar wander, supporting that the angular discrepancies between the paleomagnetic and fixed hotspot reference frames are due to relative motion of the Atlantic hotspots. The apparent polar standstill of South America has been documented for Eurasia and possibly for the Pacific plate during mid-Cretaceous times (Sager, 2006).

Figure 8 Paleomagnetic poles with 95% confidence circles for Ponta Grossa dikes and previously published cretaceous PPs with their confidence limits. 1. Misiones (Mena et al., 2011), 2. Southern Paraná Basin (Raposo and Ernesto, 1995), 3. Central Paraná Basin (Raposo and Ernesto, 1995), 4. Northern Paraná Basin (Ernesto et al., 1999), 5. Ponta Grossa Dikes (Raposo and Eresto, 1995), 6. Central Paraná Magmatic Province (Alva-Valdivia et al., 2003), 7. Central Alkaline Province, Paraguay (Ernesto et al., 1996), 8. Sierras Pampeanas (geuna and Vizan, 1998), 9. Florianopolis Dikes (Raposo et al., 1998), 10. Baqueró Group (Somoza et al., 2005), 11. Los Adobos (Geuna et al., 2000), 12. Mean Early Cretaceous (Somoza and Zafarana, 2008), 13. Mean Middle Cretaceous (Somoza and Zafarana, 2008), 14. Mean Cretaceous (Somoza and Zafarana, 2008), 15. Mean Late Cretaceous, (Somoza and Zafarana, 2008). 16. Arapey (Solano et al., 2010), 17. Alto Paraguay 18 (Goguitchaichvili et al., 2012), 18. Alto Paraguay 16 (Goguitchaichvili et al., 2013), 19. Reference Poles at 135 Ma (Besse and Courtillot, 2002), Ponta Grossa (This study).

Table 2 Selected Cretaceous paleomagnetic poles. P= number assigned to paleomagnetic pole (PP) in Figures X; long E, lat S, A95= longitude, latitude and semi angle of 95% confidence of the PPs.

The location of our paleomagnetic poles significantly differs from early Ponta Grossa poles obtained by Raposo and Ernesto (1995). However, these new poles agree well (within uncertainties) with the reference poles given by Besse and Courtillot (2002). This attests that our results should be considered as most precise determination of Cretaceous paleomagnetic pole positions for stable South America.

The VGPs scatter was calculated according to, (Cox, 1969 ) where S p is the total angular dispersion, Di is the angular distance of the i -th VGP to the PP and N is the number of sites used in the calculation. Thereby S =12.9°. The paleosecular variation (PSV) was estimate according to McEllhinny and McFadden (1997) by where S w = 81/K -1/2 is the within-site scatter, K being Fisher concentration parameter for poles estimate from direction concentration parameter (k ) according to K = 8k (5 +18sin2 λ + 9sin4 λ), λ is the site paleolatitude, and n i is the number of directions from i- th site. The calculated PSV is S =12.3°, with a 95% confidence interval [10.3°;15.2°], which agrees well with the expected value for this latitude. The SB values here obtained agree well with the selected data reported for the Cretaceous Normal Superchron (Biggin et al ., 2008) between 125 to 84 Ma. This supports that the Earth's magnetic field maintained similar characteristics before and during CNS, in disagreement with previous studies.

Acknowledgment

The financial support for this work was provided by UNAM DGAPA PAPIIT projects IN-105215, 107114 and IA-104215 as well by CONACYT project 129653. This work was also funded by CGL2012-32149 project (Ministerio de Economía y Competitividad, Spain) and the European Regional Development Fund (ERDF).

Bibliography

L.M. Alva-Valdivia, A. Goguitchaichvili, J. Urrutia-Fucugauchi, J. Riisager, P. Riiisager. Paleomagnetic poles and paleosecular variation of basalts from Paraná Province, Brazil: geomagnetic and geodynamic implications. Phys. Earth Planet. Inter. 2003; 138:183p [ Links ]

J. Besse, V. Courtillot. Apparent and true polar wander and the geometry of the geomagnetic field over the last 200. Myr, J. Geophys. Res. 2002; 107:1p [ Links ]

A.J. Biggin, D.J. van Hinsbergen, C.G. Langerais, G.B. Straathof, M.H.L. Deenen. Geomagnetic secular variation in the Cretaceous Normal Superchron and in the Jurassic. Physics Earth Planet. Int. 2008; 169:3p [ Links ]

D. Brandt, G.A. Hartmann, E. Yokoyama, E.L. Catelani, R.I.F. Trindade. Paleointensity data from Early Cretaceous Ponta Grossa dikes (Brazil) using a multisample method, Earth. Planets Space. 2009; 61:41p [ Links ]

S.C. Cande, D.V. Kent. Revised calibration of the geomagnetic polarity time scale for the Late Cretaceous and Cenozoic. J. Geophys. Res. 1995; 100:6093p [ Links ]

R. Cejudo Ruiz, A. Goguitchaichvili, J. Morales, R.I.F. Trindade, L.M. Alva Valdivia, J. Urrutia-Fucugauchi. Absolute Thellier paleointensities from Ponta Grossa dikes (southern Brazil) and the early Cretaceous geomagnetic field strength. Geofisica Internacional. 2009; 48:243p [ Links ]

A. Cox. Research note: Confidence limits for the precision parameter, K, Geophys. J. Roy. Astron. Soc. 1969; 17:545p [ Links ]

D.J. Dunlop. Theory and application of the Day plot (Mrs/Ms versus Hcr/Hc), Theoretical curves and tests using titanomagnetite data. J. Geophys. Res. 2002; 107p [ Links ]

M. Ernesto, I.B. Raposo, L. Marques, P. Renne, L. Diogo, M. Min. Paleomagnetism, geochemistry and 40Ar/39Ar dating of the Northeastern Paraná Magmatic Province. J. Geodyn. 1999; 28:321p [ Links ]

Ernesto M., Comin-Chiaramonti P., Gomes C.B., Castillo A.M.C., Velazquez J.C., 1996, Palaeomagnetic data from the Central Alkaline Province, eastern Paraguay, Alkaline magmatism in Central-Eastern Paraguay. University of Sao Paulo: 85-102. [ Links ]

M. Ernesto, I.G. Pacca, F.Y. Hyodo, A.J.R. Nardy. Paleomagnetism of the Mesozoic Serra Geral Formation, southern Brazil. Phys. Earth Planet. Inter. 1990; 64:153p [ Links ]

N.I. Fisher, T. Lewis, B.J.J. Embleton. Statistical analysis of spherical data. Cambridge University Press; 1987. [ Links ]

J.L. Kirschvink. The Least-Squares Line and Plane and the Analysis of Paleomagnetic Data. Geophysical Journal of the Royal Astronomical Society. 1980; 62:699p [ Links ]

M.W. McElhinny, P.L. McFadden. Palaeosecular variation over the past 5 Myr based on a new generalized database. Geophys. J. Int. 1997; 131:240p [ Links ]

P.L. McFadden, M.W. McElhinny. Classification of the reversal test in paleomagnetism. Geophys. J. Int. 1990; 103:725p [ Links ]

P.L. McFadden, F.J. Lowes. The discrimination of mean directions drawn from Fisher distributions. Geophys. J. R. Astr. Soc. 1981; 67:19p [ Links ]

M. Mena, A. Goguitchaichvili, M.C. Solano, J.F. Vilas. Paleosecular variation and absolute geomagnetic paleointensity records retrieved from the Early Cretaceous Posadas Formation (Misiones, Argentina). Studia Geophysica et Geodaetica. 2011; 55:279p [ Links ]

M. Mena, M.J. Orgeira, S.L. Lagorio. Paleomagnetism, rock-magnetim and geochemical aspects of early Cretaceous basalts of the Paraná Magmatic Province, Misiones, Argentina. Earth Planets Space. 2006; 58:1283p [ Links ]

R. Leonhardt. Analyzing rock magnetic measurements: The RockMagAnalyzer 1.0 software. Computers and Geosciences. 2006; 32:1420p [ Links ]

M. Prévot, E.A. Mankinen, S. Grommé, A. Lecaille. High paleointensities of the geomagnetic field from basalts from the mid-Atlantic ridge. J. Geophys. Res. 1983; 88:2316p [ Links ]

M.I.B. Raposo, M. Ernesto, P.R. Renne. Paleomagnetism and 40Ar/39Ar dating of the Early Cretaceous Florianópolis dike swarm (Santa Catarina Island), Southern Brazil. Earth Planet. Sci. Lett. 1998; 108:275p [ Links ]

M.I.B. Raposo, M. Ernesto. An Early Cretaceous paleomagnetic pole from Ponta Grossa dykes (Brazil): implications for the South America Mesozoic APWP. J. Geophys. Res. 1995; 100:20095p [ Links ]

P.R. Renne, K. Decart, M. Ernesto, G. Féarud, E.M. Piccirillo. Age of the Ponta Grossa dike swarm (Brazil), and implications to Paraná flood volcanism. Earth Planet. Sci. Lett. 1996; 144:199p [ Links ]

P.R. Renne, M. Ernesto, I.G. Pacca, R.S. Coe, J.M. Glen, M. Prévot, M. Perrin. The Age of Paraná Flood Volcanism, Rifting of Gondwanaland, and the Jurassic-Cretaceous Boundary. Science. 1992; 258:975p [ Links ]

W.W. Sager. Cretaceous paleomagnetic apparent polar wander path for the Pacific plate calculated from Deep Sea Drilling Project and Ocean Drilling Project Program basalt cores. Phys. Earth Planet. Inter. 2006; 156:329p [ Links ]

M. Seton, C. Gaina, R.D. Muller, C. Heine. Mid-Cretaceous seafl oor spreading pulse: Fact or fiction?. Geology. 2009; 37:687p [ Links ]

A.N. Sial, E.P. Oliveira, A. Choudhuri. Mafic dyke swarms of Brazil. In: H.C. Halls and W.F. Fahrig (Editors), Mafic Dyke Swarms in Brazil. Geol. Assoc. Can. Spec. Pap. 1987; 34:467p [ Links ]

R. Somoza, C.B. Zaffarana. Mid-Cretaceous polar standstill of South America, motion of the Atlantic hotspots and the birth of the Andean cordillera. Earth Planet. Sci. Lett. 2008; 271:267p [ Links ]

Tarduno J.A., Cottrell R.D., Smirnov A.V., 2002, The Cretaceous superchron geodynamo: observations near the tangent cylinder. PNAS, 99, 14020-14025.thermomagnetic study on rift valley pillow basalts from the mid-Atlantic ridge. J. Geophys. Res., 88, 2316-2326. [ Links ]

B. Taylor. The single largest oceanic plateau: Ontong Java–Manihiki–Hikurangi. Earth Planet. Sci. Lett. 2006; 241:372p [ Links ]

T.H. Torsvik, R. Van der Voo, T.F. Redfield. Relative hotspot motion versus true polar wander. Earth Planet. Sci. Lett. 2002; 202:185p [ Links ]

Further reading

Piccirillo E.M., Melfi A.J., 1988, The Mesozoic flood volcanism from the Paraná basin (Brazil), Petrogenetic and geophysical aspects, Iag-Usp, São Paulo, Brazil, 600 pp. [ Links ]
