Original paper



Hydrogeologic characterization of the abandoned mining site of Castelejo, Portugal by VLF-EM & RMT-R geophysical surveying



Vitor Manuel Gomes de Oliveira*, Luís Filipe Tavares Ribeiro*, María Catarina Rosalino da Silva**



* CVRM Instituto Superior Técnico, Universidade de Lisboa, Av. Rovisco Pais, Lisboa Portugal *Corresponding author: vgomesoliveira@ist.utl.pt

** Centro de Geología, FCUL, Edifício C6, Campo Grande Lisboa, Portugal.



Received: November 27, 2012.
Accepted: August 28, 2013.
Published on line: April 01, 2014.



Resumen

Hay alrededor de 175 minas abandonadas en Portugal, de las cuales unos 60 son antiguas explotaciones de uranio. La mina de uranio Castelejo está ubicada a unos 2 km al W de Vila Cortês da Serra, en el distrito de Guarda, en la cuenca del río Mondego. En términos geológicos, la mina se localiza en un granito de grano medio e dos micas con tendencia porfiroidal. La explotación comenzó con dos minas a cielo abierto entre 1979 y 1990, que produjeron alrededor de 132 toneladas de U₃O₈. Desde 1992, la producción comenzó a llevarse a cabo a través de la lixiviación in situ con H₂SO₄ de materiales de bajo contenido en uranio. La circulación de las aguas superficial y subterránea está estructuralmente condicionada por la fracturación intensa en la zona. Dos campañas geofísicas de exploración se llevaron a cabo a fin de caracterizar el sistema de fracturas. La primera fue una investigación con el método VLF que nos permitió identificar los principales sistemas de fallas que pueden proporcionar rutas para el flujo de las aguas subterráneas. A partir de la segunda campaña, que fue un estudio llevado a cabo con el método RMT en una caja de falla que reproduz o gradiente natural de la mina, se obtuvieron las resistividades y espesores del material de granito intemperizado. Los perfiles obtenidos muestran que la resistividad disminuye con el aumento de profundidad.

Este aspecto puede deberse a causas naturales - el material que llena la caja de falla es más intemperizado en profundidad que en la superficie - o puede indicar contaminación en profundidad, debido al drenaje ácido de las minas.

Palabras clave: prospección geofísica, acuífero fisurado, agua de mina, VLF, RMT-R.



Abstract

There are about 175 abandoned mining sites in Portugal, of which about 60 are old uranium workings. The Castelejo mine is an old uranium located about 2 km W of Vila Cortês da Serra, in Guarda district, on the River Mondego basin. In geologic terms, the mine is located in medium-grained two-mica monzonitic granite, with porphyroidal tendency. Exploitation started with two open cast mines between 1979 and 1990 which produced about 132 tonnes U₃O₈. From 1992, production started to be carried out through the in situ H₂SO₄ leaching of the mine's low-grade materials. The superficial and groundwater circulation are structurally conditioned by the intense fracturing in the area. Two exploratory geophysical field campaigns were conducted in order to characterize the fracturing. The first was a VLF survey that allowed us to identify major fault systems that may provide paths for groundwater flow. From the second campaign, which was an RMT survey conducted at a fault gauge which records the mine natural gradient flow, we obtained the resistivities and thicknesses of the weathered granite material. The profiles obtained show that resistivity declines with increasing depth.

This fact may arise from natural causes – the material which fills the fault gauge is more weathered at depth than on the surface – or it may indicate contamination at depth, due to acid mine drainage.

Key words: geophysical surveying, fissured aquifer, mine water, VLF, RMT-R.



Introduction

The activities developed by mining are, from the very start of operations, capable of degrading the surrounding environment and causing major environmental modifications, unless they are properly monitored and then controlled in accordance with the data gathered from the monitoring.

Main modifications to the environmental balance generally result from digging a part of the land surface, as well as from the production of deposits of varying kinds of waste and / or sterile minerals (tailings) and from the chemical products used in ore separation / purification (Younger et al., eds, 2002). All these modifications cause hydrological and hydrogeological impacts (on superficial and ground water), geochemical impacts (on sediment, ground and alluvium) and biochemical impacts (on living beings) (Lottermoser, 2003).

The characteristics and consequences of these impacts diverge according to when they are produced, and they can cause sporadic and /or diffuse pollution.

Sporadic pollution occurs when the mine is being worked; if there is a control system in operation (monitoring) the pollution can be prevented from spreading.

Diffuse pollution tends to occur once a mine has been abandoned. As a rule (Rapantova et al., eds, 2008) when a reasonably long time is spent on closing down a mine there is no longer any concern with monitoring, which is only undertaken when it is active.

This attitude disregards possible subsequent risks to the closed down mine without taking any type of prevention to forestall them, and therefore it contributes to the propagation of the contamination.

The environmental liabilities of mining are expressed, as a rule, by the incidence of abnormal (very high) concentrations of heavy metals in the sediments, ground and alluvia, as well as in the water within the area of influence of this activity (Rapantova et al., eds, 2008). The presence of these elements is essentially due to the leaching of the materials inside the mine and to erosion and leaching processes acting on the tailing materials extracted from the mine (Younger et al., eds, 2002). In fact, in open cast mining these elements are vulnerable to the action of the wind and the rain, which are their main vehicles of dissemination.

In many cases of mine exploration, the action of the water over the tailings and other mine wastes causes a phenomenon known as acid mine drainage (AMD). This phenomenon particularly occurs in metal ore workings in which sulphide is exposed to oxidating environments, or when acid leaching from poor ore with a view to its concentration and subsequent recuperation occurs (Lottermoser, 2003). When the mine is definitely abandoned and if the evolution of the characteristics and the processes of environmental alteration are not controlled the ominous consequences will get worse as years go by. One of the best-known is the contamination of the surface water and groundwater, which occurs both during the phase of functioning and after the mine's closure.

The hydrogeological impact is a serious problem in almost all underground mines and in open cast mines, too. A series of measures can help to avoid or reduce this contamination. Thus, when the mine is abandoned it is essential to have the most accurate knowledge possible of the hydrogeology, the geology, the mineralogical composition of the materials, and the method of extracting and processing the ore to enable the prevention, correction and mitigation of environmental degradation caused by the operation.

The method used to decommission a mine directly influences the local hydrogeological conditions. In conjunction with the operation there are often problems of mining subsidence, which occurs because methods of dismantling are used that do not consider the full extent of the galleries.

When in operation we can see, in brief, the following effects:

- Differential settlements
- Fractures on the ground
- Lowering of groundwater levels
- Reduced flow of aquifers or even their exhaustion
- Contamination of water.

It can be said that during the course of its history Portugal several times gained importance for major mining, and it is even one of those countries in which mining carried out by Romans is well documented (Ferreira, 1971; Carvalho et al., 1971).

From north to south Portugal 55 Roman mining operations were recorded, and we think there were others that have not been surveyed. They were mostly for gold and several remained in operation until very recent times (Nunes, 1983).

Identification of fracturing

Geophysical surveying has long been used to characterize fracturing in various geological formations. Particularly in mining areas, where fractures are often related to mineralized veins, the joint use of geophysical and other methods enables one to characterize the ore potential of an area of interest (Kearey et al., 2002).

Geophysical surveying today has a very broad range of applications: from mining to civil engineering, through archaeological, environmental, geological and hydrological investigations to aquifer characterization.

In addition to obtaining different kinds of information of geological interest and detecting geological structures that may contain water (e.g. faults and fractures), geophysical surveying is also used to map and monitor the presence and behavior of contaminants in groundwater, ranging from saltwater intrusion in coastal aquifers to the presence of contaminants from mining, industrial or agricultural operations (Kearey et al., 2002; Oliveira, V., 2010).

Several geophysical methods can be applied to characterize soil and groundwater contamination, particularly those using ground-penetrating radar (GPR) devices, magnetometers or conductivimeters (Daniels et al., 1995; Milson, 2003).

Using more than one surveying method improves the accuracy of interpretations, so as in the work described here, it is possible to geologically characterize the suspected area of contamination using one method and to adopt another to detail its intensity and spread. In this study we use two electromagnetic methods, adapted and refined at the University of Neuchâtel, where they are starting to be used in the characterization of karst discontinuities (Thierrin et al., 1988; Turberg et al., 1992).

Risks associated with abandoned U mining sites

Some of the risks associated with abandoned uranium mining sites are usually identified through an ecological and human risk-assessment process. In general terms, once the ore has been milled it becomes yellowcake, a U₃O₈ concentrate, through a series of processes that include crushing, leaching, drying and filtering the initial material.

The composition of the tailings produced over all these processes is represented in Table 1.

Tailings pose several risks and threats, some of which are (see Figure 4):

a) Radon exhalation

Radon (²²²Rn) is a dangerous radioactive gas which migrates to the surface of a tailings pile through a process of diffusion and is then released into the atmosphere.

One of the most feared characteristics of Rn is the danger that it poses to the lungs if inhaled. According to USEPA (2007), Rn can affect the health of people living many kilometers from a tailings pile.

b) Gamma radiation

The radioactivity present in the tailings, mainly due to the uranium decay products of radium (²²⁶Ra) and thorium (²³⁰Th) can be harmful to those directly exposed to the emitted radiation.

c) Dust blowing

The action of the wind over the tailings causes dust blowing. Dust blowing can spread many kinds of contaminants in the air. This risk worsens after the closure of the mine, as the tailings materials dry out.

d) Dam failure

Dam failure, although rare, might be caused by anthropogenic or natural factors. Among the former, bad conception or design of the dam can be blamed while natural disasters – earthquakes, rainfall, snowfall or flooding are examples of natural causes.

e) Seepage

Groundwater contamination may be a major problem when considering the risks associated with uranium mill tailings.

In fact, there is a strong relationship between the geological environment of the mine and its surroundings and the migration of contaminants to the aquifer, as we can also see in this study.

The hydrology of the site is also crucial, along with the chemistry and type of the tailings (sand, slime or liquid and their composition, see Table 1 for details). The soil composition and the characteristics of the mining processes (e.g. underground or surface mining, use of acid leaching) are likewise important. The acid leaching poses an additional problem related to the increased solubility caused in some products, thereby facilitating their migration to groundwater.

f) Other risks

Among the risks not illustrated in Figure 4, the improper use of tailings must be mentioned.

Actually the use of sandy tailings as building materials raises the danger of radiation exposure for the inhabitants of such buildings.



Study Area

Current situation in Portugal

In Portugal there are about 175 abandoned mine workings, dozens of which are currently undergoing environmental restoration. About 60 are former uranium mines, which are for the most part located in very intense fractured zones.

1907 is the year of the discovery of the Urgeiriça uranium-radium deposit. Only radium was exploited until 1944, when the exploitation and production of uranium began, which had place in Urgeiriça until the operation was closed in 2001 with the ending of processing of ore.

The uranium workings were abandoned with the decline of its economic and strategic interest, and the last mines of this radioactive metal were closed in the early 1990s.

The present work concerns an old mine site at Castelejo, an ancient uranium exploitation, located about 2 km W of Vila Cortês da Serra in Gouveia municipality, Guarda district, and connected to the Mondego River basin through the Paço Stream (Figure 8-B).

At present, the area is being environmentally rehabilitated by the Portuguese state-owned enterprise charged with the environmental rehabilitation of old abandoned mining areas. Exploitation started with two open cast pits (now both flooded) between 1979 and 1990 which produced about 132 tonnes of U₃O₈. From 1992 up to 1997 production started to be done through in situ H₂SO₄ leaching of the poor material taken from the mine itself, as well as that from other workings located nearby. This latter process was responsible for the production of (more or less) a further 22.5 tonnes U₃O₈.

The coordinates of the central point of the mine, located between both open skies, referring to the Unified European Reference System (ED50) are: latitude 40º 33' 20''N and longitude 7º 33' 5''W (Figure 8-B).

Geology

Mainland Portugal is formed by an ancient and hardened core, usually called the Hercynian Massif, part of the so-called Hesperian Massif, and by land coverage (Figure 1-A and B).

The Hercynian Massif comprises ante-Mesozoic lands, and consists of sedimentary, eruptive and metamorphic rocks (Ribeiro et al., 1979).

The land coverage includes sedimentary and some Meso-Cenozoic eruptive rocks which form the western and southern edges of the country, as well as modern deposits, consisting of alluvial flood plains and different beach levels, which result from various basins of sedimentary filling (Teixeira, 1966; Ribeiro et al., 1979; Figures 1-A and B).

The Hesperian Massif is crossed by the Central Cordillera, a ENE-WSW lying mountain range, which divides it into two: the north Meseta (Meseta signifies Little Table, so the expression has an essential geomorphological meaning) with an average altitude of 800 meters, and the south Meseta, with an average altitude of about 400 m.

The formations that form the Hesperian Massif, mainly schists, granites and graywackes, suffered the action of Caledonian, Hercynian and Alpine orogenies, although the Hercynian orogeny is the one whose effects are better documented here.

In the Iberian Peninsula, the Hercynian orogeny began in the Middle Devonian and continued until the Late Carboniferous period (Ribeiro et al., 1979).

Although it has developed over several stages, two main phases can be distinguished (dated by the presence of unconformities in the outer zones or by radiometric dating of certain granites (Araújo, M.A. (2002); Abranches, M.C.B. et al. (1982)):

- First one, which ran from Middle Devonian to Visean

- Second, a phase dating from Westphalian.

The orogenic actions caused folding in a general NW-SE orientation, as well as synorogenic magmatism and regional metamorphism.

Between the Late Westphalian and Late Permian periods the Hercynian chain suffered uplifts, the results of erosion and post-tectonics intrusive actions, mainly consisting of alkaline and calc-alkaline granitoid rocks, which gave rise to considerable filonian mineralization.

The last stages of Hercynian orogeny induced intense fracturation in the Massif, causing various movements of uplifting and sinking.

During the Cenozoic era the Hesperian Massif suffered fracturation again, now predominantly in the NE-SW direction, as a result of the Alpine orogeny actions that occurred (Ribeiro et al., 1979).

In geological terms (see Figures 2 and 3) the Castelejo mine is located in medium-grained two-mica monzonitic granite, with porphyritic tendency.

Various granitic intrusions occurred in the late Hercynian age (the mineralizations that occurred are related to quartz veins and usually consist of uranium phosphates - torbernite, autunite and sabugalite - secondary minerals derived from uraninite and other uranium weathering product compounds).

The distribution of U in Portugal

Most known uraniferous deposits lie in central Portugal, in the region covered by the four districts (a district corresponds to an administrative territorial division) of Viseu, Guarda, Coimbra and Porto, although the largest number of mining operations are concentrated in the first two districts (which are, in general terms, presented in Figure 2).

The uranium deposits are related to post-tectonic Hercynian magmatism, usually in the form of monzonitic granite intrusions, medium to coarse-grained, two-mica and having a porphyritic tendency.

They usually lie in a NE-SW direction. Most deposits are related to quartz veins installed in fractures in granites.

There are various opinions about the genesis of uranium deposits. In brief, most authors (Cerveira, A., 1951; Neiva, J.M.C., 1995) albeit with slight variations, considered primary deposits as coming from hydrothermal deposits, while the secondary deposits - impregnation deposits - are considered as coming from the leaching of the first and subsequent precipitation in favourable structures.

Scope of the study

The superficial and groundwater circulation is structurally conditioned by the intense fracturing in the area (Teixeira, C. et al., 1967). To characterize the fracturing, two superficial geophysical exploration field campaigns were conducted. The first consisted of a very low frequency (VLF) survey that enabled the identification of major fault systems that may constitute prime pathways for groundwater flow. The second campaign was a radio magnetotelluric (RMT) survey conducted at a fault gauge fulfilled with weathered granite material. This fault gauge collects the mine's natural gradient flow, and from the survey we have obtained the resistivities and thicknesses of the weathered material.

EDM, the Portuguese state-owned enterprise, in charge of the environmental rehabilitation of the old abandoned mining areas, has been monitoring several water points (wells and piezometers) located in the vicinity of the old Castelejo mine on a more or less regular basis since 1991. However, the collected data are difficult to process since neither the piezometer geometrical characteristics nor its depths of abstraction are known. Besides, data collected over time vary both quantitatively as qualitatively, which makes data analysis difficult.

Furthermore, the collected data relate to two different realities – dug wells and drilled wells - and it is reasonable to apply them a conceptual model based on the supposition that they concern two equally different aquifers: a porous aquifer located near the surface, in the superficial zone of granite weathering, taken as an unconfined aquifer and shown up by countless flooded zones and superficial abstractions detected in the field, and a fissured aquifer, located under the first one in a deeper fractured rock zone, taken as a confined aquifer (Afonso, M.J.C. 2003; Carvalho, J.M., 2006).

Therefore, in view of the hydrogeological characterization of the former mining area and the identification of main drainage pathways, supplementary data was needed to enable us to confirm (or not) the layout of the several unpublished reports. For this, two geophysical surveys were undertaken, using two different geophysical methods. This was intended to supplement the information obtained in each campaign.

Main fractures identified in the initial study performed, which was based on photogeological analysis of the studied area.



Materials and Methods

Bases and methods

It is common to be faced with problems of several orders when approaching the hydrogeological study of fractured rocks with a view to their hydraulic characterization.

In the case of granitic rocks, in particular, which, when fresh, are practically impermeable to water, it is well known that its secondary porosity, namely due to several physical processes, can very often play a determinant role in water circulation.

The circulation of the water in this type of rock prompts a fundamental question, which is linked to the identification of the fractures from where the drainage can proceed: these fractures are not always easy to identify, bearing in mind the thickness of the covering layer that sometimes overlies the rock (Afonso, M.J.C. 2003).

So, we need to resort to indirect survey methods that enable us to identify any abnormalities of hydrogeological interest.

The methods used in the current work are very low frequency – electromagnetics (VLF-EM) and radio magnetotelluric – resistivity (RMT-R). Both methods are based on radio waves from low frequency to very low frequency – from 12 kHz to 300 kHz in both methods – which are emitted by antennas located all over the world (Thierrin, J. et al., 1988; Turberg, P. et al., 1992; Turberg, P., 1993).

These waves also propagate in the basement, with the depth of penetration of their generated primary field being given by :

where :

P - depth of penetration of the primary field generated by the radio waves (m)
ρ_a - apparent resistivity (ohm.m)
F - wave frequency (Hz).

But these waves also give rise to a secondary electromagnetic field, which depends on the nature of the material crossed and can be detected at the surface (Thierrin, J. et al., 1988; Turberg, P. et al., 1992). Consequently the resultant electromagnetic field consists of the sum of the primary and secondary fields, which are distinguished by intensity, phase and direction.

VLF-EM Method

With the VLF-EM method, special, well-adjusted devices make use of one horizontal axis coil to measure the intensity of the primary electromagnetic field (Hp), while the intensity of the secondary field (Hs) is measured through one vertical axis coil.

The equipment used was specifically developed for hydrogeological purposes by Prof. Imre Müller, of the Centre of Hydrogeology of the University of Neuchâtel (Müller, I., 1983).

It differs from commercial appliances since it continuously registers the variation of the signal. The joint use of a data logger and a GPS secures the right location of registered anomalies (Müller, I., 1983; Thierrin, J. et al., 1988; Turberg, P. et al., 1992).

The vertical components are either in phase or out of phase relative to the primary field.

The expression of the results is given by the relation Hs/Hp %, as illustrated in Figure 5.

The method permits detection of the presence of electricity-conducting bodies such as faults filled with clay materials exhibiting equally great sensitivity to other important hydrogeologic characteristics, such as lateral facies variations (Dill, A. et al., 1998).

The method has the additional advantage of not requiring contact with the ground –once the antenna is automatically oriented, it can be used manually or installed in vehicles.

RMT-R Method

The RMT-R method measures the electric field, E_x , in the direction of propagating radio waves (e.g. in the emitter antenna direction). The electric field is measured between two electrodes inserted in the ground at a certain distance from each other (in our work this distance is 5 meters).

The RMT-R method also measures the magnetic field, H_y , which is measured through a coil whose horizontal axis is normal to the emitter antenna direction.

The apparent resistivity, ρ_a, results from the application of equation (2):

where:

E_x - electric component of the resultant field (Volt/m)
H_y - magnetic component of the resultant field (Ampere/m)
μ₀ - permeability of free space (Henry/m).
F - wave frequency (Hz).

This method also measures the phase-shift, Φ, between the electric and magnetic components. The phase-shift enables inference of the stratigraphic characteristics of the place under study: there will be a conductive layer over a resistive one if Φ< 45º , there will be a resistive layer over a conductive one if Φ> 45º, and the medium is considered homogeneous if Φ = 45º .

Given the fact that emitter antennas being located far apart from the receiver device, we could consider all directions of propagation as essentially parallel, which in practice reduces to only one direction. Once the device allows the simultaneous measurement of 4 frequencies, we can interpret it as supplying information from 4 depths (see Figure 6). An inversion program (FITVLF2) for the personal computer was used to obtain the real resistivities and the thicknesses of the layers traversed. Although its description is beyond the scope of this article, detailed information about the method of inversion and its implementation can be found at Fischer, G. et al. (1981), Fischer, G. (1985) and Thierrin, J. (1992).

Figure 7

Since it is a quick method that enables measurements (soundings) to be taken at 5 m intervals it allows the detection of heterogeneities, and it is possible to infer the permeability of the formations from their resistivity values, although this has not been done in the present study.

Multidirectional soundings can also be carried out to get information about the anisotropy of the studied medium.



Results and Discussion

VLF-EM

In Figure 8 we present a photographic map of the places surveyed by VLF-EM method.

The marked points show the paths walked along and color gradation indicates that the relation Hs/Hp % is (the deeper the color, the stronger the relationship Hs/Hp %):

- red color – positive Hs/Hp % relationship;
- blue color – negative Hs/Hp % relationship;
- white color - near zero Hs/Hp % relationship.

All profiles were carried out at 16 kHz frequency and some important conclusions can be drawn from their interpretation (see Figure 8).

Very negative or very positive values (Hs/Hp <-40 % or Hs/Hp> 40 %) correspond to measurements taken under the influence of high tension power lines and so they must not be considered. Negative Hs/Hp % values are usually related to major resistivity layers, whereas positive Hs/Hp % values indicate major electricity conductivity layers (for instance, the presence of clay materials).

Successive inflections of Hs/Hp % indicate fracture zones, the more important the greater the registered amplitude.

In Figure 9 we present a summarized interpretation of the obtained results, in order to illustrate the stated above. The joint interpretation of the VLF-EM results with information gathered on EDM internal reports and field reconnaissance data made it possible to draw a map summarizing the fractures in the studied area, from which main drainage trends can be established (see Figure 10, wherein places where the presence of water was noted are marked in blue).

RMT-R

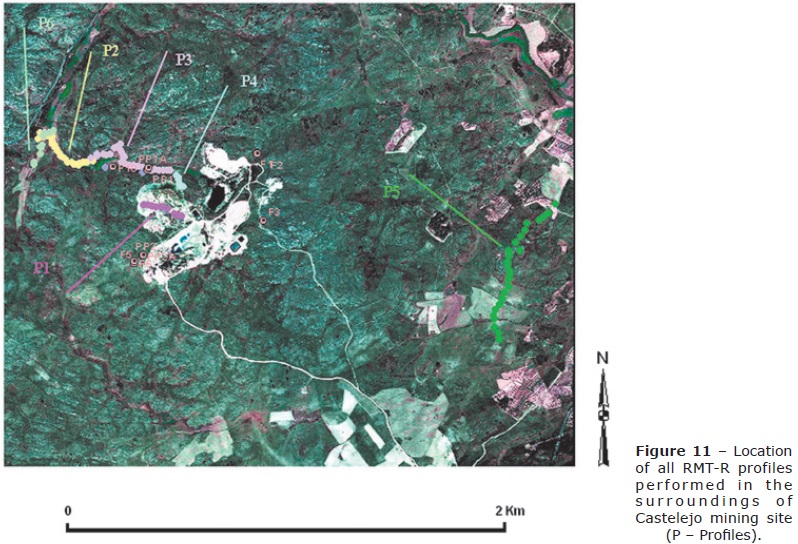

Apparent resistivity and phase difference between the electric and magnetic fields were measured in RMT-R survey profiles. These profiles were defined in the sectors marked with circles, and they were quite enlightening (see Figures 10 and 11).

In particular, the profiles located NW of the mining site, in the Castelejo Valley (see Figure 12), have revealed very interesting features.

After processing the obtained results using an inversion program (Fischer, G., 1985), the real resistivities and thicknesses of the different layers were computed (Figure 13). Mid sector values were calculated next.

We noted that all the profiles defined along the Castelejo Valley exhibit a decrease in resistivity with depth. Once we are away from the mineralized vein, this may suggest either more alteration of granites with depth, or a situation of deep-contamination.

The profile P1 reproduced in Figure 13 (referring to deep pink points in Figures 10 and 11) is located near the old mining site: resistivity values correspond to those obtained for almost unweathered granite blocks (with resistivity values > 1000 Ω.m) immersed in a weathered matrix (with resistivity values ≈ 700 Ω.m).

On the other side, the profile P6, also reproduced separately in Figure 13 (here referring to light green points in Figures 10 and 11) is located along the main fault valley near the confluence with the mine stream: resistivity values corresponding to a situation of very weathered rock material, decreasing with depth.

The profiles carried out along the valley that spreads out WNW from washing pools, indicate that this is a fault valley, filled in with erosion material. As before mentioned, all profiles show a decrease of resistivity not only with depth but also as we go away from the mine towards the main fault valley (e.g. from P1 to P6, see figure 12).



Conclusions

At the beginning of the study it was known the situation in terms of regional tectonics, which was known complex for being associated with a number of episodes of tardi-Hercynian fracturing, as well with the Alpine tectonics.

In order to better characterize the underlying geology of the old Castelejo mine, two geophysical surveying campaigns were conducted at the site. Both the results of the first campaign (VLF-EM results) and the references consulted, particularly in EDM internal reports, pointed to the presence of faults and fractures which might constitute the main pathways of superficial and underground drainage.

In the second campaign, measurements of RMT-R were performed to the WNW and ESE of the centre of exploration. Apparent resistivity and phase difference between the electric and magnetic fields were the measured values. The obtained values were projected graphically and processed, after which real resistivities and thicknesses were determined through the use of an inversion program.

After matching the literature data with the data obtained during field work, it was concluded that the direction of maximum compressive stress, s₁, located NNW-SSE to NW-SE, where extension fractures are developed, should be the one wherein groundwater flows more easily, since the larger openings of the fractures provide a better flow.

However, it was not possible to establish a direct correspondence between real resistivity values and permeability values, which, although outside the scope of this article, may be relevant for v.g. hydrogeological purposes.

All profiles also reveal a singular situation – their resistivity values decrease with depth.

This can be due to natural causes (more weathered layers) or it can indicate a situation of deep contamination with acid drainage (increased mineralization).

In fact, we are in the presence of a former uranium exploration, in which ore acid leaching took place in a flooded open sky, with a number of negative implications in the surroundings, particularly over groundwater. Treatment operations of the mine water still occur. However, any risks to populations seem weak, given the isolation of the area in terms of population.

Also the use of water seems to be aimed to agricultural purposes rather than for human consumption.

This point will be addressed in the future through the implementation of a hydrochemical monitoring plan.
